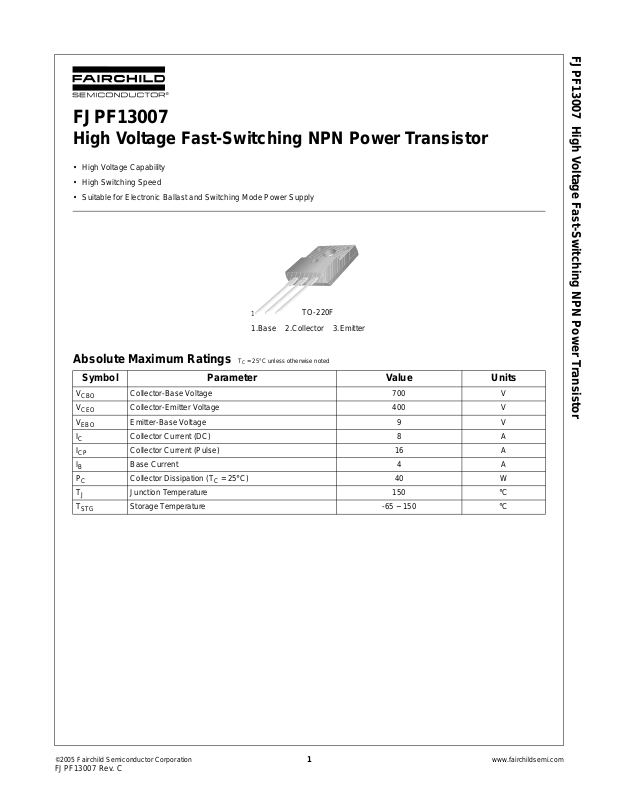

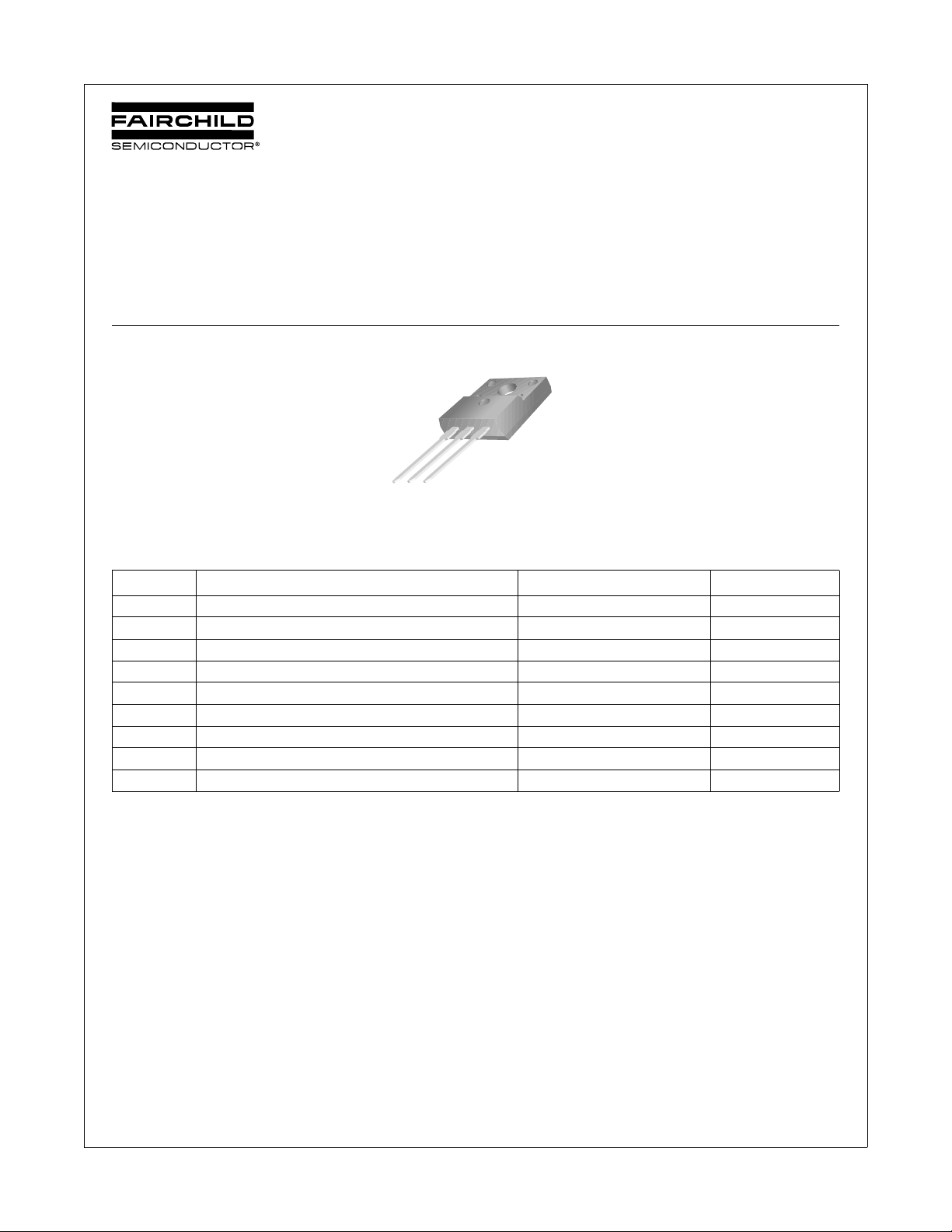

FJPF13007
High Voltage Fast-Switching NPN Power Transistor
• High Voltage Capabilit y
• High Switching Speed
• Suitable for Electronic Ballast and Switching Mode Power Supply
FJPF13007 High Voltage Fast-Switching NPN Power Transistor
TO-220F
Absolute Maximum Ratings
1
1.Base 2.Collector 3.Emitter
TC = 25°C unless otherwise noted
Symbol Parameter Value Units
V
V
V
I
I
I
P
T
T
CBO
CEO
EBO
C
CP
B
C
J
STG
Collector-Base Voltage 700 V
Collector-Emitter Voltage 400 V
Emitter-Base Voltage 9 V
Collector Current (DC) 8 A
Collector Current (Pulse) 16 A
Base Current 4 A
Collector Dissipation (TC = 25°C) 40 W
Junction Temperature 150 °C
Storage Temperature -65 ~ 150 °C
©2005 Fairchild Semiconductor Corporation
FJPF13007 Rev. C
1
www.fairchildsemi.com
Page 2
FJPF13007 High Voltage Fast-Switching NPN Power Transistor
Electrical Characteristics
TC = 25°C unless otherwise noted
Symbol Parameter Conditions Min. Typ. Max Units
BV
CEO
I
EBO
h
FE1
h
FE2
V
CE(sat)
V
BE(sat)
f
T
C
ob
t
ON
t
STG
t
F
* Pulse Test: PW ≤ 300µs, Duty Cycle ≤ 2%
Collector-Emitter Breakdown Voltage IC = 10mA, IB = 0 400 V
Emitter Cut-off Current VEB = 9V, IC = 0 1 µA
DC Current Gain VCE = 5V, IC = 2A
= 5V, IC = 5A
V
CE
Collector-Emitter Saturation Voltage IC = 2A, IB = 0.4A
= 5A, IB = 1A
I
C
= 8A, IB = 2A
I
C
Base-Emitter Saturation Voltage IC = 2A, IB = 0.4A
= 5A, IB = 1A
I
C
8
5
60
30
1.0
2.0
3.0
1.2
1.6
Current Gain Bandwidth Product VCE = 10V, IC = 0.5A 4 MHz
Output Capacitance VCB = 10V, f = 0.1MHz 110 pF
Turn On Time VCC = 125V, IC = 5A
I
= -I
= 25Ω
L
B2
= 1A
Storge Time 3.0 µs
B1
R
Fall Time 0.7 µs
1.6 µs
hFE Classification
Classification H1 H2
h
FE1
15 ~ 28 26 ~ 39
V
V
V
V
V
FJPF13007 Rev. C
2
www.fairchildsemi.com
Page 3

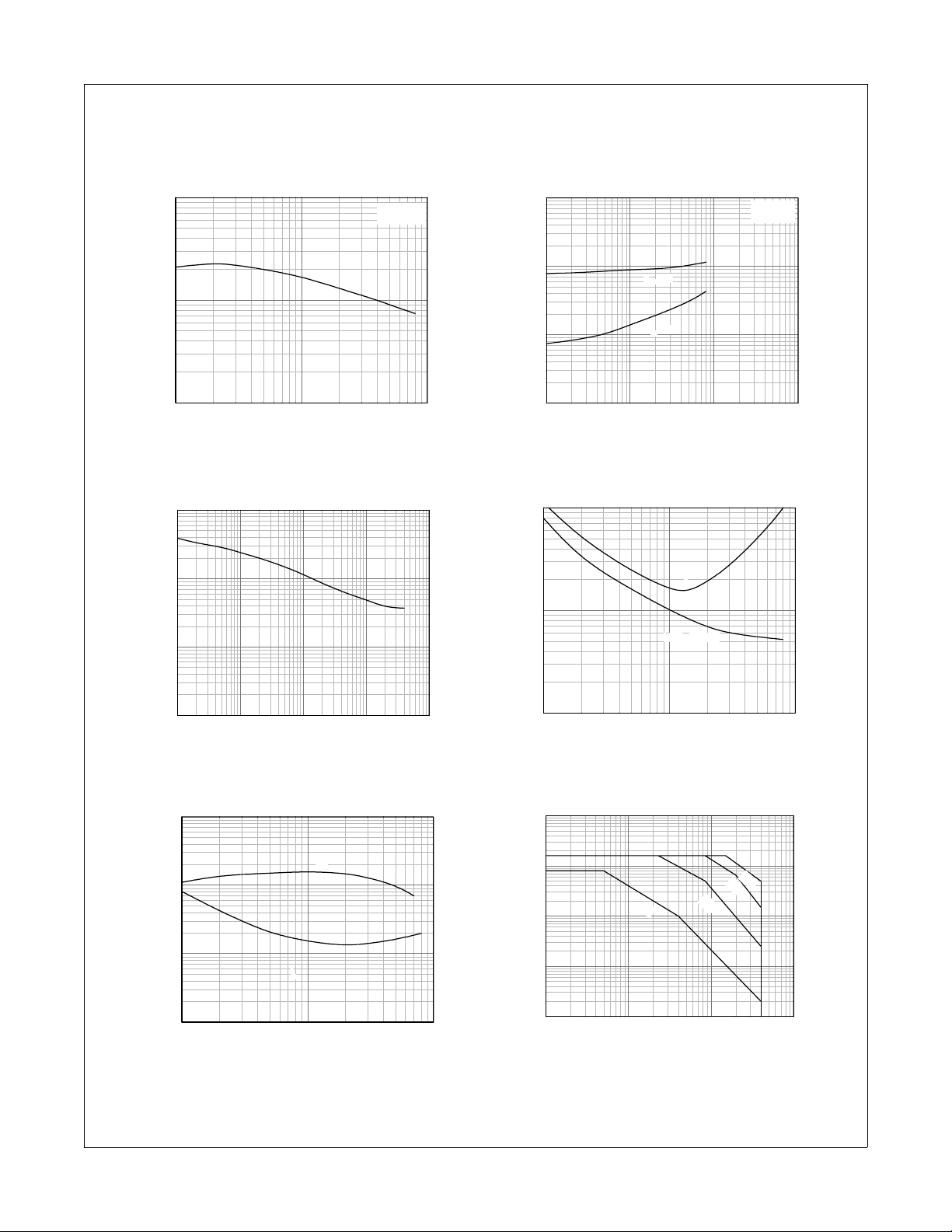

Typical Performance Characteristics
Figure 1. DC Current Gain Figure 2. Saturation Voltage
100
VCE = 5V
FJPF13007 High Voltage Fast-Switching NPN Power Transistor
10
IC = 3 I
B
10
, DC CURRENT GAIN
FE
h
1
0.1 1 10
IC[A], COLLECTOR CURRENT
1
0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
0.01
0.1 1 10 100
VBE(sat)
VCE(sat)
IC[A], COLLECTOR CURRENT
Figure 3. Collector Output Capacitance Figure 4. Turn On Time
1000
100
10
[pF], CAPACITANCE
ob
C
1
0.1 1 10 100 1000
VCB[V], COLLECTOR-BASE VOLTAGE
1000
100
[ns], TURN ON TIME
D
, t
R
t
VCC=125V
=5I
I
C
B
10
0.1 1 10
IC[A], COLLECTOR CURRENT
t
R
tD, VBE(off)=5V
10000
1000
[ns], TURN OFF TIME
F
100
, t
STG
t
10
FJPF13007 Rev. C
Figure 5. Turn Off Time Figure 6. Forward Biased Safe Operating Area
VCC=125V
I
=5I
C
t
STG
t
F
0.1 1 10
B
IC[A], COLLECTOR CURRENT
100
10
1
0.1
[A], COLLECTOR CURRENT
C
I
0.01
1 10 100 1000
VCE[V], COLLECTOR-EMITTER VOLTAGE
3
10
µ
100
s
µ
s
D
C
1ms
www.fairchildsemi.com
Page 4
FJPF13007 High Voltage Fast-Switching NPN Power Transistor
Typical Performance Characteristics
(Continued)

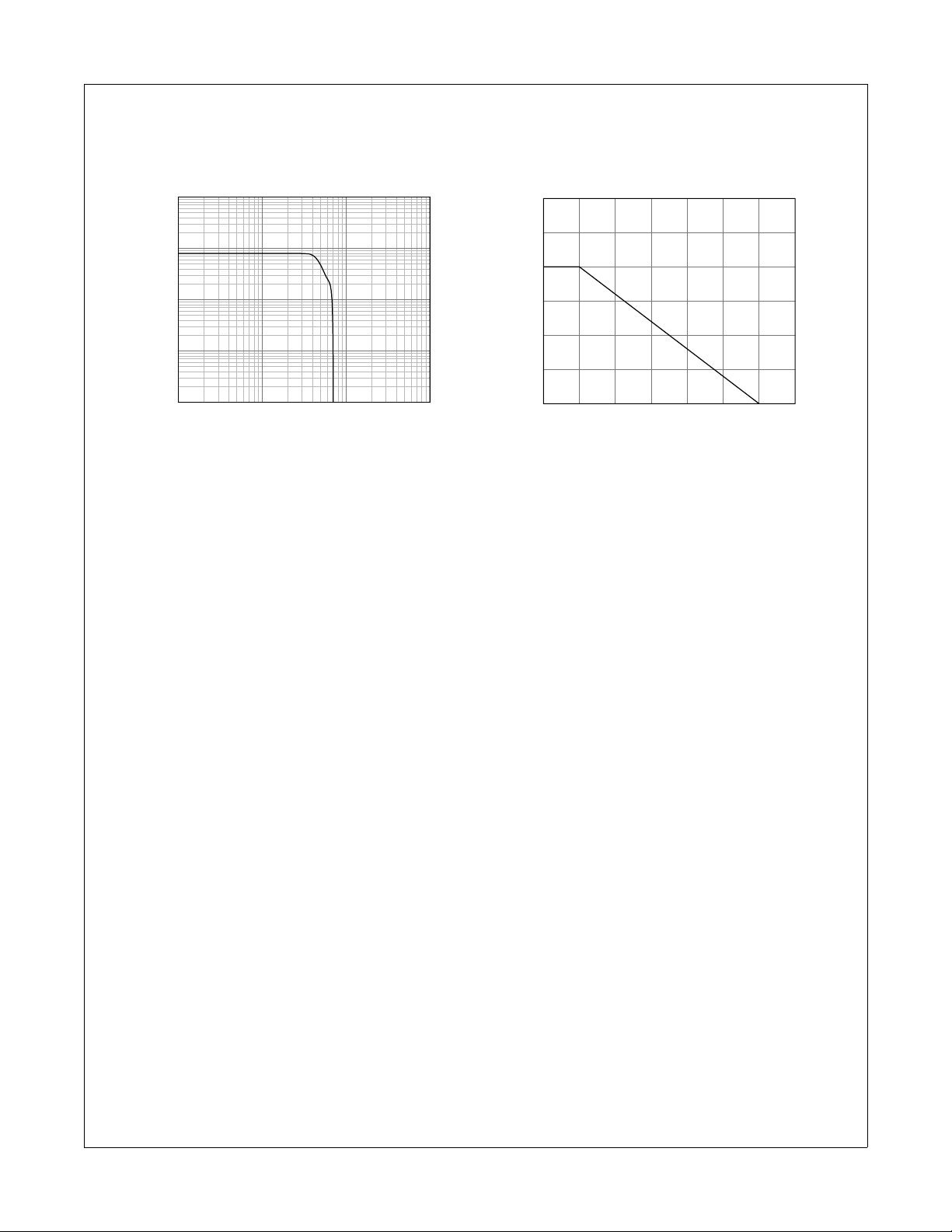

Figure 7. Reverse Biased Safe Operating Area Figure 8. Power Derating
100
10
1
0.1
[A], COLLECTOR CURRENT
C
I
0.01
10 100 1000 10000
Vcc=50V,
I
=1A, IB2 = -1A
B1
L = 1mH
VCE[V], COLLECTOR-EMITTER VOLTAGE
60
50
40
30
20
[W], POWER DISSIPATION
C
10
P
0
0 25 50 75 100 125 150 175
TC[oC], CASE TEMPERATURE
FJPF13007 Rev. C
4
www.fairchildsemi.com
Page 5

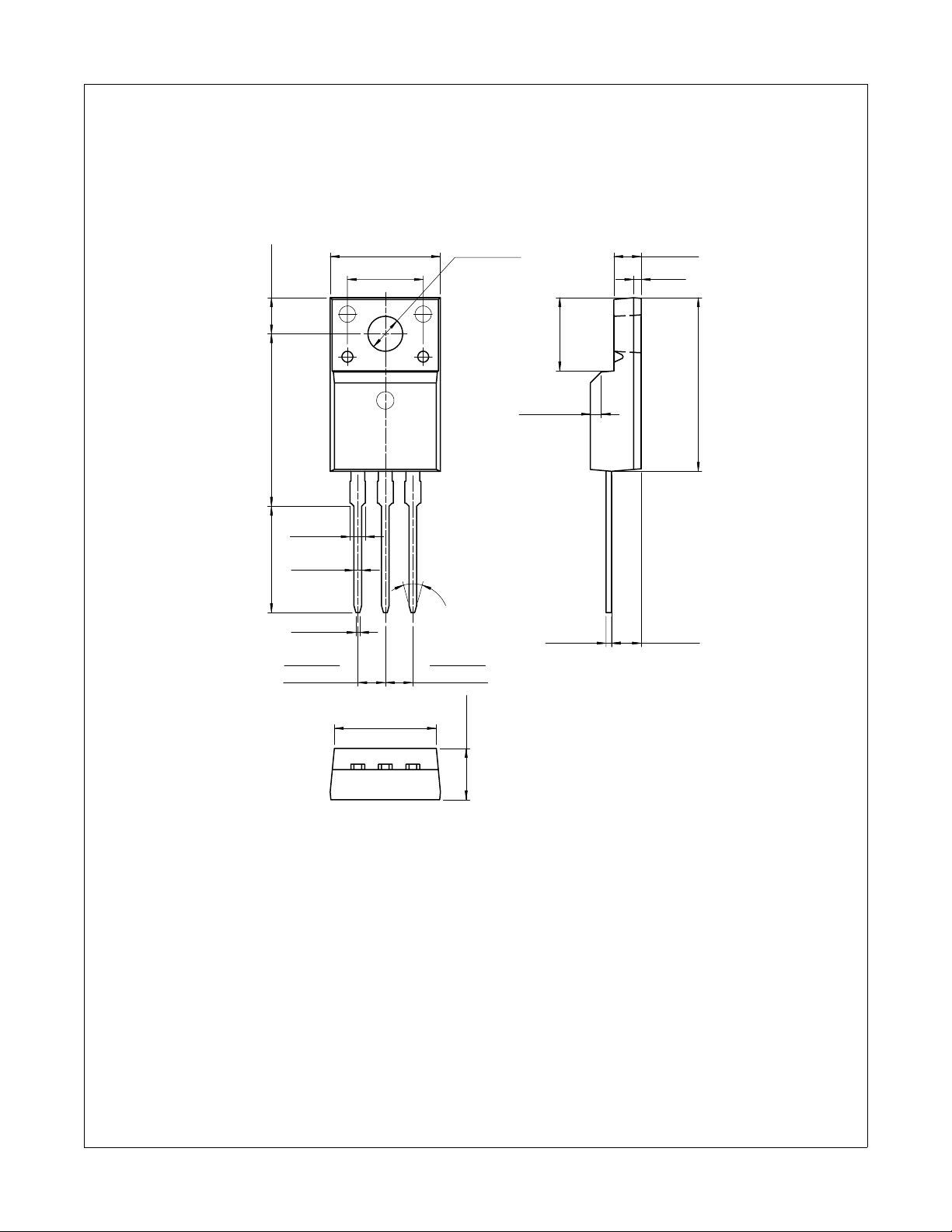

Mechanical Dimensions
±0.10
3.30
±0.20
15.80
MAX1.47
±0.30
0.80
9.75
±0.10
10.16
(7.00)
TO-220F
±0.20
(30°)
ø3.18
±0.10
±0.20
6.68
(1.00x45°)
2.54
(0.70)
FJPF13007 High Voltage Fast-Switching NPN Power Transistor
±0.20
±0.20
15.87
0.35
2.54TYP
[2.54
±0.10
±0.20
#1
0.50
+0.10
–0.05
2.76
±0.20
2.54TYP
]
9.40
±0.20
[2.54
±0.20
±0.20
]
4.70
FJPF13007 Rev. C
Dimensions in Millimeters
5
www.fairchildsemi.com
Page 6
