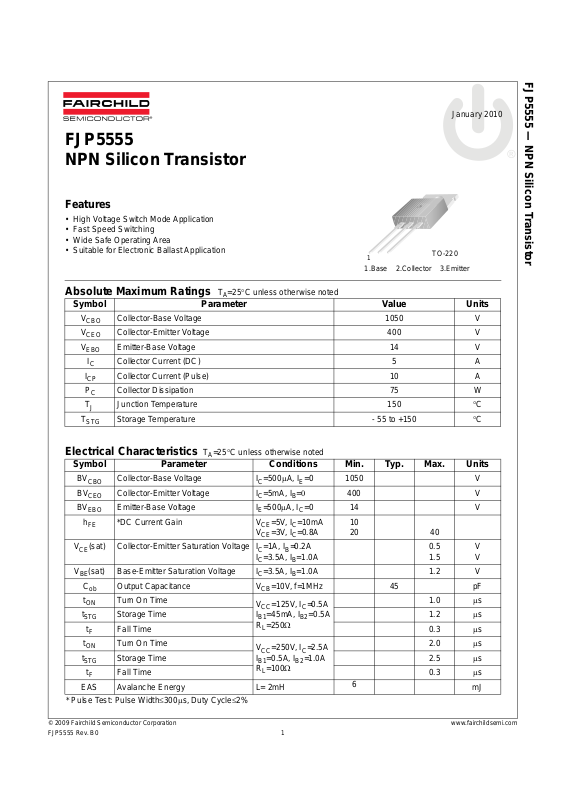

Page 1

FJP5555 NPN Silicon Transistor

Features

• High Voltage Switch Mode Application

• Fast Speed Switching

• Wide Safe Operating Area

• Suitable for Electronic Ballast Application

January 2010

1.Base 2.Collector 3.Emitter

TO-220

FJP5555 — NPN Silicon Transistor

Absolute Maximum Ratings T

=25°C unless otherwise noted

Symbol Parameter Value Units

CBO

CEO

EBO

STG

Electrical Characteristics T

Collector-Base Voltage 1050 V Collector-Emitter V oltage 400 V Emitter-Base Voltage 14 V Collector Current (DC) 5 A

Collector Current (Pulse) 10 A Collector Dissipation 75 W

Junction Temperature 150 °C

Storage Temperature - 55 to +150 °C

=25°C unless otherwise noted

Symbol Parameter Conditions Min. Typ. Max. Units

CBO

CEO

EBO

(sat) Base-Emitter Saturation Voltage IC=3.5A, IB=1.0A 1.2 V

STG

EAS Avalanche Energy L= 2mH

* Pulse Test: Pulse Width≤300μs, Duty Cycle≤2%

Collector-Base Voltage IC=500μA, IE=0 1050 V Collector-Emitter Voltage IC=5mA, IB=0 400 V Emitter-Base Voltage IE=500μA, IC=0 14 V *DC Current Gain VCE=5V, IC=10mA

=3V, IC=0.8A

10 20 40

(sat) Collector-Emitter Saturation Voltag e IC=1A, IB=0.2A

=3.5A, IB=1.0A

Output Capacitance VCB=10V, f=1MHz 45 pF

Turn On Time Storage Time 1.2 μs Fall Time 0.3 μs

Turn On Time Storage Time 2.5 μs Fall Time 0.3 μs

=125V, IC=0.5A

=45mA, IB2=0.5A

=250Ω

=250V, IC=2.5A

=0.5A, IB2=1.0A

=100Ω

0.5

1.5

1.0 μs

2.0 μs

V V

Page 2

Typical Characteristics

FJP5555 — NPN Silicon Transistor

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

[A], COLLECTOR CURRENT

0.5

0.0 0123456789

IB = 600mA

IB = 200mA

IB = 100mA

VCE [V], COLLECTOR-EMITTER VOLTAGE

100

, DC CURRENT GAIN

1 1E-3 0.01 0.1 1 10

Ta = 125oC

Ta = - 25oC

Ta = 75oC

Ta = 25oC

IC [A], COLLECTOR CURRENT

Figure 1. Static Characteristics Figure 2. DC Current Gain

IC = 5 I

0.1

Ta = 125oC

Ta = 75oC

Ta = - 25oC

Ta = 25oC

0.1

IC = 5 I

Ta = - 25oC

Ta = 125oC

Ta = 25oC

Ta = 75oC

VCE = 5V

(sat) [V], SATURATION VOLTAGE

0.01

0.01 0.1 1 10

IC [A], COLLECTOR CURRENT

(sat) [V], SATURATION VOLTAGE

0.01

0.01 0.1 1 10

IC [A], COLLECTOR CURRENT

Figure 3. Saturation Voltage Figure 4. Saturation Voltage

0.1

[us], SWITCHING TIME

& t

STG

VCC=125V

=45mA, IB2=0.5A

0.01

0.1 1

IC [A], COLLECTOR CURRENT

STG

0.1

[us], SWITCHING TIME

& t

STG

VCC=250V

=0.5A, IB2=1.0A

0.01

0.1 1 10

IC [A], COLLECTOR CURRENT

STG

Figure 5. Resistive Load Switching Figure 6. Resistive Load Switching

Page 3

Typical Characteristics (Continued)

FJP5555 — NPN Silicon Transistor

[A], COLLECTOR CURRENT

VCC=50V, L=1mH

=3A, RB2=0

10 100 1000

VCE [V], COLLECTOR-EMITTER VOLTAGE

100

[W], POWE R DISSIPATION

0 25 50 75 100 125 150 175

Tc[oC], CASE TEMPERATURE

Figure 7. Reverse Biased Safe Operating Area Figure 8. Power Derating

100ms

10ms

100

ICP(max)

IC(max)

0.1

[A], COLLECTOR CURRENT

Tc=25oC Single Pulse

0.01 1 10 100 1000

VCE[V], COLLECTOR-EMITTER VOLTAGE

Figure 9. Forward Biased Safe Operating Area

Page 4

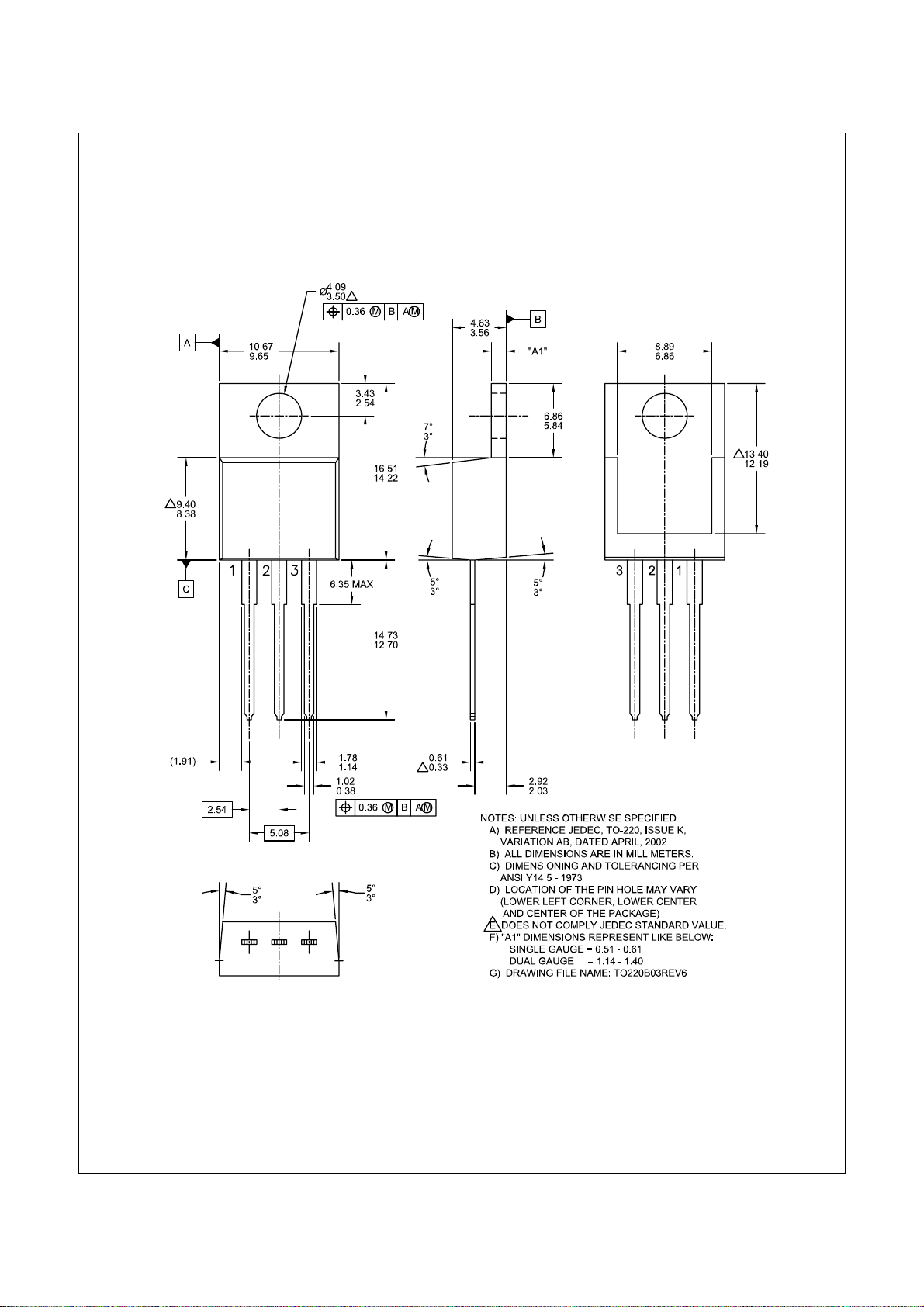

Physical Dimensions

FJP5555 — NPN Silicon Transistor

TO-220

Dimensions in Millimeters
