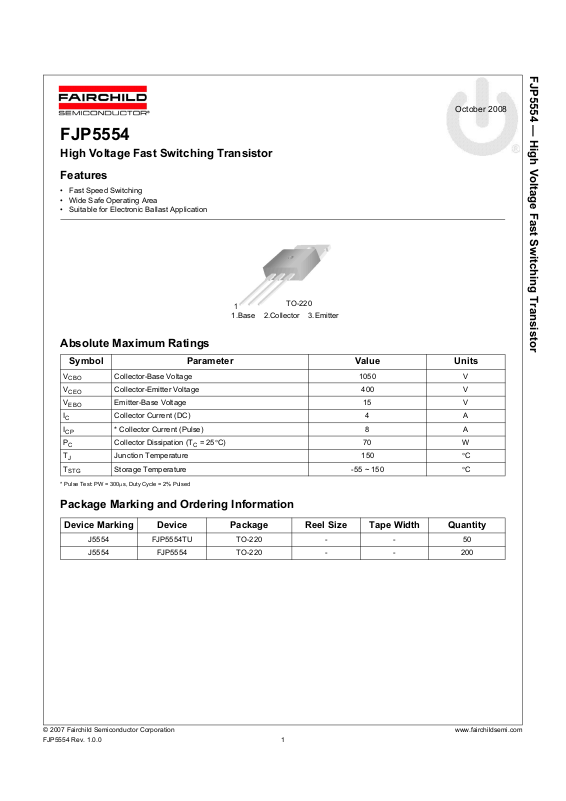

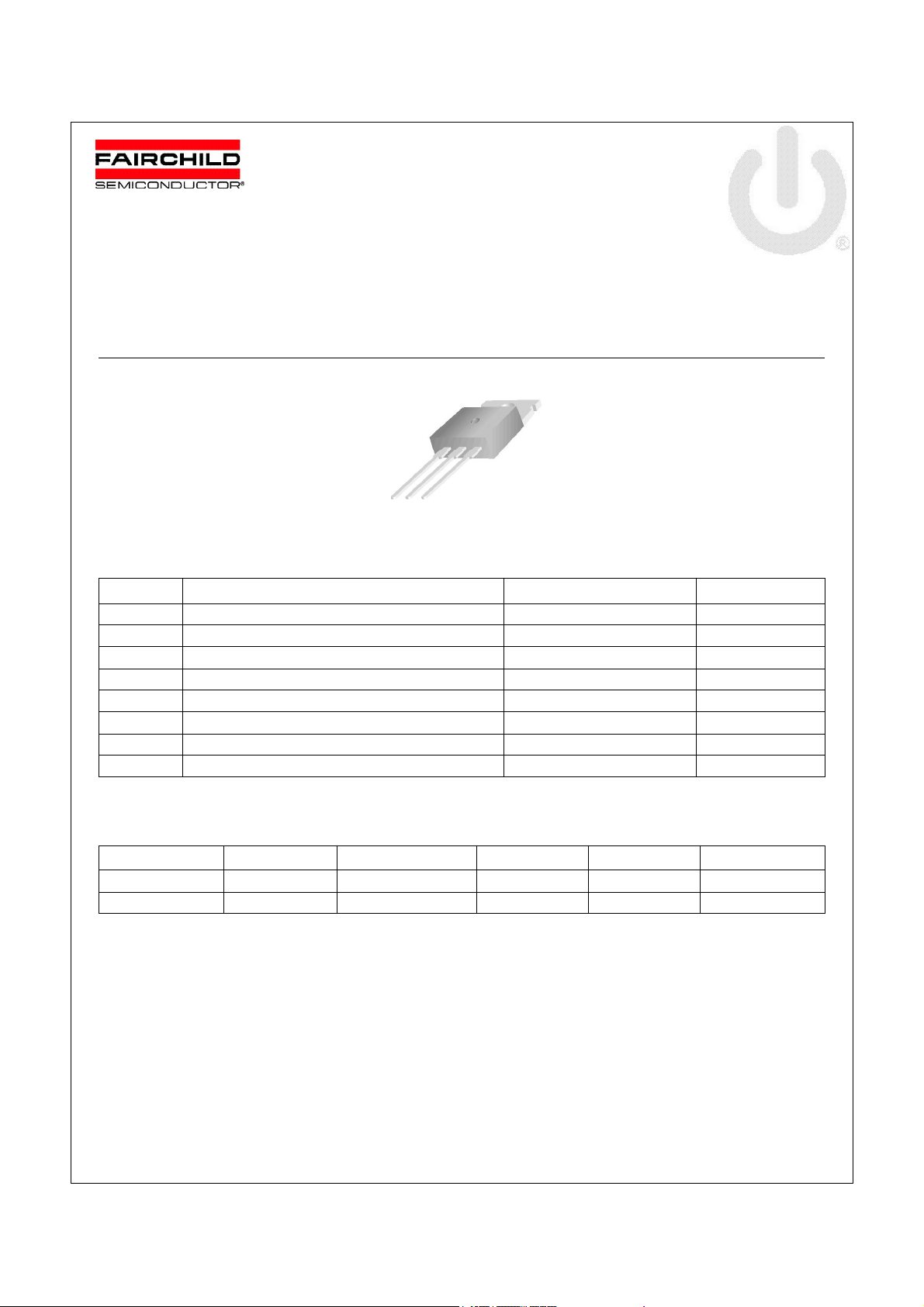

FJP5554

High Voltage Fast Switching Transistor

Features

• Fast Speed Switching

• Wide Safe Operating Area

• Suitable for Electronic Ballast Application

FJP5554 — High Voltage Fast Switching Transistor

October 2008

1

1.Base 2.Collector 3.Emitter

TO-220

Absolute Maximum Ratings

Symbol Parameter Value Units

V

CBO

V

CEO

V

EBO

I

C

I

CP

P

C

T

J

T

STG

* Pulse Test: PW = 300ms, Duty Cycle = 2% Pulsed

Collector-Base Voltage 1050 V

Collector-Emitter Voltage 400 V

Emitter-Base Voltage 15 V

Collector Current (DC) 4 A

* Collector Current (Pulse) 8 A

Collector Dissipation (TC = 25°C) 70 W

Junction Temperature 150 °C

Storage Temperature -55 ~ 150 °C

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

J5554 FJP5554TU TO-220 - - 50

J5554 FJP5554 TO-220 - - 200

FJP5554 Rev. 1.0.0 1

FJP5554 — High Voltage Fast Switching Transistor

Electrical Characteristics T

= 25°C unless otherwise noted

C

Symbol Parameter Conditions Min. Typ. Max Units

BV

I

CBO

I

CEO

I

EBO

h

FE

V

CE(sat)

V

BE(sat)

t

ON

t

STG

t

F

CBO

CEO

EBO

Collector-Base Breakdown Voltage IC = 500mA, IE = 0 1050 V

Collector-Emitter Breakdown Voltage IC = 5mA, IB = 0 400 V

Emitter-Base Breakdown Voltage IE = 1mA, IC = 0 15 23 V

Collector Cut-off Current VCB = 1050V, IE = 0 1 mA

Collector Cut-off Current VCB = 400V, IB = 0 250 mA

Emitter Cut-off Current VEB = 15V, IC = 0 1 mA

DC Current Gain VCE = 5V, IC = 0.1A

VCE = 3V, IC = 0.8A

45 20

100

50

Collector-Emitter Saturation Voltage IC = 1A, IB = 0.2A 0.5 V

IC = 3.5A, IB = 1.0A 1.5 V

Base-Emitter Saturation Voltage IC = 3.5A, IB = 1.0A 1.5 V

Turn On Time

Storage Time 1.2 ms

Fall Time 0.3 ms

VCC=125V, IC=0.5A IB1=45mA, IB2=0.5A RL=250W

1.0 ms

FJP5554 Rev. 1.0.0 2

Typical Performance Characteristics

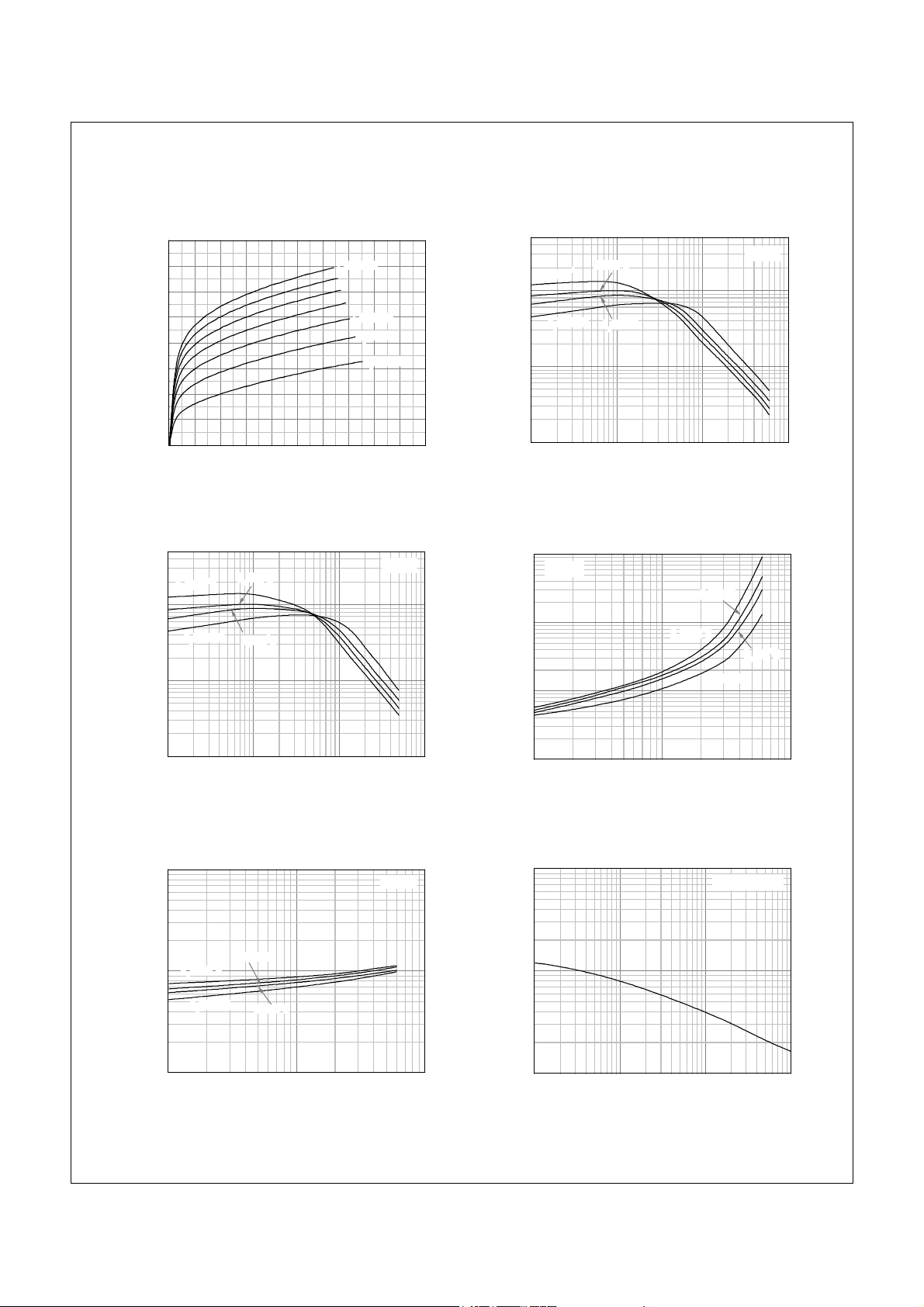

Figure 1. Static Characterstic Figure 2. DC Current Gain

FJP5554 — High Voltage Fast Switching Transistor

4.0

3.5

3.0

2.5

2.0

1.5

1.0

[A], COLLECTOR CURRENT

C

I

0.5

0.0 0 1 2 3 4 5 6 7 8 9 10

IB=350mA

IB=150mA

IB=100mA

IB=50mA

VCE [V], COLLECTOR-EMITTER VOLTAGE

Figure 3. DC Current Gain Figure 4. Collector-Emitter Saturation Voltage

TC= 125oC

100

TC= - 25oC

10

hFE, DC CURRENT GAIN

1

0.01 0.1 1 10

TC= 75oC

TC= 25oC

IC [A], COLLECTOR CURRENT

VCE=5V

TC= - 25oC

TC= 75oC

TC= 25oC

TC= 125oC

100

10

hFE, DC CURRENT GAIN

1

0.01 0.1 1 10

IC [A], COLLECTOR CURRENT

10

IC=3.5 I

B

TC= 75oC

1

0.1

(SAT) [V], SATURATION VOLTAGE

CE

V

0.01

0.1 1 10

TC= 125oC

TC= - 25oC

IC [A], COLLECTOR CURRENT

VCE=3V

TC= 25oC

Figure 5. Base-Emitter Saturation Voltage Figure 6. Output Capacitance

10

TC= 125oC

TC= 25oC

TC= 75oC

1

TC= - 25oC

(sat) [V], SATURATION VOLTAGE

BE

V

0.1

0.1 1 10

IC=3.5 I

B

IC [A], COLLECTOR CURRENT

FJP5554 Rev. 1.0.0 3

1000

f = 1MHz, IE=0

100

[pF], OUTPUT CAPACITANCE

OB

C

10

0.1 1 10 100

VCB [V], COLLECTOR-BASE VOLTAGE

Typical Performance Characteristics (Continued)

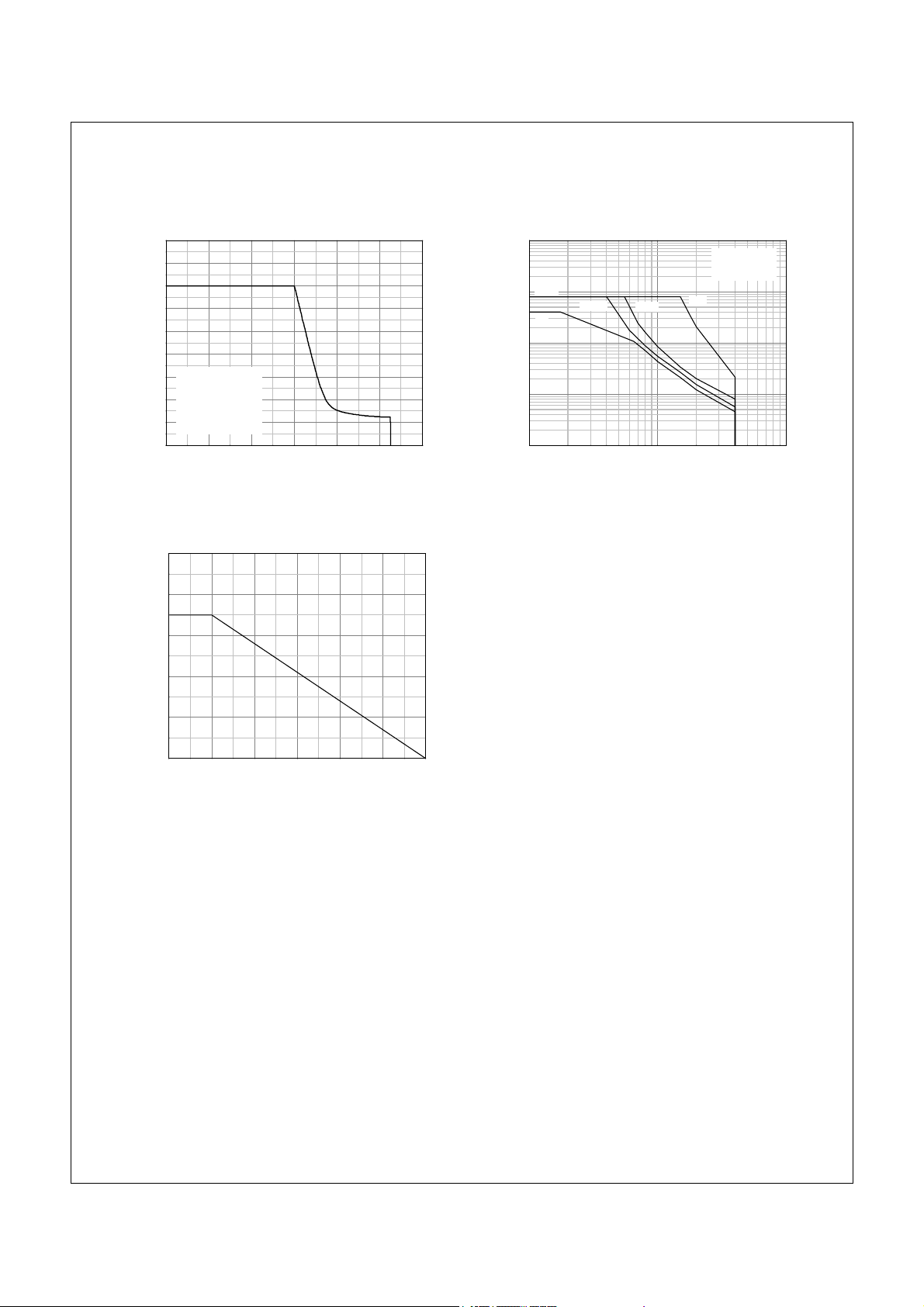

Figure 7. Reverse Biased Safe Operating Area Figure 8. Forward Biased Safe Operating Area

FJP5554 — High Voltage Fast Switching Transistor

10

9

8

7

6

5

4

VBE(off)=-5V

RBE(off)=1 ohm

3

[A], COLLECTOR CURRENT

C

I

VCC=50V, IB1=1.2A

2

L=1mH

1

0 200 400 600 800 1000 1200

VCE [V], COLLECTOR-EMITTER VOLTAGE

Figure 9. Power Derating Curve

100

80

60

40

100

Single Pulse TC=25oC

Pulse

10

1

0.1

[A], COLLECTOR-CURRENT

C

I

0.01 10

DC

100ms

10ms

100

1ms

1000

VCE [V], COLLECTOR-EMITTER VOLTAGE

20

[W], COLLECTOR POWER DISSIPATION

C

P

0

0 25 50 75 100 125 150

TC [oC], CASE TEMPERATURE

FJP5554 Rev. 1.0.0 4

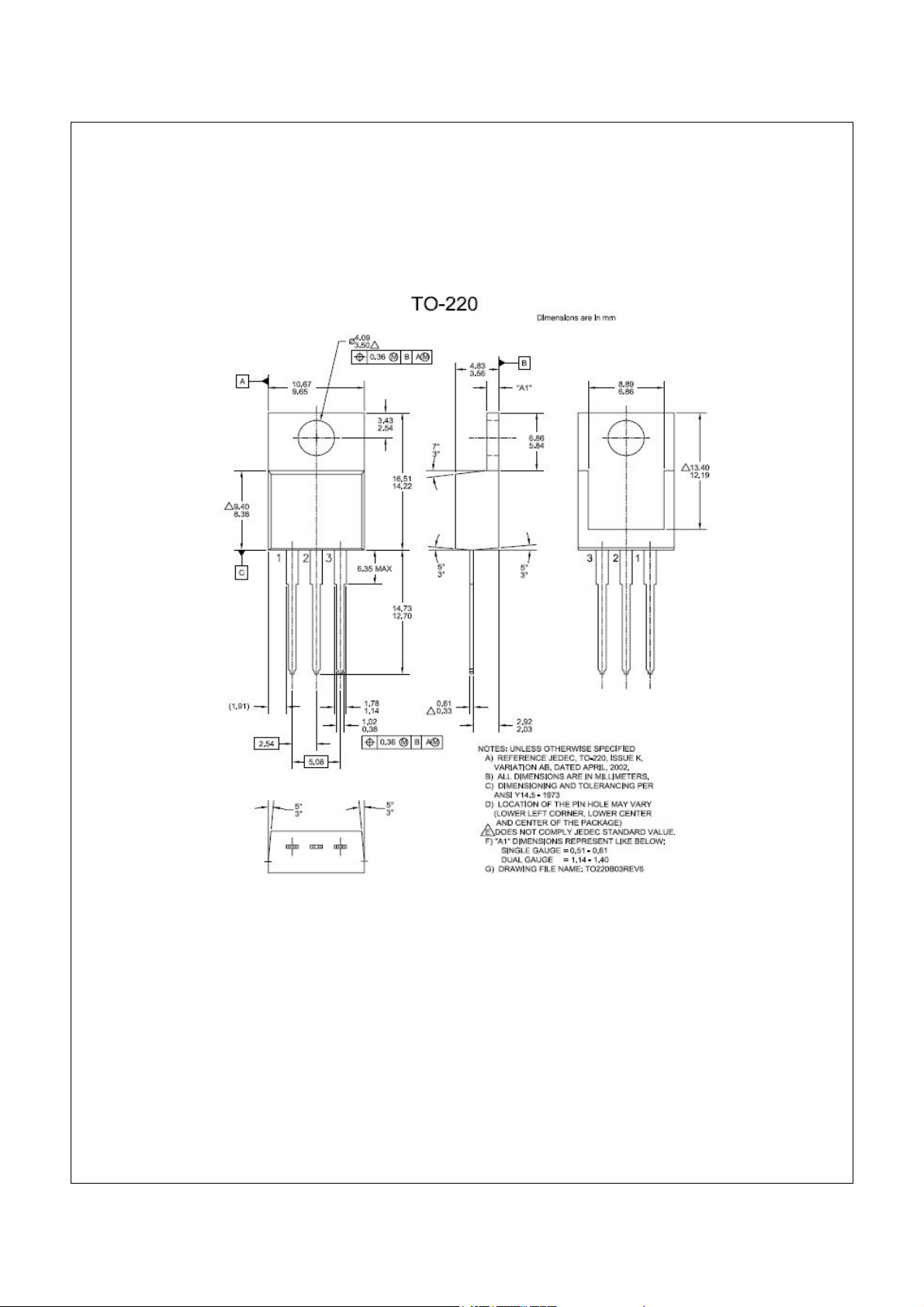

Package Dimension

FJP5554 — High Voltage Fast Switching Transistor

Dimensions in Millimeters

FJP5554 Rev. 1.0.0 5
