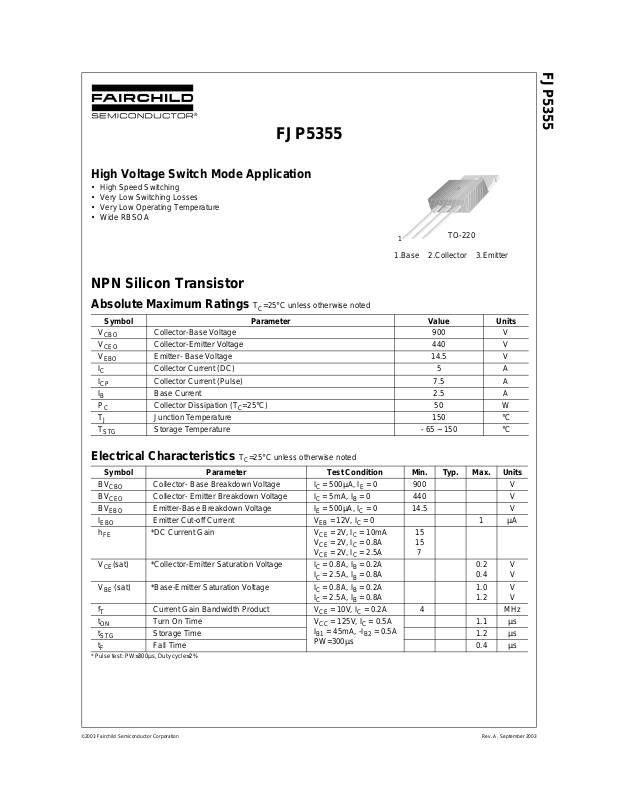

Page 1
FJP5355
High Voltage Switch Mode Application
• High Speed Switching
• Very Low Switching Losses
• Very Low Operating Temperature
•Wide RBSOA
FJP5355
1
TO-220
1.Base 2.Collector 3.Emitter
NPN Silicon Transistor
Absolute Maximum Ratings
Symbol Parameter Value Units
V
V
V
I
C
ICP
IB
P
T
T
CBO
CEO
EBO
C
J
STG
Collector-Base Voltage 900 V
Collector-Emitter Voltage 440 V
Emitter- Base Voltage 14.5 V
Collector Current (DC) 5 A
Collector Current (Pulse) 7.5 A
Base Current 2.5 A
Collector Dissipation (TC=25°C) 50 W
Junction Temperature 150 °C
Storage T emperature - 65 ~ 150 °C
Electrical Characteristics
Symbol Parameter Test Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
EBO
h
FE
(sat) *Collector-Emitter Saturation Voltage IC = 0.8A, IB = 0.2A
V
CE
(sat) *Base-Emitter Saturation Voltage IC = 0.8A, IB = 0.2A
V
BE
f
T
t
ON
t
STG
t
F
* Pulse test: PW≤300µs, Duty cycle≤2%
Collector- Base Breakdown Voltage IC = 500µA, IE = 0 900 V
Collector- Emitter Breakdown Voltage IC = 5mA, IB = 0 440 V
Emitter-Base Breakdown Voltage IE = 500µA, IC = 0 14.5 V
Emitter Cut-off Current V
*DC Current Gain
Current Gain Bandwidth Product V
Turn On Time V
Storage Time 1.2 µs
Fall Time 0.4 µs
TC=25°C unless otherwise noted
TC=25°C unless otherwise noted
= 12V, IC = 0 1 µA
EB
V
= 2V, IC = 10mA
CE
V
= 2V, IC = 0.8A
CE
= 2V, IC = 2.5A
V
CE
= 2.5A, IB = 0.8A
I
C
I
= 2.5A, IB = 0.8A
C
= 10V, IC = 0.2A 4 MHz
CE
= 125V, IC = 0.5A
CC
= 45mA, -IB2 = 0.5A
I
B1
PW=300µs
15
15
7
0.2
0.4
1.0
1.2
1.1 µs
V
V
V
V
©2003 Fairchild Semiconductor Corporation Rev. A, September 2003
Page 2
Typical Characteristics
FJP5355
5
1000
VCE = 5V
4
3
IB=600mA
100
TC = 125oC
TC = 75oC
IB=300mA
2
IB=200mA
IB=100mA
1
[A], COLLECTOR CURRENT
C
I
0
012345
VCE [V], COLLECTOR-EMITTER VOLTAGE
TC = - 40oC
10
, DC CURREMT GAIN
FE
h
1
1m 10m 100m 1 10
TC = 25oC
IC [A], COLLECTOR CURRENT
Figure 1. Static Characteristic Figure 2. DC Current Gain
10
IC = 4 I
B
1
0.1
(sat) [V], SATURATION VOLTAGE
CE
V
0.01
1m 10m 100m 1 10
TC = 75oC
TC = 125oC
TC = - 40oC
IC [A], COLLECTOR CURRENT
TC = 25oC
10
IC = 4 I
B
1
TC = - 40oC
(sat) [V], SATURATION VOLTAGE
BE
V
0.1
1m 10m 100m 1 10
TC = 25oC
TC = 125oC
IC [A], COLLECTOR CURRENT
TC = 75oC
Figure 3. Saturation Voltage Figure 4. Saturation Voltage
1000
100
[ns], Switching Time
F
& t
STG
t
IB1=45mA, IB2=-500mA
=125V,PW=3 00u s
V
CC
10
0.3
IC [A], COLLECTOR CURRENT
Figure 5. Resistive Loa d Switching Figure 6. Power Derat ing Curve
©2003 Fairchild Semiconductor Corporation
60
t
STG
t
F
1
4
50
40
30
20
10
[W], COLLECTOR POWER DISSIPATION
C
0
P
0 25 50 75 100 125 150 175
TC[oC], CASE TEMPERATURE
Rev. A, September 2003
Page 3
Typical Characteristics
(Continued)
FJP5355
10ms
1ms
500µs
6
5
4
3
2
[A], COLLECTOR CURRENT
C
IB1=1A, RB2=0
I
1
10 100 1000
L=1mH, V
CC
=50V
VCE [V], COLLECTOR-EMITTER VOLTAGE
100
ICP(max)
10
DC
IC(max)
1
0.1
[A], COLLECTOR CURRENT
C
I
0.01
1 10 100 1000
VCE[V], COLLECTO R -EMITT ER VOLTAGE
Figure 7. Reverse Biased Safe Operating Area Figure 8. Forward Biased Safe Operating Area
©2003 Fairchild Semiconductor Corporation
Rev. A, September 2003
Page 4
Package Dimensions
±0.10
(1.70)
1.30
±0.20
9.20
(1.46)
9.90
(8.70)
ø3.60
TO-220
±0.20
±0.10
(45°)
(3.70)(3.00)
±0.10
2.80
±0.20
18.95MAX.
15.90
4.50
1.30
±0.20
+0.10
–0.05
FJP5355
±0.20
13.08
(1.00)
1.27
2.54TYP
±0.20
[2.54
±0.10
]
10.00
±0.20
1.52
±0.10
0.80
±0.10
2.54TYP
±0.20
[2.54
±0.30
10.08
+0.10
0.50
–0.05
2.40
±0.20
]
Dimensions in Millimeters
©2003 Fairchild Semiconductor Corporation Rev. A, September 2003
