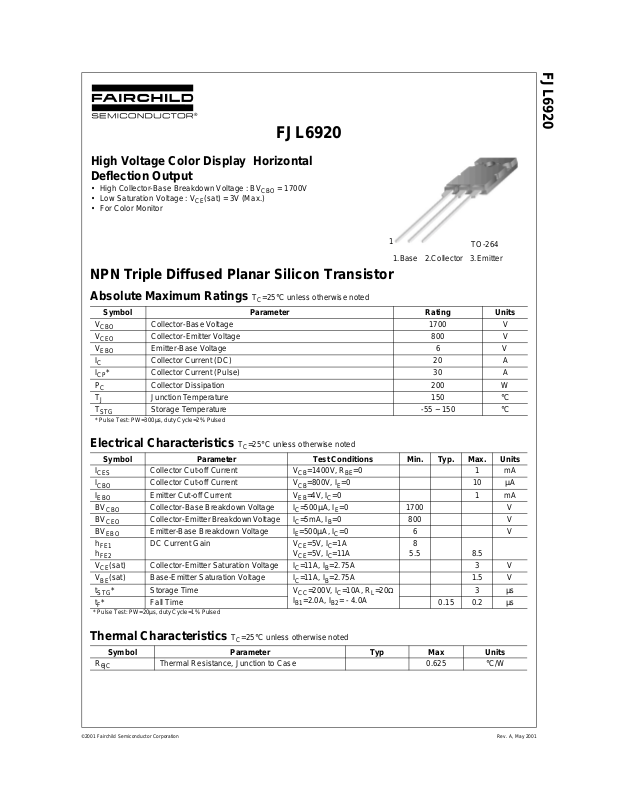

FJL6920

High Voltage Color Display Horizontal Deflection Output

• High Collector-Base Breakdown Voltage : BV

• Low Saturation Voltage : V

(sat) = 3V (Max.)

CE

• For Color Monitor

CBO

= 1700V

FJL6920

1

TO-264

1.Base 2.Collector 3.Emitter

NPN Triple Diffused Planar Silicon Transistor

Absolute Maximum Ratings

Symbol Parameter Rating Units

V

CBO

V

CEO

V

EBO

I

C

* Collector Current (Pulse) 30 A

I

CP

P

C

T

J

T

STG

* Pulse Test: PW=300µs, duty Cycle=2% Pulsed

Collector-Base Voltage 1700 V Collector-Emitter Voltage 800 V Emitter-Base Voltage 6 V Collector Current (DC) 20 A

Collector Dissipation 200 W Junction Temperature 150 °C Storage Temperature -55 ~ 150 °C

Electrical Characteristics

Symbol Parameter Test Conditions Min. Typ. Max. Units

I

CES

I

CBO

I

EBO

BV

CBO

BV

CEO

BV

EBO

h

FE1

h

FE2

(sat) Collector-Emitter Saturation Voltage IC=11A, IB=2.75A 3 V

V

CE

(sat) Base-Emitter Saturation Voltage IC=11A, IB=2.75A 1.5 V

V

BE

* Storage Time VCC=200V, IC=10A, RL=20

t

STG

* Fall Time 0.15 0.2 µs

t

F

* Pulse Test: PW=20µs, duty Cycle=1% Pulsed

Collector Cut-off Current VCB=1400V, RBE=0 1 mA Collector Cut-off Current VCB=800V, IE=0 10 µA Emitter Cut-off Current VEB=4V, IC=0 1 mA Collector-Base Breakdown Voltage IC=500µA, IE=0 1700 V Collector-Emitter Breakdown Voltage IC=5mA, IB=0 800 V Emitter-Base Breakdown Voltage IE=500µA, IC=0 6 V DC Current Gain VCE=5V, IC=1A

TC=25°C unless otherwise noted

V

=5V, IC=11A

CE

IB1=2.0A, IB2= - 4.0A

8

5.5 8.5

Ω

3 µs

Thermal Characteristics

TC=25°C unless otherwise noted

Symbol Parameter Typ Max Units

R

θjC

Thermal Resistance, Junction to Case 0.625 °C/W

Typical Characteristics

FJL6920

16

IB=4.0A

14

12

10

8

6

4

[A], COLLECTOR CURRENT

C

I

2

0

0246810

IB=2.0A

IB=1.5A

IB=1.0A

IB=0.5A

IB=0.2A

VCE [V], COLLECTOR-EMITTER VOLTAGE

100

Ta = 125oC

10

, DC CURRENT GAIN

FE

h

1

0.1 1 10 100

Ta = 25oC

Ta = - 25oC

IC [A], COLLECTOR CURRENT

Figure 1. Static Characteristics Figure 2. DC Current Gain

10

1

0.1

IC = 3 I

B

Ta = 125oC

Ta = 25oC Ta = - 25oC

10

IC = 5 I

B

1

0.1

Ta = 25oC

VCE = 5V

Ta = 125oC

Ta = - 25oC

(SAT) [V], SATURATION VOLTAGE

CE

V

0.01

0.1 1 10 100

IC [A], COLLECTOR CURRENT

(SAT) [V], SATURATION VOLTAGE

CE

V

0.01

0.1 1 10 100

IC [A], COLLECTOR CURRENT

Figure 3. Collector-Emitter Saturation Voltage Figure 4. Collector-Emitter Saturation Voltage

16

VCE = 5V

14

12

10

8

6

4

[A], COLLECTOR CURRENT

C

I

2

0

0.0 0.2 0.4 0.6 0.8 1.0 1.2

25oC125oC

VBE [V], BASE-EMITTER VOLTAGE

- 25oC

10

1

0.1

[µs], SWITCHING TIME

F

& t

STG

t

0.01 110

IB2 [A], REVERSE BASE CURRENT

t

STG

t

F

VCC = 200V,

= 10A, IB1 = 2A

I

C

Figure 5. Base-Emitter On Voltage Figure 6. Resistive Load Switching Time

Typical Characteristics

(Continued)

FJL6920

[µs], SWITCHING TIME & t

t

100

10

1

F

0.1

STG

0.01 110

IB1 [A], FORWARD BASE CURRENT

VCC = 200V,

= 10A, IB2 = - 4A

I

C

t

STG

t

F

10

1

[µs], SWITCHING TIME

F

& t

0.1

STG

t

110

IC [A], COLLECTOR CURRENT

t

F

VCC = 200V, I

= 2A, IB2 = - 4A

B1

t

STG

Figure 7. Resistive Load Switching Time Figure 8. Resistive Load Switching Time

100

t = 100ms

t = 10ms

t = 1ms

IC (Pulse)

IC (DC)

10

1

0.1

[A], COLLECTOR CURRENT

C

I

TC = 25oC Single Pulse

0.01 1 10 100 1000 10000

VCE [V], COLLECTOR-EMITTER VOLTAGE

40

35

30

25

20

15

10

[A], COLLECTOR CURRENT

C

I

5

1

10 100 1000 10000

VBE(off) = -3V

RB2 = 0, IB1 = 15A

= 30V, L = 200µH

V

CC

VCE [V], COLLECTOR-EMITTER VOLTAGE

VBE(off) = -6V

Figure 9. Forward Bias Safe Operating Area Figure 10. Reverse Bias Safe Operating Area

300

250

200

150

100

[W], POWER DISSIPATION

C

50

P

0

0 255075100125150175

TC [OC], CASE TEMPERAT U R E

Figure 11. Power Dera ting

Package Demensions

(8.30) (8.30)

(9.00)

20.00

TO-264

±0.20

(1.00)

(4.00)

±0.20

6.00

FJL6920

(2.00)

(9.00)

±0.20

1.50

4.90

(11.00)

±0.20

(R2.00)

(R1.00)

(7.00)

ø3.30

±0.20

(7.00)

(1.50) (1.50)

±0.20

2.50

3.00

1.00

5.45TYP

[5.45

±0.20

5.00

±0.20

3.50

±0.30

(1.50)

]

[5.45

(0.50)

(2.00)

±0.20

+0.25 –0.10

5.45TYP

±0.30

(0.15)

]

±0.10

2.50

(2.80)

±0.20

20.00

±0.50

20.00

0.60

+0.25 –0.10

(1.50)

2.80

±0.30

Dimensions in Millimeters
