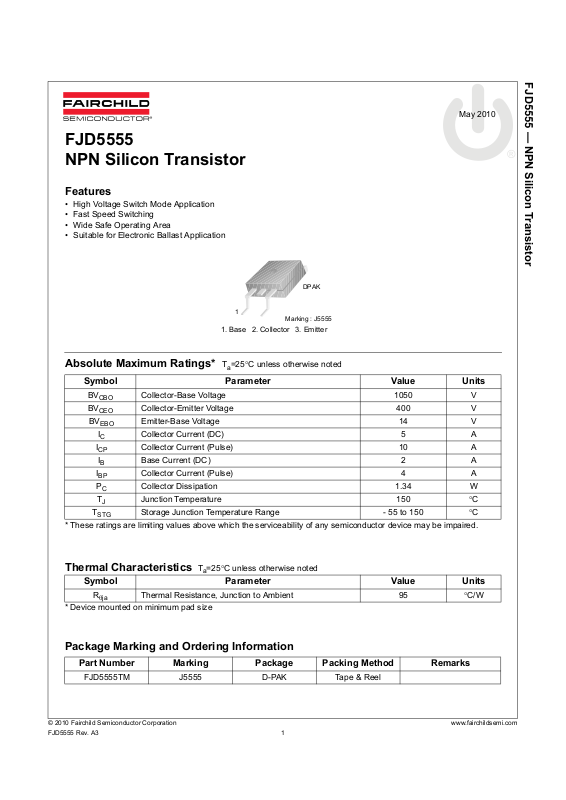

FJD5555 NPN Silicon Transistor

Features

• High Voltage Switch Mode Application

• Fast Speed Switching

• Wide Safe Operating Area

• Suitable for Electronic Ballast Application

FJD5555 — NPN Silicon Transistor

May 2010

DPAK

Absolute Maximum Ratings* T

1. Base 2. Collector 3. Emitter

=25°C unless otherwise noted

Marking : J5555

Symbol Parameter Value Units

CBO

CEO

EBO

STG

* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Thermal Characteristics T

Collector-Base Voltage 1050 V

Collector-Emitter Voltage 400 V

Emitter-Base Voltage 14 V

Collector Current (DC) 5 A

Collector Current (Pulse) 10 A

Base Current (DC) 2 A

Collector Current (Pulse) 4 A

Collector Dissipation 1.34 W

Junction Temperature 150 °C

Storage Junction Temperature Range - 55 to 150 °C

=25°C unless otherwise noted

Symbol Parameter Value Units

θja

* Device mounted on minimum pad size

Thermal Resistance, Junction to Ambient 95 °C/W

Package Marking and Ordering Information

Part Number Marking Package Packing Method Remarks

FJD5555TM J5555 D-PAK Tape & Reel

FJD5555 Rev. A3 1

Page 2

FJD5555 — NPN Silicon Transistor

Electrical Characteristics* T

=25°C unless otherwise noted

Symbol Parameter Conditions Min. Typ. Max. Units

CBO

CEO

EBO

(sat) Collector-Emitter Saturation Voltage IC=1A, IB=0.2A 0.17 0.5 V

(sat) Base-Emitter Saturation Voltage IC=3.5A, IB=1.0A 1.2 V

STG

EAS Avalanche Energy L=2mH

* Pulse Test: Pulse Width≤300µs, Duty Cycle≤2%

Collector-Base Breakdown Voltage IC=500µA, IE=0 1050 V

Collector-Emitter Breakdown Voltage IC=5mA, IB=0 400 V

Emitter-Base Breakdown Voltage IE=500µA, IC=0 14 V

DC Current Gain VCE=5V, IC=10mA 10

=3V, IC=0.8A 20 40

=3.5A, IB=1.0A 1.5 V

Output Capacitance VCB=10V, f=1MHz 45 pF

Turn On Time VCC=125V, IC=0.5A

=45mA, IB2=-0.5A

Storage Time 1.2 µs

Fall Time 0.3 µs

=250Ω

Turn On Time VCC=250V, IC=2.5A

=0.5A, IB2=-1.0A

Storage Time 2.5 µs

Fall Time 0.3 µs

=100Ω

1.0 µs

2.0 µs

FJD5555 Rev. A3 2

Page 3

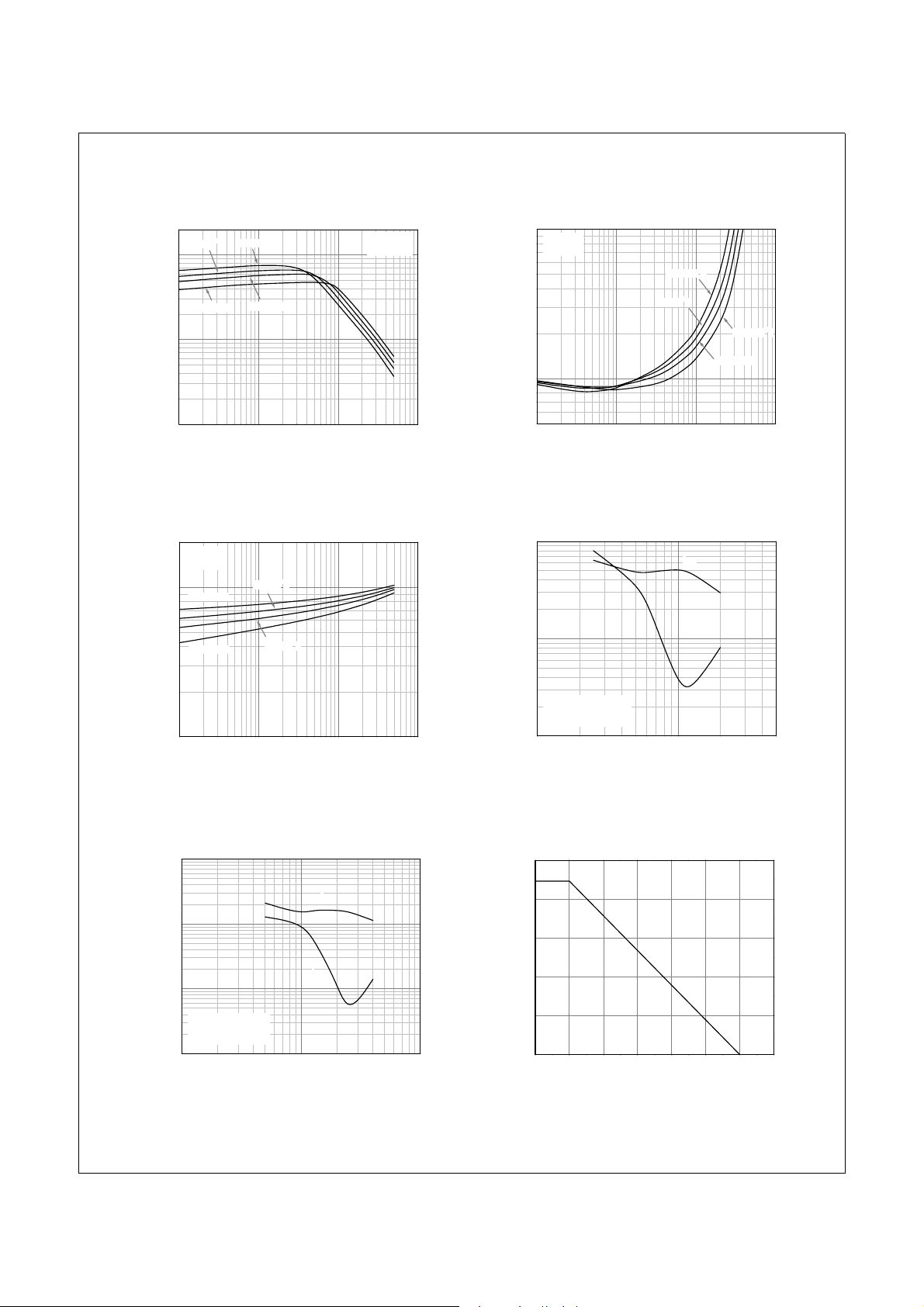

Typical Characteristics

FJD5555 — NPN Silicon Transistor

Ta = - 25oC

Ta = 125oC

Ta = 25oC

Ta = 75oC

100

, DC CURRENT GAIN

0.01 0.1 1 10

IC [A], COLLECTOR CURRENT

Figure 1. DC Current Gain Figure 2. Saturation Voltage

IC = 5 I

Ta = - 25oC

Ta = 125oC

Ta = 25oC

Ta = 75oC

VCE = 5V

1000

IC = 5 I

Ta = 125oC

Ta = 75oC

Ta = 25oC

100

(sat) [mV], SATURATION VOLTAGE

0.01 0. 1 1 10

IC [A], COLLECTOR CURRENT

1000

STG

100

Ta = - 25oC

[ns], SWITCHING TIME

& t

VCC=125V

STG

(sat) [V], SATURATION VOLTAGE

0.1

0.01 0.1 1 10

IC [A], COLLECTOR CURRENT

=45mA, IB2=0.5A

0.1 1

IC [A], COLLECTOR CURRENT

Figure 3. Saturation Voltage Figure 4. Resistive Load Switching

10000

STG

1000

100

[ns], SWITCHING TIME

& t

VCC=250V

STG

=0.5A, IB2=1.0A

0.1 1 10

IC [A], COLLECTOR CURRENT

1.5

1.2

0.9

0.6

0.3

[W], POWER DISSIPATION

0.0 0 25 50 75 100 125 150 175

Tc[oC], CASE TEMPERATURE

Figure 5. Resistive Load Switching Figure 6. Power Derating

FJD5555 Rev. A3 3

Page 4

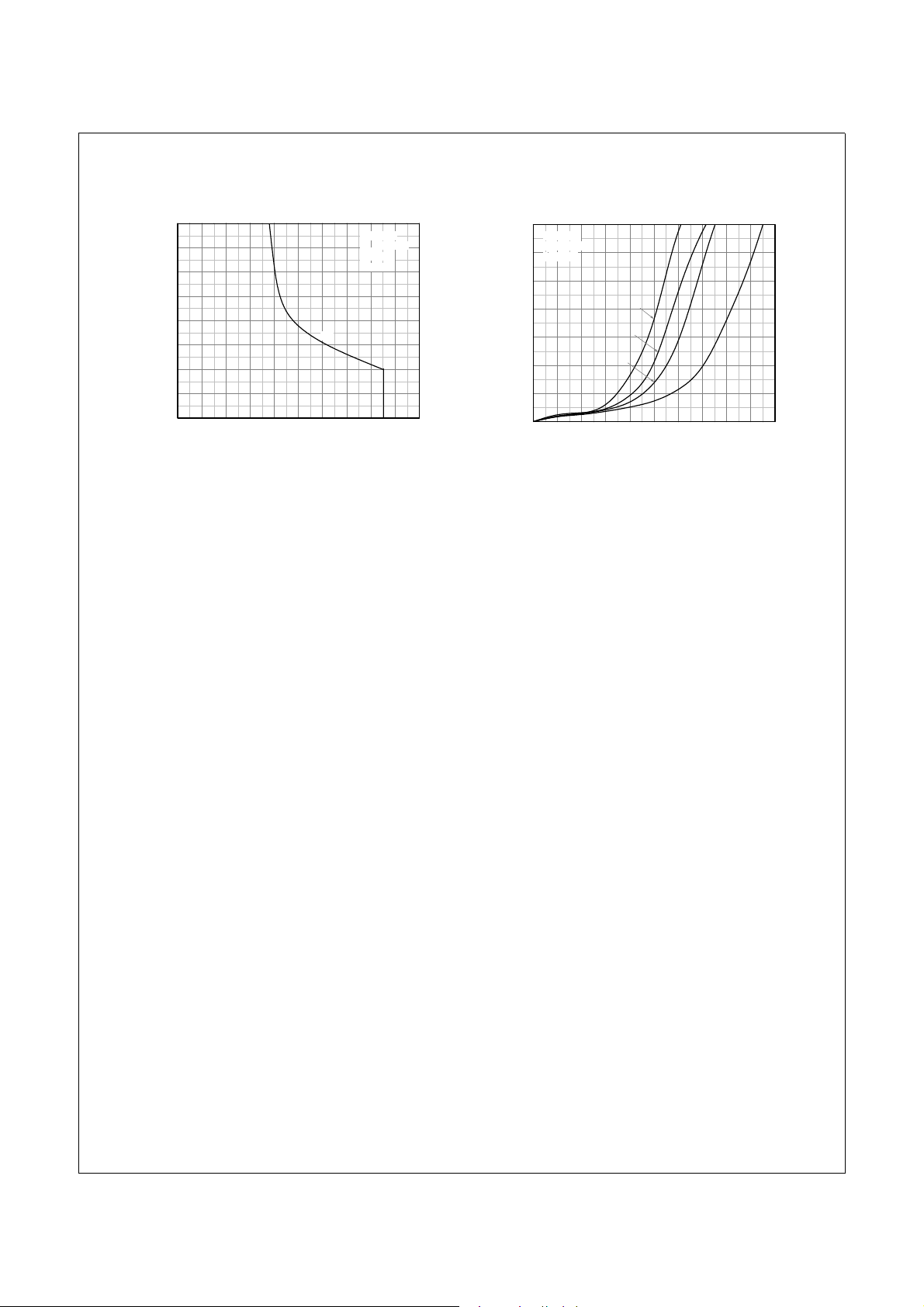

Typical Characteristics (Continued)

FJD5555 — NPN Silicon Transistor

[A], COLLECTOR CURRENT

200 300 400 500 600 700 800 900 1000 1100 1200

-5V

VCE[V], COLLECTOR-EMITTER VOLTAGE

Vcc = 50V VBE(off) = -5V LC = 1mH Ic = 4 Ib

Vcc = 50V VBE(off) = -5V

LC = 1mH

[V], COLLECTOR-EMITTER VOLTAGE

012345678910

Ic = 3.3 Ib

ICE[A], COLLECTOR CURRENT

Ic = 5 Ib

Ic = 4 Ib

Figure 7. Reverse Bias Safe Operating Figure 8. RBSOA Saturation

Ic = 2.2 Ib

FJD5555 Rev. A3 4

Page 5

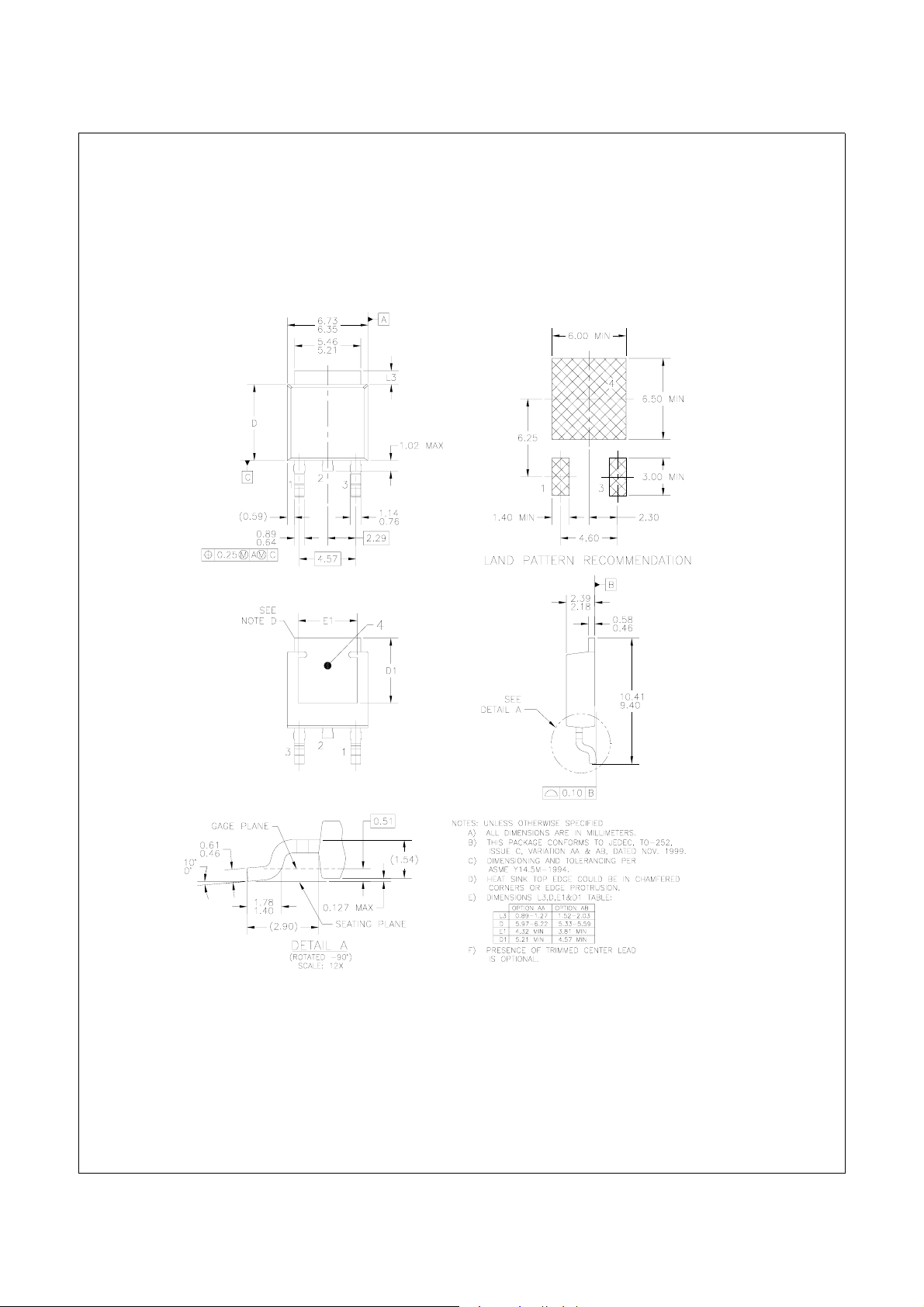

Physical Dimensions

FJD5555 — NPN Silicon Transistor

D-PAK

Dimensions in Millimeters

FJD5555 Rev. A3 5
