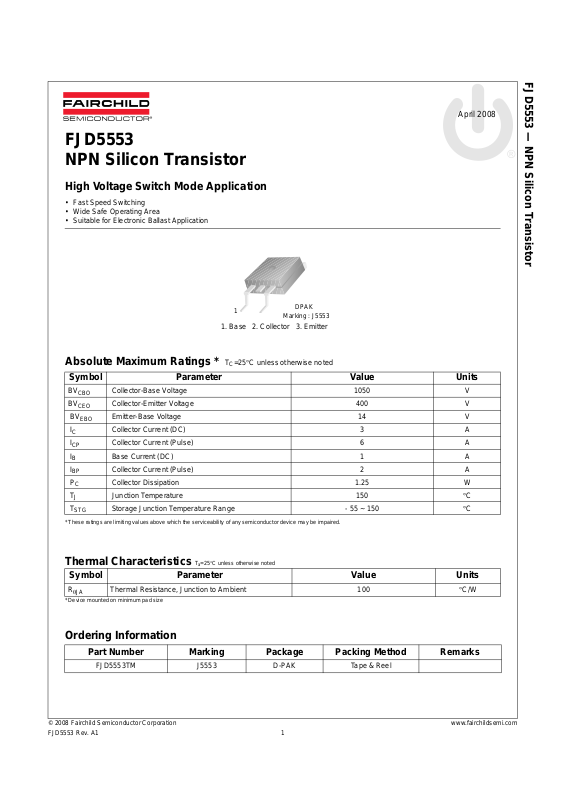

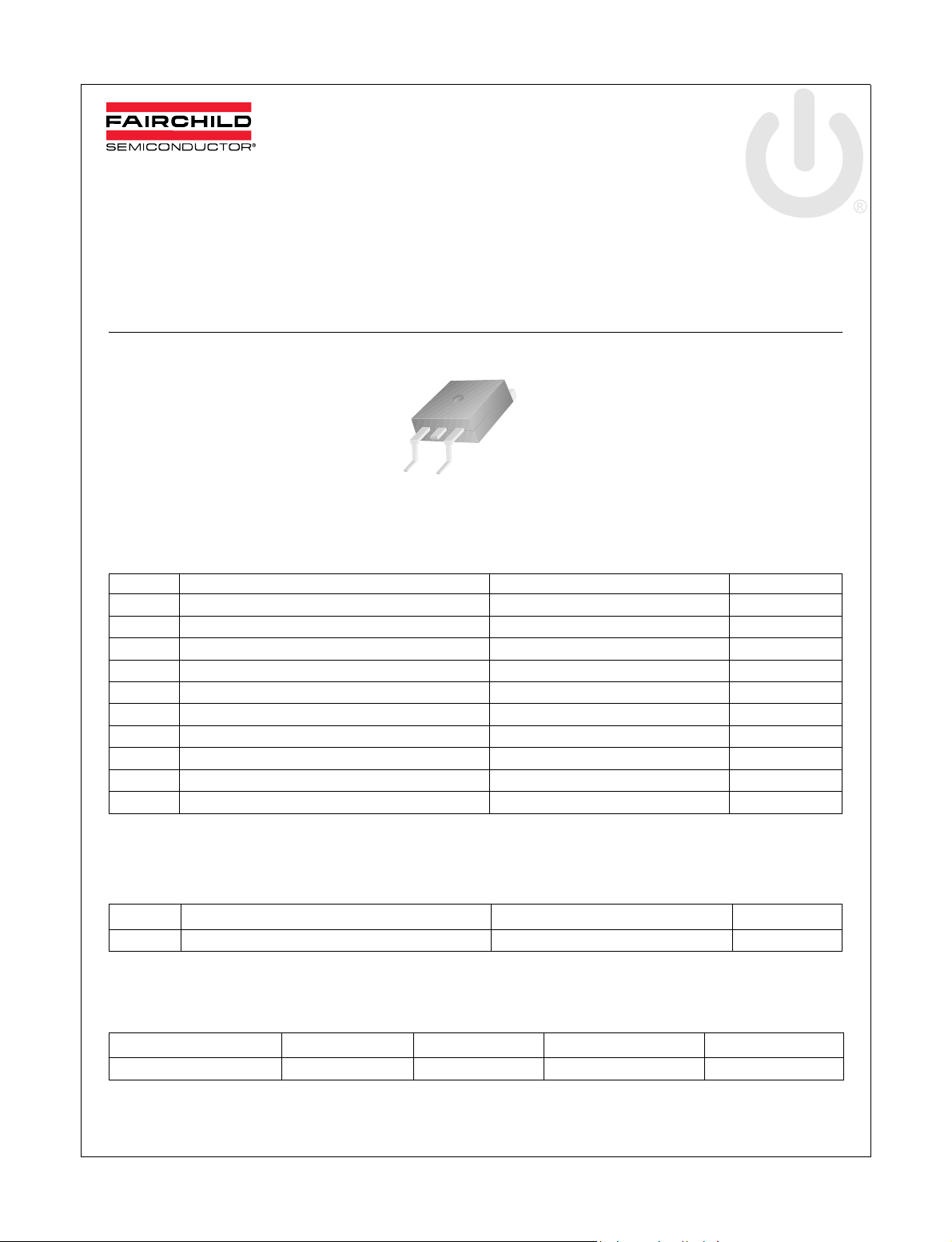

FJD5553
NPN Silicon Transistor
High Voltage Switch Mode Application
• Fast Speed Switching
• Wide Safe Operating Area
• Suitable for Electronic Ballast Application
FJD5553 — NPN Silicon Tr ansistor
April 2008
DPAK
Marking : J5553
1. Base 2. Collector 3. Emitter
Absolute Maximum Ratings * T
1
=25°C unless otherwise noted
C
Symbol Parameter Value Units
BV
CBO
BV
CEO
BV
EBO
I
C
I
CP
I
B
I
BP
P
C
T
J
T
STG
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics T
Collector-Base Voltage 1050 V
Collector-Emitter Voltage 400 V
Emitter-Base Voltage 14 V
Collector Current (DC) 3 A
Collector Current (Pulse) 6 A
Base Current (DC) 1 A
Collector Current (Pulse) 2 A
Collector Dissipation 1.25 W
Junction Temperature 150 °C
Storage Junction Temperature Range - 55 ~ 150 °C
=25°C unless otherwise noted
a
Symbol Parameter Value Units
R
θJA
* Device mounted on minimum pad size
Thermal Resistance, Junction to Ambient 100 °C/W
Ordering Information
Part Number Marking Package Packing Method Remarks
FJD5553TM J5553 D-PAK Tape & Reel
© 2008 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJD5553 Rev. A1 1
Page 2
FJD5553 — NPN Silicon Tr ansistor
Electrical Characteristics * T
=25°C unless otherwise noted
C
Symbol Parameter Conditions Min. Typ. Max Units
BV
CBO
BV
CEO
BV
EBO
h
FE
VCE(sat) Collector-Emitter Saturation Voltage IC=1A, IB=0.2A 0.23 0.5 V
VBE(sat) Base-Emitter Saturation Voltage IC=1A, IB=0.2A 1.2 V
C
ob
t
ON
t
STG
t
F
t
ON
t
STG
t
F
EAS Avalanche Energy L= 2mH
* Pulse Test: Pulse Width≤300µs, Duty Cycle≤2%
Collector-Base Breakdown Voltage IC=500µA, IE=0 1050 V
Collector-Emitter Breakdown Voltage IC=5mA, IB=0 400 V
Emitter-Base Breakdown Voltage IE=500µA, IC=0 14 V
* DC Current Gain V
=5V, IC=10mA 10
CE
VCE=3V, IC=0.4A 30 60
Output Capacitance VCB=10V, f=1MHz 45 pF
Turn On Time VCC=125V, IC=0.5A
Storage Time 1.2 µs
IB1=45mA, IB2=0.5A
RL=250Ω
1.0 µs
Fall Time 0.3 µs
Turn On Time VCC=250V, IC=2.5A
Storage Time 2.5 µs
IB1=0.5A, IB2=1.0A
RL=100Ω
2.0 µs
Fall Time 0.3 µs
3.5
mJ
© 2008 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJD5553 Rev. A1 2
Page 3

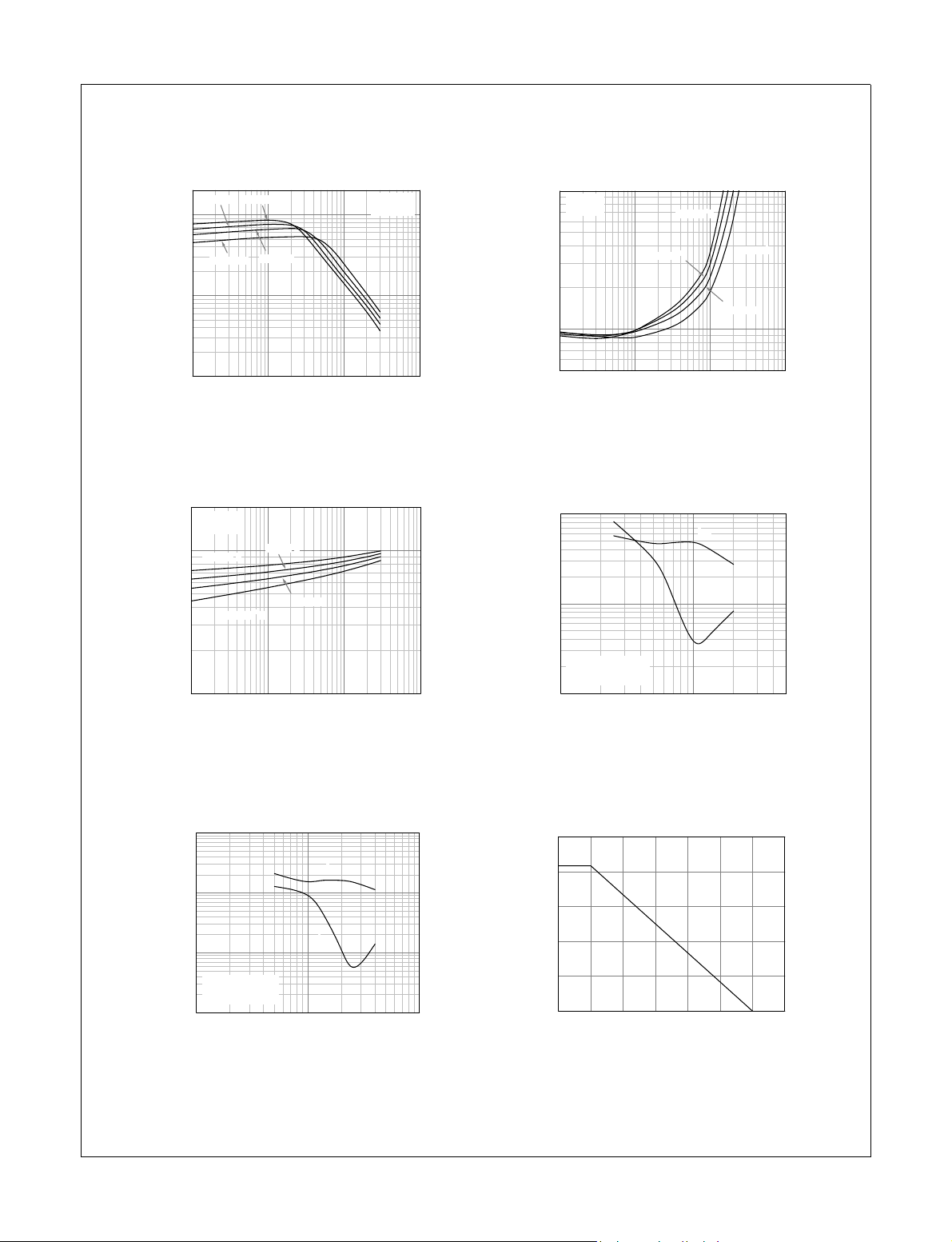

Typical Characteristics
FJD5553 — NPN Silicon Tr ansistor
Ta = 75oC
Ta = - 25oC
Ta = 125oC
Ta = 25oC
100
10
, DC CURRENT GAIN
FE
h
1
0.01 0.1 1 10
IC [A], COLLECTOR CURRENT
VCE = 5V
1000
IC = 5 I
B
100
(sat) [mV], SATURATION VOLTAGE
CE
V
0.01 0.1 1 10
IC [A], COLLECTOR CURRENT
Figure 1. DC Current Gain Figure 2. Saturation Voltage
IC = 5 I
B
1
Ta = - 25oC
(sat) [V], SATURATION VOLTAGE
BE
V
0.1
0.01 0.1 1 10
Ta = 25oC
Ta = 75oC
Ta = 125oC
IC [A], COLLECTOR CURRENT
1000
100
[ns], SWITCHING TIME
F
& t
VCC=125V
STG
t
I
=45mA, IB2=0.5A
B1
10
0.1 1
IC [A], COLLECTOR CURRENT
Ta = 75oC
Ta = 125oC
t
t
Ta = - 25oC
Ta = 25oC
STG
F
Figure 3. Saturation Voltage Figure 4. Resistive Load Switchin g
10000
t
STG
1000
t
100
[ns], SWITCHING TIME
F
& t
VCC=250V
STG
t
I
=0.5A, IB2=1.0A
B1
10
0.1 1 10
F
IC [A], COLLECTOR CURRENT
1.5
1.2
0.9
0.6
0.3
[W], POWER DISSIPATION
C
P
0.0
0 25 50 75 100 125 150 175
Tc[oC], CASE TEMPERATURE
Figure 5. Resistive Load Switching Figure 6. Power Derating
© 2008 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJD5553 Rev. A1 3
Page 4

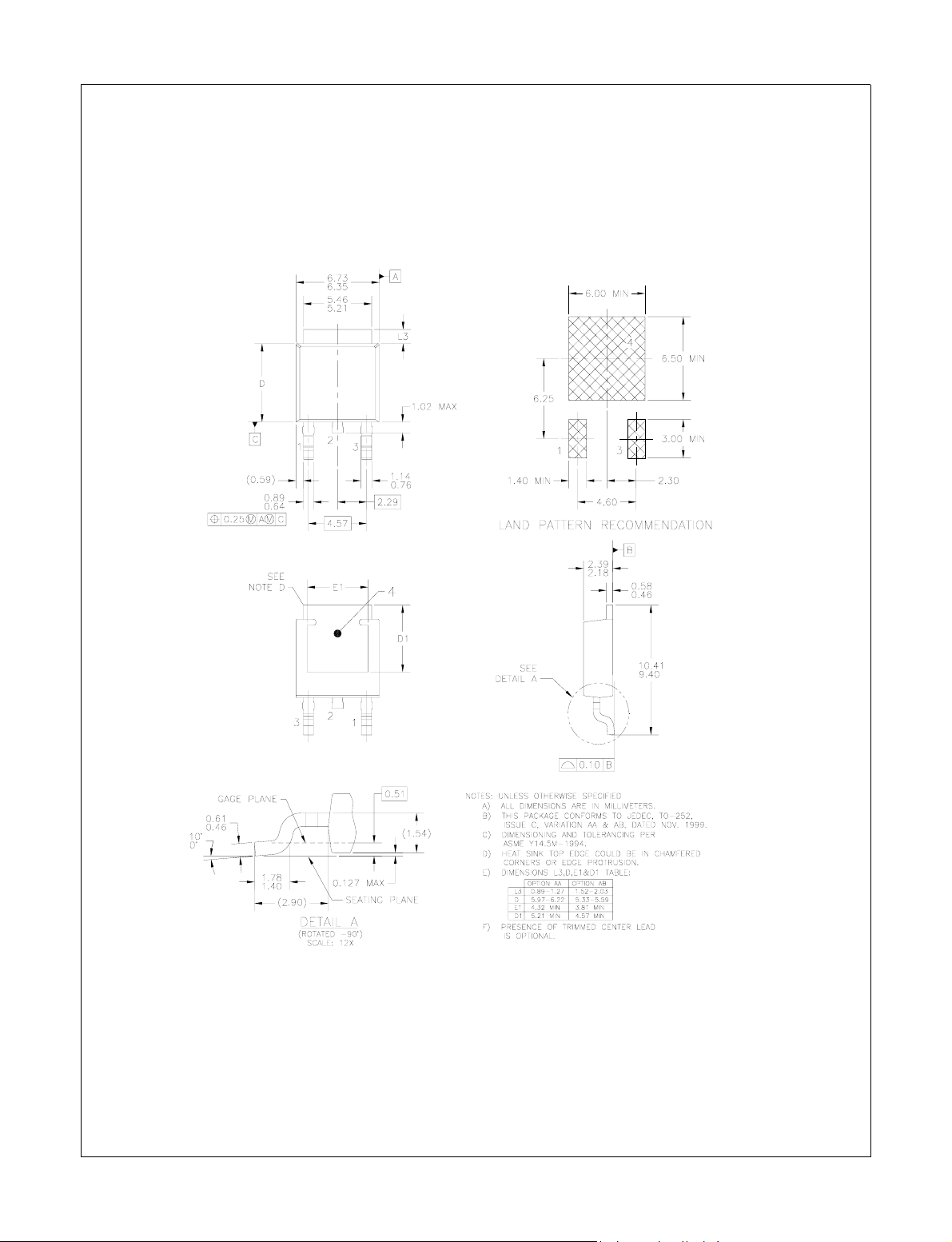

Mechanical Dimensions
FJD5553 — NPN Silicon Tr ansistor
D-PAK
Dimensions in Millimeters
© 2008 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJD5553 Rev. A1 4
