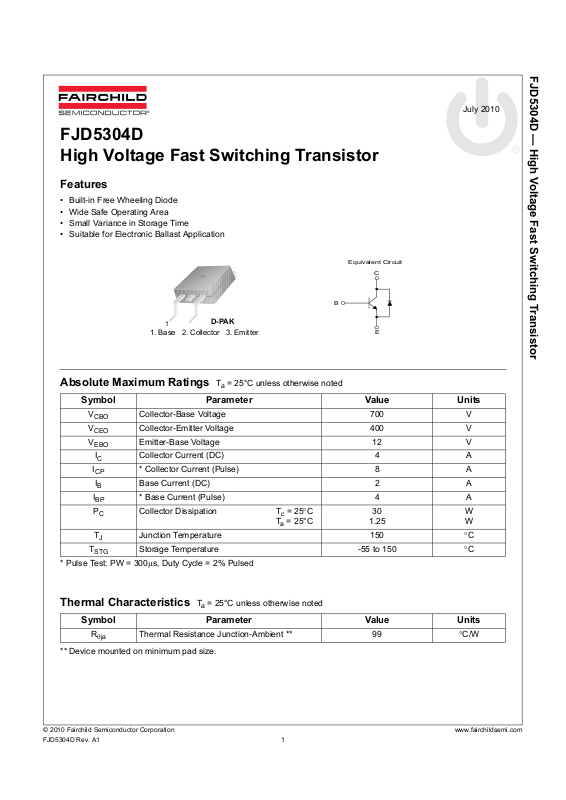

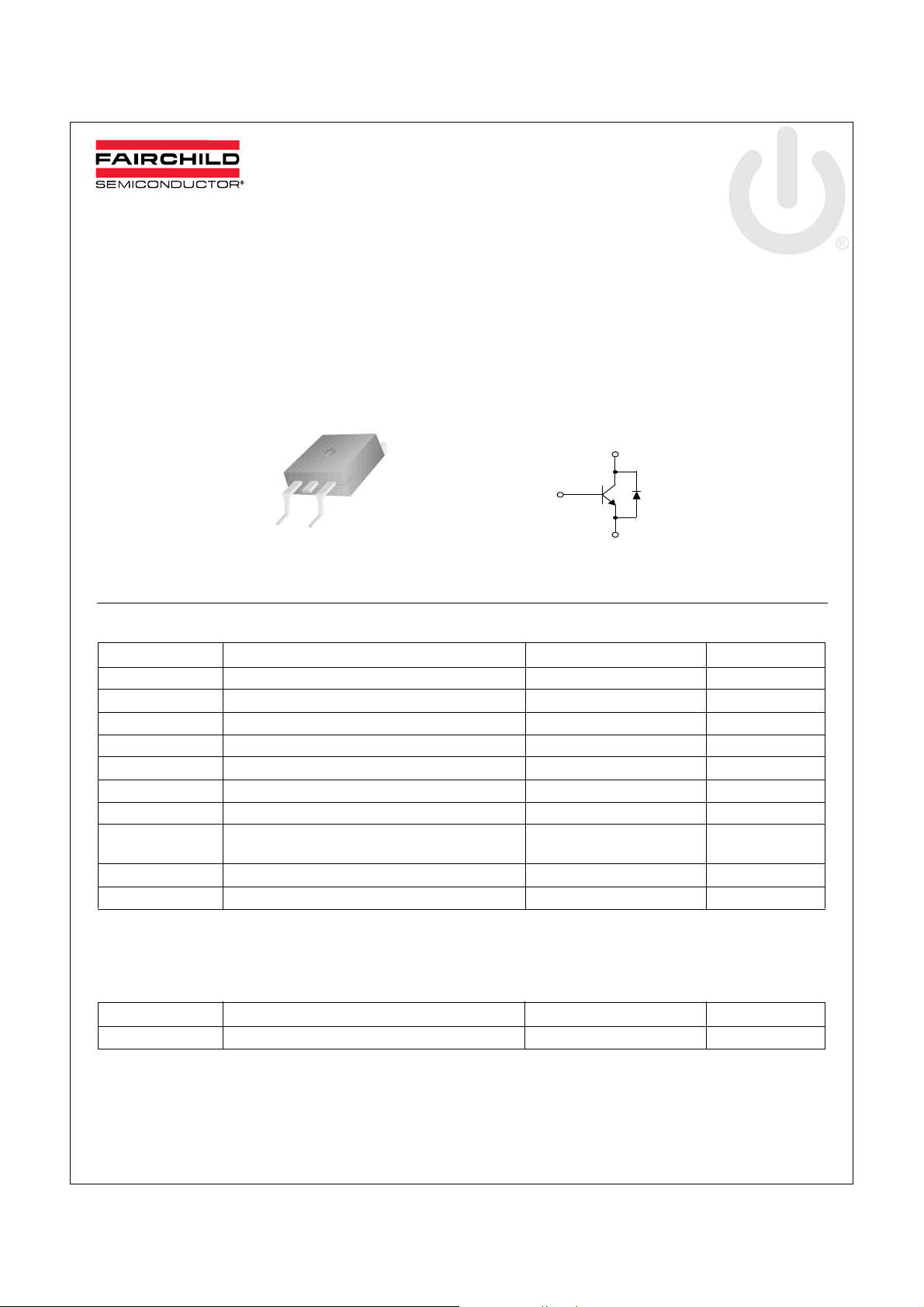

FJD5304D High Voltage Fast Switching Transistor

Features

• Built-in Free Wheeling Diode

• Wide Safe Operating Area

• Small Variance in Storage Time

• Suitable for Electronic Ballast Application

Equivalent Circuit

FJD5304D — High Voltage Fast Switching Transistor

July 2010

1. Base 2. Collector 3. Emitter

Absolute Maximum Ratings T

D-PAK

= 25°C unless otherwise noted

Symbol Parameter Value Units

CBO

CEO

EBO

STG

* Pulse Test: PW = 300µs, Duty Cycle = 2% Pulsed

Collector-Base Voltage 700 V

Collector-Emitter Voltage 400 V

Emitter-Base Voltage 12 V

Collector Current (DC) 4 A

* Collector Current (Pulse) 8 A

Base Current (DC) 2 A

* Base Current (Pulse) 4 A

Collector Dissipation Tc = 25°C

= 25°C

1.25

Junction Temperature 150 °C

Storage Temperature -55 to 150 °C

W W

Thermal Characteristics T

= 25°C unless otherwise noted

Symbol Parameter Value Units

θja

** Device mounted on minimum pad size.

FJD5304D Rev. A1 1

Thermal Resistance Junction-Ambient ** 99 °C/W

Page 2

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

J5304D FJD5304DTM D-PAK 13” Dia - 2500

J5304D FJD5304DTF D-PAK 13” Dia - 2000

FJD5304D — High Voltage Fast Switching Transistor

Electrical Characteristics T

= 25°C unless otherwise noted

Symbol Parameter Conditions Min. Typ. Max. Units

CES

CEO

EBO

CE(sat)

BE(sat)

STG

Collector-Base Breakdown Voltage IC = 1mA, IE = 0 700 V

CBO

Collector-Emitter Breakdown Voltage IC = 5mA, IB = 0 400 V

CEO

Emitter-Base Breakdown Voltage IE = 1mA, IC = 0 12 V

EBO

Collector Cut-off Current VCB = 700V, IE = 0 100 µA

Collector Cut-off Current VCB = 400V, IB = 0 250 µA

Emitter Cut-off Current VEB = 12V, IC = 0 1 mA

DC Current Gain VCE = 5V, IC = 10mA

= 5V, IC = 2.0A

840

Collector-Emitter Saturation Voltage IC = 0.5A, IB = 0.1A 0.7 V

= 1.0A, IB = 0.2A 1.0 V

= 2.5A, IB = 0.5A 1.5 V

Base-Emitter Saturation Voltage IC = 0.5A, IB = 0.1A 1.1 V

= 1.0A, IB = 0.2A 1.2 V

= 2.5A, IB = 0.5A 1.3 V

Storage Time

Fall Time 0.1 µs

Storage Time

Fall Time 0.2 µs

Diode Forward Voltage IF = 2A 2.5 V

V I

=200V, IC=2.0A,

CLAMP

=0.4A, VBE(off)=-5V, L=200µH

=250V, IC=2.0A,

IB1=0.4A, IB2=-0.4A, TP=30µs

0.6 µs

2.9 µs

FJD5304D Rev. A1 2

Page 3

Typical Performance Characteristics

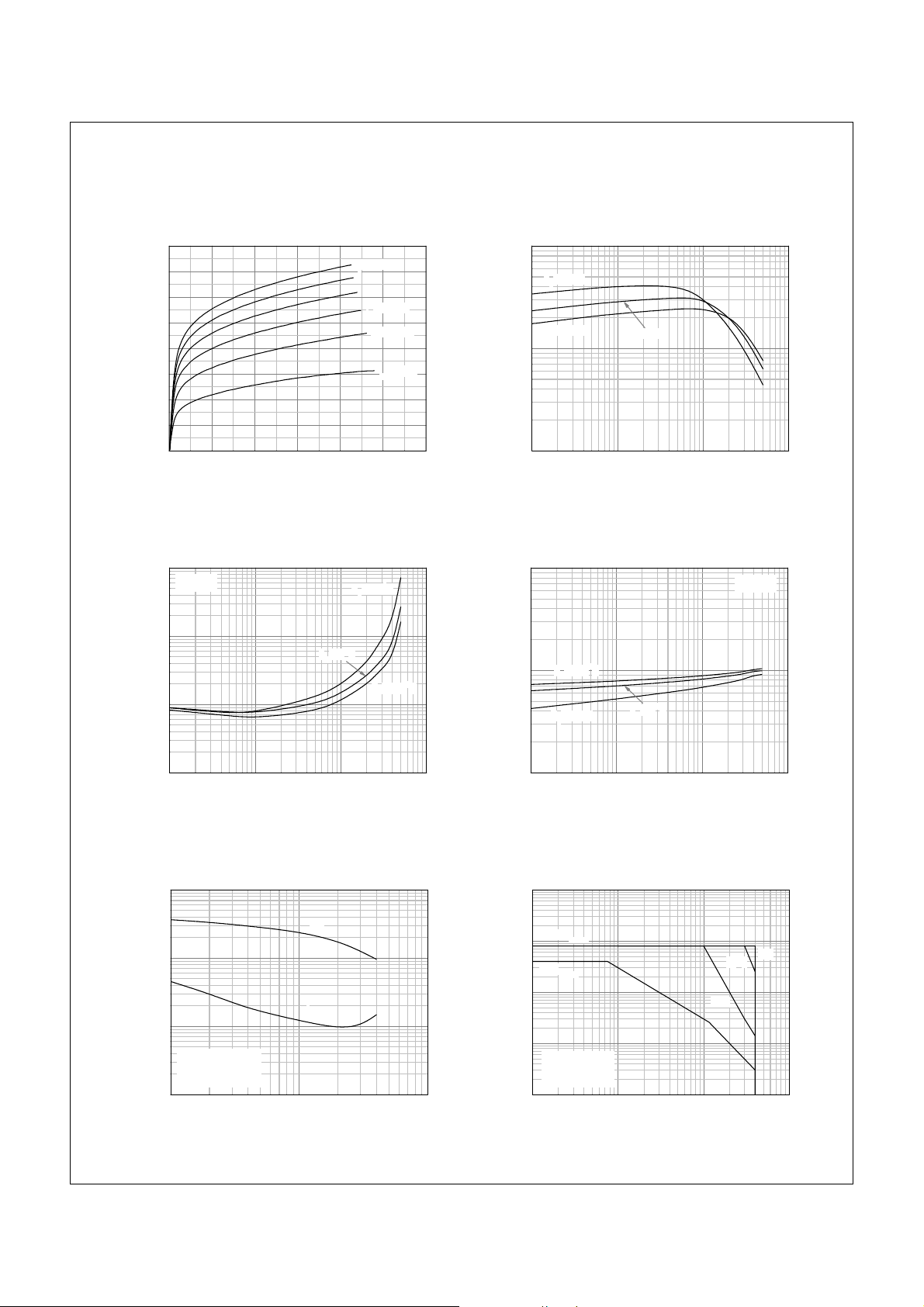

Figure 1. Static Characteristic Figure 2. DC Current Gain

FJD5304D — High Voltage Fast Switching Transistor

4.0

3.5

3.0

2.5

2.0

1.5

1.0

[A], COLLECTOR CURRENT

0.5

0.0 024681012

IB=300mA

IB=150mA

IB=100mA

IB=50mA

VCE [V]. COLLECTOR-EMITTER VOLTAGE

100

TC=125oC

TC= - 25oC

, DC CURRENT GAIN

0.01 0.1 1 10

TC=25oC

IC [A], COLLECTOR CURRENT

Figure 3. Collector-Emitter Saturation Voltage Figure 4. Base-Emitter Saturation Voltage

IC = 5 I

TC=125oC

TC=25oC

0.1

(sat) [V], SATURATION VOLTAGE

0.01

0.01 0.1 1 10

IC [A], COLLECTOR CURRENT

TC= - 25oC

TC=125oC

(sat) [V], SATURATION VOLTAGE

0.1

0.01 0.1 1 10

TC=25oC

IC [A], COLLECTOR CURRENT

IC = 5 I

Figure 5. Resistive Load Switching Time Figure 6. Forward Biased Safe Operating Area

STG

0.1

[µs], SWITCHING TIME

& t

STG

VCC=250V

= 5 IB1= - 5 I

0.01

0.1 1 10

IC [A], COLLECTOR CURRENT

FJD5304D Rev. A1 3

100

Pulse I

DC I

C_MAX

TC = 25oC

C_MAX

1ms

0.1

[A], COLLECTOR CURRENT

Single Pulse

0.01 1 10 100 1000

VCE [V], COLLECTOR-EMITTER VOLTAGE

10µs

1µs

Page 4

Typical Performance Characteristics (Continued)

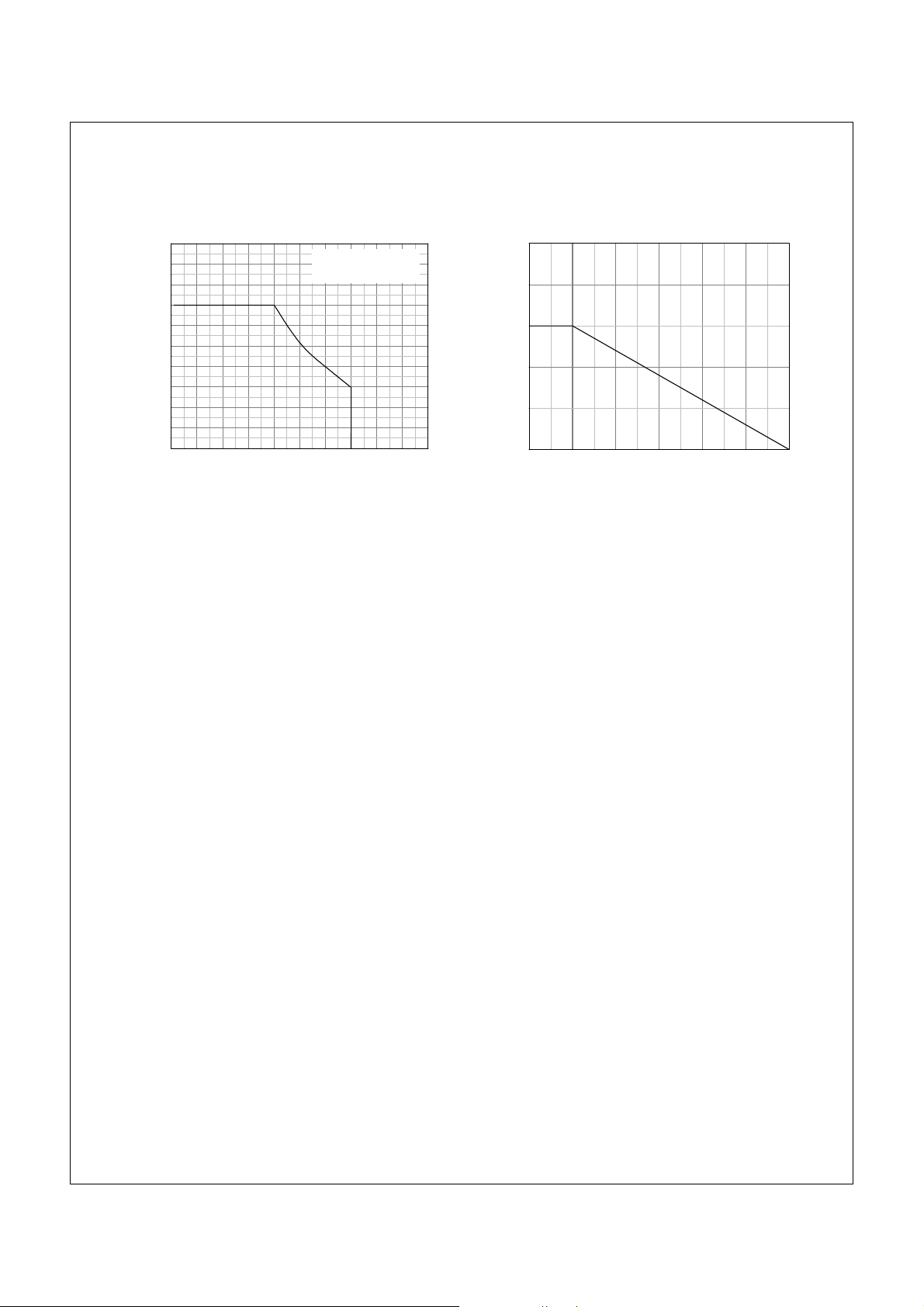

Figure 7. Reverse Biased Safe Operating Area Figure 8. Power Derating Curve

[A], COLLECTOR CURRENT

0 100 200 300 400 500 600 700 800 900 1000

VCE [V], COLLECTOR-EMITTER VOLTAGE

Vcc=50V, L = 1mH I

=1A, IB2 = -1A

[W], COLLECTOR POWER DISSIPATION

0 25 50 75 100 125 150

TC [oC], CASE TEMPERATURE

FJD5304D — High Voltage Fast Switching Transistor

FJD5304D Rev. A1 4

Page 5

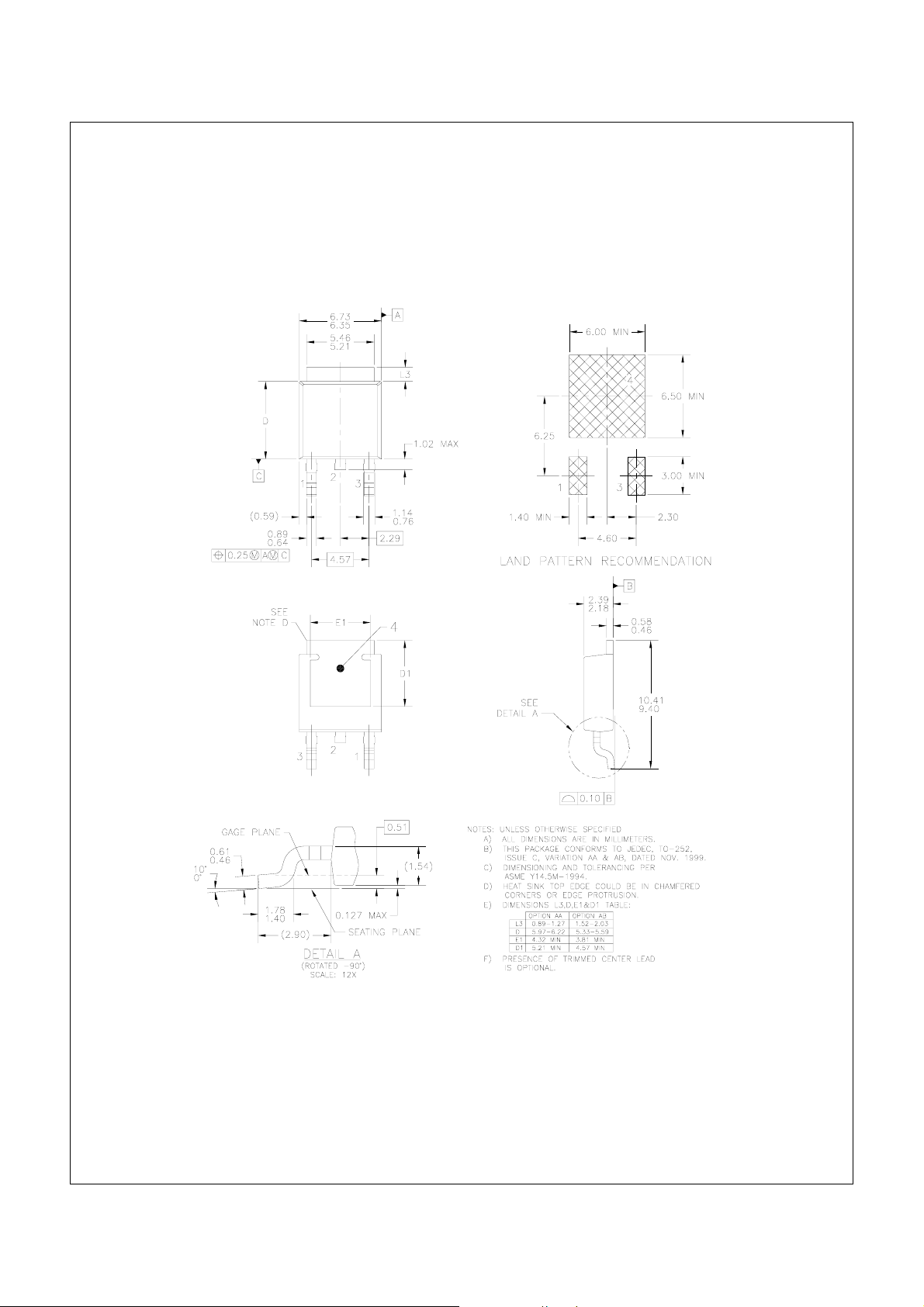

Mechanical Dimensions

FJD5304D — High Voltage Fast Switching Transistor

D-PAK

Dimensions in Millimeters

FJD5304D Rev. A1 5

Page 6
