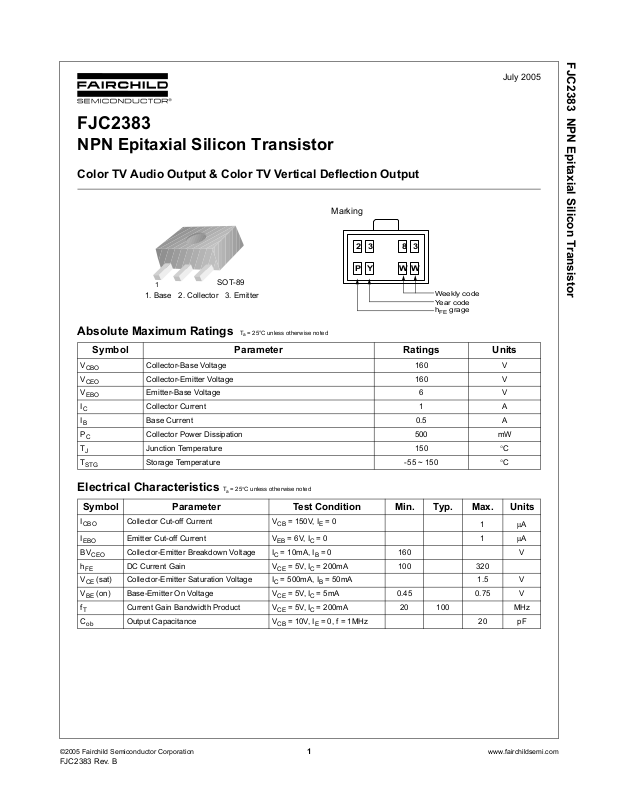

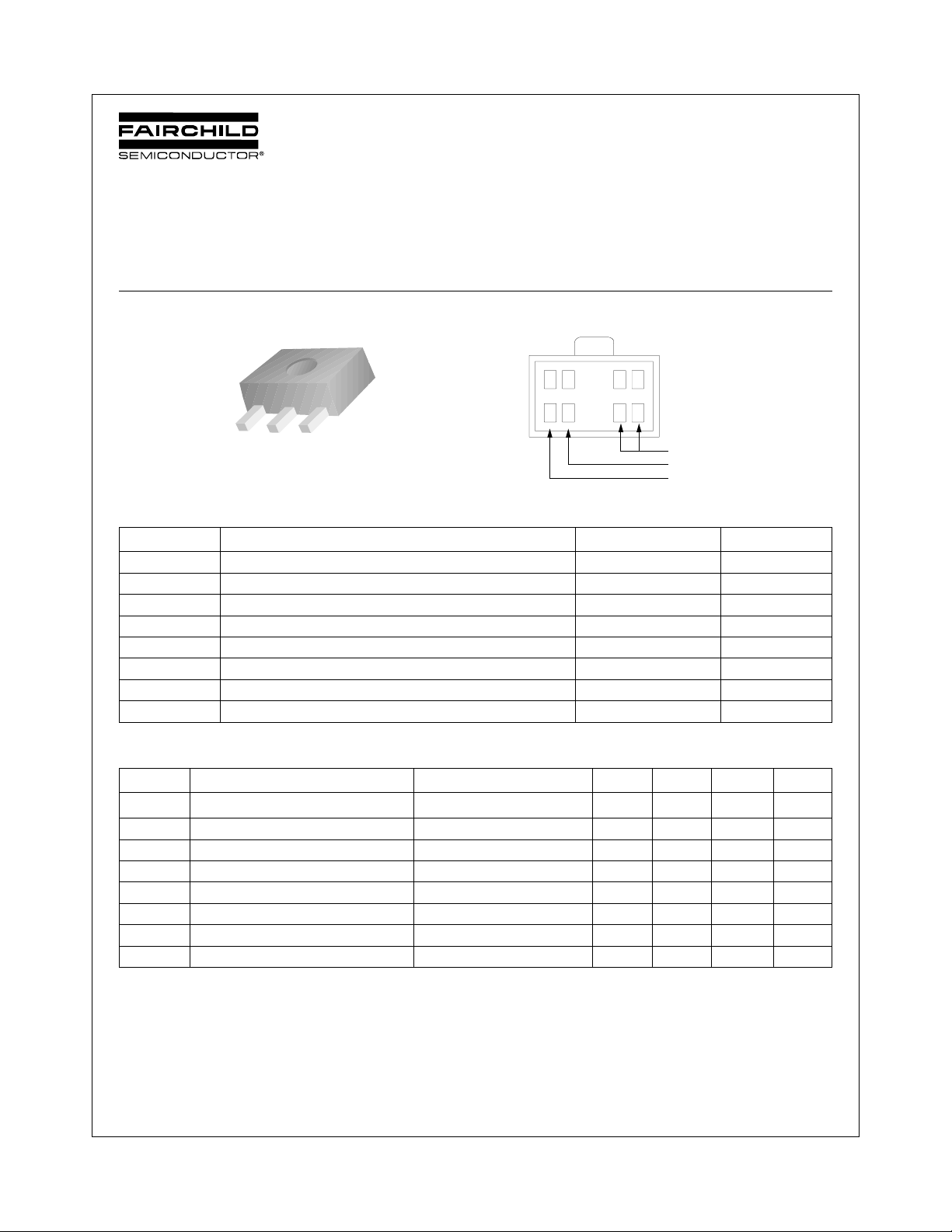

FJC2383
NPN Epitaxial Silicon Transistor
Color TV Audio Output & Color TV Vertical Deflection Output
Marking
23 83
PY WW
1
1. Base 2. Collector 3. Emitter
SOT-89
Weekly code
Year cod e
hFE grage
FJC2383 NPN Epitaxial Silicon Transistor
July 2005
Absolute Maximum Ratings
Ta = 25°C unless otherwise noted
Symbol Parameter Ratings Units
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
J
T
STG
Electrical Characteristics
Collector-Base Voltage 160 V
Collector-Emitter Voltage 160 V
Emitter-Base Voltage 6 V
Collector Current 1 A
Base Current 0.5 A
Collector Power Dissipation 500 mW
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
Ta = 25°C unless otherwise noted
Symbol Parameter Test Condition Min. Typ. Max. Units
I
CBO
I
EBO
BV
CEO
h
FE
V
CE
V
(on) Base-Emitter On Voltage V
BE
f
T
C
ob
Collector Cut-off Current V
Emitter Cut-off Current V
= 150V, IE = 0
CB
= 6V, IC = 0 1 µA
EB
1 µA
Collector-Emitter Breakdown Voltage IC = 10mA, IB = 0 160 V
DC Current Gain V
= 5V, IC = 200mA 100 320
CE
(sat) Collector-Emitter Saturation Voltage IC = 500mA, IB = 50mA 1.5 V
= 5V, IC = 5mA 0.45 0.75 V
CE
Current Gain Bandwidth Product V
Output Capacitance V
= 5V, IC = 200mA 20 100 MHz
CE
= 10V, IE = 0, f = 1MHz 20 pF
CB
©2005 Fairchild Semiconductor Corporation
FJC2383 Rev. B
1
www.fairchildsemi.com
Page 2
hFE Classification
Classification O Y
h
FE
100 ~ 200 160 ~ 320
Package Marking and Ordering Information
Device Marking Device Package Reel Size Tape Width Quantity
2383 FJC2383 SOT-89 13” -- 4,000
FJC2383 NPN Epitaxial Silicon Transistor
FJC2383 Rev. B
2
www.fairchildsemi.com
Page 3
Typical Performance Characteristics

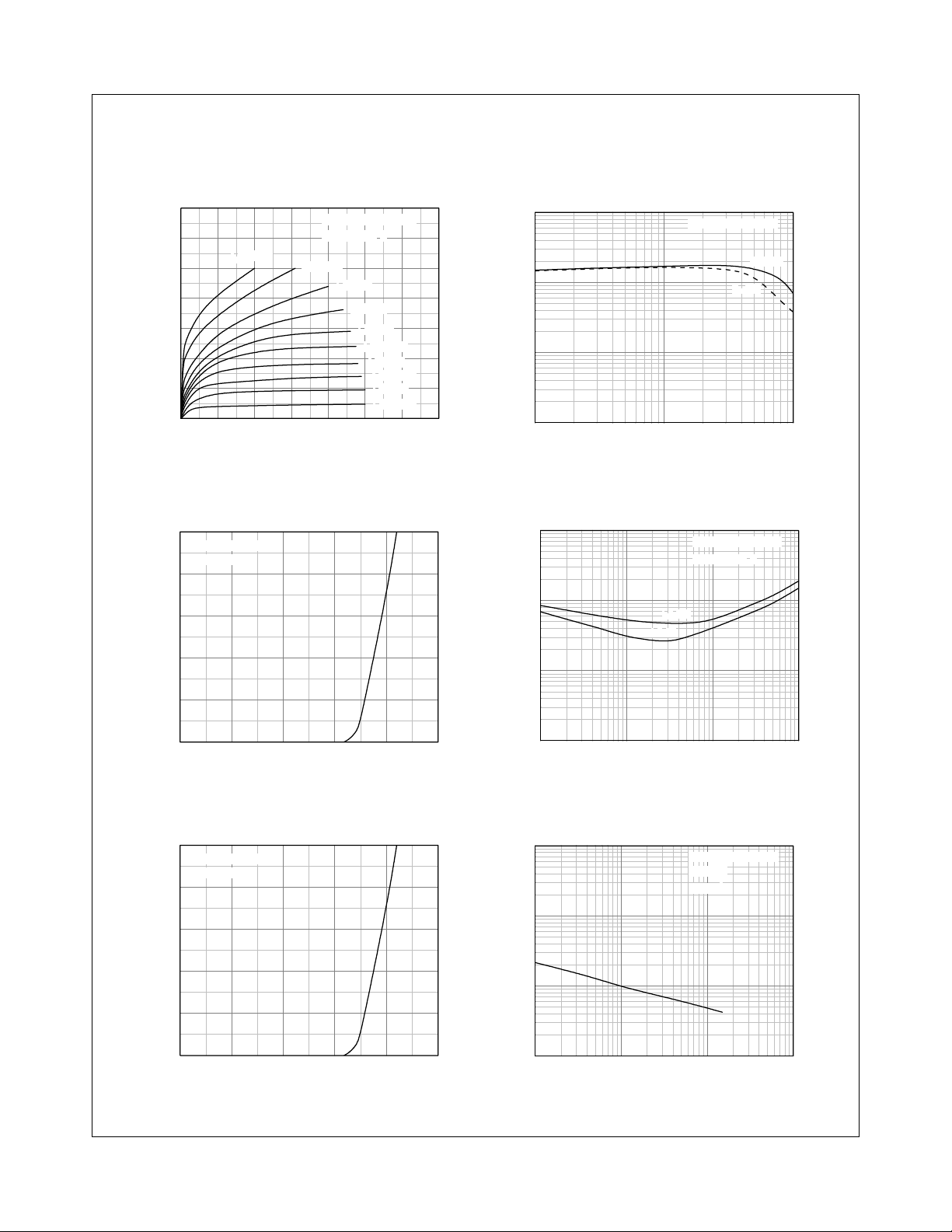

Figure 1. Static Characteristic Figure 2. DC Current Gain
1.4
1.2
IB = 15mA
1.0
EMITTER COMMON
Ta=25oC
IB = 10mA
IB = 6mA
0.8
0.6
0.4
Ic[mA], COLLECTOR CURRENT
0.2
IB = 4mA
IB = 3mA
IB = 2.5mA
IB = 2mA
IB = 1.5mA
IB = 1mA
1000
100
10
, DC CURRENT GAIN
FE
h
IB = 0.5mA
0.0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
VCE[V], COLLECTOR-EMITTER VOLTAGE
1
10 100 1000
IC[mA], COLLECTOR CURRENT
Figure 3. DC Current Gain Figure 4. Collector-Emitter Saturation Voltage
1.0
EMITTER COMMON
IC/IB=10
0.8
1
EMITTER COMMON
VCE=10V
VCE=5V
EMITTER COMMON
Ta = 25oC
FJC2383 NPN Epitaxial Silicon Transistor
0.6
0.4
0.2
[A], COLLECTOR CURRENT
C
I
0.0
0.0 0.2 0.4 0.6 0.8 1.0
VBE[V], BASE-EMITTER VOLTAGE
0.1
0.01
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
1E-3
1 10 100 1000
IC[mA], COLLECTOR CURRENT
IC/IB=10
IC/IB=5
Figure 5. Base-Emitter On Voltage Figure 6. Collectro Output Capacitance
[A], COLLECTOR CURRENT
C
I
1.0
0.8
0.6
0.4
0.2
EMITTER COMMON
IC/IB=10
1000
100
10
[pF], CAPACITANCE
ob
C
EMITTER COMMON
f = 1MHz
Ta = 25oC
0.0
FJC2383 Rev. B
0.0 0.2 0.4 0.6 0.8 1.0
VBE[V], BASE-EMITTER VOLTAGE
1
1 10 100 1000
VCB[V], COLLECTOR BASE VOLTAGE
3
www.fairchildsemi.com
Page 4
FJC2383 NPN Epitaxial Silicon Transistor
Typical Performance Characteristics

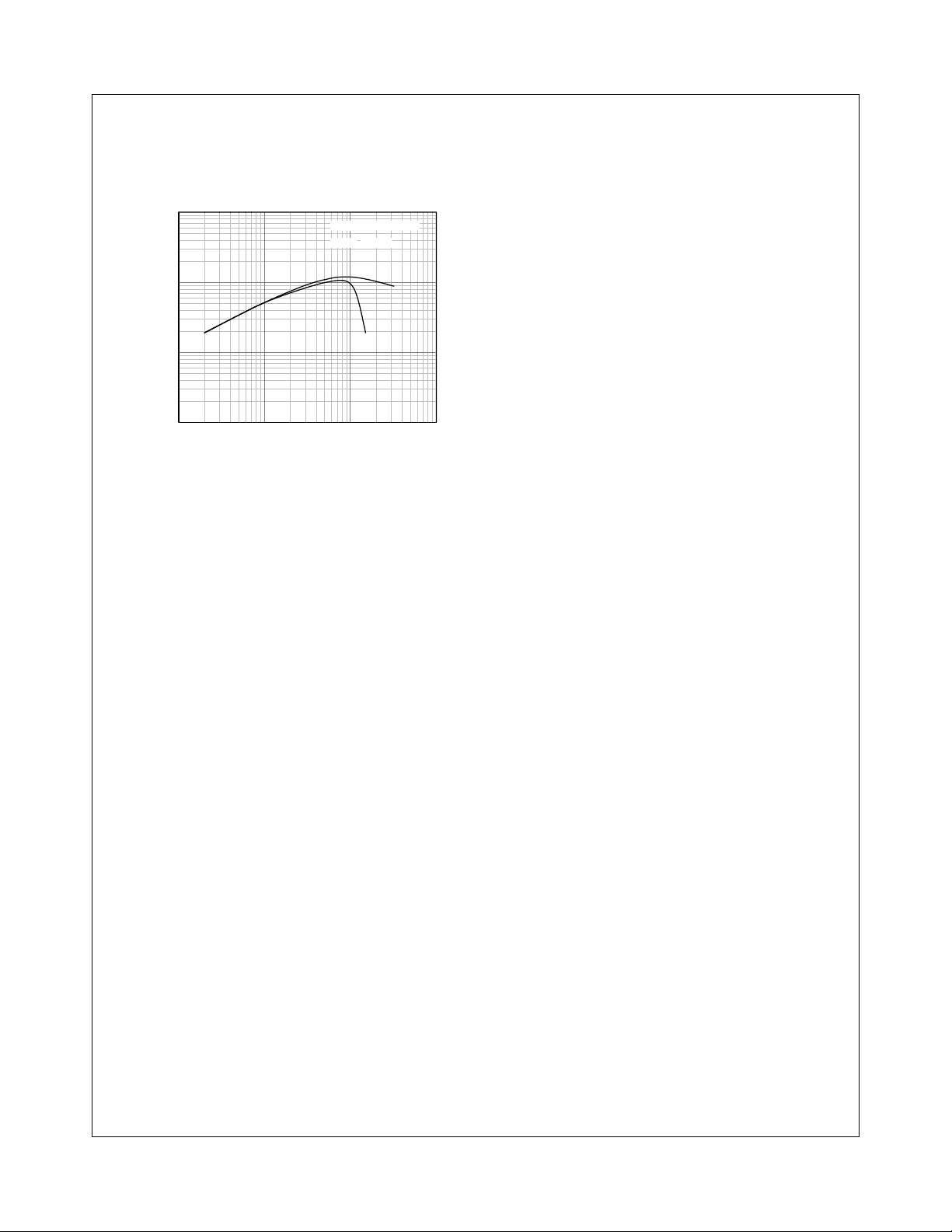

Figure 7. Current Gain Bandwidth Product
1000
100
10
1
1 10 100 1000
[MHz], CURRENT GAIN BANDWIDTH PRODUCT
T
f
IC[mA], COLLECTOR CURRENT
EMITTER COMMON
Ta = 25oC
(Continued)
FJC2383 Rev. B
4
www.fairchildsemi.com
Page 5

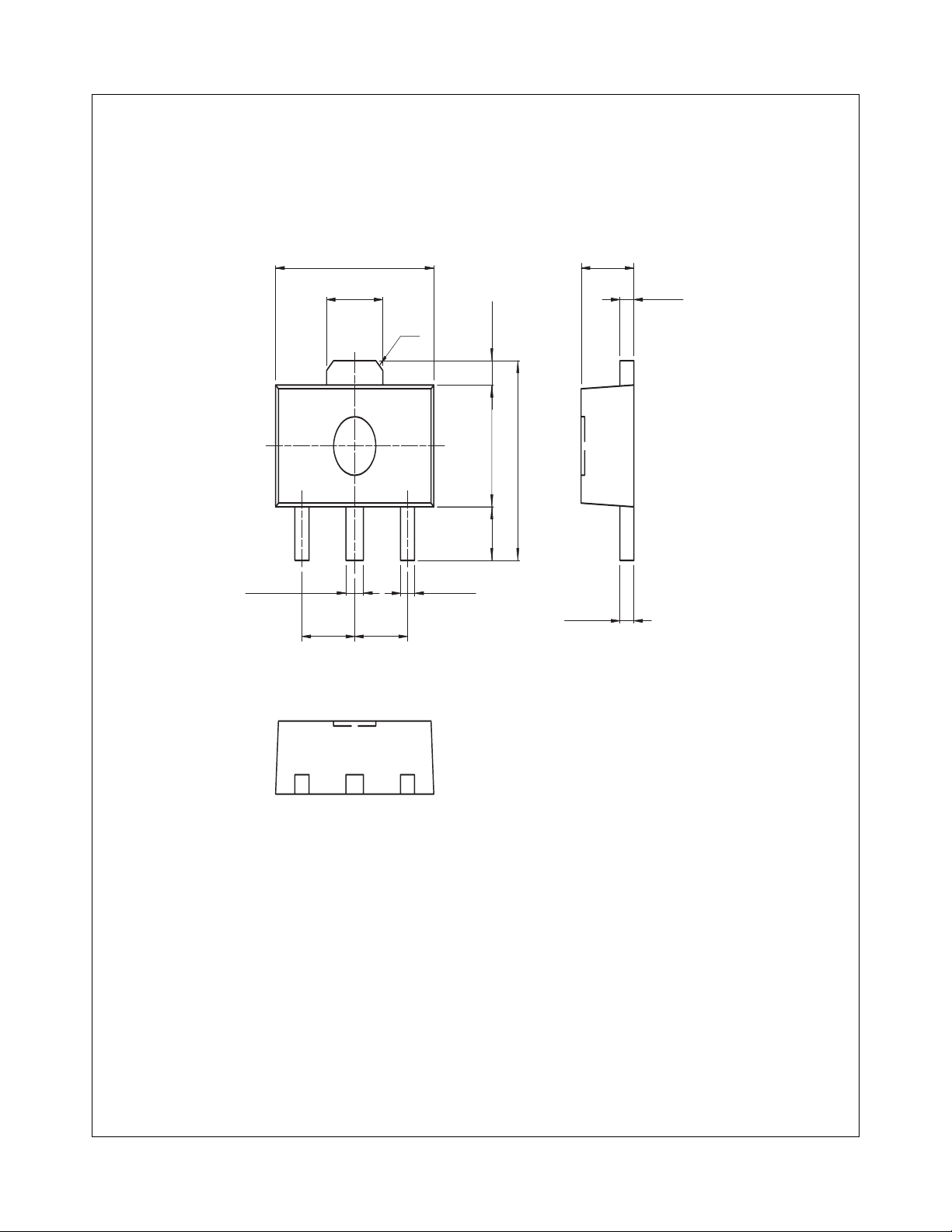

Mechanical Dimensions
4.50
±0.20
SOT-89
1.50
FJC2383 NPN Epitaxial Silicon Transistor
±0.20
0.50
1.65
±0.10
1.50 TYP 1.50 TYP
±0.10
C0.2
0.40
±0.10
(0.50)
±0.20
2.50
(1.10)
±0.20
4.10
0.40
(0.40)
+0.10
–0.05
FJC2383 Rev. B
Dimensions in Millimeters
5
www.fairchildsemi.com
