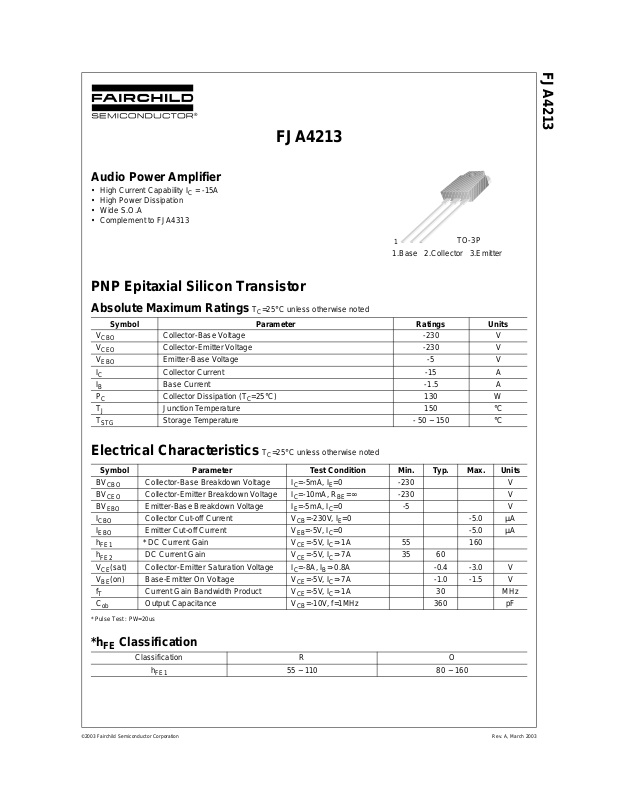

Audio Power Amplifier

• High Current Capability IC = -15A

• High Power Dissipation

•Wide S.O.A

• Complement to FJA4313

FJA4213

1.Base 2.Collector 3.Emitter

TO-3P

PNP Epitaxial Silicon Transistor

Absolute Maximum Ratings

Symbol Parameter Ratings Units

V V V I I P T T

CBO CEO

EBO C B

STG

Collector-Base Voltage -230 V Collector-Emitter Voltage -230 V Emitter-Base Voltage -5 V Collector Current -15 A Base Curre nt -1.5 A Collector Dissipation (TC=25°C) 130 W Junction Temperature 150 °C Storage Temperature - 50 ~ 150 °C

Electrical Characteristics

Symbol Parameter Test Condition Min. Typ. Max. Units

CBO

CEO

EBO

CBO

EBO

FE1

FE2

(sat) Collector-Emitter Saturation Voltage IC=-8A, IB=-0.8A -0.4 -3.0 V

(on) Base-Emitter On Voltage VCE=-5V, IC=-7A -1.0 -1.5 V

* Pulse Test : PW=20us

Collector-Base Breakdown Voltage IC=-5mA, IE=0 -230 V Collector-Emitter Breakdown Voltage IC=-10mA, RBE=∞ -230 V Emitter-Base Breakdown Voltage IE=-5mA, IC=0 -5 V Collector Cut-off Current VCB=-230V, IE=0 -5.0 µA Emitter Cut-off Current VEB=-5V, IC=0 -5.0 µA * DC Current Gain VCE=-5V, IC=-1A 55 160 DC Current Gain VCE=-5V, IC=-7A 35 60

Current Gain Bandwidth Product VCE=-5V, IC=-1A 30 MHz Output Capacitance VCB=-10V, f=1MHz 360 pF

TC=25°C unless otherwise noted

*hFE Classificatio n

Classification R O

FE1

55 ~ 110 80 ~ 160

Page 2

Typical Characteristics

FJA4213

-20

-18

-16

-14

-12

-10

-8

-6

[mA], COLLECTOR CURRENT

-4

-2

-0 -2 -4 -6 -8 -10

IB = -1A

VCE[V], COLLECTOR-EMITTER VO LTAG E

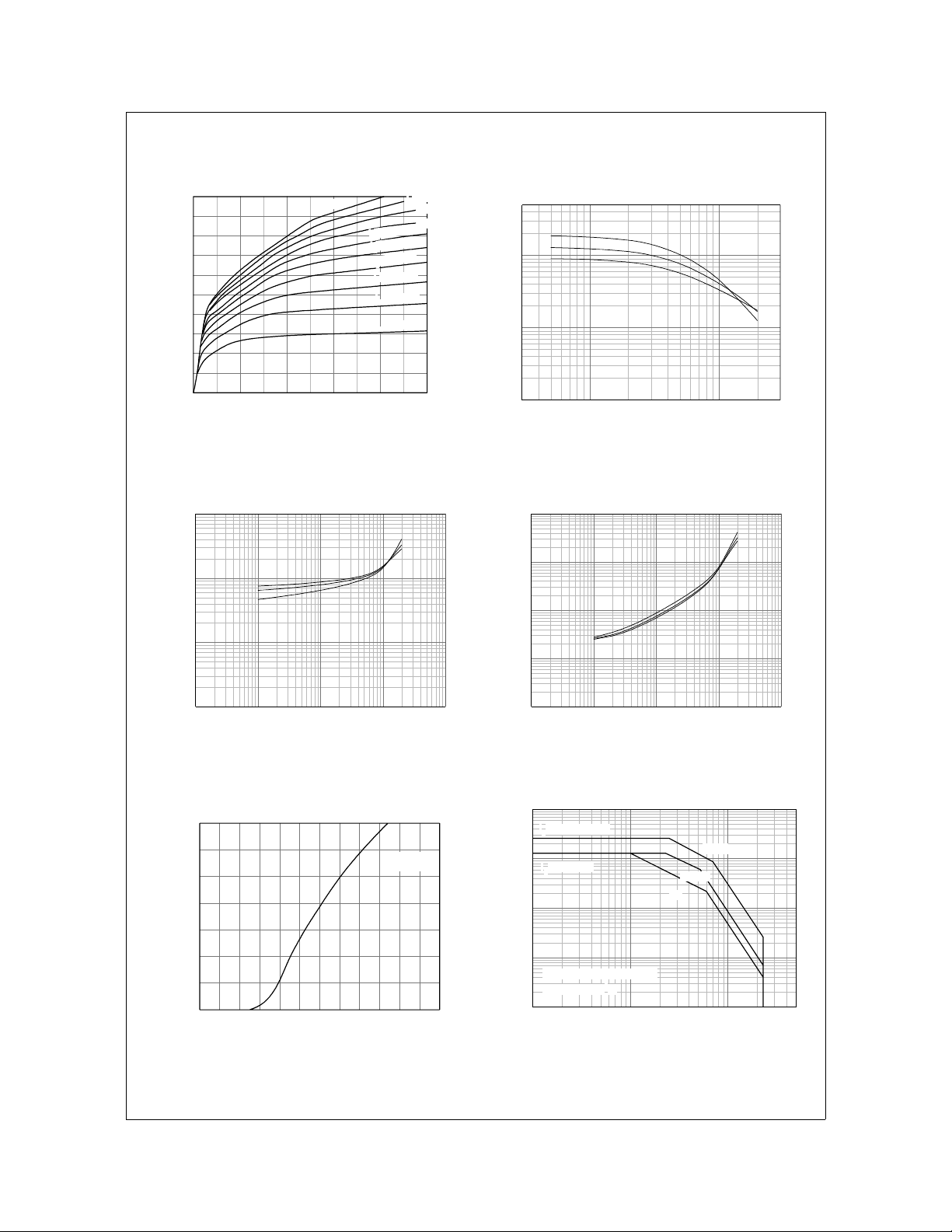

Figure 1. Static Characteristic Figure 2. DC current Gain

10000

1000

℃℃℃℃

Tj=-25

℃℃℃℃

Tj=25

℃℃℃℃

Tj=125

100

= -600mA

= -500mA

= -400mA

IB = -300mA

IB = -200mA

IB = -100mA

IB = -900mA

IB = -800mA

IB = -700mA

Ic=-10Ib

Tj = 125

Tj = 25

Tj = -25

100

VCE = -5V

, DC CURRENT GAIN

110

IC[A], C OL L E CTOR CU RR EN T

10000

1000

100

℃℃℃℃

Tj=125

℃℃℃℃

Tj=25

℃℃℃℃

Tj=-25

Ic=-1 0 Ib

Vbe(sat)[mV], SATURATION VOLTAGE

0.01 0.1 1 10 100

Ic[A], COLLECTOR CURRENT

Figure 3. Base-Emitter Saturation Voltage Figure 4. Collector-Emitter Saturation Voltage

[A], COLLECTOR CURRENT

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4

VBE[V], BASE-EMITTER VOLTAGE

Figure 5. Base-Emitter On Voltage Figure 6. Safe Operating Area

Vce(sat)[mV], SATURATION VOLTAGE

0.01 0.1 1 10 100

Ic[A], COLLECTOR CURRENT

-100

IC MAX. (Pulsed*)

VCE = 5V

-10

IC MAX. (DC)

-1

-0.1

*SINGLE NONREPETITIVE

[A], COLLECTOR CURRENT

PULSE TC=25[oC]

-0.01 1 10 100

10ms*

100ms*

VCE [V], COLLECTOR-EMITTER VOLTAGE

Rev. A, March 2003

Page 3

Typical Characteristics

160

140

120

100

[W], POWER DISSIPATION

0 255075100125150175

TC[oC], CASE TEM PERATURE

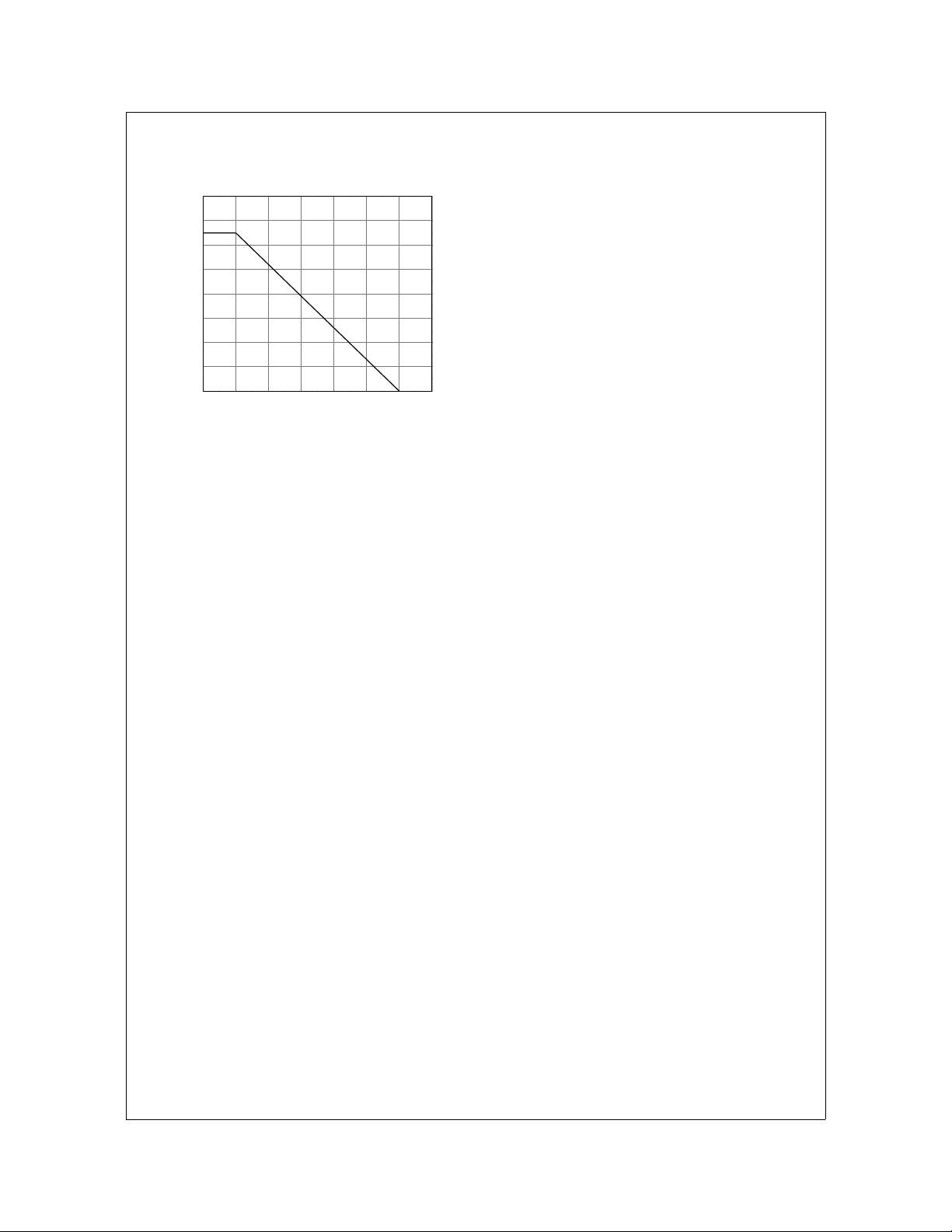

Figure 7. Power Derating

FJA4213

Page 4

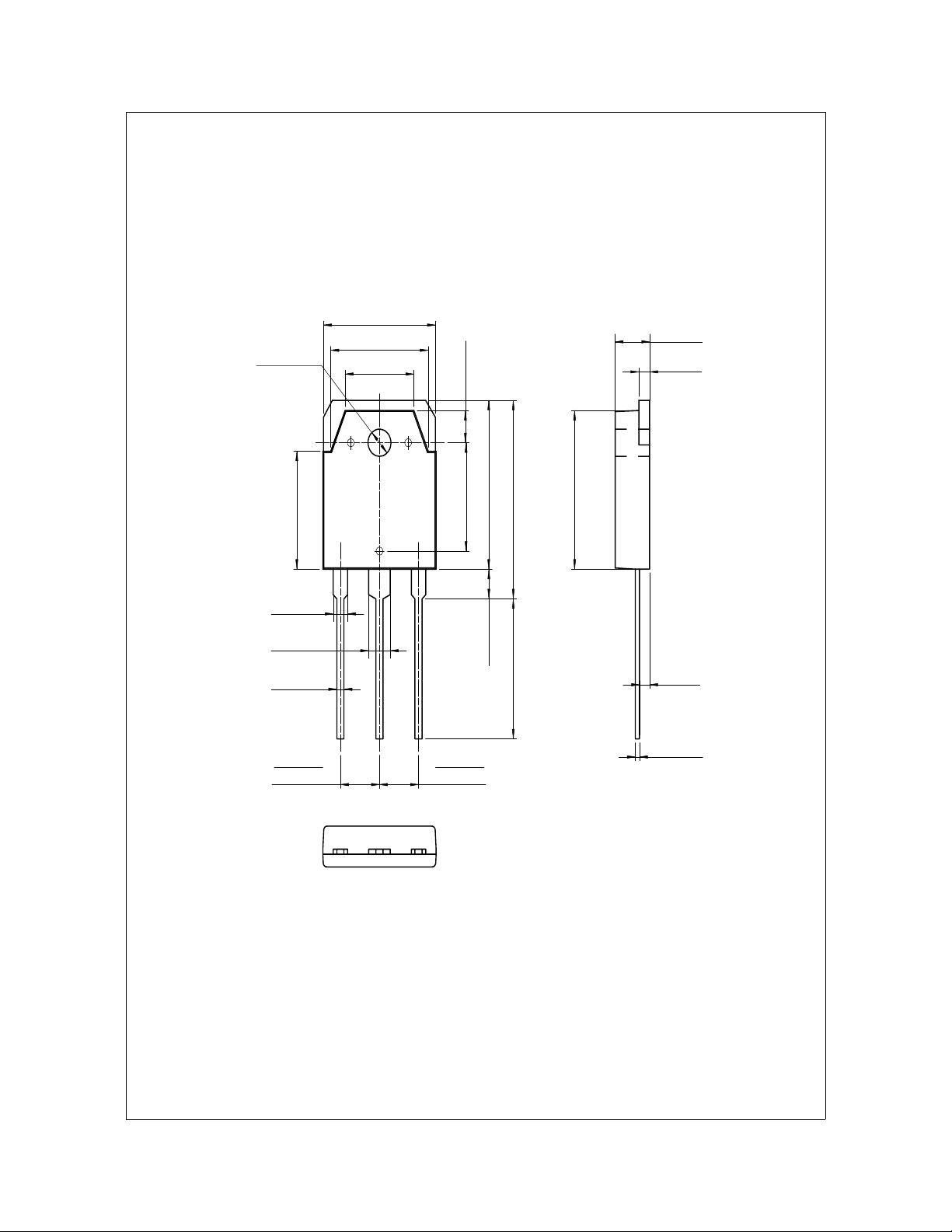

Package Dimensions

ø3.20

±0.10

15.60

13.60

9.60

±0.20

TO-3P

±0.20

3.80

4.80

1.50

±0.20 +0.15

–0.05

FJA4213

±0.20

13.90

2.00

±0.20

3.00

±0.20

1.00

±0.20

5.45TYP

[5.45

±0.30

±0.20

12.76

19.90

23.40

±0.20

3.50

±0.30

16.50

5.45TYP

]

[5.45

±0.30

]

±0.20

18.70

1.40

0.60

±0.20

+0.15 –0.05

Dimensions in Millimeters
