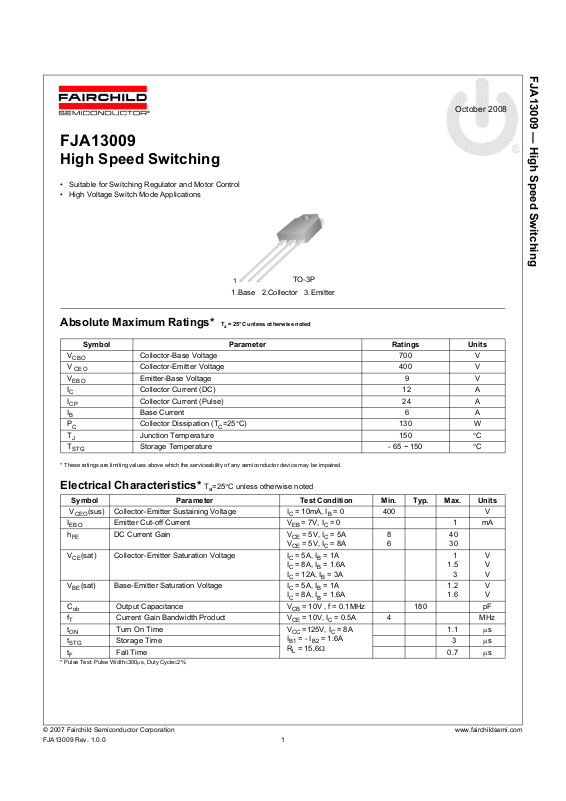

FJA13009
High Speed Switching
• Suitable for Switching Regulator and Motor Control
• High Voltage Switch Mode Applications
FJA13009 — High Speed Switching
October 2008
1
TO-3P
1.Base 2.Collector 3.Emitter
Absolute Maximum Ratings* T
= 25°C unless otherwise noted
a
Symbol Parameter Ratings Units
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
J
T
STG
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Electrical Characteristics* T
Collector-Base Voltage 700 V
Collector-Emitter Voltage 400 V
Emitter-Base Voltage 9 V
Collector Current (DC) 12 A
Collector Current (Pulse) 24 A
Base Current 6 A
Collector Dissipation (TC=25°C) 130 W
Junction Temperature 150 °C
Storage Temperature - 65 ~ 150 °C
=25°C unless otherwise noted
a
Symbol Parameter Test Condition Min. Typ. Max. Units
V
(sus) Collector-Emitter Sustaining Voltage IC = 10mA, IB = 0 400 V
CEO
I
EBO
h
FE
VCE(sat) Collector-Emitter Saturation Voltage IC = 5A, IB = 1A
VBE(sat) Base-Emitter Saturation Voltage
C
ob
f
T
t
ON
t
STG
t
F
* Pulse Test: Pulse Width£300ms, Duty Cycle£2%
Emitter Cut-off Current V
DC Current Gain V
= 7V, IC = 0 1 mA
EB
= 5V, IC = 5A
CE
V
= 5V, IC = 8A
CE
8
6
40
30
1
IC = 8A, IB = 1.6A
IC = 12A, IB = 3A
IC = 5A, IB = 1A
Output Capacitance V
Current Gain Bandwidth Product V
Turn On Time V
Storage Time 3 ms
Fall Time 0.7 ms
IC = 8A, IB = 1.6A
= 10V , f = 0.1MHz 180 pF
CB
= 10V, IC = 0.5A 4 MHz
CE
=125V, IC = 8A
CC
IB1 = - I
B2
= 1.6A
RL = 15,6W
1.5
3
1.2
1.6
1.1 ms
V
V
V
V
V
© 2007 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJA13009 Rev. 1.0.0 1

Typical Characteristics
FJA13009 — High Speed Switching
100
10
, DC CURRENT GAIN
FE
h
1
0.1 1 10 100
IC[A], COLLECTOR CURRENT
Figure 1. DC current Gain Figure 2. Base-Emitter Saturation Voltage
1000
100
10
[pF], CAPACITANCE
ob
C
VCE = 5V
VCE(sat)
IC = 3 I
B
10
1
VBE(sat)
0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
0.01
0.1 1 10 100
IC[A], COLLECTOR CURRENT
Collector-Emitter Saturation Voltage
10000
1000
[ns], TURN ON TIME
100
D
, t
R
t
tD, VBE(off)=5V
t
R
VCC=125V
IC=5I
B
1
0.1 1 10 100 1000
VCB[V], COLLECTOR-BASE VOLTAGE
10
0.1 1 10 100
IC[A], COLLECTOR CURRENT
Figure 3. Collector Output Capacitance Figure 4. Turn On Time
10000
1000
[ns], TURN OFF TIME
F
, t
STG
t
100
0.1 1 1 0 100
t
STG
t
F
IC[A], COLLECTOR CURRENT
VCC=125V
IC=5I
B
100
10
1
0.1
[A], COLLECTOR CURRENT
C
I
0.01
1 10 100 1000
VCE[V], COLLECTOR-EMITTER VOLTAGE
1
0
m
1
s
0
0
m
D
C
s
1m
s
Figure 5. Turn Off Time Figure 6. Forward Bias Safe Operating Area
© 2007 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJA13009 Rev. 1.0.0 2

Typical Characteristics
FJA13009 — High Speed Switching
100
10
1
0.1
[A], COLLECTOR CURRENT
C
I
0.01
10 100 1000 10000
Vcc=50V,
IB1=1A, IB2 = -1A
L = 1mH
VCE[V], COLLECTOR-EMITTER VOLTAGE
140
120
100
80
60
40
[W], POWER DISSIPATION
C
P
20
0
0 25 50 75 100 125 150 175
Tc[oC], CASE TEMPERATURE
Figure 7. Reverse Bias Safe Operating Area Figure 8. Power Derating
© 2007 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJA13009 Rev. 1.0.0 3

Package Dimension (TO-3P)
15.80
15.40
5.20
4.80
(R0.50)
5.00
4.60
1.65
1.45
FJA13009 — High Speed Switching
(1.85)
2.20
1.80
3.20
2.80
1.20
0.55
0.80
1 3
5.45 5 .45
(R0.50)
NOTES:
A) THIS PACKAGE CONFORMS TO EIAJ
SC-65 PACKAGING STANDARD.
B) ALL DIMENSIONS ARE IN MILLIMETERS.
C) DIMENSIONING AND TOLERANCING PER
ASME14.5 1973.
D) DIMENSIONS ARE EXCLUSIVE OF BURRS,
MOLD FLASH, AND TIE BAR EXTRUSIONS.
E) DRAWING FILE NAME: TO3P03AREV2.
3.70
3.30
20.10
19.70
20.30
19.70
18.90
18.50
0.75
0.55
2.60
2.20
© 2007 Fairchild Semiconductor Corporation www.fairchildsemi.com
FJA13009 Rev. 1.0.0 4
