FGM623S Jul. 2010

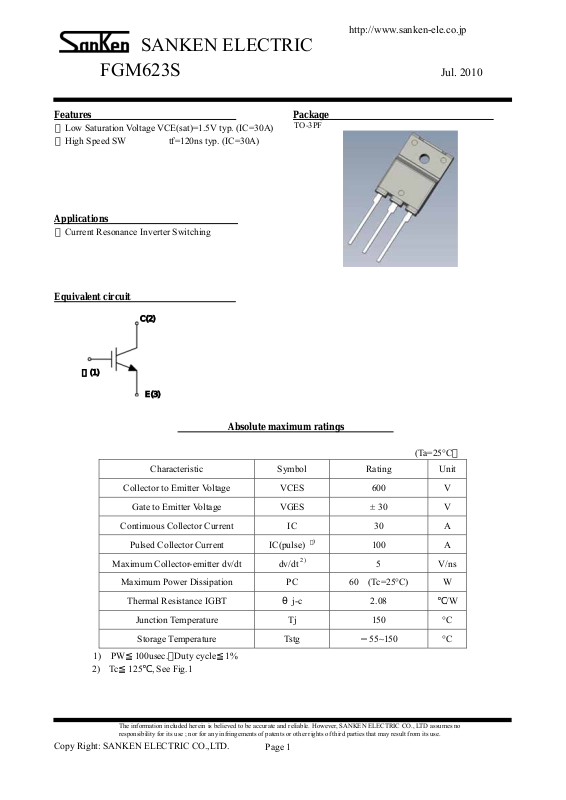

Features
・Low Saturation Voltage VCE(sat)=1.5V typ. (IC=30A) ・High Speed SW tf=120ns typ. (IC=30A)
Applications
・Current Resonance Inverter Switching
Package
TO-3PF
Equivalent circuit
Ｇ(1)
C(2)
E(3)
Absolute maximum ratings
(Ta=25°C）
Characteristic Symbol Rating Unit
Collector to Emitter Voltage VCES 600 V
Gate to Emitter Voltage VGES ± 30 V
Continuous Collector Current IC 30 A
)
Pulsed Collector Current IC(pulse)
Maximum Collector-emitter dv/dt dv/dt 2) 5 V/ns
Maximum Power Dissipation PC 60 (Tc=25°C) W
Thermal Resistance IGBT θj-c 2.08 ℃/W
Junction Temperature Tj 150 °C
Storage Temperature Tstg −55~150 °C
1) PW≦100usec.，Duty cycle≦1%
 2) Tc≦125℃, See Fig.1
１
100 A
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 1
Page 2
http://www.sanken-ele.co.jp
FGM623S Jul. 2010
Electrical characteristics
●IGBT (Ta=25°C）
Characteristic Symbol Test Conditions
MIN. TYP. MAX.
Collector to Emitter Breakdown Voltage V(BR)CES IC=100µA,VGE=0V 600 V
Gate to Emitter Leakage Current IGES VGE=±30V ± 500 nA
Collector to Emitter Leakage Current ICES VCE=600V, VGE=0V 100 µA
Gate Threshold Voltage VGE(th) VCE=10V, IC=1mA 3 6 V
Collector to Emitter Saturation Voltage VCE(sat) VGE=15V, IC=30A 1.5 1.7 V
Collector to Emitter Saturation Voltage VCE(sat) VGE=15V, IC=50A 1.8 V
Limits
Unit
Input Capacitance Cies
Output Capacitance Coes 150
Reverse Transfer Capacitance Cres 80
Gate charge Qgate
Gate to Collector Charge Qgc 20
Gate to Emitter Charge Qge 20
Turn-On Delay Time td(on)
Rise Time tr 80
Turn-Off Delay Time td(off) 300
Fall Time tf 120
Turn-On Delay Time td(on)
Rise Time tr 100
Turn-Off Delay Time td(off) 300
VCE=20V
VGE=0V
f=1MHz
VCE=300V
IC=30A
VGE=15V
VCE=300V,IC=30A
VGE=15V,RG=39Ω
L=100uH,Tc=25℃
See Fig.1
VCE=300V,IC=30A
VGE=15V,RG=39Ω
L=100uH,Tc=125℃
2500
65
100
100
pF
nC
ns
ns
Fall Time tf 200
See Fig.1
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 2
Page 3
http://www.sanken-ele.co.jp
FGM623S Jul. 2010
Fig.1 Switching Time Test Method
Clamp Di
(FMX-G26S)
cc
Vcc=300V
IC=30A
VGE=15V
RG=39Ω
L=100uH
15 V
0 V
IC
R
G
(a) Test Circuit
L
V
90%
VGE
VCE
10%
dv/dt
90%
10%
IC
td(on) tr
td(off) tf
90%
10%
(b) Waveforms
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 3
Page 4
http://www.sanken-ele.co.jp
FGM623S Jul. 2010
Characteristic Curves
IC - VCE (typical)
100
80
60
IC (A)
40
20
0
VGE=20V
012345
15V
10V
VCE (V)
VCE(sat) - Tc (typical)
4
3
2
VCE(sat) (V)
1
0
-50 0 50 100 150
Tc (℃)
VCE - VGE (typical)
5
Ta=25℃
VGE=15V
IC=100A
50A
30A
Tc=25℃
IC - VCE (typical)
100
VGE=20V
80
60
8V
7V
IC (A)
40
20
0
012345
15V
10V
VCE (V)

Ta=125℃
8V
7V
IC - VGE (typical)
VCE=5V
Tc=125℃
25℃
-55℃

100
80
60
IC (A)
40
20
0
0 5 10 15
VGE (V)
VCE - VGE (typical)
5
Tc=125℃
4
3
VCE (V)
2
1
0
1 10 100
VGE (V)
IC=100A
50A
30A

4
3
IC=100A
VCE (V)
2
1
0
1 10 100
VGE (V)
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 4
50A
30A
Page 5
http://www.sanken-ele.co.jp
FGM623S Jul. 2010
Characteristic Curves
10000
Capacitance (pF)
1000
100
SW Time (ns)
Capacitance - VCE (typical)
1000
100
10
1
0 1020304050
VCE (V)
SW Time - IC (ty pical)
Tc = 25℃
td(off)
tf
td(on)
Tc=25℃ f=1MH z VGE=0V
Cies
Coes
Cres

VCE,VGE - Qg (typical)
40
VCE
30
20
10
VCE (×10V) , VGE (V)
0
0 20406080
VGE
Qg (nC)
Tc=25℃ RL=10Ω
SW Time - IC (typical)
1000
SW Time (ns)
td(off)
tf
100
td(on)
Tc = 125℃
Inductiv e Load
tr
10
110100
VCE=300V VG=15V Rg=39Ω
IC (A)
SW Time - RG (typical)
1000
100
tr
SW Time (ns)
td(on)
10
1 10 100
RG (Ω)
Tc = 25℃
td( off)
tf
Inductive Load VCE=300V VG=15V IC=30A


tr
10
1 10 100
SW Time - RG (typical)
1000
tf
100
SW Time (ns)
tr
td( on)
10
1 10 100
Inductive Load VCE=300V VG=15V Rg=39Ω
IC (A)
Inductive Load VCE=300V VG=15V IC=30A
RG (Ω)
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 5
Tc = 125℃
td(off)
Page 6
http://www.sanken-ele.co.jp
FGM623S Jul. 2010
Characteristic Curves
Reverse Bias ASO
1000
100
IC (A)
10
VGE=15V Rg=39Ω 1shot Tc=125℃
1
1 10 100 1000
VCE (V)
TRANSIENT THERMAL RESISTANCE - PULSE WIDTH
1.E+02
1.E+01
1.E+00

SAFE OPERATING AREA
1000
100
IC (A)
IC(p ulse) max
10
100µs
1
Tc=25℃ 1shot
0.1
1 10 100 1000
VCE (V)
10µs
1.E-01
Rth j-c (℃/W)
1.E-02
1.E-03
1.E-06 1.E-05 1.E-04 1.E-03 1.E-02 1.E-01 1.E+00 1.E+01 1.E+02
PT (sec.)
T c = 25 ℃
1shot
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 6
Page 7
http://www.sanken-ele.co.jp
FGM623S Jul. 2010

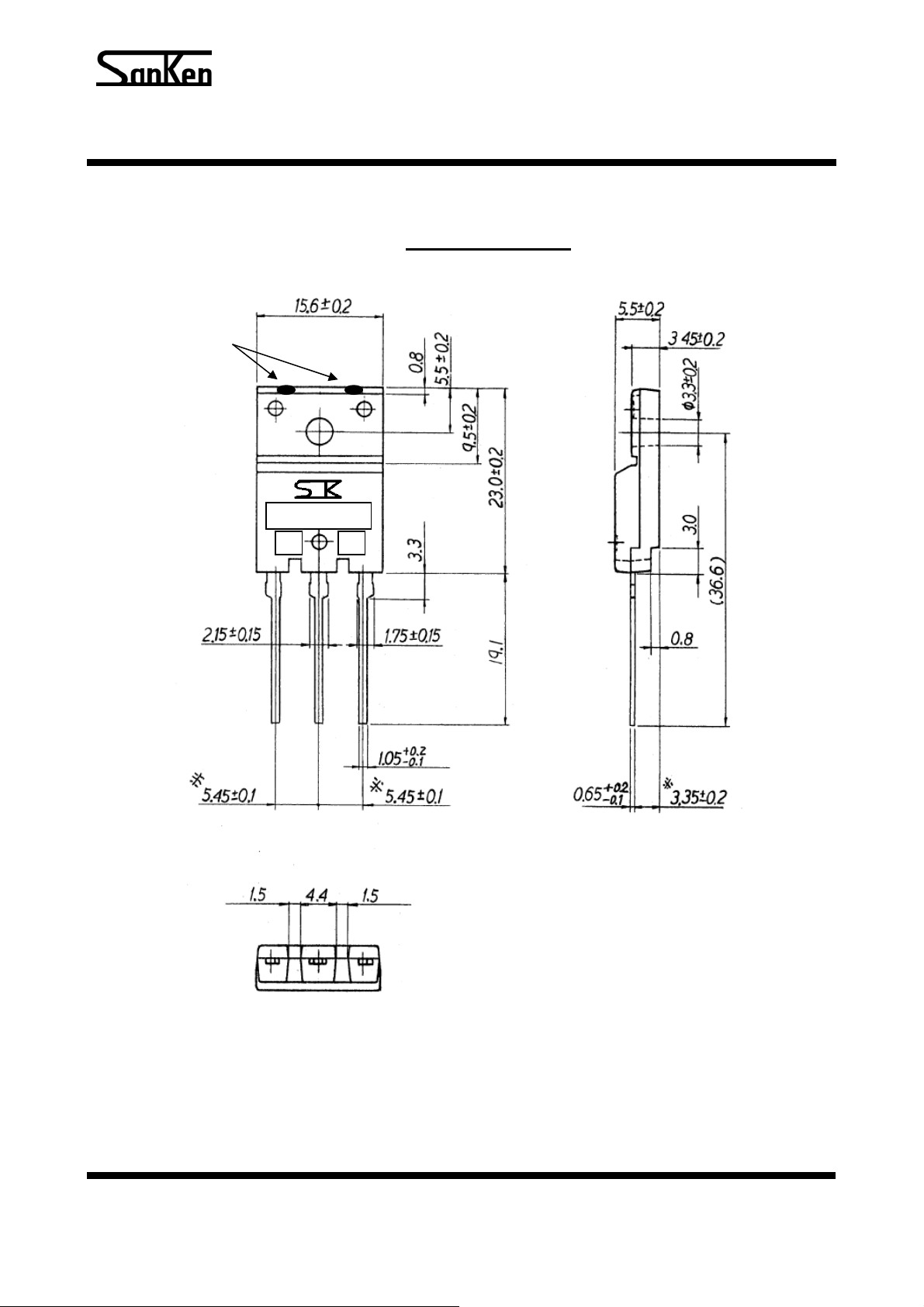

Outline
TO-3PF
Resincoating
FGM623S
(1) Gate
(2) Collctor
(3) Emitter
(1)(2)(3)
Wight Approx : 6.5g
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
