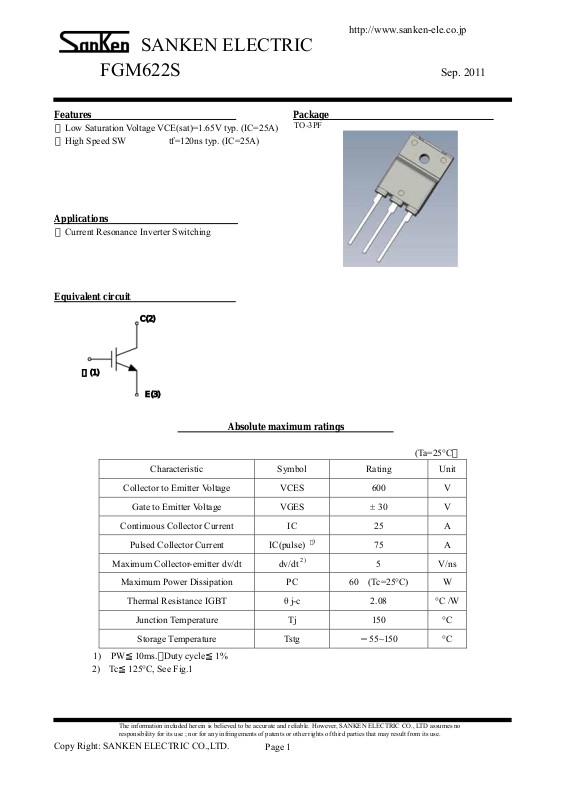

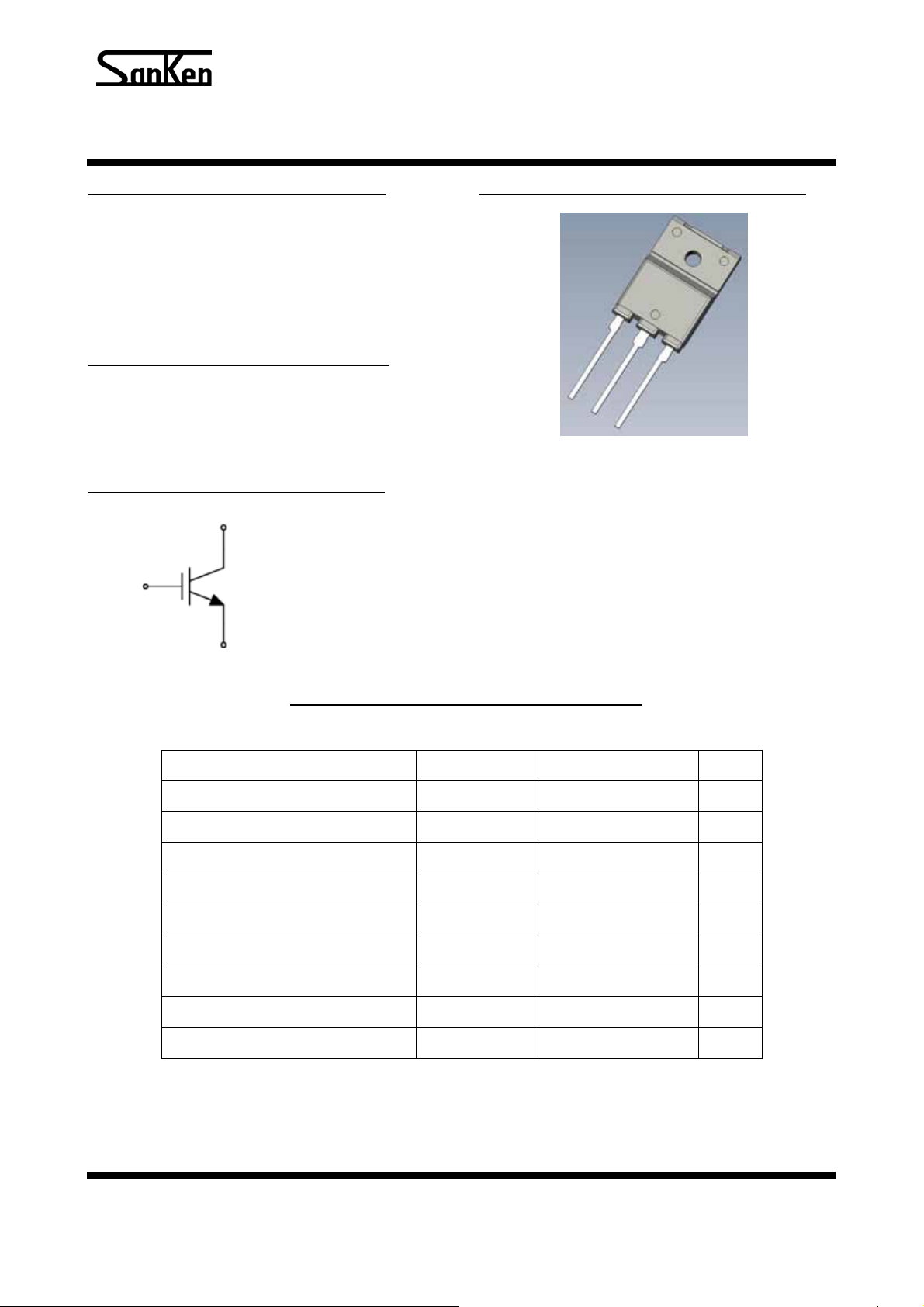

Features
・Low Saturation Voltage VCE(sat)=1.65V typ. (IC=25A) ・High Speed SW tf=120ns typ. (IC=25A)
Applications
・Current Resonance Inverter Switching
Package
TO-3PF
Equivalent circuit
Ｇ(1)
C(2)
E(3)
Absolute maximum ratings
(Ta=25°C）
Characteristic Symbol Rating Unit
Collector to Emitter Voltage VCES 600 V
Gate to Emitter Voltage VGES ± 30 V
Continuous Collector Current IC 25 A
)
Pulsed Collector Current IC(pulse)
Maximum Collector-emitter dv/dt dv/dt 2) 5 V/ns
Maximum Power Dissipation PC 60 (Tc=25°C) W
Thermal Resistance IGBT θ j-c 2.08 °C /W
Junction Temperature Tj 150 °C
Storage Temperature Tstg −55~150 °C
1) PW≦10ms.，Duty cycle≦1%  2) Tc≦125°C, See Fig.1
１
75 A
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 1
Page 2
http://www.sanken-ele.co.jp
FGM622S Sep. 2011
Electrical characteristics
●IGBT (Ta=25°C）
Characteristic Symbol Test Conditions
MIN. TYP. MAX.
Collector to Emitter Breakdown Voltage V(BR)CES IC=100µA,VGE=0V 600 V
Gate to Emitter Leakage Current IGES VGE=±30V ± 500 nA
Collector to Emitter Leakage Current ICES VCE=600V, VGE=0V 100 µA
Gate Threshold Voltage VGE(th) VCE=10V, IC=1mA 4 7 V
Collector to Emitter Saturation Voltage VCE(sat) VGE=15V, IC=25A 1.65 1.9 V
Collector to Emitter Saturation Voltage VCE(sat) VGE=15V, IC=40A 2.0 V
Limits
Unit
Input Capacitance Cies
Output Capacitance Coes 80
Reverse Transfer Capacitance Cres 40
Gate charge Qgate
Gate to Collector Charge Qgc 10
Gate to Emitter Charge Qge 10
Turn-On Delay Time td(on)
Rise Time tr 60
Turn-Off Delay Time td(off) 200
Fall Time tf 120
Turn-On Delay Time td(on)
Rise Time tr 60
Turn-Off Delay Time td(off) 200
VCE=20V
VGE=0V
f=1MHz
VCE=300V
IC=25A
VGE=15V
VCE=300V,IC=25A
VGE=15V,RG=39Ω
L=100uH,Tc=25
See Fig.1
VCE=300V,IC=25A
VGE=15V,RG=39Ω
L=100uH,Tc=125
°C
°C
1300
40
50
50
pF
nC
ns
ns
Fall Time tf 200
See Fig.1
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 2
Page 3
http://www.sanken-ele.co.jp
FGM622S Sep. 2011

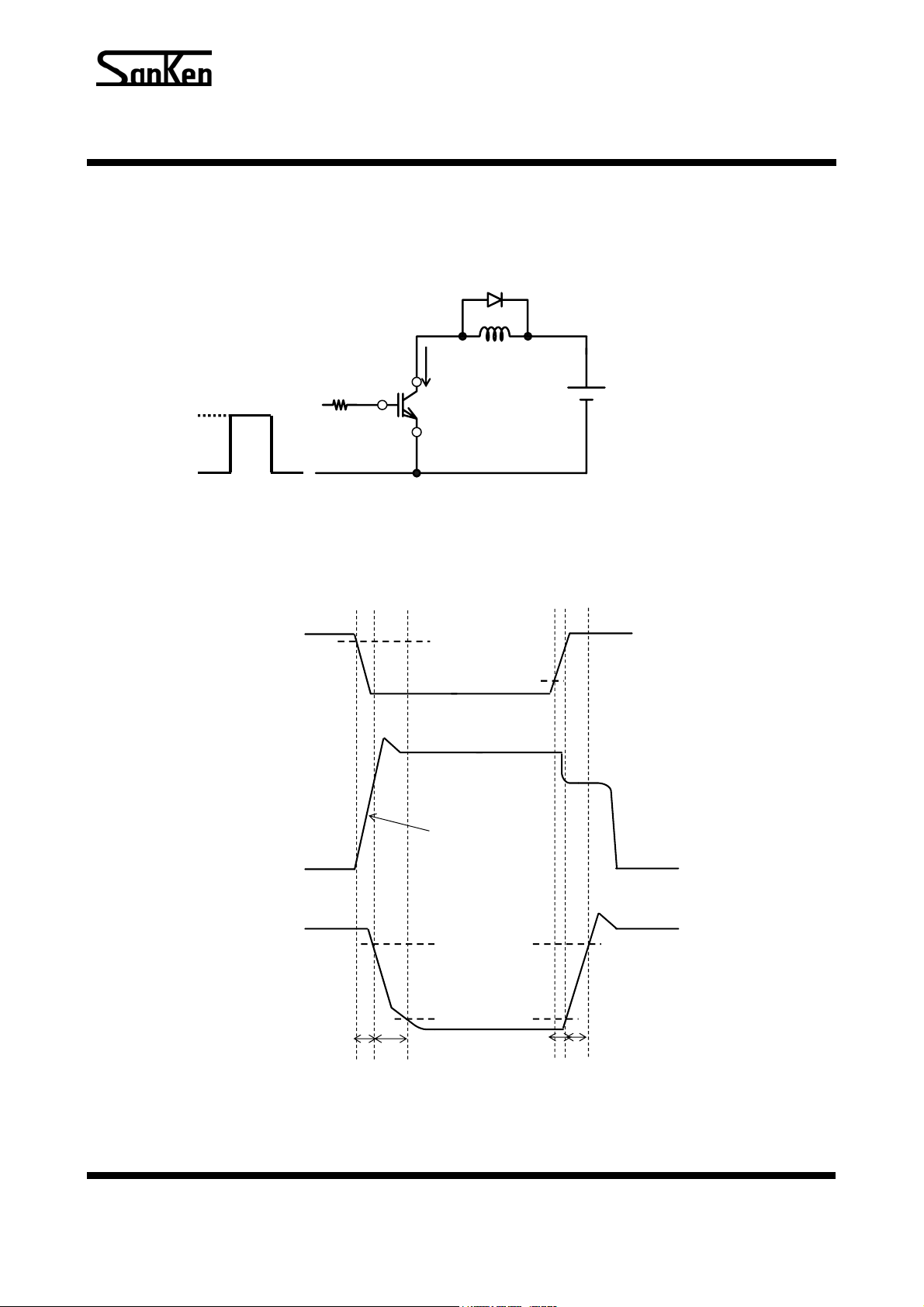

Fig.1 Switching Time Test Method
Clamp Di
(FMX-G26S)
cc
Vcc=300V
IC=25A
VGE=15V
RG=39Ω
L=100uH
15 V
0 V
IC
R
G
(a) Test Circuit
L
V
VGE
90%
10%
dv/dt
VCE
IC
90%
10%
90%
10%
td(on) tr
td(off) tf
(b) Waveforms
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 3
Page 4
http://www.sanken-ele.co.jp
FGM622S Sep. 2011

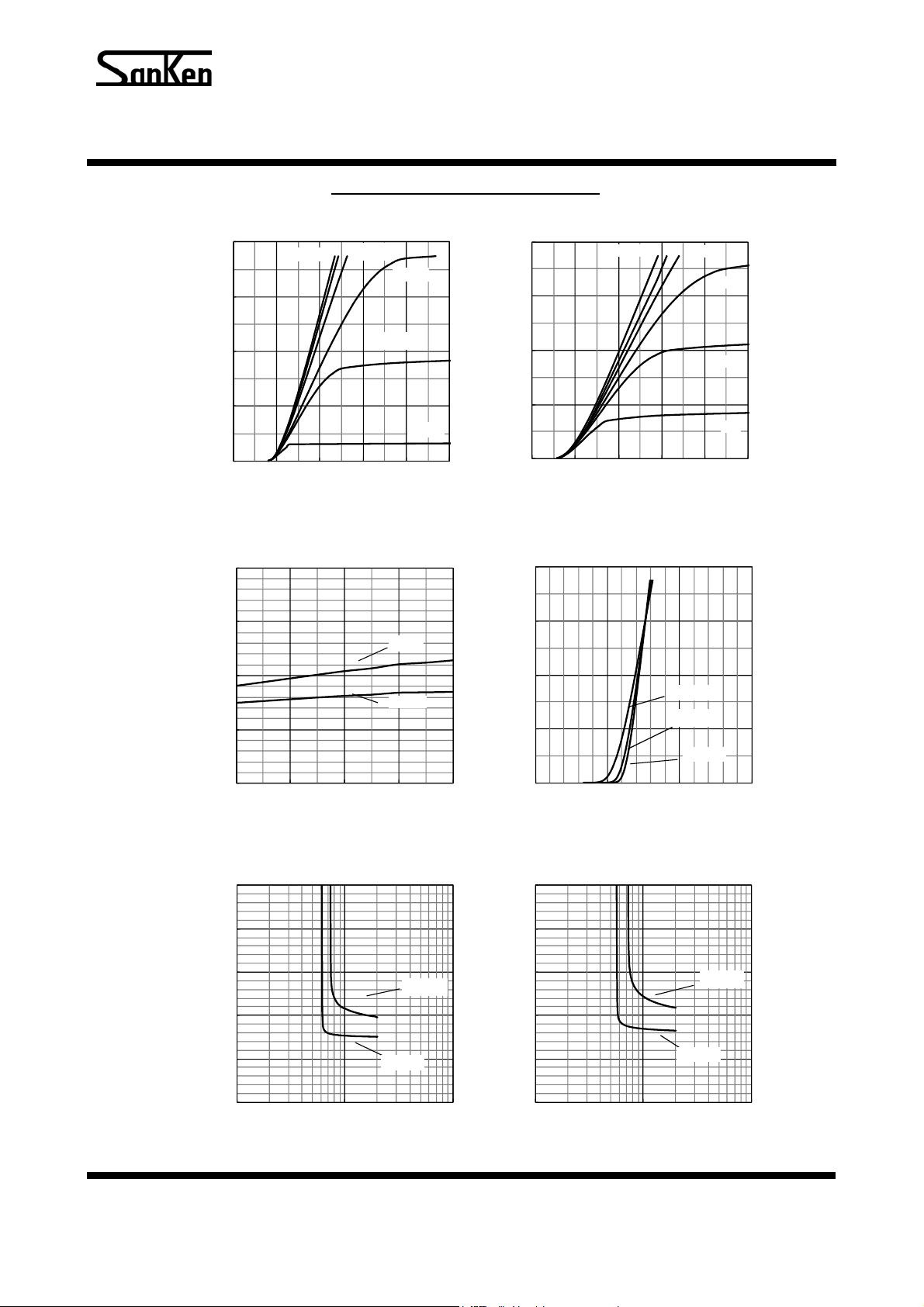

Characteristic Curves

IC - VCE characteristics (typical)
80
VGE=2 0V
60
40
IC (A)
20
0
012345
15V
10V
VCE (V)
Ta= 25℃
8V
7V
6V
VCE(sat) - Tc charac teristic s (typical)
4
3
VGE=15V
40A
IC - VCE charac teristic s (ty pical)
80
60
40
IC (A)
20
0
012345
VGE=20V
15V
VCE (V)
Ta=125℃
10V
IC - VGE characteristics (typical)
80
60
VCE=5V
8V
7V
6V
40
IC (A)
20
0
0 5 10 15
Tc = -40℃
25℃
125℃
VGE (V)
VCE - VGE characteristics (typical)
5
4
3
2
VCE (V)
1
0
110100
VGE (V)
25A


2
25A
VCE(sat) (V)
1
0
-50 0 50 100 150
Tc (℃)
VCE - VGE characteristics (typical)
5
4
3
2
VCE (V)
1
0
110100
VGE (V)
Tc = 25℃
IC=40A
25A
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 4
Tc = 125℃
IC=40A
Page 5
http://www.sanken-ele.co.jp
FGM622S Sep. 2011
Characteristic Curves

Capacitance - VCE characteristics
(typical)
10000
Coes
100
Cap a (pF)
Cres
1
0 1020304050
VCE (V)
SW Time - IC (typical)
Tc = 25 ℃
SW Time (ns)
1000
100
td( off)
tf
td( on)
Cies
Tc=25℃ f=1MHz VGE=0V
VCE,VGE - Qg (typical)
40
Tc=25℃
VCE
30
20
10
VCE（×10V) ,VGE（V)
0
0 10203040
Qg (nC)
IC=25A
VGE
SW Time - IC (typical)
Tc = 125℃
SW Time (ns)
1000
100
td( off)
tf
td( on)
IC=25A VCE=300V
IC (A )
IC=25A VCE=300 V
RG (Ω)
inductive load
VG=15V
Tc = 25℃
td( off)
in ductive load
VG=15V
tr
10
1 10 100
IC=25A VCE=300V
IC (A )
inductive load
VG=15V
SW Time - RG (typical)
1000
tf
100
SW Time (ns)
tr
td(on)
10
1 10 100
RG (Ω)
Tc = 12 5℃
inductive load
IC=25A VCE=300V
VG=15V


tr
10
1 10 100
SW Time - RG (typical)
1000
100
SW Time (ns)
tr
td(on)
10
1 10 100
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 5
td( off)
tf
Page 6
http://www.sanken-ele.co.jp
FGM622S Sep. 2011

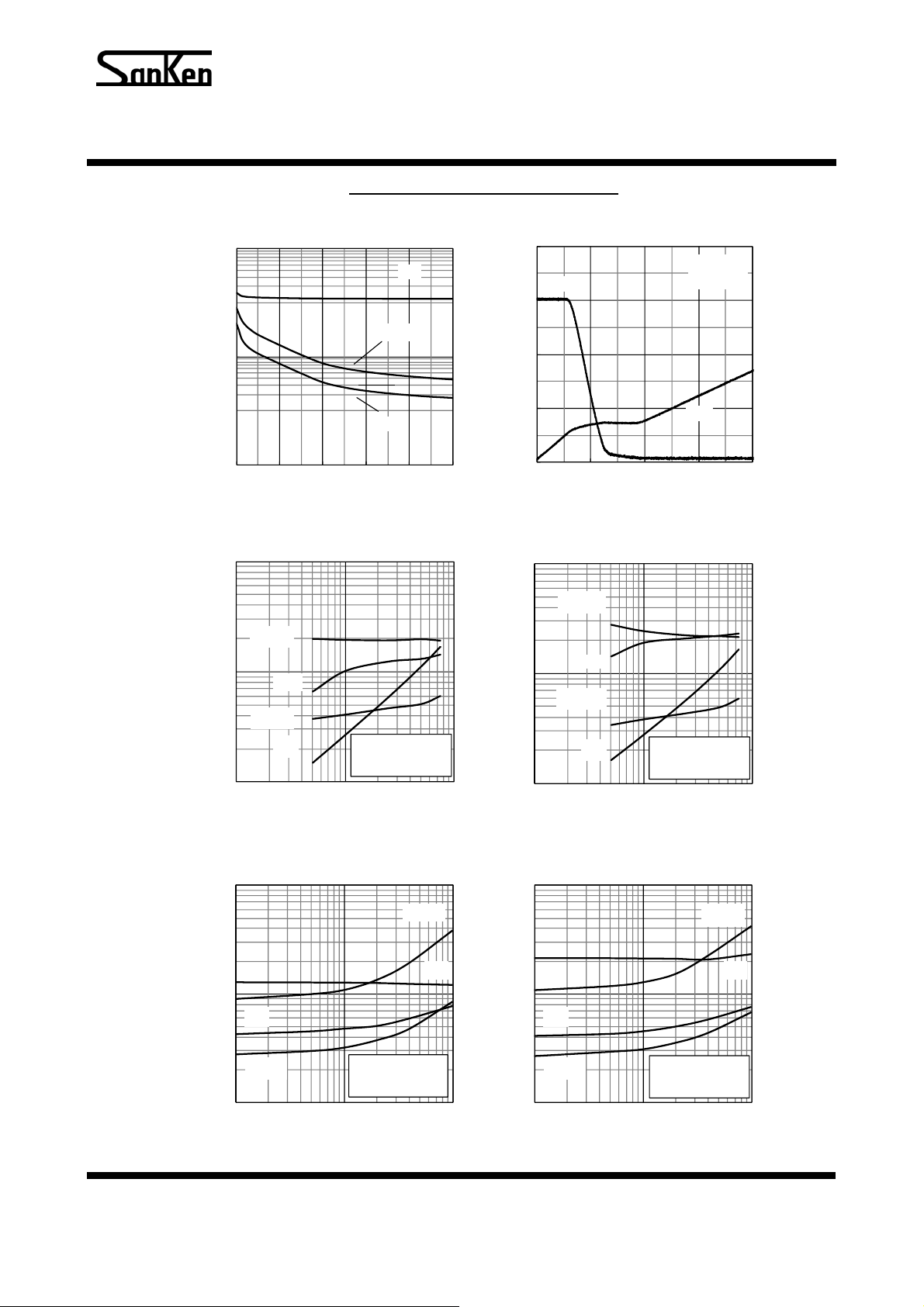

Characteristic Curves

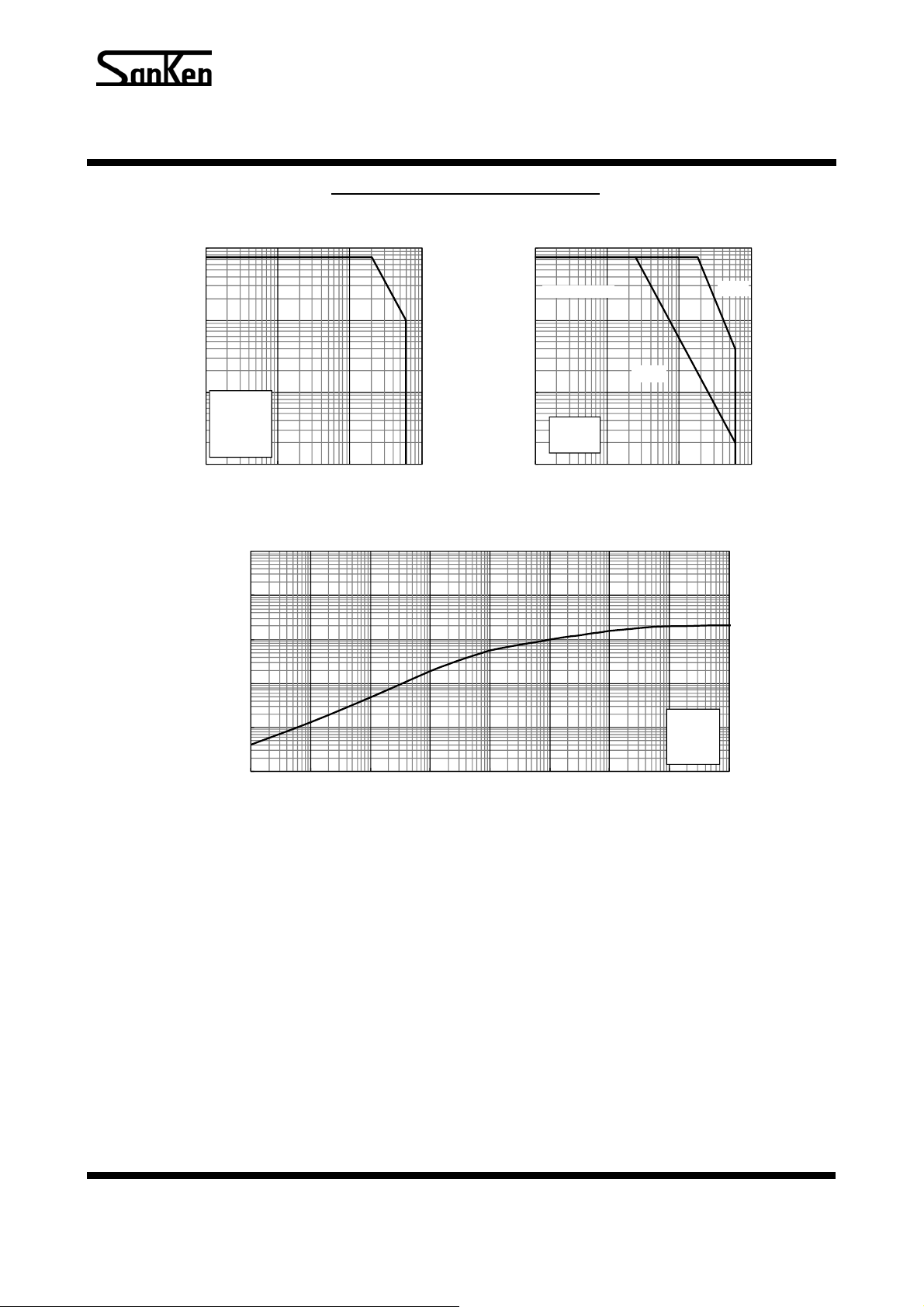

Reverse Bias ASO
100
10
IC (A)
1
IGBT VGE=15V Rg=56Ω 1shot Tc=125℃
0.1
1 10 100 1000
VCE (V)
TRANSIENT THERMAL RESISTANCE - PULSE WIDTH
1.E+02
1.E+01
1.E+00

SAFE OPERATING AREA
100
IC(p ulse) max
10
IC (A)
1
IGBT Tc=25℃ 1shot
0.1
1 10 100 1000
100us
VCE (V)
10us
1.E-01
Rth j-c (℃/W)
1.E-02
1.E-03
1.E-06 1.E-05 1.E-04 1.E-03 1.E-02 1.E-01 1.E+00 1.E+01 1.E+02
PT (sec)
Tc = 25℃
1shot
VCE < 5 V
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 6
Page 7
http://www.sanken-ele.co.jp
FGM622S Sep. 2011

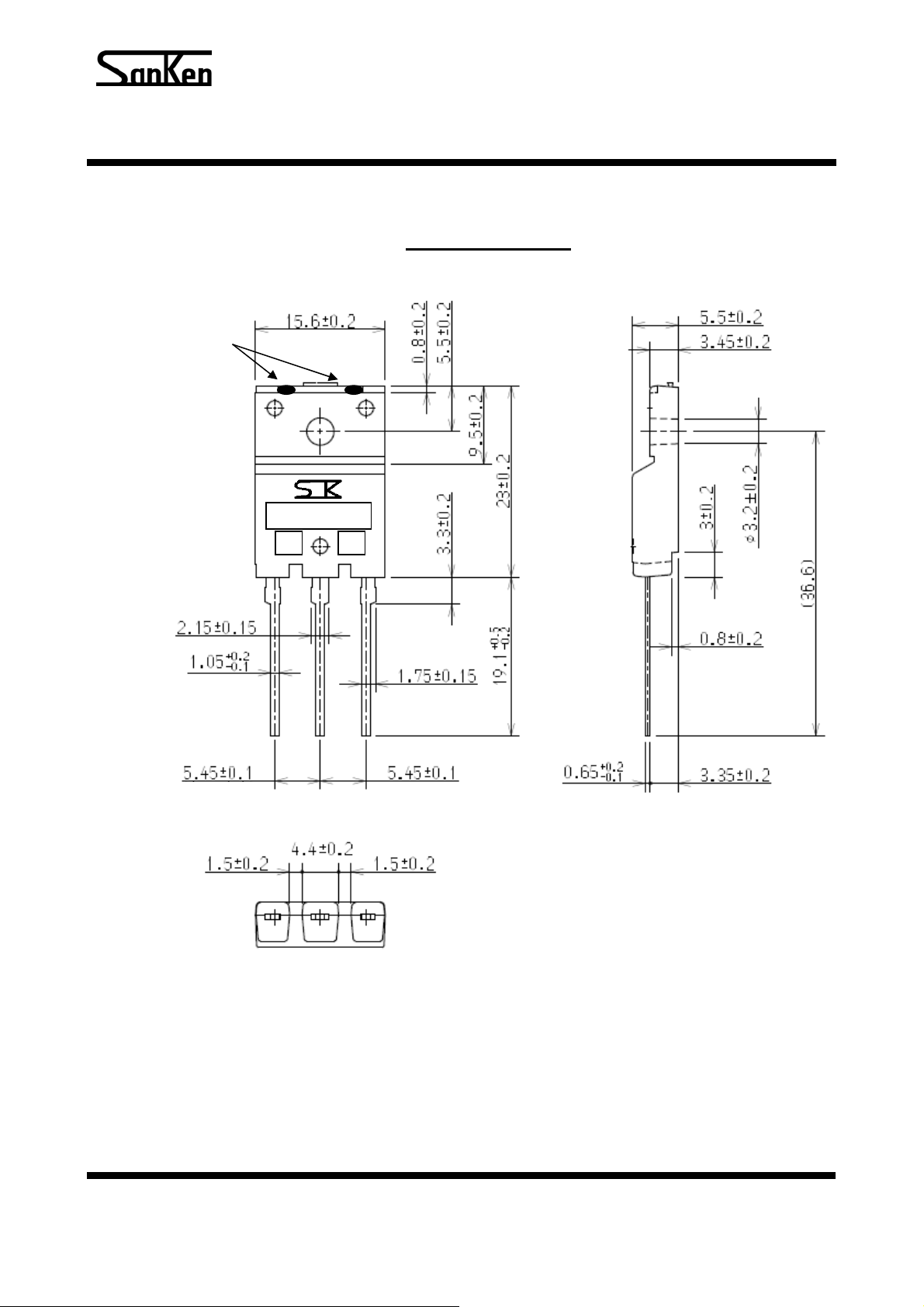

Outline
TO-3PF
Resincoating
FGM622S
(1)(2)(3)
(1) Gate
(2) Collctor
(3) Emitter
Wight Approx : 6.5g
