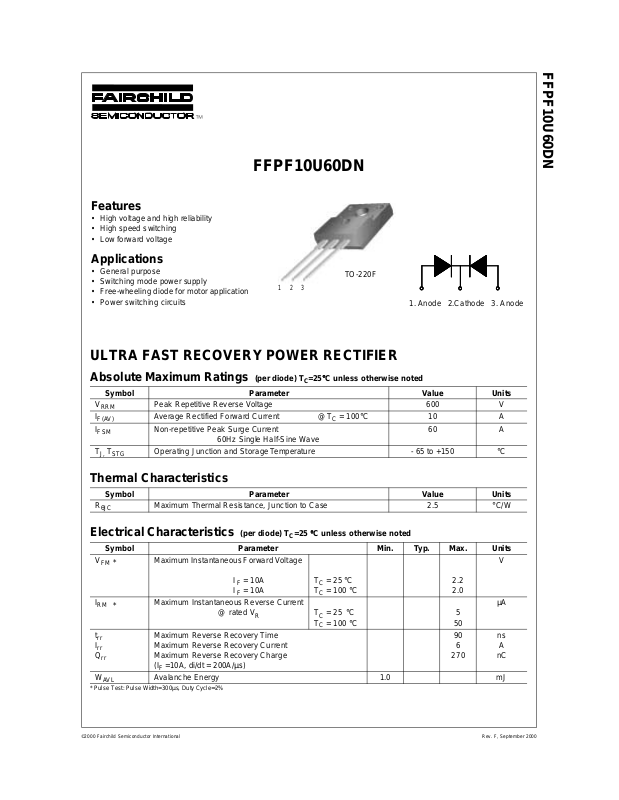

Page 1
FFPF10U60DN
Features
• High v ol tage and high rel ia bility
• High speed switching
• Low forward voltage
Applications
• General purpose
• Switc hing mode po w er supply
• Free-wheeling diode for motor application
• Power switching circuits
1 2 3
ULTRA FAST RECOVERY POWER RECTIFIER
TO-220F
FFPF10U60DN
1. Anode 2.Cathode 3. An ode
Absolute Maximum Ratings
Symbol Parameter Value Units
V
RRM
I
F(AV)
I
FSM
T
J, TSTG
Peak Repetitiv e Reverse Volt age 600 V
Average Rectified Forward Current @ TC = 100°C10 A
Non-repetitive Peak Surge Current
60Hz Single Ha lf- Sine Wave
Operating Junction and Storage Temperature - 65 to +150 °C
(per diode) TC=25°°°°C unless otherwise noted
60 A
Thermal Characteristics
Symbol Parameter Value Units
R
θJC
Electrical C haract eri stics
Symbol Parameter Min. Typ. Max. Units
V
FM
*
I
RM
*
t
rr
I
rr
Q
rr
W
AVL
* Pulse Test: Pulse Width=300µs, Duty Cycle=2%
Maxi mum Therm al Resist ance, Junction to Case 2.5 °C/W
(per diode) TC=25 °°°°C unless oth erw is e note d
Maximum Instantaneous Forward Voltage
I
I
Maximum Instantaneous Reverse Current
Maximum Reverse Recovery Time
Maximum Reverse Recovery Current
Maximum Reverse Recovery Charge
(I
=10A, di/dt = 200A/µs)
F
Avalanche Energy 1.0 mJ
= 10A
F
= 10A
F
@ rated V
= 25 °C
T
C
T
= 100 °C
C
TC = 25 °C
R
T
= 100 °C
C
2.2
2.0
5
50
90
6
270
V
µA
ns
A
nC
©2000 Fai r ch i ld Semiconductor Inter national
Rev. F, September 2000
Page 2
Typical C h aracteristic sTypical C h aracteristic s
FFPF10U60DN
20
10
[A]
F
TC = 100oC
TC = 25oC
1
Forward Current , I
0.1
0.0 0.5 1.0 1.5 2.0 2.5 3.0
Forward Voltage , VF [V]
Figure 1. Typical Forward Voltage Drop
vs. Forward Current
100
75
50
Capacitance , Cj [pF]
25
1
0.1 1 10 100
Reverse Voltage , VR [V]
Typical Capacit ance
at 0V = 80 pF
1000
100
A]
µ
[
R
10
1
0.1
Reverse Current , I
0.01
1E-3
TC = 100oC
TC = 25oC
100 200 300 400 500 600
Reverse Voltage , VR [V]
Figure 2. Typical Reverse Current
vs. Revers e Voltag e
100
IF = 10A
90
[ns]
rr
80
70
60
50
Reverse Recovery Time , t
40
100 500
di/dt [A/µs]
TC = 25oC
Figure 3. Typical Junction Capacitance
Figure 4. Typical Reverse Recovery Time
vs. di/dt
10
9
[A]
rr
8
7
6
5
4
3
2
1
Reverse Recovery Current , I
0
100 500
IF = 10A
TC = 25oC
di/dt [A/µs]
Figure 5. Typical Reverse Recovery Current
16
[A]
14
F(AV)
12
10
8
6
4
2
Averag e Forwa rd Cur rent , I
0
60 80 100 120 140 160
DC
Case Temperature , TC [oC]
Figure 6. Forward Current Derati ng Curve
vs. di/dt
©2000 Fai r ch i ld Semiconductor Inter national Rev. F, September 2000
Page 3
Package Di men sio n s
±0.10
3.30
±0.20
15.80
10.16
(7.00)
TO-220F
±0.20
ø3.18
±0.10
±0.20
6.68
(1.00x45°)
2.54
(0.70)
FFPF10U60DN
±0.20
±0.20
15.87
±0.30
9.75
MAX1.47
0.80
0.35
2.54TYP
[2.54
±0.20
±0.10
±0.10
(30°)
#1
0.50
+0.10
–0.05
2.76
±0.20
2.54TYP
]
9.40
±0.20
[2.54
±0.20
±0.20
]
4.70
©2000 Fairchild Semiconductor International
Dimensions in Millimeters
Rev. F, September 2000
