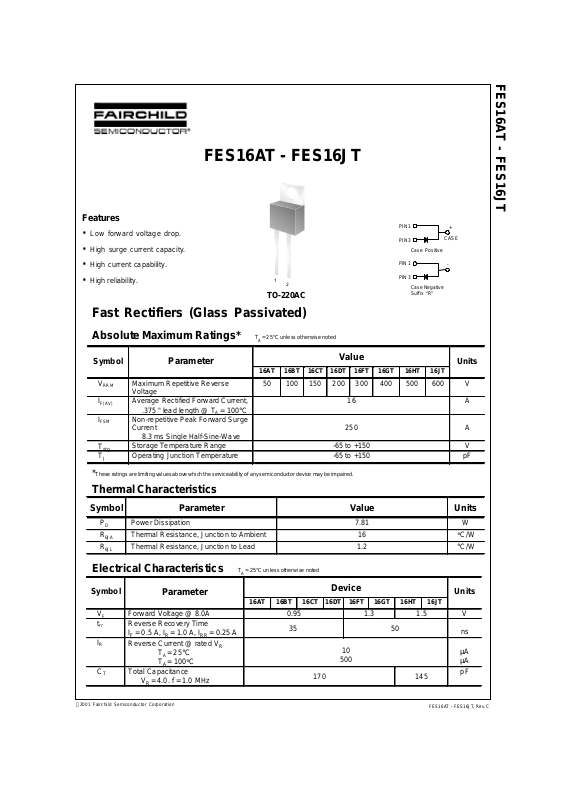

FES16AT - FES16JT
FES16AT - FES16JT, Rev. C
2001 Fairchild Semiconductor Corporation
FES16AT - FES16JT
Fast Rectifiers (Glass Passivated)
Absolute Maximum Ratings* T
A
= 25°C unless otherwise noted
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Electrical Characteristics T
A
= 25°C unless otherwise noted
Features
•
Low forward voltage drop.
• High surge current capacity.
• High current capability.
• High reliability.
TO-220AC
1
2
Thermal Characteristics
Symbol
Parameter
Device
Units
16AT 16BT 16CT 16DT 16FT 16GT 16HT 16JT
VF Forward Voltage @ 8.0A 0.95 1.3 1.5 V
trr Reverse Recovery Time
I
F
= 0.5 A, IR = 1.0 A, I
RR
= 0.25 A
35 50
ns
IR
Reverse Current @ rated V
R
TA = 25°C
T
A
= 100°C
10
500
µ
A
µ
A
CT Total Capacitance
V
R
= 4.0. f = 1.0 MHz
170 145
pF
Symbol
Parameter
Value
Units
16AT 16BT 16CT 16DT 16FT 16GT 16HT 16JT
V
RRM
Maximum Repetitive Reverse
Voltage
50 100 150 200 300 400 500 600 V
I
F(AV)
Average Rectified Forward Current,
.375 " lead length @ T
A
= 100°C
16 A
I
FSM
Non-repetitive Peak Forward Surge
Current
8.3 ms Single Half-Sine-Wave
250
A
T
stg
Storage Temperature Range -65 to +150 V
TJ Operating Junction Temperature -65 to +150 pF
Symbol
Parameter
Value
Units
PD Power Dissipation 7.81 W
R
θJA
Thermal Resistance, Junction to Ambient 16
°
C/W
R
θJL
Thermal Resistance, Junction to Lead 1.2
°
C/W
PIN 1
PIN 3
+
CASE
Case Positive
PIN 1
PIN 3
-
Case Negative
Suffix "R"
Page 2
FES16AT - FES16JT
FES16AT - FES16JT, Rev. C
2001 Fairchild Semiconductor Corporation
T ypical Characteristics
Pulse
Generator
(Note 2)
50
Ω
NONINDUCTIVE
50Ω
NONINDUCTIVE
DUT
(-)
(+)
OSCILLOSCOPE
(Note 1)
50Ω
NONINDUCTIVE
50V
(approx)
Reverse Recovery Time Characterstic and Test Circuit Diagram
1.0cm SET TIME BASE FOR
trr
+0.5A
0
-0.25A
-1.0A
5/ 10 ns/ cm
0 255075100125150175
0
4
8
12
16
20
Ambient Temperature [ºC]
Average Rectified Forward Current, I
F
[A]
SINGLE PHASE
HALF WAVE
60HZ
RESISTIVE OR
INDUCTIVE LOAD
.375" (9.0 m m) LEAD
LENGTHS
0 20406080100120140
0.1
1
10
100
1000
Percent of Rated Peak Reverse Voltage [%]
Reverse Current, I
R
[mA]
T = 25 C
º
A
T = 100 C
º
A
1 2 5 10 20 50 100
0
50
100
150
200
250
Number of Cycles at 60Hz
Peak Forward Surge Current, I
FSM
[A]
0.4 0.6 0.8 1 1.2 1.4 1.6 1.8
0.01
0.1
1
10
100
Forward Voltage, VF [V]
Forward Current, I
F
[A]
Pulse Width = 300µµµµs
2% Duty Cycle
T = 25 C
º
A
FES16AT-FES16DT
FES16FT-FES16JT
12 51020 50100
0
50
100
150
200
250
300
Reverse Voltage, VR [V]
Total Capacitance, C
T
[pF]
FES16FT-FES16JT
FES16AT- F E S 16D T
Figure 1. Forward Current Derating Curve Figure 2. Non-Repetitive Surge Current
Figure 5. Total Capacitance
Figure 3. Forward Voltage Characteristics Figure 4. Reverse Current vs Reverse Voltage
