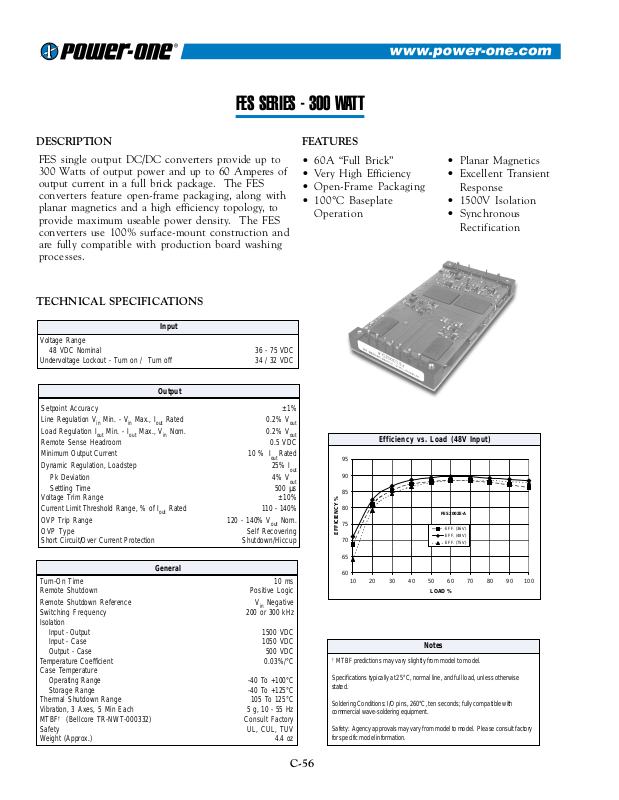

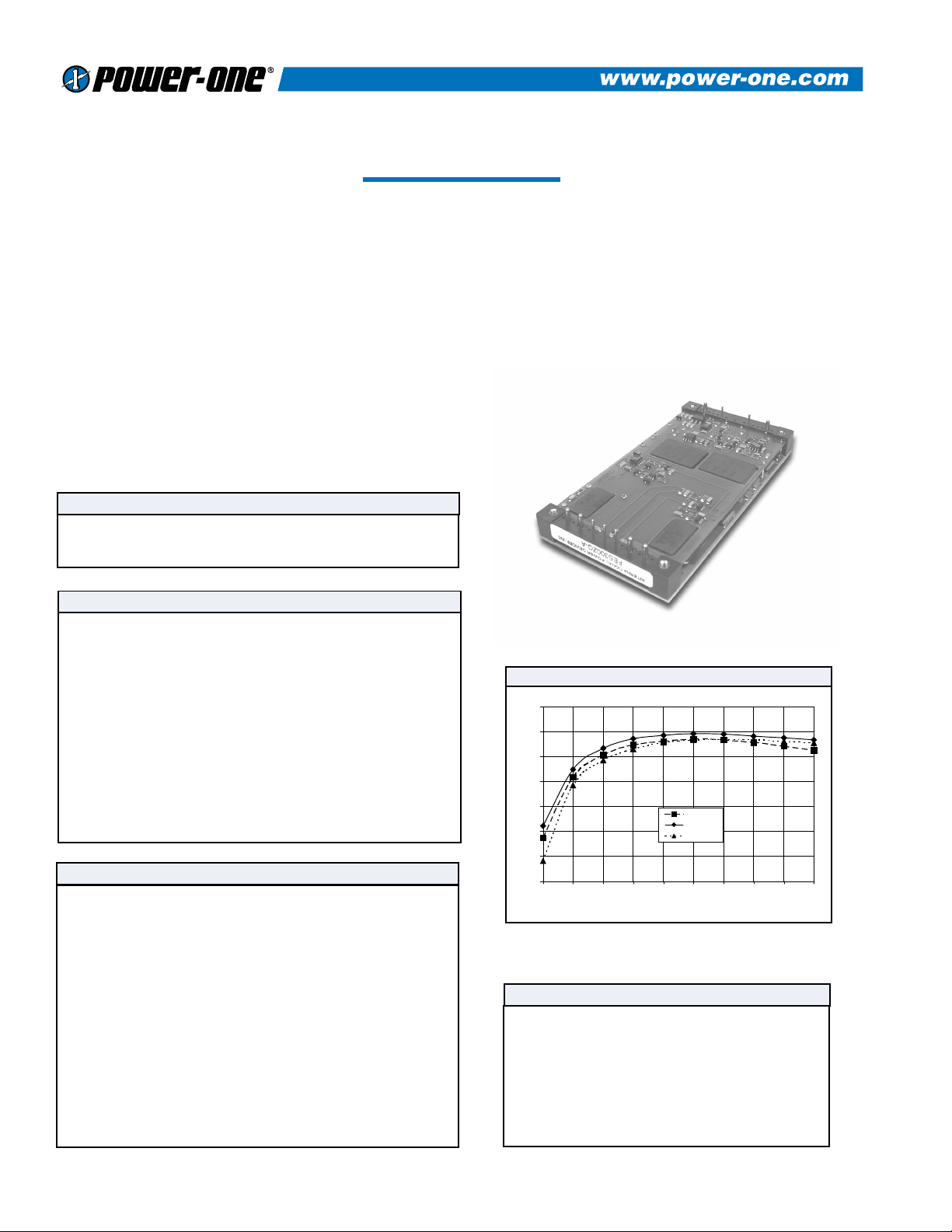

FES SERIES - 300 WATT

DESCRIPTION FEATURES

●

www.ipdconverters.com

FES single output DC/DC converters provide up to 300 Watts of output power and up to 60 Amperes of output current in a full brick package. The FES converters feature open-frame packaging, along with planar magnetics and a high efficiency topology, to provide maximum useable power density. The FES converters use 100% surface-mount construction and are fully compatible with production board washing processes.

TECHNICAL SPECIFICATIONS

Input

Voltage Range

48 VDC Nominal 36 - 75 VDC

Undervoltage Lockout - Turn on / Turn off 34 / 32 VDC

Output

Setpoint Accuracy ±1 % Line Regulation Vin Min. - Vin Max., I

Load Regulation I Remote Sense Headroom 0.5 VDC Minimum Output Current 10 % I

Dynamic Regulation, Loadstep 25% I

Pk Deviation 4% V Settling Time 500 µs

Voltage Trim Range ±10% Current Limit Threshold Range, % of I

OVP Trip Range 120 - 140% V OVP Type Self Recovering

Short Circuit/Over Current Protection Shutdown/Hiccup

Turn-On Time 10 ms Remote Shutdown Positive Logic

Remote Shutdown Reference Vin Negative Switching Frequency 200 or 300 kHz Isolation

Input - Output 1500 VDC Input - Case 1050 VDC

Output - Case 500 VD C Temperature Coefficient 0.03%/°C Case Temperature

Operating Range -40 To +100°C

Storage Range -40 To +125°C Thermal Shutdown Range 105 To 125°C Vibration, 3 Axes, 5 Min Each 5 g, 10 - 55 Hz MTBF† (Bellcore TR-NWT-000332) Consult Factory Safety UL, CUL, TUV Weight (Approx.) 4.4 oz

Min. - I

out

Rated 0.2% V

out

Max., Vin Nom. 0.2% V

Rated

out

Rated 110 - 140%

out

General

Nom.

out

out out

• 60A “Full Brick”

• Very High Efficiency

• Open-Frame Packaging

• 100°C Baseplate Operation

• Planar Magnetics

• Excellent Transient Response

• 1500V Isolation

• Synchronous Rectification

Efficiency vs. Load (48V Input)

EFFICIENCY

10 20 30 40 50 60 70 80 90 100

†

MTBF predictions may vary slightly from model to model.

Specifications typically at 25°C, normal line, and full load, unless otherwise stated.

Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with commercial wave-soldering equipment.

Safety: Agency approvals may vary from model to model. Please consult factory for specific model information.

LOAD %

Notes

FES200ZE-A

EFF. (36V) EFF. (48V) EFF. (75V)

C-56

Page 2

FES SERIES - 300 WATT

MODELS - (See the last page of this file for options.)

Vin

(Volts)

Vin Range

(Volts)

36 - 75

Iin Max.*

(Amps)

3.5

4.5

6.5

5.0

7.0

10.5

* Maximum input current at minimum input voltage, maximum rated output power.

** At nominal Vin, rated output.

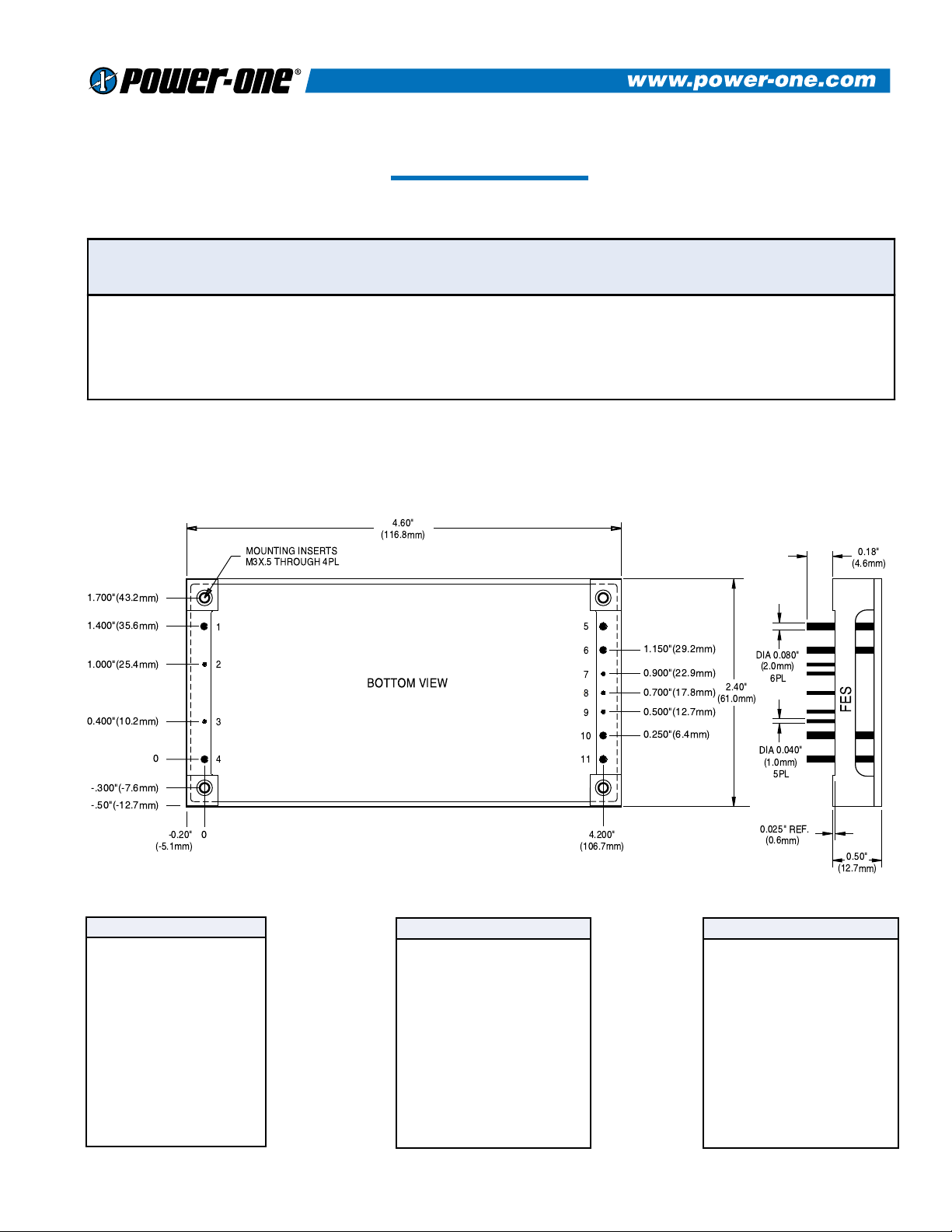

MECHANICAL DRAWING

4.60"

(116.8mm)

MOUNTING INSERTS

M3X.5 THROUGH 4PL

1.700"(43.2mm)

1.400"(35.6mm)

1.000"(25.4mm)

0.400"(10.2mm)

-.300"(-7.6mm)

-.50"(-12.7mm)

-0.20"

(-5.1mm)

BOTTOM VIEW

Vout

(Volts)

2.5

3.3

5.0

2.5

3.3

5.0

Iout Rated

(Amps)

Rip ple & No ise

7 8 9

4.200"

(106.7mm)

Pk-Pk (mV)

100

1.150"(29.2mm)

0.900"(22.9mm)

0.700"(17.8mm)

0.500"(12.7mm)

0.250"(6.4mm)

Effici ency

Typ. **

85%

87%

80%

79%

81%

84%

2.40"

(61.0mm)

DIA 0.080"

(2.0mm)

6PL

DIA 0.040"

(1.0mm)

5PL

0.025" REF. (0.6mm)

Model

FES100ZD-A FES132ZE-A FES200ZG-A FES150ZD-A

FES200ZE-A FES300ZG-A

0.18"

(4.6mm)

FES

0.50"

(12.7mm)

Thermal Impedance

Natural Convection 5.4 °C/W 100 LFM 3.8 °C/W 200 LFM 2.5 °C/W 300 LFM 1.7 °C/W 400 LFM 1.6 °C/W

Note: Thermal impedance data is dependent on many environmental factors. The exact thermal performance should be validated for specific application.

Pin Function

1 -V 2 Case

3 Enable 4 +V 5 -V 6 -V 7 -Sense

in out out

8 Trim 9 +Sense

10 +V 11 +V

out out

C-57

Tolerances

Inches: (Millimeters) .XX ± 0.020 .X ± 0.5 .XXX ± .010 .XX ± 0.25

Pin: ± 0.002 ± 0.05

( Dimensions as listed unless otherwise specified.)

Page 3

OPTIONS

When ordering equipment options, use the following suffix information. Select the option(s) that you prefer and add them to the model number. Example ordering options are located below the options table.

OPTION SUFFIX APPLICABLE SERIES REMARKS

Negative Logic N HA S , HBD, HBS, HES, LES, QBS,

Lucent Compatible Trim T HAS, HBD, HBS, HES, QBS, QES Terminal Strip TS XWS, XWD, XWT Trim 1 IAS, LES Enable 2 IAD, IAS, LES, SMS Trim and Enable 3 IAS, LES Current Share 4 SMS Headerless Y Encapsulated EWS, IWS, OWS

PIN LENGTH AND HEATSINK OPTIONS

0.110” (2.8mm) Pin Length 8 All Units (Except SMS)

0.150” (3.8mm) Pin Length 9 All Units (Except SMS)

0.24” (6.1mm) Horizontal Heatsink 1H All Units (Except DIP, SIP, and SM

0.24” (6.1mm) Vertical Heatsink 1V All Units (Except DIP, SIP, and SM

0.45” (11.4mm) Horizontal Heatsink

0.45” (11.4mm) Vertical Heatsink 2V All Units (Except DIP, SIP, and SM

0.95” (24.1mm) Horizontal Heatsink

0.95” (24.1mm) Vertical Heatsink 3V All Units (Except DIP, SIP, and SM

2H All Units (Except DIP, SIP, and SM

3H All Units (Except DIP, SIP, and SM

QES, TES, TQD

Packages)

TTL “Low” Turns Module ON TTL “High” Turns Module OFF

Standard Pin Length is 0.180” (4.6mm)

Includes Thermal Pad

Example Options:HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and

0.95” vertical heatsink. LES015YJ-3N = LES015YJ with optional trim and enable, negative logic. QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
