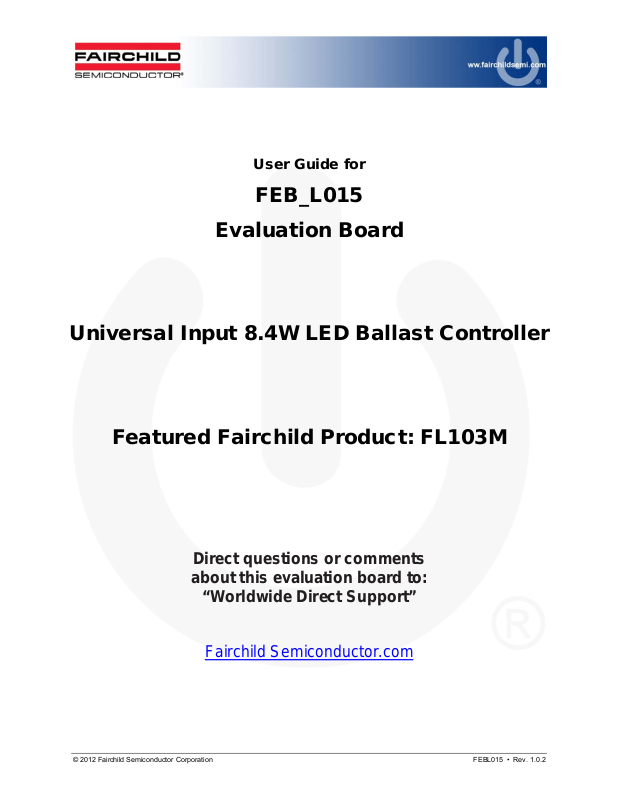

User Guide for

FEB_L015

Evaluation Board

Universal Input 8.4W LED Ballast Controller

Featured Fairchild Product: FL103M

Direct questions or comments

about this evaluation board to:

“Worldwide Direct Support”

Fairchild Semiconductor.com

Table of Contents

1. Introduction ............................................................................................................................... 3

1.1. Description ....................................................................................................................... 3

1.2. Features ............................................................................................................................ 3

1.3. Internal Block Diagram .................................................................................................... 4

2. General Specification for Evaluation Board ............................................................................. 5

2.1. Photographs of the Evaluation Board ............................................................................... 6

2.2. Printed Circuit Board ....................................................................................................... 7

2.3. Schematic ......................................................................................................................... 8

3. Bill of Materials ........................................................................................................................ 9

4. Transformer and Winding Specifications ............................................................................... 10

5. Test Conditions & Test Equipment......................................................................................... 11

6. Performance of Evaluation Board ........................................................................................... 12

6.1. Input Power at Minimum Load Condition ..................................................................... 12

6.2. Startup Time ................................................................................................................... 13

6.3. Input Current .................................................................................................................. 14

6.4. Output Ripple & Noise ................................................................................................... 15

6.5. Short-Circuit Protection (SCP)....................................................................................... 16

6.6. Voltage & Current Stress on MOSFET .......................................................................... 17

6.7. Voltage & Current Stress on Secondary Rectifier ......................................................... 20

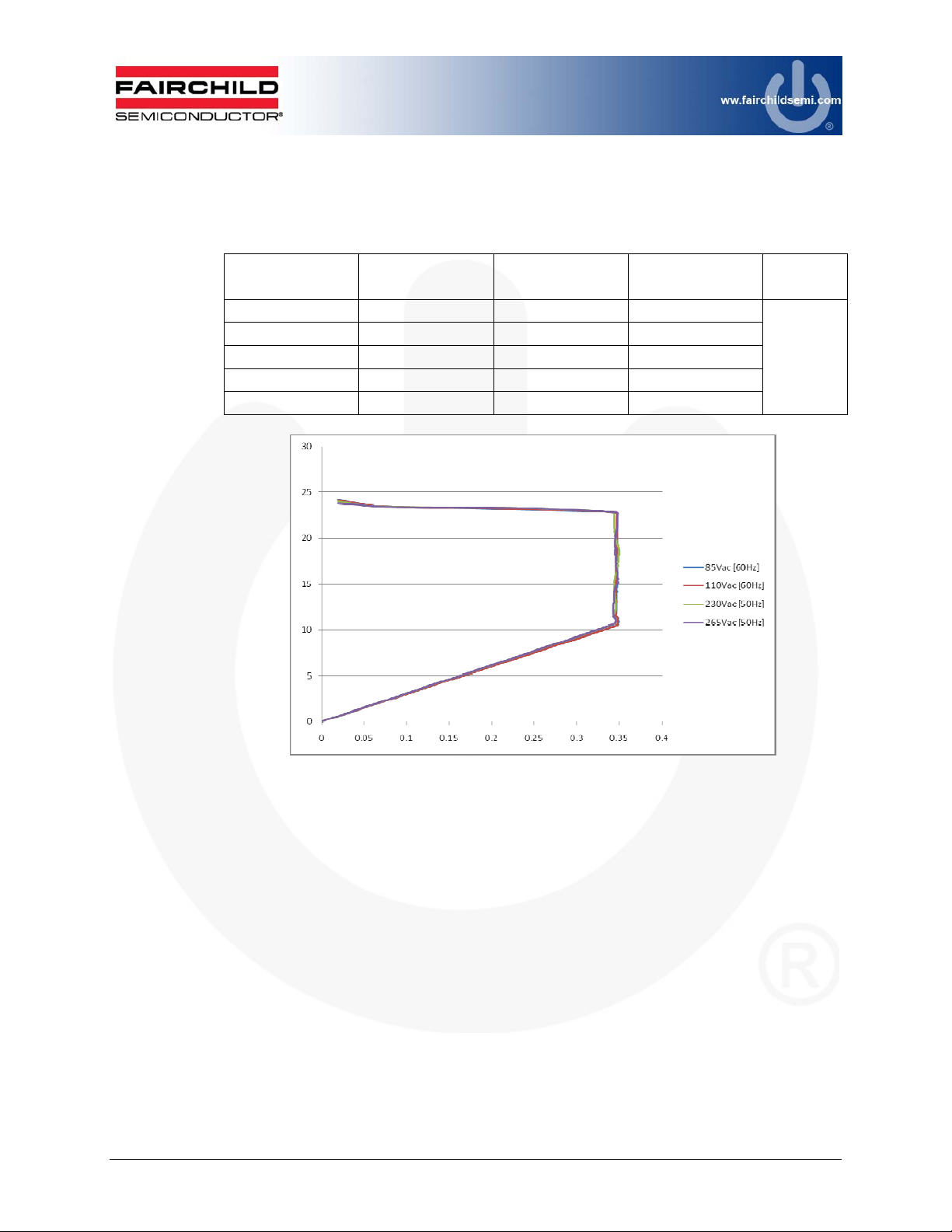

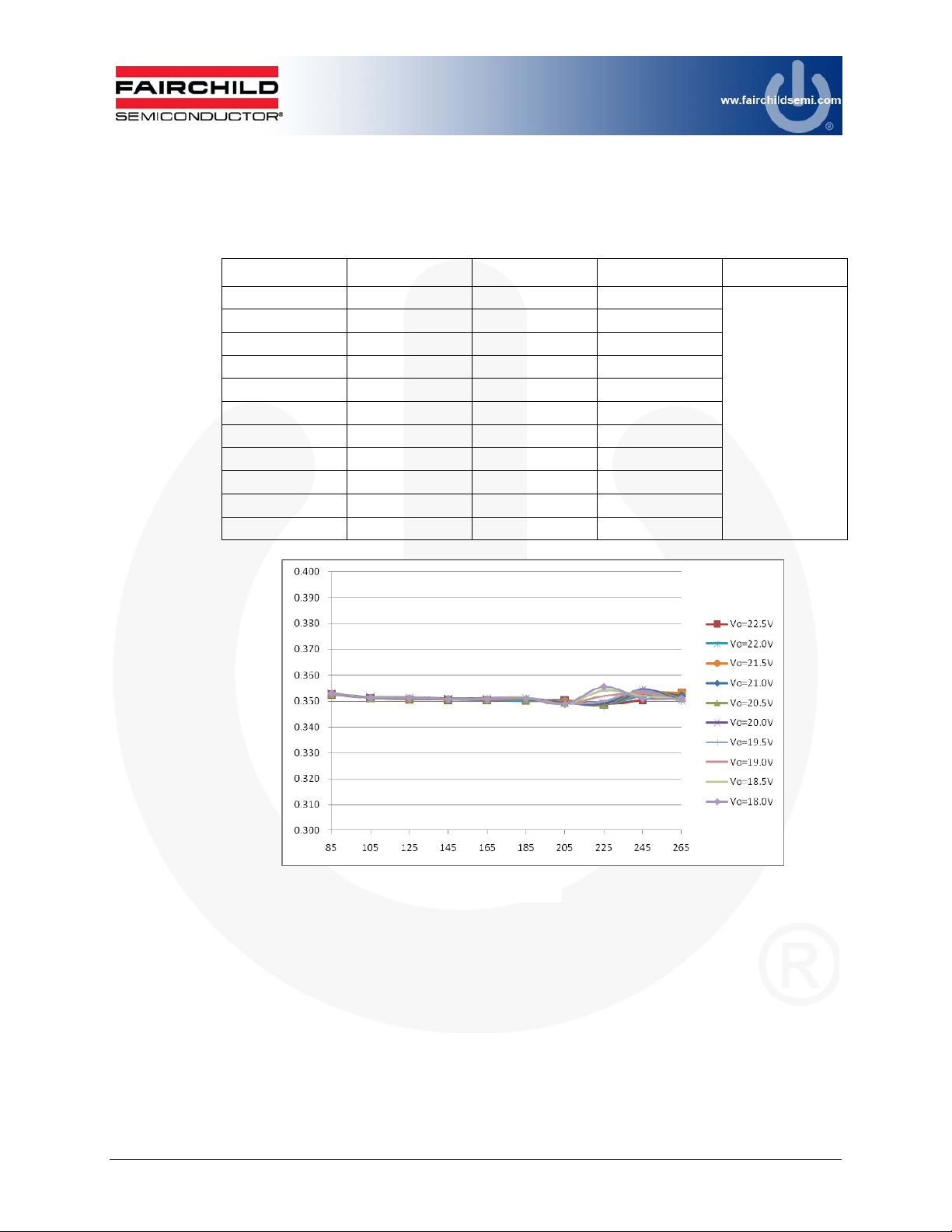

6.8. Constant Current Tolerance Using Electric Load (CR) ................................................. 23

6.9. Constant Current Tolerance Using Electric Load (CV) ................................................. 24

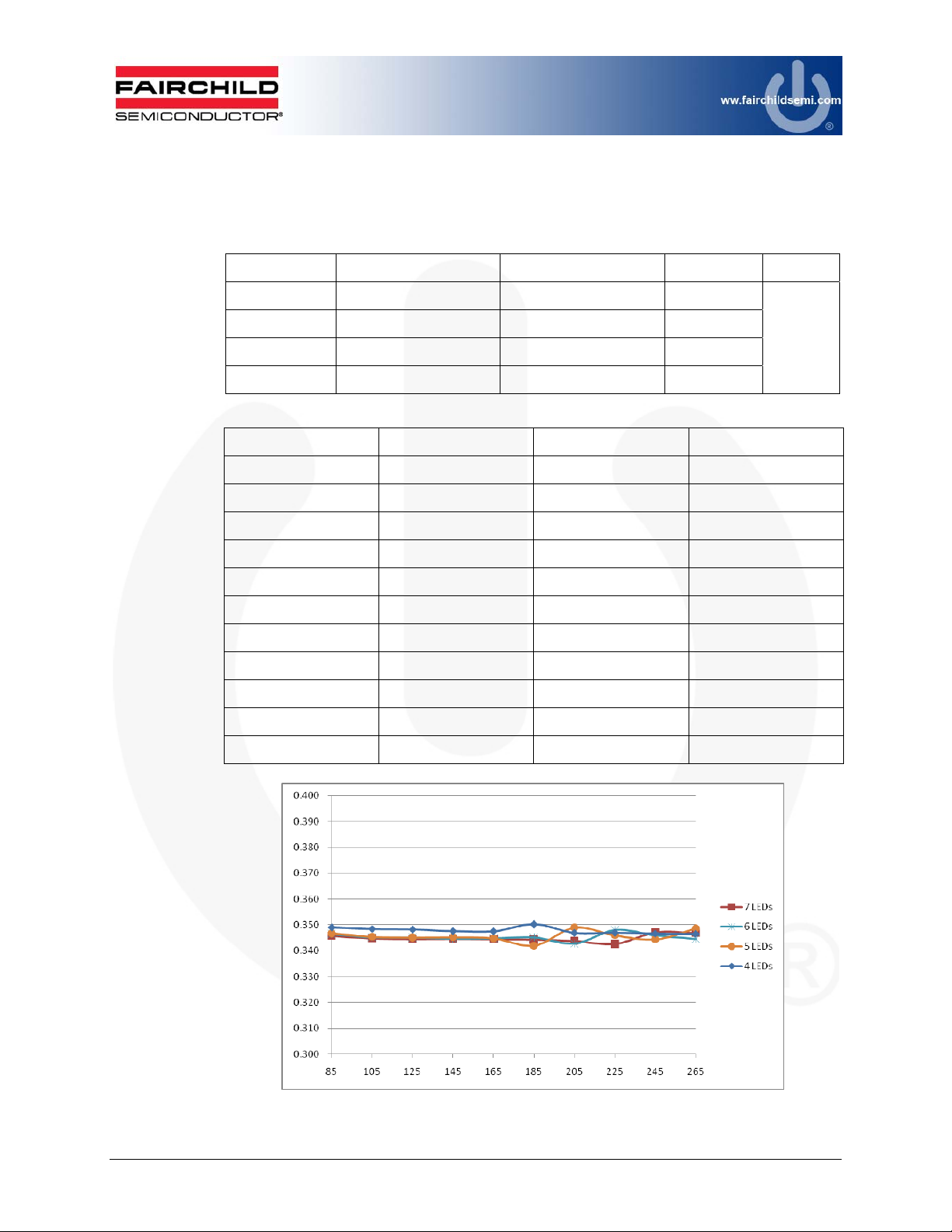

6.10. Constant Current Toleration Using LED Load........................................................... 25

6.11. Efficiency.................................................................................................................... 26

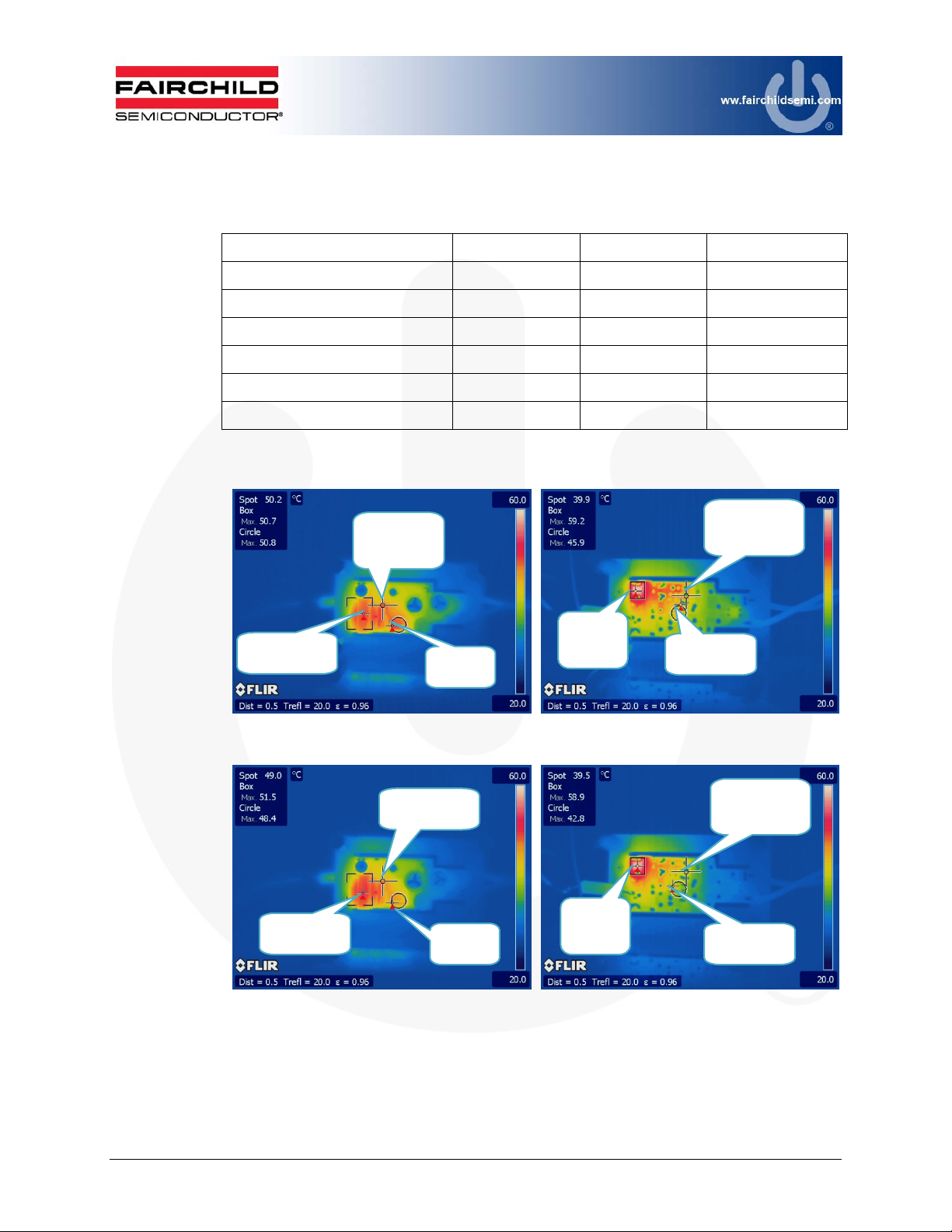

6.12. Temperature ................................................................................................................ 27

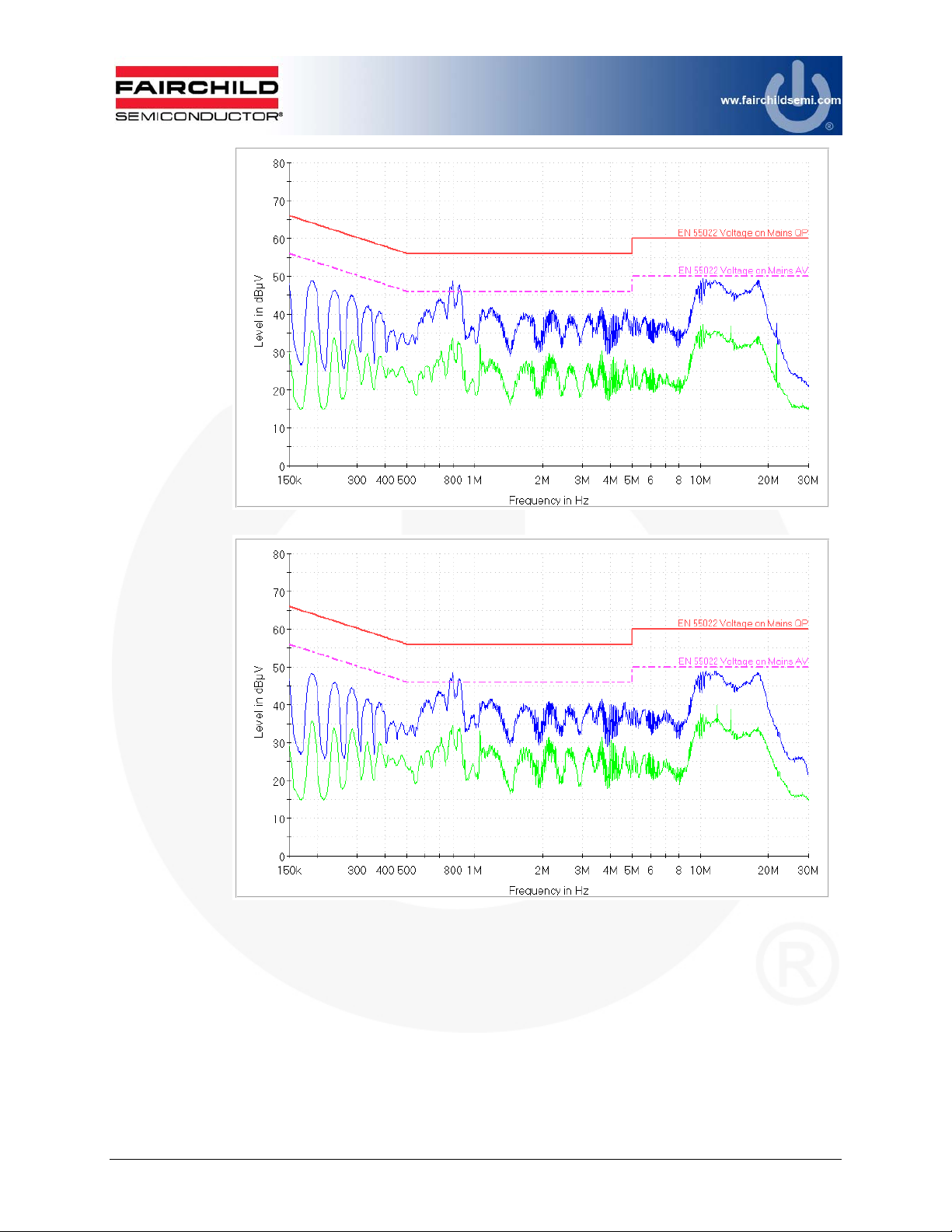

6.13. EMI ............................................................................................................................. 28

7. Revision History ..................................................................................................................... 30

This user guide supports the evaluation kit for the FL103M. It should be used in conjunction with the FL103M datasheet as well as Fairchild’s application notes and technical support team. Please visit Fairchild’s website at www.fairchildsemi.com

1. Introduction

.

This document describes the proposed solution for an universal input 8.4W LED ballast using the FL103M PSR controller and the FQU2N60C QFET is 85V 24V

– 265V

RMS

. This document contains a general description of FL103M, the power supply

MAX

specification, schematic, bill of materials, and the typical operating characteristics.

1.1. Description

This third-generation Primary-Side-Regulation (PSR) and highly integrated PWM controller provides features to enhance the performance of LED illumination.

The proprietary topology, TRUECURRENT™, enables precise CC regulation and simplified circuit design for LED illumination applications. The result is lower-cost and smaller LED lighting compared to a conventional design or a linear transformer.

To minimize standby power consumption, the proprietary Green Mode provides off-time modulation to linearly decrease PWM frequency under light-load conditions. Green Mode assists the power supply in meeting the power conservation requirements.

By using the FL103, LED illumination can be implemented with few external components and minimized cost.

1.2. Features

 Low Standby Power: < 30mW  High-Voltage Startup  Few External Components  Constant-Voltage (CV) and Constant-Current (CC) Control without Secondary-

Feedback Circuitry

 Green-Mode: Linearly-Decreasing PWM Frequency  Fixed PWM Frequency at 50kHz and 33kHz, Frequency Hopping to Solve EMI

Problems

 Peak-Current-Mode Control in CV Mode  Cycle-by-Cycle Current Limiting  V  V

Over-Voltage Protection (OVP)

DD

Under-Voltage Lockout (UVLO)

DD

 Adjustable Brownout Detector  Gate Output Maximum Voltage Clamped at 15V  Thermal Shutdown (TSD) Protection  Available in the 8-Lead SOIC Package

®

. The input voltage range

and there is one DC output with a constant current of 350mA at

RMS

1.3. Internal Block Diagram

Figure 1. Block Diagram

2. General Specification for Evaluation Board

All data of the evaluation board were measured under a condition where the board was enclosed in a case and external temperature was around 25°C.

Table 1. Evaluation Board Specifications for LED Lighting Bulb

Input

Output

Efficiency

Conduction EMI

Board Dimensions

Main Controller

Frequency Range

FL103M

50Hz ~ 60Hz

Voltage Range

Power Voltage Current

< 87%

Meet Margin of EN55022 conducted EMI: > 7dBuV

53mm x 25mm (Neck: 15mm x 15mm)

85VAC ~ 265VAC

< 8.4W

< 24V

Typ. 0.35A

2.1. Photographs of the Evaluation Board

Figure 2. Top View

Figure 3. Bottom View

2.2. Printed Circuit Board

Figure 4. Printed PCB, Top Side

Figure 5. Printed PCB, Bottom Side

2.3. Schematic

N

L

250V/1A

F1

1

2

MB6S(600V/0.5A)

BD101

N

L

+

-

4

3

+

C101

10uF/ 400V

L101

L102

Short

10uF/400V

C102

+

R101

100K/3216

6

FL103

VDD3HV8NC7GND

U101

+

C104

10uF/50V

1mH

120K/3216

R102

GATE

NC

CS

VS

4

100R/2012

2R2/3216

R107

R108

2R2/ 3216

R106

22K/2012

5

2

1

10R/2012

R103

R104

2N60

Q101

D102

1N4007

47pF/2012

C105

R105

120K/2012

TRANSFOR MER FLAT COMPACT

C106

2.2n

LED-

C103

4.7n/1k V

D101

1N4007

5

7

24K/3216

R201

+

C201

100uF/ 35V

LED+

1

4

2

10

ES2D(200V/ 2A)

D201

Figure 6. Evaluation Board Schematic

T101

3. Bill of Materials

Table 2. Bill of Materials

Item

No.

1 U101 FL103M 1 Controller, SOP-8

2 Q101 FQU2N60C 1 600V/2A MOSFET, I-PAK, Fairchild

3 T101 EE1614S 1 Transformer, Lm = 1.13mH TDK

4 F1 SS-5-1A 1 250V/1A Fuse Bussmann

5 L101 R08102KT00 2 1mH Filter Inductor, 8Φ Bosung

6 L102 Short 0 Short

7 BD101 MB6S 1

8 D101, D102 1N4007 2 1kV/1A Rectifier, DO-41

9 D201 ES2D 1

10 C101, C102 KMG 10µF/400V 2

11 C103 3A472K 1 4.7nF/1kV Ceramic Capacitor Samwha

12 C104 KMG 10µF/50V 1

13 C105 C0805C470J5GACTU 1 47pF/50V SMD Capacitor 2012 Kemet

14 C106 SCFz2E472M10BW 1 472/250V Y-Capacitor Samwha

15 C201 WB 100µF/35V 1

16 R101 RC1206JR-07100KL 1 100KΩ SMD Resistor 3216 Yageo

17 R102 RC1206JR-07120KL 1 120KΩ SMD Resistor 3216 Yageo

18 R103 RC0805JR-0710RL 1 10Ω SMD Resistor 2012 Yageo

19 R104 RC0805JR-07100RL 1 100Ω SMD Resistor 2012 Yageo

20 R105 RC0805JR-07120KL 1 120KΩ SMD Resistor 2012 Yageo

21 R106 RC0805JR-0722KL 1 22KΩ SMD Resistor 2012 Yageo

22 R107, R108 RC1206JR-072R2L 2 2.2Ω SMD Resistor 3216 Yageo

23 R201 RC1206JR-0724KL 1 24KΩ SMD Resistor 3216 Yageo

Part

Reference

Part Number Qty. Description Manufacturer

Fairchild

Semiconductor

600V/0.5A Bridge Rectifier,

SOIC-4

200V/2A Fast Rectifier,

SMB/DO-214AA

Electrolytic Capacitor, 105°C

Ultra-Low Impedance

Electrolytic Capacitor, 105°C

Fairchild

Semiconductor

Fairchild

Semiconductor

Fairchild

Semiconductor

Samyoung

Samwha

4. Transformer and Winding Specifications

 Core: EE1614S (PC-40)  Bobbin: 10 Pins

1

Np2

0.20φ * 1 41T

2

Np1

0.20φ * 1 76T

3 4

10

Na

0.13φ * 1 27T

5

Ns

0.32φ(TEX) * 1 39T

7

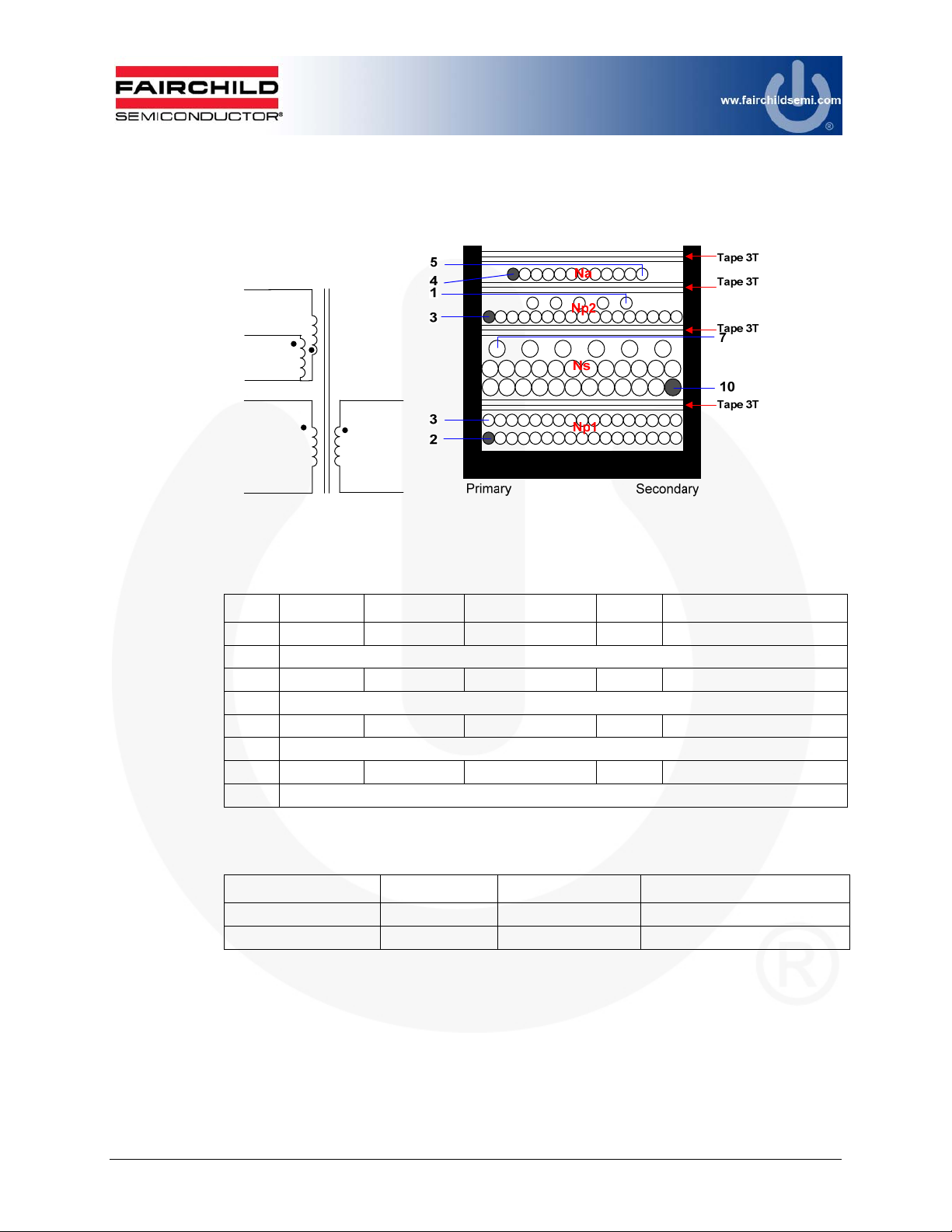

Figure 7. Transformer Specifications & Construction

Table 3. Winding Specifications

No. Winding Pin (S  F) Wire Turns Winding Method

1 Np1 2  3 0.20 Φ * 1 76 Solenoid Winding

2 Insulation: Polyester Tape t = 0.05 mm, 3-Layer

3 Ns 10  7 0.32 Φ (TEX) * 1 39 Solenoid Winding

4 Insulation: Polyester Tape t = 0.05 mm, 3-Layer

5 Np2 3  1 0.20 Φ * 1 41 Solenoid Winding

6 Insulation: Polyester Tape t = 0.05 mm, 3-Layer

7 Na 4  5 0.13 Φ * 1 27 Center Solenoid Winding

8 Outer Insulation: Polyester Tape t = 0.05 mm, 3-Layer

Table 4. Electrical Characteristics

Pin Specification Remark

Inductance 4 - 5 1.13mH ±7% 1kHz, 1V

Leakage 4 - 5 Max. 20µH Short All Output Pins

5. Test Conditions & Test Equipment

Table 5. Test Conditions & Test Equipment

Evaluation Board #

Test Date

Test Temperature

Test Equipments

FEBL015

AC Power Source: ES2000S by PSTATIONES Power Analyzer: DZ4000 by YOKOGAWA Electronic Load: PLZ303WH by KIKUSUI Automatic Power Tester: ATS3000 by BOB Multimeter: 2002 by KEITHLEY Oscilloscope: 104Xi by LeCroy EMI Test Receiver: ESCS30 by ROHDE & SCHWARZ Two-Line V-Network: ENV216 by ROHDE & SCHWARZ Thermometer: Therma CAM SC640 by FLIR SYSTEMS LED: EHP-AX08EL/GT01H-P03(3W) by Everlight

6. Performance of Evaluation Board

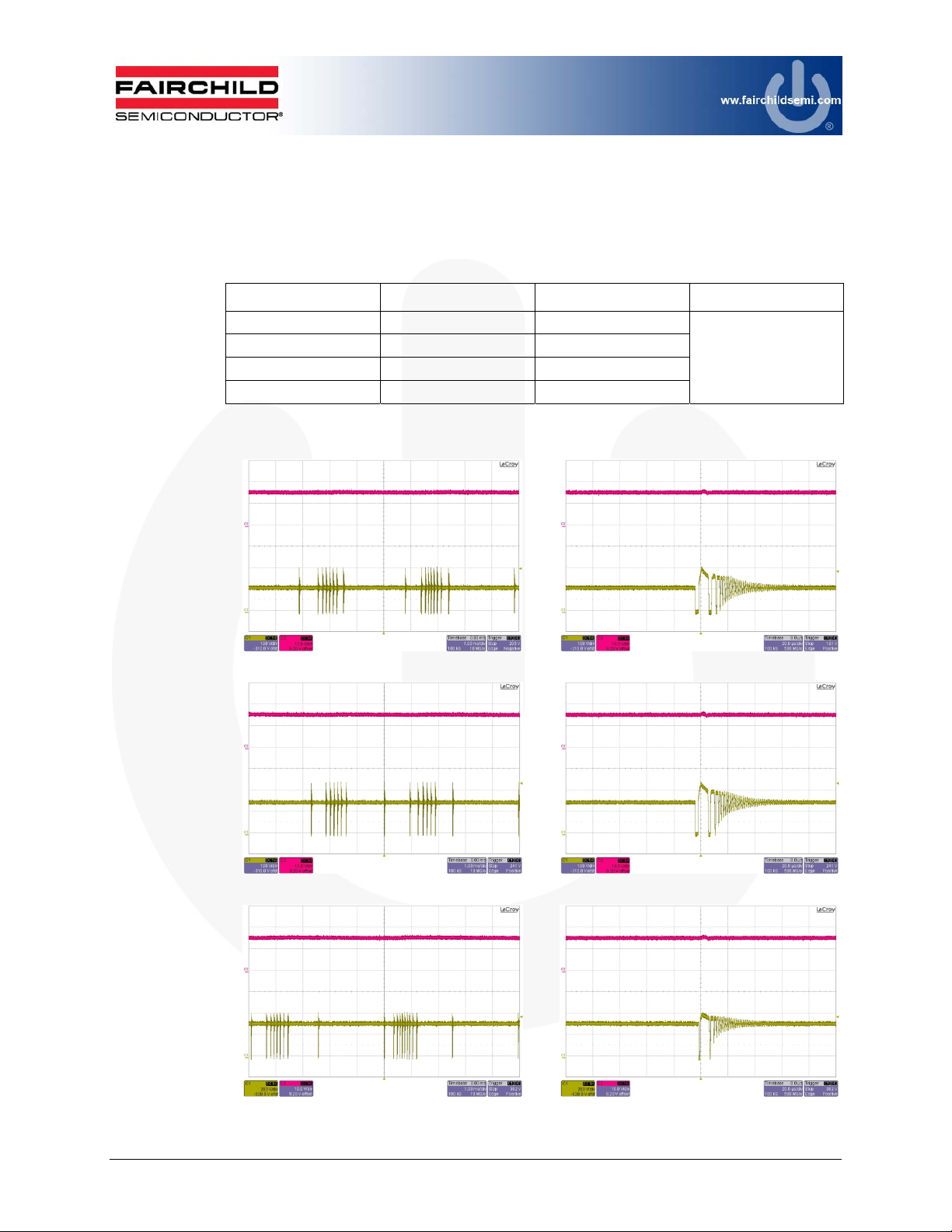

6.1. Input Power at Minimum Load Condition

Test Condition: Measure the input power and output voltage at open load.

Table 6. Test Results

Input Voltage Input Power Output Voltage Remark

85VAC / 60Hz 0.092W 26.62V

110VAC / 60Hz 0.094W 26.63V

230VAC / 50Hz 0.101W 26.64V

265VAC / 50Hz 0.091W 26.27V

Waveforms: Yellow (VDS), Red (VDD)

< 0.3W

Figure 8. 85V

Figure 9. 110V

Figure 10. 230V

/ 60Hz

AC

/ 60Hz

/ 50Hz

Waveforms: Yellow (VDS), Red (VDD)

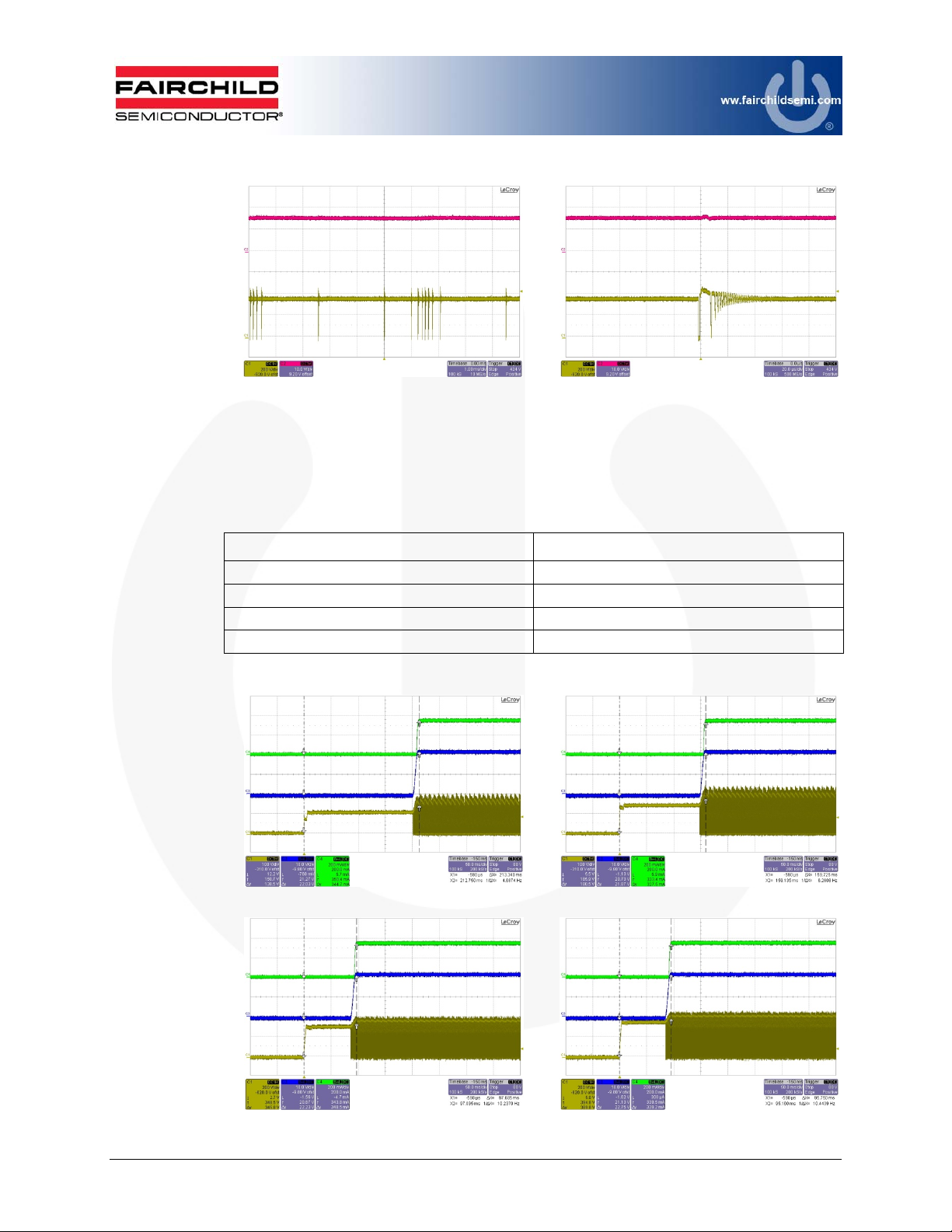

6.2. Startup Time

Test Condition: Connect seven LEDs and measure the time interval between AC plug-in and stable output.

Table 7. Test Results

Input Voltage Turn-On Time

85VAC / 60Hz 213ms

110V

230VAC / 50Hz 98ms

265VAC / 50Hz 96ms

Figure 11. 265V

/ 60Hz 160ms

AC

/ 50Hz

AC

Waveform: Yellow (VDS), Blue (VO), Green (IO)

Figure 12. 85V

Figure 14. 230V

/ 60Hz Figure 13. 110VAC / 60Hz

AC

/ 50Hz Figure 15. 265VAC / 50Hz

AC

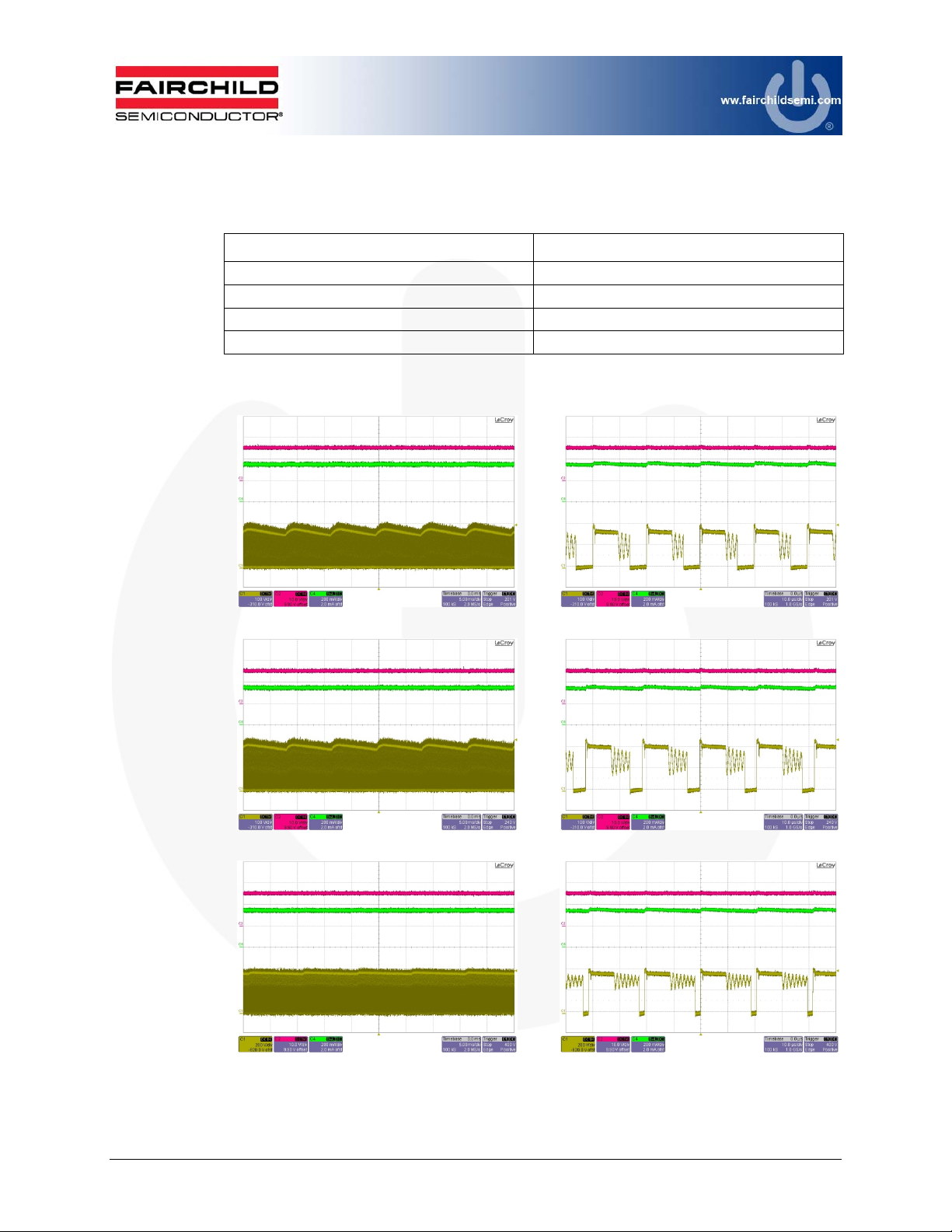

6.3. Input Current

Test Condition: Connect seven LEDs and measure the AC input current.

Table 8. Test Result

Input Voltage Input Current

85VAC / 60Hz 185mA

110VAC / 60Hz 155mA

230VAC / 50Hz 98mA

265VAC / 50Hz 92mA

Waveform: Yellow (V

), Red (VDD), Green (IO)

DS

Figure 16. 85V

Figure 17. 110V

/ 60Hz

AC

/ 60Hz

AC

Figure 18. 230V

/ 50Hz

AC

Waveform: Yellow (VDS), Red (VDD), Green (IO)

Figure 19. 265V

/ 50Hz

AC

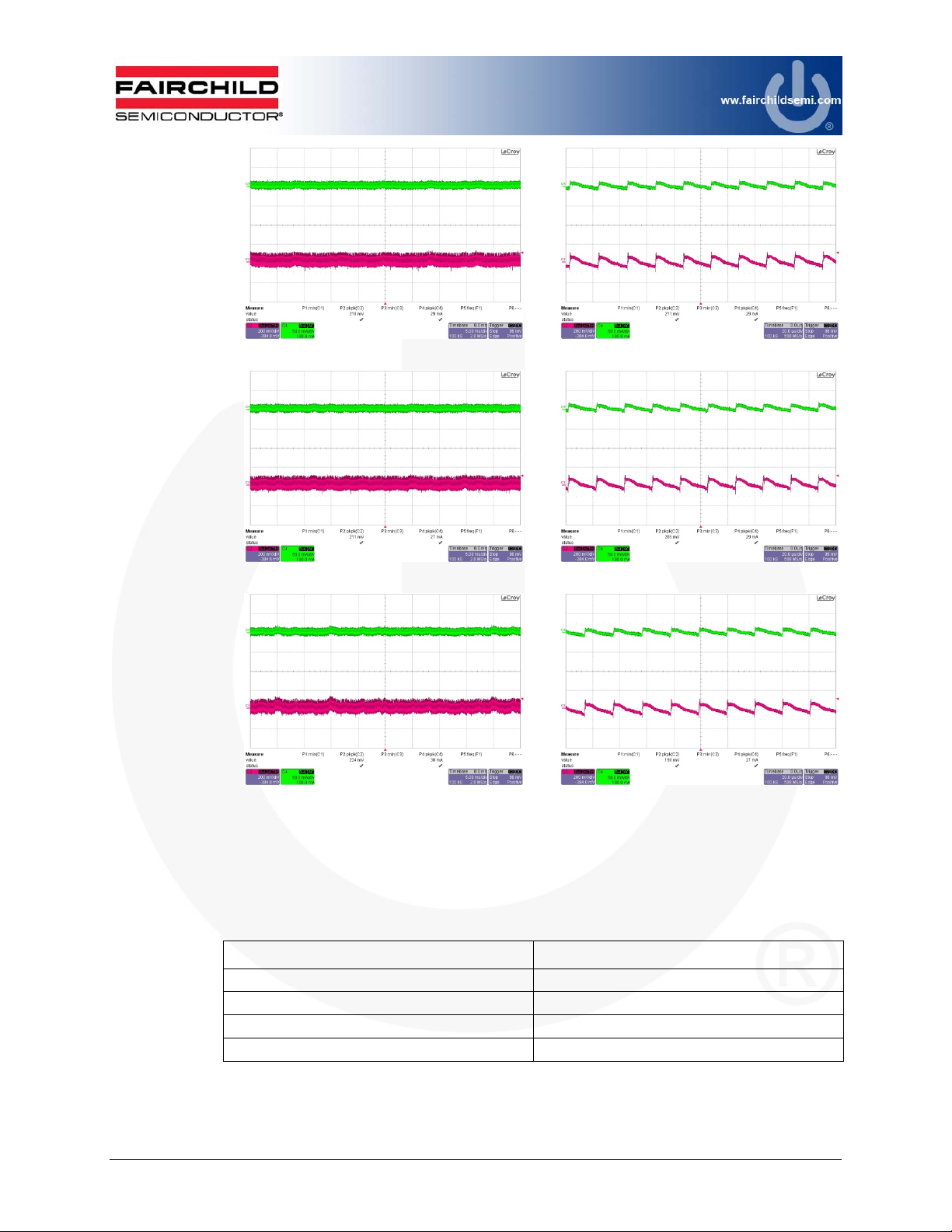

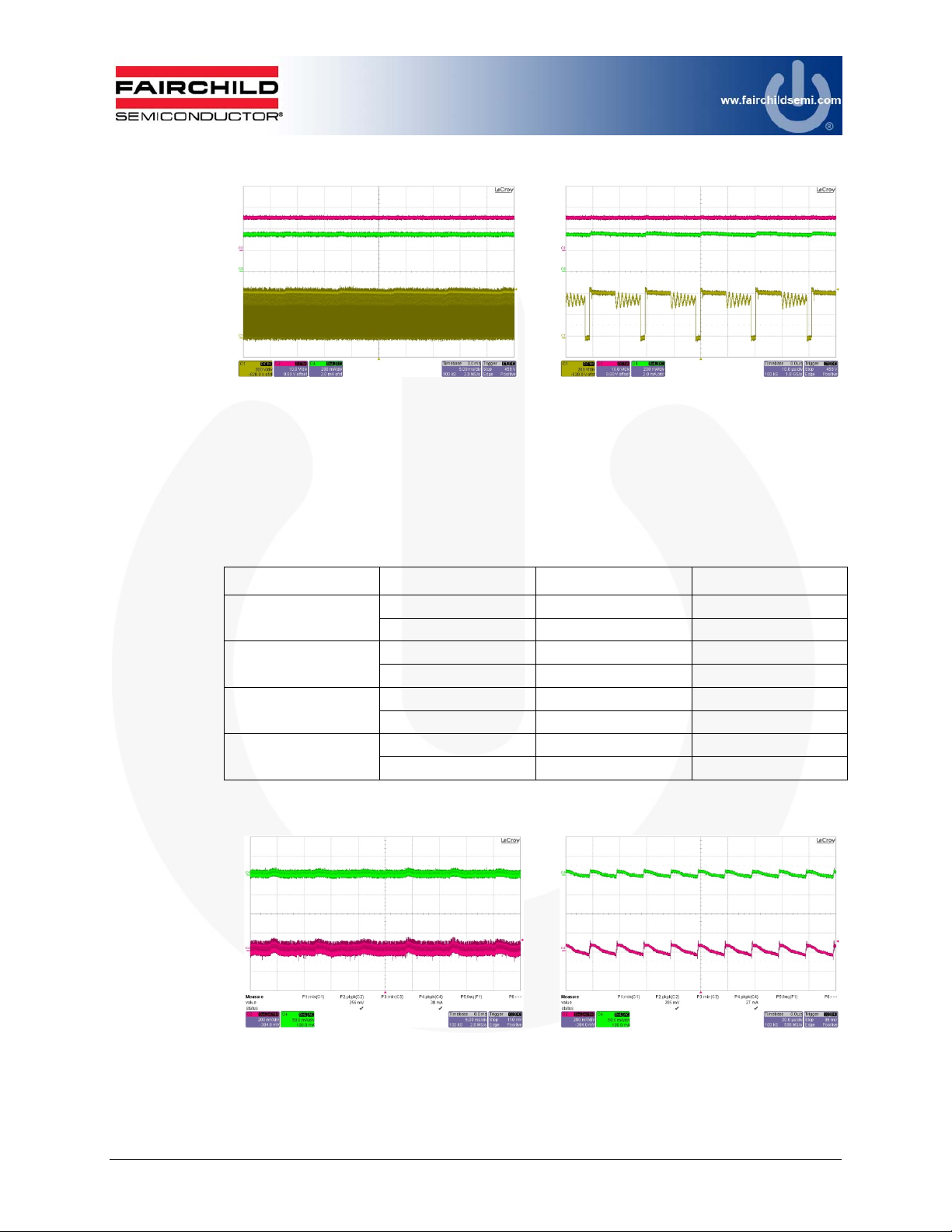

6.4. Output Ripple & Noise

Test Condition: Connect seven LEDs. Ripple and noise are measured by using 20MHz bandwidth limited oscilloscope with a 10µF / 50V capacitor paralleled with a highfrequency 0.1µF capacitor across each output.

Table 9. Test Result

Input Voltage Ripple Source Voltage Ripple Current Ripple

85VAC / 60Hz

110VAC / 60Hz

230VAC / 50Hz

265VAC / 50Hz

AC Source 256mV

Main Frequency 205mV

AC Source 218mV

Main Frequency 211mV

AC Source 211mV

Main Frequency 205mV

AC Source 224mV

Main Frequency 198mV

30mA

P-P

27mA

P-P

29mA

P-P

29mA

P-P

27mA

P-P

29mA

P-P

30mA

P-P

27mA

P-P

Waveforms: Red (VO), Green (IO)

Figure 20. 85V

/ 60Hz

AC

Figure 21. 110V

Figure 22. 230V

/ 60Hz

AC

/ 50Hz

AC

Figure 23. 265V

/ 50Hz

AC

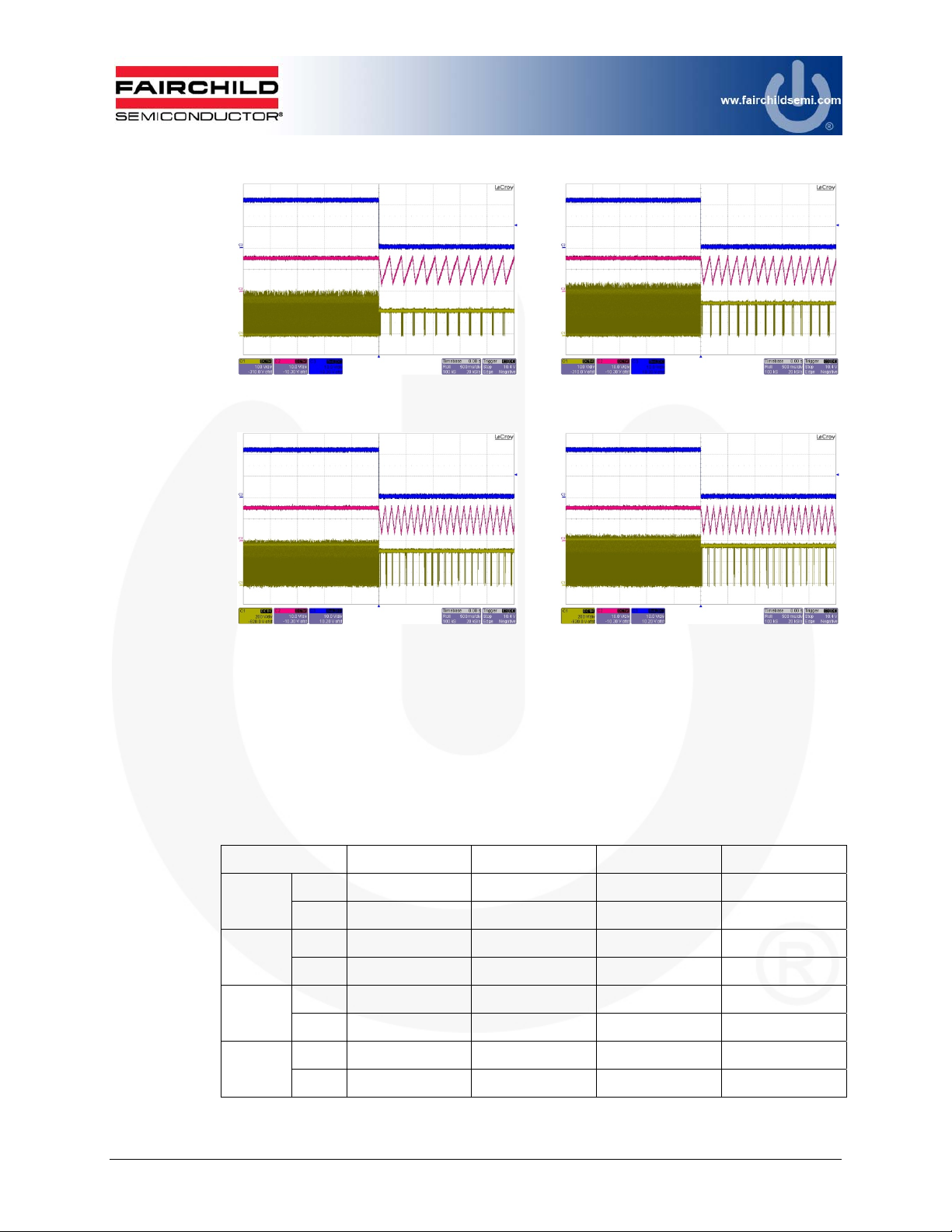

6.5. Short-Circuit Protection (SCP)

Test Condition: Connect seven LEDs and measure input power on short circuit in “Hiccup” Mode operation.

Table 10. Test Results

Input Voltage Input Power at SCP

85VAC / 60Hz 0.116W

110VAC / 60Hz 0.180W

230VAC / 50Hz 0.426W

265VAC / 50Hz 0.520W

Waveforms: Yellow (VDS), Red (VDD), Green (VO)

Figure 24. 230V

Figure 26. 230VAC / 50Hz Figure 27. 265VAC / 50Hz

/ 60Hz Figure 25. 110VAC / 60Hz

AC

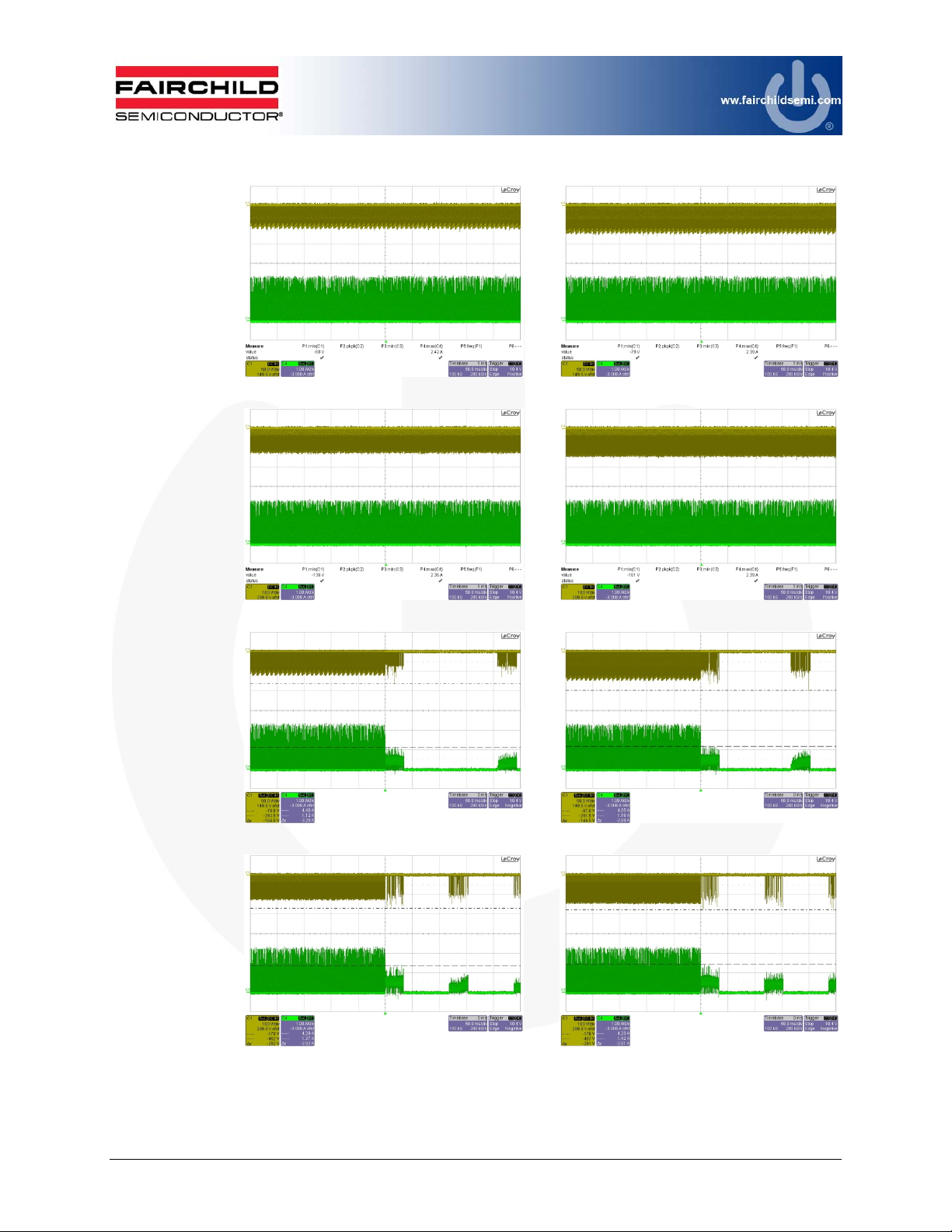

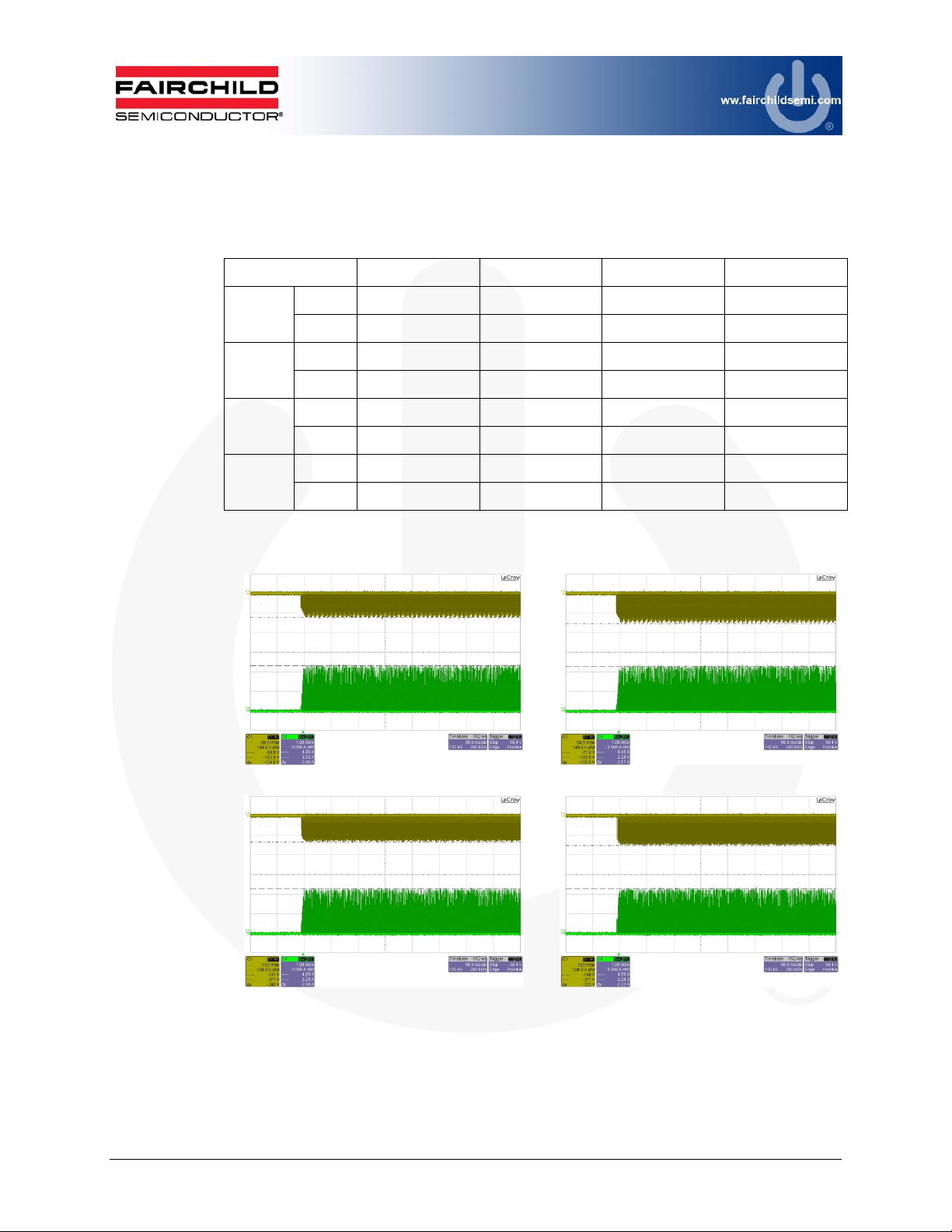

6.6. Voltage & Current Stress on MOSFET

Test Condition: Connect seven LEDs and measure the voltage and current stress on the MOSFET.

Table 11. Test Results

85VAC / 60Hz 110VAC / 60Hz 230VAC / 50Hz 265VAC / 50Hz

Power

On

Normal

Short

Circuit

Power

Off

V

I

V

I

V

I

V

I

217V 247V 430V 478V

590mA 590mA 590mA 590mA

221V 257V 443V 481V

606mA 590mA 606mA 590mA

136V 171V 348V 402V

290mA 290mA 380mA 460mA

137V 137V 152V 152V

580mA 580mA 580mA 580mA

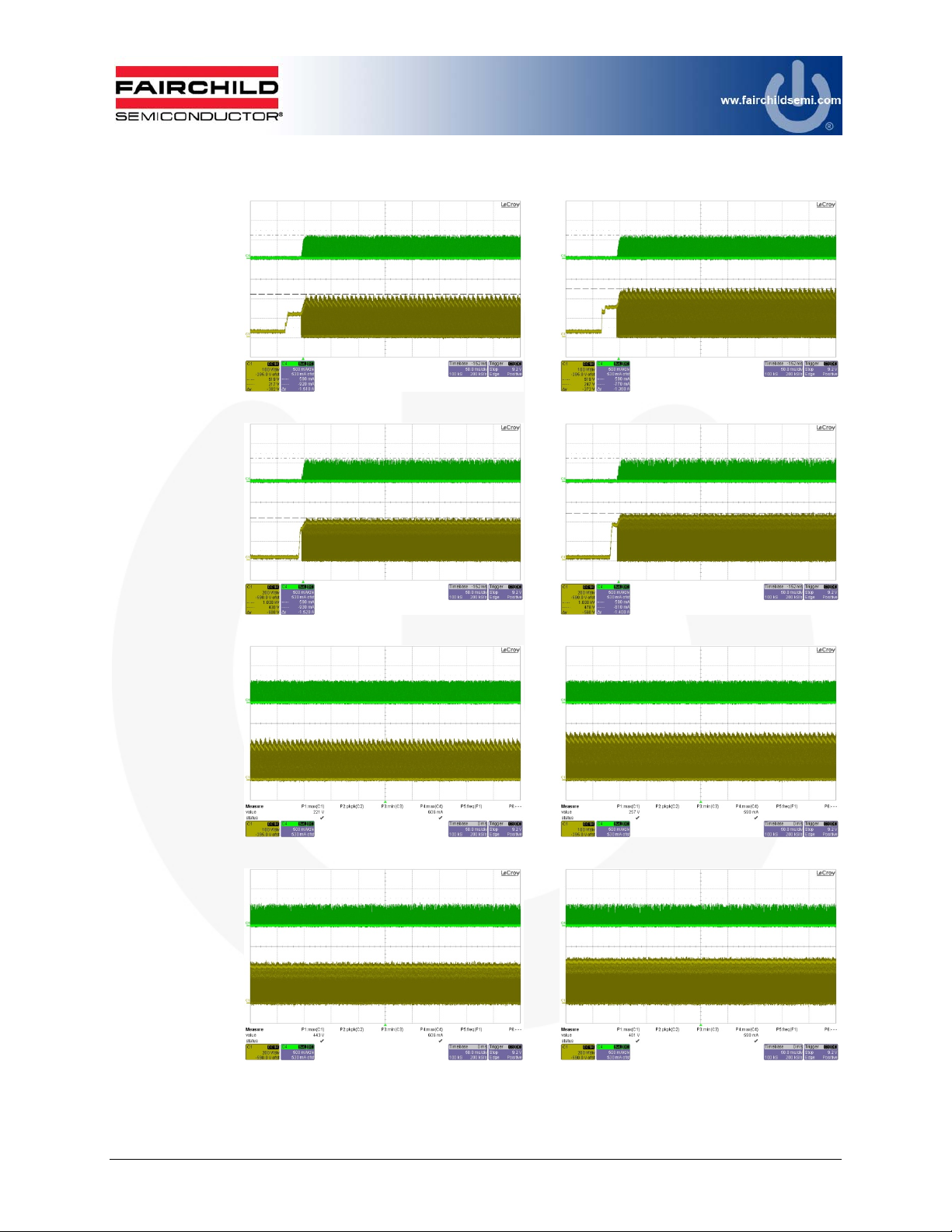

Waveform: Yellow (VDS), Green (ID)

Figure 28. 85V

/ 60Hz; Power On Figure 29. 110VAC / 60Hz; Power On

AC

Figure 30. 230V

Figure 32. 85V

Figure 34. 230V

/ 50Hz; Power On Figure 31. 265VAC / 50Hz; Power On

AC

/ 60Hz; Normal Operation Figure 33. 110VAC / 60Hz; Normal Operation

AC

/ 50Hz; Normal Operation Figure 35. 265VAC / 50Hz; Normal Operation

AC

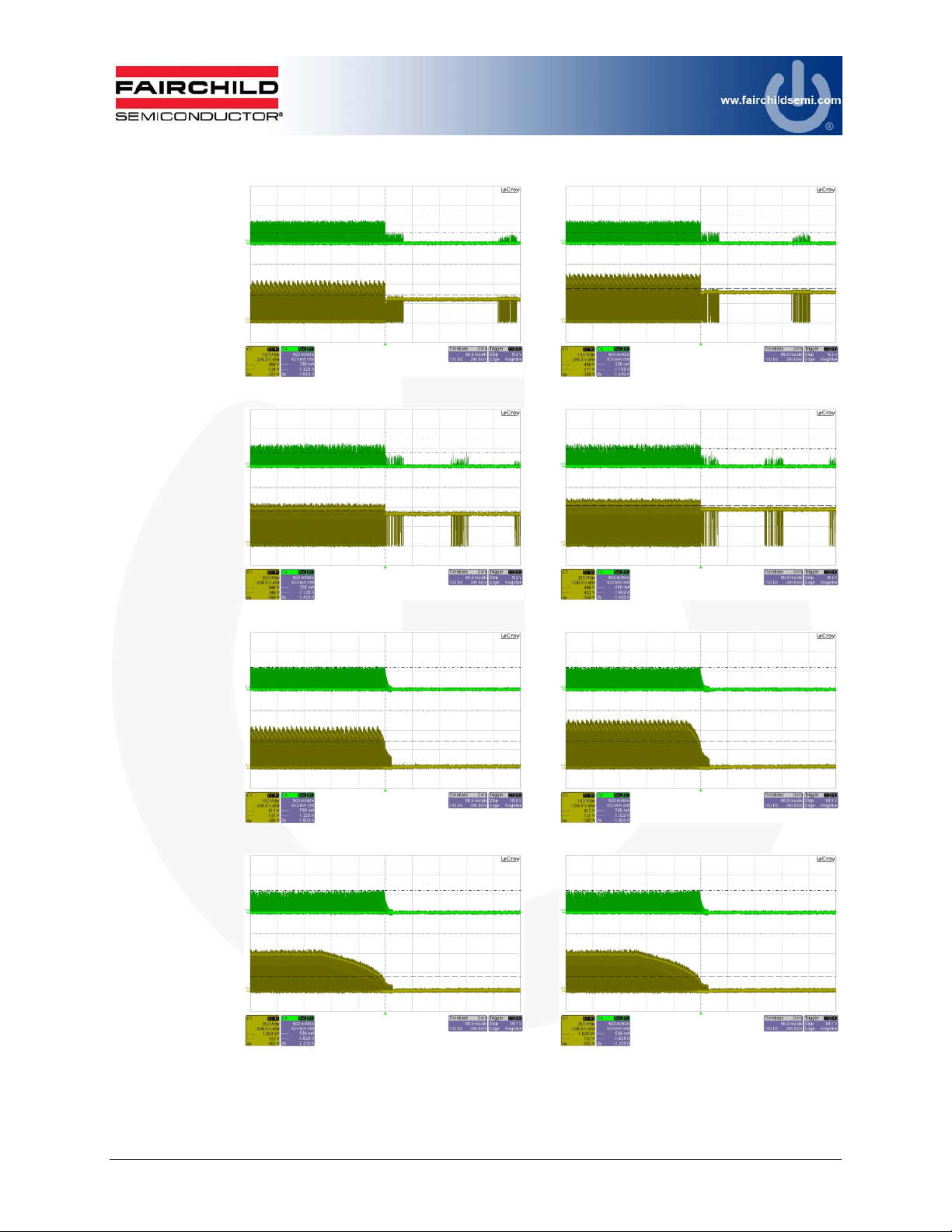

Waveform: Yellow (VDS), Green (ID)

Figure 36. 85V

/ 60Hz; Short Circuit Figure 37. 110VAC / 60Hz; Short Circuit

AC

Figure 38. 230V

Figure 40. 85V

Figure 42. 230V

/ 50Hz; Short Circuit Figure 39. 265VAC / 50Hz; Short Circuit

AC

/ 60Hz; Power Off Figure 41. 110VAC / 60Hz; Power Off

AC

/ 50Hz; Power Off Figure 43. 265VAC / 50Hz; Power Off

AC

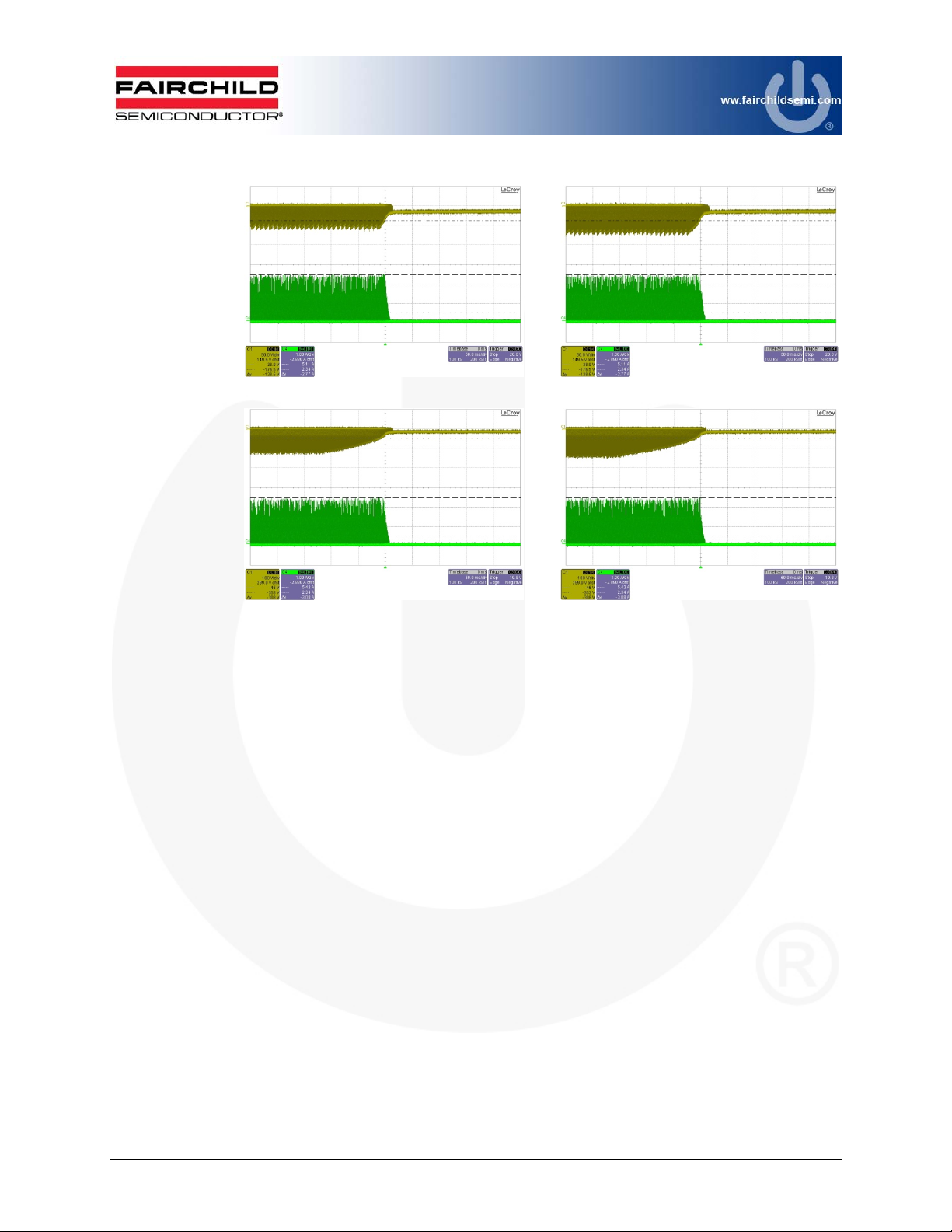

6.7. Voltage & Current Stress on Secondary Rectifier

VAC/

V

/

Test Condition: Connect seven LEDs and measure the voltage and current stress on the secondary rectifier.

Table 12. Test Results

Power

On

85V

V

I

V

/ 60Hz 110VAC / 60Hz 230VAC / 50Hz 265VAC / 50Hz

AC

59.5V 77.0V 131.0V 149.0V

2.48A 2.28A 2.28A 2.28A

68V 79V 136V 161V

Normal

2.42A 2.39A 2.36A 2.39A

79.5V 97.0V 170.0V 176.0V

1.12A 1.16A 1.37A 1.42A

38V 38V 45V 45V

2.34A 2.34A 2.34A 2.34A

Short

Circuit

Power

Off

I

V

I

V

I

Waveform: Yellow (VAK), Green (IAK)

Figure 44. 85

Figure 46. 230V

60Hz; Power On Figure 45. 110

50Hz; Power On Figure 47. 265VAC / 50Hz; Power On

AC

/ 60Hz; Power On

AC

Waveform: Yellow (VAK), Green (IAK)

Figure 48. 85V

/ 60Hz; Normal Operation Figure 49. 110VAC / 60Hz; Normal Operation

AC

Figure 50. 230V

Figure 52. 85V

Figure 54. 230V

/ 50Hz; Normal Operation Figure 51. 265VAC / 50Hz; Normal Operation

AC

/ 60Hz; Short Circuit Figure 53. 110VAC / 60Hz; Short Circuit

AC

/ 50Hz; Short Circuit Figure 55. 265VAC / 50Hz; Short Circuit

AC

Waveform: Yellow (VAK), Green (IAK)

Figure 56. 85V

/ 60Hz; Power Off Figure 57. 110VAC / 60Hz; Power Off

AC

Figure 58. 230V

/ 50Hz; Power Off Figure 59. 265VAC / 50Hz; Power Off

AC

6.8. Constant Current Tolerance Using Electric Load (CR)

Test Condition: Aging five seconds at minimum load and measure the output current and output voltage. Each load / one second interval. Load is CR mode of electric load.

Table 13. Test Results

Input Voltage

85VAC / 60Hz 346mA 350mA 1.14%

110VAC / 60Hz 346mA 348mA 0.57%

230VAC / 50Hz 343mA 350mA 2.00%

265VAC / 50Hz 343mA 349mA 1.72%

Total 343mA 350mA 2.00%

VO[V]

Minimum

Current

Maximum

Current

Tolerance Remark

< 10%

IO[A]

Figure 60. CC / CV Curve

6.9. Constant Current Tolerance Using Electric Load (CV)

Test Condition: Fixed output voltage and variable input voltage. Measure output current. load is CV Mode of electric load.

Table 14. Deviation by Input Voltage

VO[V] Min. Current Max. Current Tolerance Remark

22.5 349mA 353mA 1.19%

22.0 349mA 353mA 1.27%

21.5 349mA 353mA 1.33%

21.0 348mA 354mA 1.44%

20.5 349mA 353mA 1.61%

20.0 349mA 355mA 1.55%

19.5 349mA 354mA 1.41%

19.0 349mA 353mA 1.22%

18.5 349mA 354mA 1.47%

18.0 349mA 356mA 1.86%

Total 348mA 356mA 2.02%

< 10%

IO[mA]

VIN[VAC]

Figure 61. Deviation Curve

6.10. Constant Current Toleration Using LED Load

Test Condition: Age five minutes at 85VAC and measure the output current and output voltage. Load is LED.

Table 15. Deviation by Input Voltage

LEDs Minimum Current Maximum Current Tolerance Remark

7-LED

6-LED

5-LED

4-LED

343mA 347mA 1.27%

343mA 348mA 1.52%

342mA 349mA 2.01%

347mA 350mA 1.06%

Table 16. Deviation by All Conditions (LEDs & Input Voltage)

Input Voltage Minimum Current Maximum Current Tolerance

85VAC

105VAC

125VAC

145VAC

165VAC

185VAC

205VAC

225VAC

245VAC

265VAC

346mA 349mA 0.92%

345mA 348mA 1.03%

345mA 348mA 1.06%

345mA 348mA 0.86%

344mA 348mA 0.89%

342mA 350mA 2.34%

343mA 349mA 1.78%

343mA 348mA 1.55%

344mA 347mA 0.78%

345mA 349mA 1.18%

< 10%

Total

342mA 350mA 2.34%

IO[mA]

VIN[VAC]

Figure 62. Deviation Curve

6.11. Efficiency

Test Condition: Connect seven LEDs and measure the input and output power after 30 minutes aging.

Table 17. Test Results

Input Voltage Input Power Output Power Efficiency

85VAC / 60Hz

110VAC / 60Hz

230VAC / 50Hz

265VAC / 50Hz

8.781W 7.460W 84.96%

8.626W 7.440W 86.24%

8.464W 7.372W 87.10%

8.617W 7.490W 86.92%

Efficiency

V

IN

Figure 63. Efficiency Curve

6.12. Temperature

(

)

Test Condition: Connect seven LEDs and measure the saturated temperature.

Table 18. Test Results

85VAC / 60Hz 265VAC / 50Hz Remark

MOSFET

Transformer

RCD Snubber

FL103M

Secondary Rectifier

Current-Sense Resistors

50.8°C 48.4°C Top-Side Circle

50.7°C 51.5°C Top-Side Box

50.2°C 49.0°C Top-Side Spot

45.9°C 42.8°C Bottom-Side Circle

59.2°C 58.9°C Top-Side Box

39.9°C 39.5°C Bottom-Side Spot

Temperature Photos

Current Sense

Resistors

(39.9°C)

FL103M (45.9°C)

Transformer

(50.7°C)

RCD Snubber (50.2°C)

MOSFET

(50.8°C)

2nd Side

Rectifier (59.2°C)

Figure 64. 85VAC / 60Hz; Top Side Figure 65. 265VAC / 60Hz; Bottom Side

Current Sense

Resistors

39.5°C

FL103M (42.8°C)

Transformer

(51.5°C)

Figure 66. 265V

RCD Snubber

(49.0°C)

2’nd Side

MOSFET

(48.4°C)

/ 50Hz; Top Side Figure 67. 265VAC / 50Hz; Bottom Side

AC

Rectifier (58.9°C)

6.13. EMI

Test Conditions:

 Frequency Subrange: 150kHz - 30MHz,  Measuring: QuasiPeak; Average  Load is 7 LEDs

Table 19. Test Results

Figure 68. Conduction Line: 110VAC / 60Hz

Figure 69. Conduction Neutral: 110V

/ 60Hz

AC

Figure 70. Conduction Line: 220VAC / 60Hz

Figure 71. Conduction Neutral: 220V

/ 60Hz

AC

7. Revision History

Rev. Date Description

1.0.0 June 2011 Initial Release

1.0.1 July 2011 Reduced PCB Type & Size: Square  Bulb, 62 x 41 mm2  53 x 25 mm2

1.0.2 May 2012 Update Block Diagram & BOM

WARNING AND DISCLAIMER

Replace components on the Evaluation Board only with those parts shown on the parts list (or Bill of Materials) in the Users’ Guide. Contact an authorized Fairchild representative with any questions.

This board is intended to be used by certified professionals, in a lab environment, following proper safety procedures. Use at your own risk. The Evaluation board (or kit) is for demonstration purposes only and neither the Board nor this User’s Guide constitute a sales contract or create any kind of warranty, whether express or implied, as to the applications or products involved. Fairchild warrantees that its products meet Fairchild’s published specifications, but does not guarantee that its products work in any specific application. Fairchild reserves the right to make changes without notice to any products described herein to improve reliability, function, or design. Either the applicable sales contract signed by Fairchild and Buyer or, if no contract exists, Fairchild’s standard Terms and Conditions on the back of Fairchild invoices, govern the terms of sale of the products described herein.

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, or (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

ANTI-COUNTERFEITING POLICY

Fairchild Semiconductor Corporation's Anti-Counterfeiting Policy. Fairchild's Anti-Counterfeiting Policy is also stated on our external website, www.fairchildsemi.com, under Sales Support.

Counterfeiting of semiconductor parts is a growing problem in the industry. All manufacturers of semiconductor products are experiencing counterfeiting of their parts. Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failed applications, and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild parts either directly from Fairchild or from Authorized Fairchild Distributors who are listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild Distributors are genuine parts, have full traceability, meet Fairchild's quality standards for handling and storage and provide access to Fairchild's full range of up-to-date technical and product information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address any warranty issues that may arise. Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors.

EXPORT COMPLIANCE STATEMENT

These commodities, technology, or software were exported from the United States in accordance with the Export Administration Regulations for the ultimate destination listed on the commercial invoice. Diversion contrary to U.S. law is prohibited.

U.S. origin products and products made with U.S. origin technology are subject to U.S Re-export laws. In the event of re-export, the user will be responsible to ensure the appropriate U.S. export regulations are followed.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
