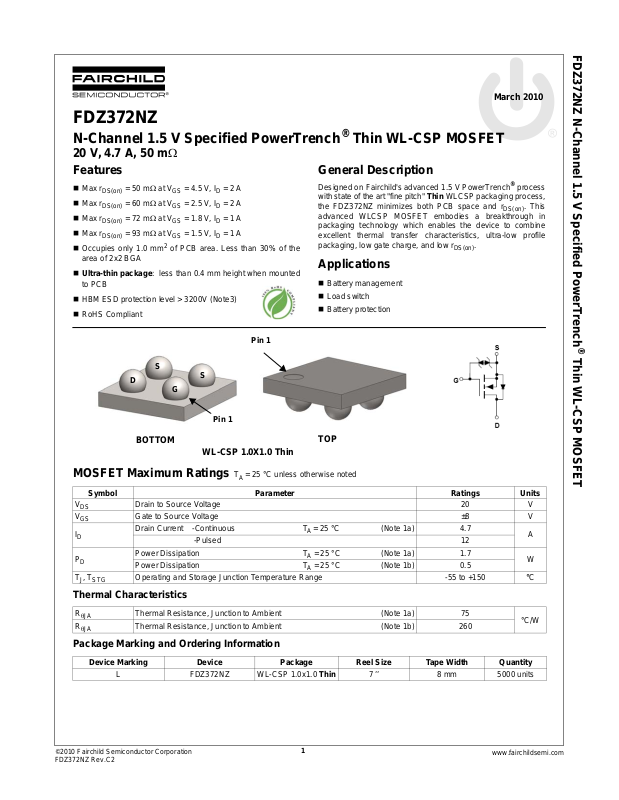

Page 1

March 2010

FDZ372NZ

N-Channel 1.5 V Specified PowerTrench® Thin WL-CSP MOSFET

20 V, 4.7 A, 50 mΩ Features

 Max r  Max r  Max r  Max r  Occupies only 1.0 mm

area of 2x2 BGA

 Ultra-thin package: less than 0.4 mm height when mounted

to PCB

 HBM ESD protection level > 3200V (Note3)  RoHS Compliant

= 50 mΩ at VGS = 4.5 V, ID = 2 A

DS(on)

= 60 mΩ at VGS = 2.5 V, ID = 2 A

DS(on)

= 72 mΩ at VGS = 1.8 V, ID = 1 A

DS(on)

= 93 mΩ at VGS = 1.5 V, ID = 1 A

DS(on)

of PCB area. Less than 30% of the

General Description

Designed on Fairchild's advanced 1.5 V PowerTrench® process with state of the art "fine pitch" Thin WLCSP packaging process, the FDZ372NZ minimizes both PCB space and r advanced WLCSP MOSFET embodies a breakthrough in packaging technology which enables the device to combine excellent thermal transfer characteristics, ultra-low profile packaging, low gate charge, and low r

DS(on)

Applications

 Battery management  Load switch  Battery protection

DS(on)

FDZ372NZ N-Channel 1.5 V Specified PowerTrench

. This

Pin 1

BOTTOM

Pin 1

TOP

WL-CSP 1.0X1.0 Thin

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

, T

STG

Drain to Source Voltage 20 V Gate to Source Voltage ±8 V Drain Current -Continuous TA = 25 °C (Note 1a) 4.7

-Pulsed 12 Power Dissipation TA = 25 °C (Note 1a) 1.7 Power Dissipation T Operating and Storage Junction Temperature Range -55 to +150 °C

= 25 °C unless otherwise noted

= 25 °C (Note 1b) 0.5

Thermal Characteristics

θJA

Thermal Resistance, Junction to Ambient (Note 1a) 75 Thermal Resistance, Junction to Ambient (Note 1b) 260

Package Marking and Ordering Information

°C/W

Thin

WL-CSP MOSFET

Device Marking Device Package Reel Size Tape Width Quantity

L FDZ372NZ WL-CSP 1.0x1.0 Thin 7 ’’ 8 mm 5000 units

www.fairchildsemi.com

Page 2

Electrical Characteristics T

= 25 °C unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units

Off Characteristics

∆BV ∆T

DSS

GSS

DSS

DSS J

Drain to Source Breakdown Voltage ID = 250 µA, VGS = 0 V 20 V Breakdown Voltage Temperature

Coefficient Zero Gate Voltage Drain Current VDS = 16 V, V Gate to Source Leakage Current VGS = ±8 V, V

= 250 µA, referenced to 25 °C 18 mV/°C

= 0 V 1 µA

= 0 V ±10 µA

On Characteristics

GS(th)

∆V ∆T

DS(on)

GS(th)

Gate to Source Threshold Voltage VGS = VDS, ID = 250 µA0.40.71V Gate to Source Threshold Voltage

Temperature Coefficient

Drain to Source On Resistance

= 250 µA, referenced to 25 °C -3 mV/°C

= 4.5 V, ID = 2 A 40 50

= 2.5 V, ID = 2 A 45 60

= 1.8 V, ID = 1 A 53 72

= 1.5 V, ID = 1 A 63 93

= 4.5V, ID = 2 A, TJ = 125°C 57 81

Forward Transconductance VDS = 5 V, ID = 4.7 A 22 S

Dynamic Characteristics

iss

oss

rss

Input Capacitance Output Capacitance 85 115 pF Reverse Transfer Capacitance 65 100 pF

= 10 V, VGS = 0 V,

f = 1 MHz

515 685 pF

mΩ

FDZ372NZ N-Channel 1.5 V Specified PowerTrench

Thin

Switching Characteristics

d(on)

d(off)

Q Q Q

g gs gd

Turn-On Delay Time Rise Time 3.6 10 ns Turn-Off Delay Time 26 42 ns Fall Time 5.6 12 ns Total Gate Charge Gate to Source Gate Charge 0.8 nC Gate to Drain “Miller” Charge 1.6 nC

= 10 V, ID = 4.7 A

= 4.5 V, R

= 4.5 V, VDD = 10 V

= 4.7 A

GEN

Drain-Source Diode Characteristics

Notes:

is determined with the device mounted on a 1 in2 pad 2 oz copper pad on a 1.5 x 1.5 in. boar d of FR-4 material . R

1. R

θJA

the user's board design.

Source to Drain Diode Forward Voltage V Reverse Recovery Time Reverse Recovery Charge 2.6 10 nC

a. 75 °C/W when mounted on a 1 in2 pad of 2 oz copper.

= 0 V, IS = 1.4 A (Note 2) 0.7 1.2 V

= 4.7 A, di/dt = 100 A/µs

= 6 Ω

6.2 12 ns

79.8nC

11 20 ns

is guaranteed by des ign while R

θJC

b. 260 °C/W when mounted on a minimum pad of 2 oz copper.

is determined by

θCA

WL-CSP MOSFET

2. Pulse Test: Pulse Width < 300µs, Duty cycle < 2.0%.

3. The diode connected between the gate and source serves only as protection ESD. No gate overvoltage rating is implied.

www.fairchildsemi.com

Page 3

Typical Characteristics T

= 25 °C unless otherwise noted

FDZ372NZ N-Channel 1.5 V Specified PowerTrench

VGS = 4.5 V VGS = 3 V VGS = 2.5 V VGS = 2 V

VGS = 1.8 V

VGS = 1.5 V

, DRAIN CURRENT (A)

0.0 0.5 1.0 1.5

DRAIN TO SOURCE VOLTAGE (V)

Figure 1.

1.6

1.4

On-Region Characteristics Figure 2.

ID = 2 A V

= 4.5 V

PULSE DURATION = 80 µs DUTY CYCLE = 0.5% MAX

1.2

1.0

NORMALIZED

0.8

DRAIN TO SOURCE ON-RESISTANCE

0.6

-75 -50 -25 0 25 50 75 100 125 150

JUNCTION TEMPERATURE

(

)

Figu r e 3. Nor m a lized O n - R esist a n c e

vs Junction Temperature

2.0

VGS = 1.5 V

1.5

VGS = 1.8 V

VGS = 2 V

1.0

NORMALIZED

DRAIN TO SOURCE ON-RESISTANCE

0.5

= 2.5 V VGS = 3 V

PULSE DURATION = 80 µ s DUTY CYCLE = 0.5% MAX

= 4.5 V

04812

, DRAIN CURRENT (A)

Norma l i z e d O n - Resistance

vs Drain Current and Gate Voltage

200

)

Ω

(

150

100

DRAIN TO

DS(on)

SOURCE ON-RESISTANCE

0.0 1.5 3.0 4.5

GATE TO SOURCE VOLTA G E (V)

Figure 4.

On-Resistance vs Gate to

PULSE DURATION = 80 µs DUTY CYCLE = 0.5% MAX

ID = 2 A

TJ = 125 oC

TJ = 25 oC

Source Voltage

Thin

WL-CSP MOSFET

PULSE DURATION = 80 µs DUTY CYCLE = 0.5% MAX

= 5 V

TJ = 150 oC

, DRAIN CURRENT (A)

0.5 1.0 1.5 2.0

VGS, GATE TO SOURCE VOLTAGE (V)

Figure 5. Transfer Characteristics

TJ = -55 oC

TJ = 25 oC

= 0 V

TJ = 150 oC

0.1

0.01

, REVERSE DRAIN CURRENT (A)

0.001

0.0 0.2 0.4 0.6 0.8 1.0 1.2

VSD, BODY DIODE FORWARD VOLTAGE (V)

Figure 6.

Source to Dr ain Diode

TJ = 25 oC

TJ = -55 oC

Forward Voltage vs Source Current

www.fairchildsemi.com

Page 4

FDZ372NZ N-Channel 1.5 V Specified PowerTrench

Typical Characteristics T

= 25 °C unless otherwise noted

4.5

ID = 4.7 A

VDD = 8 V

3.0

= 10 V

VDD = 12 V

1.5

, GATE TO SOURCE VOLTAGE ( V)

0.0 02468

Figure 7.

-1

= 0 V

-2

-3

-4

-5

-6

-7

-8

GATE LEAKAGE CURRENT (A)

-9

-10

03691215

Qg, GATE CHARGE (nC)

Gate Charge Characteristics Figure 8.

TJ = 125 oC

TJ = 25 oC

GATE TO SOURCE VOLTAG E (V)

Figure 9. Gate Leakage Current vs

Gate to Source Voltage

200 100

1000

iss

100

CAPACITANCE (pF)

f = 1 MHz V

= 0 V

0.01 0.1 1 10

VDS, DRAIN TO SOURCE VOLTAGE (V)

oss

rss

Capacitance vs Drain

to Source Voltage

20 10

100 us

0.1

, DRAIN CURRENT (A)

0.01

0.01 0.1 1 10 100

THIS AREA IS LIMITED BY r

SINGLE PULSE T

VDS, DRAIN to SOURCE VOLTAGE (V)

DS(on)

= MAX RATED

= 260 oC/W

= 25 oC

1 ms

10 ms

100 ms

1 s

10 s DC

Figure 10. Forward Bias Safe Operating Area

SINGLE PULSE

= 260 oC/W

θJA

= 25 oC

Thin

WL-CSP MOSFET

, PEAK TRANSIENT POWER (W)

(PK)

0.4

-4

-3

-2

-1

t, PULSE WIDTH (sec)

110

Figure 11. Single Pulse Maximum Power Dissipation

100 1000

www.fairchildsemi.com

Page 5

FDZ372NZ N-Channel 1.5 V Specified PowerTrench

Typical Characteristics T

DUTY CYCLE-DESCENDING ORDER

0.1

D = 0.5

0.2

0.1

0.05

0.02

0.01

-4

-3

Figure 12. Junction-to-Ambient Transient Thermal Response Curve

NORMALIZED THERMAL

θJA

IMPEDANCE,

0.001

0.01

= 25 °C unless otherwise noted

SINGLE PULSE R

= 260 oC/W

θJA

-2

t, RECTANGULAR PULSE DURATION (sec)

-1

NOTES: DUTY FACTOR: D = t

PEAK TJ = PDM x Z

θJA

1/t2

x R

110

+ T

θJA

100 1000

Thin

WL-CSP MOSFET

www.fairchildsemi.com

Page 6

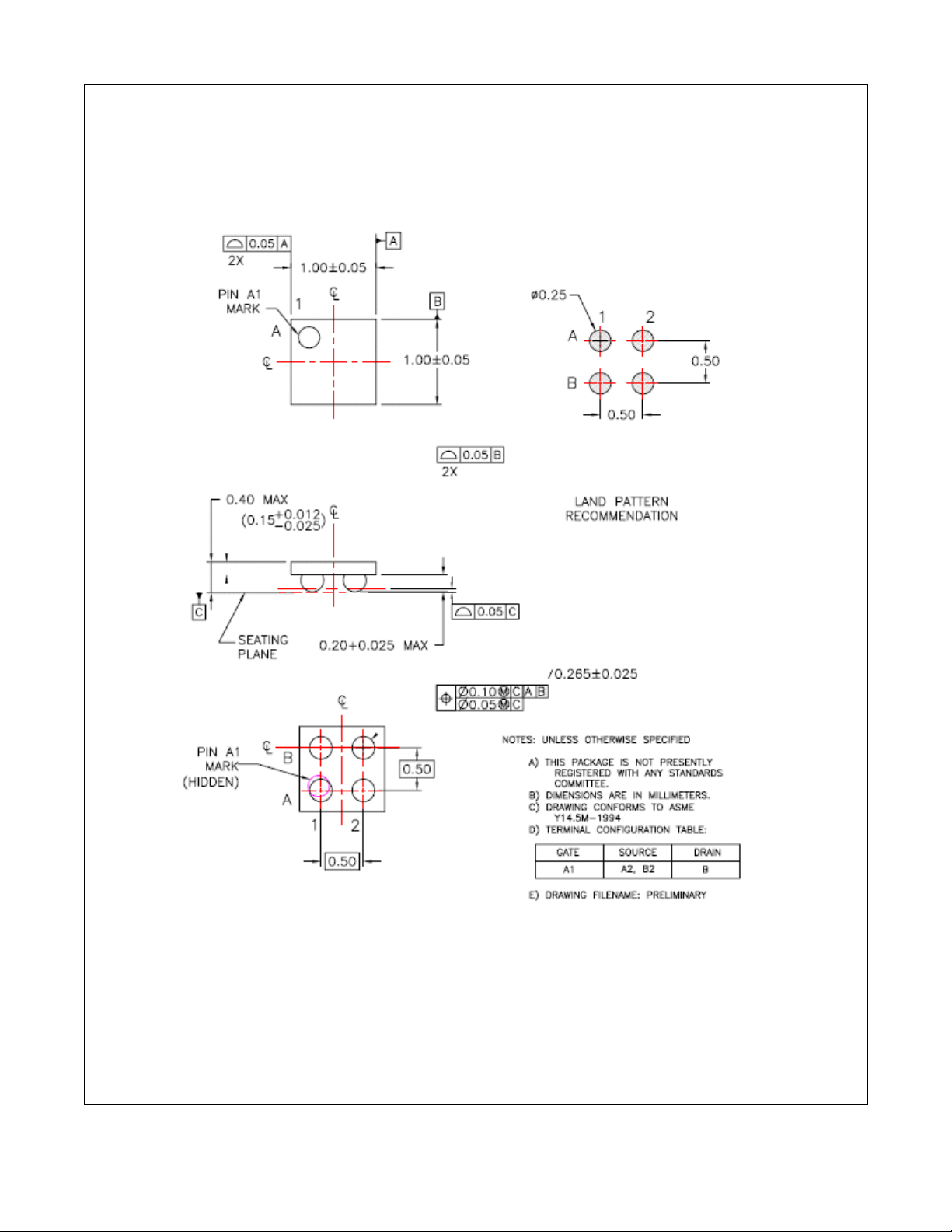

Dimensional Outline and Pad Layout

FDZ372NZ N-Channel 1.5 V Specified PowerTrench

Thin

WL-CSP MOSFET

www.fairchildsemi.com
