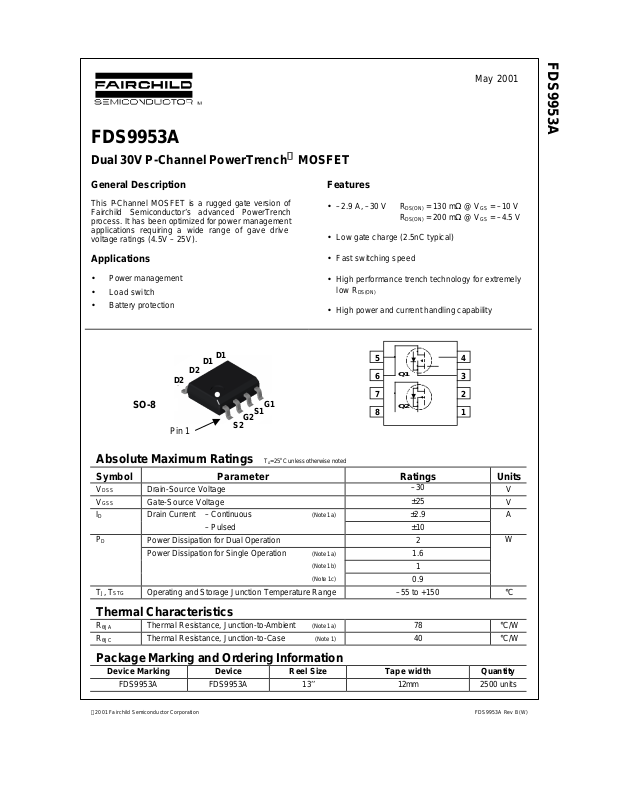

Datasheet FDS9953A Datasheet (Fairchild Semiconductor)

FDS9953A

Dual 30V P-Channel PowerTrench MOSFET

May 2001

General Description

This P-Channel MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications requiring a wide range of gave drive voltage ratings (4.5V – 25V).

Applications

• Power management

• Load switch

• Battery protection

D1

D

D1

D

D2

D

D2

D

S2

S

G2

S

G1

G

S1

S

o

=25

C unless otherwise noted

A

SO-8

Pin 1

Absolute Maximum Ratings T

Features

• –2.9 A, –30 V R R

• Low gate charge (2.5nC typical)

• Fast switching speed

• High performance trench technology for extremely

low R

• High power and current handling capability

DS(ON)

5 6 7 8

= 130 mΩ @ VGS = –10 V

DS(ON)

= 200 mΩ @ VGS = –4.5 V

DS(ON)

4

Q1

Q2

3 2 1

Symbol Parameter Ratings Units

V

Drain-Source Voltage

DSS

V

Gate-Source Voltage

GSS

ID Drain Current – Continuous (Note 1a) – Pulsed PD

TJ, T

STG

Power Dissipation for Dual Operation 2 Power Dissipation for Single Operation (Note 1a) 1.6 (Note 1b) (Note 1c)

Operating and Storage Junction Temperature Range –55 to +150 °C

–30

±25

±2.9

±10

1

0.9

V V A

W

Thermal Characteristics

R

Thermal Resistance, Junction-to-Ambient (Note 1a) 78 °C/W

θJA

R

Thermal Resistance, Junction-to-Case (Note 1) 40 °C/W

θJC

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity

FDS9953A FDS9953A 13’’ 12mm 2500 units

2001 Fairchild Semiconductor Corporation FDS9953A Rev B(W)

FDS9953A

Electrical Characteristics T

= 25°C unless otherwise noted

A

Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics

BV

DSS

∆BVDSS ∆TJ

I

Zero Gate Voltage Drain Current

DSS

I

Gate–Body Leakage, Forward

GSSF

I

GSSR

Drain–Source Breakdown Voltage Breakdown Voltage Temperature Coefficient

Gate–Body Leakage, Reverse

VGS = 0 V, ID = –250 µA ID = –250 µA, Referenced to 25°C VDS = –24 V, VGS = 0 V –2

VGS = –25 V, VDS = 0 V –100 nA VGS = 25 V, VDS = 0 V 100 nA

–30 V

–23

mV/°C

µA

On Characteristics (Note 2)

V

Gate Threshold Voltage

GS(th)

∆VGS(th) ∆TJ

R

DS(on)

Gate Threshold Voltage Temperature Coefficient

Static Drain–Source

On–Resistance

VDS = VGS, ID = –250 µA ID = –250 µA, Referenced to 25°C

VGS = –10 V, ID = –1 A VGS = –10 V, ID = –1 A, TJ=125°C VGS = –4.5 V, ID = –0.5 A VGS = –4.5 V, ID = –0.5 A, TJ=125°C

I

On–State Drain Current

D(on)

VGS = –10 V, VDS = –5 V –5 VGS = –4.5 V, VDS = –5 V –1.5

gFS Forward Transconductance VDS = –15 V, ID = –1 A 4 S

–1 –1.8 –3.0 V

4 95

137 142 202

130 200 200

310

mV/°C

m Ω

A

Dynamic Characteristics

C

Input Capacitance 185 pF

iss

C

Output Capacitance 56 pF

oss

C

Reverse Transfer Capacitance

rss

VDS = –15 V, V f = 1.0 MHz

= 0 V,

GS

26 pF

Switching Characteristics (Note 2)

t

Turn–On Delay Time 4.5 9 ns

d(on)

tr Turn–On Rise Time 13 23 ns t

Turn–Off Delay Time 11 20 ns

d(off)

tf Turn–Off Fall Time Qg Total Gate Charge 2.5 3.5 nC Qgs Gate–Source Charge 0.8 nC Qgd Gate–Drain Charge

VDD = –15 V, ID = –1 A, VGS = –10 V, R

GEN

= 6 Ω

VDS = –5 V, ID = –1 A, VGS = –10 V

2 4 ns

0.9 nC

Drain–Source Diode Characteristics and Maximum Ratings

IS Maximum Continuous Drain–Source Diode Forward Current VSD Drain–Source Diode Forward

VGS = 0 V, IS = –1.3 A (Note 2) –0.8 1.3 V

Voltage

trr Reverse Recovery Time VGS = 0 V, IF = –1.25A,

dIF/dt = 100A/µs

–1.2

A

17 100 nS

FDS9953A Rev B(W)

FDS9953A

Typical Characteristics

Notes:

1. R

is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of

θJA

the drain pins. R

is guaranteed by design while R

θJC

is determined by the user's board design.

θCA

a) 78°C/W when

mounted on a

0.5in2 pad of 2 oz copper

b) 125°C/W when

mounted on a

0.02 in2 pad of 2 oz copper

c) 135°C/W when

mounted on a minimum pad.

Scale 1 : 1 on letter size paper

2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%

FDS9953A Rev B(W)

FDS9953A

Typical Characteristics

10

VGS = -10V

8

6

4

, DRAIN CURRENT (A)

D

-I

2

0

0 1 2 3 4 5

-6.0V

-4.5V

-4.0V

-V

, DRAIN-SOURCE VOLTAGE (V)

DS

-3.5V

-3.0V

3.5

3

VGS = -3.5V

2.5

2

, NORMALIZED

1.5

DS(ON)

R

1

DRAIN-SOURCE ON-RESISTANCE

0.5

0 2 4 6 8 10

-4.0V

-4.5V

, DRAIN CURRENT (A)

-I

D

-5.0V

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with

Drain Current and Gate Voltage.

1.6 ID = -1A

= -10V

V

GS

1.4

1.2

, NORMALIZED

1

DS(ON)

R

0.8

DRAIN-SOURCE ON-RESISTANCE

0.6

-50 -25 0 25 50 75 100 125 150

T

, JUNCTION TEMPERATURE (oC)

J

0.5

0.4

0.3

0.2

, ON-RESISTANCE (OHM)

0.1

DS(ON)

R

TA = 125oC

TA = 25oC

0

2 4 6 8 10

-V

, GATE TO SOURCE VOLTAGE (V)

GS

-6.0V

-10V

ID = -0.5 A

Figure 3. On-Resistance Variation with

Temperature.

6

VDS = -5V

5

4

3

2

, DRAIN CURRENT (A)

D

-I

1

0

1.5 2 2.5 3 3.5 4 4.5

-V

, GATE TO SOURCE VOLTAGE (V)

GS

TA = -55oC

25oC

125oC

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

10

VGS = 0V

1

0.1

0.01

0.001

, REVERSE DRAIN CURRENT (A)

S

-I

0.0001 0 0.2 0.4 0.6 0.8 1 1.2 1.4

TA = 125oC

25oC

-55oC

, BODY DIODE FORWARD VOLTAGE (V)

-V

SD

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation

with Source Current and Temperature.

FDS9953A Rev B(W)

P(pk)

SINGLE PULSE

0.01

0.1

0.2

FDS9953A

Typical Characteristics

10

ID =-1.0 A

8

6

4

2

, GATE-SOURCE VOLTAGE (V)

GS

-V

0

0 1 2 3 4 5

Q

, GATE CHARGE (nC)

g

VDS = -5V

-15V

-10V

300

250

200

150

100

CAPACITANCE (pF)

50

0

0 5 10 15 20 25 30

C

ISS

C

OSS

C

RSS

-V

, DRAIN TO SOURCE VOLTAGE (V)

DS

Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.

100

10

R

LIMIT

DS(ON)

1

VGS = -10V

, DRAIN CURRENT (A)

0.1

SINGLE PULSE

D

-I

= 135oC/W

R

θJA

T

= 25oC

A

0.01

0.1 1 10 100

-V

, DRAIN-SOURCE VOLTAGE (V)

DS

1s

10s

DC

100ms

10ms

1ms

100µs

50

40

30

20

10

P(pk), PEAK TRANSIENT POWER (W)

0

0.001 0.01 0.1 1 10 100

t

, TIME (sec)

1

SINGLE PULSE

R

f = 1MHz V

GS

= 135°C/W

θ

JA

= 25°C

T

A

= 0 V

Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum

Power Dissipation.

1

D = 0.5

0.1

0.05

0.02

0.01

r(t), NORMALIZED EFFECTIVE

TRANSIENT THERMAL RESISTANCE

0.001

JA

R

(t) = r(t) + R

θ

RθJA = 135 °C/W

t1

T

J - TA = P * R

Duty Cycle, D = t

JA

θ

t2

JA

(t)

θ

1 / t2

0.0001 0.001 0.01 0.1 1 10 100 1000

Figure 11. Transient Thermal Response Curve.

Thermal characterization performed using the conditions described in Note 1c. Transient thermal response will change depending on the circuit board design.
