G

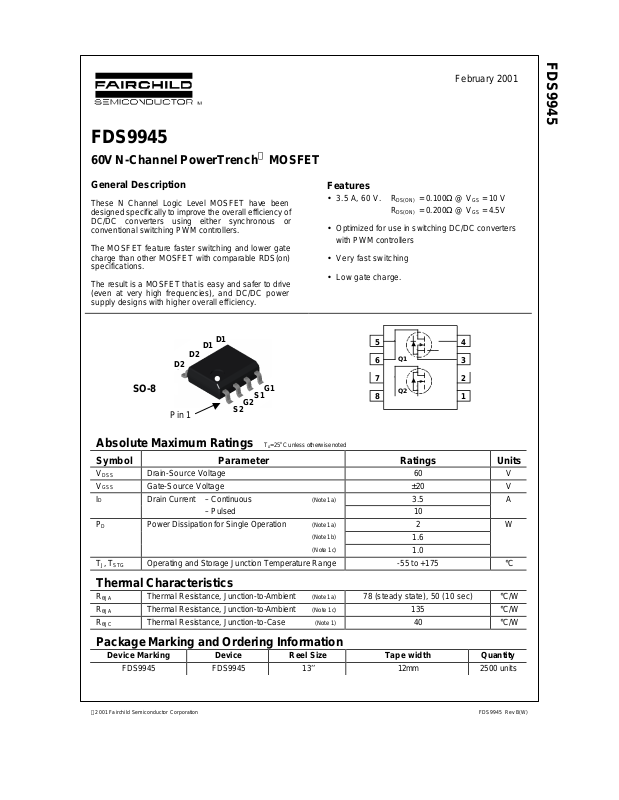

FDS9945
FDS9945
60V N-Channel PowerTrench MOSFET
February 2001
General Description
These N Channel Logic Level MOSFET have been
designed specifically to improve the overall efficiency of
DC/DC converters using either synchronous or
conventional switching PWM controllers.
The MOSFET feature faster switching and lower gate
charge than other MOSFET with comparable RDS(on)
specifications.
The result is a MOSFET that is easy and safer to drive
(even at very high frequencies), and DC/DC power
supply designs with higher overall efficiency.
D1
D
D1
D
D2
D
D2
D
S2
S
G2
S
G1
S1
S
o
=25
C unless otherwise noted
A
SO-8
SO-8
Pin 1
Absolute Maximum Ratings T
Features
• 3.5 A, 60 V. R
R
• Optimized for use in switching DC/DC converters
with PWM controllers
• Very fast switching
• Low gate charge.
5
6
7
8
= 0.100Ω @ VGS = 10 V
DS(ON)
= 0.200Ω @ VGS = 4.5V
DS(ON)
4
Q1
Q2
3
2
1
Symbol Parameter Ratings Units
V
Drain-Source Voltage 60 V
DSS
V
Gate-Source Voltage ±20 V
GSS
ID Drain Current – Continuous (Note 1a) 3.5 A
– Pulsed 10
PD
TJ, T
STG
Power Dissipation for Single Operation (Note 1a) 2
(Note 1b)
(Note 1c)
Operating and Storage Junction Temperature Range -55 to +175 °C
1.6
1.0
W
Thermal Characteristics
R
Thermal Resistance, Junction-to-Ambient (Note 1a) 78 (steady state), 50 (10 sec) °C/W
θJA
R
Thermal Resistance, Junction-to-Ambient (Note 1c) 135 °C/W
θJA
R
Thermal Resistance, Junction-to-Case (Note 1) 40 °C/W
θJC
Package Marking and Ordering Information
Device Marking Device Reel Size Tape width Quantity
FDS9945 FDS9945 13’’ 12mm 2500 units
2001 Fairchild Semiconductor Corporation FDS9945 Rev B(W)
Page 2
FDS9945
Electrical Characteristics T
Symbol
Parameter Test Conditions Min Typ Max Units
= 25°C unless otherwise noted
A
Off Characteristics
BV
Drain–Source Breakdown Voltage VGS = 0 V, ID = 250 µA 60 V
DSS
∆BVDSS
∆TJ
I
Zero Gate Voltage Drain Current VDS = 48 V, VGS = 0 V 1 µA
DSS
I
GSSF
I
GSSR
Breakdown Voltage Temperature
Coefficient
ID = 250 µA, Referenced to 25°C 62.5 mV/°C
Gate–Body Leakage, Forward VGS = 20 V, VDS = 0 V 100 nA
Gate–Body Leakage, Reverse VGS = –20 V VDS = 0 V –100 nA
On Characteristics (Note 2)
V
Gate Threshold Voltage VDS = VGS, ID = 250 µA 1 2.5 3 V
GS(th)
∆VGS(th)
∆TJ
R
DS(on)
I
D(on)
Gate Threshold Voltage
Temperature Coefficient
Static Drain–Source
On–Resistance
ID = 250 µA, Referenced to 25°C
VGS = 10 V, ID = 3.5 A
VGS = 4.5V, ID = 2.5 A
VGS= 10 V, ID =3.5A, TJ=125°C
–6 mV/°C
74
103
126
100
200
170
m Ω
On–State Drain Current VGS = 10 V, = VDS =30 V 10 A
gFS Forward Transconductance VDS = 5V, ID = 3.5 A 8.6 S
Dynamic Characteristics
C
Input Capacitance 420 pF
iss
C
Output Capacitance 48 pF
oss
C
Reverse Transfer Capacitance
rss
VDS = 30 V, V
f = 1.0 MHz
= 0 V,
GS
20 pF
Switching Characteristics (Note 2)
t
Turn–On Delay Time 7 14 ns
d(on)
tr Turn–On Rise Time 4.3 8.6 ns
t
Turn–Off Delay Time 19 34 ns
d(off)
tf Turn–Off Fall Time
Qg Total Gate Charge 8 13 nC
Qgs Gate–Source Charge 4 nC
Qgd Gate–Drain Charge
VDD = 30 V, ID = 1 A,
VGS = 10 V, R
GEN
= 6 Ω
VDS = 30 V, ID = 3.5 A,
VGS = 5 V
3 6 ns
2.5 nC
Drain–Source Diode Characteristics and Maximum Ratings
IS Maximum Continuous Drain–Source Diode Forward Current 2.1 A
VSD
Notes:
1. R
θJA
the drain pins. R
Scale 1 : 1 on letter size paper
2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%
Drain–Source Diode Forward
Voltage
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of
is guaranteed by design while R
θJC
a) 78°/W when
mounted on a 0.5in2
pad of 2 oz copper
is determined by the user's board design.
θCA
VGS = 0 V, IS = 2.1 A (Note 2) 0.8 1.2 V
b) 125°/W when
mounted on a 0.02
in2 pad of 2 oz
copper
c) 135°/W when mounted on a
minimum pad.
FDS9945 Rev B(W)
Page 3
I
, DRAIN CURRENT (A)
= 4.0V
C
25oC
125oC
FDS9945
Typical Characteristics
20
15
10
D
5
0
VGS = 10V
0 1 2 3 4 5
6.0V
5.0V
4.5V
4.0V
VDS, DRAIN-SOURCE VOLTAGE (V)
2.2
2
V
GS
1.8
1.6
1.4
, NORMALIZED
DS(ON)
1.2
R
1
DRAIN-SOURCE ON-RESISTANCE
0.8
0 3 6 9 12 15
4.5V
5.0V
ID, DRAIN CURRENT (A)
6.0V
Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with
2
ID = 3.5A
1.8
VGS = 10V
1.6
1.4
1.2
, NORMALIZED
1
DS(ON)
R
0.8
0.6
DRAIN-SOURCE ON-RESISTANCE
0.4
-50 -25 0 25 50 75 100 125 150
TJ, JUNCTION TEMPERATURE (oC)
, ON-RESISTANCE (OHM)
R
Drain Current and Gate Voltage.
0.25
0.2
o
TA = 125
0.15
0.1
DS(ON)
0.05
2 4 6 8 10
TA = 25oC
VGS, GATE TO SOURCE VOLTAGE (V)
10V
ID = 1.75A
Figure 3. On-Resistance Variation
withTemperature.
10
VDS = 5V
8
6
4
, DRAIN CURRENT (A)
D
I
2
0
2 2.5 3 3.5 4 4.5 5
VGS , GATE TO SOURCE VOLTAGE (V)
TA = -55oC
Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation
Figure 4. On-Resistance Variation with
10
1
0.1
0.01
0.001
, REVERSE DRAIN CURRENT (A)
S
I
0.0001
0 0.2 0.4 0.6 0.8 1 1.2
with Source Current and Temperature.
Gate-to-Source Voltage.
VGS = 0V
TA = 125oC
25oC
-55oC
VSD, BODY DIODE FORWARD VOLTAGE (V)
FDS9945 Rev B(W)
Page 4
= 0 V
1s
1ms
TRANSIENT THERMAL RESISTANCE
P(pk)
0.02
0.1
0.2
D = 0.5
FDS9945
Typical Characteristics
10
ID = 3.5A
8
6
4
2
, GATE-SOURCE VOLTAGE (V)
GS
V
0
0 4 8 12 16
Qg, GATE CHARGE (nC)
VDS = 20V
40V
30V
600
500
400
300
200
CAPACITANCE (pF)
100
0
0 5 10 15 20 25 30
C
OSS
C
RSS
VDS, DRAIN TO SOURCE VOLTAGE (V)
C
ISS
Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.
100
10
R
LIMIT
DS(ON)
1
, DRAIN CURRENT (A)
D
I
VGS = 10V
SINGLE PULSE
0.1
R
= 135oC/W
JA
θ
TA = 25oC
0.01
0.1 1 10 100
VDS, DRAIN-SOURCE VOLTAGE (V)
DC
10ms
100ms
10s
100µs
50
40
30
20
10
P(pk), PEAK TRANSIENT POWER (W)
0
0.001 0.01 0.1 1 10 100
t1, TIME (sec)
SINGLE PULSE
R
θJA
TA = 25°C
f = 1MHz
V
GS
= 135°C/W
Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum
Power Dissipation.
1
RθJA(t) = r(t) + RθJA
0.1
0.01
r(t), NORMALIZED EFFECTIVE
0.001
0.0001 0.001 0.01 0.1 1 10 100 1000
0.05
0.01
SINGLE PULSE
t1, TIME (sec)
RθJA = 135 °C/W
TJ - TA = P * R θJA(t)
Duty Cycle, D = t1 / t
Figure 11. Transient Thermal Response Curve.
Thermal characterization performed using the conditions described in Note 1c.
Transient thermal response will change depending on the circuit board design.
t1
t
2
2
FDS9945 Rev B(W)
