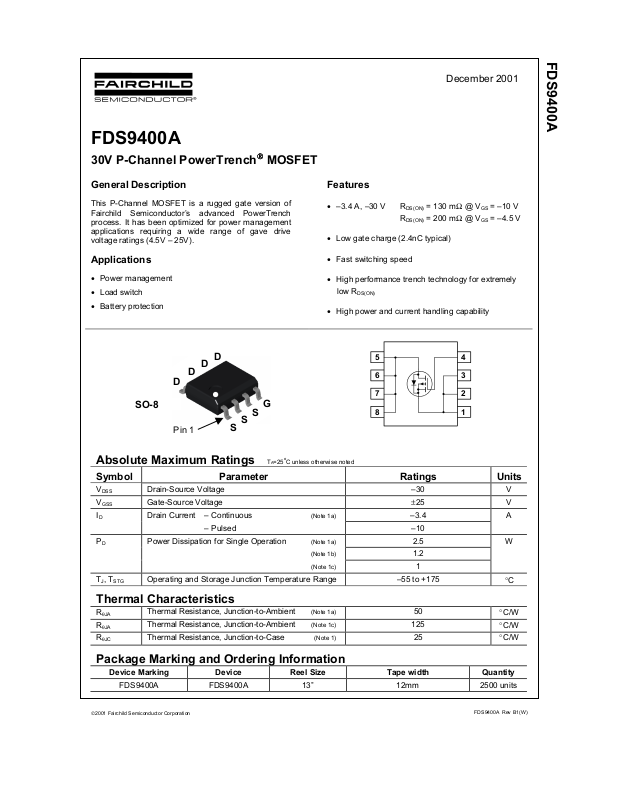

FDS9400A

30V P-Channel PowerTrench



MOSFET

FDS9400A

General Description

This P-Channel MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications requiring a wide range of gave drive voltage ratings (4.5V – 25V).

Applications

• Power management

• Load switch

• Battery protection

D

SO-8

Pin 1

SO-8

S

Absolute Maximum Ratings T

G

S

o

=25

C unless otherwise noted

A

Features

• –3.4 A, –30 V R

R

• Low gate charge (2.4nC typical)

• Fast switching speed

• High performance trench technology for extremely

low R

• High power and current handling capability

DS(ON)

5

6

7

8

= 130 mΩ @ VGS = –10 V

DS(ON)

= 200 mΩ @ VGS = –4.5 V

DS(ON)

4

3

2

1

Symbol Parameter Ratings Units

V

Drain-Source Voltage –30 V

DSS

V

Gate-Source Voltage

GSS

ID Drain Current – Continuous (Note 1a) –3.4 A

– Pulsed –10

PD

TJ, T

STG

Power Dissipation for Single Operation (Note 1a) 2.5

(Note 1b)

Operating and Storage Junction Temperature Range –55 to +175

(Note 1c)

±25

1.2

1

V

W

°C

Thermal Characteristics

R

θJA

R

θJA

R

θJC

Thermal Resistance, Junction-to-Ambient

Thermal Resistance, Junction-to-Case

(Note 1a) 50

(Note 1c) 125

(Note 1) 25

°C/W

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity

FDS9400A FDS9400A 13’’ 12mm 2500 units

2001 Fairchild Sem iconductor Corporation

FDS9400A Rev B1(W )

FDS9400A

Electrical Characteristics T

= 25°C unless otherwise noted

A

Symbol Parameter Test Conditions Min Typ Max Units

Off Characteristics

BV

Drain–Source Breakdown Voltage

DSS

∆BVDSS ∆T

I

Zero Gate Voltage Drain Current VDS = –24 V, VGS = 0 V –1

DSS

I

GSSF

I

GSSR

Breakdown Voltage Temperature Coefficient

J

Gate–Body Leakage, Forward VGS = 25 V, VDS = 0 V 100 NA Gate–Body Leakage, Reverse VGS = –25 V, VDS = 0 V –100 NA

= 0 V, ID = –250 µA

V

GS

= –250 µA, Referenced to 25°C

I

D

–30 V

–23

mV/°C

µA

On Characteristics (Note 2)

V

Gate Threshold Voltage

GS(th)

∆VGS(th) ∆TJ

R

DS(on)

Gate Threshold Voltage Temperature Coefficient

Static Drain–Source

On–Resistance

I

On–State Drain Current VGS = –10 V, VDS = –5 V –5 A

D(on)

= VGS, ID = –250 µA

V

DS

I

= –250 µA, Referenced to 25°C

D

VGS = –10 V, ID = –1.0 A

= –4.5 V, ID = –0.5 A

V

GS

= –10 V, ID = –1.0 A, TJ=125°C

V

GS

gFS Forward Transconductance VDS = –5 V, ID = –3.4 A 4.5 S

–1 –1.8 –3 V

4

105 157 147

130 200 210

mV/°C

mΩ

Dynamic Characteristics

C

Input Capacitance 205 pF

iss

C

Output Capacitance 55 pF

oss

C

Reverse Transfer Capacitance

rss

= –15 V, V

V

DS

f = 1.0 MHz

= 0 V,

GS

26 pF

Switching Characteristics (Note 2)

t

Turn–On Delay Time 4.5 9 ns

d(on)

tr Turn–On Rise Time 12.5 23 ns

t

Turn–Off Delay Time 11 20 ns

d(off)

tf Turn–Off Fall Time

Qg Total Gate Charge 2.4 3.5 nC

Qgs Gate–Source Charge 1.0 nC

Qgd Gate–Drain Charge

= –15 V, ID = –1 A,

V

DD

= –10 V, R

V

GS

V

= –15 V, ID = –1 A,

DS

= –5 V

V

GS

GEN

= 6 Ω

2 4 ns

0.7 nC

Drain–Source Diode Characteristics and Maximum Ratings

IS Maximum Continuous Drain–Source Diode Forward Current –2.1 A

VSD

Notes:

1. R

is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of

θJA

the drain pins. R

Scale 1 : 1 on letter size paper

2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%

Drain–Source Diode Forward Voltage

is guaranteed by design while R

θJC

a) 50°C/W when

mounted on a 1in pad of 2 oz copper

θCA

2

V

= 0 V, IS = –2.1 A (Note 2) –0.8 –1.2 V

GS

is determined by the user's board design.

b) 105°C/W when

mounted on a .04 in pad of 2 oz copper

2

c) 125°C/W when mounted on a

mini mum pa d.

FDS9400A Rev B1(W )

E

Typical Characteristics

FDS9400A

10

VGS = -10V

8

6

4

, DRAIN CURRENT (A)

D

-I

2

0

012345

-6.0V

-5.0V

-4.5V

-V

, DRAIN TO SOURCE VOLTAGE (V)

DS

-4.0V

-3.5V

-3.0V

2

1.8

VGS=-4.5V

1.6

1.4

, NORMALIZED

1.2

DS(ON)

R

1

DRAIN-SOURCE ON-RESISTANCE

0.8 0246810

-5.0V

-6.0V

-I

, DRAIN CURRENT (A)

D

-7.0V

-8.0V

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with

Drain Current and Gate Voltage.

1.7 ID = -1A

= -10V

V

GS

1.5

1.3

, NORMALIZED

1.1

DS(ON)

R

0.9

DRAIN-SOURCE ON-RESISTANC

0.7

-50 -25 0 25 50 75 100 125 150 175

, JUNCTION TEMPERATURE (oC)

T

J

0.55

0.45

0.35

0.25

TA = 25oC

, ON-RESISTANCE (OHM)

0.15

DS(ON)

R

0.05 246810

TA = 125oC

, GATE TO SOURCE VOLTAGE (V)

-V

GS

-10V

ID = -0.5A

Figure 3. On-Resistance Variation with

Temperature.

5

VDS = -5V

4

3

2

, DRAIN CURRENT (A)

D

-I

1

0

1.522.533.54

-V

, GATE TO SOURCE VOLTAGE (V)

GS

TA = -55oC

25oC

125oC

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

10

VGS =0V

1

0.1

0.01

0.001

, REVERSE DRAIN CURRENT (A)

S

-I

0.0001 0 0.2 0.4 0. 6 0.8 1 1.2 1.4

TA = 125oC

25oC

-55oC

-V

BODY DIODE FORWARD VOLTAGE (V)

SD,

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation

with Source Current and Temperature.

FDS9400A Rev B1(W )

T

)

Typical Characteristics

FDS9400A

10

ID = -1A

8

6

4

2

, GATE-SOURCE VOLTAGE (V)

GS

-V

0

012345

Q

VDS = -5V

, GATE CHARGE (nC)

g

-10V

-15V

300

250

200

150

100

CAPACITANCE (pF)

50

0

0 5 10 15 20 25 30

C

RSS

C

ISS

OSS

-V

, DRAIN TO SOU RCE VOLTAGE (V)

DS

Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.

100

10ms

100µs

1ms

10

R

LIMIT

DS(ON)

1

VGS = -10V

SINGLE PULSE

, DRAIN CURRENT (A)

D

0.1

-I

0.01

= 125oC/W

R

θ

JA

= 25oC

T

A

0.1 1 10 100

, DRAIN-SOURCE VO LTAGE (V)

-V

DS

100ms

1s

10s

DC

50

40

30

20

10

P(pk), PEAK TRANSIENT POWER (W)

0

0.001 0.01 0.1 1 10 100 1000

, TIME (sec)

t

1

SINGLE PULSE R

f = 1 MHz V

= 0 V

GS

= 125°C/W

θ

JA

= 25°C

T

A

Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum

Power Dissipation.

1

r(t), NORMALIZED EFFECTIVE TRANSIEN

0.01

THERMAL RESISTANCE

0.001

0.1

D = 0.5

0.2

0.1

0.05

0.02

0.01

SINGLE PULSE

R

(t) = r(t) * R

JA

θ

R

= 125oC/W

JA

θ

P(pk

t

1

t

2

T

- TA = P * R

J

Duty Cycle, D = t

JA

θ

(t)

JA

θ

/ t

1

2

0.0001 0.001 0.01 0.1 1 10 100 1000

t1, TIME (sec)

Figure 11. Transient Thermal Response Curve.

Thermal characterization performed using the conditions described in Note 1c. Transient thermal response will change depending on the circuit board design.

FDS9400A Rev B1(W )
