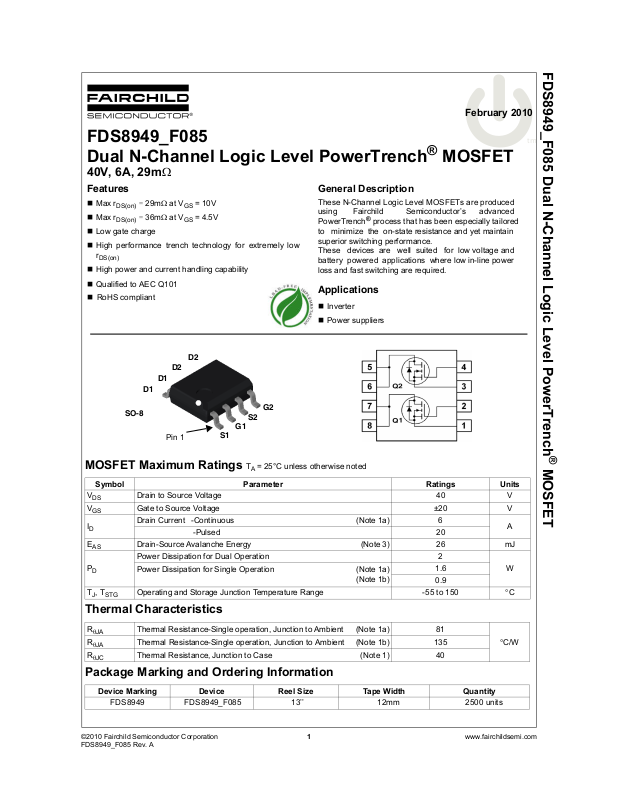

Page 1
FDS8949_F085 Dual N-Channel Logic Level PowerTrench
February 2010
FDS8949_F085
Dual N-Channel Logic Level PowerTrench® MOSFET
40V, 6A, 29mΩ
Features
Max r
Max r
Low gate charge
High performance trench technology for extremely low
r
DS(on)
High power and current handling capability
Qualified to AEC Q101
RoHS compliant
MOSFET Maximum Ratings T
Symbol Parameter Ratings Units
V
DS
V
GS
I
D
E
AS
P
D
, T
T
J
STG
= 29mΩ at V
DS(on)
= 36mΩ at V
DS(on)
D1
D1
SO-8
Drain to Source Voltage 40 V
Gate to Source Voltage ±20 V
Drain Current -Continuous (Note 1a) 6
-Pulsed 20
Drain-Source Avalanche Energy (Note 3) 26 mJ
Power Dissipation for Dual Operation 2
Power Dissipation for Single Operation (Note 1a)
(Note 1b)
Operating and Storage Junction Temperature Range -55 to 150 °C
D2
Pin 1
GS
GS
D2
= 10V
= 4.5V
S1
G2
S2
G1
= 25°C unless otherwise noted
A
Thermal Characteristics
General Description
These N-Channel Logic Level MOSFETs are produced
using Fairchild Semiconductor’s advanced
PowerTrench® process that has been especially tailored
to minimize the on-state resistance and yet maintain
superior switching performance.
These devices are well suited for low voltage and
battery powered applications where low in-line power
loss and fast switching are required.
Applications
Inverter
Power suppliers
1.6
0.9
W
tm
®
MOSFET
A
R
θJA
θJA
R
θJC
Thermal Resistance-Single operation, Junction to Ambient (Note 1a) 81
Thermal Resistance-Single operation, Junction to Ambient (Note 1b) 135
Thermal Resistance, Junction to Case (Note 1) 40
Package Marking and Ordering Information
Device Marking Device Reel Size Tape Width Quantity
FDS8949
©2010 Fairchild Semiconductor Corporation
_F085 Rev. A
FDS8949
FDS8949_F085 13’’
12mm 2500 units
°C/WR
www.fairchildsemi.com1
Page 2
Electrical Characteristics T
= 25°C unless otherwise noted
J
Symbol Parameter Test Conditions Min Typ Max Units
FDS8949_F085 Dual N-Channel Logic Level PowerTrench
Off Characteristics
BV
∆BV
∆T
I
DSS
I
GSS
DSS
DSS
J
Drain to Source Breakdown Voltage ID = 250µA, VGS = 0V 40 V
Breakdown Voltage Temperature
Coefficient
Zero Gate Voltage Drain Current
Gate to Source Leakage Current VGS = ±20V,V
On Characteristics
V
GS(th)
∆V
∆T
r
DS(on)
g
FS
GS(th)
J
Gate to Source Threshold Voltage VGS = VDS, ID = 250µA 1 1.9 3 V
Gate to Source Threshold Voltage
Temperature Coefficient
Drain to Source On Resistance
Forward Transconductance VDS = 10V,ID = 6A 22 S
(Note 2)
Dynamic Characteristics
C
iss
C
oss
C
rss
R
g
Input Capacitance
Output Capacitance 105 140 pF
Reverse Transfer Capacitance 60 90 pF
Gate Resistance f = 1MHz 1.1 Ω
Switching Characteristics
t
d(on)
t
r
t
d(off)
t
f
Q
Q
Q
g
gs
gd
Turn-On Delay Time
Rise Time 5 10 ns
Turn-Off D elay Time 23 37 ns
Fall Time 3 6 ns
Total Gate Charge
Gate to Source Gate Charge 2.4 nC
Gate to Drain “Miller”Charge 2.8 nC
ID = 250µA, referenced to 25°C 33 mV/°C
V
= 32V, V
DS
= 0V 1 µA
GS
TJ = 55°C 10 µA
= 0V ±100 nA
DS
ID = 250µA, referenced to 25°C -4.6 mV/°C
VGS = 10V, ID = 6A 21 29
mΩVGS = 4.5V, ID = 4.5A 26 36
VGS = 10V, ID = 6A,TJ = 125°C 29 43
VDS = 20V, VGS = 0V,
715 955 pF
f = 1MHz
VDD = 20V, ID = 1A
VGS = 10V, R
GEN
= 6Ω
9 18 ns
7.7 11 nC
VDS = 20V, ID = 6A,VGS = 5V
®
MOSFET
Drain-Source Diode Characteristics
V
SD
t
rr
Q
rr
Notes:
1: R
θJA
drain pins. R
2: Pulse Test: Pulse Width < 300 us, Duty Cycle < 2.0%.
3: Starting T
FDS8949_F085 Rev. A www.fairchildsemi.com2
Source to Drain Diode Forward Voltage V
Reverse Recovery Time (note 3)
Reverse Recovery Charge 7 11 nC
is the sum of the junction-to-case and case-to- ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the
is guaranteed by design while R
θJC
= 25°C, L = 1mH, IAS = 7.3A, VDD = 40V, VGS = 10V.
J
is determined by the user’s board design.
θJA
a) 81°C/W wh en
mounted on a 1in
pad of 2 oz copper
Scale 1:1 on letter size paper
and Maximum Ratings
= 0V, IS = 6A (note 2) 0.8 1.2 V
GS
IF = 6A, diF/dt = 100A/µs
2
17 26 ns
b) 135°C/W when mounted on a
minimum pad .
