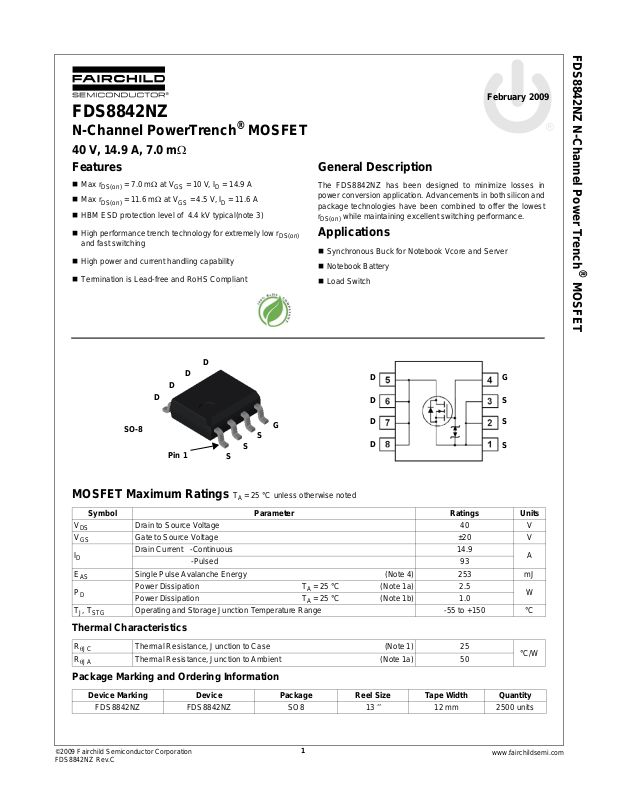

FDS8842NZ

N-Channel PowerTrench® MOSFET

40 V, 14.9 A, 7.0 mΩ Features

 Max r  Max r  HBM ESD protection level of 4.4 kV typical(note 3)

 High performance trench technology for extremely low r

and fast switching

 High power and current handling capability  Termination is Lead-free and RoHS Compliant

= 7.0 mΩ at VGS = 10 V, ID = 14.9 A

DS(on)

= 11.6 mΩ at VGS = 4.5 V, ID = 11.6 A

DS(on)

General Description

The FDS8842NZ has been designed to minimize losses in power conversion application. Advancements in both package technologies have been combined to offer the lowest r

while maintaining excellent switching performance.

DS(on)

Applications

 Synchronous Buck for Notebook Vcore and Server  Notebook Battery  Load Switch

February 2009

silicon and

FDS8842NZ N-Channel Power Trench

MOSFET

SO-8

Pin 1

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

, T

STG

Drain to Source Voltage 40 V Gate to Source Voltage ±20 V Drain Current -Continuous 14.9

-Pulsed 93 Single Pulse Avalanche Energy (Note 4) 253 mJ Power Dissipation TA = 25 °C (Note 1a) 2.5 Power Dissipation T Operating and Storage Junction Temperature Range -55 to +150 °C

= 25 °C unless otherwise noted

= 25 °C (Note 1b) 1.0

Thermal Characteristics

θJC

θJA

Thermal Resistance, Junction to Case (Note 1) 25 Thermal Resistance, Junction to Ambient (Note 1a) 50

Package Marking and Ordering Information

°C/W

Device Marking Device Package Reel Size Tape Width Quantity

FDS8842NZ FDS8842NZ SO8 13 ’’ 12 mm 2500 units

www.fairchildsemi.com

Page 2

FDS8842NZ N-Channel Power Trench

Electrical Characteristics T

= 25 °C unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units

Off Characteristics

∆BV ∆T

DSS

GSS

DSS

DSS J

Drain to Source Breakdown Voltage ID = 250 µA, VGS = 0 V 40 V Breakdown Voltage Temperature

Coefficient Zero Gate Voltage Drain Current VDS = 32 V, V Gate to Source Leakage Current VGS = ±20 V, V

= 250 µA, referenced to 25 °C 35 mV/°C

= 0 V 1 µA

= 0 V ±10 µA

On Characteristics

GS(th)

∆V ∆T

DS(on)

GS(th)

Gate to Source Threshold Voltage VGS = VDS, ID = 250 µA 1.0 1.9 3.0 V Gate to Source Threshold Voltage

Temperature Coefficient

Static Drain to Source On Resistance

= 250 µA, referenced to 25 °C -6 mV/°C

= 10 V, ID = 14.9 A 5.6 7.0

= 4.5 V, ID = 11.6 A 6.7 11.6

= 10 V, ID = 14.9 A, TJ =125 °C 8.9 11.1

Forward Transconductance VDS = 5 V, ID = 14.9 A 111 S

Dynamic Characteristics

iss

oss

rss

Input Capacitance Output Capacitance 340 455 pF Reverse Transfer Capacitance 220 330 pF

= 15 V, VGS = 0 V,

f = 1 MHz

Gate Resistance f = 1 MHz 0.8 Ω

2890 3845 pF

Switching Characteristics

d(on)

d(off)

Q Q Q Q

Turn-On Delay Time Rise Time 714ns Turn-Off Delay Time 34 54 ns

VDD = 20 V, ID = 14.9 A, V

= 10 V, R

GEN

= 6 Ω

Fall Time 510ns

g g gs gd

Total Gate Charge V Total Gate Charge V Gate to Source Charge 8.6 nC Gate to Drain “Miller” Charge 9.7 nC

= 0 V to 10 V

= 0 V to 5 V 27 38 nC

VDD = 20 V, I

= 14.9 A

13 23 ns

52 73 nC

mΩV

MOSFET

Drain-Source Diode Characteristics

= 0 V, IS = 14.9 A 0.8 1.2

NOTES:

1. R

is determined with the device m ounted on a 1 in2 pad 2 oz copper pad on a 1.5 x 1.5 i n. board o f FR-4 mat erial. R

θJA

the user's board design.

2. Pulse Test: Pulse Width < 300 µs, Duty cycle < 2.0%.

3. The diode connected between the gate and source servers only as protection against ESD. No gate overvoltage rating is implied.

4. Starting T

Source to Drain Diode Forward Voltage Reverse Recovery Time

Reverse Recovery Charge 15 27 nC

a) 50 °C/W when m ounted on a 1 in2 pad of 2 oz copper.

= 25 °C, L = 3 mH, IAS = 13 A, VDD = 40 V, VGS = 10 V.

= 0 V, IS = 2.1 A 0.7 1.2

= 14.9 A, di/dt = 100 A/µs

26 42 ns

is guaranteed by design while R

θJC

b) 125 °C/W when mounted on a minimum pad.

is determined by

θCA

www.fairchildsemi.com

Page 3

Typical Characteristics T

= 25 °C unless otherwise noted

FDS8842NZ N-Channel Power Trench

VGS = 4.5 V

VGS = 4 V

VGS = 10 V

VGS = 6 V

VGS = 3.5 V

PULSE DURATION = 80 µs DUTY CYCLE = 0.5% MAX

DRAIN CURRENT (A)

0 0.3 0.6 0.9 1.2 1.5

DRAIN TO SOURCE VOLTAGE (V)

Figure 1.

On-Region Characteristics Figure 2.

VGS = 3 V

1.8

ID = 14.9 A

= 10 V

1.6

1.4

1.2

1.0

NORMALIZED

0.8

DRAIN TO SOURCE ON-RESISTANCE

0.6

-75 -50 -25 0 25 50 75 100 125 150

JUNCTION TEMPERATURE

(

)

Figur e 3 . No rm alize d O n- Res istan ce

vs Junction Temperature

= 3 V

PULSE DURATION = 80 µs DUTY CYCLE = 0.5% MAX

VGS = 3.5 V

NORMALIZED

= 4 V

VGS = 4.5 V

VGS = 6 V

DRAIN TO SOURCE ON-RESISTANCE

0 102030405060

DRAIN CURRENT (A)

= 10 V

Nor ma liz ed O n-Res ist ance

vs Drain Current and Gate Voltage

)

Ω

(

DRAIN TO

DS(on)

SOURCE ON-RESISTANCE

246810

Figure 4.

TJ = 25 oC

GATE TO S O URCE VO L TAGE (V)

On-Resistance vs Gate to

PULSE DURATION = 80 µs DUTY CYCLE = 0.5% MAX

ID = 14.9 A

TJ = 125 oC

Source Voltage

MOSFET

PULSE DURATION = 80 µs DUTY CYCLE = 0.5% MAX

= 5 V

, DRAIN CURRENT (A)

01234

VGS, GATE TO SOURCE VOLTAGE (V)

TJ = -55 oC

Figure 5. Transfer Characteristics

TJ = 150 oC

TJ = 25 oC

= 0 V

TJ = 150 oC

TJ = 25 oC

, REVERSE DRAIN CURRENT (A)

0.1

0.20.40.60.81.01.2

VSD, BODY DIODE FORWARD VOLTAGE (V)

Figure 6.

Source to Drai n Dio de

TJ = -55 oC

Forward Voltage vs Source Current

www.fairchildsemi.com

Page 4

FDS8842NZ N-Channel Power Trench

Typical Characteristics T

= 25 °C unless otherwise noted

ID = 14.9 A

VDD = 15 V

= 20 V

VDD = 25 V

, GATE TO SOURCE VOLTAGE (V)

0 102030405060

Qg, GATE CHARGE (nC)

Figure 7.

Gate Charge Characteristics Figure 8.

, AVALANCHE CURRENT (A)

0.001 0.01 0.1 1 10 100 1000

Figure 9.

TJ = 125 oC

tAV, TIME IN AVA LANCHE (m s )

Unclamped Inductive

TJ = 25 oC

Switching Capability

TJ = 100 oC

5000

1000

CAPACITANCE (pF)

f = 1 MHz

= 0 V

100

0.1 1 10 40

VDS, DRAIN TO SOURCE VOLTA GE (V)

Cap aci tan ce v s Dr ain

to Source Voltage

-3

= 0 V

-5

-7

GATE LEAKAGE CURRENT (A)

-9

0 5 10 15 20 25 30

GATE TO SO U RCE VOLTAGE (V)

Figure 10. Igss vs Vgs

TJ = 125 oC

TJ = 25 oC

iss

oss

rss

MOSFET

100

THIS AREA IS LIMITED BY r

, DRAIN CURRENT (A)

0.1

0.01

0.01 0.1 1 10 100

DS(on)

SINGLE PULSE T

= MAX RATED

= 125 oC/W

= 25 oC

VDS, DRAIN to SOURCE VOLTAGE (V)

Figure 11. Forward Bias Safe

Operating Area

2000

1 ms

10 ms

100 ms

1 s

10 s DC

200

100

PEAK TRANSIENT POWER (W)

)

(

0.5

-3

1000

VGS = 10 V

-2

t, PULSE WIDTH (sec)

-1

110

SINGLE PULSE

= 125 oC/W

= 25 oC

100 1000

Figure 12. Single Pulse Maximum

Power Dissipation

www.fairchildsemi.com

Page 5

FDS8842NZ N-Channel Power Trench

Typical Characteristics T

NORMALIZED THERMAL

0.01

IMPEDANCE,

0.001

0.0005

2 1

0.1

DUTY CYCLE-DESCENDING ORDER

D = 0.5

0.2

0.1

0.05

0.02

0.01

-3

-2

= 25 °C unless otherwise noted

SINGLE PULSE R

= 125 oC/W

-1

t, RECTANGULAR PULSE DURATION (sec)

Figure 13.

Transient Thermal Response Curve

NOTES: DUTY FACTOR: D = t

PEAK TJ = PDM x Z

1/t2

x R

θJA

110

+ T

θJA

100 1000

MOSFET

www.fairchildsemi.com
