February 1999

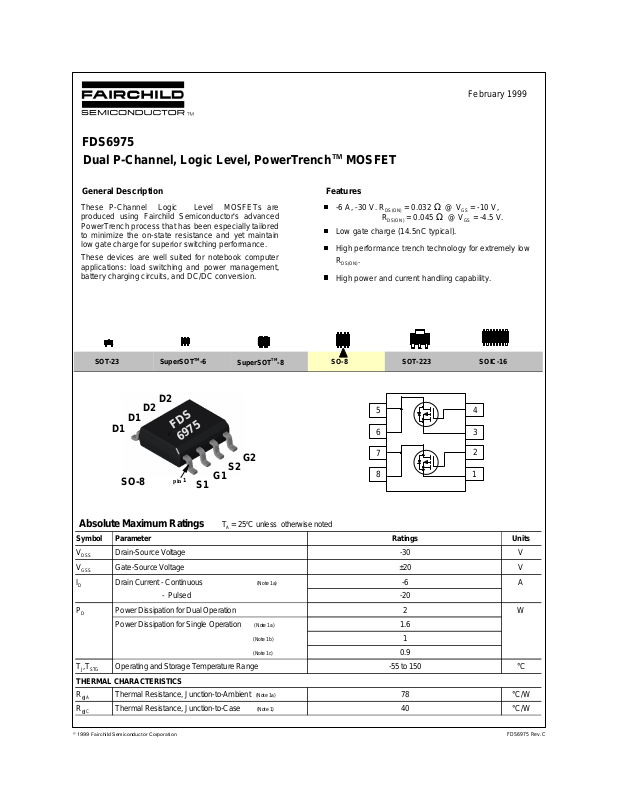

FDS6975

Dual P-Channel, Logic Level, PowerTrenchTM MOSFET

General Description Features

These P-Channel Logic Level MOSFETs are produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

These devices are well suited for notebook computer applications: load switching and power management, battery charging circuits, and DC/DC conversion.

-6 A, -30 V. R R

= 0.032 Ω @ VGS = -10 V,

DS(ON)

= 0.045 Ω @ VGS = -4.5 V.

DS(ON)

Low gate charge (14.5nC typical). High performance trench technology for extremely low

R

.

DS(ON)

High power and current handling capability.

SOT-23

SuperSOTTM-8

SO-8 SOT-223SuperSOTTM-6

SOIC-16

D2

D1

FDS

6975

G2

S2

G1

1

SO-8

Absolute Maximum Ratings T

Symbol Parameter Ratings Units

V

DSS

V

GSS

I

D

Drain-Source Voltage -30 V Gate-Source Voltage ±20 V Drain Current - Continuous (Note 1a) -6 A

S1

= 25oC unless otherwise noted

A

5

6

7

8

- Pulsed -20

P

D

Power Dissipation for Dual Operation 2 W Power Dissipation for Single Operation (Note 1a) 1.6

(Note 1b) 1 (Note 1c) 0.9

TJ,T

THERMAL CHARACTERISTICS

R

JA

θ

R

JC

θ

Operating and Storage Temperature Range -55 to 150 °C

STG

Thermal Resistance, Junction-to-Ambient (Note 1a) 78 °C/W Thermal Resistance, Junction-to-Case (Note 1) 40 °C/W

4

3 2

1

FDS6975 Rev.C

Electrical Characteristics (T

= 25 OC unless otherwise noted )

A

Symbol Parameter Conditions Min Typ Max Units OFF CHARACTERISTICS

BV

∆BV

I

DSS

Drain-Source Breakdown Voltage VGS = 0 V, I D = -250 µA -30 V Breakdown Voltage Temp. Coefficient ID = -250 µA, Referenced to 25 oC -21 mV/oC

/∆T

J

Zero Gate Voltage Drain Current VDS = -24 V, V

= 0 V -1 µA

GS

TJ = 55°C -10 µA

I

GSSF

I

GSSR

Gate - Body Leakage, Forward VGS = 20 V, VDS = 0 V 100 nA Gate - Body Leakage, Reverse VGS = -20 V, V

= 0 V -100 nA

DS

ON CHARACTERISTICS (Note 2)

V

∆V

R

GS(th)

DS(ON)

Gate Threshold Voltage VDS = VGS, ID = -250 µA -1 -1.7 -3 V Gate Threshold Voltage Temp. Coefficient ID = 250 µA, Referenced to 25 oC 4 mV/oC

/∆T

J

Static Drain-Source On-Resistance VGS = -10 V, I D = -6 A 0.025 0.032

Ω

TJ =125°C 0.033 0.051

VGS = -4.5 V, I D = -5 A 0.034 0.045

I

D(ON)

g

FS

On-State Drain Current VGS = -10 V, VDS = -5 V -20 A Forward Transconductance VDS = -10 V, I D = -6 A 16 S

DYNAMIC CHARACTERISTICS

C

iss

C

oss

C

rss

Input Capacitance VDS = -15 V, VGS = 0 V, Output Capacitance 400 pF

f = 1.0 MHz

1540 pF

Reverse Transfer Capacitance 170 pF

SWITCHING CHARACTERISTICS (Note 2)

t t

t t Q Q Q

D(on)

r

D(off)

f

g

gs

gd

Turn - On Delay Time V Turn - On Rise Time

= -15 V, I D = -1 A 13 24 ns

DS

V

GEN

= -10 V, R

GEN

= 6 Ω

22 35 ns

Turn - Off Delay Time 47 75 ns Turn - Off Fall Time 18 30 ns Total Gate Charge VDS = -10 V, I D = -6 A, 14.5 20 nC Gate-Source Charge V

= -5 V 4 nC

GS

Gate-Drain Charge 5 nC

DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS

I

S

V

SD

Notes:

1. R

JA

θ

guaranteed by design while R

Maximum Continuous Drain-Source Diode Forward Current -1.3 A Drain-Source Diode Forward Voltage VGS = 0 V, IS = -1.3 A

is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. R

is determined by the user's board design.

CA

θ

(Note 2) -0.73 -1.2 V

JC

θ

is

a. 78OC/W on a 0.5 in

pad of 2oz copper.

Scale 1 : 1 on letter size paper

2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%.

2

b. 125OC/W on a 0.02 in

pad of 2oz copper.

2

c. 135OC/W on a 0.003 in

pad of 2oz copper.

2

FDS6975 Rev.C

Typical Electrical Characteristics

30

V =-10V

GS

-6.0V

24

18

12

-4.5V

-3.5V

-3.0V

6

D

- I , DRAIN-SOURCE CURRENT (A) 0

0 1 2 3 4 5

- V , DRAIN-SOURCE VOLTAGE (V)

DS

Figure 1. On-Region Characteristics.

1.6

I = -6A

D

V = -10V

GS

1.4

1.2

1

DS(ON)

R , NORMALIZED

0.8

DRAIN-SOURCE ON-RESISTANCE

0.6

-50 -25 0 25 50 75 100 125 150 T , JUNCTION TEMPERATURE (°C)

J

2.5

V = -3.5V

2

GS

-4.0 V

1.5

DS(ON)

1

R , NORMALIZED

DRAIN-SOURCE ON-RESISTANCE

0.5 0 6 12 18 24 30

-4.5 V

-5.5 V

- I , DRAIN CURRENT (A)

D

-7.0 V

Figure 2. On-Resistance Variation with

Dain Current and Gate Voltage.

0.1

0.08

0.06

0.04

0.02

DS(ON)

R , ON-RESISTANCE (OHM)

0

2 4 6 8 10

- V , GATE TO SOURCE VOLTAGE (V)

GS

I =-3A

T = 125°C

-10V

D

A

25°C

Figure 3. On-Resistance Variation with

Temperature.

30

V =-5.0V

DS

24

18

12

D

6

- I , DRAIN CURRENT (A)

0

1.5 2 2.5 3 3.5 4 4.5

- V , GATE TO SOURCE VOLTAGE (V)

GS

T =-55°C

J

25°C

125°C

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

30

V = 0V

GS

10

T = 125°C

1

0.1

0.01

S

- I , REVERSE DRAIN CURRENT (A)

0.001 0 0.3 0.6 0.9 1.2 1.5

J

25°C

-55°C

- V , BODY DIODE FORWARD VOLTAGE (V)

SD

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage

Variation with Source Current and Temperature.

FDS6975 Rev.C

Typical Electrical Characteristics (continued)

10

I =-6A

D

V = -5V

DS

8

6

-15V

4

2

GS

- V , GATE-SOURCE VOLTAGE (V) 0

0 6 12 18 24 30

30

10

RDS(ON) LIMIT

3

Q , GATE CHARGE (nC)

g

100us

1ms

10ms

100ms

1s

0.5

V = -10V

GS

SINGLE PULSE

D

0.05

- I , DRAIN CURRENT (A)

0.01

JA

R =135°C/W

θ

A

T = 25°C

0.1 0.3 1 2 5 10 30 50

- V , DRAIN-SOURCE VOLTAGE (V)

DS

10s

DC

-10V

3000 2000

C

iss

1000

C

oss

rss

500

CAPACITANCE (pF)

200

f = 1 MHz V = 0 V

GS

100

0.1 0.2 0.5 1 2 5 10 20 30

- V , DRAIN TO SOURCE VOLTAGE (V)

DS

Figure 8. Capacitance Characteristics.Figure 7. Gate Charge Characteristics.

30

25

20

15

POWER (W)

10

5

0

0.01 0.1 0.5 10 50 100 300 SINGLE PULSE TIME (SEC)

SINGLE PULSE

JA

R =135°C/W

θ

A

T = 25°C

Figure 9. Maximum Safe Operating Area.

Figure 10. Single Pulse Maximum Power

Dissipation.

1

0.5

0.2

0.1

0.05

0.02

0.01

0.005

r(t), NORMALIZED EFFECTIVE

0.002

TRANSIENT THERMAL RESISTANCE

0.001

0.0001 0.001 0.01 0.1 1 10 100 300

D = 0.5

0.2

0.1

0.05

0.02

0.01 Single Pulse

t , TIME (sec)

1

R (t) = r(t) * R

JA

θ

R = 135°C/W

JA

θ

P(pk)

t

1

t

2

T - T = P * R (t)

J

Duty Cycle, D = t /t

θ

A

JA

1

Figure 11. Transient Thermal Response Curve.

Thermal characterization performed using the conditions described in Note 1c. Transient thermal response will change depending on the circuit board design.

JA

θ

2

FDS6975 Rev.C
