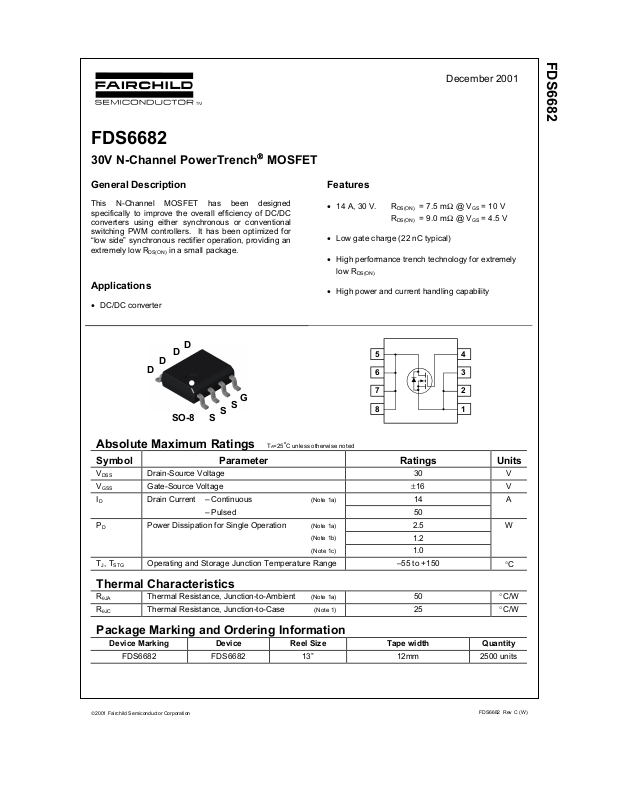

FDS6682
30V N-Channel PowerTrench
MOSFET
FDS6682
December 2001
General Description
This N-Channel MOSFET has been designed
specifically to improve the overall efficiency of DC/DC
converters using either synchronous or conventional
switching PWM controllers. It has been optimized for
“low side” synchronous rectifier operation, providing an
extremely low R
in a small package.
DS(ON)
Applications
• DC/DC converter
Features
• 14 A, 30 V. R
R
• Low gate charge (22 nC typical)
• High performance trench technology for extremely
DS(ON)
low R
• High power and current handling capability
= 7.5 mΩ @ VGS = 10 V
DS(ON)
= 9.0 mΩ @ VGS = 4.5 V
DS(ON)
D
D
D
D
G
S
SO-8
S
S
Absolute Maximum Ratings T
o
=25
C unless otherwise noted
A
5
6
7
8
4
3
2
1
Symbol Parameter Ratings Units
V
Drain-Source Voltage 30 V
DSS
V
Gate-Source Voltage
GSS
ID Drain Current – Continuous (Note 1a) 14 A
– Pulsed 50
PD
TJ, T
STG
Power Dissipation for Single Operation (Note 1a) 2.5
(Note 1b)
Operating and Storage Junction Temperature Range –55 to +150
(Note 1c)
±16
1.2
1.0
V
W
°C
Thermal Characteristics
R
θJA
R
θJC
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case
(Note 1a) 50
(Note 1) 25
Package Marking and Ordering Information
Device Marking Device Reel Size Tape width Quantity
2001 Fairchild Sem iconductor Corporation
FDS6682 FDS6682 13’’ 12mm 2500 units
°C/W
°C/W
FDS6682 Rev C (W )
Page 2
FDS6682
Electrical Characteristics T
= 25°C unless otherwise noted
A
Symbol Parameter Test Conditions Min Typ Max Units
Off Characteristics
BV
Drain–Source Breakdown Voltage
DSS
∆BVDSS
∆T
I
Zero Gate Voltage Drain Current VDS = 24 V, VGS = 0 V 10
DSS
I
GSSF
I
GSSR
Breakdown Voltage Temperature
Coefficient
J
Gate–Body Leakage, Forward VGS = 16 V, VDS = 0 V 100 nA
Gate–Body Leakage, Reverse VGS = –16 V, VDS = 0 V –100 nA
V
= 0 V, ID = 250 µA
GS
= 250 µA, Referenced to 25°C
I
D
30 V
23
mV/°C
µA
On Characteristics (Note 2)
V
Gate Threshold Voltage
GS(th)
∆VGS(th)
∆TJ
R
DS(on)
Gate Threshold Voltage
Temperature Coefficient
Static Drain–Source
On–Resistance
I
On–State Drain Current VGS = 10 V, VDS = 5 V 50 A
D(on)
V
= VGS, ID = 250 µA
DS
= 250 µA, Referenced to 25°C
I
D
VGS = 10 V, ID = 14 A
V
= 4.5 V, ID = 12.5 A
GS
= 4.5 V, ID = 12.5 A, TJ=125°C
V
GS
1 1.7 3 V
–5.6
5.7
6.6
8
7.5
9
11.5
mV/°C
mΩ
gFS Forward Transconductance VDS = 10 V, ID = 14 A 70 S
Dynamic Characteristics
C
Input Capacitance 2310 pF
iss
C
Output Capacitance 582 pF
oss
C
Reverse Transfer Capacitance
rss
= 15 V, V
V
DS
f = 1.0 MHz
= 0 V,
GS
237 pF
Switching Characteristics (Note 2)
V
= 15 V, ID = 1 A,
t
Turn–On Delay Time 10 20 ns
d(on)
tr Turn–On Rise Time 7 14 ns
t
Turn–Off Delay Time 44 70 ns
d(off)
tf Turn–Off Fall Time
Qg Total Gate Charge 22 31 nC
Qgs Gate–Source Charge 6.4 nC
Qgd Gate–Drain Charge
DD
= 10 V, R
V
GS
V
= 15 V, ID = 14 A,
DS
= 5 V
V
GS
GEN
= 6 Ω
16 29 ns
8 nC
Drain–Source Diode Characteristics and Maximum Ratings
IS Maximum Continuous Drain–Source Diode Forward Current 2.1 A
VSD
Notes:
1. R
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of
θJA
the drain pins. R
Scale 1 : 1 on letter size paper
2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%
Drain–Source Diode Forward
Voltage
is guaranteed by design while R
θJC
a) 50°C/W when
mounted on a 1in2
pad of 2 oz copper
VGS = 0 V, IS = 2.1 A (Note 2) 0.7 1.2 V
is determined by the user's board design.
θCA
b) 105°C/W when
mounted on a .04 in
pad of 2 oz copper
2
c) 125°C/W when mounted on a
mini mum pa d.
FDS6682 Rev C(W )
Page 3
E
Typical Characteristics
FDS6682
80
VGS = 10V
4.5V
3.5V
60
40
, DRAIN CURRENT (A)
D
20
I
0
00.511.522.5
V
, DRAIN TO SOUR CE VOLTAGE (V)
DS
3.0V
2.2
2
VGS = 3.0V
1.8
1.6
1.4
, NORMALIZED
DS(ON)
1.2
R
1
DRAIN-SOURCE ON-RESISTANCE
0.8
0 20406080
3.5V
4.0V
I
, DRAIN CURRENT (A)
D
4.5V
Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage.
1.8
ID = 14A
1.6
= 10V
V
GS
1.4
1.2
, NORMALIZED
1
DS(ON)
R
0.8
DRAIN-SOURCE ON-RESISTANC
0.6
-50 -25 0 25 50 75 100 125 150 175
, JUNCTION TEMPERATURE (oC)
T
J
0.016
0.014
0.012
0.01
0.008
, ON-RESISTANCE (OHM)
TA = 25oC
DS(ON)
0.006
R
0.004
246810
TA = 125oC
, GATE TO SOURCE VOLTAGE (V)
V
GS
6.0V
10V
ID = 7.0A
Figure 3. On-Resistance Variation with
Temperature.
100
VDS = 5V
80
60
40
, DRAIN CURRENT (A)
D
I
20
0
1.522.533.54
, GATE TO SOURCE VOLTAGE (V)
V
GS
TA = -55oC
25oC
125oC
Figure 4. On-Resistance Variation with
Gate-to-Source Voltage.
100
VGS = 0V
10
1
0.1
0.01
0.001
, REVERSE DRAIN CURRENT (A)
S
I
0.0001
0 0.2 0.4 0.6 0.8 1 1.2
TA = 125oC
25oC
BODY DIODE FORWARD VOLTAGE (V)
V
SD,
-55oC
Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation
with Source Current and Temperature.
FDS6682 Rev C(W )
Page 4
)
Typical Characteristics
FDS6682
10
ID = 14A
8
6
4
2
, GATE-SOURCE VOLTAGE (V)
GS
V
0
0 1020304050
, GATE CHARGE (n C)
Q
g
VDS = 5V
10V
15V
4000
3000
2000
CAPACITANCE (pF)
1000
C
RSS
0
0 5 10 15 20 25 30
C
ISS
C
OSS
, DRAIN TO SOURCE VO LTAGE (V)
V
DS
Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.
100
R
LIMIT
DS(ON)
10
1
VGS = 10V
SINGLE PULSE
, DRAIN CURRENT (A)
0.1
D
I
0.01
= 125oC/W
R
θ
JA
T
= 25oC
A
0.01 0.1 1 10 100
, DRAIN-SOURCE VOLTAGE (V)
V
DS
100ms
1s
10s
DC
10ms
100µs
1ms
50
40
30
20
10
P(pk), PEAK TRANSIENT POWER (W)
0
0.001 0.01 0.1 1 10 100
t
, TIME (sec)
1
SINGLE PULSE
R
θ
= 125°C/W
JA
= 25°C
T
A
f = 1 MHz
V
= 0 V
GS
Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum
Power Dissipation.
1
D = 0.5
R
0.2
0.1
0.01
r(t), NORMALIZED EFFECTIVE
0.001
TRANSIENT THERMAL RESISTANCE
0.0001 0.001 0.01 0.1 1 10 100 1000
0.1
0.05
0.02
0.01
SINGLE PULSE
t
, TIME (sec)
1
θJA
R
θJA
P(pk
T
- TA = P * R
J
Duty Cycle, D = t
Figure 11. Transient Thermal Response Curve.
Thermal characterization performed using the conditions described in Note 1c.
Transient thermal response will change depending on the circuit board design.
(t) = r(t) + R
= 125oC/W
t
1
t
2
θJA
(t)
JA
θ
/ t
1
2
FDS6682 Rev C(W )
