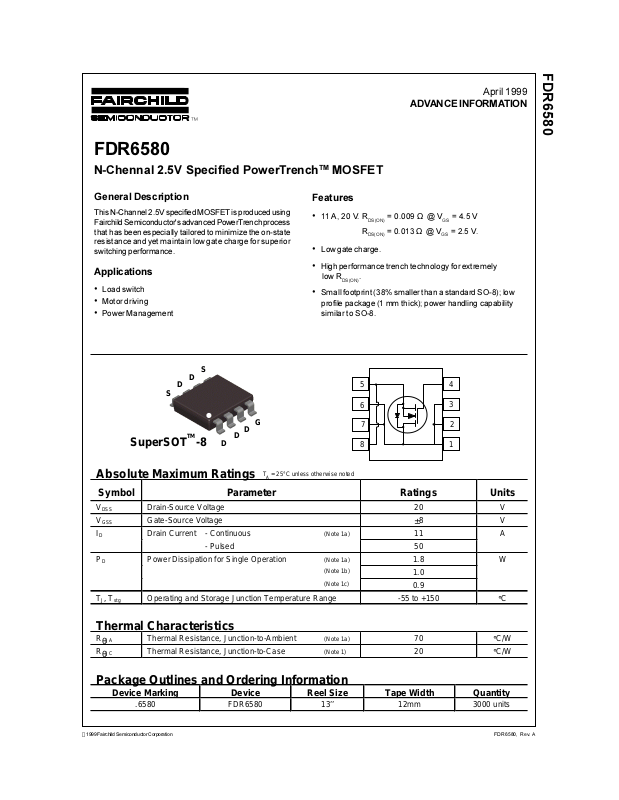

Page 1

FDR6580

N-Chennal 2.5V Specified PowerTrenchTM MOSFET

FDR6580

April 1999

ADVANCE INFORMATION

General Description

This N-Channel 2.5V specified MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

Applications

 Load switch  Motor driving  Power Management

SuperSOT -8

Absolute Maximum Ratings

TA = 25°C unless otherwise noted

Features

 11 A, 20 V. R

DS(ON)

= 0.009 Ω @ V = 0.013 Ω @ V

= 4.5 V

= 2.5 V.

 Low gate charge.

 High performance trench technology for extremely

low R

DS(ON)

 Small footprint (38% smaller than a standard SO-8); low

profile package (1 mm thick); power handling capability similar to SO-8.

6 7

2 1

Symbol Parameter Ratings Units

DSS

GSS

TJ, T

stg

Drain-Source Voltage 20 V Gate-Source Voltage Drain Current - Continuous

(Note 1a)

11 A

- Pulsed 50

Power Dissipation for Single Operation

(Note 1a) (Note 1b)

(Note 1c)

1.8 W

1.0

0.9

Operating and Storage Junction Temperature Range -55 to +150

Thermal Characteristics

Thermal Resistance, Junction-to-Ambient Thermal Resistance, Juncti on-to-Case

(Note 1a) (Note 1)

70 20

Package Outlines and Ordering Information

Device Marking Device Reel Size Tape Width Quantity

.6580 FDR6580 13’’ 12mm 3000 units

1999 Fairchild Semiconductor Corporation

C/W

FDR6580, Rev. A

Page 2

FDR6580

Electrical Characteristics T

=25oC unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units

OFF CHARACTERISTICS

BV I

DSS

GSSF

GSSR

DSS

Drain-Source Breakdown Voltage

= 0 V, ID = 250 µA

Zero Gate Voltage Drain Current VDS = 16 V, VGS = 0 V 1 Gate-Body Leakage, Forward VGS = 8 V, VDS = 0 V 10 Gate-Body Leakage, Reverse VGS = -8 V, VDS = 0 V -10

20 V

ON CHARACTERISTICS (Note 2)

GS(TH)

DS(ON)

D(ON)

Gate Threshold Voltage Static Drain-Sourc e

On-Resistance

= VGS, ID = 250 µA

VGS = 4.5 V, ID = 11 A V

= 2.5 V, ID = 9.3 A

On-State Drain Current VGS = 4.5 V, VDS = 5 V 25 A

0.4 1.5 V

0.009

0.013

DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS

Notes:

1. R

θJA

the drain pins. R

Maximum Continuous Drain-S ource Diode Forward Current 1.5 A Drain-Source Diode Forward

VGS = 0 V, IS = 1.5 A (Note 2) 1.2 V

Voltage

is the sum of the junction-to-case and case-to-ambient resistance where the case thermal reference is defined as the solder mounting surface of

is guaranteed by design while R

θJC

is determined by the user's board design.

θCA

µA µA µA

Ω

a) 70° C/W when mounted on a

1.0 in2 pad of 2 oz. copper.

Scale 1 : 1 on letter size paper

2. Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%

b) 125 ° C/W when mounted on a 0.026 in2 pad of 2oz. copper.

c) 135° C/W when mounted on a minimum pad.

FDR6580, Rev. A

Page 3

SuperSOTTM-8 Tape and Reel Data and Package Dimensions

SSOT-8 Packaging Configuration: Figure 1.0

Customized Label

F63TNR Label

Emboss ed Carrier Tape

Antistatic Cover Tape

Static Dissi pative

852

831N

Packaging Description:

SSOT-8 parts are shipped in tape. The carrier tape is made from a di ssipative (c arbon fil led) polycarbonate resin. The cov er tap e is a mu lt ilayer film (Heat Act ivat ed Adhesiv e in nat ure) prim aril y c omp osed of po lyes ter film , adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standar d option are ship ped wi th 3,000 u n i t s pe r 13" or 33 0c m dia m eter r e el . The r e el s ar e dark blue in color and is made of po ly s t yr ene plas ti c (antistatic c oated). Other option comes in 500 units per 7" or 177c m diam eter reel. This and s ome o ther opt ion s are furth er described in the Packaging Info rmation table.

These full reels are in di vidu ally barcode labe led and placed in side a standard intermediat e box (illus trated in figur e 1.0) made of recyclable corr ugated brown pa per. One box cont ains t wo reels maxi mum. And t hese bo xes are placed ins ide a barc ode labeled shipp ing bo x whic h co m e s i n di ffer en t s i z es depe nd in g on t he nu mbe r of pa rt s sh i ppe d.

852

831N

852

831N

852

831N

Pin 1

SSOT-8 Packaging Information

Packaging Option Packaging type

Qty per Reel/Tube/Bag Reel Size Box Dimension (mm) Max qty per Box Weight per unit (gm) Weight per Reel (kg)

Note/Comments

184mm x 187mm x 47mm

Stan dard

(no flow c ode )

TNR

3,000 500

13" Dia

343x64x343 184x187x47

6,000 1,000

0.0416 0.0416

0.5615 0.0980

D84Z

TNR

7" Dia

F63TNR Label

Pizza Box for D84Z Option

SSOT-8 Tape Leader and Trailer Configuration: Figur e 2.0

F63TNR Label

SSOT-8 Unit Orientation

343mm x 342mm x 64mm

Inter mediate box for St andard

and L 99Z Options

F63TNR Label sampl e

LOT: CBVK7 41B019

FSID: FDR835N

D/C1: D9842 QTY1: SPEC REV: D/C2: QTY2: CPN:

F63TNR Label

QTY: 3000

SPEC:

N/F: F (F63TNR)3

Carrier Tape

Cover Tape

Tr ailer Tape 300mm mi ni mum or 38 empty pockets

Components

Leader Tape 500mm mi ni mum or 62 empty pockets

August 1999, Rev. C

Page 4

SuperSOTTM-8 Tape and Reel Data and Package Dimensions, continued

SSOT-8 Embossed Carrier Tape Configuration: Figur e 3.0

User Direction of Feed

Dimensions are in millimeter

Pkg type

SSOT-8

(12mm)

Notes: A0, B0, and K0 dimensions are determined with r espect to t he EIA/Jedec RS-481

rotationa l and lateral movement requi rements (see sketches A, B, and C).

SSOT-8 Reel Configuration: Figur e 4.0

A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc

4.47

5.00

12.0

1.55

1.50

1.75

10.25

+/-0.10

20 deg maximum component rotation

Sketc h A (Side or Fro nt Sectional View)

Component Rotation

+/-0.3

+/-0.05

+/-0.10

5.50

min

+/-0.05

20 deg maximum

Typical component cavity center line

Typical component center line

Sketc h B (Top View)

Component Rotation

W1 Measured at Hub

Dim A

Max

8.0 +/-0.1

4.0 +/-0.1

1.37

0.280 +/-0.150

9.5 +/-0.025

0.5mm maximum

+/-0.10

0.5mm maximum

Sketc h C (Top View )

Component lateral movement

0.06 +/-0.02

Dim A

max

13" Diameter Option

Tape Size

12mm 7" Dia

12mm 13" Dia

 1998 Fairchild Semiconductor Corporation

Reel

Option

Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)

7.00

177.8

13.00 330

0.059

1.5

0.059

1.5

Dim N

See detail AA

W2 max Measured at Hub

Dimensions are in inches and millimeters

512 +0.020/ -0.008 13 +0.5/-0.2

0.795

20.2

0.795

20.2

5.906 150

7.00 178

Dim D

min

0.488 +0.078/-0.000

12.4 +2/0

0.488 +0.078/-0.000

12.4 +2/0

Diameter Option

DETAIL AA

0.724

18.4

0.724

18.4

See detail AA

B Min

Dim C

0.469 – 0.606

11.9 – 15.4

0.469 – 0.606

11.9 – 15.4

July 1999, Rev. C

Page 5

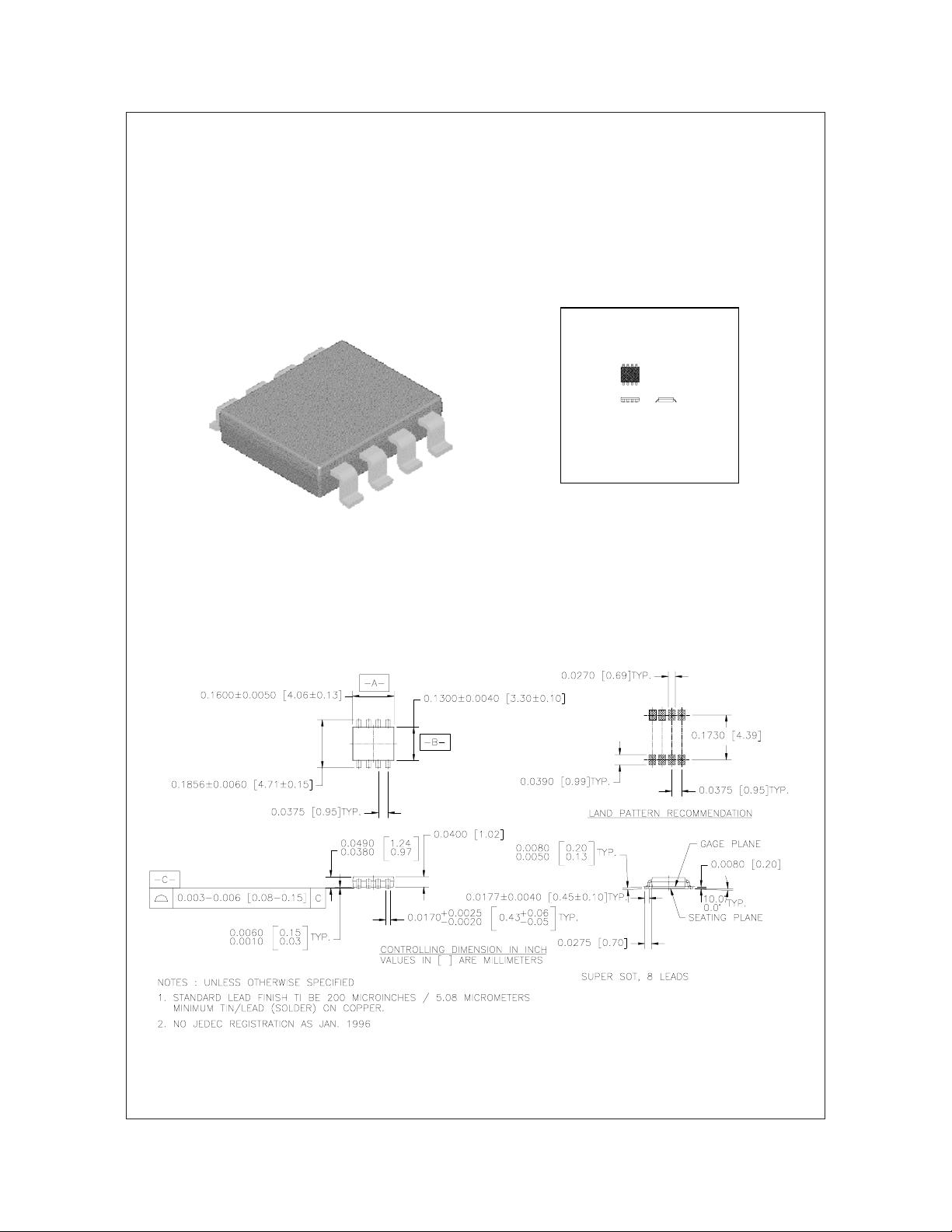

SuperSOTTM-8 Tape and Reel Data and Package Dimensions, continued

SuperSOT-8 (FS PKG Code 34, 35)

1 : 1

Scale 1:1 on letter size paper

Dimensio ns shown below are in:

inches [mil lime ters ]

Part Weight per unit (gram): 0.0416

September 1998, Rev. A
