FDMS7692
G
S
S
S
D
D
D
D
5
6
7
8
3
2
1
4
Bottom
Power 56
Top
Pin 1
G
S
S
S
D
D
D
D
N-Channel PowerTrench® MOSFET
30 V, 7.5 mΩ
FDMS7692 N-Channel PowerTrench
August 2011
Features
Max r
Max r
Advanced Package and Silicon combination for low r
and high efficiency
Next generation enhanced body diode technology, engineered
for soft recovery.
MSL1 robust package design
100% UIL tested
RoHS Compliant
= 7.5 mΩ at VGS = 10 V, ID = 13 A
DS(on)
= 13 mΩ at VGS = 4.5 V, ID = 10 A
DS(on)
DS(on)
General Description
This N-Channel MOSFET has been designed specifically to
improve the overall efficiency and to minimize switch node
ringing of DC/DC converters using either synchronous or
conventional switching PWM controllers. It has been optimized
for low gate charge, low r
diode reverse recovery performance.
fast switching speed and body
DS(on),
Applications
IMVP Vcore Switching for Notebook
VRM Vcore Switching for Desktop and Server
OringFET / Load Switch
DC-DC Conversion
®
MOSFET
MOSFET Maximum Ratings T
Symbol Parameter Ratings Units
V
DS
V
GS
I
D
E
AS
P
D
, T
T
J
STG
Drain to Source Voltage 30 V
Gate to Source Voltage ±20 V
Drain Current -Continuous (Package limited) TC = 25 °C 28
-Continuous (Silicon limited) T
-Continuous T
-Pulsed 50
Single Pulse Avalanche Energy (Note 3) 21 mJ
Power Dissipation TC = 25 °C 27
Power Dissipation T
Operating and Storage Junction Temperature Range -55 to +150 °C
= 25 °C unless otherwise noted
A
= 25 °C 47
C
= 25 °C (Note 1a) 14
A
= 25 °C (Note 1a) 2.5
A
A
W
Thermal Characteristics
R
θJC
R
θJA
Package Marking and Ordering Information
Device Marking Device Package Reel Size Tape Width Quantity
FDMS7692 FDMS7692 Power 56 13 ’’ 12 mm 3000 units
©2011 Fairchild Semiconductor Corporation
FDMS7692 Rev.D1
Thermal Resistance, Junction to Case 4.6
Thermal Resistance, Junction to Ambient (Note 1a) 50
1
°C/W
www.fairchildsemi.com
Page 2
FDMS7692 N-Channel PowerTrench
Electrical Characteristics T
= 25 °C unless otherwise noted
J
Symbol Parameter Test Conditions Min Typ Max Units
Off Characteristics
BV
ΔBV
ΔT
I
DSS
I
GSS
DSS
DSS
J
Drain to Source Breakdown Voltage ID = 250 μA, VGS = 0 V 30 V
Breakdown Voltage Temperature
Coefficient
Zero Gate Voltage Drain Current VDS = 24 V, V
Gate to Source Leakage Current, Forward VGS = 20 V, V
I
= 250 μA, referenced to 25 °C 13 mV/°C
D
= 0 V 1 μA
GS
= 0 V 100 nA
DS
On Characteristics
V
GS(th)
ΔV
ΔT
r
DS(on)
g
FS
GS(th)
J
Gate to Source Threshold Voltage VGS = VDS, ID = 250 μA 1.2 2.0 3.0 V
Gate to Source Threshold Voltage
Temperature Coefficient
Static Drain to Source On Resistance
I
= 250 μA, referenced to 25 °C -6 mV/°C
D
V
= 10 V, ID = 13 A 6.5 7.5
GS
= 4.5 V, ID = 10 A 9.5 13
GS
= 10 V, ID = 13 A, TJ = 125 °C 9.0 1 1
V
GS
Forward Transconductance VDS = 5 V, ID = 13 A 68 S
Dynamic Characteristics
C
iss
C
oss
C
rss
R
g
Input Capacitance
Output Capacitance 325 435 pF
Reverse Transfer Capacitance 45 65 pF
Gate Resistance 1.0 2.0 Ω
Switching Characteristics
t
d(on)
t
r
t
d(off)
t
f
Q
Q
Q
Q
g
g
gs
gd
Turn-On Delay Time
Rise Time 2.7 10 ns
Turn-Off Delay Time 17 31 ns
Fall Time 2.3 10 ns
Total Gate Charge VGS = 0 V to 10 V
Total Gate Charge VGS = 0 V to 4.5 V 7 10 nC
Gate to Source Charge 3.4 nC
Gate to Drain “Miller” Charge 1.9 nC
= 15 V, VGS = 0 V,
V
DS
f = 1 MHz
= 15 V, ID = 13 A,
V
DD
V
= 10 V, R
GS
GEN
= 6 Ω
V
DD
I
= 13 A
D
= 15 V,
1015 1350 pF
816ns
15 22 nC
mΩV
®
MOSFET
Drain-Source Diode Characteristics
V
SD
t
rr
Q
rr
t
rr
Q
rr
Notes:
1. R
is determined with the device mounted on a 1 in2 pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR- 4 mater ial. R
θJA
the user's board design.
2. Pulse Test: Pulse Width < 300 μs, Duty cycle < 2.0%.
3. Starting TJ = 25 °C, L = 0.3 mH, IAS = 12 A, VDD = 27 V, VGS = 10 V.
©2011 Fairchild Semiconductor Corporation
FDMS7692 Rev.D1
Source to Drain Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge 6 12 nC
Reverse Recovery Time
Reverse Recovery Charge 12 21 nC
a. 50 °C/W when mounted on a
2
1 in
pad of 2 oz copper.
V
= 0 V, IS = 2.1 A (Note 2) 0.75 1.1
GS
= 0 V, IS = 13 A (Note 2) 0.84 1.2
V
GS
= 13 A, di/dt = 100 A/μs
I
F
= 13 A, di/dt = 300 A/μs
I
F
2
θJC
21 34 ns
17 31 ns
is guaranteed by design while R
b. 125 °C/W when mounted on a
minimum pad of 2 oz copper.
V
is determined by
θCA
www.fairchildsemi.com
Page 3
FDMS7692 N-Channel PowerTrench
0.0 0.5 1.0 1.5 2.0
0
10
20
30
40
50
VGS = 3.5 V
VGS = 3.0 V
VGS = 4.0 V
PULSE DURATION = 80 μs
DUTY CYCLE = 0.5% MAX
VGS = 4.5 V
VGS = 10 V
I
D
, DRAIN CURRENT (A)
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
0 1020304050
0
2
4
6
8
10
VGS = 3.5 V
NORMALIZED
DRAIN TO SOURCE ON-RESISTANCE
I
D
, DRAIN CURRENT (A)
V
GS
= 10 V
VGS = 4.0 V
VGS = 3.0 V
VGS = 4. 5 V
PULSE DURATION = 80 μs
DUTY CYCLE = 0.5% MAX
-75 -50 -25 0 25 50 75 100 125 150
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
ID = 13 A
V
GS
= 10 V
NORMALIZED
DRAIN TO SOURCE ON-RESISTANCE
T
J
, JUNCTION TEMPERATURE (
o
C)
246810
5
10
15
20
25
30
TJ = 125 oC
ID = 13 A
TJ = 25 oC
V
GS
, GATE TO S OURCE VOLTAGE (V)
r
DS(on)
,
DRAIN TO
SOURCE ON-RESISTANCE
(mΩ)
PULSE DURA TION = 80 μs
DUTY CYCLE = 0.5% MAX
12345
0
10
20
30
40
50
TJ = 150 oC
V
DS
= 5 V
PULSE DURATION = 80 μs
DUTY CYCLE = 0.5% MAX
TJ = -55 oC
TJ = 25 oC
I
D
, DRAIN CURRENT (A)
VGS, GATE TO SOURC E V OLTAGE (V)
0.2 0.4 0.6 0.8 1.0 1.2
0.01
0.1
1
10
100
TJ = -55 oC
TJ = 25 oC
TJ = 150 oC
V
GS
= 0 V
I
S
, REVERSE DRAIN CURRENT (A)
VSD, BODY DIODE FORWARD VOLTAGE (V)
Typical Characteristics T
Figure 1.
On Region Characteristics Figure 2.
= 25 °C unless otherwise noted
J
®
MOSFET
Nor ma liz ed O n-R esi st anc e
vs Drain Current and Gate Voltage
Fi gu re 3. Normalize d O n R es is ta nce
vs Junction Temperature
©2011 Fairchild Semiconductor Corporation
FDMS7692 Rev.D1
Figure 5. Transfer Characteristics
Figure 4.
On-Resistance vs Gate to
Source Voltage
Figure 6.
Sou rce to Drain Diode
Forward Voltage vs Source Current
3
www.fairchildsemi.com
Page 4
FDMS7692 N-Channel PowerTrench
0481216
0
2
4
6
8
10
ID = 13 A
VDD = 10 V
V
DD
= 15 V
V
GS
, GATE TO SOURCE VOLTAGE (V)
Qg, GATE CHARGE (nC)
VDD = 20 V
0.1 1 10 30
10
100
1000
2000
f = 1 MHz
V
GS
= 0 V
CAPACITANCE (pF)
VDS, DRAIN TO SOURCE VOLTAGE (V)
C
rss
C
oss
C
iss
0.001 0.01 0.1 1 10 100
1
10
50
TJ = 100 oC
TJ = 25 oC
TJ = 125 oC
tAV, TIME IN A V ALANCHE (ms)
I
AS
, AVALANCHE CURRENT (A)
25 50 75 100 125 150
0
10
20
30
40
50
V
GS
= 4.5 V
Limited by Package
R
θJC
= 4.6 oC/W
V
GS
= 10 V
I
D
, DRAIN CURRENT (A)
T
C
, CASE TEMPERATURE (
o
C)
0.01 0.1 1 10 100
0.01
0.1
1
10
100
100 us
10 s
DC
100 ms
10 ms
1 ms
1 s
I
D
, DRAIN CURRENT (A)
VDS, DRAIN to SOURCE VOLTAGE (V)
THIS AREA IS
LIMITED BY r
DS(on)
SINGLE PULSE
T
J
= MAX RATED
R
θJA
= 125
o
C/W
T
A
= 25
o
C
200
10-410-310-210
-1
110
100 1000
0.5
1
10
100
300
SINGLE PULSE
R
θJA
= 125
o
C/W
T
A
= 25
o
C
VGS = 10 V
P(
PK
), PEAK TRANSIENT POWER (W)
t, PULSE WIDTH (sec)
Typical Characteristics T
Figure 7.
Gate Charge Characteristics Figure 8.
= 25 °C unless otherwise noted
J
®
MOSFET
Cap aci tan c e vs Dra in
to Source Voltage
Figure 9.
Unc l amp e d In d uct i ve
Switching Capability
©2011 Fairchild Semiconductor Corporation
FDMS7692 Rev.D1
Figure 11. Forward Bias Safe
Op
erating Area
Figure 10.
Ma ximum Conti nuous Dr ain
Current vs Case Temperature
Figure 12.
Single Pu lse Maxim um
Power Dissipation
4
www.fairchildsemi.com
Page 5
FDMS7692 N-Channel PowerTrench
10
-4
10
-3
10
-2
10
-1
110
100 1000
0.001
0.01
0.1
1
SINGLE PULSE
R
θJA
= 125 oC/W
DUTY CYCLE-DESCENDING ORDER
NORMALIZED THERMAL
IMPEDANCE,
Z
θJA
t, RECTANGULAR PULSE DURATION (sec)
D = 0.5
0.2
0.1
0.05
0.02
0.01
2
P
DM
t
1
t
2
NOTES:
DUTY FACTOR: D = t1/t
2
PEAK TJ = PDM x Z
θJA
x R
θJA
+ T
A
0 20406080100
-2
0
2
4
6
8
10
12
14
di/dt = 300 A/μs
TIME (ns)
CURRENT (A)
Typical Characteristics T
Figure 13.
= 25 °C unless otherwise noted
J
Junction-to-Ambient Transient Thermal Response Curve
Figure 15.
®
MOSFET
Figure 14.
Bo dy Di ode Reverse
Recovery Characteristics
©2011 Fairchild Semiconductor Corporation
FDMS7692 Rev.D1
5
www.fairchildsemi.com
Page 6
FDMS7692 N-Channel PowerTrench

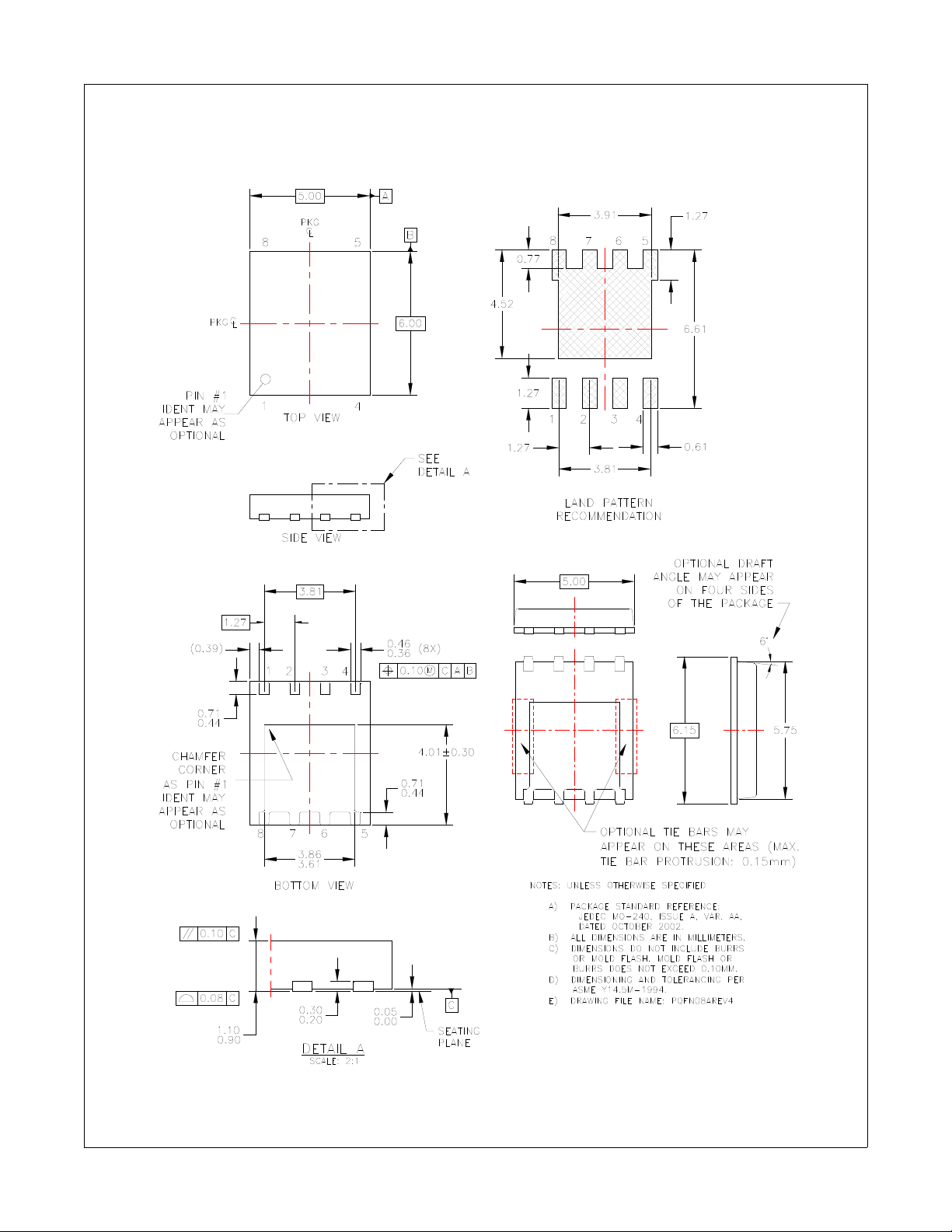

Dimensional Outline and Pad Layout
®
MOSFET
©2011 Fairchild Semiconductor Corporation
FDMS7692 Rev.D1
6
www.fairchildsemi.com
Page 7
TRADEMARKS
tm
®
tm
™
tm
The following includes registered and unregistered trademar ks and service marks, owned by Fairchi ld Semiconductor and/ or its global subsidiaries, and is not
intended to be an exhaustive list of all such trademarks.
2Cool™
AccuPower™
Auto-SPM™
AX-CAP™*
®
BitSiC
Build it Now™
CorePLUS™
CorePOWER™
CROSSVOLT™
CTL™
Current Transfer Logic™
DEUXPEED
Dual Cool™
EcoSPARK
EfficentMax™
®
®
ESBC™
®
Fairchild
Fairchild Semiconductor
FACT Quiet Series™
®
FACT
®
FAST
FastvCore™
FETBench™
®
FlashWriter
FPS™
F-PFS™
FRFET
Global Power Resource
Green FPS™
Green FPS™ e-Series™
Gmax™
GTO™
IntelliMAX™
ISOPLANAR™
MegaBuck™
MICROCOUPLER™
MicroFET™
MicroPak™
MicroPak2™
MillerDrive™
MotionMax™
Motion-SPM™
mWSaver™
OptiHiT™
OPTOLOGIC
OPTOPLANAR
®
*
®
PDP SPM™
Power-SPM™
PowerTrench
PowerXS™
SM
Programmable Active Droop™
®
QFET
QS™
Quiet Series™
RapidConfigure™
®
Saving our world, 1mW/W/kW at a time™
SignalWise™
SmartMax™
SMART START™
®
SPM
STEALTH™
SuperFET
SuperSOT™-3
SuperSOT™-6
®
®
®
SuperSOT™-8
SupreMOS
SyncFET™
Sync-Lock™
®
®
®*
The Power Franchise
The Right Technology for Your Success™
TinyBoost™
TinyBuck™
TinyCalc™
®
TinyLogic
TINYOPTO™
TinyPower™
TinyPWM™
TinyWire™
®
TranSiC
TriFault Detect™
TRUECURRENT
μSerDes™
®
UHC
Ultra FRFET™
UniFET™
VCX™
VisualMax™
XS™
®
®
®
*
FDMS7692 N-Channel PowerTrench
®
MOSFET
*Trademarks of System General Corporation, used under license by Fairchild Semiconductor.
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY
PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE WARRANTY
THEREIN, WHICH COVERS THESE PRODUCTS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE
EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used here in:
1. Life support devices or systems are devices or systems which, (a) are
intended for surgical implant into the body or (b) support or sustain life,
and (c) whose failure to perform when prope rly used in accordance with
instructions for use provided in the labeling, can be reasonably
2. A critical component in any component of a life support, device, or
system whose failure to perform can be reasonably expected to cause
the failure of the life support device or system, or to affect its safety or
effectiveness.
expected to result in a significant injury of the user.
ANTI-COUNTERFEITING POLICY
Fairchild Semiconductor Corporation’s Anti-Counterfeiting Policy. Fairchild’s Anti-Counterfeiting Policy is also stated on our external website,
www.Fairchildsemi.com, under Sales Support
Counterfeiting of semiconductor parts is a growing problem in the industry. All manufactu res of semiconductor products are experi encing counterfeiting of their
parts. Customers who inadvertently purchase counterfeit part s expe rience many problems such as loss of brand reputa tion, substa n dard p erf ormance, f ail ed
application, and increased cost of production and manufacturing delays. Fairchild is taking st rong measures to prote ct ourselve s and our customers from the
proliferation of counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild pa rts either direct ly from Fairchild or from Authorized Fairchild
Distributors who are listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild
Distributors are genuine parts, have full traceability, meet Fairchild ’s quality standards for handing and storage and provide access to Fairchild’s full range of
up-to-date technical and product information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address and
warranty issues that may arise. Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is
committed to combat this global problem and encourage our customers to do their part in stopping this practi ce by buying direct or from auth orized distributors.
PRODUCT STATUS DEFINITIONS
Definition of Terms
.
Datasheet Identification Product Status Definition
Advance Information Formative / In Design
Preliminary First Production
No Identification Needed Full Production
Obsolete Not In Production
Datasheet contains the design specifications for product development. Specifications
may change in any manner without notice.
Datasheet contains preliminary data; supplementary data will be published at a later
date. Fairchild Semiconductor reserves the right to make changes at any time without
notice to improve design.
Datasheet contains final specifications. Fairchild Semiconductor reserves the right to
make changes at any time without notice to improve the design.
Datasheet contains specifications on a product that is discontinued by Fairchil d
Semiconductor. The datasheet is for reference information only.
Rev. I55
©2011 Fairchild Semiconductor Corporation 7 www.fairchildsemi.com
FDMS7692 Rev.D1
Loading...
