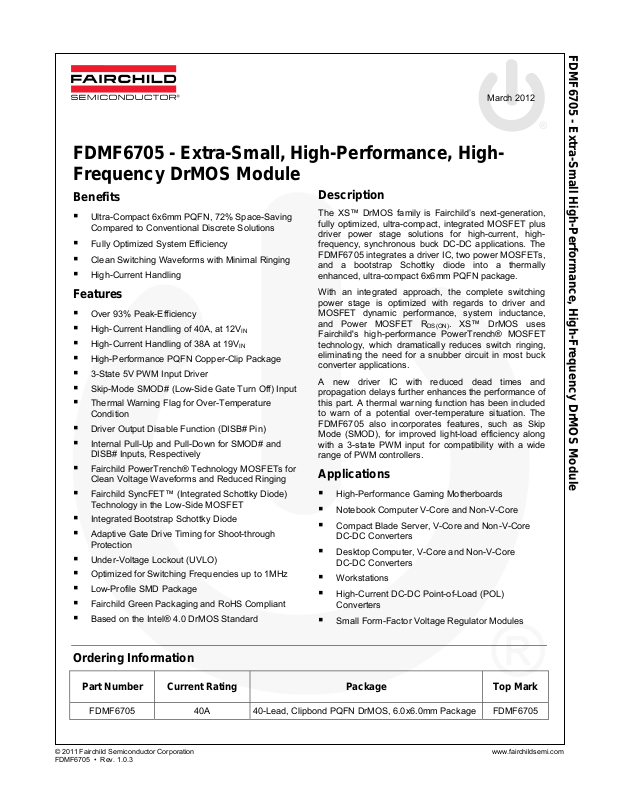

FDMF6705 - Extra-Small, High-Performance, HighFrequency DrMOS Module

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

Benefits

 Ultra-Compact 6x6mm PQFN, 72% Space-Saving

Compared to Conventional Discrete Solutions

 Fully Optimized System Efficiency  Clean Switching Waveforms with Minimal Ringing  High-Current Handling

Features

 Over 93% Peak-Efficiency  High-Current Handling of 40A, at 12V  High-Current Handling of 38A at 19V

IN

 High-Performance PQFN Copper-Clip Package  3-State 5V PWM Input Driver  Skip-Mode SMOD# (Low-Side Gate Turn Off) Input  Thermal Warning Flag for Over-Temperature

Condition

 Driver Output Disable Function (DISB# Pin)  Internal Pull-Up and Pull-Down for SMOD# and

DISB# Inputs, Respectively

 Fairchild PowerTrench® Technology MOSFETs for

Clean Voltage Waveforms and Reduced Ringing

 Fairchild SyncFET™ (Integrated Schottky Diode)

Technology in the Low-Side MOSFET

 Integrated Bootstrap Schottky Diode  Adaptive Gate Drive Timing for Shoot-through

Protection

 Under-Voltage Lockout (UVLO)  Optimized for Switching Frequencies up to 1MHz  Low-Profile SMD Package  Fairchild Green Packaging and RoHS Compliant  Based on the Intel® 4.0 DrMOS Standard

Description

The XS™ DrMOS family is Fairchild’s next-generation, fully optimized, ultra-compact, integrated MOSFET plus driver power stage solutions for high-current, highfrequency, synchronous buck DC-DC applications. The FDMF6705 integrates a driver IC, two power MOSFETs, and a bootstrap Schottky diode into a thermally enhanced, ultra-compact 6x6mm PQFN package.

With an integrated approach, the complete switching power stage is optimized with regards to driver and MOSFET dynamic performance, system inductance, and Power MOSFET R Fairchild's high-performance PowerTrench® MOSFET technology, which dramatically reduces switch ringing, eliminating the need for a snubber circuit in most buck converter applications.

A new driver IC with reduced dead times and propagation delays further enhances the performance of this part. A thermal warning function has been included to warn of a potential over-temperature situation. The FDMF6705 also incorporates features, such as Skip Mode (SMOD), for improved light-load efficiency along with a 3-state PWM input for compatibility with a wide range of PWM controllers.

. XS™ DrMOS uses

DS(ON)

Applications

High-Performance Gaming Motherboards

  Notebook Computer V-Core and Non-V-Core  Compact Blade Server, V-Core and Non-V-Core

DC-DC Converters

 Desktop Computer, V-Core and Non-V-Core

DC-DC Converters

 Workstations  High-Current DC-DC Point-of-Load (POL)

Converters

 Small Form-Factor Voltage Regulator Modules

Ordering Information

Part Number Current Rating Package Top Mark

FDMF6705 40A 40-Lead, Clipbond PQFN DrMOS, 6.0x6.0mm Package FDMF6705

Typical Application Circuit

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

V5V

C

VDRV

DISB#

PWM Input

OFF

ON

Open-Drain Output

DrMOS Block Diagram

VDRV

DISB#

PWM

SMOD#

THWN#

VCIN

FDMF6705

CGND

PGND

VIN

R

BOOT

PHASE

VSWH

BOOT

Figure 1. Typical Application Circuit

VIN 3V ~ 24V

C

VIN

C

BOOT

V

L

OUT

C

OUT

Figure 2. DrMOS Block Diagram

Pin Configuration

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

Figure 3. Bottom View Figure 4. Top View

Pin Definitions

Pin # Name Description

When SMOD#=HIGH, the low-side driver is the inverse of PWM input. When SMOD#=LOW,

1 SMOD#

2 VCIN IC bias supply. Minimum 1µF ceramic capacitor is recommended from this pin to CGND.

3 VDRV

4 BOOT

5, 37, 41 CGND IC ground. Ground return for driver IC.

6 GH For manufacturing test only. This pin must float. Must not be connected to any pin.

7 PHASE Switch node pin for bootstrap capacitor routing. Electrically shorted to VSWH pin.

8 NC

9 - 14, 42 VIN Power input. Output stage supply voltage.

15, 29 -

35, 43

16 – 28 PGND Power ground. Output stage ground. Source pin of low-side MOSFET.

36 GL For manufacturing test only. This pin must float. Must not be connected to any pin.

38 THWN#

39 DISB#

40 PWM PWM signal input. This pin accepts a 3-state logic-level PWM signal from the controller.

VSWH

the low-side driver is disabled. This pin has a 10µA internal pull-up current source. Do not add a noise filter capacitor.

Power for gate driver. Minimum 1µF ceramic capacitor is recommended to be connected as close as possible from this pin to CGND.

Bootstrap supply input. Provides voltage supply to high-side MOSFET driver. Connect bootstrap capacitor from this pin to PHASE.

No connect. The pin is not electrically connected internally, but can be connected to VIN for convenience.

Switch node input. Provides return for high-side bootstrapped driver and acts as a sense point for the adaptive shoot-through protection.

Thermal warning flag, open collector output. When temperature exceeds the trip limit, the output is pulled LOW. THWN# does not disable the module.

Output disable. When LOW, this pin disables Power MOSFET switching (GH and GL are held LOW). This pin has a 10µA internal pull-down current source. Do not add a noise filter capacitor.

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Parameter Min. Max. Unit

VCIN, VDRV, DISB#, PWM, SMOD#, GL, THWN# to CGND Pins -0.3 6.0

VIN to PGND, CGND Pins -0.3 30.0

BOOT, GH to VSWH, PHASE Pins -0.3 6.0

BOOT, PHASE, GH to CGND Pins -0.3 30.0

VSWH to CGND/PGND (DC Only) -0.3 30.0

VSWH to PGND (<20ns) -8.0 33.0

BOOT to VDRV 22.0

BOOT to VDRV (<20ns) 25.0

I

THWN# Sink Current -0.1 7.0 mA

THWN#

f

=300kHz 38

(1)

I

O(AV)

θ

JPCB

=19V, VO=1.0V

VIN

Junction-to-PCB Thermal Resistance 3.5 °C/W

SW

fSW=1MHz 35

TA Ambient Temperature Range -40 +125 °C

TJ Maximum Junction Temperature +150 °C

T

Storage Temperature Range -55 +150 °C

STG

ESD Electrostatic Discharge Protection

Human Body Model, JESD22-A114 2000

Charged Device Model, JESD22-C101 1000

V

A

V

Note:

1. I

is rated using Fairchild’s DrMOS evaluation board, TA = 25°C, natural convection cooling. This rating is limited

O(AV)

by the peak DrMOS temperature, T

= 150°C, and varies depending on operating conditions and PCB layout. This

J

rating can be changed with different application settings.

Recommended Operating Conditions

The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not recommend exceeding them or designing to Absolute Maximum Ratings.

Symbol Parameter Min. Typ. Max. Unit

V

Control Circuit Supply Voltage 4.5 5.0 5.5 V

CIN

V

Gate Drive Circuit Supply Voltage 4.5 5.0 5.5 V

DRV

VIN Output Stage Supply Voltage 3.0 12.0 24.0

Note:

2. Operating at high V

can create excessive AC overshoots on the VSWH-to-GND and BOOT-to-GND nodes

IN

during MOSFET switching transients. For reliable DrMOS operation, VSWH-to-GND and BOOT-to-GND must

remain at or below the Absolute Maximum Ratings shown in the table above. Refer to the “Application

Information” and “PCB Layout Guidelines” sections of this datasheet for additional information.

(2)

V

Electrical Characteristics

Typical values are VIN = 12V, V

Symbol Parameter Condition Min. Typ. Max. Unit

Basic Operation

IQ Quiescent Current IQ=I

UVLO UVLO Threshold V

UVLO

PWM Input (VCIN = VDRV = 5V ±10%)

R

V

t

D_HOLD-OFF

V

HiZ_PWM

PWM Input (VCIN = VDRV = 5V ±5%)

R

V

t

D_HOLD-OFF

V

HiZ_PWM

DISB# Input

V

t

PD_DISBL

t

PD_DISBH

SMOD# Input

V

IH_SMOD

V

t

PD_SLGLL

t

PD_SHGLH

UVLO Hysteresis 0.4 V

_Hyst

Pull-Up Impedance 10 kΩ

UP_PWM

Pull-Down Impedance 10 kΩ

DN_PWM

PWM High Level Voltage 3.04 3.55 4.05 V

IH_PWM

3-State Upper Threshold 2.95 3.45 3.94 V

TRI_HI

3-State Lower Threshold 0.98 1.25 1.52 V

TRI_LO

PWM Low Level Voltage 0.84 1.15 1.42 V

IL_PWM

3-State Shutoff Time 160 200 ns

3-State Open Voltage 2.2 2.5 2.8 V

Pull-Up Impedance 10 kΩ

UP_PWM

Pull-Down Impedance 10 kΩ

DN_PWM

PWM High Level Voltage 3.22 3.55 3.87 V

IH_PWM

3-State Upper Threshold 3.13 3.45 3.77 V

TRI_HI

3-State Lower Threshold 1.04 1.25 1.46 V

TRI_LO

PWM Low Level Voltage 0.90 1.15 1.36 V

IL_PWM

3-State Shutoff Time 160 200 ns

3-State Open Voltage 2.3 2.5 2.7 V

High-Level Input Voltage 2 V

IH_DISB

Low-Level Input Voltage 0.8 V

IL_DISB

I

Pull-Down Current 10 µA

PLD

Propagation Delay

High-Level Input Voltage 2 V

Low-Level Input Voltage 0.8 V

IL_SMOD

I

Pull-Up Current 10 µA

PLU

Propagation Delay

= 5V, V

CIN

= 5V, and T

DRV

VCIN+IVDRV

Rising 2.9 3.1 3.3 V

CIN

PWM=GND, Delay Between DISB# from HIGH to LOW to GL from HIGH to LOW

PWM=GND, Delay Between DISB# from LOW to HIGH to GL from LOW to HIGH

PWM=GND, Delay Between SMOD# from HIGH to LOW to GL from HIGH to LOW

PWM=GND, Delay Between SMOD# from LOW to HIGH to GL from LOW to HIGH

= +25°C unless otherwise noted.

A

, PWM=LOW or HIGH or Float 2 mA

25 ns

10 ns

Continued on the following page…

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

Electrical Characteristics

Typical values are VIN = 12V, V

Symbol Parameter Condition Min. Typ. Max. Unit

Thermal Warning Flag

T

Activation Temperature 150 °C

ACT

T

Reset Temperature 135 °C

RST

R

Pull-Down Resistance I

THWN

250ns Timeout Circuit

t

D_TIMEOUT

High-Side Driver

R

SOURCE_GH

R

t

D_DEADON

t

PD_PLGHL

t

PD_PHGHH

t

PD_TSGHH

Low-Side Driver

R

SOURCE_GL

R

t

D_DEADOFF

t

PD_PHGLL

t

PD_TSGLH

Boot Diode

Timeout Delay

Output Impedance, Sourcing Source Current=100mA 1 Ω

Output Impedance, Sinking Sink Current=100mA 0.8 Ω

SINK_GH

t

Rise Time GH=10% to 90%, C

R_GH

t

Fall Time GH=90% to 10%, C

F_GH

LS to HS Deadband Time

PWM LOW Propagation Delay

PWM HIGH Propagation Delay (SMOD Held LOW)

Exiting 3-State Propagation Delay

Output Impedance, Sourcing Source Current=100mA 1 Ω

Output Impedance, Sinking Sink Current=100mA 0.5 Ω

SINK_GL

t

Rise Time GL=10% to 90%, C

R_GL

t

Fall Time GL=90% to 10%, C

F_GL

HS to LS Deadband Time

PWM-HIGH Propagation Delay

Exiting 3-State Propagation Delay

VF Forward-Voltage Drop IF=10mA 0.35 V

VR Breakdown Voltage IR=1mA 22 V

= 5V, V

CIN

= 5V, and T

DRV

=5mA 30 Ω

PLD

SW=0V, Delay Between GH from HIGH to LOW and GL from LOW to HIGH

GL going LOW to GH going HIGH, 1V GL to 10% GH

PWM going LOW to GH going LOW, V

IL_PWM

PWM going HIGH to GH going HIGH, V

IH_PWM

PWM (from 3-State) going HIGH to GH going HIGH, V

SW going LOW to GL going HIGH,

2.2V SW to 10% GL

PWM going HIGH to GL going LOW, V

IH_PWM

PWM (from 3-State) going LOW to GL going HIGH, V

= +25°C unless otherwise noted.

A

=1.1nF 6 ns

LOAD

=1.1nF 5 ns

LOAD

to 90% GH

to 10% GH (SMOD=LOW)

to 10% GH

IH_PWM

=2.7nF 10 ns

LOAD

=2.7nF 8 ns

LOAD

to 90% GL

to 10% GL

IL_PWM

250 ns

10 ns

16 30 ns

30 ns

12 ns

9 25 ns

20 ns

PWM

VSW

V

IH_PWM

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

V

IL_PWM

GL

GH

to

VSWH

90%

1.0V 10%

90%

H

t

PD PHGLL

t D_DEADON

10%

t

PD PLGHL

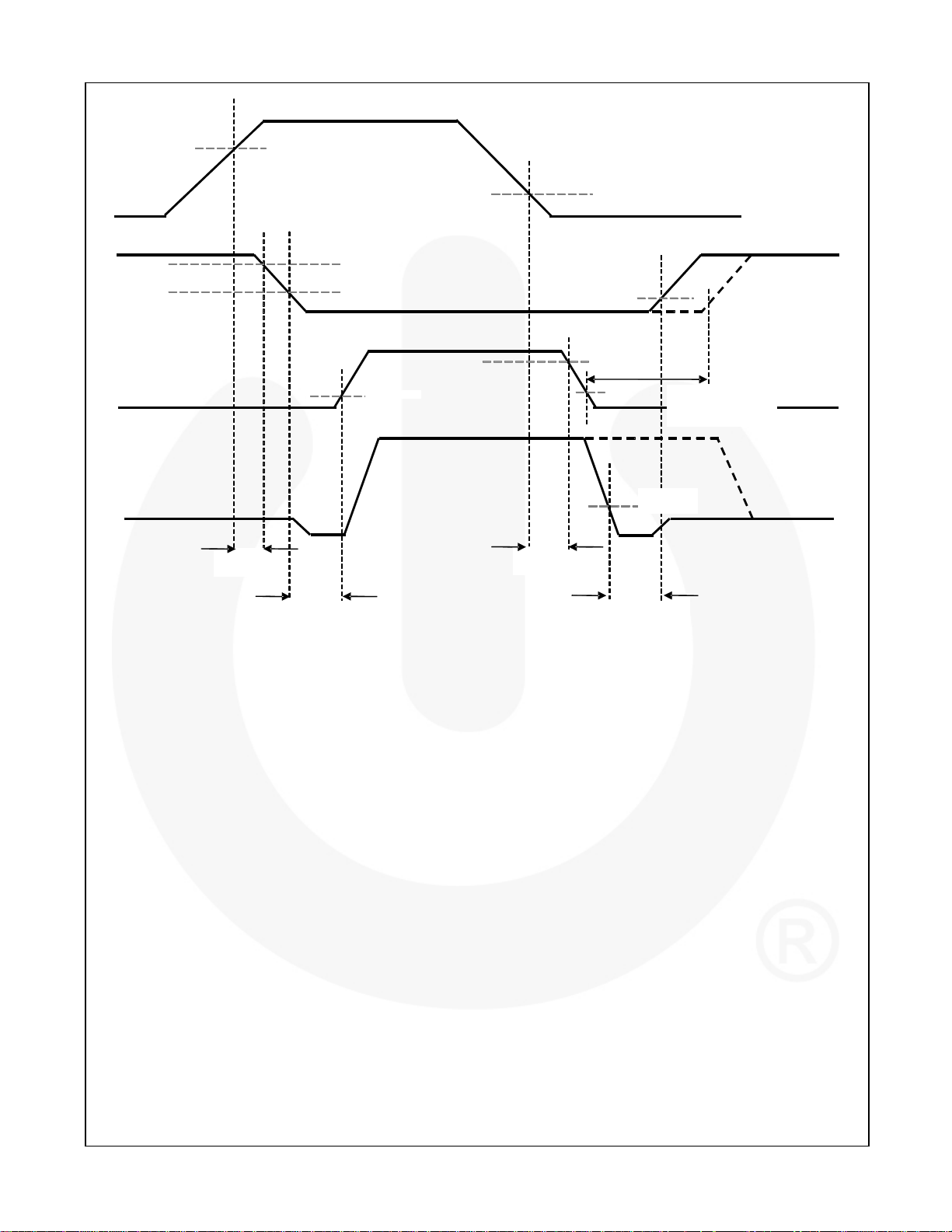

Figure 5. PWM Timing Diagram

1.2V

t

D_DEADOFF

t

D_TIMEOUT

( 250ns Timeou t)

2.2V

Typical Performance Characteristics

Test Conditions: VIN=12V, V unless otherwise specified.

=1.0V, V

OUT

CIN

=5V, V

DRV

=5V, L

=320nH, TA=25°C, and natural convection cooling,

OUT

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

45 40

(A)

35

OUT

30 25 20 15 10

VIN= 12V, V

5

Module Output c urr ent, I

0

0 25 50 75 100 125 150

Θ

JPCB

= 3.5°C/W

fSW= 300kHz

= 1.0V

OUT

fSW= 1MHz

PCB Temperature (°C)

11 10

9 8 7 6 5 4 3

Module Pow er Loss (W)

2 1 0

0 5 10 15 20 25 30 35 40

300kHz 500kHZ 800kHz 1MHz

Output Current, I

VIN= 12V, V

OUT

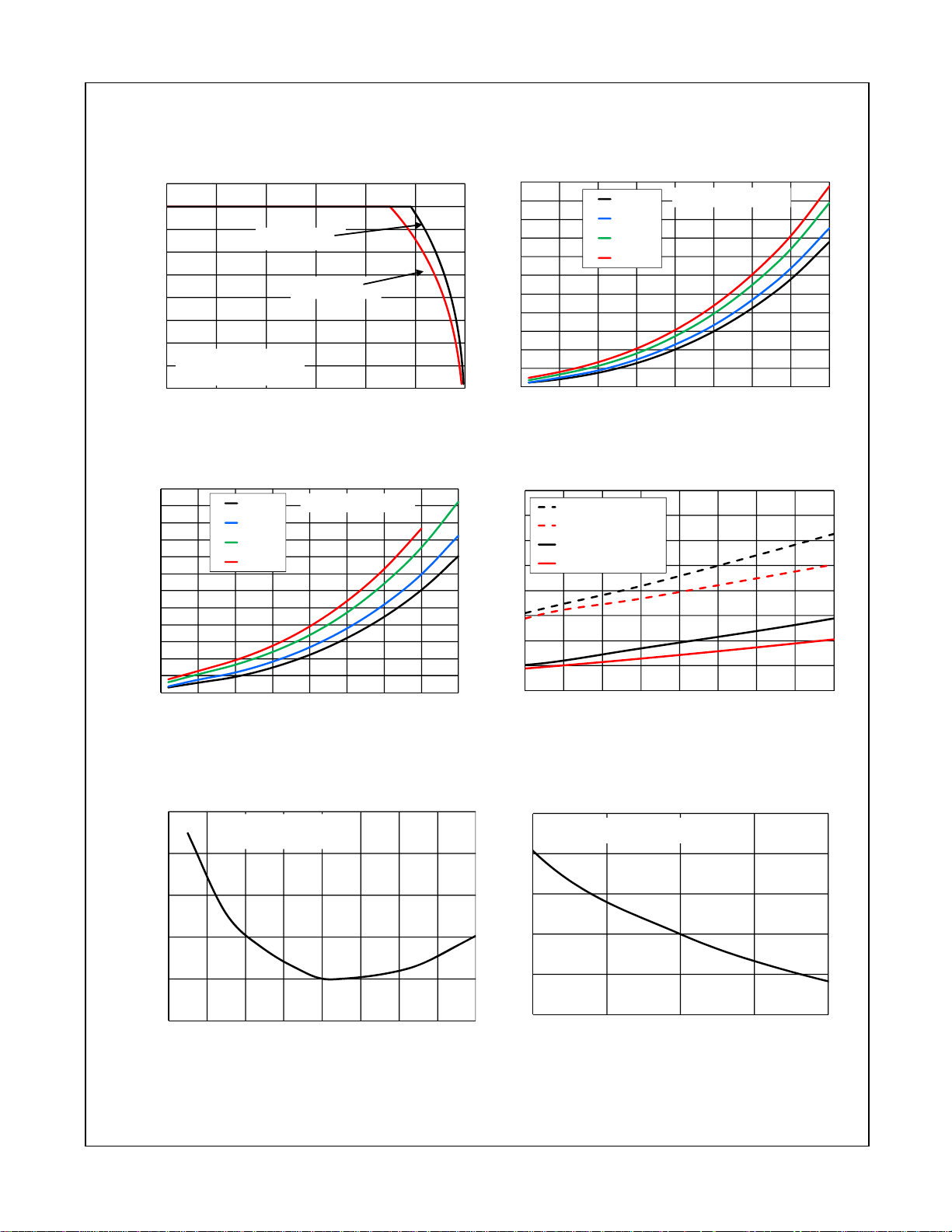

Figure 6. Safe Operating Area Figure 7. Module Power Loss vs. Output Current

12 11 10

9 8 7 6 5 4 3

Module Power Loss (W)

2 1 0

0 5 10 15 20 25 30 35 40

300kHz 500kHz 800kHz 1MHz

Output Current, I

VIN= 19V, V

OUT

(A)

= 1V

9

8

7

6

5

4

3

Module Power Loss (W)

2

1

Vin = 19V, Iout = 30A Vin = 12V, Iout = 30A Vin = 19V, Iout = 20A Vin = 12V, Iout = 20A

200 300 400 500 600 700 800 900 100

Module Switching Fre quency, fSW(kHz)

(A)

OUT

= 1V

Figure 8. Module Power Loss vs. Output Current Figure 9. Module Power Loss vs. Switching

Frequency

1.20

1.15

1.10

1.05

1.00

I

= 30A, fSW= 300kHz

OUT

Norma lize d Module Powe r Los s

0.95 4 6 8 10121416182

Module Input V oltage, VIN(V)

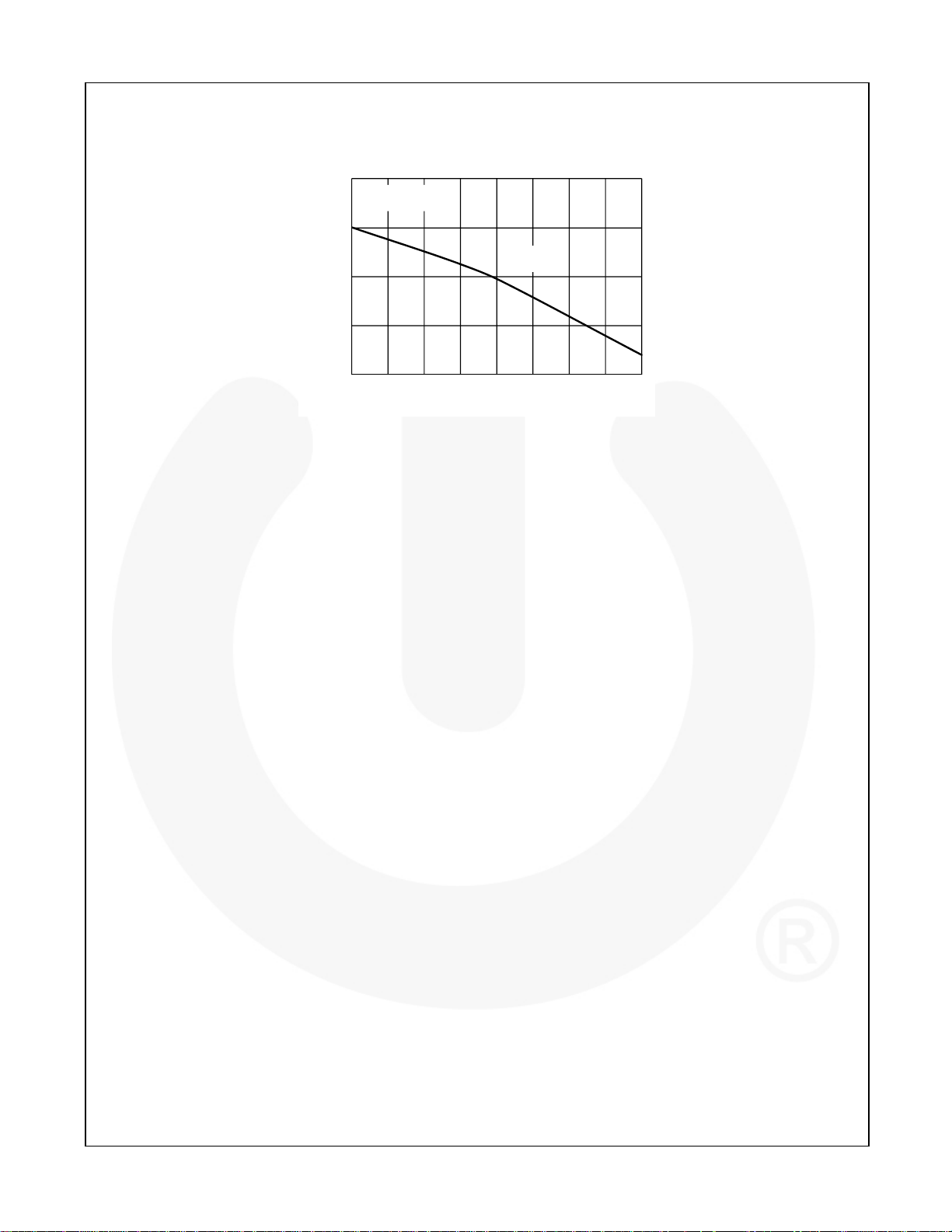

Figure 10. Normalized Power Loss vs. Input

Voltage

1.15

1.10

1.05

1.00

0.95

VIN= 12V, I

= 30A, fSW= 300kHz

OUT

Norma liz e d Module Powe r Los s

0.90

4.50 4.75 5.00 5.25 5.50

Driver Sup p l y Voltage, V

DRV

and V

CIN

(V)

Figure 11. Normalized Power Loss vs. Driver

Supply Voltage

Typical Performance Characteristics (Continued)

Test Conditions: V

=12V, V

IN

unless otherwise specified.

=1.0V, V

OUT

=5V, V

CIN

DRV

=5V, L

OUT

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

=320nH, TA=25°C, and natural convection cooling,

1.9

VIN= 12V, I

1.7

1.5

1.3

1.1

= 30A, fSW= 300kHz

OUT

Norm al ize d M odule Po we r Loss

0.9

0.5 1.0 1.5 2.0 2.5 3.0 3.5

Output Voltage, V

OUT

(V)

Figure 12. Normalized Power Loss vs. Output

Voltage

34

(mA)

30

VCIN

+ I

26

VDRV

22

18

14

VIN= 12V, I

= 0A, fSW= 300kHz

OUT

1.05

1.04

1.03

1.02

1.01

1.00

0.99

Normalized Module Power Loss

0.98 225 275 325 375 425

VIN= 12V, I

= 30A, fSW= 300kHz

OUT

Output Inductance, L

Figure 13. Module Power Loss vs. Output

Inductance

12

(mA)

VCIN

+ I

11

VDRV

10

VIN= 12V, I

= 0A, fSW= 300kHz

OUT

(nH)

10

Driver Supply Current, I

6

200 400 600 800 1000

Module Swit ching Fr equenc y , fSW(kHz)

Driver Supply Current, I

9

4.5 4.75 5 5.25 5.5

Driver Supply Voltage, V

DRV

& V

CIN

(V)

Figure 14. Driver Supply Current vs. Frequency Figure 15. Driver Supply Current vs. Driver

Supply Voltage

1.10

OUT

300kHz 1MHz

(A)

1.08

1.06

1.04

1.02

1.00

Normalized Driver Supply Current

0.98 0 5 10 15 20 25 30 35 40

Module Out put Cur re nt, I

Figure 16. Normalized Driver Supply Current vs.

Output Current

4.0 TA= 25°C

3.5

3.0

2.5

2.0

1.5

1.0

PWM Threshold Voltage (V)

0.5

4.50 4.75 5.00 5.25 5.50

V

IH_PWM

V

TRI_HI

V

HIZ_PWM

V

TRI_LO

V

IL_PWM

Driver Sup ply Voltage, V

DRV

Figure 17. PWM Thresholds vs. Driver Supply

Voltage

& V

CIN

(V)

Typical Performance Characteristics (Continued)

Test Conditions: V

=12V, V

IN

unless otherwise specified.

=1.0V, V

OUT

=5V, V

CIN

DRV

=5V, L

OUT

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

=320nH, TA=25°C, and natural convection cooling,

4.0

V

= 5V

CIN

3.5

V

3.0

2.5

2.0

1.5

PWM Threshold Voltage ( V)

1.0

0.5

-50 -25 0 25 50 75 100 125 150

TRI_HI

V

IH_PWM

V

TRI_LO

V

IL_PWM

Driver IC Junction Temperature, TJ(°C)

2.2

TA= 25°C

2.0

V

1.8

1.6

1.4

SMOD# Threshold Voltage (V)

1.2

4.50 4.75 5.00 5.25 5.50

IH_SMOD

Driver Supply Voltage, V

V

IL_SMOD

CIN

(V)

Figure 18. PWM Thresholds vs. Temperature Figure 19. SMOD# Thresholds vs. Driver Supply

Voltage

2.0

V

= 5V

CIN

1.9

1.8

1.7

1.6

1.5

1.4

SMOD# Threshold Voltage (V)

1.3

-50 -25 0 25 50 75 100 125 150

V

IH_SMOD

V

IL_SMOD

Driver IC Junction Temperature, TJ(°C)

-9.0

V

= 5V

(uA)

PLU

SMOD# Pull-up C ur r e nt , I

-10.0

-10.5

-11.0

-11.5

-12.0

CIN

-9.5

-50 -25 0 25 50 75 100 125 150

Driver IC Junction Temperature, TJ(oC)

Figure 20. SMOD# Thresholds vs. Temperature Figure 21. SMOD# Pull-Up Current vs. Temperature

2.1

TA= 25oC

2.0

1.9

1.8

1.7

1.6

1.5

1.4

DISB# Threshold Voltage (V)

1.3

4.50 4.75 5.00 5.25 5.50

Driver Supply Voltage, V

V

IH_DISB

V

IL_DISB

CIN

(V)

Figure 22. DISB# Thresholds vs. Driver Supply

2.00

V

= 5V

CIN

1.90

1.80

1.70

1.60

1.50

DISB Threshold Voltage (V)

1.40

-50 -25 0 25 50 75 100 125 150

V

IH_DISB

V

IL_DISB

Driver IC Junct ion Temperature, TJ(°C)

Figure 23. DISB# Thresholds vs. Temperature

Voltage

Typical Performance Characteristics (Continued)

Test Conditions: V

=12V, V

IN

unless otherwise specified.

=1.0V, V

OUT

(uA)

DISB# P ull-D own Current, I

PLD

11.5

11.0

10.5

10.0

9.5

=5V, V

CIN

V

= 5V

CIN

-50 -25 0 25 50 75 100 125 150

Driver IC Junct ion Temperature, TJ(°C)

DRV

=5V, L

OUT

Figure 24. DISB# Pull-Down Current vs. Temperature

=320nH, TA=25°C, and natural convection cooling,

I

PLD

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

Functional Description

A

p

The FDMF6705 is a driver-plus-FET module optimized for the synchronous buck converter topology. A single PWM input signal is all that is required to properly drive the high-side and the low-side MOSFETs. Each part is capable of driving speeds up to 1MHz.

VCIN and Disable

The VCIN pin is monitored by an under-voltage lockout (UVLO) circuit. When V is enabled for operation. When V the driver is disabled (GH, GL=0). The driver can also be disabled by pulling the DISB# pin LOW (DISB# < V

), which holds both GL and GH LOW regardless

IL_DISB

of the PWM input state. The driver can be enabled by raising the DISB# pin voltage HIGH (DISB# > V

Table 1. UVLO and Disable Logic

UVLO DISB# Driver State

0 X Disabled (GH, GL=0)

1 0 Disabled (GH, GL=0)

1 1 Enabled (See Table 2)

1 Open Disabled (GH, GL=0)

Note:

3. DISB# has an internal pull-down current source of 10µA.

Thermal Warning Flag

The FDMF6705 provides a thermal warning flag (THWN) to warn of over-temperature conditions. The thermal warning flag uses an open-drain output that pulls to CGND when the activation temperature (150°C) is reached. The THWN output returns to a highimpedance state once the temperature falls to the reset temperature (135°C). For use, the THWN output requires a pull-up resistor, which can be connected to VCIN. THWN does NOT disable the DrMOS module.

HIGH

THWN Logic State

Normal Operation

LOW

Figure 25. THWN Operation

rises above ~3.1V, the driver

CIN

135°C Reset

falls below ~2.7V,

CIN

150°C

ctivation

Tem

erature

Thermal Warning

T

J_driverIC

IH_DISB

).

3-State PWM Input

The FDMF6705 incorporates a 3-state PWM input gate drive design. The 3-state gate drive has both logic HIGH level and LOW level, along with a 3-state shutdown window. When the PWM input signal enters and remains within the 3-state window for a defined hold-off time (t

D_HOLD-OFF

), both GL and GH are pulled LOW. This feature enables the gate drive to shut down both highand low-side MOSFETs to support features such as phase shedding, which is a common feature on multiphase voltage regulators.

Operation when Exiting 3-State Condition

When exiting a valid 3-state condition, the FDMF6705 design follows the PWM input command. If the PWM input goes from 3-state to LOW, the low side MOSFET is turned on. If the PWM input goes from 3-state to HIGH, the high-side MOSFET is turned on. This is illustrated in Figure 26. The FDMF6705 design allows for short propagation delays when exiting the 3-state

window (see Electrical Characteristics).

Low-Side Driver

The low-side driver (GL) is designed to drive a groundreferenced low R

N-channel MOSFET. The bias

DS(ON)

for GL is internally connected between VDRV and CGND. When the driver is enabled, the driver's output is 180° out of phase with the PWM input. When the driver is disabled (DISB#=0V), GL is held LOW.

High-Side Driver

The high-side driver is designed to drive a floating Nchannel MOSFET. The bias voltage for the high-side driver is developed by a bootstrap supply circuit, consisting of the internal Schottky diode and external bootstrap capacitor (C held at PGND, allowing C through the internal diode. When the PWM input goes HIGH, GH begins to charge the gate of the high-side MOSFET (Q1). During this transition, the charge is removed from C Q1 turns on, V

+ V

V

IN

BOOT

rises to VIN, forcing the BOOT pin to

SWH

, which provides sufficient VGS enhancement for Q1. To complete the switching cycle, Q1 is turned off by pulling GH to VSWH. C VDRV when VSWH falls to PGND. GH output is inphase with the PWM input. The high-side gate is held LOW when the driver is disabled or the PWM signal is held within the 3-state window for longer than the 3state hold-off time, t

D_HOLD-OFF

). During startup, VSWH is

BOOT

to charge to VDRV

BOOT

and delivered to the gate of Q1. As

is then recharged to

BOOT

.

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

Adaptive Gate Drive Circuit

_

V

The driver IC advanced design ensures minimum MOSFET dead-time while eliminating potential shoot through (cross-conduction) currents. It senses the state of the MOSFETs and adjusts the gate drive adaptively to ensure they do not conduct simultaneously. Figure 26 provides the relevant timing waveforms. To prevent overlap during the LOW-to-HIGH switching transition (Q2 off to Q1 on), the adaptive circuitry monitors the voltage at the GL pin. When the PWM signal goes HIGH, Q2 begins to turn off after some propagation delay (t

PD_PHGLL

~1V, Q1 begins to turn on after adaptive delay t To preclude overlap during the HIGH-to-LOW transition (Q1 off to Q2 on), the adaptive circuitry monitors the

V

IH_PWM

PWM

). Once the GL pin is discharged below

D_DEADON

V

IH_PWM

V

IL_PWM

t

R_GH

.

voltage at the VSWH pin. When the PWM signal goes LOW, Q1 begins to turn off after some propagation delay (t

PD_PLGHL

Q2 begins to turn on after adaptive delay t Additionally, V

). Once the VSWH pin falls below ~2.2V,

is monitored. When V

GS(Q1)

D_DEADOFF

GS(Q1)

discharged below ~1.2V, a secondary adaptive delay is initiated, which results in Q2 being driven on after t

D_TIMEOUT

implemented to ensure C

, regardless of SW state. This function is

is recharged each

BOOT

switching cycle in the event that the SW voltage does not fall below the 2.2V adaptive threshold. Secondary delay t

V

TRI_HI

D_TIMEOUT

t

F_GH

is longer than t

V

IH_PWM

D_DEADOFF

.

V

TRI_HI

V

TRI_LO

IL_PWM

V

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

.

is

GH

to

VSWH

GL

CCM

t

PD_PHGLL

90%

1.0V

t

D_DEADON

less than

t

2.2

10%

t

PD

PLGHL

t

D_DEADOFF

t

R_GL

D_HOLD

-

OFF

t

D_HOLD -

3 -

t

F_GL

Enter

State

OFF

DCM

t

Exit

3-State

PD_TSGHH

t

D_HOLD -OFF

Notes: t

= propagation delay from external sign al (PWM, SMOD#, etc.) to IC generated signal. Example (t

PD_xxx

t

= delay from IC generated signal to IC generated signal. Example (t

D_xxx

PWM Exiting 3-state

= PWM rise to LS VGS fall, V

t

PD_PHGLL

t

= PWM fall to HS VGS fall, V

PD_PLGHL

= PWM rise to HS VGS rise, V

t

PD_PHGHH

SMOD# Dead Times t

= SMOD# fall to LS VGS fall, V

PD_SLGLL

t

= SMOD# rise to LS VGS rise, V

PD_SHGLH

to 90% LS VGS t

IH_PWM

to 90% HS VGS t

IL_PWM

to 10% HS VGS (SMOD# held LOW)

IH_PWM

to 90% LS VGS t

IL_SMOD

to 10% LS VGS t

IH_SMOD

– LS VGS (GL) LOW to HS VGS (GH) HIGH)

D_DEADON

PD_TSGHH

PD_TSGLH

D_DEADON

D_DEADOFF

DCM

t

PD_TSGHH

Enter

3

-State

PD_PHGLL

= PWM 3-state to HIGH to HS VGS rise, V

= PWM 3-state to LOW to LS VGS rise, V

= LS VGS fall to HS VGS rise, LS-comp trip value (~1.0V GL) to 10% HS VGS = VSWH fall to LS VGS rise, SW-comp trip value (~2.2V VSWH) to 10% LS VGS

Exit 3 S t at e

– PWM going HIGH to LS VGS (GL) going LOW)

less than

t

D_HOLD -

IH_PWM

IL_PWM

t

D_HOLD

OFF

Enter

3 -State

to 10% HS VGS

to 10% LS VGS

-

OFF

t

PD_TSGLH

Exit

State

3-

90%

10%

V

90%

1

IN

OUT

0%

Figure 26. PWM and 3-StateTiming Diagram

Skip Mode (SMOD)

V

#

The SMOD function allows for higher converter efficiency under light-load conditions. During SMOD, the low-side FET gate signal is disabled (held LOW), preventing discharging of the output capacitors as the filter inductor current attempts reverse current flow – also known as “Diode Emulation” Mode. When the SMOD pin is pulled HIGH, the synchronous buck converter works in Synchronous Mode, gating on the low-side FET. When the SMOD pin is pulled LOW, the low-side FET is gated off. The SMOD pin is connected to the PWM controller, which enables or disables the SMOD automatically when the controller detects lightload condition from output current sensing. Normally this

pin is active LOW. See Figure 27 for timing delays.

SMOD

Table 2. SMOD Logic

DISB# PWM SMOD# GH GL

0 X X 0 0

1 3-State X 0 0

1 0 0 0 0

1 1 0 1 0

1 0 1 0 1

1 1 1 1 0

Note:

4. The SMOD feature is intended to have low

propagation delay between the SMOD signal and the low-side FET VGS response time to control diode emulation on a cycle-by-cycle basis.

V

IL_SMOD

IH_SMOD

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

V

IH_PWM

CCM

t

PD_PHGHH

LOW

GS

HS turn -on with SMOD# LOW

10%

DCM

t

Delay from SMOD# going

HIGH to LS VGSHIGH

PD_SHGLH

10%

V

OUT

PWM

GH

to

V

SWH

GL

IH_PWM

t

PD_PHGLL

t

D_DEADON

90%

1.0V

t

PD_PLGHL

V

IL_PWM

90%

10%

2.2

t

D_DEADOFF

10%

CCM

t

PD_SLGLL

Delay from SMOD# going

LOW to LS V

Figure 27. SMOD Timing Diagram

Application Information

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

Supply Capacitor Selection

For the supply inputs (VDRV & VCIN), a local ceramic bypass capacitor is required to reduce noise and to supply peak transient currents during gate drive switching action. It is recommended to use a minimum capacitor value of 1µF X7R or X5R. Keep this capacitor close to the VCIN and VDRV pins and connect it to the GND plane with vias.

Bootstrap Circuit

The bootstrap circuit uses a charge storage capacitor (C

), as shown in Figure 28. A bootstrap capacitance

BOOT

of 100nF X7R or X5R capacitor is typically adequate. A series bootstrap resistor would be needed for specific applications to improve switching noise immunity. The boot resistor (R near the maximum rated V controlling the high-side MOSFET turn-on slew rate and V

overshoot. Typical R

SHW

are effective in reducing V FDMF6705.

) may be required when operating

BOOT

and is effective at

IN

values from 0.5Ω to 3.0Ω

BOOT

overshoot for the

SWH

VCIN Filter

The VDRV pin provides power to the gate drive of the high-side and low-side power MOSFETs. In most cases, VDRV can be connected directly to VCIN, which supplies power to the logic circuitry of the gate driver. For additional noise immunity, an RC filter can be inserted between VDRV and VCIN. Recommended values of 10Ω (R and 1µF (C

VCIN

) placed between VDRV and VCIN

VCIN

) from VCIN to CGND (see Figure 29).

Power Loss and Efficiency

Measurement and Calculation

Refer to Figure 28 for power loss testing method.

Power loss calculations are:

=(VIN x IIN) + (V5V x I5V) (W) (1)

P

IN

P

SW=VSW

P

OUT=VOUT

P

LOSS_MODULE=PIN

P

LOSS_BOARD=PIN

EFF

x I

(W) (2)

OUT

x I

(W) (3)

OUT

- PSW (W) (4)

- P

(W) (5)

OUT

=100 x PSW/PIN (%) (6)

MODULE

BOARD

=100 x P

(%) (7)

OUT/PIN

Figure 28. Power Loss Measurement Block Diagram

Figure 29. Block Diagram with VCIN Filter

PCB Layout Guidelines

Figure 30 provides an example of a proper layout for the FDMF6705 and critical components. All of the highcurrent paths, such as VIN, V copper, should be short and wide for low inductance and resistance. This technique aids in achieving a more stable and evenly distributed current flow, along with enhanced heat radiation and system performance.

The following guidelines are recommendations for the PCB designer:

1. Input ceramic bypass capacitors must be placed close to the VIN and PGND pins. This helps reduce the high-current power loop inductance and the input current ripple induced by the power MOSFET switching operation.

2. The V

copper trace serves two purposes. In

SWH

addition to being the high-frequency current path from the DrMOS package to the output inductor, it also serves as a heat sink for the low-side MOSFET in the DrMOS package. The trace should be short and wide enough to present a lowimpedance path for the high-frequency, highcurrent flow between the DrMOS and inductor to minimize losses and temperature rise. Note that the VSWH node is a high voltage and highfrequency switching node with high noise potential. Care should be taken to minimize coupling to adjacent traces. Since this copper trace also acts as a heat sink for the lower FET, balance using the largest area possible to improve DrMOS cooling while maintaining acceptable noise emission.

3. An output inductor should be located close to the

FDMF6705 to minimize the power loss due to the VSWH copper trace. Care should also be taken so the inductor dissipation does not heat the DrMOS.

4. PowerTrench® MOSFETs are used in the output

stage. The Power MOSFETs are effective at minimizing ringing due to fast switching. In most cases, no VSWH snubber is required. If a snubber is used, it should be placed close to the VSWH and PGND pins. The resistor and capacitor need to be of proper size for the power dissipation.

5. VCIN, VDRV, and BOOT capacitors should be

placed as close as possible to the VCIN to CGND, VDRV to CGND, and BOOT to PHASE pins to ensure clean and stable power. Routing width and length should be considered as well.

6. Include a trace from PHASE to VSWH to improve

noise margin. Keep the trace as short as possible.

7. The layout should include a placeholder to insert a small-value series boot resistor (R

SWH

, V

OUT

BOOT

, and GND

) between

the boot capacitor (C

) and DrMOS BOOT pin.

BOOT

The BOOT-to-VSWH loop size, including R and C

, should be as small as possible. The

BOOT

boot resistor may be required when operating near the maximum rated VIN. The boot resistor is effective at controlling the high-side MOSFET turnon slew rate and V

overshoot. R

SHW

BOOT

improve noise operating margin in synchronous buck designs that may have noise issues due to ground bounce or high positive and negative VSWH ringing. However, inserting a boot resistance lowers the DrMOS efficiency. Efficiency versus noise trade-offs must be considered. R values from 0.5Ω to 3.0Ω are typically effective in reducing VSWH overshoot for the FDMF6705.

The VIN and PGND pins handle large current transients with frequency components greater than 100MHz. If possible, these pins should be connected directly to the VIN and board GND planes. The use of thermal relief traces in series

with these pins is discouraged since this adds

inductance to the power path. This added inductance in series with either the VIN or PGND pin degrades system noise immunity by increasing positive and negative VSWH ringing.

8. CGND pad and PGND pins should be connected to the GND plane copper with multiple vias for stable grounding. Poor grounding can create a noise transient offset voltage level between CGND and PGND. This could lead to faulty operation of the gate driver and MOSFETs.

9. Ringing at the BOOT pin is most effectively controlled by close placement of the boot capacitor. Do not add an additional BOOT to the PGND capacitor. This may lead to excess current flow through the BOOT diode.

10. The SMOD# and DISB# pins have weak internal

pull-up and pull-down current sources, respectively. These pins should not have any noise filter capacitors. Do not to float these pins unless absolutely necessary.

11. Use multiple vias on each copper area to

interconnect top, inner, and bottom layers to help distribute current flow and heat conduction. Vias should be relatively large and of reasonably low inductance. Critical high-frequency components, such as R

BOOT

, C

, the RC snubber, and

BOOT

bypass capacitors should be located as close to the respective DrMOS module pins as possible on the top layer of the PCB. If this is not feasible, they should be connected from the backside through a network of low-inductance vias.

BOOT

can

BOOT

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

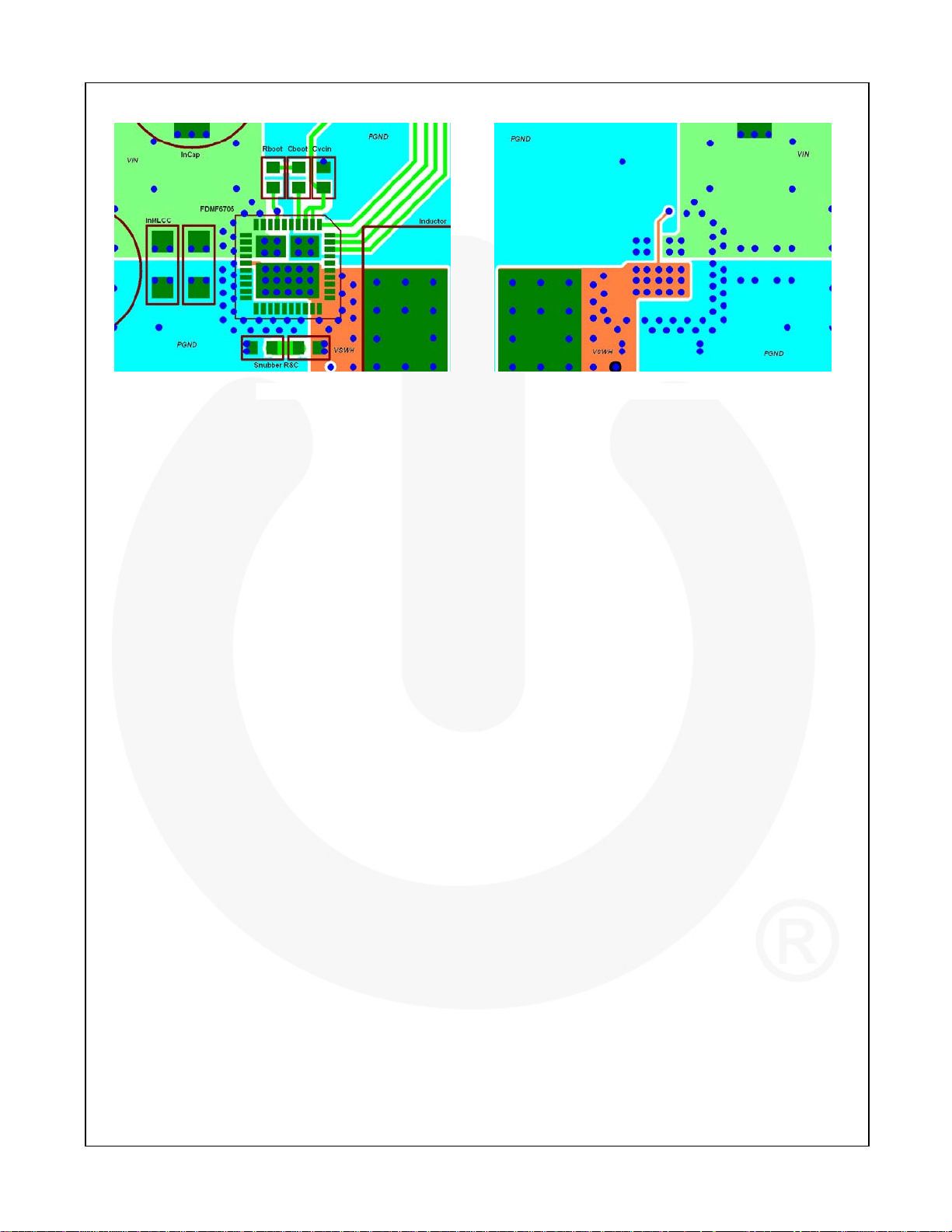

Figure 30. PCB Layout Example

Bottom View Top View

Physical Dimensions

0.10 C

2X

6.00

B

A

6.00

PIN#1 INDICATOR

2.50

31

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module

5.80

4.50

2130

20

0.40

0.65

11

0.35

0.50 (0.70)

0.40

2.00±0.10

0.10 C

0.08

0.40

C

FRONT VIEW

(2.20)

21

20

11

10

(0.20)

BOTTOM VIEW

1.10

0.90

0.30

0.20

TOP VIEW

4.40±0.10

0.05

0.00

DETAIL 'A'

SCALE: 2:1

(0.20)

0.10 C

2X

SEE DETAIL 'A'

0.10 CAB

0.05

0.30 (40X)

0.20

30

31

2.40±0.10

1.50±0.10

40

1

2.00±0.10

0.50

C

SEATING PLANE

0.25

1.60

40

0.60

0.50 TYP

C

0.20

0.50

0.30

NOTES: UNLESS OTHERWISE SPECIFIED

A) DOES NOT FULLY CONFORM TO JEDEC

REGISTRATION MO-220, DATED

MAY/2005. B) ALL DIMENSIONS ARE IN MILLIMETERS. C) DIMENSIONS DO NOT INCLUDE BURRS OR MOLD FLASH. MOLD FLASH OR BURRS DOES NOT EXCEED 0.10MM. D) DIMENSIONING AND TOLERANCING PER ASME Y14.5M-1994. E) DRAWING FILE NAME: PQFN40AREV2

1

2.10

LAND PATTERN

RECOMMENDATION

PIN #1 INDICATOR

(40X)

10

0.15

2.10

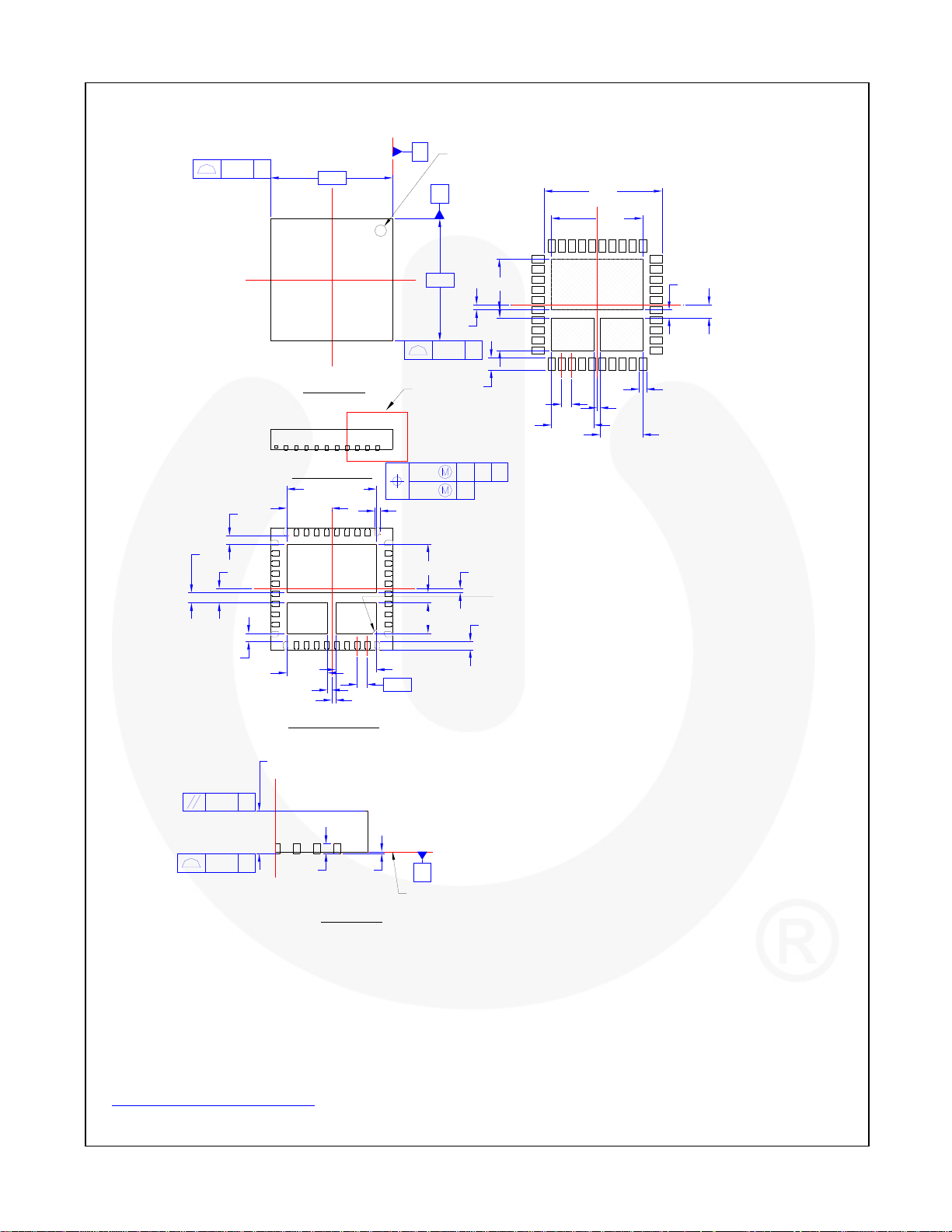

Figure 31. 40-Lead, Clipbond PQFN DrMOS, 6.0x6.0mm Package

Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the warranty therein, which covers Fairchild products.

Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:

http://www.fairchildsemi.com/packaging/

.

FDMF6705 - Extra-Small High-Performance, High-Frequency DrMOS Module
