Page 1

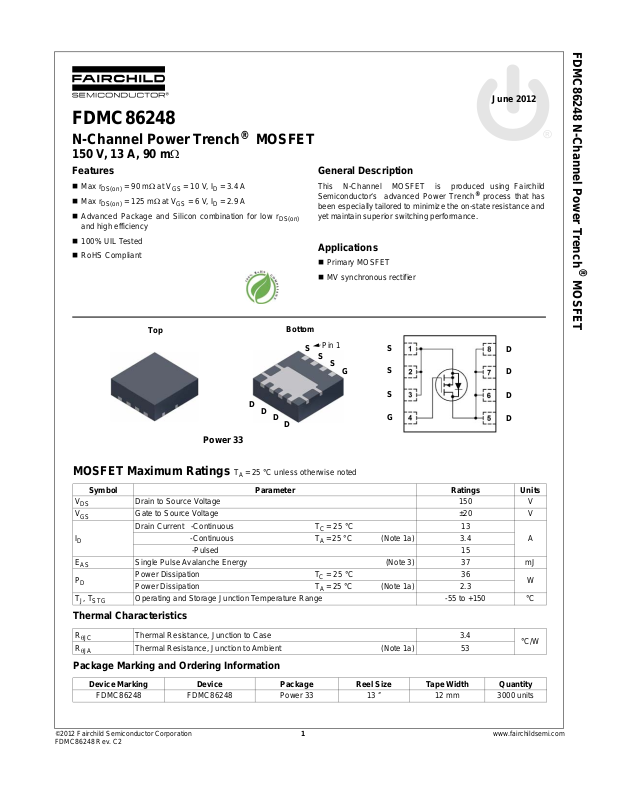

FDMC86248

Top

Power 33

Bottom

Pin 1

N-Channel Power Trench® MOSFET

150 V, 13 A, 90 mΩ

Features

 Max r  Max r  Advanced Package and Silicon combination for low r

and high efficiency

 100% UIL Tested  RoHS Compliant

= 90 mΩ at VGS = 10 V, ID = 3.4 A

DS(on)

= 125 mΩ at VGS = 6 V, ID = 2.9 A

DS(on)

General Description

This N-Channel MOSFET is produced using Fairchild Semiconductor‘s advanced Power Trench been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Applications

 Primary MOSFET  MV synchronous rectifier

June 2012

process that has

FDMC86248 N-Channel Power Trench

MOSFET

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

, T

STG

Thermal Characteristics

θJC

θJA

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

FDMC86248 FDMC86248 Power 33 13 ’’ 12 mm 3000 units

Drain to Source Voltage 150 V Gate to Source Voltage ±20 V Drain Current -Continuous TC = 25 °C 13

-Pulsed 15 Single Pulse Avalanche Energy (Note 3) 37 mJ Power Dissipation TC = 25 °C 36 Power Dissipation T Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Resistance, Junction to Case 3.4 Thermal Resistance, Junction to Ambient (Note 1a) 53

= 25 °C unless otherwise noted

= 25 °C (Note 1a) 3.4

= 25 °C (Note 1a) 2.3

A -Continuous T

°C/W

www.fairchildsemi.com

Page 2

FDMC86248 N-Channel Power Trench

Electrical Characteristics T

= 25 °C unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units

Off Characteristics

ΔBV ΔT

DSS

GSS

DSS

DSS J

Drain to Source Breakdown Voltage ID = 250 μA, VGS = 0 V 150 V Breakdown Voltage Temperature

Coefficient Zero Gate Voltage Drain Current VDS = 120 V, V Gate to Source Leakage Current VGS = ±20 V, V

= 250 μA, referenced to 25 °C 104 mV/°C

= 0 V 1 μA

= 0 V ±100 nA

On Characteristics

GS(th)

ΔV ΔT

DS(on)

GS(th)

Gate to Source Threshold Voltage VGS = VDS, ID = 250 μA 2.0 3.2 4.0 V Gate to Source Threshold Voltage

Temperature Coefficient

Static Drain to Source On Resistance

= 250 μA, referenced to 25 °C -9 mV/°C

= 10 V, ID = 3.4 A 69 90

= 6 V, ID = 2.9 A 89 125

= 10 V, ID = 3.4 A, TJ = 125 °C 140 183

Forward Transconductance VDS = 10 V, ID = 3.4 A 10 S

Dynamic Characteristics

iss

oss

rss

Input Capacitance Output Capacitance 50 70 pF Reverse Transfer Capacitance 2.6 5.0 pF

= 75 V, VGS = 0 V,

f = 1 MHz

Gate Resistance 0.8 2.0 Ω

393 525 pF

Switching Characteristics

d(on)

d(off)

Q Q Q Q

g(TOT) g(TOT) gs gd

Turn-On Delay Time Rise Time 1.4 10 ns Turn-Off Delay Time 11 20 ns

= 75 V, ID = 3.4 A,

= 10 V, R

GEN

= 6 Ω

Fall Time 2.8 10 ns Total Gate Charge V Total Gate Charge V Total Gate Charge 1.9 nC

= 0 V to 10 V

= 0 V to 5 V 3.7 5.2 nC

VDD = 75 V, I

= 3.4 A

Gate to Drain “Miller” Charge 1.7 nC

6.9 14 ns

6.4 9.0 nC

mΩV

MOSFET

Drain-Source Diode Characteristics

NOTES:

is determined with the device moun ted o n a 1 in2 pad 2 oz copper pad on a 1.5 x 1.5 in. bo ard of FR-4 mate ria l. R

1. R

θJA

the user's board design.

2. Pulse Test: Pulse Width < 300 μs, Duty cycle < 2.0%.

3. E

of 37 mJ is based on starting TJ = 25 °C; N-ch: L = 3 mH, IAS = 5 A, VDD = 150 V, VGS = 10 V. 100% test at L = 0.3 mH, IAS = 12 A.

Source to Drain Diode Forward Voltage Reverse Recovery Time

Reverse Recovery Charge 48 77 nC

53 °C/W when mounted on a

pad of 2 oz copper

1 in

= 0 V, IS = 3.4 A (Note 2) 0.80 1.3

= 0 V, IS = 2 A (Note 2) 0.78 1.2

= 3.4 A, di/dt = 100 A/μs

θJC

54 86 ns

is guaranteed by design while R

125 °C/W when mounted on a minimum pad of 2 oz copper

is determined by

θCA

www.fairchildsemi.com

Page 3

FDMC86248 N-Channel Power Trench

012345

VGS = 4.5 V

VGS = 6.5 V

VGS = 6 V

VGS = 10 V

VGS = 5 V

VGS = 5.5 V

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

, DRAIN CURRENT (A)

VDS, DRAIN TO SOURCE VOLTAGE (V)

03691215

VGS = 4.5 V

= 6.5 V

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

NORMALIZED

DRAIN TO SOURCE ON-RESISTANCE

, DRAIN CURRENT (A)

= 6 V

VGS = 5.5 V

VGS = 5 V

= 10 V

-75 -50 -25 0 25 50 75 100 125 150

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

2.4

ID = 3.4 A V

= 10 V

NORMALIZED

DRAIN TO SOURCE ON-RESISTANCE

, JUNCTION TEMPERATURE (

45678910

100

150

200

250

300

TJ = 125 oC

ID = 3.4 A

TJ = 25 oC

, GATE TO SOURCE VOLTAG E (V)

DS(on)

DRAIN TO

SOURCE ON-RESISTANCE

(mΩ)

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

234567

TJ = 25 oC

TJ = 150 oC

= 5 V

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

TJ = -55 oC

, DRAIN CURRENT (A)

VGS, GATE TO SO UR C E V O LT AGE (V)

0.20.40.60.81.0

0.001

0.01

0.1

TJ = -55 oC

TJ = 25 oC

TJ = 150 oC

= 0 V

, REVERSE DRAIN CURRENT (A)

VSD, BODY DIODE FORWARD VOLTAGE (V)

Typical Characteristics T

Figure 1.

On-Region Characteristics Figure 2.

= 25 °C unless otherwise noted

Norma l i z e d O n - Resistanc e

vs Drain Current and Gate Voltage

MOSFET

Figu r e 3. Nor m a lized O n - Resis t a nce

vs Junction Temperature

Figure 5. Transfer Characteristics

Figure 4.

On-Resistance vs Gate to

Source Voltage

Figure 6.

Source to Drain Diode

Forward Voltage vs Source Current

www.fairchildsemi.com

Page 4

FDMC86248 N-Channel Power Trench

02468

ID = 3.4 A

VDD = 50 V

= 75 V

, GATE TO SOURCE VOLTAGE (V)

Qg, GATE CHARGE (nC)

VDD = 100 V

0.1 1 10 100

100

1000

f = 1 MHz V

= 0 V

CAPACITANCE (pF)

VDS, DRAIN TO SOURCE VOLTAGE (V)

rss

oss

iss

0.001 0.01 0.1 1 4

TJ = 100 oC

TJ = 25 oC

TJ = 125 oC

tAV, TIME IN AVALANCHE (ms)

, AVALANCHE CURRENT (A)

25 50 75 100 125 150

= 6 V

θJC

= 3.4 oC/W

= 10 V

, DRAIN CURRENT (A)

, CASE TEMPERATURE (

0.1 1 10 100 600

0.001

0.01

0.1

10 s

10 ms

1 s

100 ms

1 ms

, DRAIN CURRENT (A)

VDS, DRAIN to SOURCE VOLTAGE (V)

THIS AR E A IS

LIMITED BY r

DS(on)

SINGLE PULSE T

= MAX RATED

θJA

= 125

C/W

= 25

-3

-2

-1

110

100 1000

0.5

100

500

SINGLE PULSE R

θJA

= 125

C/W

= 25

), PEAK TRANSIENT POWER (W)

t, PULSE WIDTH (sec)

Typical Characteristics T

Figure 7.

Gate Charge Characteristics Figure 8.

= 25 °C unless otherwise noted

Capacitance vs Drain

to Source Voltage

MOSFET

Figure 9.

Uncl a m p e d I n duct i v e

Switching Capability

Figure 11.

Forward Bias Safe

Operating Area

Figure 10.

Max imum C onti n uous D rain

Current vs Case Temperature

Fi gur e 12. Sing le P uls e Maximum

Power Dissipation

www.fairchildsemi.com

Page 5

FDMC86248 N-Channel Power Trench

-3

-2

-1

110

100 1000

0.001

0.01

0.1

SINGLE PULSE R

θJA

= 125 oC/W

DUTY CYCLE-DESCENDING ORDER

NORMALIZED THERMAL

IMPEDANCE,

θJA

t, RECTANGULAR PULSE DURATION (sec)

D = 0.5

0.2

0.1

0.05

0.02

0.01

NOTES: DUTY FACT OR: D = t1/t

PEAK TJ = PDM x Z

θJA

x R

θJA

+ T

Typical Characteristics T

Figure 13. Junction-to-Ambient Transient Thermal Response Curve

= 25 °C unless otherwise noted

MOSFET

www.fairchildsemi.com

Page 6

FDMC86248 N-Channel Power Trench

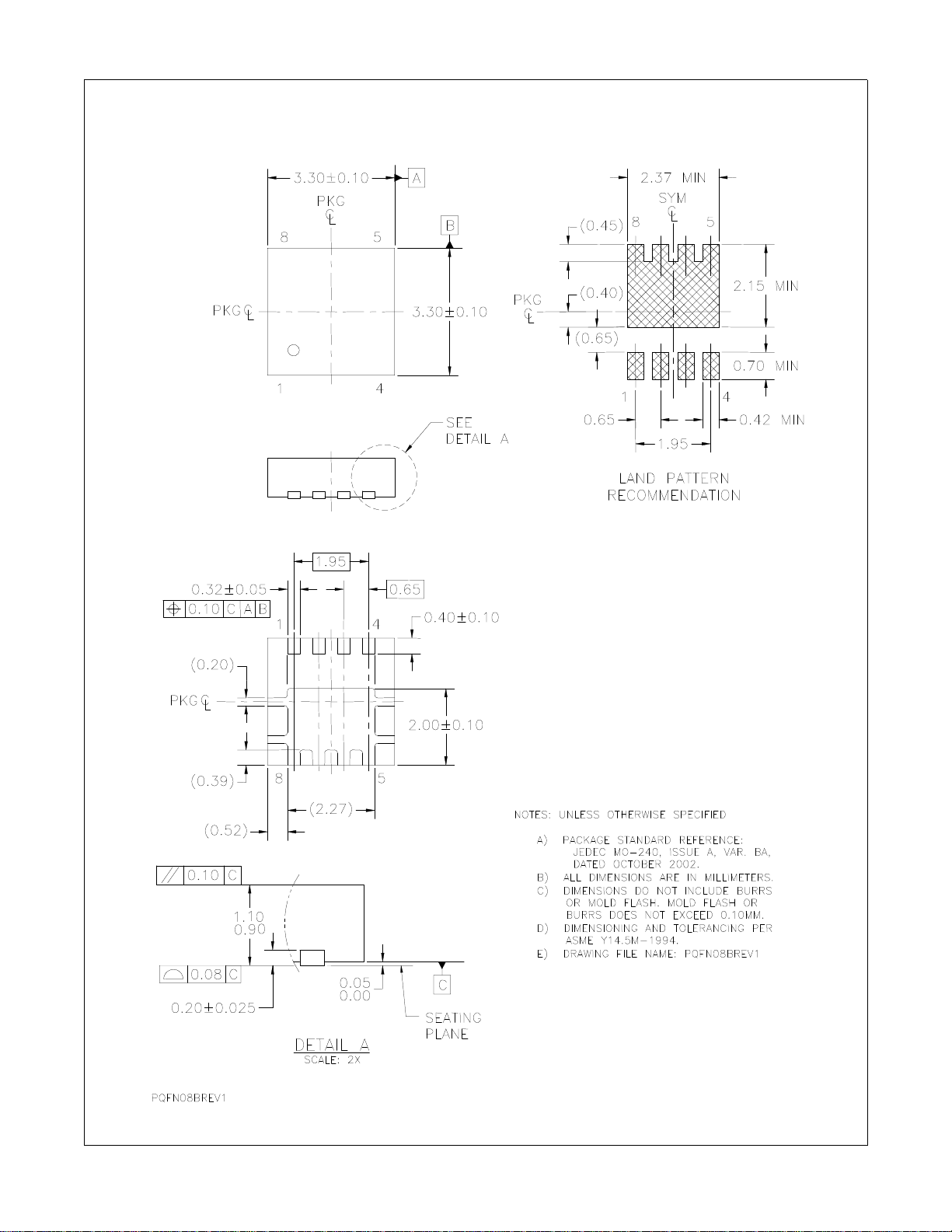

Dimensional Outline and Pad Layout

MOSFET

www.fairchildsemi.com

Page 7
