Page 1

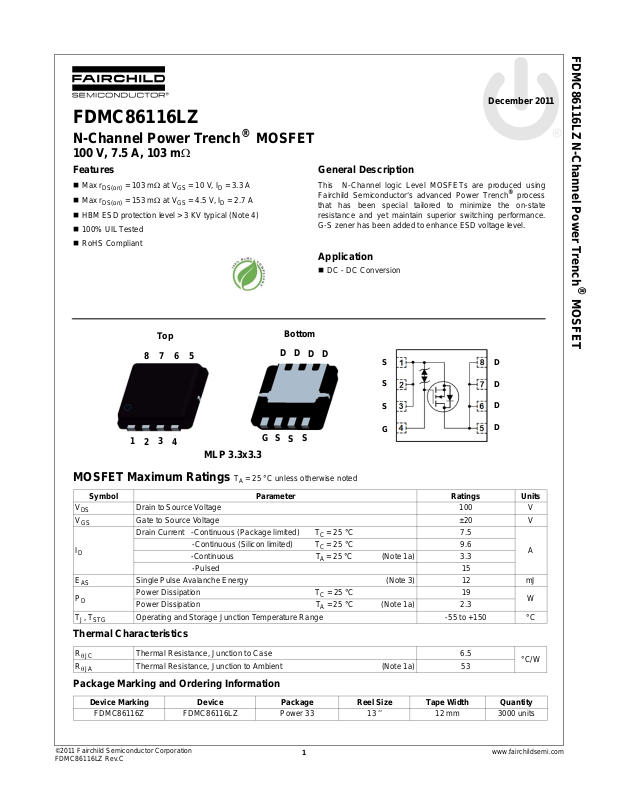

FDMC86116LZ

Bottom

Top

MLP 3.3x3.3

N-Channel Power Trench® MOSFET

100 V, 7.5 A, 103 mΩ

Features

 Max r  Max r  HBM ESD protection level > 3 KV typical (Note 4)  100% UIL Tested

 RoHS Compliant

= 103 mΩ at VGS = 10 V, ID = 3.3 A

DS(on)

= 153 mΩ at VGS = 4.5 V, ID = 2.7 A

DS(on)

General Description

This N-Channel logic Level MOSFETs are produced using Fairchild Semiconductor‘s advanced Power Trench that has been special tailored to minimize the on-state resistance and yet maintain superior switching performance. G-S zener has been added to enhance ESD voltage level.

Application

 DC - DC Conversion

December 2011

process

FDMC86116LZ N-Channel Power Trench

MOSFET

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

, T

STG

Thermal Characteristics

θJC

θJA

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

FDMC86116Z FDMC86116LZ Power 33 13 ’’ 12 mm 3000 units

Drain to Source Voltage 100 V Gate to Source Voltage ±20 V Drain Current -Continuous (Package limited) TC = 25 °C 7.5

-Continuous (Silicon limited) T

-Continuous T

-Pulsed 15 Single Pulse Avalanche Energy (Note 3) 12 mJ Power Dissipation TC = 25 °C 19 Power Dissipation T Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Resistance, Junction to Case 6.5 Thermal Resistance, Junction to Ambient (Note 1a) 53

= 25 °C unless otherwise noted

= 25 °C 9.6

= 25 °C (Note 1a) 3.3

= 25 °C (Note 1a) 2.3

°C/W

www.fairchildsemi.com

Page 2

FDMC86116LZ N-Channel Power Trench

Electrical Characteristics T

= 25 °C unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units

Off Characteristics

ΔBV ΔT

DSS

GSS

DSS

DSS J

Drain to Source Breakdown Voltage ID = 250 μA, VGS = 0 V 100 V Breakdown Voltage Temperature

Coefficient Zero Gate Voltage Drain Current VDS = 80 V, V Gate to Source Leakage Current VGS = ±20 V, V

= 250 μA, referenced to 25 °C 73 mV/°C

= 0 V 1 μA

= 0 V ±10 μA

On Characteristics

GS(th)

ΔV ΔT

DS(on)

GS(th)

Gate to Source Threshold Voltage VGS = VDS, ID = 250 μA 1.0 1.8 2.2 V Gate to Source Threshold Voltage

Temperature Coefficient

Static Drain to Source On Resistance

= 250 μA, referenced to 25 °C -6 mV/°C

= 10 V, ID = 3.3 A 79 103

= 4.5 V, ID = 2.7 A 105 153

= 10 V , ID = 3.3 A, TJ = 125 °C 136 178

Forward Transconductance VDS = 5 V, ID = 3.3 A 11 S

Dynamic Characteristics

iss

oss

rss

Input Capacitance Output Capacitance 45 60 pF Reverse Transfer Capacitance 2.4 5 pF Gate Resistance 0.7 Ω

Switching Characteristics

d(on)

d(off)

g(TOT)

Turn-On Delay Time Rise Time 1.3 10 ns Turn-Off Delay Time 10 20 ns Fall Time 1.4 10 ns Total Gate Charge V Total Gate Charge V Total Gate Charge 0.8 nC Gate to Drain “Miller” Charge 0.7 nC

= 50 V, VGS = 0 V,

f = 1 MHz

= 50 V, ID = 3.3 A,

= 10 V, R

= 0 V to 10 V

= 0 V to 4.5 V 2 3 nC

GEN

= 6 Ω

= 50 V,

= 3.3 A

232 310 pF

4.5 10 ns

46nC

mΩV

MOSFET

Drain-Source Diode Characteristics

= 0 V, IS = 3.3 A (Note 2) 0.85 1.3

NOTES:

is determined with the devi ce m ount ed on a 1 in2 pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR-4 material. R

1. R

θJA

the user's board design.

2. Pulse Test: Pulse Width < 300 μs, Duty cycle < 2.0%.

3. Starting TJ = 25 °C; N-ch: L = 1.0 mH, IAS = 5.0 A, VDD = 90 V, VGS = 10 V.

4. The diode connected between gate and source serves only as protection against ESD. No gate overvoltage rating is implied.

Source to Drain Diode Forward Voltage Reverse Recovery Time

Reverse Recovery Charge 23 38 nC

53 °C/W when mounted on a 1 in2 pad of 2 oz copper

= 0 V, IS = 2 A (Note 2) 0.82 1.2

= 3.3 A, di/dt = 100 A/μs

33 54 ns

is guaranteed by design while R

θJC

125 °C/W when mounted on a minimum pad of 2 oz copper

is determined by

θCA

www.fairchildsemi.com

Page 3

FDMC86116LZ N-Channel Power Trench

012345

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

VGS = 3.5 V

VGS = 4.5 V

VGS = 10 V

VGS = 4 V

VGS = 3 V

, DRAIN CURRENT (A)

, DRAIN TO SOURCE VOLTAGE (V)

03691215

VGS = 3.5 V

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

NORMALIZED

DRAIN TO SOURCE ON-RESISTA NCE

, DRAIN CURRENT (A)

= 4 V

VGS = 4.5 V

VGS = 3 V

= 10 V

-75 -50 -25 0 25 50 75 100 125 150

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

ID = 3.3 A V

= 10 V

NORMALIZED

DRAIN TO SOURCE ON-RESIST ANCE

, JUNCTION TEMPERATURE (

246810

100

200

300

400

500

TJ = 125 oC

ID = 3.3 A

TJ = 25 oC

, GATE TO SOURCE VOLTAGE (V)

DS(on)

DRAIN TO

SOURCE ON-RESISTANCE

(mΩ)

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

123456

TJ = 150 oC

= 5 V

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

TJ = -55 oC

TJ = 25 oC

, DRAIN CURRENT (A)

VGS, GATE TO SOURCE VOLTAGE (V)

0.0 0.2 0.4 0.6 0.8 1.0 1.2

0.001

0.01

0.1

TJ = -55 oC

TJ = 25 oC

TJ = 150 oC

= 0 V

, REVERSE DRAIN CURRENT (A)

VSD, BODY DIODE FORWARD VOLTAGE (V)

Typical Characteristics T

Figure 1.

On Region Characteristics Figure 2.

= 25 °C unless otherwise noted

Norma l i z e d O n - Resistance

vs Drain Current and Gate Voltage

MOSFET

Fig ure 3. Norm a lized On Re s ista n ce

vs Junction Temperature

Figure 5. Transfer Characteristics

Figure 4.

On-Resis tance vs Gate to

Source Voltage

Figure 6.

Source to Drain Diode

Forward Voltage vs Source Current

www.fairchildsemi.com

Page 4

FDMC86116LZ N-Channel Power Trench

012345

ID = 3.3 A

= 75 V

= 25 V

, GATE TO SOURCE VOLTAGE (V)

Qg, GATE CHARGE (nC)

VDD = 50 V

0.1 1 10 100

100

1000

f = 1 MHz V

= 0 V

CAPACITANCE (pF)

VDS, DRAIN TO SOURCE VOLTAGE (V)

rss

oss

iss

0.001 0.01 0.1 1 10

TJ = 100 oC

TJ = 25 oC

TJ = 125 oC

tAV, TIME IN AVALANCHE (ms)

, AVALANCHE CURRENT (A)

0 4 8 12 16 20 24 28 32 36

-9

-8

-7

-6

-5

-4

-3

-2

-1

= 0 V

TJ = 125 oC

TJ = 25 oC

VGS, GATE TO SOURCE VOLTAGE (V)

, GATE LEAKAGE CURRENT (A)

25 50 75 100 125 150

Limited by package

= 4.5 V

θJC

= 6.5 oC/W

= 10 V

, DRAIN CURRENT (A)

, CASE TEMPERATURE (

0.1 1 10 100 400

0.005

0.01

0.1

100 ms

10 s

10 ms

100 us

1 s

1 ms

, DRAIN CURRENT (A)

VDS, DRAIN to SOURCE VOLTAGE (V)

THIS AREA IS LIMITED BY r

DS(on)

SINGLE PULSE T

= MAX RATED

θJA

= 125

C/W

= 25

Typical Characteristics T

Figure 7.

Gate Charge Characteristics

= 25 °C unless otherwise noted

Figure 8.

Capacitance vs Drain

to Source Voltage

MOSFET

Figure 9.

Unc l a m p e d I ndu c t i v e

Switching Capability

F i g u r e 1 1 . M a x i m u m C o n t i n u o u s D r a i n

urrent vs Case Temperature

Figure 10.

Figure 12.

Gate Leakage Current vs Gate to

Source Voltage

Forward Bias Safe

Operating Area

www.fairchildsemi.com

Page 5

FDMC86116LZ N-Channel Power Trench

-4

-3

-2

-1

110

100 1000

0.5

100

500

(PK)

, PEAK TRANSIENT POWER (W)

SINGLE PULSE R

θJA

= 125 oC/W

= 25 oC

t, PULSE WIDTH (sec)

-4

-3

-2

-1

110

100 1000

0.001

0.01

0.1

SINGLE PULSE R

θJA

= 125 oC/W

DUTY CYCLE-DESCENDING ORDER

NORMALIZED THERMAL

IMPEDANCE,

θJA

t, RECTANGULAR PU L SE D U R ATION (sec)

D = 0.5

0.2

0.1

0.05

0.02

0.01

NOTES: DUTY FACTOR: D = t1/t

PEAK TJ = PDM x Z

θJA

x R

θJA

+ T

Typical Characteristics T

Figure 13. Single Pulse Maximum Power Dissipation

= 25 °C unless otherwise noted

MOSFET

Figure 14.

Junction-to-Ambient Transient Thermal Response Curve

www.fairchildsemi.com

Page 6

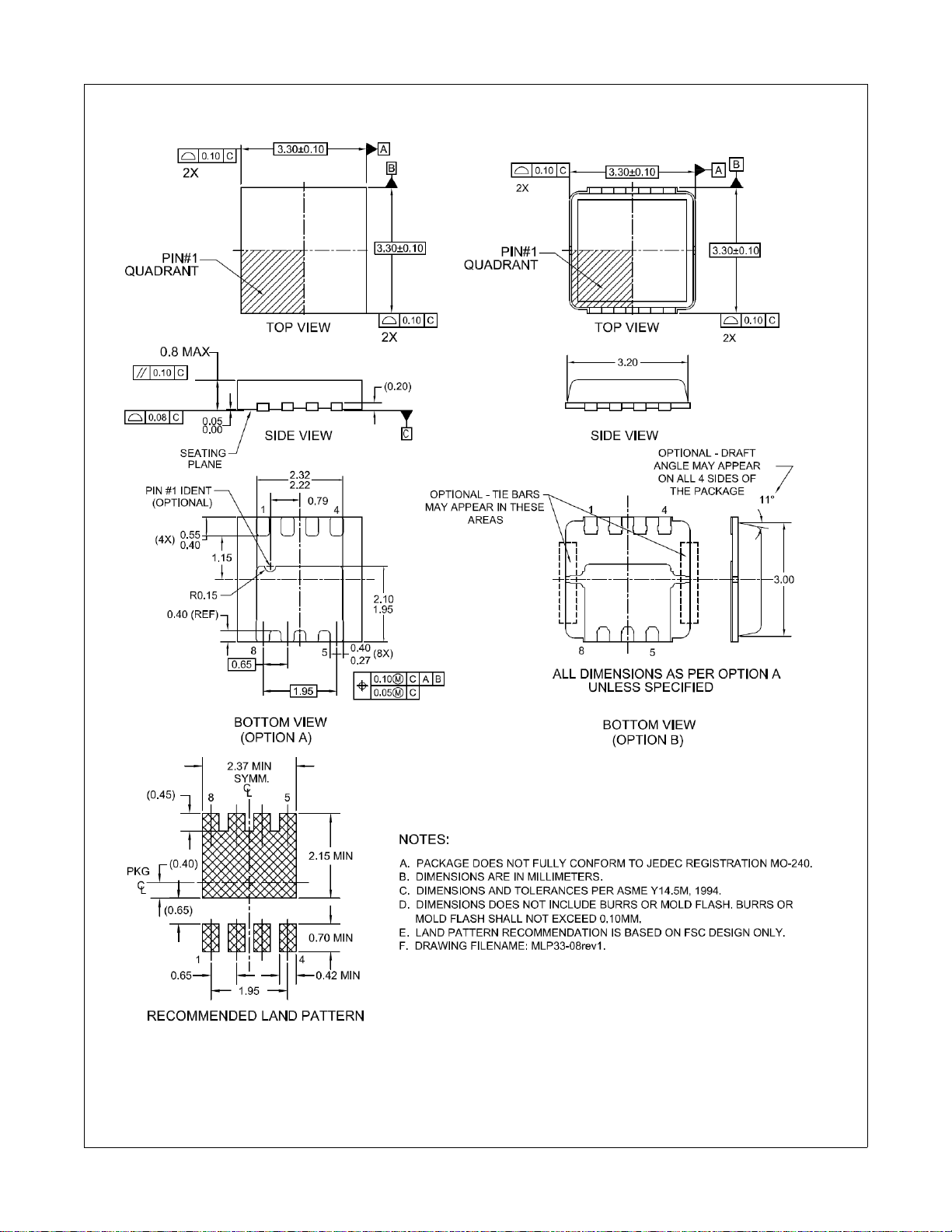

Dimensional Outline and Pad Layout
