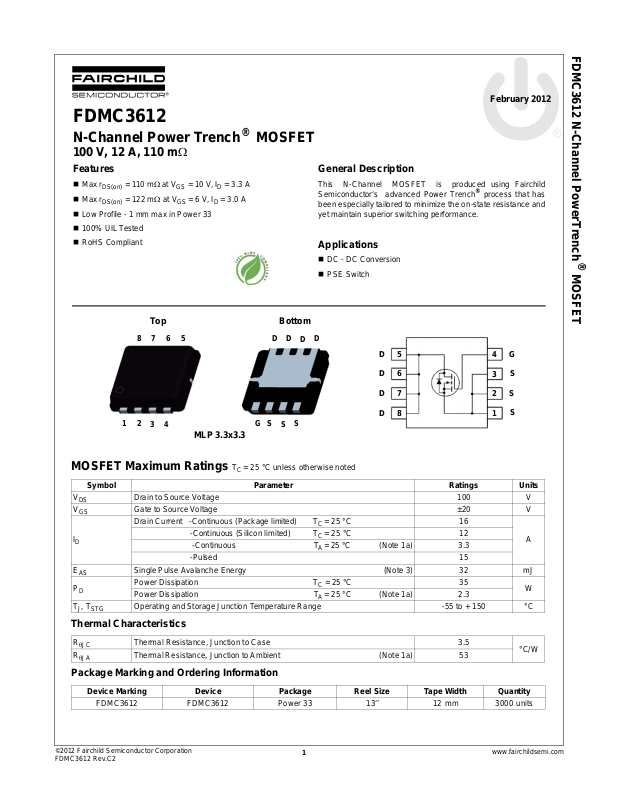

Page 1

FDMC3612

D D

Bottom

Top

MLP 3.3x3.3

N-Channel Power Trench® MOSFET

100 V, 12 A, 110 mΩ

Features

 Max r  Max r  Low Profile - 1 mm max in Power 33

 100% UIL Tested  RoHS Compliant

= 110 mΩ at VGS = 10 V, ID = 3.3 A

DS(on)

= 122 mΩ at VGS = 6 V, ID = 3.0 A

DS(on)

General Description

This N-Channel MOSFET is produced using Fairchild Semiconductor‘s advanced Power Trench been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Applications

 DC - DC Conversion  PSE Switch

February 2012

process that has

FDMC3612 N-Channel PowerTrench

MOSFET

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

, T

STG

Thermal Characteristics

θJC

θJA

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

FDMC3612 FDMC3612 Power 33 13’’ 12

Drain to Source Voltage 100 V Gate to Source Voltage ±20 V Drain Current -Continuous (Package limited) TC = 25 °C 16

-Continuous (Silicon limited) T

-Continuous T

-Pulsed 15 Single Pulse Avalanche Energy (Note 3) 32 mJ Power Dissipation TC = 25 °C 35 Power Dissipation T Operating and Storage Junction Temperature Range -55 to + 150 °C

Thermal Resistance, Junction to Case 3.5 Thermal Resistance, Junction to Ambient (Note 1a) 53

= 25 °C unless otherwise noted

C A

= 25 °C 12 = 25 °C (Note 1a) 3.3

= 25 °C (Note 1a) 2.3

mm 3000 units

°C/W

www.fairchildsemi.com

Page 2

FDMC3612 N-Channel PowerTrench

Electrical Characteristics T

= 25 °C unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units

Off Characteristics

ΔBV ΔT

DSS

GSS

DSS

DSS J

Drain to Source Breakdown Voltage ID = 250 μA, VGS = 0 V 100 V Breakdown Voltage Temperature

Coefficient Zero Gate Voltage Drain Current VDS = 80 V, V Gate to Source Leakage Current VGS = ±20 V, V

= 250 μA, referenced to 25 °C 109 mV/°C

= 0 V 1 μA

= 0 V ±100 nA

On Characteristics

GS(th)

ΔV ΔT

DS(on)

GS(th)

Gate to Source Threshold Voltage VGS = VDS, ID = 250 μA 2.0 2.5 4.0 V Gate to Source Threshold Voltage

Temperature Coefficient

Static Drain to Source On Resistance

= 250 μA, referenced to 25 °C -7 mV/°C

= 10 V, ID = 3.3 A 92 110

= 6 V, ID = 3.0 A 98 122

= 10 V , ID = 3.3 A, TJ = 125 °C 177 212

Forward Transconductance VDS = 10 V, ID = 3.3 A 13 S

Dynamic Characteristics

iss

oss

rss

Input Capacitance Output Capacitance 40 55 pF Reverse Transfer Capacitance 23 35 pF Gate Resistance 1.3 Ω

Switching Characteristics

d(on)

d(off)

g(TOT)

Turn-On Delay Time Rise Time 2.8 10 ns Turn-Off Delay Time 19 34 ns Fall Time 210ns Total Gate Charge V Total Gate Charge V Total Gate Charge 2.3 nC Gate to Drain “Miller” Charge 3.7 nC

= 50 V, VGS = 0 V,

f = 1 MHz

= 50 V, ID = 3.3 A,

= 10 V, R

= 0 V to 10 V

= 0 V to 5 V 7.9 12 nC

= 6 Ω

GEN

VDD = 50 V, I

= 3.3 A

662 880 pF

7.4 15 ns

14.4 21 nC

mΩV

MOSFET

Drain-Source Diode Characteristics

NOTES:

is determined with the device mounted on a 1 in2 pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR-4 material. R

1. R

θJA

the user's board design.

2. Pulse Test: Pulse Width < 300 μs, Duty cycle < 2.0%.

3. Starting TJ = 25 °C; N-ch: L = 1 mH, IAS = 8 A, VDD = 90 V, VGS = 10 V.

Source to Drain Diode Forward Voltage Reverse Recovery Time

Reverse Recovery Charge 37 60 nC

a) 53 °C/W when mounted on a 1 in

V V

pad of 2 oz copper

= 0 V, IS = 3.3 A (Note 2) 0.88 1.2

= 0 V, IS = 2 A (Note 2) 0.77 1.2

= 3.3 A, di/dt = 100 A/μs

θJC

34 55 ns

is guaranteed by design while R

b) 125 °C/W when mounted on a minimum pad of 2 oz copper

is determined by

θCA

www.fairchildsemi.com

Page 3

FDMC3612 N-Channel PowerTrench

012345

VGS = 4 V

VGS = 3.5 V

VGS = 4.5 V

PULSE DURATION = 80 μs DUTY CYCLE = 0.5% MAX

VGS = 6 V

VGS = 10 V

, DRAIN CURRENT (A)

, DRAIN TO SOURCE VOLTAGE (V)

03691215

0.5

1.0

1.5

2.0

2.5

3.0

VGS = 6 V

PULSE DURA TION = 80 μs DUTY CYCLE = 0.5% MAX

NORMALIZED

DRAIN TO SOURCE ON-RESISTANCE

, DRAIN CURRENT (A)

= 4 V

VGS = 4.5 V

VGS = 3.5 V

= 10 V

-75 -50 -25 0 25 50 75 100 125 150

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

2.4

ID = 3.3 A V

= 10 V

NORMALIZED

DRAIN TO SOURCE ON-RESISTANCE

, JUNCTION TEMPERATURE (

246810

100

200

300

400

TJ = 125 oC

ID = 3.3 A

TJ = 25 oC

, GATE TO SOURCE VOL TAG E (V)

DS(on)

DRAIN TO

SOURCE ON-RESISTANCE

(mΩ)

PULSE DURA TION = 80 μs DUTY CYCLE = 0.5% MAX

2.0 2.5 3.0 3.5 4.0 4.5 5.0

TJ = 150 oC

= 5 V

PULSE DURA TION = 80 μs DUTY CYCLE = 0.5% MAX

TJ = -55 oC

TJ = 25 oC

, DRAIN CURRENT (A)

VGS, GATE TO SOURCE VOLTAGE (V)

0.2 0.4 0.6 0.8 1.0 1.2

0.001

0.01

0.1

TJ = -55 oC

TJ = 25 oC

TJ = 150 oC

= 0 V

, REVERSE DRAIN CURRENT (A)

VSD, BODY DIODE FORWARD VOLTAGE (V)

Typical Characteristics T

Figure 1.

On Region Characteristics

= 25 °C unless otherwise noted

Figure 2.

Normali z e d O n - R esistance

vs Drain Current and Gate Voltage

MOSFET

Fig u re 3. Norma l ized O n Res i stan c e

vs Junction Temperature

Figure 5. Transfer Characteristics

Figure 4.

On-R esistance vs Gate to

Source Voltage

Figure 6.

Source to Drain Di ode

Forward Voltage vs Source Current

www.fairchildsemi.com

Page 4

FDMC3612 N-Channel PowerTrench

0246810121416

ID = 3.3 A

VDD = 75 V

= 25 V

, GATE TO SOURCE VOLTAGE (V)

Qg, GATE CHARGE (nC)

VDD = 50 V

0.1 1 10 100

100

1000

f = 1 MHz V

= 0 V

CAPACITANCE (pF)

VDS, DRAIN TO SOURCE VOLTAGE (V)

rss

oss

iss

0.001 0.01 0.1 1 10

TJ = 100 oC

TJ = 25 oC

TJ = 125 oC

tAV, TIME IN AVALANCHE (ms)

, AVALANCHE CURRENT (A)

25 50 75 100 125 150

= 6 V

θJC

= 3.5 oC/W

= 10 V

, DRAIN CURRENT (A)

, CASE TEMPERATURE (

0.1 1 10 100 500

0.001

0.01

0.1

1 s

100 μs

10 ms

10 s

100 ms

1 ms

, DRAIN CURRENT (A)

VDS, DRAIN to SOURCE VOLTAGE (V)

THIS A REA IS LIMITED BY r

DS(on)

SINGLE PULSE T

= MAX RATED

θJA

= 125

C/W

= 25

10-410-310-210

-1

110

100 1000

0.5

100

1000

SINGLE PULSE R

θJA

= 125

C/W

= 25

VGS = 10 V

), PEAK TRANSIENT POWER (W)

t, PULSE WIDTH (sec)

Typical Characteristics T

Figure 7.

Gate Charge Characteristics Figure 8.

= 25 °C unless otherwise noted

MOSFET

Capacitance vs Drain

to Source Voltage

Figure 9.

Unc l a m p e d I ndu c t i v e

Switching Capability

Figure 11. Forward Bias Safe

erating Area

Figure 10.

Ma xim um Continuous Drain

Current vs Case Temperature

Figure 12.

Si ngle P ulse Maxi mum

Power Dissipation

www.fairchildsemi.com

Page 5

FDMC3612 N-Channel PowerTrench

-4

-3

-2

-1

110

100 1000

0.001

0.01

0.1

D = 0.5

0.2

0.1

0.05

0.02

0.01

SINGLE PULSE R

θJA

= 125 oC/W

DUTY CYCLE-DESCENDING ORDER

NORMALIZED THERMAL

IMPEDANCE,

θJA

t, RECTANGULAR PU L SE DURATION (sec)

NOTES: DUTY FACTOR: D = t1/t

PEAK TJ = PDM x Z

θJA

x R

θJA

+ T

Typical Characteristics T

Figure 13. Junction-to-Ambient Transient Thermal Response Curve

= 25 °C unless otherwise noted

MOSFET

www.fairchildsemi.com

Page 6

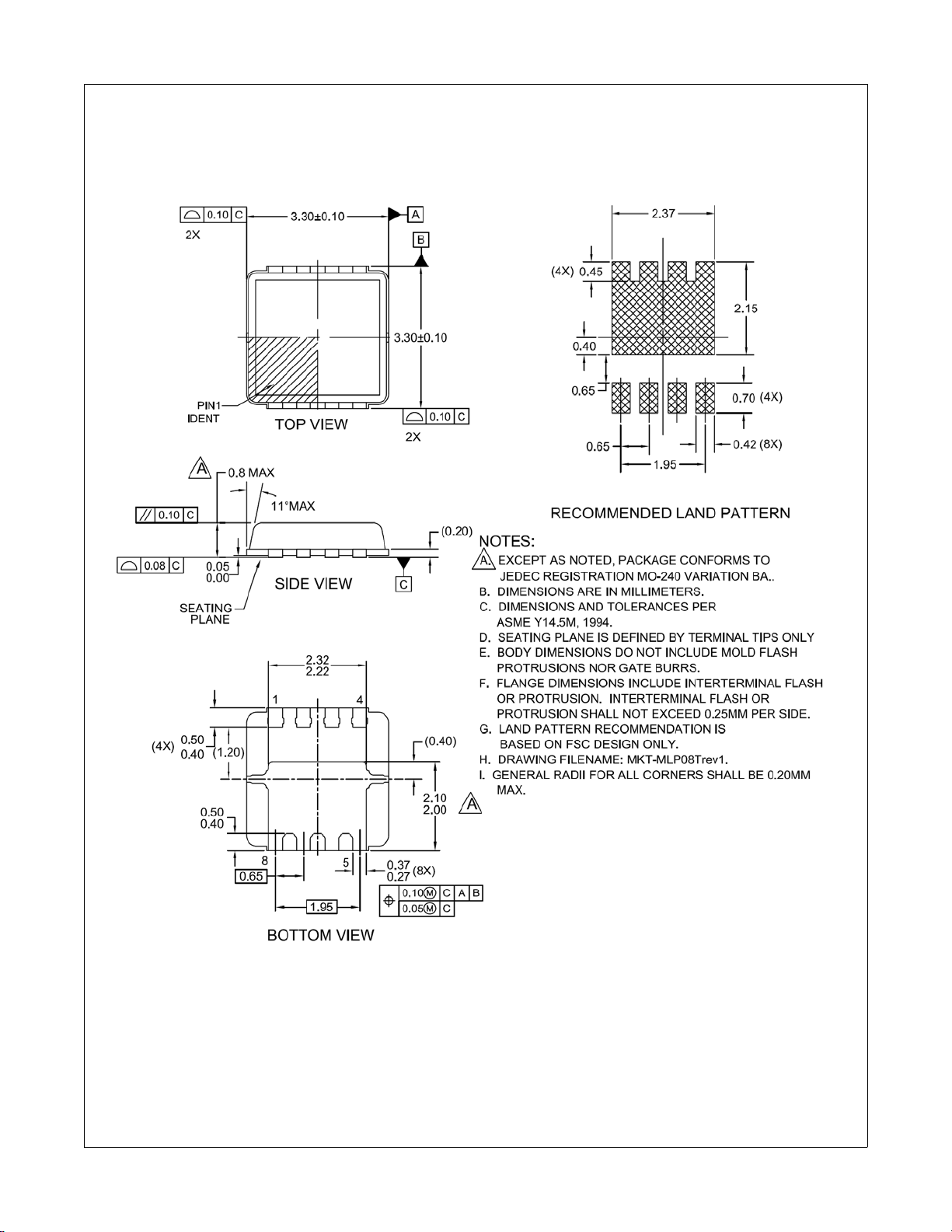

Dimensional Outline and Pad Layout

FDMC3612 N-Channel PowerTrench

MOSFET

www.fairchildsemi.com

Page 7
