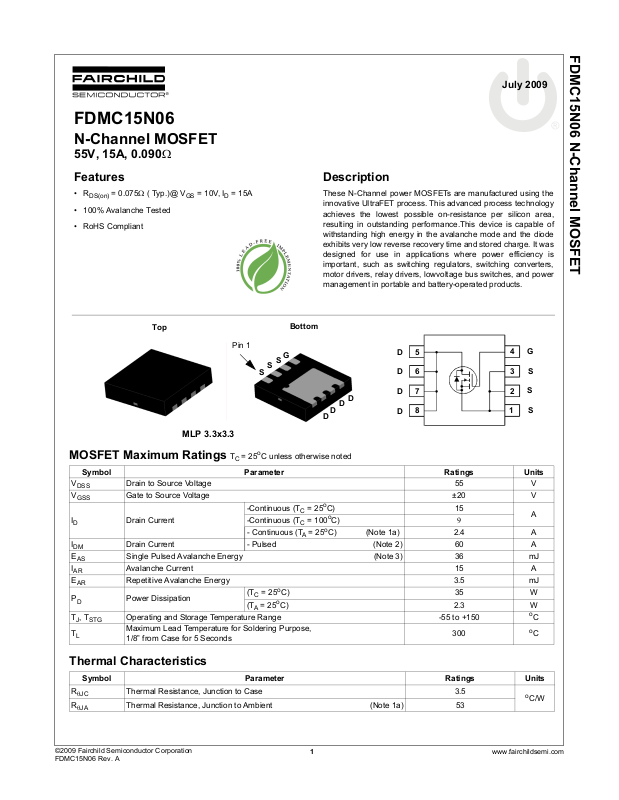

Datasheet FDMC15N06 Datasheet (Fairchild)

FDMC15N06

N-Channel MOSFET

55V, 15A, 0.090Ω

FDMC15N06 N-Channel MOSFET

July 2009

Features

•R

• 100% Avalanche Tested

• RoHS Compliant

= 0.075Ω ( Typ.)@ VGS = 10V, ID = 15A

DS(on)

Top

Pin 1

Bottom

G

S

S

S

Description

These N-Channel power MOSFETs are manufactured using the
innovative UItraFET process. This advanced process technology
achieves the lowest possible on-resistance per silicon area,
resulting in outstanding performance.This device is capable of
withstanding high energy in the avalanche mode and the diode
exhibits very low reverse recovery time and stored charge. It was
designed for use in applications where power efficiency is
important, such as switching regulators, switching converters,
motor drivers, relay drivers, lowvoltage bus switches, and power
management in portable and battery-operated products.

5

D

D

6

D

D

D

D

D

7

8

D

4

3

2

1

MLP 3.3x3.3

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

V

V

I

I

E

I

E

P

T

T

DSS

GSS

D

DM

AS

AR

AR

D

J

L

, T

STG

Drain to Source Voltage 55 V

Gate to Source Voltage ±20 V

Drain Current

Drain Current - Pulsed (Note 2) 60 A

Single Pulsed Avalanche Energy (Note 3) 36 mJ

Avalanche Current 15 A

Repetitive Avalanche Energy 3.5 mJ

Power Dissipation

Operating and Storage Temperature Range -55 to +150
Maximum Lead Temperature for Soldering Purpose,

1/8” from Case for 5 Seconds

= 25oC unless otherwise noted

C

-Continuous (T

-Continuous (T

- Continuous (T

(T

= 25oC) 35 W

C

= 25oC) 2.3 W

(T

A

= 25oC) 15

C

= 100oC) 9

C

= 25oC) (Note 1a) 2.4 A

A

300

G

S

S

S

A

o

C

o

C

Thermal Characteristics

Symbol Parameter Ratings Units

R

θJC

R

θJA

©2009 Fairchild Semiconductor Corporation
FDMC15N06 Rev. A

Thermal Resistance, Junction to Case 3.5

Thermal Resistance, Junction to Ambient (Note 1a) 53

o

C/W

www.fairchildsemi.com1

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

FDMC15N06 FDMC15N06 Power 33 13" 12mm 3000 units

FDMC15N06 N-Channel MOSFET

Electrical Characteristics T

= 25oC unless otherwise noted

C

Symbol Parameter Test Conditions Min. Typ. Max. Units

Off Characteristics

BV
∆BV

∆T

I

DSS

I

GSS

DSS

DSS

J

Drain to Source Breakdown Voltage ID = 250µA, VGS = 0V, TC = 25oC55 - - V
Breakdown Voltage Temperature

Coefficient

Zero Gate Voltage Drain Current

Gate to Body Leakage Current VGS = ±20V, V

I

= 250µA, Referenced to 25oC-70-V/

D

V

= 50V, V

DS

= 45V, TC = 150oC - - 250

V

DS

= 0V - - 1

GS

= 0V - - ±100 nA

DS

On Characteristics

V

GS(th)

R

DS(on)

g

FS

Gate Threshold Voltage VGS = VDS, ID = 250µA2.0-4.0V

Static Drain to Source On Resistance VGS = 10V, ID = 15A - 0.75 0.90 Ω

Forward Transconductance VDS = 20V, ID = 15A - 5 -S

Dynamic Characteristics

C

C

C

Q

Q

Q

iss

oss

rss

g(tot)

gs

gd

Input Capacitance

Output Capacitance - 97 130 pF

Reverse Transfer Capacitance - 28 42 pF

= 25V, VGS = 0V

V

DS

f = 1MHz

Total Gate Charge at 10V

V

= 30V,ID = 15A

Gate to Source Gate Charge - 1.7 - nC

Gate to Drain “Miller” Charge - 3.6 - nC

DS

V

= 10V

GS

(Note 4)

- 265 350 pF

- 8.8 11.5 nC

Switching Characteristics

t

d(on)

t

r

t

d(off)

t

f

Turn-On Delay Time

Turn-On Rise Time - 36.5 83 ns

Turn-Off Delay Time - 22.5 55 ns

Turn-Off Fall Time - 22 54 ns

= 30V, ID = 15A

V

DD

= 25Ω

R

G

(Note 4)

-9.529ns

µA

o

C

Drain-Source Diode Characteristics

I

S

I

SM

V

SD

t

rr

Q

rr

Notes:
1: R

is determined with the device mounted on a 1 in2 pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR-4 material. R

θJA

the user's board design.

2: Repetitive Rating: Pulse width limited by maximum junction temperature
3: L = 1mH, I

4: Essentially Independent of Operating Temperature Typical Characteristics

5: ISD ≤ 15A, di/dt ≤ 200A/µs, VDD ≤ 40V, Starting TJ = 25°C

FDMC15N06 Rev. A

Maximum Continuous Drain to Source Diode Forward Current - - 15 A

Maximum Pulsed Drain to Source Diode Forward Current - - 60 A

Drain to Source Diode Forward Voltage V

Reverse Recovery Time

Reverse Recovery Charge - 35 - nC

a. 53 °C/W when mounted on

2

a 1 in

pad of 2 oz co pper

= 8.5A, RG = 25Ω, Starting TJ = 25°C

AS

= 0V, I

GS

V

= 0V, I

GS

dI

/dt = 100A/µs (Note 5)

F

= 15A - - 1.25 V

SD

= 15A

SD

2

-30-ns

is guaranteed by design while R

θJC

b.125 °C/W when mounted on
a minimum pad of 2 oz copper

is determined by

θCA

www.fairchildsemi.com

Typical Performance Characteristics

Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics

50

V
15 V
10 V
8 V
7 V
6 V
5 V

10

GS

= 20 V

50

10

FDMC15N06 N-Channel MOSFET

, Drain Current[A]

D

I

*Notes:

1. 250

µs Pulse Test

= 25oC

2. T

1

0.1 1 5

C

VDS, Drain-Source Voltage[V]

, Drain Current[A]

D

I

1

2345678

150oC

25oC

-55oC

*Notes:

1. V

2. 250

= 20V

DS

µs Pulse Test

VGS, Gate-Source Voltage[V]

Figure 3. On-Resistance Variation vs. Figure 4. Body Diode Forward Voltage

Drain Current and Gate Voltage Variation vs. Source Current

and Temperature

0.25

0.20

0.15

[Ω],

0.10

DS(ON)

R

0.05

Drain-Source On-Resistance

0.00
0 1020304050

ID, Drain Current [A]

VGS = 10V

*Note: TC = 25oC

VGS = 20V

100

150oC

25oC

10

, Reverse Drain Current [A]

S

I

1

0.0 0.5 1.0 1.5 2.0

*Notes:

1. VGS = 0V

2. 250

µs Pulse Test

VSD, Body Diode Forward Voltage [V]

Figure 5. Capacitance Characteristics Figure 6. Gate Charge Characteristics

800

600

400

Capacitances [pF]

200

0

0.1 1 10

FDMC15N06 Rev. A

C

= Cgs + Cgd (Cds = shorted)

iss

C

= Cds + C

oss

C

C

C

rss

oss

C

iss

rss

= C

gd

gd

VDS, Drain-Source Voltage [V]

*Note:

1. V

= 0V

GS

2. f = 1MHz

10

VDS = 11V
V

= 30V

DS

= 44V

V

8

DS

6

4

, Gate-Source Voltage [V]

GS

V

2

0

024681012

*Note: ID = 15A

Qg, Total Gate Charge [nC]

3

www.fairchildsemi.com

Typical Performance Characteristics (Continued)

Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation
vs. Temperature vs. Temperature

1.2

2.5

FDMC15N06 N-Channel MOSFET

1.1

2.0

1.5

1.0

, [Normalized]

DSS

BV

0.9

Drain-Source Breakdown Voltage

0.8

-100 -50 0 50 100 150 200

*Notes:

1. V

2. I

TJ, Junction Temperature [oC]

= 0V

GS

= 250µA

D

, [Normalized]

1.0

DS(on)

R

0.5

Drain-Source On-Resistance

0.0

-100 -50 0 50 100 150 200

*Notes:

1. V

2. I

GS

= 15A

D

= 10V

TJ, Junction Temperature [oC]

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current

100

10

1

Operation in This Area

, Drain Current [A]

is Limited by R

D

I

0.1

0.01

0.1 1 10 100

DS(on)

*Notes:

1. T

= 25oC

C

2. T

= 150oC

J

3. Single Pulse

VDS, Drain-Source Voltage [V]

100ms

100s

1ms

10ms

1s

10s

DC

100µs

vs. Case Temperature

16

12

8

, Drain Current [A]

D

I

4

0

25 50 75 100 125 150

TC, Case Temperature [oC]

Figure 11. Transient Thermal Response Curve

θJA

Z

0.1

IMPEDANCE,

0.01

NORMALIZED THERMAL

0.001

FDMC15N06 Rev. A

2

DUTY CYCLE-DESCENDING ORDER

1

D = 0.5

0.2

0.1

0.05

0.02

0.01

SINGLE PULSE

R

= 125 oC/W

θJA

0.001 0.01 0.1 1 10 100 1000

t, RECTANGULAR PULSE DURATION (sec )

4

www.fairchildsemi.com

Gate Charge Test Circuit & Waveform

Resistive Switching Test Circuit & Waveforms

FDMC15N06 N-Channel MOSFET

FDMC15N06 Rev. A

Unclamped Inductive Switching Test Circuit & Waveforms

5

www.fairchildsemi.com

Peak Diode Recovery dv/dt Test Circuit & Waveforms

g

g

+

+

V

V

DS

DS

_

_

L

LL

Same Type

Same Type

as DU T

as DU T

• dv/dt controlled by R

• dv/dt controlled by R

•ISDcontrolled by pulse period

•ISDcontrolled by pulse period

G

G

V

V

GS

GS

R

R

Driver

Driver

G

G

DUT

DUT

I

I

SD

SD

V

V

DD

DD

FDMC15N06 N-Channel MOSFET

V

V

GS

GS

( D riv e r )

( D riv e r )

I

I

SD

SD

( DUT )

( DUT )

V

V

DS

DS

( DUT )

( DUT )

G ate P ulse W idth

G ate P ulse W idth

G ate P ulse W idth

--------------------------

--------------------------

--------------------------

D =

D =

D =

Gate Pulse Period

Gate Pulse Period

Gate Pulse Period

IFM, B ody Diode Forw ard Current

IFM, B ody Diode Forw ard Current

I

I

RM

RM

Body D iode Reverse Current

Body D iode Reverse Current

Body D iode R ecovery dv/dt

Body D iode R ecovery dv/dt

V

V

SD

SD

Body D iode

Body D iode

e D rop

Forward V olta

Forward V olta

e D rop

di/dt

di/dt

10V

10V

V

V

DD

DD

FDMC15N06 Rev. A

6

www.fairchildsemi.com

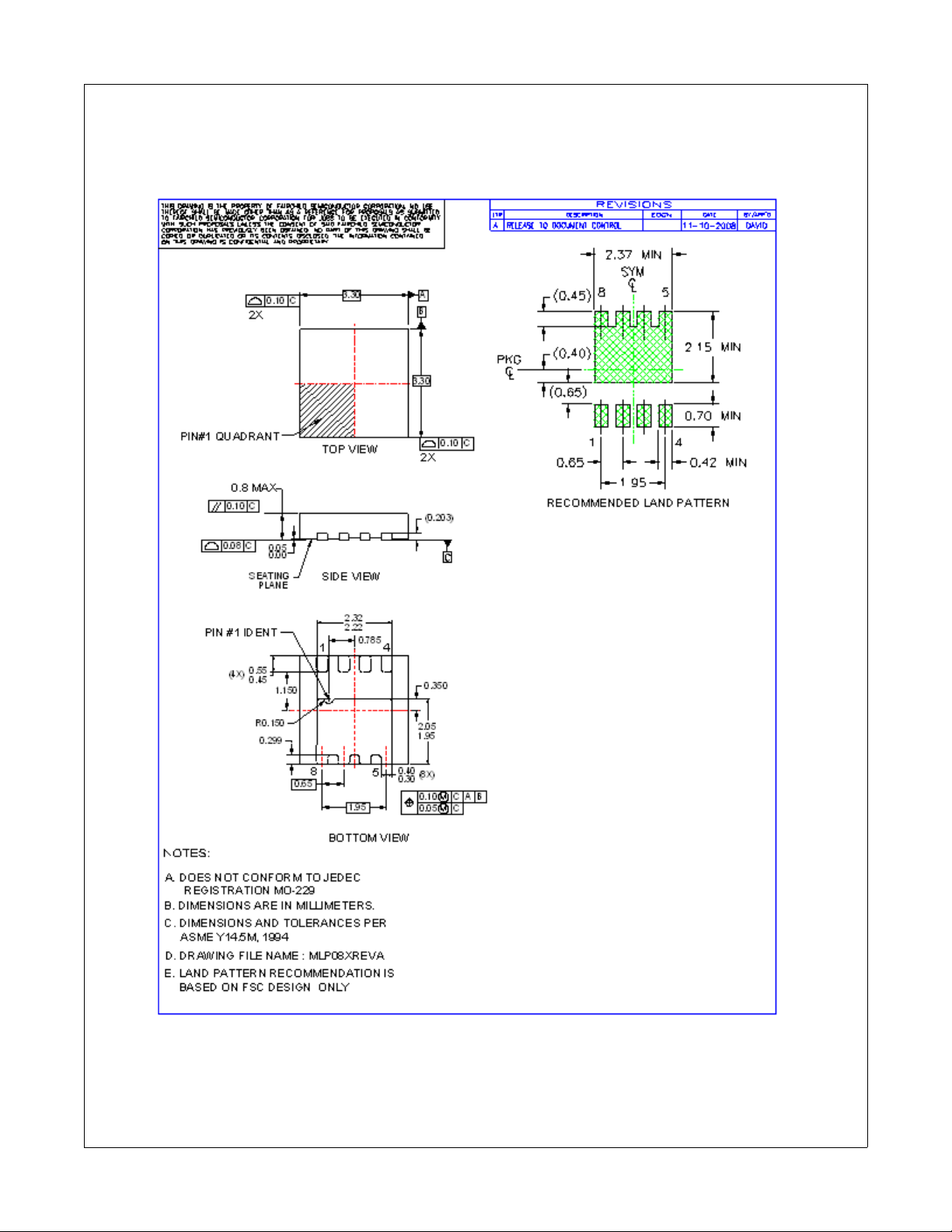

Dimensional Outline and Pad Layout

FDMC15N06 N-Channel MOSFET

FDMC15N06 Rev. A

7

www.fairchildsemi.com

TRADEMARKS

The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not
intended to be an exhaustive list of all such trademarks.

AccuPower™
Auto-SPM™
Build it Now™
CorePLUS™
CorePOWER™
CROSSVOLT™
CTL™
Current Transfer Logic™
EcoSPARK

®

EfficentMax™
EZSWITCH™*

™*

®

®

Fairchild
Fairchild Semiconductor
FACT Quiet Series™

®

FACT

®

FAST

®

FPS™
F-PFS™
FRFET
Global Power ResourceSM
Green FPS™
Green FPS™ e-Series™
Gmax™
GTO™
IntelliMAX™
ISOPLANAR™
MegaBuck™
MICROCOUPLER™
MicroFET™
MicroPak™
MillerDrive™
MotionMax™
Motion-SPM™
OPTOLOGIC
OPTOPLANAR

®

®

®

FastvCore™
FETBench™
FlashWriter

®

*

PDP SPM™
Power-SPM™

PowerTrench
PowerXS™
Programmable Active Droop™
QFET
QS™
Quiet Series™
RapidConfigure™

Saving our world, 1mW/W/kW at a time™
SmartMax™
SMART START™
SPM
STEALTH™
SuperFET™
SuperSOT™-3

®

SuperSOT™-6
SuperSOT™-8
SupreMOS™
SyncFET™
Sync-Lock™

®

®

The Power Franchise

TinyBoost™
TinyBuck™
TinyCalc™

®

™

TinyLogic
TINYOPTO™
TinyPower™
TinyPWM™
TinyWire™

®

TriFault Detect™
TRUECURRENT™*
μSerDes™

®

UHC
Ultra FRFET™
UniFET™
VCX™

®

*

VisualMax™
XS™

* Trademarks of System General Corporation, used under license by Fairchild Semiconductor.

®

DISCLAIMER

FAIRCHILD SEMI CONDUCTOR RESERVES THE RIGH T TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREI N TO IM PROVE
RELIABILITY, FUNCTION, OR DESI GN. FAI RCHILD DO ES NOT ASSUME ANY LI ABILI TY ARISI NG OUT OF THE APPLI CATION OR USE O F ANY PRODUCT OR
CIRCUIT DESCRIBED HEREIN; NEI THER DOES IT CONVEY ANY LICENSE UNDER I TS PATENT RIGHTS, NOR THE RI GHTS OF OTHERS. THESE
SPECIFICATIONS DO NOT EX PAND THE TERMS OF FAIRCHI LD’S WORLDWIDE TERMS AND CONDITIONS, SPECIF ICALLY THE WARRANTY THEREIN,
WHICH COVERS THESE PRODUCTS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRI TICAL COM PONENTS IN L IFE SUPPORT DEVI CES OR SYSTEM S WITHOUT THE
EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEM I CONDUCTOR CORPORATI ON.

As used herein:

1. Li fe support devices or systems are devices or systems which, (a) are
intended for surgical implant into the body or (b) support or sustain life,
and (c) whose failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be reasonably
expected to result in a significant injury of the user.

2. A critical component in any component of a life support, device, or
system whose failure to perform can be reasonably expected to
cause the failure of the life support device or system, or to affect its
safety or effectiveness.

ANTI-COUNTERFEITING POLICY

Fairchild Semiconductor Corporation's Anti-Counterfeiting Policy. Fairchild's Anti-Counterfeiting Policy is also stated on our external website, www.fairchildsemi.com,
under Sales Support.

Counterfeiting of semiconductor parts is a growing problem in the industry. All manufacturers of semiconductor products are experiencing counterfeiting of their parts.
Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failed applications,
and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the proliferation of
counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild parts either directly from Fairchild or from Authorized Fairchild Distributors who are
listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild Distributors are genuine parts, have
full traceability, meet Fairchild's quality standards for handling and storage and provide access to Fairchild's full range of up-to-date technical and product information.
Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address any w arranty issues that may arise. Fairchild w ill not pro vide
any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is committed to combat this global problem and encourage our
customers to do their part in stopping this practice by buying direct or from authorized distributors.

PRODUCT STATUS DEFINITIONS
Definition of Terms

Datasheet Identification Product Status Definition

Advance Information Formative / In Design

Preliminary First Production

No Identification Needed Full Production

Obsolete Not In Production

Datasheet contains the design specifications for product development. Specifications may change in
any manner without notice.

Datasheet contains preliminary data; supplementary data will be published at a later date. Fairchild
Semiconductor reserves the right to make changes at any time without notice to improve design.

Datasheet contains final specifications. Fairchild Semiconductor reserves the right to make changes
at any time without notice to improve the design.

Datasheet contains specifications on a product that is discontinued by Fairchild Semiconductor.
The datasheet is for reference information only.

Rev. I41

© 2008 Fairchild Semiconductor Corporation www.fairchildsemi.com
