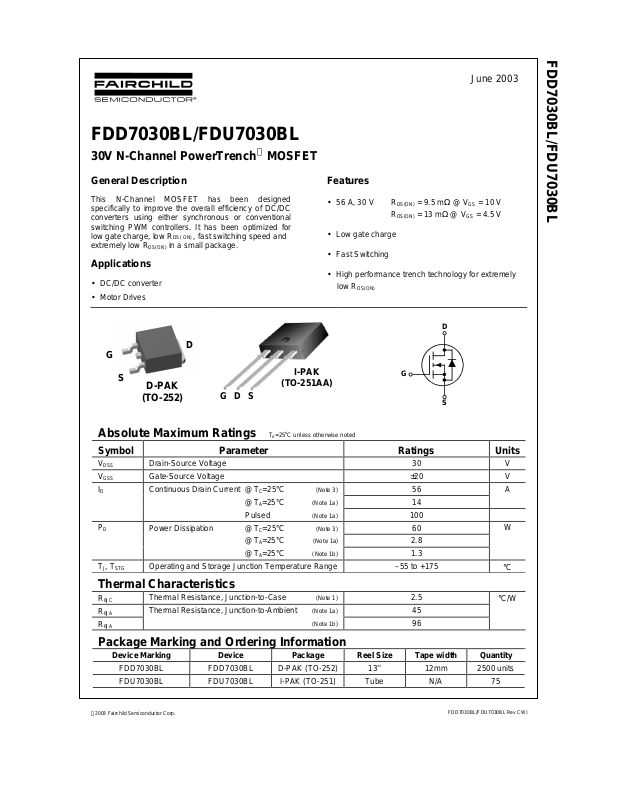

Page 1
FDD7030BL/FDU7030BL
FDD7030BL/FDU7030BL
30V N-Channel PowerTrench MOSFET
June 2003
General Description
This N-Channel MOSFET has been designed
specifically to improve the overall efficiency of DC/DC
converters using either synchronous or conventional
switching PWM controllers. It has been optimized for
low gate charge, low RDS( ON) , fast switching speed and
extremely low R
in a small package.
DS(ON)
Features
• 56 A, 30 V R
R
• Low gate charge
• Fast Switching
= 9.5 mΩ @ VGS = 10 V
DS(ON)
= 13 mΩ @ VGS = 4.5 V
DS(ON)
Applications
• DC/DC converter
• Motor Drives
• High performance trench technology for extremely
low R
DS(ON)
D
D
G
S
D-PAK
TO-252
(TO-252)
G D S
Absolute Maximum Ratings T
I-PAK
(TO-251AA)
=25oC unless otherwise noted
A
G
S
Symbol Parameter Ratings Units
V
DSS
V
GSS
I
D
P
D
TJ, T
STG
Drain-Source Voltage 30 V
Gate-Source Voltage
Continuous Drain Current @TC=25°C (Note 3) 56 A
@TA=25°C (Note 1a) 14
Pulsed (Note 1a) 100
Power Dissipation @TC=25°C (Note 3) 60
@TA=25°C (Note 1a) 2.8
@TA=25°C (Note 1b) 1.3
Operating and Storage Junction Temperature Range –55 to +175
±20
V
W
°C
Thermal Characteristics
R
θJC
R
θJA
R
θJA
Thermal Resistance, Junction-to-Case (Note 1) 2.5
Thermal Resistance, Junction-to-Ambient (Note 1a) 45
Package Marking and Ordering Information
Device Marking Device Package Reel Size Tape width Quantity
FDD7030BL FDD7030BL D-PAK (TO-252) 13’’ 12mm 2500 units
FDU7030BL FDU7030BL I-PAK (TO-251) Tube N/A 75
2003 Fairchild Semiconductor Corp.
(Note 1b)
°C/W
96
FDD7030BL/FDU7030BL Rev CW)
Page 2
Electrical Characteristics T
FDD7030BL/FDU7030BL
= 25°C unless otherwise noted
A
Symbol Parameter Test Conditions Min Typ Max Units
Drain-Source Avalanche Ratings (Note 2)
E
AS
I
AS
Drain-Source Avalanche Energy Single Pulse, VDD = 15 V, ID= 14A 174 mJ
Drain-Source Avalanche Current 14 A
Off Characteristics
BV
DSS
∆BVDSS
∆T
I
DSS
I
GSS
Drain–Source Breakdown Voltage
Breakdown Voltage Temperature
Coefficient
J
VGS = 0 V, ID = 250 µA
ID = 250 µA,Referenced to 25°C
Zero Gate Voltage Drain Current VDS = 24 V, VGS = 0 V 1
Gate–Body Leakage
VGS = ±20 V, VDS = 0 V ±100
30 V
26
mV/°C
µA
nA
On Characteristics (Note 2)
V
GS(th)
∆VGS(th)
∆T
R
DS(on)
I
D(on)
g
FS
Gate Threshold Voltage
Gate Threshold Voltage
Temperature Coefficient
J
Static Drain–Source
On–Resistance
VDS = VGS, ID = 250 µA
ID = 250 µA,Referenced to 25°C
VGS = 10 V, ID = 14 A
VGS = 4.5 V, ID = 12 A
VGS = 10 V, ID = 14 A,TJ=125°C
1 1.8 3 V
–5
7.5
9.6
11
On–State Drain Current VGS = 10 V, VDS = 5 V 50 A
Forward Transconductance VDS = 10 V, ID = 14 A 56 S
9.5
13
16
mV/°C
mΩ
Dynamic Characteristics
C
iss
C
oss
C
rss
R
G
Input Capacitance 1425 pF
Output Capacitance 350 pF
Reverse Transfer Capacitance
Gate Resistance V
VDS = 15 V, V
f = 1.0 MHz
= 15 mV, f = 1.0 MHz 1.3 pF
OSC
GS
= 0 V,
150 pF
Switching Characteristics (Note 2)
t
t
t
t
Q
Q
Q
d(on)
r
d(off)
f
g
gs
gd
Turn–On Delay Time 11 20 ns
Turn–On Rise Time 9 18 ns
Turn–Off Delay Time 31 50 ns
Turn–Off Fall Time
VDD = 15 V, ID = 1 A,
VGS = 10 V, R
GEN
= 6 Ω
13 23 ns
Total Gate Charge 14 20 nC
Gate–Source Charge 4 nC
Gate–Drain Charge
VDS = 15V, ID = 14 A,
VGS = 5 V
5 nC
FDD7030BL/FDU7030BL Rev. B(W)
Page 3
Electrical Characteristics T
FDD7030BL/FDU7030BL
= 25°C unless otherwise noted
A
Symbol Parameter Test Conditions Min Typ Max Units
Drain–Source Diode Characteristics and Maximum Ratings
I
S
V
SD
t
rr
Q
rr
Notes:
1. R
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of
θJA
the drain pins. R
Maximum Continuous Drain–Source Diode Forward Current 2.3 A
Drain–Source Diode Forward Voltage
Diode Reverse Recovery Time 23 nS
VGS = 0 V, IS = 2.3 A (Note 2)
IF = 14 A, diF/dt = 100 A/µs
Diode Reverse Recovery Charge
is guaranteed by design while R
θJC
is determined by the user's board design.
θCA
a) R
= 45°C/W when mounted on a
θJA
1in2 pad of 2 oz copper
0.74 1.2 V
11 nC
b) R
= 96°C/W when mounted
θJA
on a minimum pad.
2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%
P
3. Maximum current is calculated as:
where PD is maximum power dissipation at TC = 25°C and R
R
D
DS(ON)
Scale 1 : 1 on letter size paper
is at T
DS(on)
and VGS = 10V. Package current limitation is 21A
J(max)
FDD7030BL/FDU7030BL Rev. B(W)
Page 4
Typical Characteristics
, DRAIN CURRENT (A)
DRAIN-SOURCE ON-RESISTANCE
FDD7030BL/FDU7030BL
60
VGS=10V
50
6.0V
40
30
20
D
I
10
0
0 0.5 1 1.5 2 2.5
4.0V
VDS, DRAIN-SOURCE VOLTAGE (V)
3.5V
4.5V
3.0V
3
VGS = 3.0V
2.8
2.6
2.4
2.2
2
1.8
, NORMALIZED
1.6
DS(ON)
1.4
R
1.2
1
0.8
0 10 20 30 40 50 60
4.0V
4.5V
ID, DRAIN CURRENT (A)
5.0V
Figure 1. On-Region Characteristics Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage
1.8
ID = 14A
1.6
VGS = 10V
1.4
1.2
, NORMALIZED
1
DS(ON)
R
0.8
DRAIN-SOURCE ON-RESISTANCE
0.6
-50 -25 0 25 50 75 100 125 150 175
TJ, JUNCTION TEMPERATURE (oC)
0.03
0.025
0.02
0.015
, ON-RESISTANCE (OHM)
0.01
DS(ON)
R
TA = 25oC
0.005
2 4 6 8 10
TA = 125oC
VGS, GATE TO SOURCE VOLTAGE (V)
6.0V
10V
ID = 7A
Figure 3. On-Resistance Variation
60
VDS = 5V
50
40
30
20
, DRAIN CURRENT (A)
D
I
10
0
1.5 2 2.5 3 3.5 4
Figure 5. Transfer Characteristics Figure 6. Body Diode Forward Voltage Variation
withTemperature
TA =125oC
25oC
-55oC
VGS, GATE TO SOURCE VOLTAGE (V)
Figure 4. On-Resistance Variation with
Gate-to-Source Voltage
100
VGS = 0V
10
1
0.1
0.01
0.001
, REVERSE DRAIN CURRENT (A)
S
I
0.0001
0 0.2 0.4 0.6 0.8 1 1.2
TA = 125oC
25oC
-55oC
VSD, BODY DIODE FORWARD VOLTAGE (V)
with Source Current and Temperature
FDD7030BL/FDU7030BL Rev. B(W)
Page 5
Typical Characteristics
, GATE-SOURCE VOLTAGE (V)
, DRAIN CURRENT (A)
r(t), NORMALIZED EFFECTIVE TRANSIENT
SINGLE PULSE
0.02
0.2
FDD7030BL/FDU7030BL
10
ID = 14A
8
6
4
2
GS
V
0
0 5 10 15 20 25 30
Qg, GATE CHARGE (nC)
VDS = 10V
20V
15V
2000
1600
C
ISS
1200
800
C
CAPACITANCE (pF)
OSS
400
C
0
0 5 10 15 20 25 30
RSS
VDS, DRAIN TO SOURCE VOLTAGE (V)
Figure 7. Gate Charge Characteristics Figure 8. Capacitance Characteristics
1000
100
R
LIMIT
DS(ON)
10
1
VGS = 10V
SINGLE PULSE
D
I
0.1
R
= 96oC/W
θ
JA
TA = 25oC
0.01
0.01 0.1 1 10 100
VDS, DRAIN-SOURCE VOLTAGE (V)
10s
DC
100ms
1s
1ms
10ms
100µs
100
80
60
40
20
P(pk), PEAK TRANSIENT POWER (W)
0
0.01 0.1 1 10 100 1000
t1, TIME (sec)
f = 1MHz
VGS = 0 V
SINGLE PULSE
R
= 96°C/W
θ
JA
TA = 25°C
Figure 9. Maximum Safe Operating Area Figure 10. Single Pulse Maximum
1
D = 0.5
0.1
0.01
THERMAL RESISTANCE
0.001
0.001 0.01 0.1 1 10 100 1000
Power Dissipation
R
(t) = r(t) * R
θJA
R
θ
0.1
0.05
0.0
JA
P(pk)
TJ - TA = P * R
Duty Cycle, D = t1 / t
t1, TIME (sec)
= 96 °C/W
t
1
t
2
θJA
(t)
θJA
2
Figure 11. Transient Thermal Response Curve
Thermal characterization performed using the conditions described in Note 1b.
Transient thermal response will change depending on the circuit board design.
FDD7030BL/FDU7030BL Rev. B(W)
