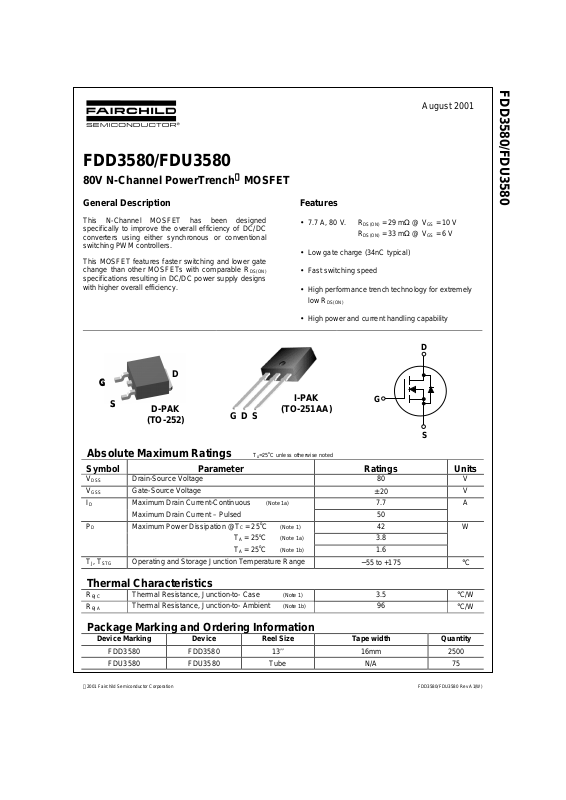

FDD3580/FDU3580

80V N-Channel PowerTrench



MOSFET

General Description

This N-Channel MOSFET has been designed
specifically to improve the overall efficiency of DC/DC
converters using either synchronous or conventional
switching PWM controllers.

This MOSFET features faster switching and lower gate
change than other MOSFETs with comparable R

DS(ON)

specifications resulting in DC/DC power supply desi gns
with higher overall efficiency.

Features

• 7.7 A, 80 V. R

DS(ON)

= 29 mΩ @ VGS = 10 V

R

DS(ON)

= 33 mΩ @ VGS = 6 V

• Low gate charge (34nC typical)

• Fast switching speed

• High performance trench technology for extremely

low R

DS(ON)

• High power and current handling capability

S

D

G

Absolute Maximum Ratings T

A

=25oC unless otherwise noted

Symbol Parameter Ratings Units

V

DSS

Drain-Source Voltage 80 V

V

GSS

Gate-Source Voltage

± 20

V

Maximum Drain Current-Continuous (Note 1a) 7.7I

D

Maximum Drain Current – Pulsed 50

A

Maximum Power Dissipation @TC = 25oC (Note 1) 42

TA = 25oC (Note 1a) 3.8

P

D

TA = 25oC (Note 1b) 1.6

W

TJ, T

STG

Operating and Storage Junction Temperature Range

−55 to +175 °C

Thermal Characteristics

R

θJC

Thermal Resistance, Junction-to- Case (Note 1) 3.5

°C/W

R

θJA

Thermal Resistance, Junction-to- Ambient (Note 1b) 96

°C/W

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity

FDD3580 FDD3580 13’’ 16mm 2500
FDU3580 FDU3580 Tube N/A 75

FDD3580

/

FDU3580

G DS

I-PAK

(TO-251AA)

G

S

D

TO-252

D-PAK

(TO-

G

S

D

TO-252

D-PAK

(TO-252)

FDD3580/FDU3580 Rev. A1(W)

Electrical Characteristics T

A

= 25°C unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units
Drain-Source Avalanche Ratings (Note 2)

W

DSS

Single Pulse Drain-Source
Avalanche Energy

VDD = 40 V, ID = 7.7 A 245 mJ

I

AR

Maximum Drain-Source
Avalanche Current

7.7 A

Off Characteristics

BV

DSS

Drain–Source Breakdown Voltage

V

GS

= 0 V, ID = 250 µA

80 V

∆BVDSS
∆T

J

Breakdown Voltage Temperature
Coefficient

I

D

= 250 µA, Referenced to 25°C

79

mV/°C

I

DSS

Zero Gate Voltage Drain Current VDS = 64 V, VGS = 0 V 1

µA

I

GSSF

Gate–Body Leakage, Forward VGS = 20 V, VDS = 0 V 100 nA

I

GSSR

Gate–Body Leakage, Reverse VGS = –20 V, VDS = 0 V –100 nA

On Characteristics (Note 2)

V

GS(th)

Gate Threshold Voltage

V

DS

= VGS,ID = 250 µA

22.54 V

∆VGS(th)
∆T

J

Gate Threshold Voltage
Temperature Coefficient

I

D

= 250 µA, Referenced to 25°C −7mV/°C

R

DS(on)

Static Drain–Source
On–Resistance

VGS = 10 V, ID = 7.7 A
V

GS

= 6 V, ID = 7.2 A

V

GS

= 10 V, ID = 7.7 A,TJ=125°C

23
24
37

29
33
50

mΩ

I

D(on)

On–State Drain Current VGS = 10 V, VDS = 10 V 30 A

g

FS

Forward Transconductance VDS = 10 V, ID = 7.7 A 28 S

Dynamic Characteristics

C

iss

Input Capacitance 1760 pF

C

oss

Output Capacitance 144 pF

C

rss

Reverse Transfer Capacitance

V

DS

= 40 V, V

GS

= 0 V,

f = 1.0 MHz

72 pF

Switching Characteristics (Note 2)

t

d(on)

Turn–On Delay Time 13 23 ns

t

r

Turn–On Rise Time 8 16 ns

t

d(off)

Turn–Off Delay Time 34 54 ns

t

f

Turn–Off Fall Time

V

DD

= 40 V, ID = 1 A,

V

GS

= 10 V, R

GEN

= 6 Ω

16 29 ns

Q

g

Total Gate Charge 35 49 nC

Q

gs

Gate–Source Charge 6.2 nC

Q

gd

Gate–Drain Charge

V

DS

= 40V, ID = 7.7 A,

V

GS

= 10 V,

8.6 nC

Drain–Source Diode Characteristics and Maximum Ratings

I

S

Maximum Continuous Drain–Source Diode Forward Current 3.2 A

V

SD

Drain–Source Diode Forward
Voltage

VGS = 0 V, IS = 3.2 A (Note 2) 0.73 1.2 V

Notes:

1. R

θJA

is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of

the drain pins. R

θJC

is guaranteed by design while R

θCA

is determined by the user's board design.

a) R

θJA

= 40 °C/W when mounted on a

1in2 pad of 2 oz copper.

Scale 1 : 1 on letter size paper

b) R

θJA

= 96 °C/W when mounted

on a minimum pad.

2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%

FDD3580

/

FDU3580

FDD3580/FDU3580 Rev. A1(W)

Typical Characteristics

0

10

20

30

40

50

60

012345

V

DS

, DRAIN-SOURCE VOLTAGE (V)

I

D

, DRAIN CURRENT (A)

6.0V

4.0V

VGS = 10V

5.0V

4.5V

0.8

1

1.2

1.4

1.6

1.8

2

0 102030405060

I

D

, DRAIN CURRENT (A)

R

DS(ON)

, NORMALIZED

DRAIN-SOURCE ON-RESISTANCE

VGS = 4.0V

5.0V

4.5V

10V

6.0V

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with

Drain Current and Gate Voltage.

0.4

0.7

1

1.3

1.6

1.9

2.2

2.5

-50 -25 0 25 50 75 100 125 150 175

T

J

, JUNCTION TEMPERATURE (oC)

R

DS(ON)

, NORMALIZED

DRAIN-SOURCE ON-RESISTANC

E

ID = 7.7A

V

GS

= 10V

0.01

0.02

0.03

0.04

0.05

0.06

246810

V

GS

, GATE TO SOURCE VOLTAGE (V)

R

DS(ON)

, ON-RESISTANCE (OHM )

ID =3.8A

TA = 125oC

TA = 25oC

Figure 3. On-Resistance Variation with

Temperature.

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

0

10

20

30

40

50

60

23456

V

GS

, GATE TO SOURCE VOLTAGE (V)

I

D

, DRAIN CURRENT (A)

TA = 125oC

-55oC

VDS = 5V

25oC

0.0001

0.001

0.01

0.1

1

10

100

0 0.2 0.4 0.6 0.8 1 1.2

V

SD

, BODY DIODE FORWARD V O LTAGE (V)

I

S

, REVERSE DRAIN CURRENT (A

)

TA = 125oC

25oC

-55oC

VGS = 0V

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation

with Source Current and Temperature.

FDD3580

/

FDU3580

FDD3580/FDU3580 Rev. A1(W)

Typical Characteristics

0

2

4

6

8

10

0 5 10 15 20 25 30 35

Q

g

, GATE CHARGE (nC)

V

GS

, GATE-SOURCE VOLTAGE (V)

ID = 7.7A VDS = 10V

20V

40V

0

400

800

1200

1600

2000

2400

0 20406080

VDS, DRAIN TO SOURCE VOLTAGE (V)

CAPACITANCE (pF)

C

ISS

C

RSS

C

OSS

f = 1MHz
V

GS

= 0 V

Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.

0.01

0.1

1

10

100

1000

0.1 1 10 100

V

DS

, DRAIN-SOURCE VOLTAGE (V)

I

D

, DRAIN CURRENT (A)

DC

1s

100ms

R

DS(ON)

LIMIT

VGS = 10V

SINGLE PULSE

R

θ

JA

= 96oC/W

T

A

= 25oC

10ms

1ms

100µs

10s

0

20

40

60

80

100

0.01 0.1 1 10 100 1000

t1, TIME (sec)

P(pk), PEAK TRANSIENT POWER (W)

SINGLE PULSE

R

θ

JA

= 96°C/W

T

A

= 25°C

Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum

Power Dissipation.

0.001

0.01

0.1

1

0.0001 0.001 0.01 0.1 1 10 100 1000

r(t), NORMALIZED EFFECTIVE

TRANSIENT THERMAL RESISTANC

E

R

θJA

(t) = r(t) + R

θJA

R

θJA

= 96 °C/W

T

J

- TA = P * R

θ

JA

(t)

Duty Cycle, D = t

1

/ t

2

P(pk)

t

1

t

2

SINGLE PULSE

0.01

0.02

0.05

0.1

0.2

D = 0.5

Figure 11. Transient Thermal Response Curve.

Thermal characterization performed using the conditions described in Note 1b.
Transient thermal response will change depending on the circuit board design.

FDD3580

/

FDU3580
