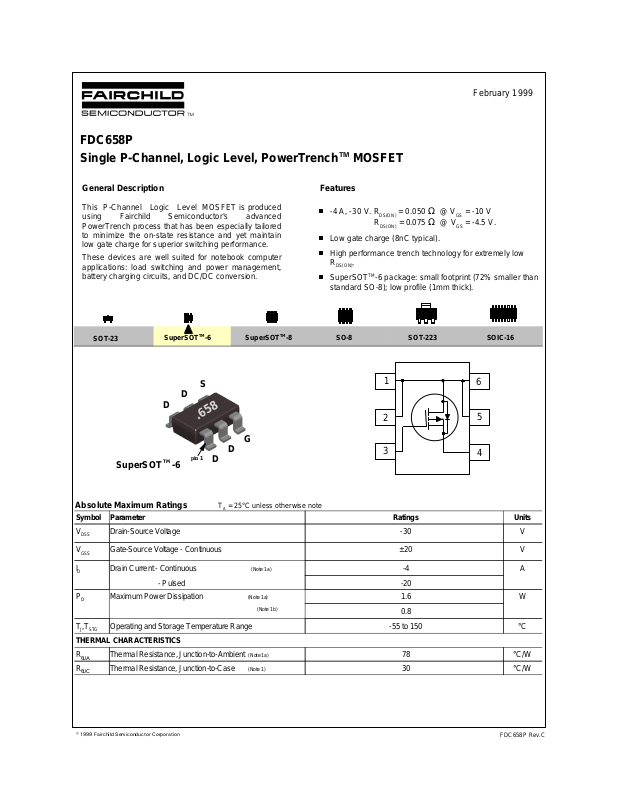

FDC658P Single P-Channel, Logic Level, PowerTrenchTM MOSFET

General Description Features

February 1999

This P-Channel Logic Level MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

These devices are well suited for notebook computer applications: load switching and power management, battery charging circuits, and DC/DC conversion.

SOT-23

SuperSOTTM-8

S

D

.658

G

D

1

SuperSOT -6

TM

D

-4 A, -30 V. R R

= 0.050 Ω @ VGS = -10 V

DS(ON)

= 0.075 Ω @ VGS = -4.5 V.

DS(ON)

Low gate charge (8nC typical). High performance trench technology for extremely low

R

.

DS(ON)

SuperSOTTM-6 package: small footprint (72% smaller than standard SO-8); low profile (1mm thick).

SO-8

SOT-223SuperSOTTM-6

1

2

3

SOIC-16

6

5

4

Absolute Maximum Ratings T

Symbol Parameter Ratings Units

V V I

D

Drain-Source Voltage -30 V

DSS

Gate-Source Voltage - Continuous ±20 V

GSS

Drain Current - Continuous (Note 1a) -4 A

= 25°C unless otherwise note

A

- Pulsed -20

P

TJ,T

THERMAL CHARACTERISTICS

R R

Maximum Power Dissipation (Note 1a) 1.6 W

D

θ

θJC

STG

JA

(Note 1b)

0.8

Operating and Storage Temperature Range -55 to 150 °C

Thermal Resistance, Junction-to-Ambient (Note 1a) 78 °C/W Thermal Resistance, Junction-to-Case (Note 1) 30 °C/W

FDC658P Rev.C

ELECTRICAL CHARACTERISTICS (T

= 25°C unless otherwise noted)

A

Symbol Parameter Conditions Min Typ Max Units OFF CHARACTERISTICS

BV

∆BV

I

DSS

Drain-Source Breakdown Voltage VGS = 0 V, ID = -250 µA -30 V Breakdown Voltage Temp. Coefficient ID = -250 µA, Referenced to 25 oC -22 mV/oC

/∆T

J

Zero Gate Voltage Drain Current VDS = -24 V, V

= 0 V -1 µA

GS

TJ = 55 oC -10 µA

I

GSSF

I

GSSR

Gate - Body Leakage, Forward VGS = 20 V, VDS = 0 V 100 nA Gate - Body Leakage, Reverse VGS = -20 V, V

= 0 V -100 nA

DS

ON CHARACTERISTICS (Note 2)

V

∆V

R

GS(th)

DS(ON)

Gate Threshold Voltage VDS = VGS, ID = -250 µA -1 -1.7 -3 V Gate Threshold VoltageTemp.Coefficient ID = -250 µA, Referenced to 25 oC 4.1 mV/oC

/∆T

J

Static Drain-Source On-Resistance VGS = -10 V, ID = -4.0 A 0.041 0.05

TJ = 125 oC 0.058 0.08

VGS = -4.5 V, ID = -3.4 A 0.06 0.075 I g

D(on)

FS

On-State Drain Current VGS = -10 V, VDS = -5 V -20 A Forward Transconductance VDS = -5V, ID = -4 A 9 S

DYNAMIC CHARACTERISTICS

C

iss

C

oss

C

rss

Input Capacitance VDS = -15 V, VGS = 0 V, 750 pF Output Capacitance f = 1.0 MHz 220 pF Reverse Transfer Capacitance 100 pF

SWITCHING CHARACTERISTICS (Note 2)

t t

t t Q Q Q

D(on)

r

D(off)

f

g

gs

gd

Turn - On Delay Time VDD = -15 V, ID = -1 A, 12 22 ns Turn - On Rise Time

VGS = -10 V, R

GEN

= 6 Ω

Turn - Off Delay Time 24 38 ns Turn - Off Fall Time 16 27 ns Total Gate Charge VDS = -15 V, ID = -4.0 A, 8 12 nC Gate-Source Charge VGS = -5 V 1.8 nC Gate-Drain Charge 3 nC

DRAIN-SOURCE DIODE CHARACTERISTICS

I

S

V

SD

Notes:

1. R

is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. R

JA

θ

by design while R

a. 78oC/W when mounted on a 1 in b. 156oC/W when mounted on a minimum pad of 2oz Cu on FR-4 board.

2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%.

Continuous Source Diode Current -1.3 A Drain-Source Diode Forward Voltage VGS = 0 V, IS = -1.3 A (Note 2) -0.76 -1.2 V

is determined by the user's board design.

CA

θ

2

pad of 2oz Cu on FR-4 board.

14 25 ns

is guaranteed

JC

θ

Ω

FDC658P Rev.C

Typical Electrical Characteristics

20

V = -10V

GS

-6.0V

16

12

-4.5V

-4.0V

-3.5V

8

4

D

- I , DRAIN-SOURCE CURRENT (A) 0

0 1 2 3 4

-V , DRAIN-SOURCE VOLTAGE (V)

DS

-3.0V

Figure 1. On-Region Characteristics.

1.6

I = -4A

D

V = -10V

GS

1.4

1.2

1

DS(ON)

R , NORMALIZED

0.8

DRAIN-SOURCE ON-RESISTANCE

0.6

-50 -25 0 25 50 75 100 125 150 T , JUNCTION TEMPERATURE (°C)

J

2

1.8

V = -4.0 V

GS

1.6

-4.5V

1.4

1.2

DS(on)

R , NORMALIZED

1

DRAIN-SOURCE ON-RESISTANCE

0.8 0 4 8 12 16 20

-5.0V

-6.0V

-8.0V

-10.0V

- I , DRAIN CURRENT (A)

D

Figure 2. On-Resistance Variation with

Drain Current and Gate Voltage.

0.16

0.12

0.08

0.04

DS(ON)

R , ON-RESISTANCE (OHM)

0

2 4 6 8 10

-V , GATE TO SOURCE VOLTAGE (V)

GS

T = 125°C

J

T = 25°C

J

I = -2A

D

Figure 3. On-Resistance Variation

with Temperature.

20

V = -5V

DS

16

12

8

D

- I , DRAIN CURRENT (A)

4

0

1 2 3 4 5 6

Figure 5. Transfer Characteristics.

T = -55°C

J

125°C

25°C

-V , GATE TO SOURCE VOLTAGE (V)

GS

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

20

V = 0V

10

GS

T = 125°C

1

0.1

0.01

0.001

S

-I , REVERSE DRAIN CURRENT (A)

0.0001 0 0.2 0.4 0.6 0.8 1 1.2 1.4

J

25°C

-55°C

-V , BODY DIODE FORWARD VOLTAGE (V)

SD

Figure 6. Body Diode Forward Voltage

Variation with Source Current

and Temperature.

FDC658P Rev.C

Typical Electrical Characteristics (continued)

10

I = -4A

D

8

6

4

2

GS

-V , GATE-SOURCE VOLTAGE (V) 0

0 3 6 9 12 15

Q , GATE CHARGE (nC)

g

V = -5V

DS

-15V

Figure 7. Gate Charge Characteristics.

80 30

10

RDS(ON) LIMIT

3 1

0.3

V = -10V

0.1

D

-I , DRAIN CURRENT (A)

0.03

0.01

GS

SINGLE PULSE

R = 156°C/W

JA

θ

T = 25°C

A

0.1 0.2 0.5 1 2 5 10 20 50

-V , DRAIN-SOURCE VOLTAGE (V)

DS

1ms

10ms

100ms

1s

DC

-10V

100us

3000

1000

300

CAPACITANCE (pF)

100

f = 1 MHz V = 0 V

GS

30

0.1 0.3 1 3 7 15 30

-V , DRAIN TO SOURCE VOLTAGE (V)

DS

C

Figure 8. Capacitance Characteristics.

5

4

3

2

POWER (W)

1

0

0.01 0.1 1 10 100 300 SINGLE PULSE TIME (SEC)

SINGLE PULSE

R =156°C/W

JA

θ

T = 25°C

A

iss

oss

rss

Figure 9. Maximum Safe Operating Area.

1

D = 0.5

0.5

0.2

0.1

0.05

0.02

r(t), NORMALIZED EFFECTIVE

0.01

TRANSIENT THERMAL RESISTANCE

0.005

0.00001 0.0001 0.001 0.01 0.1 1 10 100 300

0.05

0.02

0.01 Single Pulse

t , TIME (sec)

1

Figure 10. Single Pulse Maximum Power

Dissipation.

R (t) = r(t) * R

JA

θ

R = 156°C/W

JA

θ

P(pk)

t

1

t

2

T - T = P * R (t)

J

A

Duty Cycle, D = t / t

Figure 11. Transient Thermal Response Curve.

Transient thermal response will change depending on the circuit board design.

Thermal characterization performed using the conditions described in Note 1b.

JA

θ

JA

θ

1 2

FDC658P Rev.C

SuperSOTTM-6 Tape and Reel Data and Package Dimensions

SSOT-6 Packaging Configuration: Figure 1.0

Customize Label

Antistatic Cover Tape

Conductive Embossed

Carrier Tape

F63TNR Label

SSOT-6 Packaging Information

Packaging Option Packaging type

Qty per Reel/Tube/Bag 3,000 10,000 Reel Size Box Dimension (mm) 184x187x47 343x343x64 Max qty per Box 9,000 20,000 Weight per unit (gm) 0.0158 0.0158 Weight per Reel (kg) 0.1440 0.4700

Note/Comments

184mm x

Pizza Box for

184mm x 47mm

Standard Option

SSOT-6 Tape Leader Configuration: Figure 2.0

Standard

(no flow code)

TNR

7” Dia

F63TNR Label

D87Z

TNR

13”

F63TNR Label

Trailer

Pin 1

SSOT-6 Unit Orientation

343mm x 342mm x 64mm

Intermediate box for D87Z Option

F63TNR Label sample

LOT: CBVK741B019

FSID: FDC633N

D/C1: D9842 QTY1: SPEC REV: QARV: D/C2: QTY2: CPN:

631

631631

631

F63TNR Label

QTY: 3000

SPEC:

(F63TNR)2

Carrier

Tape

Cover Tape

 1998 Fairchild Semiconductor Corporation

Trailer Tape 160mm minimum

Components

Leader Tape 390mm minimum

December 1998, Rev. B

SuperSOTTM-6 Tape and Reel Data and Package Dimensions, continued

SSOT-6 Embossed Carrier Tape Configuration: Figure 3.0

T

K0

Wc

B0

P0

D0

E1

F

W

E2

Tc

A0

P1

D1

User Direction of Feed

Dimensions are in millimeter

Pkg type

SSOT-6

(8mm)

Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481

SSOT-6 Reel Configuration: Figure 4.0

A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc

3.23

3.18

8.0

1.55

1.00

1.75

6.25

+/-0.10

+/-0.3

+/-0.05

+/-0.125

+/-0.10

rotational and lateral movement requirements (see sketches A, B, and C).

B0

20 deg maximum component rotation

Sketch A (Side or Front Sectional View)

Component Rotation

3.50

min

+/-0.05

20 deg maximum

A0

Sketch B (Top View)

Component Rotation

W1 Measured at Hub

4.0 +/-0.1

Typical component cavity center line

Typical component center line

Dim A

Max

4.0 +/-0.1

1.37

0.255 +/-0.150

5.2 +/-0.3

0.5mm maximum

+/-0.10

0.5mm maximum

Sketch C (Top View)

Component lateral movement

0.06 +/-0.02

Dim A

max

Tape Size

8mm 7” Dia

8mm 13” Dia

Reel

Option

Dim N

See detail AA

7” Diameter Option

B Min

Dim C

13” Diameter Option

See detail AA

W2 max Measured at Hub

W3

Dim D

min

DETAIL AA

Dimensions are in inches and millimeters

Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)

7.00

0.059

177.8

13.00 330

1.5

0.059

1.5

512 +0.020/-0.008 13 +0.5/-0.2

0.795

2.165550.331 +0.059/-0.000

20.2

0.795

4.00

20.2

100

8.4 +1.5/0

0.331 +0.059/-0.000

8.4 +1.5/0

0.567

14.4

0.567

14.4

0.311 – 0.429

7.9 – 10.9

0.311 – 0.429

7.9 – 10.9

December 1998, Rev. B

[

]

SuperSOTTM-6 Tape and Reel Data and Package Dimensions, continued

SuperSOT-6 (FS PKG Code 31, 33)

1 : 1

Scale 1:1 on letter size paper

Dimensions shown below are in:

Part Weight per unit (gram): 0.0158

inc hes

m illime te rs

 1998 Fairchild Semiconductor Corporation

September 1998, Rev. A
