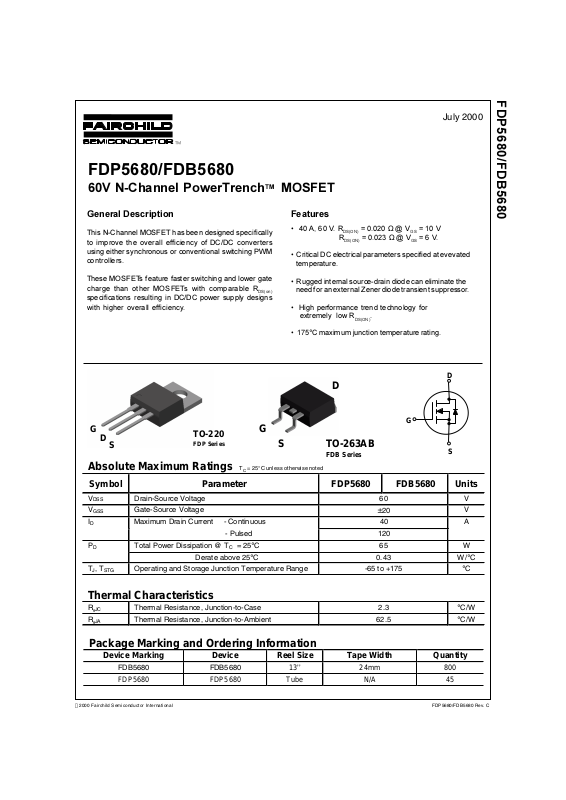

Page 1
FDP5680/FDB5680
FDP5680/FDB5680 Rev. C
July 2000
2000 Fairchild Semiconductor International
FDP5680/FDB5680
60V N-Channel PowerTrench
TM
MOSFET
Features
40 A, 60 V. R
DS(ON)
= 0.020 Ω @ VGS = 10 V
R
DS(ON)
= 0.023 Ω @ VGS = 6 V.
Critical DC electrical parameters specified at evevated
temperature.
Rugged internal source-drain diode can eliminate the
need for an external Zener diode transient suppressor.
High performance trend technology for
extremely low R
DS(ON)
.
175°C maximum junction temperature rating.
Absolute Maximum Ratings T
C
= 25°C unless otherwise noted
Symbol Parameter
FDP5680 FDB5680
Units
V
DSS
Drain-Source Voltage 60 V
V
GSS
Gate-Source Voltage
±20
V
I
D
Maximum Drain Current - Continuous 40 A
- Pulsed 120
Total Power Dissipation @ TC = 25°C
65 W
P
D
Derate above 25°C
0.43
W/°C
TJ, T
STG
Operating and Storage Junction Temperature Range -65 to +175
°C
Thermal Characteristics
R
θ
JC
Thermal Resistance, Junction-to-Case 2.3
°C/W
R
θ
JA
Thermal Resistance, Junction-to-Ambient 62.5
°C/W
Package Marking and Ordering Information
Device Marking Device Reel Size Tape Width Quantity
FDB5680 FDB5680 13’’ 24mm 800
FDP5680 FDP5680 Tube N/A 45
S
D
G
S
G
D
TO-220
FDP Series
D
G
S
TO-263AB
FDB Series
General Description
This N-Channel MOSFET has been designed specifically
to improve the overall efficiency of DC/DC converters
using either synchronous or conventional switching PWM
controllers.
These MOSFETs feature faster switching and lower gate
charge than other MOSFETs with comparable R
DS(on)
specifications resulting in DC/DC power supply designs
with higher overall efficiency.
Page 2
FDP5680/FDB5680
FDP5680/FDB5680 Rev. C
Electrical Characteristics
Tc = 25°C unless otherwise noted
Symbol Parameter Test Conditions Min Typ Max Units
Drain-Source Avalanche Ratings
(Note1)
W
DSS
Single Pulse Drain-Source
Avalanche Energy
VDD = 30 V, ID = 40A 90 mJ
I
AR
Maximum Drain-Source Av al anche Current 40 A
Off Characteristics
BV
DSS
Drain-Source Breakdown Voltage VGS = 0 V, ID = -250 µA60 V
∆
BV
DSS
∆
T
J
Breakdown Voltage Temperature
Coefficient
ID = -250
A, Referenced to 25°C60 mV/
°
C
I
DSS
Zero Gate Voltage Drain Current VDS = 48 V, VGS = 0 V 1
µ
A
I
GSSF
Gate-Body Leakage Current,
Forward
VGS = 20 V, VDS = 0 V 100 nA
I
GSSR
Gate-Body Leakage Current,
Reverse
VGS = -20 V, VDS = 0 V -100 nA
On Characteristics
(Note 1)
V
GS(th)
Gate Threshold Voltage VDS = VGS, ID = 250 µA22.54V
∆
V
GS(th)
∆
T
J
Gate Threshold Voltage
Temperature Coefficient
ID = -250
A, Referenced to 25°C-6.4 mV/
°
C
R
DS(on)
Static Drain-Source
On-Resistance
VGS = 10 V, ID = 20 A,
V
GS
= 10 V, ID = 20 A,TJ = 125°C
V
GS
= 6 V, ID = 19 A
0.016
0.022
0.018
0.020
0.035
0.023
Ω
I
D(on)
On-State Drain Current VGS = 10 V, VDS = 5 V 20 A
g
FS
Forward Transconductance VDS = 5 V, ID = 20 A 43 S
Dynamic Characteristics
C
iss
Input Capacitance 1850 pF
C
oss
Output Capacitance 230 pF
C
rss
Reverse Transfer Capacitance
V
DS
= 25 V, VGS = 0 V,
f = 1.0 MHz
95 pF
Switching Characteristics
(Note 1)
t
d(on)
Turn-On Delay Time 15 27 ns
t
r
Turn-On Rise Time 9 18 ns
t
d(off)
Turn-Off Delay Time 35 56 ns
t
f
Turn-Off Fall Time
V
DD
= 30 V, ID = 1 A,
V
GS
= 10 V, R
GEN
= 6
Ω
16 26 ns
Q
g
Total Gate Charge 33 46 nC
Q
gs
Gate-Source Charge 6.5 nC
Q
gd
Gate-Drain Charge
V
DS
= 30 V, ID = 20 A
V
GS
= 10 V
7.5 nC
Drain-Source Diode Characteristics and Maximum Ratings
I
S
Maximum Continuous Drain-Source Diode Forward Current
(Note 1)
40 A
V
SD
Drain-Source Diode Forward
Voltage
VGS = 0 V, IS = 20 A
(Note 1)
0.9 1.2 V
Note:
1. Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%
Page 3
FDP5680/FDB5680
FDP5680/FDB5680 Rev. C
Typical Characteristics
Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage.
Figure 3. On-Resistance Variation
with Temperature.
Figure 4. On-Resistance Variation
with Gate-to-Source Voltage.
Figure 5. Transfer Characteristics.
Figure 6. Body Diode Forward Voltage
Variation with Source Current
and Temperature.
0
10
20
30
40
50
60
70
80
01234
V
DS
, DRAIN-SOURCE VOLTAGE (V)
I
D
, DRAIN-SOURCE CURRENT (A)
VGS = 10V
4.0V
5.0V
4.5V
6.0V
0.8
1
1.2
1.4
1.6
1.8
2
2.2
0 1020304050607080
I
D
, DRAIN CURRENT (A)
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
VGS = 4.0V
10V
5.0V
7.0V
4.5V
6.0V
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
-50 -25 0 25 50 75 100 125 150
T
J
, JUNCTION TEMPERATURE (oC)
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTA N C E
ID = 20A
V
GS
= 10V
0
0.01
0.02
0.03
0.04
0.05
345678910
V
GS
, GATE TO SOURCE VOLTAGE (V)
R
DS(ON)
, ON-RESISTANCE (OHM)
ID = 20A
TA = 125oC
TA = 25oC
0
10
20
30
40
50
60
23456
V
GS
, GATE TO SOURCE VOLTAGE (V)
I
D
, DRAIN CURRENT (A)
TA = -55oC
25oC
125oC
VDS = 5V
0.0001
0.001
0.01
0.1
1
10
100
00.20.40.60.811.21.4
V
SD
, BODY DIODE FORWARD VOLTAGE (V)
I
S
, REVERSE DRAIN CURRENT (A)
TA = 125oC
25oC
-55oC
VGS = 0V
Page 4
FDP5680/FDB5680
FDP5680/FDB5680 Rev. C
Typical Characteristics (continued)
Figure 7. Gate-Charge Characteristics. Figure 8. Capacitance Characteristics.
Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum
Power Dissipation.
Figure 11. Transient Thermal Response Curve.
0
2
4
6
8
10
0 5 10 15 20 25 30 35
Q
g
, GATE CHARGE (nC)
V
GS
, GATE-SOURCE VOLTAGE (V)
ID = 20A VDS = 10V
20V
30V
0
500
1000
1500
2000
2500
0 102030405060
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
CAPACITANCE (pF)
C
ISS
C
RSS
C
OSS
f = 1MHz
V
GS
= 0 V
0
300
600
900
1200
1500
0.0001 0.001 0.01 0.1 1 10
SINGLE PULSE TIME (SEC)
POWER (W)
SINGLE PULSE
R
θJC
= 2.3oC/W
T
C
= 25oC
0.1 0.5 1 10 100 1000 3000 10000
0.03
0.05
0.1
0.2
0.3
0.5
1
t ,TIME (ms)
TRANSIENT THERMAL RESISTANCE
Single Pulse
D = 0.5
0.1
0.05
0.02
0.2
Duty Cycle, D = t /t
1 2
R (t) = r(t) * R
R =2.3 °C/W
θ
JC
θ
JC
θ
JC
T - T = P * R (t)
θ
JCC
J
P(pk)
t
1
t
2
r
(
t
)
,
N
O
R
M
A
L
I
Z
E
D
E
F
F
E
C
T
I
V
E
1
0.1
1
10
100
1000
0.1 1 10 100
DC
10s
1s
100ms
10ms
1ms
RDS(ON) LIMIT
VGS = 10V
SINGLE PULSE
R
θ
JC
= 2.3oC/W
T
C
= 25oC
I
D
DRAIN CURRENT (A)
VDS, DRAIN-SOURCE VOLTAGE (V)
Page 5

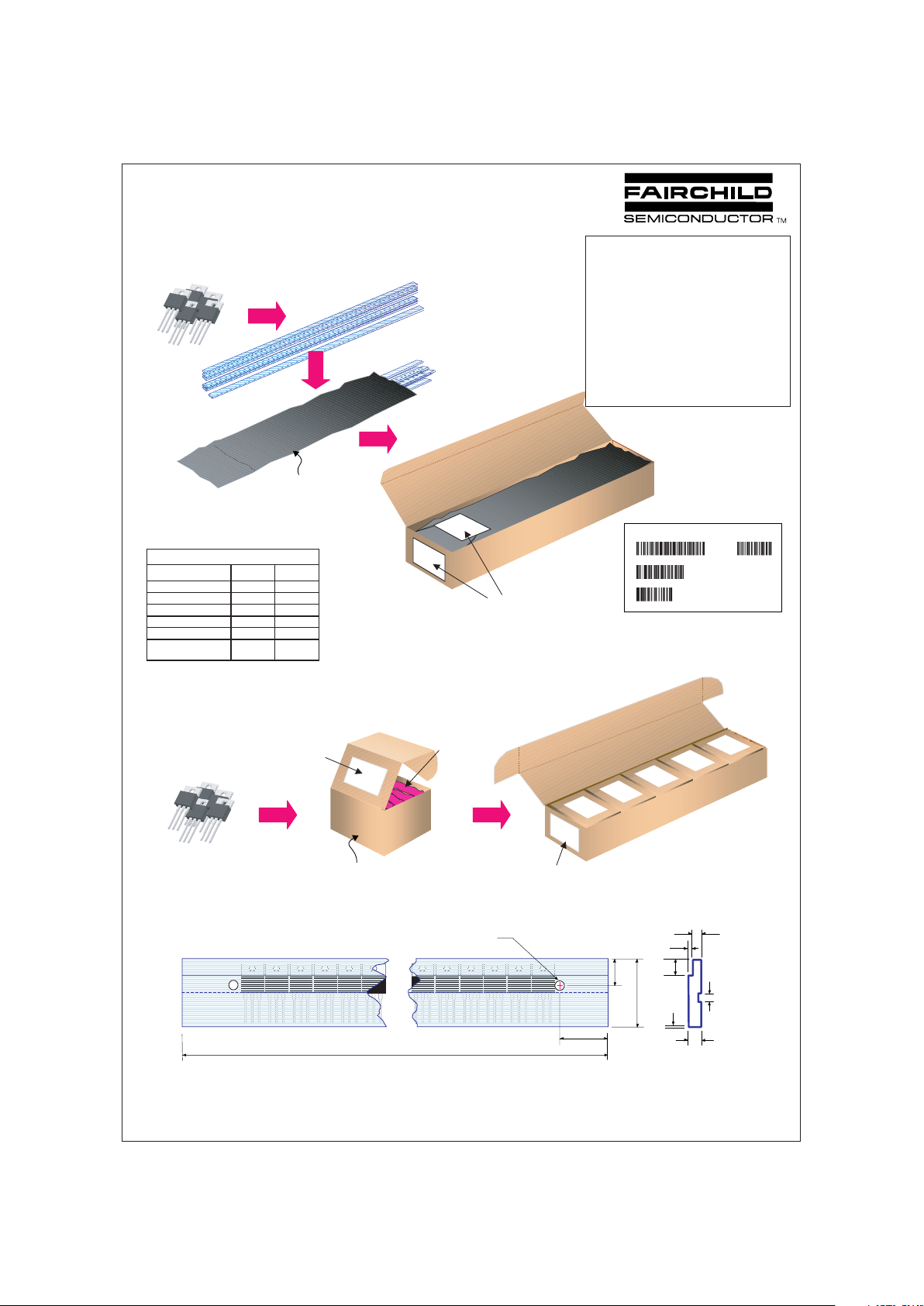

TO-220 Tape and Reel Data and Package Dimensions
August 1999, Rev. B
0.165
TO-220 Tube Packing
Configuration: Figure 1.0
Note/Comments
Packaging Option
TO-220 Packaging Information
Stan dard
(no fl ow code )
Packaging type
Rail/Tube
Qty per Tube/Box
45
Box Dimension (mm)
530x130x83
Max qty per Box
1,080
Weight per unit (gm)
1.4378
S62Z
BULK
300
114x102x51
1,500
1.4378
FSCINT Label
FSCINT Label
114mm x 102mm x 51mm
EO70 Immediate Box
530mm x 130mm x 83mm
Intermediate box
300 units per
EO70 box
5 EO70 boxes per per
Intermed iate Box
1500 units maximum
quantity per intermediate box
Anti-static
Bubbl e Sheets
45 units per Tube
Conduct ive Plastic Bag
1080 units maximum
quantity per box
530mm x 130mm x 83mm
Intermediate box
FSCINT Label
12 Tubes per Bag
Note: All dim ensi ons are in inches
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
1.300
±.015
0.080
0.032
±.003
0.275
0.275
0.160
0.800
0.450
±.030
20.000
+0.031
-0.065
0.123
+0.001
-0.003
LOT:
CBVK741B019
NSID:
FDP7060
D/C1:
D9842
SPEC REV:
B2
SPEC:
QTY:
1080
QA REV:
FAIRCHILD SEMICONDUCTOR CORPORATION
HTB:B
(FSCINT)
FSCINT Label sample
TO-220 Tube
Configuration: Figure 4.0
TO-220 Packaging
Information: Figure 2.0
TO-220 bulk Packing
Configuration: Figure 3.0
2 bags per Box
Packaging Description:
TO-220 parts are shipp ed normally in tube. The tub e is
made of PVC plas tic t reated wi th anti -stati c agent .These
tubes in s tandard opt ion are placed in side a di ssipativ e
plastic bag, barcode labeled, and placed in side a box
made of r ecy clab le cor rug ate d pape r. On e bo x co nt ain s
tw o ba gs m ax im um (se e fi g. 1. 0). A nd on e or se ver al o f
these boxes are placed ins ide a labeled shipp ing box
wh ic h c o m es in d i f f er en t si z es de pe ndi n g o n t h e nu m be r
of parts shipped. The other option comes in bulk as
described in the Packagin g In fo rm atio n table. The unit s in
this op tion are plac ed inside a s mall box laid w ith antistatic bu bble sheet. These smaller box es are indiv idually
labeled and plac ed inside a lar ger box (see fig. 3.0).
These larger or int ermediate boxes then w ill be placed
finally ins ide a labeled ship ping box whic h st ill co mes in
diff erent sizes depending on the num b er of units shipped.
Page 6

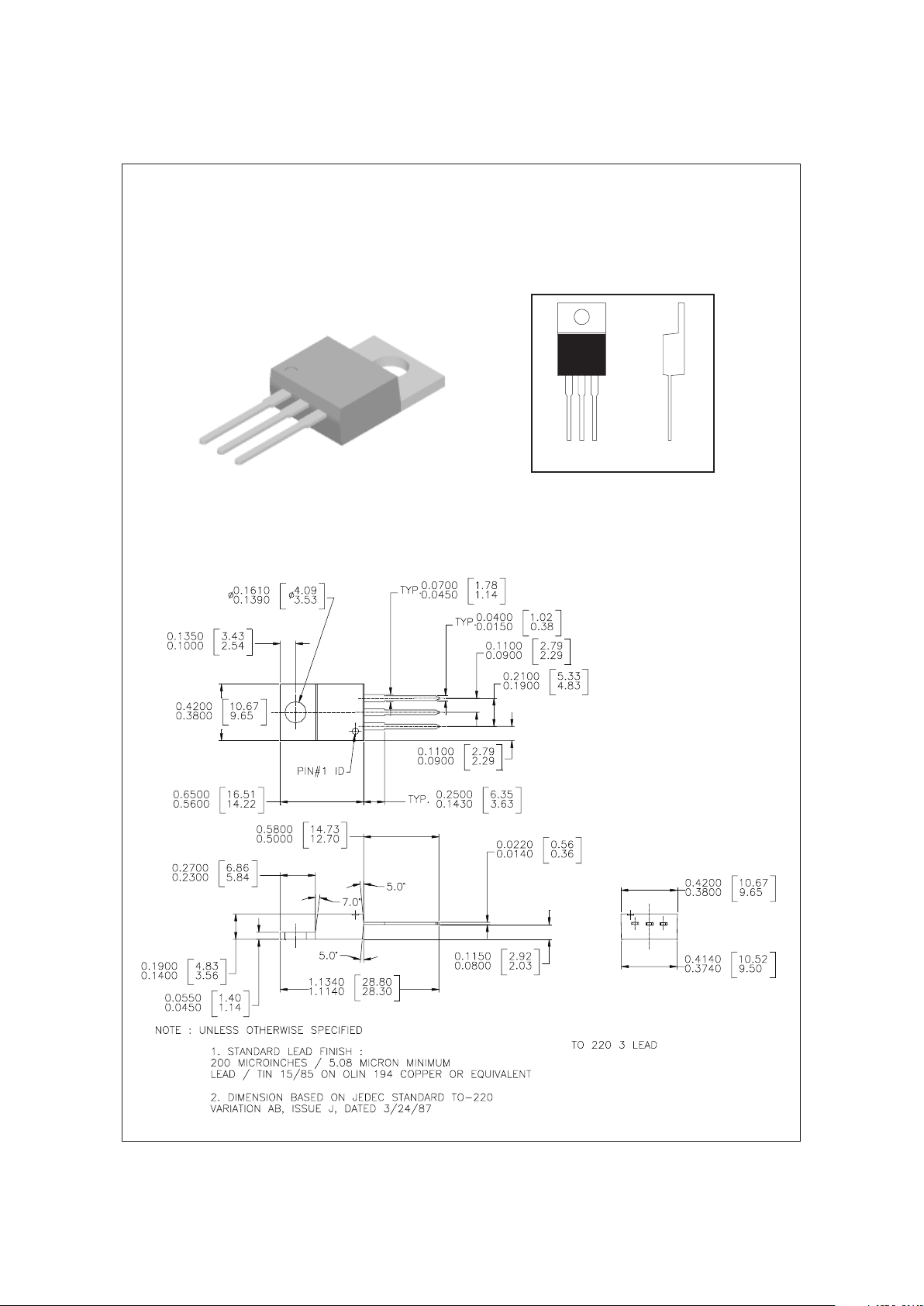

TO-220 (FS PKG Code 37)
TO-220 Tape and Reel Data and Package Dimensions, continued
September 1998, Rev. A
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 1.4378
Page 7

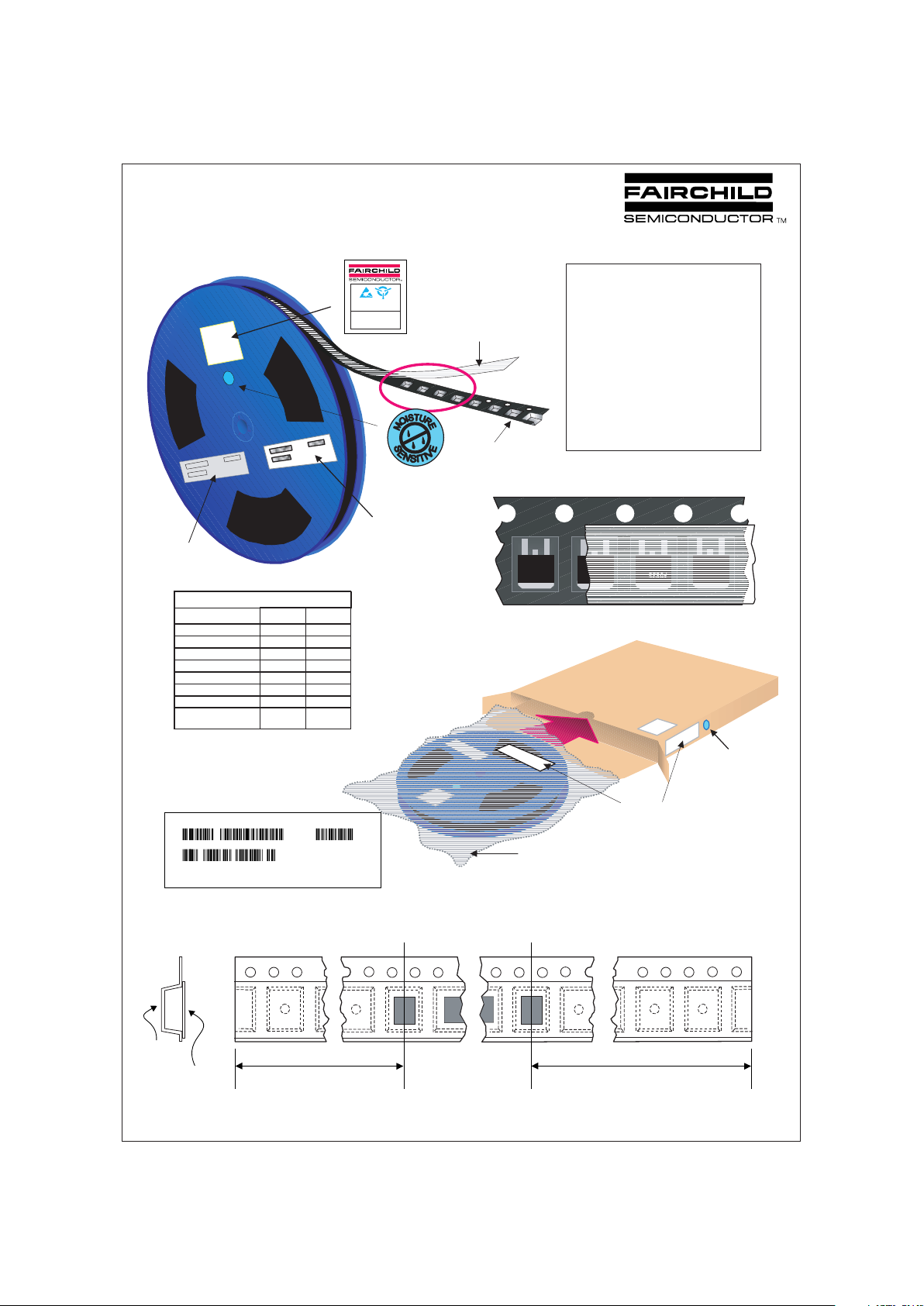

TO-263AB/D2PAK Packaging
Configuration: Figure 1.0
Components

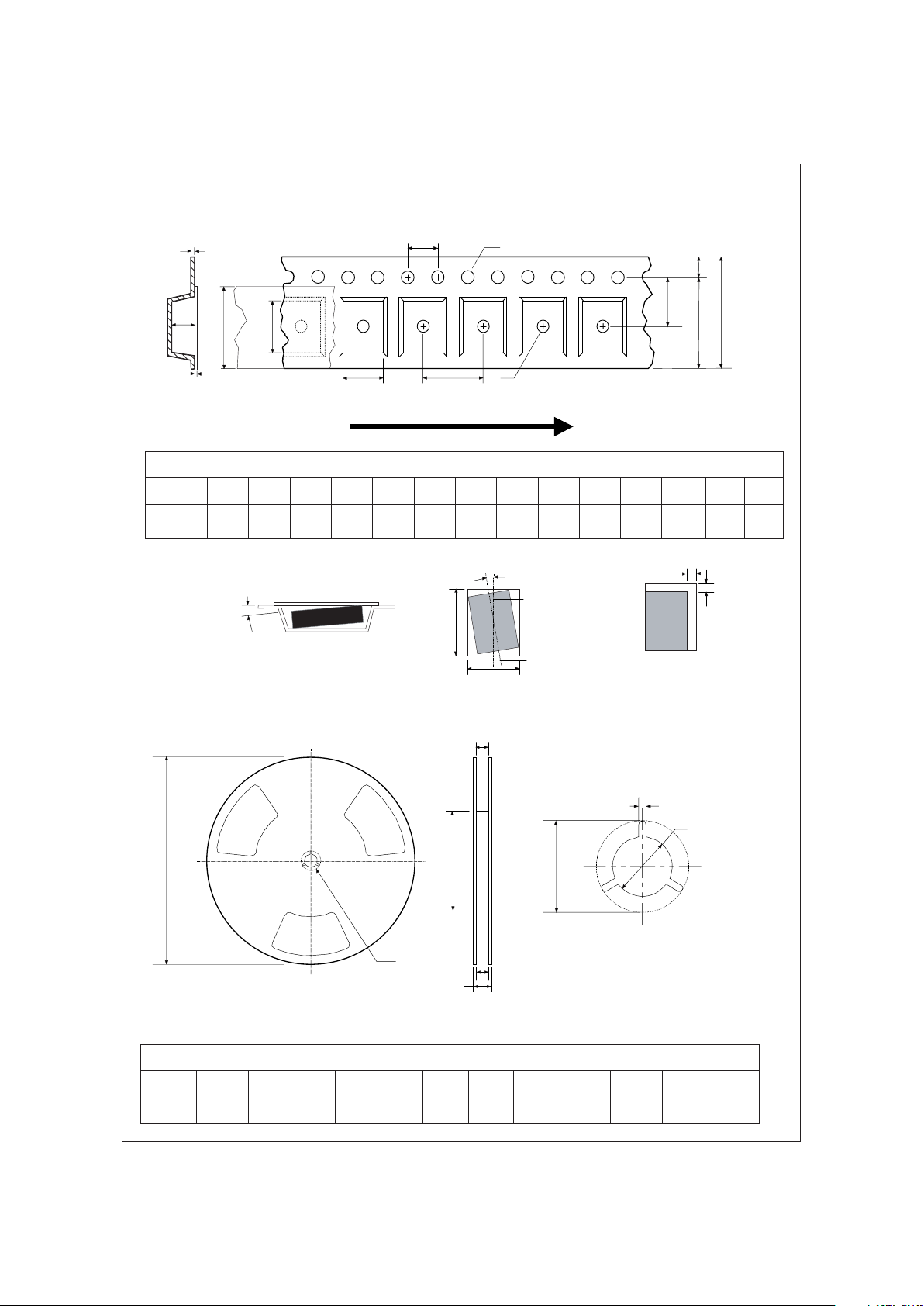

TO-263AB/D2PAK Tape Leader and Trailer
Configuration: Figure 2.0
Cover Tape
Carrier Tape
Note/Comments
Packaging Option
TO-263AB/D2PAK Packaging Information
Standard
(no flow code)
L86Z
Packaging type
Reel Size
TNR
13" Dia
Rail/Tube
-
Qty per Reel/Tube/Bag
800 45
Box Dimension (mm)
359x359x57 530x130x83
Max qty per Box
800 1,080
Weight per unit (gm)
1.4378 1.4378
Weight per Reel
1.6050 -
Moisture Sensitive
Label
DRYPACK Bag
ESD Label
F63TNR Label
359mm x 359mm x 57mm
Stand a r d In termedia t e box
TO-263AB/D2PAK Unit Orientation
FDB603AL
F
9835
FDB603AL
F
9835
FDB603AL
F
9835
FDB603AL
F
9835
F63TNR Label sample
Static Dissipative
Embossed Carrier Tape
F63TNR
Label
Antistatic Cover Tape
ESD Label
ELECTROSTATIC
SENSITIVE DEVICES
DO NOT SHIP OR STORE NEAR STRONG ELECTROSTATIC
ELECTROMAGNETIC, MAGNETIC OR RADIOACTIVE FIELDS
TNR DATE
PT NUMBER
PEEL STRENGTH MIN ______________gms
MAX _____________ gms
CAUTION
Moisture Sensitive
Label
Customized
Label
LOT: CBVK741B019
FSID: FDB6320L
D/C1: D9842 QTY1: SPEC REV:
SPEC:
QTY: 800
D/C2: QTY2: CPN:
N/F: F (F63TNR)3
Leader Tape
1520mm minimum or
95 empty pockets
Trailer Tape
400mm minimum or
25 empty pockets
Packaging Description:
TO-263/D2PAK parts are shipped in tape. The carrier tape
is made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
800 unit s per 13" or 330cm di ameter r eel. Th e reels ar e
dark blue in color and is made of polystyrene plastic (antistatic coated). This and some other options are further
described in the Packaging Information table.
These full reels are individually barcode labeled, dry
packed, and placed inside a standard intermediate box
(illus trated in fi gure 1.0) made of recycla ble corru gated
brown paper. One box contains one reel maximum. And
these boxes are placed inside a barcode labeled shipping
box which comes in different sizes depending on the
number of parts shipped.
TO-263AB/D2PAK Tape and Reel Data and Package
Dimensions
September 1999, Rev. B
Page 8
P1
A0
D1
P0
F
W
E1
D0
E2
B0
Tc
Wc
K0
T
Dimensions are in inches and millimeters
Tape Size
Reel
Option
Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)
24mm 13" Dia
13.00
330
0.059
1.5
512 +0.020/-0.008
13 +0.5/-0.2
0.795
20.2
4.00
100
0.961 +0.078/-0.000
24.4 +2/0
1.197
30.4
0.941 – 0.1.079
23.9 – 27.4
See detail AA
Dim A
max
13" Diameter Option
Dim A
Max
W3
W2 max Measured at Hub
W1 Measured at Hub
Dim N
Dim D
min
Dim C
B Min
DETAIL AA
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
10 deg maximum component rotation
0.9mm
maximum
0.9mm
maximum
Sketch C (Top View)
Component lateral movement
Typical
component
cavity
center line
10 deg maximum
Typical
component
center line
B0
A0
Sketch B (Top View)
Component Rotation
Sketch A (Side or Front Sectional View)
Component Rotation
User Direction of Feed
TO-263AB/D2PAK Embossed Carrier Tape
Configuration: Figure 3.0
TO-263AB/D
2
PAK Reel Configuration:
Figure 4.0
Dimensions are in millimeter
Pkg ty pe
A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc
T
D
2
PAK
O263AB/
(24mm)
10.60
+/-0.10
15.80
+/-0.10
24.0
+/-0.3
1.55
+/-0.05
1.60
+/-0.10
1.75
+/-0.10
22.25
min
11.50
+/-0.10
16.0
+/-0.1
4.0
+/-0.1
4.90
+/-0.10
0.450
+/-0.150
21.0
+/-0.3
0.06
+/-0.02
TO-263AB/D2PAK Tape and Reel Data and Package Dimensions, continued
August 1999, Rev. B
Page 9
TO-263AB/D2PAK (FS PKG Code 45)
TO-263AB/D2PAK Tape and Reel Data and Package Dimensions, continued
August 1998, Rev. A
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 1.4378
Page 10
TRADEMARKS
ACEx™
CoolFET™
CROSSVOLT™
E
2
CMOS
TM
FACT™
FACT Quiet Series™
FAST
®
FASTr™
GTO™
HiSeC™
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STA TUS DEFINITIONS
Definition of Terms
Datasheet Identification Product Status Definition
Advance Information
Preliminary
No Identification Needed
Obsolete
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Formative or
In Design
First Production
Full Production
Not In Production
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
SyncFET™
TinyLogic™
UHC™
VCX™
ISOPLANAR™
MICROWIRE™
POP™
PowerTrench
QFET™
QS™
Quiet Series™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
Rev. D
Page 11
TO-220 Tape and Reel Data and Package Dimensions
August 1999, Rev. B
0.165
TO-220 Tube Packing
Configuration: Figure 1.0
Note/Comments
Packaging Option
TO-220 Packaging Information
Stan dard
(no fl ow code )
Packaging type
Rail/Tube
Qty per Tube/Box
45
Box Dimension (mm)
530x130x83
Max qty per Box
1,080
Weight per unit (gm)
1.4378
S62Z
BULK
300
114x102x51
1,500
1.4378
FSCINT Label
FSCINT Label
114mm x 102mm x 51mm
EO70 Immediate Box
530mm x 130mm x 83mm
Intermediate box
300 units per
EO70 box
5 EO70 boxes per per
Intermed iate Box
1500 units maximum
quantity per intermediate box
Anti-static
Bubbl e Sheets
45 units per Tube
Conduct ive Plastic Bag
1080 units maximum
quantity per box
530mm x 130mm x 83mm
Intermediate box
FSCINT Label
12 Tubes per Bag
Note: All dim ensi ons are in inches
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
F
9852
NDP4060L
1.300
±.015
0.080
0.032
±.003
0.275
0.275
0.160
0.800
0.450
±.030
20.000
+0.031
-0.065
0.123
+0.001
-0.003
LOT:
CBVK741B019
NSID:
FDP7060
D/C1:
D9842
SPEC REV:
B2
SPEC:
QTY:
1080
QA REV:
FAIRCHILD SEMICONDUCTOR CORPORATION
HTB:B
(FSCINT)
FSCINT Label sample
TO-220 Tube
Configuration: Figure 4.0
TO-220 Packaging
Information: Figure 2.0
TO-220 bulk Packing
Configuration: Figure 3.0
2 bags per Box
Packaging Description:
TO-220 parts are shipp ed normally in tube. The tub e is
made of PVC plas tic t reated wi th anti -stati c agent .These
tubes in s tandard opt ion are placed in side a di ssipativ e
plastic bag, barcode labeled, and placed in side a box
made of r ecy clab le cor rug ate d pape r. On e bo x co nt ain s
tw o ba gs m ax im um (se e fi g. 1. 0). A nd on e or se ver al o f
these boxes are placed ins ide a labeled shipp ing box
wh ic h c o m es in d i f f er en t si z es de pe ndi n g o n t h e nu m be r
of parts shipped. The other option comes in bulk as
described in the Packagin g In fo rm atio n table. The unit s in
this op tion are plac ed inside a s mall box laid w ith antistatic bu bble sheet. These smaller box es are indiv idually
labeled and plac ed inside a lar ger box (see fig. 3.0).
These larger or int ermediate boxes then w ill be placed
finally ins ide a labeled ship ping box whic h st ill co mes in
diff erent sizes depending on the num b er of units shipped.
Page 12
TO-220 (FS PKG Code 37)
TO-220 Tape and Reel Data and Package Dimensions, continued
September 1998, Rev. A
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 1.4378
Page 13
TO-263AB/D2PAK Packaging
Configuration: Figure 1.0
Components
TO-263AB/D2PAK Tape Leader and Trailer
Configuration: Figure 2.0
Cover Tape
Carrier Tape
Note/Comments
Packaging Option
TO-263AB/D2PAK Packaging Information
Standard
(no flow code)
L86Z
Packaging type
Reel Size
TNR
13" Dia
Rail/Tube
-
Qty per Reel/Tube/Bag
800 45
Box Dimension (mm)
359x359x57 530x130x83
Max qty per Box
800 1,080
Weight per unit (gm)
1.4378 1.4378
Weight per Reel
1.6050 -
Moisture Sensitive
Label
DRYPACK Bag
ESD Label
F63TNR Label
359mm x 359mm x 57mm
Stand a r d In termedia t e box
TO-263AB/D2PAK Unit Orientation
FDB603AL
F
9835
FDB603AL
F
9835
FDB603AL
F
9835
FDB603AL
F
9835
F63TNR Label sample
Static Dissipative
Embossed Carrier Tape
F63TNR
Label
Antistatic Cover Tape
ESD Label
ELECTROSTATIC
SENSITIVE DEVICES
DO NOT SHIP OR STORE NEAR STRONG ELECTROSTATIC
ELECTROMAGNETIC, MAGNETIC OR RADIOACTIVE FIELDS
TNR DATE
PT NUMBER
PEEL STRENGTH MIN ______________gms
MAX _____________ gms
CAUTION
Moisture Sensitive
Label
Customized
Label
LOT: CBVK741B019
FSID: FDB6320L
D/C1: D9842 QTY1: SPEC REV:
SPEC:
QTY: 800
D/C2: QTY2: CPN:
N/F: F (F63TNR)3
Leader Tape
1520mm minimum or
95 empty pockets
Trailer Tape
400mm minimum or
25 empty pockets
Packaging Description:
TO-263/D2PAK parts are shipped in tape. The carrier tape
is made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
800 unit s per 13" or 330cm di ameter r eel. Th e reels ar e
dark blue in color and is made of polystyrene plastic (antistatic coated). This and some other options are further
described in the Packaging Information table.
These full reels are individually barcode labeled, dry
packed, and placed inside a standard intermediate box
(illus trated in fi gure 1.0) made of recycla ble corru gated
brown paper. One box contains one reel maximum. And
these boxes are placed inside a barcode labeled shipping
box which comes in different sizes depending on the
number of parts shipped.
TO-263AB/D2PAK Tape and Reel Data and Package
Dimensions
September 1999, Rev. B
Page 14
P1
A0
D1
P0
F
W
E1
D0
E2
B0
Tc
Wc
K0
T
Dimensions are in inches and millimeters
Tape Size
Reel
Option
Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)
24mm 13" Dia
13.00
330
0.059
1.5
512 +0.020/-0.008
13 +0.5/-0.2
0.795
20.2
4.00
100
0.961 +0.078/-0.000
24.4 +2/0
1.197
30.4
0.941 – 0.1.079
23.9 – 27.4
See detail AA
Dim A
max
13" Diameter Option
Dim A
Max
W3
W2 max Measured at Hub
W1 Measured at Hub
Dim N
Dim D
min
Dim C
B Min
DETAIL AA
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
10 deg maximum component rotation
0.9mm
maximum
0.9mm
maximum
Sketch C (Top View)
Component lateral movement
Typical
component
cavity
center line
10 deg maximum
Typical
component
center line
B0
A0
Sketch B (Top View)
Component Rotation
Sketch A (Side or Front Sectional View)
Component Rotation
User Direction of Feed
TO-263AB/D2PAK Embossed Carrier Tape
Configuration: Figure 3.0
TO-263AB/D
2
PAK Reel Configuration:
Figure 4.0
Dimensions are in millimeter
Pkg ty pe
A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc
T
D
2
PAK
O263AB/
(24mm)
10.60
+/-0.10
15.80
+/-0.10
24.0
+/-0.3
1.55
+/-0.05
1.60
+/-0.10
1.75
+/-0.10
22.25
min
11.50
+/-0.10
16.0
+/-0.1
4.0
+/-0.1
4.90
+/-0.10
0.450
+/-0.150
21.0
+/-0.3
0.06
+/-0.02
TO-263AB/D2PAK Tape and Reel Data and Package Dimensions, continued
August 1999, Rev. B
Page 15
TO-263AB/D2PAK (FS PKG Code 45)
TO-263AB/D2PAK Tape and Reel Data and Package Dimensions, continued
August 1998, Rev. A
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 1.4378
Page 16
TRADEMARKS
ACEx™
Bottomless™
CoolFET™
CROSSVOLT™
E
2
CMOS
TM
FACT™
FACT Quiet Series™
FAST
FASTr™
GTO™
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STA TUS DEFINITIONS
Definition of Terms
Datasheet Identification Product Status Definition
Advance Information
Preliminary
No Identification Needed
Obsolete
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Formative or
In Design
First Production
Full Production
Not In Production
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
SuperSOT™-8
SyncFET™
TinyLogic™
UHC™
VCX™
HiSeC™
ISOPLANAR™
MICROWIRE™
POP™
PowerTrench
QFET™
QS™
Quiet Series™
SuperSOT™-3
SuperSOT™-6
Rev. E
Loading...
