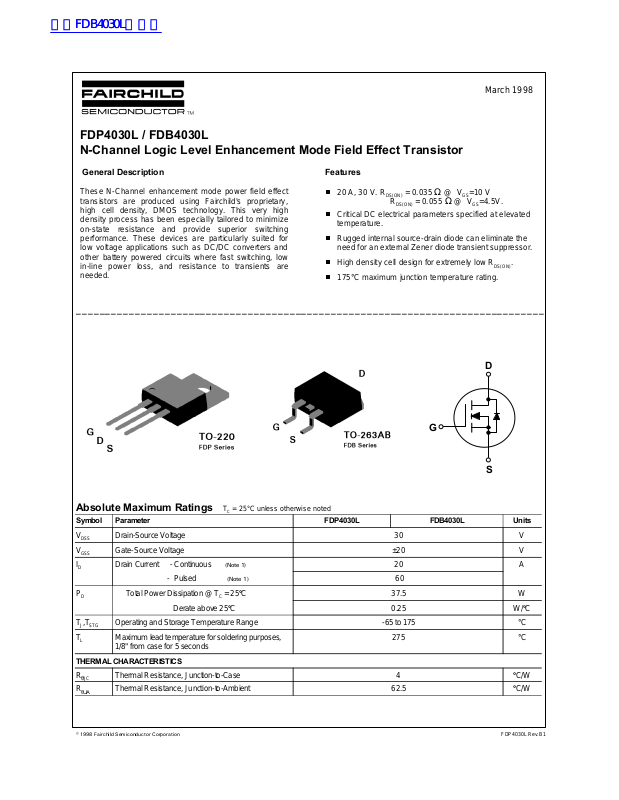

FDP4030L / FDB4030L
N-Channel Logic Level Enhancement Mode Field Effect Transistor
General Description Features
March 1998
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild's proprietary,
high cell density, DMOS technology. This very high
density process has been especially tailored to minimize
on-state resistance and provide superior switching
performance. These devices are particularly suited for
low voltage applications such as DC/DC converters and
other battery powered circuits where fast switching, low
in-line power loss, and resistance to transients are
needed.
20 A, 30 V. R
R
= 0.035 Ω @ VGS=10 V
DS(ON)
= 0.055 Ω @ VGS=4.5V.
DS(ON)
Critical DC electrical parameters specified at elevated
temperature.
Rugged internal source-drain diode can eliminate the
need for an external Zener diode transient suppressor.
High density cell design for extremely low R
DS(ON)
.
175°C maximum junction temperature rating.
_______________________________________________________________________________
D
G
S
Absolute Maximum Ratings T
Symbol Parameter FDP4030L FDB4030L Units
V
DSS
V
GSS
I
D
Drain-Source Voltage 30 V
Gate-Source Voltage ±20 V
Drain Current - Continuous (Note 1) 20 A
= 25°C unless otherwise noted
C
- Pulsed (Note 1) 60
P
D
Total Power Dissipation @ TC = 25°C 37.5 W
Derate above 25°C 0.25 W/°C
TJ,T
T
L
THERMAL CHARACTERISTICS
R
JC
θ
R
θJA
© 1998 Fairchild Semiconductor Corporation
Operating and Storage Temperature Range -65 to 175 °C
STG
Maximum lead temperature for soldering purposes,
275 °C
1/8" from case for 5 seconds
Thermal Resistance, Junction-to-Case 4 °C/W
Thermal Resistance, Junction-to-Ambient 62.5 °C/W
FDP4030L Rev.B1
Page 2
Electrical Characteristics (T
= 25°C unless otherwise noted)
C
Symbol Parameter Conditions Min Typ Max Unit
DRAIN-SOURCE AVALANCHE RATINGS (Note 1)
OFF CHARACTERISTICS
W
DSS
Single Pulse Drain-Source Avalanche Energy VDD = 15 V, ID = 7 A 50 mJ
I
AR
BV
∆BV
I
DSS
DSS
DSS
Maximum Drain-Source Avalanche Current 7 A
Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA 30 V
Breakdown Voltage Temp. Coefficient ID = 250 µA, Referenced to 25oC 33 mV/oC
/∆T
J
Zero Gate Voltage Drain Current VDS = 24 V, V
= 0 V 10 µA
GS
TJ = 125°C 1 mA
I
GSSF
I
GSSR
Gate - Body Leakage, Forward VGS = 20 V, VDS = 0 V 100 nA
Gate - Body Leakage, Reverse VGS = -20 V, VDS = 0 V -100 nA
ON CHARACTERISTICS (Note 1)
V
∆V
R
GS(th)
GS(th)
DS(ON)
Gate Threshold Voltage VDS = VGS, ID = 250 µA 1 1.6 2 V
Gate Threshold Voltage Temp. Coefficient ID = 250 µA, Referenced to 25oC -4.1 mV/oC
/∆T
J
Static Drain-Source On-Resistance VGS = 10 V, ID = 10 A 0.025 0.035
TJ = 125°C 0.048 0.06
VGS = 10 V, ID = 4.5 A 0.046 0.055
I
g
D(on)
FS
On-State Drain Current VGS = 10 V, VDS = 10 V 30 A
Forward Transconductance VDS = 10 V, ID = 10 A 11 S
DYNAMIC CHARACTERISTICS
C
iss
C
oss
C
rss
Input Capacitance VDS = 15 V, VGS = 0 V,
Output Capacitance 210 pF
f = 1.0 MHz
Reverse Transfer Capacitance 70 pF
365 pF
SWITCHING CHARACTERISTICS (Note 1)
t
t
t
t
Q
Q
Q
D(on)
r
D(off)
f
g
gs
gd
Turn - On Delay Time VDD = 15 V, ID = 10 A,
Turn - On Rise Time 8 15 nS
VGS = 10 V, R
GEN
= 10 Ω
8 15 nS
Turn - Off Delay Time 20 40 nS
Turn - Off Fall Time 10 20 nS
Total Gate Charge V
Gate-Source Charge 2 nC
= 24 V
DS
ID = 10 A, VGS= 10 V
13 18 nC
Gate-Drain Charge 4 nC
DRAIN-SOURCE DIODE CHARACTERISTICS
I
S
Maximum Continuos Drain-Source Diode Forward Current 20 A
ISM Maximum Pulsed Drain-Source Diode Forward Current 60 A
V
SD
Drain-Source Diode Forward Voltage VGS = 0 V, IS = 10 A (Note 1) 1.12 1.3 V
TJ = 125°C 1.08 1.2
Note:
1. Pulse Test: Pulse Width < 300 µs, Duty Cycle < 2.0%.
Ω
FDP4030L Rev.B1
Page 3
Typical Electrical Characteristics
40
V = 10V
GS
30
20
10
D
I , DRAIN-SOURCE CURRENT (A)
0
0 1 2 3 4 5
6.0V
5.0V
4.5V
4.0V
3.5V
V , DRAIN-SOURCE VOLTAGE (V)
DS
2.5
2
V =4.5V
GS
5.0V
1.5
1
DS(ON)
R , NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
0.5
0 10 20 30 40
5.5V
6.0V
7.0V
I , DRAIN CURRENT (A)
D
8.0V
10V
Figure 1. On-Region Characteristics.
1.8
I = 10A
D
1.6
V = 10V
GS
1.4
1.2
1
DS(ON)
R , NORMALIZED
0.8
DRAIN-SOURCE ON-RESISTANCE
0.6
-50 -25 0 25 50 75 100 125 150 175
T , JUNCTION TEMPERATURE (°C)
J
Figure 3. On-Resistance Variation
with Temperature.
15
12
9
V = 10V
DS
T = -55°C
J
125°C
25°C
Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage.
0.16
I = 10A
0.12
0.08
T =125°C
A
0.04
DS(ON)
R , ON-RESISTANCE (OHM)
0
2 4 6 8 10
V , GATE TO SOURCE VOLTAGE (V)
GS
T = 25°C
A
Figure 4. On-Resistance Variation with
Gate-to-Source Voltage.
15
V =0V
GS
T = 125°C
1
0.1
J
25°C
-55°C
D
6
D
I , DRAIN CURRENT (A)
3
0
1 1.5 2 2.5 3 3.5 4 4.5 5
V , GATE TO SOURCE VOLTAGE (V)
GS
Figure 5. Transfer Characteristics.
0.01
0.001
S
I , REVERSE DRAIN CURRENT (A)
0.0001
0 0.2 0.4 0.6 0.8 1 1.2 1.4
V , BODY DIODE FORWARD VOLTAGE (V)
SD
Figure 6 . Body Diode Forward Voltage
Variation with Source Current
and Temperature.
FDP4030L Rev.B1
Page 4
Typical Electrical Characteristics (continued)
15
I = 10A
D
12
9
6
3
GS
V , GATE-SOURCE VOLTAGE (V)
0
0 4 8 12 16 20
Q , GATE CHARGE (nC)
g
V = 6V
DS
12V
24V
Figure 7. Gate Charge Characteristics.
100
50
DS(ON)
R Limit
20
10
5
V = 10V
GS
SINGLE PULSE
2
D
I , DRAIN CURRENT (A)
1
0.5
0.5 1 3 5 10 20 30 50
o
R = 4 C/W
JC
θ
T = 25 °C
C
V , DRAIN-SOURCE VOLTAGE (V))
DS
100ms
DC
100µs
1ms
10ms
10µs
1000
400
200
100
CAPACITANCE (pF)
f = 1 MHz
V = 0V
GS
40
0.1 0.3 1 4 10 30
V , DRAIN TO SOURCE VOLTAGE (V)
DS
C
C
C
iss
oss
rss
Figure 8. Capacitance Characteristics.
1000
800
600
400
POWER (W)
200
0
0.0001 0.001 0.01 0.1 1 10
SINGLE PULSE TIME (SEC)
SINGLE PULSE
R = 4°C/W
JC
θ
T = 25°C
C
Figure 9. Maximum Safe Operating Area.
Figure 10. Single Pulse Maximum Power
Dissipation.
1
D = 0.5
0.5
0.2
0.2
0.1
0.1
0.05
Single Pulse
r(t), NORMALIZED EFFECTIVE
TRANSIENT THERMAL RESISTANCE
0.05
0.0001 0.001 0.01 0.1 1 10
t ,TIME (sec)
1
R (t) = r(t) * R
JC
θ
R = 4.0 °C/W
JC
θ
P(pk)
t
1
t
2
T - T = P * R (t)
J
C
Duty Cycle, D = t /t
θ
θ
JC
1 2
Figure 11. Transient Thermal Response Curve.
JC
FDP4030L Rev.B1
Page 5
