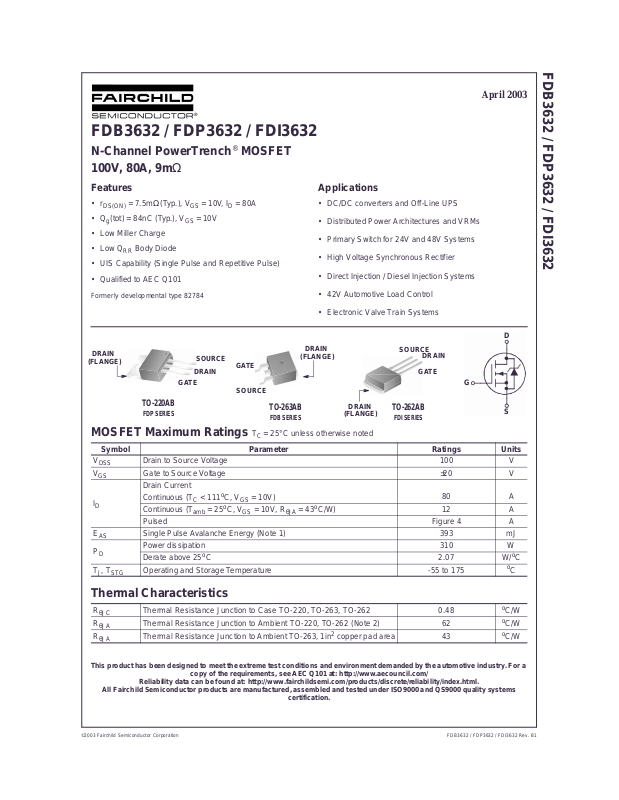

Datasheet FDP3632, FDI3632, FDB3632 Datasheet (Fairchild Semiconductor)

FDB3632 / FDP3632 / FDI3632

N-Channel PowerTrench® MOSFET
100V, 80A, 9mΩ

FDB3632 / FDP3632 / FDI3632

April 2003

Features

•r

•Q

• Low Miller Charge

•Low Q

• UIS Capability (Single Pulse and Repetitive Pulse)

• Qualified to AEC Q101

Formerly developmental type 82784

= 7.5mΩ (Typ.), V

DS(ON)

(tot) = 84nC (Typ.), V

g

Body Diode

RR

= 10V, ID = 80A

GS

= 10V

GS

Applications

• DC/DC converters and Off-Line UPS

• Distributed Pow er Architectures and VRMs

• Primary Switch for 24V and 48V Systems

• High Voltage Synchronous Re ctifier

• Direct Injection / Diesel Injection Systems

• 42V Automotive Lo ad Control

• Electronic Valve T rain System s

DRAIN

(FLANGE)

GATE

SOURCE

DRAIN

GATE

SOURCE

TO-220AB

FDPSERIES

MOSFET Maximum Ratings T

DRAIN

(FLANGE)

TO-263AB

FDB SERIES

= 25°C unless otherwise noted

C

DRAIN

(FLANGE)

SOURCE

TO-262AB

FDISERIES

DRAIN

GATE

G

Symbol Parameter Ratings Units

V

DSS

V

GS

Drain to Source Voltage 100 V
Gate to Source Voltage ±20 V
Drain Curr e nt

I

D

Continuous (T
Continuous (T

< 111oC, VGS = 10V)

C

= 25oC, VGS = 10V, R

amb

= 43oC/W) 12 A

θJA

80 A

Pulsed Figure 4 A

E

AS

P

D

, T

T

J

STG

Single Pulse Avalanche Energy (Note 1) 393 mJ
Power dissipation 310 W

o

Derate above 25

C2.07W/

Operating and Storage Temperature -55 to 175

D

S

o

C

o

C

Thermal Characteristics

R

θJC

R

θJA

R

θJA

This product ha s been des igned to me et the e xtr eme test c ondit ions and envir onment deman ded by the automot ive indus t ry. For a

All Fairchild Semiconductor prod ucts are manufactured, assembled and tested under ISO9000 and QS9000 quality systems

©2003 Fairchild Semiconductor Corporation

Thermal Resistance Junction t o Case TO-220, TO-263, TO -262 0.48
Thermal Resistance Junction t o Ambient TO-220, TO-262 (Note 2) 62
Thermal Resistance Junction to Ambient TO-263, 1in2 copper pad ar ea 43

copy of the requirements, see AEC Q101 at: http://www.aecouncil.com/

Reliability data can be found at: http://www.fairchildsemi.com/products/discrete/reliability/index.html.

certification.

FDB3632 / FDP3632 / FDI3632 Rev. B1

o

C/W

o

C/W

o

C/W

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

FDB3632 FDB3632 TO-263AB 330mm 24mm 800 units
FDP3632 FDP3632 TO-220AB Tube N/A 50 units

FDI3632 FDI3632 TO-262AA Tube N/A 50 units

FDB3632 / FDP3632 / FDI3632

Electrical Characteristics

TC = 25°C unless otherwise noted

Symbol Parameter Test Conditions Min Typ Max Units

Off Characteristics

B
I

DSS

I

GSS

VDSS

Drain t o Source Breakdown Volta ge ID = 250µA, VGS = 0V 100 - - V

V

= 80V - - 1

Zero Gate Voltage Drain Current

DS

= 0V TC= 150oC- - 250

V

GS

Gate to Source Leakage Current VGS = ±20V - - ±100 nA

On Characteristics

V

GS(TH)

r

DS(ON)

Gate to Source Threshold Voltage VGS = VDS, ID = 250µA2-4V

I

=80A, VGS=10V - 0.0075 0.009

Drain to Source On Resistance

D

=40A, VGS = 6V, - 0.009 0.015

D

=80A, VGS=10V, TC=175oC - 0.018 0.022

I

D

Dynamic Characteristics

C
C
C
Q
Q
Q
Q
Q

ISS
OSS
RSS

g(TOT)
g(TH)
gs
gs2
gd

Input Capacitance
Output Capacitance - 820 - pF
Reverse Transfer Capacitance - 200 - pF

= 25V, VGS = 0V,

V

DS

f = 1MHz

Total G ate Ch arg e at 10 V VGS = 0V to 10V
Threshold Gate Charge VGS = 0V to 2V - 11 14 nC
Gate to Source Gate Charge - 30 - nC
Gate Charge Threshold to Plateau - 20 - nC

V

DD

I

= 80A

D

I

= 1.0m A

g

= 50V

Gate to Drain “Miller” Charge - 20 - nC

-6000- pF

-84110nC

µA

ΩI

Resistive Switching Characteristics

t

ON

t

d(ON)

t

r

t

d(OFF)

t

f

t

OFF

Turn-On Time
Turn-On Delay Time - 30 - ns
Rise Time - 39 - ns
T u rn-Off Delay Time - 96 - ns
Fall Time - 46 - ns
Turn-Off Time - - 213 ns

(VGS = 10V)

V

DD

V

GS

--102ns

= 50V, ID = 80A
= 10V, RGS = 3.6Ω

Drain-Source Diode Characteristics

I

= 80A - - 1 .25 V

V

SD

t

rr

Q

RR

Notes:
1: Starting T
2: Pulse Width = 100s

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

Source to Drain Di ode Voltage
Reverse Recovery Time ISD = 75A, dISD/dt= 100A/µs- - 64ns

Reverse Recovered Charge ISD = 75A, dISD/dt= 100A/µs - - 120 nC

= 25°C, L = 0.12mH, IAS = 75A.

J

SD

= 40A - - 1.0 V

I

SD

FDB3632 / FDP3632 / FDI3632

Typical Characteristics T

= 25°C unless otherwise noted

A

1.2

1.0

0.8

0.6

0.4

0.2

POWER DISSIPATION MULTIPLIER

0

0255075100 175

125

TC, CASE TEMPERATURE (oC)

Figure 1. Normalized Power Dissipation vs

Ambient Temperature

2

DUTY CYCLE - DESCENDING ORDER

0.5

1

0.2

0.1

0.05

0.02

0.01

150

125

CURRENT LIMITED
BY PACKAGE

100

75

V

= 10V

GS

50

, DRAIN CURRENT (A)

D

I

25

0

25 50 75 100 125 150 175

TC, CASE TEMPERATURE (oC)

Figure 2. Maximum Continuous Drain Curr ent vs

Case Temperature

, NORMALIZED

θJC

Z

, PEAK CURRENT (A)

DM

I

THERMAL IMPEDANCE

2000

1000

100

50

0.1

0.01

10

-5

10

VGS = 10V

-5

SINGLE PULSE

-4

10

-3

10

t, RECTANGULAR PULSE DURATION (s)

-2

10

NOTES:
DUTY FACTOR: D = t

PEAK TJ = PDM x Z

-1

10

Figure 3. Normalized Maximum Transient Thermal Impedance

TRANSCONDUCTANCE
MAY LIMIT CURRENT
IN THIS REGION

-4

10

-3

10

-2

10

t, PULSE WIDTH (s)

-1

10

TC = 25oC

FOR TEMPERATURES
ABOVE 25
CURRENT AS FOLLOWS:

I = I

P

DM

1/t2

x R

θJC

0

10

o

C DERATE PEAK

175 - T

25

0

10

t

1

θJC

150

t

2

+ T

C

1

10

C

1

10

Figure 4. Peak Current Capability

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

Typical Characteristics T

= 25°C unl ess otherwise noted

A

FDB3632 / FDP3632 / FDI3632

400

100

OPERATION IN THIS

10

, DRAIN CURRENT (A)

D

1

I

0.1

AREA MAY BE

LIMITED BY r

SINGLE PULSE
TJ = MAX R ATED

= 25oC

T

C

1 10 100

DS(ON)

VDS, DRAIN TO SOURCE VOLTAGE (V)

10µs

100µs

1ms

10ms

DC

Figure 5. Forward Bias Safe Operating Area

150

PULSE DURATION = 80µs
DUTY CYCLE = 0.5% MAX

V

= 15V

DD

120

90

60

, DRAIN CURRENT (A)

D

I

30

0

3.0 3.5 4.0 4.5 5.0 5.5 6.0

TJ = 25oC

TJ = 175oC

TJ = -55oC

VGS, GATE TO SOURCE VOLTAGE (V)

200

If R = 0

200

tAV = (L)(IAS)/(1.3*RATED BV
If R ≠ 0

t

= (L/R)ln[(IAS*R)/(1.3*RATED BV

AV

100

STARTING TJ = 150oC

, AVALANCHE CURRENT (A)

AS

I

10

0.01

0.1 1 10

tAV, TIME IN AVALANCHE (ms)

- VDD)

DSS

- VDD) +1]

DSS

STARTING TJ = 25oC

NOTE: Refer to Fairchild Application Notes AN7514 and AN7515

Figure 6. Unclamped Inductive Switching

Capability

150

VGS = 10V

120

90

60

, DRAIN CURRENT (A)

D

30

I

0

01234

VDS, DRAIN TO SOURCE VOLTAGE (V)

VGS = 6V

PULSE DURATION = 80µs
DUTY CYCLE = 0.5% MAX

VGS = 5.5V

VGS = 5V

TC = 25oC

Figure 7. Transfer Characteristics Figure 8. Saturation Characteristics

10

PULSE DURATION = 80µs
DUTY CYCLE = 0.5% MAX

9

8

7

DRAIN TO SOURCE ON RESISTANCE (m Ω)

6

0 20406280

I

, DRAIN CURRENT (A)

D

VGS = 6V

VGS = 10V

Figure 9. Drain to So urce On Resistanc e v s Drai n

Current

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

2.5

PULSE DURATION = 80µs
DUTY CYCLE = 0.5% MAX

2.0

1.5

ON RESISTANCE

1.0

NORMALIZED DRAIN TO SOURCE

0.5

-80 -40 0 40 80 120 160 200
TJ, JUNCTION TEMPERATURE (oC)

VGS = 10V, ID =80A

Figure 10. Normalized Drain to Source On

Resistance vs Junction Temperature

FDB3632 / FDP3632 / FDI3632

Typical Characteristics T

1.4

1.2

1.0

0.8

0.6

NORMALIZED GATE

THRESHOLD VOLTAGE

0.4

0.2

-80 -40 0 40 80 120 160 200
TJ, JUNCTION TEMPERATURE (oC)

= 25°C unl ess otherwise noted

A

VGS = VDS, ID = 250µA

Figure 11. Normalized G ate Threshol d Voltage vs

Junction Temperatur e

10000

C

= CGS + C

1000

ISS

C

≅ C

+ C

OSS

DS

GD

C

= C

RSS

GD

GD

1.2
ID = 250µA

1.1

1.0

BREAKDOWN VOLTAGE

NORMALIZED DRAIN TO SOURCE

0.9

-80 -40 0 40 80 120 160 200
T

, JUNCTION TEMPERATURE (oC)

J

Figure 12. Normalized Drain to Source

Breakdown Voltage vs Junction Temperature

10

VDD = 50V

8

6

4

C, CAPACITANCE (pF)

V

= 0V, f = 1MHz

GS

100

0.1 1 10 100
VDS, DRAIN TO SOURCE VOLTAGE (V)

Figure 13. Capacitance vs Drain to Sour ce

Voltage

2

, GATE TO SOURCE VOLTAGE (V)

GS

V

0

0 20406080100

Qg, GATE CHARGE (nC)

WAVEFORMS IN
DESCENDING ORDER:

ID = 80A
I

= 40A

D

Figure 14. Gat e Charge Waveforms for Constant

Gate Currents

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

Test Circuits and Waveforms

FDB3632 / FDP3632 / FDI3632

BV

DSS

t

P

V

DS

TO OBTAIN

VARY t

P

REQUIRED PEAK I

V

GS

V

DS

L

I

AS

R

AS

G

+

V

DD

-

DUT

t

0V

P

I

AS

0.01Ω

0

t

AV

Figure 15. Unclamped Energy Test Circuit Figure 16. Unclamped Energy Waveforms

V

I

g(REF)

DS

L

V

GS

+

V

DD

-

DUT

V

DD

V

GS

V

= 2V

GS

Q

0

Q

g(TH)

I

g(REF)

gs2

Q

gs

Q

g(TOT)

V

DS

Q

gd

0

V

DD

V

= 10V

GS

Figure 17. Gate Charge Test Circuit Figure 18. Gate Charge Waveforms

V

DS

R

L

V

GS

R

GS

V

GS

DUT

+

V

DD

-

V

DS

0

V

GS

10%

0

t

d(ON)

90%

t

ON

t

r

t

d(OFF)

t

OFF

t

f

90%

10%

10%

90%

PULSE WIDTH

50%50%

Figure 19. Switching Time Test Circuit Figure 20. Switching Time Waveforms

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

Thermal Resistance vs. Mounting Pad Area

80

The maximum rated junction temperature, TJM, and the
thermal resistance of the heat dissipating path determines
the maxi mum al lowab le de vice p ower di ssip ation, P
application. Therefore the application’s ambient
temperature, T
must be reviewed to ensure that T
Equation 1 mathematically represents the relationship and

(oC), and th ermal res istance R

A

is never exceeded.

JM

serve s as the basis for establ ishing the rating of the part.

TJMTA–()

----------------- ------------=

P

DM

R

θJA

DM

(oC/W)

θJA

(EQ. 1)

, in an

60

C/W)

o

(

θJA

R

40

R

= 26.51+ 19.84/(0.262+Area) EQ.2

θJA

R

= 26.51+ 128/(1.69+Area) EQ.3

θJA

FDB3632 / FDP3632 / FDI3632

In using surface mount devices such as the TO-263
package, the environment in which it is applied will have a
significant influence on the part’s current and maximum
power d issipati on rating s. Precise d etermin ation of P
comple x and influenced by many factors:

DM

is

1. Mou nting pad area ont o which the device is attached and
whet her the re is copp er on one s ide or both side s of the
board.

2. The number of copper layers and the thickness of the
board.

3. The use of external heat sinks.

4. The use of thermal vias.

5. Air flow and board orientation.

6. For no n steady state applic ations, th e pulse widt h, the
duty cycle and the transient thermal response of the part,
the boa rd and the environment they are in.

Fairchild provides thermal information to assist the
designer’s preliminary application evaluation. Figure 21
defines the R
copper (component side) area. This is for a horizontally

for the device as a function of the top

θJA

positi on ed FR- 4 bo ar d with 1 oz c opper after 1 000 se c on ds
of stea dy st ate pow er w ith n o air flow . Th is gr aph prov ides
the necessary inf ormation for calculation of the steady state
junction temperature or power dissipation. Pulse
applications can be evaluated using the Fairchild device
Spice t hermal model or ma nually utiliz ing the norm alized
maximum transient thermal impedance curve.

20

1100.1

(0.645) (6.45) (64.5)

AREA, TOP COPPER AREA in2 (cm2)

Figure 21. Thermal Resistance vs Mounting

Pad Area

Therma l resi stances corresponding to other copper areas
can be obtained from Figure 21 or by calculation using
Equation 2 or 3. Equation 2 is used for copper area defined
in inch es squ are and equ ation 3 is for area in cent imeters
square. The area, in square inches or square centimeters is
the top copper area including the gate and source pads.

19.84

26.51

=

R

θJA

26.51

=

R

θJA

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

-------------------------------------+

0.262 Area+()

Area in Inches Squared

128

----------------------------------+

1.69 Area+()

Area in Centimeters Squared

(EQ. 2)

(EQ. 3)

PSPICE Electrical Model

.SUBCKT FDB3632 2 1 3 ; rev May 2002
CA 12 8 1.7e -9
Cb 15 14 2.5e-9
Cin 6 8 6.0e-9

Dbod y 7 5 DbodyMOD
Dbreak 5 11 Db reakMOD
Dplcap 10 5 DplcapMOD

Ebreak 11 7 17 18 102.5
Eds 14 8 5 8 1
Egs 13 8 6 8 1
Esg 6 10 6 8 1
Evthres 6 21 19 8 1
Evtemp 20 6 18 22 1

It 8 17 1
Lgat e 1 9 5.61e-9

Ldrain 2 5 1.0e -9
Lsou rce 3 7 2.7e-9

RLgate 1 9 56.1
RLdr ai n 2 5 10
RLsource 3 7 27

Mmed 16 6 8 8 M m edMOD
Mstro 16 6 8 8 MstroMOD
Mweak 16 21 8 8 MweakMOD

Rbreak 17 18 RbreakMOD 1
Rdrain 50 16 RdrainMOD 3.8e-3
Rgate 9 20 1.1
RSLC1 5 51 RSL CM OD 1.0e-6
RSLC2 5 50 1.0e 3
Rsource 8 7 RsourceMOD 2.5e-3
Rvthres 22 8 RvthresMOD 1
Rvtemp 18 19 RvtempMOD 1
S1a 6 12 13 8 S1AMOD
S1b 13 12 13 8 S1BM OD
S2a 6 15 14 13 S2AM OD
S2b 13 15 14 13 S2BM OD

Vbat 22 19 DC 1

GATE

1

LGATE

RLGATE

RGATE

9

CA

ESG

+

EVTEMP

+

-

18
22

20

S1A

12

13

8

S1B

EGS EDS

-

13

10

6
8

+

+

RSLC2

6

S2A

14
13

S2B

6
8

-

-

DPLCAP

EVTHRES

+

19

8

CIN

15

CB

-

+

-

5

RSLC1

51

5

51

­50

RDRAIN

21

MSTRO

14

5
8

+

ESLC

16

8

MMED

8

DBREAK

11

+

17

EBREAK

IT

18

-

MWEAK

RSOURCE

RBREAK

17 18

RVTHRES

7

RVTEMP
19

-

+

22

LDRAIN

RLDRAIN

DBODY

LSOURCE

RLSOURCE

VBAT

DRAIN

2

SOURCE

3

FDB3632 / FDP3632 / FDI3632

ESLC 51 50 VALUE = {(V(5,5 1)/ABS(V (5,51)))*(PWR(V(5 ,51)/(1e-6*350),3))}
.MODEL DbodyMOD D (IS=5.9E-11 N=1.07 RS=2.3e-3 TRS1=3.0e-3 TRS2=1.0e-6

+ CJO=4e-9 M=0.58 TT=4.8e-8 XTI=4.2)
.MODEL DbreakMOD D (R S=0.17 TRS1 =3.0e-3 TRS2=-8.9e-6)
.MODEL Dpl capMOD D (CJO=1 5e-10 IS=1.0e-30 N=10 M=0. 6)

.MODEL Mstro M OD NMOS (VTO=4. 1 K P=200 IS=1e-30 N=10 TOX=1 L= 1u W=1u)
.MODEL MmedMOD NMOS (VTO=3.4 KP=10.0 IS=1e-30 N=10 TOX=1 L=1u W=1u RG=1.1)
.MODEL Mwe akMOD NMOS (V TO =2.75 KP= 0. 05 IS=1e-30 N=10 TOX=1 L= 1u W=1u RG=1.1e+1 RS=0.1)

.MODEL Rb reakMOD RES (TC1=1.0e-3 TC2=-1.7e-6)
.MODEL Rd rai nMOD RES (T C1=8.5e-3 TC2=2.8e-5)
.MODEL RSLCMOD RES (TC1=2.0e-3 TC2=2.0e-6)
.MODEL RsourceMOD RES (T C1=4e-3 TC2=1e-6)
.MODEL RvthresMOD RE S (TC1=-4.0e-3 TC2=-1 .8e-5)
.MODEL RvtempMOD RE S (T C1=-4.4e-3 T C2=2.2e-6)

.MODEL S1AMOD VSWITC H (RON= 1e- 5 ROFF = 0.1 VON= - 4 VOFF =-2 )
.MODEL S1BMOD VSWITC H (RON= 1e- 5 ROFF = 0.1 VON= - 2 VOFF =-4 )
.MODEL S2AMOD VSWITC H (RON= 1e- 5 ROFF = 0.1 VON= - 0.8 VO FF=0.4)
.MODEL S2BMOD VSWITC H (RON= 1e- 5 ROFF = 0.1 VON= 0 .4 VOFF= -0.8)

.ENDS
Note: For further discussion of the PSPICE model, consult A New PSPICE Sub-Circuit for the Power MOSFET Featuring Global
Temperature Options; IEEE Power Electro ni cs Specialist Confere nce Records, 1991, writte n by William J. Hepp and C. Frank
Wheatley.

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

SABER Electrical Model

REV May 2002
template FDB3632 n2,n1, n3
electrical n2,n1,n3
{
var i iscl
dp..model dbodymod = (isl=5.9e-11,nl=1.07,rs=2.3e-3,trs1=3.0e-3,trs2=1.0e-6,cjo=4e-9,m=0.58,tt=4.8e-8,xti=4.2)
dp..model dbreakmod = (rs=0.17,trs1=3.0e-3,trs2=-8.9e -6)
dp..model dplcapmod = (cjo=15e-10,isl=10.0e-30,nl=10,m=0.6)
m..model mstrongmod = (type=_n,vto=4.1,kp=200,is=1e-30, tox=1)
m..model mmedmod = (type=_n,vto=3.4,kp=10.0,is=1e-30, tox=1)
m..model mweakmod = (type=_n,vto=2.75,kp=0.05,is=1e-30, tox=1,rs=0.1)
sw_vcsp.. mo del s1amod = (ron= 1e-5,roff=0.1,von=-4,voff=-2)
sw_vcsp.. mo del s1bmod = (ron= 1e-5,roff=0.1,von=-2,voff=-4)
sw_vcsp.. mo del s2amod = (ron= 1e-5,roff=0.1,von=-0.8,voff=0.4)
sw_vcsp.. mo del s2bmod = (ron= 1e-5,roff=0.1,von=0.4,voff=-0.8)
c.ca n12 n8 = 1.7e -9
c.cb n15 n14 = 2.5e-9
c.cin n6 n8 = 6.0e -9

dp.dbody n7 n5 = model=dbody m od
dp.dbreak n5 n11 = model=dbreakmod
dp.dplcap n10 n5 = model=dpl capmod

spe.ebreak n11 n7 n17 n18 = 102.5
spe.eds n14 n8 n5 n8 = 1
spe.egs n13 n8 n6 n8 = 1

GATE

spe.esg n6 n10 n6 n8 = 1
spe.evthres n6 n21 n19 n8 = 1

LGATE

1

9

RLGATE

RGATE

ESG

EVTEMP
+

18
22

20

spe.evtemp n20 n6 n18 n22 = 1
i.it n8 n17 = 1

CA

S1A

12

S1B

l.lgate n1 n9 = 5.61e-9
l.ldrain n2 n5 = 1.0e-9
l.lsource n3 n7 = 2.7e-9

res.rlgate n1 n9 = 56.1
res.rldrai n n2 n5 = 10
res.rlsource n3 n7 = 27

m.mmed n16 n6 n8 n8 = m odel=mmed m od, l=1u, w=1u
m.mstrong n16 n6 n8 n8 = model=m strongmod, l= 1u, w=1u
m.mweak n16 n21 n8 n8 = model=mweakmod, l=1u, w = 1u

DPLCAP

10

RSLC2

­6

8

EVTHRES

+

+

19

8

6

-

S2A

13

14

8

13

S2B

13

+

+

6

EGS EDS

8

-

-

5

RSLC1

51

ISCL

8

MMED

8

DBREAK

11

MWEAK

EBREAK

+

RSOURCE

RBREAK

17 18

IT

RVTHRES

17
18

­7

RVTEMP
19

-

+

22

50
RDRAIN

16

21

-

MSTRO

CIN

15

CB

14

+

5
8

-

LDRAIN

RLDRAIN

DBODY

LSOURCE

RLSOURCE

VBAT

DRAIN

2

SOURCE

3

FDB3632 / FDP3632 / FDI3632

res.rbreak n17 n18 = 1, tc1=1.0e-3,tc2=-1.7e-6
res.rdrain n50 n16 = 3.8e-3, tc 1=8. 5e-3,tc2 =2.8e-5
res.rgate n9 n20 = 1.1
res.rslc1 n5 n51 = 1.0e-6, tc1 =2.0e-3,tc2=2.0e-6
res.rslc2 n5 n50 = 1.0e3
res.rsour ce n8 n7 = 2.5e-3, tc1=4e-3,tc2=1e-6
res.rvthres n22 n8 = 1, tc1=-4. 0e-3,tc2= -1.8e-5
res.rvtemp n18 n19 = 1, tc1=-4.4e-3,tc2=2.2e-6
sw_vcsp.s1 a n6 n12 n13 n8 = model=s1amod
sw_vcsp.s1 b n13 n12 n13 n8 = model=s1bmod
sw_vcsp.s2 a n6 n15 n14 n13 = model=s2amod
sw_vcsp.s2 b n13 n15 n14 n13 = mod el= s2bmod

v.vbat n22 n19 = dc=1
equations {
i (n51->n50) +=iscl
iscl: v(n51,n50) = ((v(n5,n51)/(1e-9+abs(v(n5,n51) )))*((abs(v(n5,n51) * 1e6/350))** 3))
}
}

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

FDB3632 / FDP3632 / FDI3632

SPICE Thermal Model

REV May 2002
FDB3632
CTHERM1 TH 6 7.5e-3

CTHERM2 6 5 8. 0e-3
CTHERM3 5 4 9. 0e-3
CTHERM4 4 3 2. 4e-2
CTHERM5 3 2 3. 4e-2
CTHERM6 2 TL 6.5e-2

RTHERM1 TH 6 3.1e-4
RTHERM2 6 5 2. 5e-3
RTHERM3 5 4 2. 2e-2
RTHERM4 4 3 8. 1e-2
RTHERM5 3 2 1. 35e-1
RTHERM6 2 TL 1.5e-1

SABER Thermal Model

SABER therm al m odel F DB3632
template thermal_model th tl
thermal_ c th , tl
{
ctherm.c th erm 1 th 6 =7.5e-3
ctherm.ctherm2 6 5 =8.0e-3
ctherm.ctherm3 5 4 =9.0e-3
ctherm.ctherm4 4 3 =2.4e-2
ctherm.ctherm5 3 2 =3.4e-2
ctherm.ctherm6 2 tl =6.5e-2

rtherm.rtherm1 th 6 =3.1 e-4
rtherm.rt herm2 6 5 =2.5e-3
rtherm.rt herm3 5 4 =2.2e-2
rtherm.rt herm4 4 3 =8.1e-2
rtherm.rt herm5 3 2 =1.35e-1
rthe r m.rtherm6 2 tl =1.5 e-1
}

RTHERM1

RTHERM2

RTHERM3

RTHERM4

RTHERM5

JUNCTION

th

CTHERM1

6

CTHERM2

5

CTHERM3

4

CTHERM4

3

CTHERM5

RTHERM6

2

CTHERM6

CASE

tl

©2003 Fairchild Semiconductor Corporation FDB3632 / FDP3632 / FDI3632 Rev. B1

TRADEMARKS

The following are registe red and unr egistered trademarks Fairchild Semiconductor owns or is aut horized to use and is not
intended to be an exhaustive list of all such trademarks.

ACEx™
ActiveArray™
Bottomless™
CoolFET™
CROSSVOLT™
DOME™
EcoSPARK™

2

E

CMOS™
EnSigna™
Across the board. Around the world.™
The Power Fr anchise™
Programma ble Active Droop™

FACT™
FACT Quiet Series™

®

FAST
FASTr™
FRFET™
GlobalOptoisolator™
GTO™
HiSeC™

2

I

C™

ImpliedDisconnect™
ISOPLANAR™
LittleFET™
MicroFET™
MicroPak™
MICROWIRE™
MSX™
MSXPro™
OCX™
OCXPro™
OPTOLOGIC

®

OPTOPLANAR™

PACMAN™
POP™
Power247™
PowerTrench

®

QFET™
QS™
QT Optoelectronics™
Quiet Ser ies™
RapidConfigure™
RapidConnect™
SILENT SWITCHER
SMART START™

SPM™
Stealth™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic
TruTranslation™
UHC™
UltraFET

®

VCX™

®

®

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY
LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR
CORPORATION.

As used herein:

1. Life support devices or systems are devices or systems
which, (a) ar e int ende d fo r s urgic al i mpla nt into the bo dy,
or (b) support or sustain life, or (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in significant injury to the user.

2. A c r it ic al c om ponen t i s an y c om po nent o f a l i f e s u pp or t
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.

PRODUCT STATUS DEFINITIONS
Definition of Terms

Datasheet Identification Product Status Definition

Adva nce Information Formative or I n

Design

Preliminary First Production This datasheet contains preliminary data, and

No Identification Needed Full Production This datasheet contains final specifications. Fairchild

Obsolete Not In Production This datasheet contains specifications on a product

This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.

supple m entary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.

Semiconductor reserves the righ t to make chan ges at
any time without notice in order to improve design.

that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.

Rev. I2
