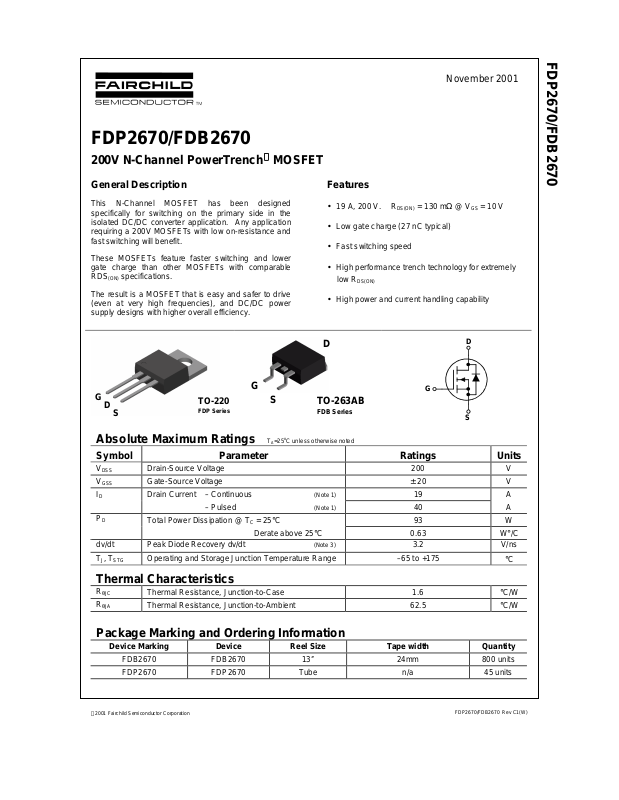

FDP2670/FDB2670

/

200V N-Channel PowerTrench



MOSFET

FDP2670

November 2001

FDB2670

General Description

This N-Channel MOSFET has been designed
specifically for switching on the primary side in the
isolated DC/DC converter application. Any applicat ion
requiring a 200V MOSFETs with low on-resistance and
fast switching will benefit.

These MOSFETs feature faster switching and lower
gate charge than other MOSFETs with comparable

specifications.

RDS

(ON)

The result is a MOSFET that is easy and safer to drive
(even at very high frequencies), and DC/DC power
supply designs with higher overall efficiency.

G

G

D

S

TO-220

FDP Series

Absolute Maximum Ratings T

S

=25oC unless otherwise noted

A

Features

• 19 A, 200 V. R

• Low gate charge (27 nC typical)

• Fast switching speed

• High performance trench technology for extremely

low R

DS(ON)

• High power and current handling capability

D

= 130 mΩ @ VGS = 10 V

DS(ON)

G

D

TO-263AB

FDB Series

S

Symbol Parameter Ratings Units

V

DSS

V

GSS

I

D

P

D

dv/dt Peak Diode Recovery dv/dt (Note 3) 3.2 V/ns
TJ, T

STG

Drain-Source Voltage 200 V
Gate-Source Voltage
Drain Current – Continuous (Note 1) 19 A

– Pulsed (Note 1) 40 A

Total Power Dissipation @ TC = 25°C

Derate above 25°C

Operating and Storage Junction Temperature Range –65 to +175

± 20

93 W

0.63

W°/C

V

°C

Thermal Characteristics

R

θJC

R

θJA

Thermal Resistance, Junction-to-Case 1.6
Thermal Resistance, Junction-to-Ambient 62.5

°C/W
°C/W

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity

FDB2670 FDB2670 13’’ 24mm 800 unit s
FDP2670 FDP2670 Tube n/a 45 units

2001 Fairchild Semiconductor Corporation

FDP2670/FDB2670 Rev C1(W)

FDP2670

/

Electrical Characteristics T

= 25°C unless otherwise noted

A

Symbol Parameter Test Conditions Min Typ Max Units
Drain-Source Avalanche Ratings (Note 1)

W

DSS

I

AR

Single Pulse Drain-Source
Avalanche Energy

Maximum Drain-Source Avalanche
Current

VDD = 100 V, ID = 10 A

375

10 A

Off Characteristics

BV

DSS

∆BVDSS
∆T

J

I

DSS

I

GSSF

I

GSSR

Drain–Source Breakdown Voltage
Breakdown Voltage Temperature

Coefficient

= 0 V, ID = 250 µA

V

GS

I

= 250 µA, Referenced to 25°C

D

Zero Gate Voltage Drain Current VDS = 160 V, VGS = 0 V 1
Gate–Body Leakage, Forward VGS = 20 V, VDS = 0 V 100 nA
Gate–Body Leakage, Reverse VGS = –20 V VDS = 0 V –100 nA

200 V

241

mV/°C

On Characteristics (Note 2)

V

GS(th)

∆VGS(th)
∆T

J

R

DS(on)

I

D(on)

g

FS

Gate Threshold Voltage
Gate Threshold Voltage

Temperature Coefficient
Static Drain–Source

On–Resistance

= VGS, ID = 250 µA

V

DS

I

= 250 µA, Referenced to 25°C

D

VGS = 10 V, ID = 10 A

= 10V, ID = 10 A, TJ = 125°C

V

GS

On–State Drain Current VGS = 10 V, VDS = 10 V 20 A
Forward Transconductance VDS = 10 V, ID = 10 A 24 S

244.5V
–9
98

205

130
285

mV/°C

mΩ

Dynamic Characteristics

C

iss

C

oss

C

rss

Input Capacitance 1320 pF
Output Capacitance 71 pF
Reverse Transfer Capacitance

= 100 V, V

V

DS

f = 1.0 MHz

GS

= 0 V,

24 pF

Switching Characteristics (Note 2)

t
t
t
t
Q
Q
Q

d(on)

r

d(off)

f

g

gs

gd

Turn–On Delay Time 14 25 ns
Turn–On Rise Time 5 10 ns

= 100 V, ID = 1 A,

V

DD

= 10 V, R

V

GS

GEN

= 6 Ω

Turn–Off Delay Time 26 41 ns
Turn–Off Fall Time
Total Gate Charge 27 38 nC
Gate–Source Charge 7 nC

V

= 100 V, ID = 10 A,

DS

= 10 V

V

GS

Gate–Drain Charge

23 37 ns

10 nC

Drain–Source Diode Characteristics and Maximum Ratings

I

S

V

SD

Notes:

1. Calculated continuous current based on maximum allowable junction temperature.

2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%
≤ 3A, di/dt ≤ 100A/µs, VDD ≤ BV

3. I

SD

Maximum Continuous Drain–Source Diode Forward Current 19 A
Drain–Source Diode Forward

Voltage

, Starting TJ = 25°C

DSS

V

= 0 V, IS = 10 A (Note 2) 0.8 1.3 V

GS

FDB2670

mJ

µA

FDP2670/FDB2670 Rev C1(W)

Typical Characteristics

)

E

)

)

A

/

FDP2670

30

VGS = 10V

24

18

12

, DRAIN CURRENT (A

D

I

6

0

0 3 6 9 12 15

7.0V

6.5V

, DRAIN-SOURCE VOLTAGE (V)

V

DS

6.0V

1.5

1.4

1.3

1.2

1.1

, NORMALIZED

DS(ON)

1

R

0.9

DRAIN-SOURCE ON-RESISTANCE

0.8
0 6 12 18 24 30

VGS = 6V

, DRAIN CURRENT (A)

I

D

6.5V

7.0V

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with

Drain Current and Gate Voltage.

2.6
ID =10A

2.2

= 10V

V

GS

1.8

1.4

, NORMALIZED

1

DS(ON)

R

0.6

DRAIN-SOURCE ON-RESISTANC

0.2

-50 -25 0 25 50 75 100 125 150 175

, JUNCTION TEMPERATURE (oC)

T

J

0.35

0.3

0.25

0.2

0.15

, ON-RESISTANCE (OHM)

0.1
TA = 25oC

DS(ON)

R

0.05

0

5678910

V

GS

TA = 125oC

, GATE TO SOURCE VOLTAGE (V)

FDB2670

10V

ID = 5A

Figure 3. On-Resistance Variation with

Temperature.

40

VDS = 50V

30

20

TA = 125oC

, DRAIN CURRENT (A

10

D

I

0

3.5 4.5 5.5 6.5 7.5

V

, GATE TO SOURCE VOLTAGE (V)

GS

25oC

-55oC

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

100

VGS = 0V

10

T

= 125oC

1

0.1

0.01

0.001

, REVERSE DRAIN CURRENT (A

S

I

0.0001

00.20.40.60.811.2

25oC

V

, BODY DIODE FORWARD VOLTAGE (V)

SD

-55oC

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation

with Source Current and Temperature.

FDP2670/FDB2670 Rev C1(W)

Typical Characteristics

)

)

/

FDP2670

10

ID = 10A

8

6

4

2

, GATE-SOURCE VOLTAGE (V)

GS

V

0

0 5 10 15 20 25 30

, GATE CHARGE (nC)

Q

g

VDS = 50V

100V

75V

2000

C

1500

1000

CAPACITANCE (pF)

500

C

RSS

0

0 25 50 75 100 125 150 175 200

ISS

C

OSS

V

, DRAIN TO SOURCE VOLTAGE (V)

DS

Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.

100

R

LIMIT

DS(ON)

10

VGS = 10V

1

SINGLE PULSE

, DRAIN CURRENT (A

D

I

= 1.6oC/W

R

θ

JC

T

= 25oC

C

0.1
1 10 100 1000

, DRAIN-SOURCE VO LTAGE (V)

V

DS

DC

100ms

10ms

10us

100us

1ms

2000

SINGLE PULSE

R

= 1.6°C/W

θ

JC

1500

1000

500

P(pk), PEAK TRANSIENT POWER (W)

0

0.00001 0.0001 0.001 0.01 0.1 1

, TIME (sec)

t

1

T

C

f = 1MHz
V

= 25°C

GS

FDB2670

= 0 V

Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum

Power Dissipation.

1

r(t), NORMALIZED EFFECTIVE

0.1

TRANSIENT THERMAL RESISTANCE

0.01

D = 0.5

0.2

0.1

0.05

0.02

0.01
SINGLE PULSE

R

(t) = r(t) * R

JC

θ

R

= 1.6 °C/W

JC

θ

P(pk

t

1

t

2

T

- TC = P * R

J

Duty Cycle, D = t

JC

θ

(t)

θJC

/ t

1

2

0.00001 0.0001 0.001 0.01 0.1 1

t

, TIME (sec)

1

Figure 11. Transient Thermal Response Curve.

Thermal characterization performed using the conditions described in Note 1.
Transient thermal response will change depending on the circuit board design.
