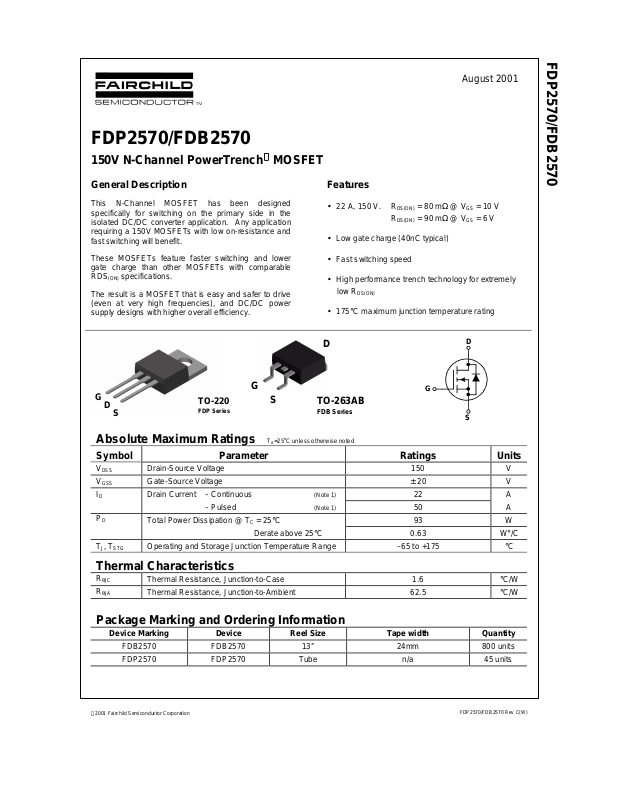

FDP2570/FDB2570

150V N-Channel PowerTrench



MOSFET

FDP2570/FDB2570

August 2001

General Description

This N-Channel MOSFET has been designed
specifically for switching on the primary side in the
isolated DC/DC converter application. Any applicat ion
requiring a 150V MOSFETs with low on-resistance and
fast switching will benefit.

These MOSFETs feature faster switching and lower
gate charge than other MOSFETs with comparable

specifications.

RDS

(ON)

The result is a MOSFET that is easy and safer to drive
(even at very high frequencies), and DC/DC power
supply designs with higher overall efficiency.

G

G

D

S

TO-220

FDP Series

Absolute Maximum Ratings T

S

=25oC unless otherwise noted

A

Features

• 22 A, 150 V. R

• Low gate charge (40nC typical)

• Fast switching speed

• High performance trench technology for extremely

low R

DS(ON)

• 175°C maximum junction temperature rating

D

= 80 mΩ @ VGS = 10 V

DS(ON)

= 90 mΩ @ VGS = 6 V

R

DS(ON)

G

D

TO-263AB

FDB Series

S

Symbol Parameter Ratings Units

V

DSS

V

GSS

I

D

P

D

TJ, T

STG

Drain-Source Voltage 150 V
Gate-Source Voltage
Drain Current – Continuous (Note 1) 22 A

– Pulsed (Note 1) 50 A

Total Power Dissipation @ TC = 25°C

Derate above 25°C

Operating and Storage Junction Temperature Range –65 to +175

± 20

93 W

0.63

W°/C

V

°C

Thermal Characteristics

R

θJC

R

θJA

Thermal Resistance, Junction-to-Case 1.6
Thermal Resistance, Junction-to-Ambient 62.5

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity

FDB2570 FDB2570 13’’ 24mm 800 unit s
FDP2570 FDP2570 Tube n/a 45 units

2001 Fairchild Semiconductor Corporation

FDP2570/FDB2570 Rev C(W)

°C/W
°C/W

FDP2570/FDB2570

Electrical Characteristics T

= 25°C unless otherwise noted

A

Symbol Parameter Test Conditions Min Typ Max Units
Drain-Source Avalanche Ratings (Note 1)

W

DSS

I

AR

Single Pulse Drain-Source
Avalanche Energy

Maximum Drain-Source Avalanche
Current

VDD = 75 V, ID = 11 A

375

11 A

mJ

Off Characteristics

BV

DSS

∆BVDSS
∆T

J

I

DSS

I

GSSF

I

GSSR

Drain–Source Breakdown Voltage
Breakdown Voltage Temperature

Coefficient

= 0 V, ID = 250 µA

V

GS

I

= 250 µA, Referenced to 25°C

D

Zero Gate Voltage Drain Current VDS = 120 V, VGS = 0 V 1
Gate–Body Leakage, Forward VGS = 20 V, VDS = 0 V 100 nA
Gate–Body Leakage, Reverse VGS = –20 V, VDS = 0 V –100 nA

150 V

154

mV/°C

µA

On Characteristics (Note 2)

V

GS(th)

∆VGS(th)
∆T

J

R

DS(on)

I

D(on)

g

FS

Gate Threshold Voltage
Gate Threshold Voltage

Temperature Coefficient
Static Drain–Source

On–Resistance

= VGS, ID = 250 µA

V

DS

= 250 µA, Referenced to 25°C

I

D

VGS = 10 V, ID = 11 A

= 6.0 V, ID = 10 A

V

GS

= 10 V, ID = 11 A, TJ = 125°C

V

GS

On–State Drain Current VGS = 10 V, VDS = 10 V 25 A
Forward Transconductance VDS = 10 V, ID = 11 A 39 S

22.64 V
–7

61
63

127

80
90

175

mV/°C

mΩ

Dynamic Characteristics

C

iss

C

oss

C

rss

Input Capacitance 1911 pF
Output Capacitance 106 pF
Reverse Transfer Capacitance

= 75 V, V

V

DS

f = 1.0 MHz

GS

= 0 V,

33 pF

Switching Characteristics (Note 2)

t
t
t
t
Q
Q
Q

d(on)

r

d(off)

f

g

gs

gd

Turn–On Delay Time 12 22 ns
Turn–On Rise Time 5 10 ns

= 75 V, ID = 1 A,

V

DD

= 10 V, R

V

GS

GEN

= 6 Ω

Turn–Off Delay Time 33 53 ns
Turn–Off Fall Time
Total Gate Charge 40 56 nC
Gate–Source Charge 7 nC

V

= 75 V, ID = 11 A,

DS

V

= 10 V

GS

Gate–Drain Charge

23 37 ns

12 nC

Drain–Source Diode Characteristics and Maximum Ratings

I

S

V

SD

Notes:

1. Calculated continuous current based on maximum allowable junction temperature.

2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%

Maximum Continuous Drain–Source Diode Forward Current 22 A
Drain–Source Diode Forward

Voltage

= 0 V, IS = 11 A (Note 2) 0.83 1.3 V

V

GS

FDP2570/FDB2570 Rev C(W)

Typical Characteristics

)

E

)

)

FDP2570/FDB2570

50

VGS = 10V

40

30

20

, DRAIN CURRENT (A

D

I

10

0

0 3 6 9 12 15

5.0V

4.5V

, DRAIN-SOURCE VOL TAGE (V)

V

DS

4.0V

1.6

1.4

1.2

, NORMALIZED

DS(ON)

R

1

DRAIN-SOURCE ON-RESISTANCE

0.8

VGS = 4.0V

4.5V

5.0V
10V

0 5 10 15 20 25 30

, DRAIN CURRENT (A)

I

D

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with

Drain Current and Gate Voltage.

2.9
ID = 11 A

2.5

= 10V

V

GS

2.1

1.7

1.3

, NORMALIZED

DS(ON)

0.9

R

0.5

DRAIN-SOURCE ON-RESISTANC

0.1

-65 -35 -5 25 55 85 115 145 175

, JUNCTION TE MP E RATURE (oC)

T

J

0.35

0.3

0.25

0.2

0.15

, ON-RESISTANCE (OHM)

0.1

DS(ON)

R

0.05

0

345678910

V

, GATE TO SOURCE VOLTAGE (V)

GS

TA = 125oC

TA = 25oC

ID = 5.5 A

Figure 3. On-Resistance Variation with

Temperature.

50

VDS = 50V

40

30

20

, DRAIN CURRENT (A

D

I

10

0

2 2.5 3 3.5 4 4.5 5

V

TA = 125oC

25oC

, GATE TO SOURCE VOLTAGE (V)

GS

-55oC

Figure 4. On-Resistance Variation with

Gate-to-Source Voltage.

100

VGS = 0V

10

1

0.1

0.01

0.001

, REVERSE DRAIN CURRENT (A

S

I

0.0001
0 0.2 0.4 0.6 0.8 1 1.2

TA = 125oC

25oC

V

, BODY DIODE FORWARD V O LTAGE (V)

SD

-55oC

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation

with Source Current and Temperature.

FDP2570/FDB2570 Rev C(W)

Typical Characteristics

)

FDP2570/FDB2570

10

ID = 11A

8

6

4

2

, GATE-SOURCE VOLTAGE (V)

GS

V

0

0 6 12 18 24 30 36 42

Q

, GATE CHARGE (nC)

g

VDS = 25V

75V

50V

3000

2500

2000

1500

1000

CAPACITANCE (pF)

500

0

0 20406080100120

C

ISS

C

OSS

C

RSS

, DRAIN TO SOURCE VOLTAGE (V)

V

DS

Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.

100

R

LIMIT

DS(ON)

10

VGS = 10V

1

SINGLE PULSE

, DRAIN CURRENT (A

D

I

R

= 1.6oC/W

θ

JC

T

= 25oC

A

0.1
1 10 100 1000

, DRAIN-SOURCE VO LTAGE (V)

V

DS

100ms

DC

10ms

10us

100us

1ms

2000

1500

1000

500

P(pk), PEAK TRANSIENT POWER (W)

0

0.00001 0.0001 0.001 0.01 0.1 1

, TIME (sec)

t

1

SINGLE PULSE

R

θ

f = 1MHz

= 0 V

V

GS

= 1.6°C/W

JA

T

= 25°C

A

Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum

Power Dissipation.

1

D = 0.5

0.2

0.1

r(t), NORMALIZED EFFECTIVE

TRANSIENT THERMAL RESISTANCE

0.01

0.1

0.05

0.02

0.01

SINGLE PULSE

R

(t) = r(t) * R

JA

θ

R

= 1.6 °C/W

JC

θ

P(pk)

t

1

t

2

T

- TA = P * R

J

Duty Cycle, D = t

JC

θ

(t)

θJC

/ t

1

2

0.00001 0.0001 0.001 0.01 0.1 1

Figure 11. Transient Thermal Response Curve.

Thermal characterization performed using the conditions described in Note 1.
Transient thermal response will change depending on the circuit board design.

FDP2570/FDB2570 Rev C(W)
