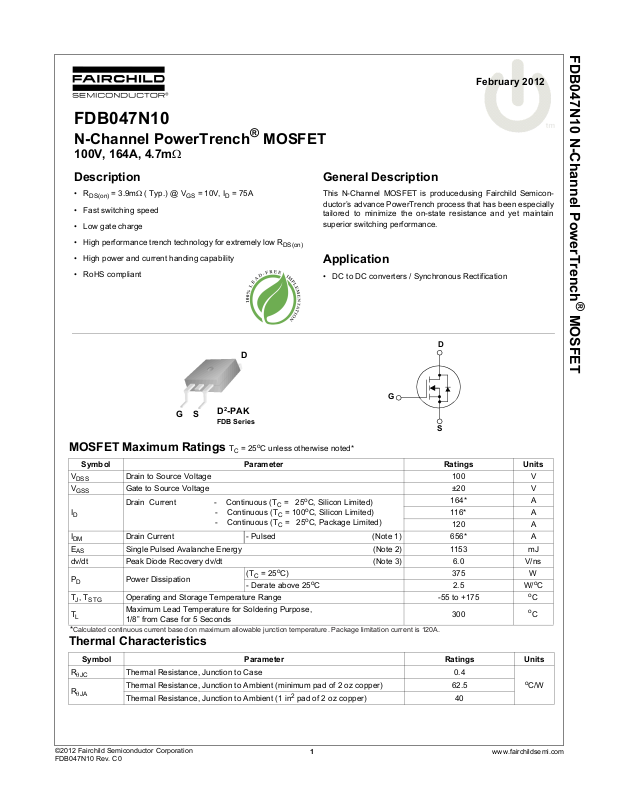

Page 1

FDB047N10

N-Channel PowerTrench® MOSFET

100V, 164A, 4.7mW

FDB047N10 N-Channel PowerTrench

February 2012

Description

• R

• Fast switching speed

• Low gate charge

• High performance trench technology for extremely low R

• High power and current handing capability

• RoHS compliant

= 3.9mW ( Typ.) @ VGS = 10V, ID = 75A

DS(on)

General Description

This N-Channel MOSFET is producedusing Fairchild Semiconductor’s advance PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Application

• DC to DC converters / Synchronous Rectification

G S

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

DSS

GSS

dv/dt Peak Diode Recovery dv/dt (Note 3) 6.0 V/ns

TJ, T

STG

*Calculated continuous current based on maximum allowable junction temperature. Package limitation current is 120A.

Drain to Source Voltage 100 V

Gate to Source Voltage ±20 V

Drain Current - Continuous (TC = 25oC, Silicon Limited)

- Continuous (TC = 100oC, Silicon Limited)

- Continuous (TC = 25oC, Package Limited)

Drain Current - Pulsed (Note 1) 656* A

Single Pulsed Avalanche Energy (Note 2) 1153 mJ

Power Dissipation

Operating and Storage Temperature Range -55 to +175 Maximum Lead Temperature for Soldering Purpose,

1/8” from Case for 5 Seconds

D2-PAK

FDB Series

= 25oC unless otherwise noted*

(TC = 25oC) 375 W

- Derate above 25oC 2.5 W/oC

164* A

116* A

120 A

300

Thermal Characteristics

Symbol Parameter Ratings Units

qJC

qJA

Thermal Resistance, Junction to Case 0.4

Thermal Resistance, Junction to Ambient (minimum pad of 2 oz copper) 62.5

Thermal Resistance, Junction to Ambient (1 in2 pad of 2 oz copper) 40

C/W

MOSFET

www.fairchildsemi.com1

Page 2

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

FDB047N10 FDB047N10 D2-PAK

330mm

24mm 800

FDB047N10 N-Channel PowerTrench

Electrical Characteristics T

= 25oC unless otherwise noted

Symbol Parameter Test Conditions Min. Typ. Max. Units

Off Characteristics

BV DBV

DSS

GSS

DSS

Drain to Source Breakdown Voltage ID = 250mA, VGS = 0V, TJ = 25oC 100 - - V Breakdown Voltage Temperature

Coefficient

Zero Gate Voltage Drain Current

Gate to Body Leakage Current VGS = ±20V, V

ID = 250mA, Referenced to 25oC - 0.1 - V/oC

VDS = 100V, V

= 0V - - 1

= 0V, TC = 150oC - - 500

= 0V - - ±100 nA

On Characteristics

GS(th)

DS(on)

Gate Threshold Voltage VGS = VDS, ID = 250mA 2.5 3.5 4.5 V

Static Drain to Source On Resistance VGS = 10V, ID = 75A - 3.9 4.7 mW

Forward Transconductance VDS = 10V, ID = 75A (Note 4) - 170 - S

Dynamic Characteristics

iss

oss

rss

Input Capacitance

Output Capacitance - 1120 1500 pF

Reverse Transfer Capacitance - 455 680 pF

VDS = 25V, VGS = 0V f = 1MHz

- 11500 15265 pF

Switching Characteristics

d(on)

d(off)

g(tot)

Turn-On Delay Time

Turn-On Rise Time - 386 782 ns

Turn-Off Delay Time - 344 698 ns

Turn-Off Fall Time - 244 499 ns

Total Gate Charge at 10V

Gate to Source Gate Charge - 56 - nC

Gate to Drain “Miller” Charge - 36 - nC

VDD = 50V, ID = 75A VGS = 10V, R

(Note 4, 5)

GEN

= 25W

VDS = 80V, ID = 75A VGS = 10V

(Note 4, 5)

- 174 358 ns

- 160 210 nC

MOSFET

Drain-Source Diode Characteristics

Notes:

1. Repetitive Rating: Pulse width limited by maximum junction temperature

2. L = 0.41mH, IAS = 75A, VDD = 50V, RG = 25W, Starting TJ = 25°C

3. ISD £ 75A, di/dt £ 200A/ms, VDD £ BV

4. Pulse Test: Pulse width £ 300ms, Duty Cycle £ 2%

5. Essentially Independent of Operating Temperature Typical Characteristics

FDB047N10 Rev. C0

Maximum Continuous Drain to Source Diode Forward Current - - 164* A

Maximum Pulsed Drain to Source Diode Forward Current - - 656 A

Drain to Source Diode Forward Voltage V

Reverse Recovery Time

Reverse Recovery Charge - 245 - nC

, Starting TJ = 25°C

DSS

= 0V, I

VGS = 0V, I

= 75A - - 1.25 V

= 75A

dIF/dt = 100A/ms (Note 4)

- 88 - ns

www.fairchildsemi.com

Page 3

Typical Performance Characteristics

Capacitances [pF]

Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics

300

100

10V

6.5 V

6.0 V

5.5 V

,Drain Current[A]

0.1 1

VDS,Drain-Source Voltage[V]

= 5V

*Notes:

1. 250ms Pulse Test

2. TC = 25oC

Figure 3. On-Resistance Variation vs. Figure 4. Body Diode Forward Voltage

Drain Current and Gate Voltage Variation vs. Source Current

and Temperature

400

100

175oC

-55oC

25oC

,Drain Current[A]

*Notes:

1. VDS = 20V

2 4 6 8

2. 250ms Pulse Test

VGS,Gate-Source Voltage[V]

300

FDB047N10 N-Channel PowerTrench

MOSFET

100

175oC

[mW],

DS(ON)

VGS = 10V

VGS = 20V

Drain-Source On-Resistance

0 100 200 300 400

*Note: TJ = 25oC

ID, Drain Current [A]

, Reverse Drain Current [A]

0.0 0.5 1.0

VSD, Body Diode Forward Voltage [V]

25oC

*Notes:

1. VGS = 0V

2. 250ms Pulse Test

Figure 5. Capacitance Characteristics Figure 6. Gate Charge Characteristics

16000

14000

= Cgs + Cgd (Cds = shorted)

iss

= Cds + C

oss

iss

= C

rss

12000

10000

8000

oss

6000

4000

2000

0.1 1 10

rss

VDS, Drain-Source Voltage [V]

*Note:

1. VGS = 0V

2. f = 1MHz

VDS = 20V

VDS = 50V VDS = 80V

, Gate-Source Voltage [V]

0 30 60 90 120 150 180

*Note: ID = 75A

Qg, Total Gate Charge [nC]

1.4

FDB047N10 Rev. C0

www.fairchildsemi.com

Page 4

Typical Performance Characteristics (Continued)

Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation vs. Temperature vs. Temperature

1.2

1.1

3.0

2.5

2.0

FDB047N10 N-Channel PowerTrench

1.0

, [Normalized]

DSS

0.9

Drain-Source Breakdown Voltage

0.8

-100 -50 0 50 100 150 200

*Notes:

1. VGS = 0V

2. ID = 250mA

TJ, Junction Temperature [oC]

1.5

, [Normalized]

1.0

DS(on)

Drain-Source On-Resistance

0.5

0.0

-100 -50 0 50 100 150 200

*Notes:

1. VGS = 10V

2. ID = 75A

TJ, Junction Temperature [oC]

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current

vs. Case Temperature

1000

100

10ms

, Drain Current [A] I

Operation in This Area is Limited by R

*Notes:

1. TC = 25oC

2. TJ = 175oC

3. Single Pulse

0.1

0.1 1 10 100

DS(on)

100ms

VDS, Drain-Source Voltage [V]

10ms

100ms

1ms

200

150

100

, Drain Current [A]

Limited by package

25 50 75 100 125 150 175

TC, Case Temperature [oC]

Figure 11. Transient Thermal Response Curve

MOSFET

]

qJC

0.5

0.1

0.2

0.1

0.05

0.02

0.01

Single pulse

Thermal Response [Z

1E-3

-5

-4

-3

-2

Rectangular Pulse Duration [sec]

FDB047N10 Rev. C0

*Notes:

1. Z

(t) = 0.4oC/W Max.

qJC

2. Duty Factor, D= t1/t

3. TJM - TC = PDM * Z

-1

qJC

(t)

www.fairchildsemi.com

Page 5

Gate Charge Test Circuit & Waveform

Resistive Switching Test Circuit & Waveforms

FDB047N10 N-Channel PowerTrench

MOSFET

FDB047N10 Rev. C0

Unclamped Inductive Switching Test Circuit & Waveforms

www.fairchildsemi.com

Page 6

Peak Diode Recovery dv/dt Test Circuit & Waveforms

DUT

Driver

Same Type

as DUT

• dv/dt controlled by R

• ISDcontrolled by pulse period

FDB047N10 N-Channel PowerTrench

MOSFET

( Driver )

( DUT )

Gate Pulse Width

--------------------------

D =

Gate Pulse Period

IFM, Body Diode Forward Current

Body Diode Reverse Current

Body Diode Recovery dv/dt

Body Diode

Forward Voltage Drop

di/dt

10V

FDB047N10 Rev. C0

www.fairchildsemi.com

Page 7

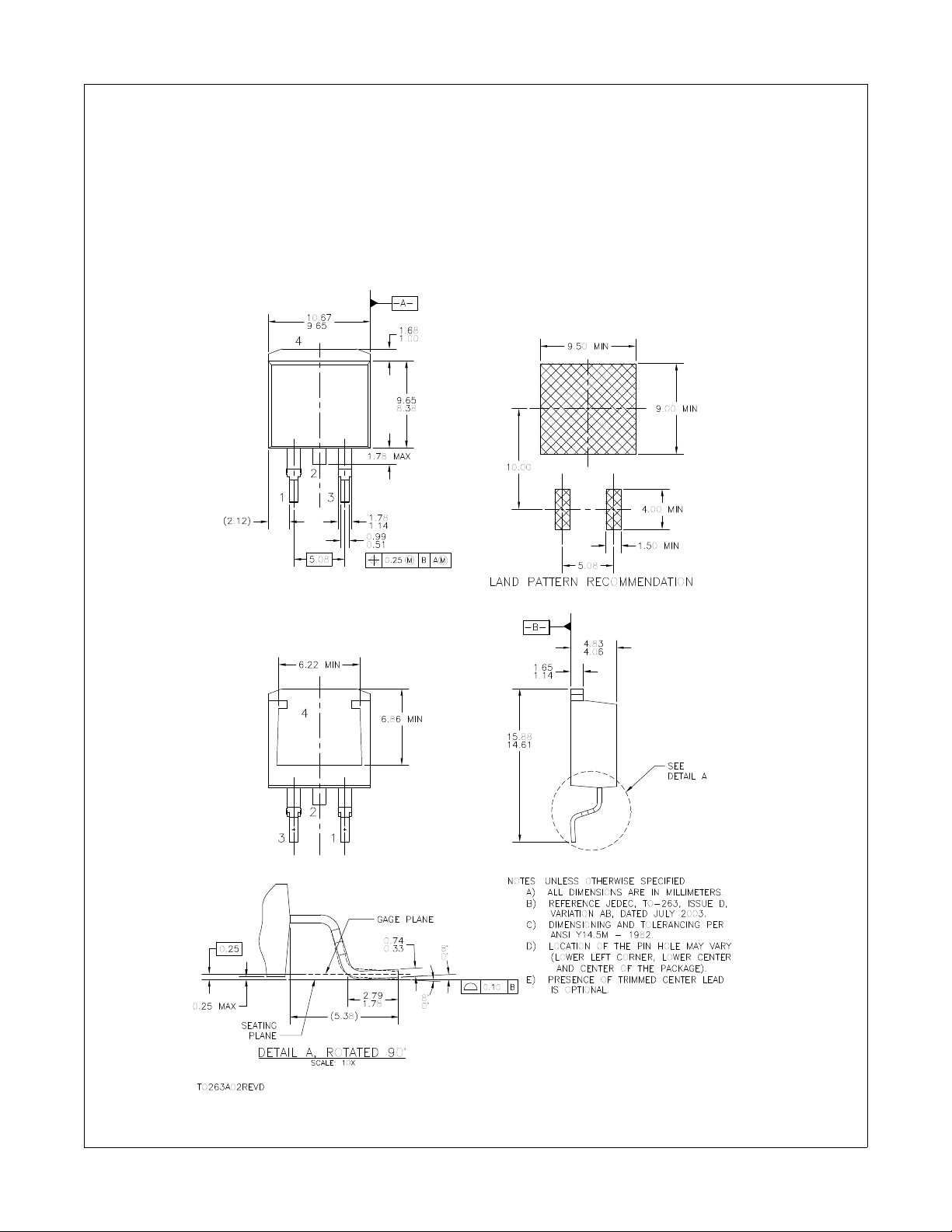

Mechanical Dimensions

FDB047N10 N-Channel PowerTrench

D2-PAK

MOSFET

FDB047N10 Rev. C0

Dimensions in Millimeters

www.fairchildsemi.com
