FDB024N06

N-Channel PowerTrench® MOSFET

60V, 265A, 2.4mΩ

FDB024N06 N-Channel PowerTrench

July 2008

Features

•R

• Fast switching speed

• Low gate charge

• High performance trench technology for extremely low R

• High power and current handling capability

• RoHS compliant

= 1.8mΩ ( Typ.) @ VGS = 10V, ID = 75A

DS(on)

General Description

This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Application

• DC to DC convertors / Synchronous Rectification

MOSFET Maximum Ratings T

Symbol Parameter Ratings Units

DSS

GSS

dv/dt Peak Diode Recovery dv/dt (Note 3) 3.5 V/ns P

, T

STG

Calculated continuous current based on maximum allowable junction temperature. Package limitation current is 120A.

Drain to Source Voltage 60 V Gate to Source Voltage ±20 V

Drain Current - Continuous (TC = 25oC, Silicon Limited)

- Continuous (T

- Continuous (T Drain Current - Pulsed (Note 1) 1060 A

Single Pulsed Avalanche Energy (Note 2) 2531 mJ

Power Dissipation Operating and Storage Temperature Range -55 to +175

Maximum Lead Temperature for Soldering Purpose, 1/8” from Case for 5 Seconds

D2-PAK

FDB Series

= 25

- Derate above 25

C unless otherwise noted

265* A

= 100oC, Silicon Limited)

= 25oC, Package Limited)

= 25oC) 395 W

C2.6W/

190* A

120 A

300

Thermal Characteristics

Symbol Parameter Ratings Units

θJC

θJA

Thermal Resistance, Junction to Case 0.38 Thermal Resistance, Junction to Ambient 62.5

C/W

MOSFET

www.fairchildsemi.com1

Page 2

FDB024N06 N-Channel PowerTrench

Package Marking and Ordering Information T

= 25oC unless otherwise noted

Device Marking Device Package Reel Size Tape Width Quantity

FDB024N06 FDB024N06 D2-PAK

330mm

24mm 800

Electrical Characteristics

Symbol Parameter Test Conditions Min. Typ. Max. Units

Off Characteristics

DSS

∆BV

DSS

∆T

DSS

GSS

On Characteristics

GS(th)

DS(on)

Dynamic Characteristics

iss

oss

rss

g(tot)

Drain to Source Breakdown Voltage ID = 250µA, VGS = 0V, TC= 25oC60 - -V Breakdown Voltage Temperature

Coefficient Zero Gate Voltage Drain Current Gate to Body Leakage Current VGS = ±20V, V

= 250µA, Referenced to 25oC - 0.04 - V/oC

= 60V, V = 60V, V

= 0V - - 1

= 0V, TC = 150oC - - 500

= 0V - - ±100 nA

Gate Threshold Voltage VGS = VDS, ID = 250µA2.53.54.5V Static Drain to Source On Resistance VGS = 10V, ID = 75A - 1.8 2.4 mΩ Forward Transconductance VDS = 10V , ID = 75A (Note 4) - 200 - S

Input Capacitance Output Capacitance - 1610 2140 pF Reverse Transfer Capacitance - 750 1125 pF

= 25V, VGS = 0V

f = 1MHz

Total Gate Charge at 10V

= 48V, ID = 75A

Gate to Source Gate Charge - 54 - nC Gate to Drain “Miller” Charge - 50 - nC

= 10V

(Note 4, 5)

- 11190 14885 pF

- 174 226 nC

µA

MOSFET

Switching Characteristics

d(on)

d(off)

Turn-On Delay Time Turn-On Rise Time - 324 658 ns Turn-Off Delay Time - 348 706 ns Turn-Off Fall Time - 250 510 ns

Drain-Source Diode Characteristics

Notes:

1: Repetitive Rating: Pulse width limited by maximum junction temperature 2: L = 0.9mH, IAS = 75A, VDD = 50V, RG = 25Ω, Starting TJ = 25°C 3: ISD ≤ 75A, di/dt ≤ 200A/µs, VDD ≤ BV 4: Pulse Test: Pulse width ≤ 300µs, Duty Cycle ≤ 2% 5: Essentially Independent of Operating Temperature Typical Characteristics

Maximum Continuous Drain to Source Diode Forward Current - - 265 A Maximum Pulsed Drain to Source Diode Forward Current - - 1060 A Drain to Source Diode Forward Voltage V Reverse Recovery Time Reverse Recovery Charge - 152 - nC

, Starting TJ = 25°C

DSS

= 30V, ID = 75A

= 10V, R

(Note 4, 5)

= 0V, I

/dt = 100A/µs (Note 4)

= 25Ω

GEN

= 75A - - 1.3 V

= 75A

- 134 278 ns

-69-ns

FDB024N06 Rev. A3

www.fairchildsemi.com

Page 3

Typical Performance Characteristics

Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics

700

= 15.0 V

10.0 V

8.0 V

7.0 V

100

6.5 V

6.0 V

5.5 V

5.0 V

,Drain Current[A]

*Notes:

1. 250

µs Pulse Test

= 25oC

2. T

0.01 0.1 1

VDS,Drain-Source Voltage[V]

Figure 3. On-Resistance Variation vs. Figure 4. Body Diode Forward Voltage

Drain Current and Gate Voltage Variation vs. Source Current

and Temperature

3.0

1000

*Notes:

= 20V

1. V

µs Pulse Test

2. 250

100

,Drain Current[A]

234567

175oC

25oC

-55oC

VGS,Gate-Source Voltage[V]

500

FDB024N06 N-Channel PowerTrench

MOSFET

2.5

VGS = 10V

2.0

[mΩ],

DS(ON)

VGS = 20V

1.5

Drain-Source On-Resistance

1.0 0 100 200 300 400

*Note: TC = 25oC

ID, Drain Current [A]

100

, Reverse Drain Current [A]

0.00.20.40.60.81.01.21.4

175oC

25oC

*Notes:

1. VGS = 0V

2. 250

µs Pulse Test

VSD, Body Diode Forward Voltage [V ]

Figure 5. Capacitance Characteristics Figure 6. Gate Charge Characteristics

16000

iss

12000

8000

Capacitances [pF]

4000

oss

rss

0.1 1 10

C C C

VDS, Drain-Source Voltage [V]

*Note:

1. V

2. f = 1MHz

= Cgs + Cgd (Cds = shorted)

iss

= Cds + C

oss rss

= C

= 0V

VDS = 15V V

= 30V

= 48V

, Gate-Source Voltage [V]

*Note: ID = 75A

0 40 80 120 160 200

Qg, Total Ga te C harge [nC]

FDB024N06 Rev. A3

www.fairchildsemi.com

Page 4

Typical Performance Characteristics (Continued)

Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation vs. Temperature vs. Temperature

1.15

2.0

FDB024N06 N-Channel PowerTrench

1.10

1.6

1.05

1.2

, [Normalized]

DS(on)

0.8

Drain-Source On-Resistance

0.4

-100 -50 0 50 100 150 200

*Notes:

1. V

2. I

TJ, Junction Temperature [oC]

= 75A

, [Normalized]

1.00

DSS

0.95

Drain-Source Breakdown Voltage

0.90

-100 -50 0 50 100 150 200 TJ, Junction Temperature [oC]

*Notes:

1. V

2. I

= 0V

= 10mA

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current

vs. Case Temperature

1000

10µs

10ms

= 25oC

= 175oC

100µs

1ms

100

Operation in This Area

is Limited by R

, Drain Current [A]

0.1 110100

DS(on)

*Notes:

1. T

2. T

3. Single Pulse

VDS, Drain-Source Voltage [V]

300

250

200

150

Limited by package

100

, Drain Current [A]

25 50 75 100 125 150 175

TC, Case Tempera ture [oC]

Figure 11. Transient Thermal Response Curve

= 10V

MOSFET

FDB024N06 Rev. A3

]

θJC

Thermal Response [Z

0.01

0.005

0.1

0.5

0.2

0.1

0.05

0.02

0.01

Single pulse

-5

*Notes:

1. Z

2. Duty Fact or, D= t

3. TJM - TC = PDM * Z

-4

-3

-2

-1

(t) = 0.38oC/W Max.

θJC

110

1/t2

θJC

(t)

Rectangular Pulse Duration [sec]

www.fairchildsemi.com

Page 5

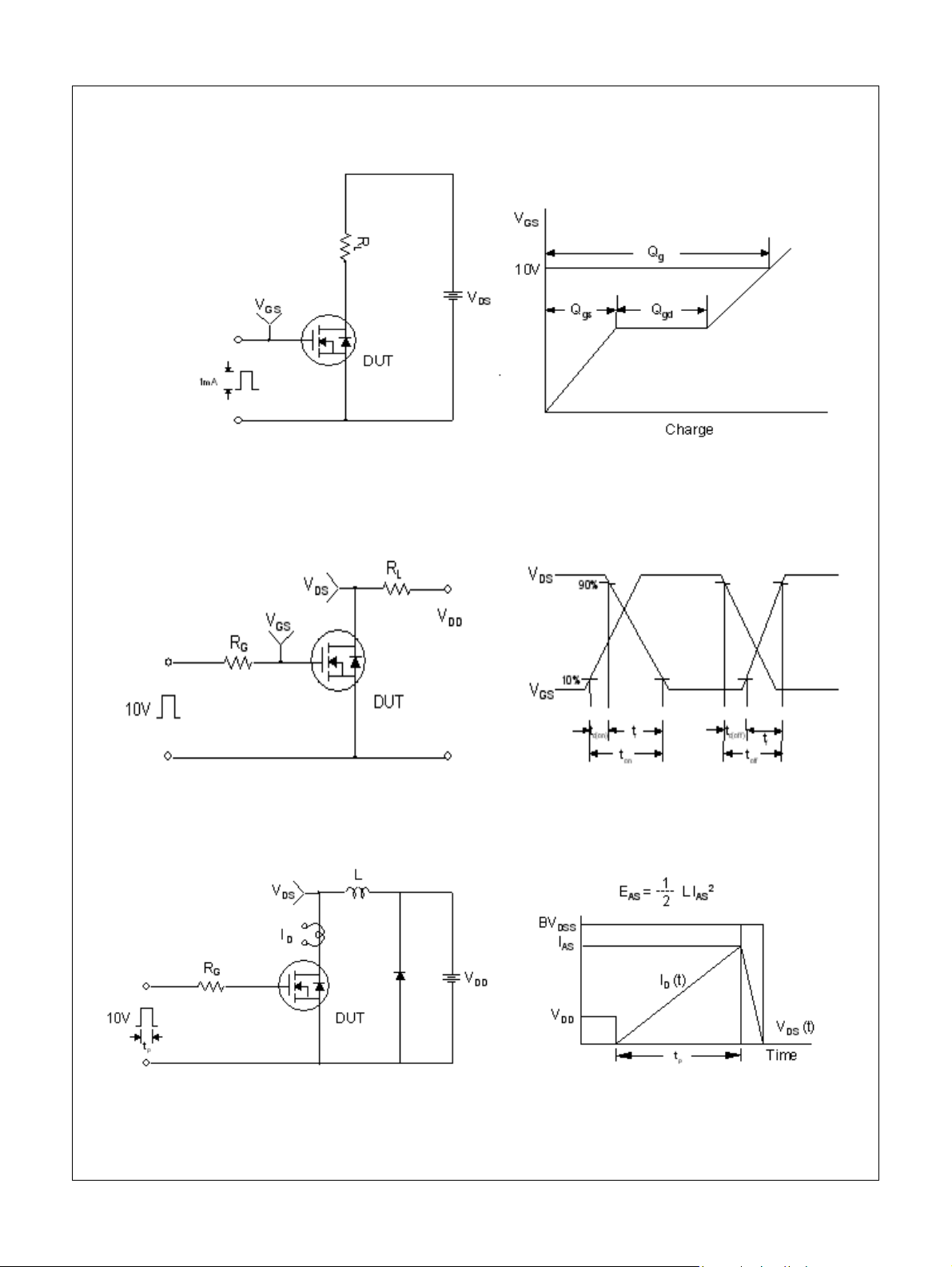

Gate Charge Test Circuit & Waveform

Resistive Switching Test Circuit & Waveforms

FDB024N06 N-Channel PowerTrench

MOSFET

FDB024N06 Rev. A3

Unclamped Inductive Switching Test Circuit & Waveforms

www.fairchildsemi.com

Page 6

Peak Diode Recovery dv/dt Test Circuit & Waveforms

DUT

Driver

Same Type

as DUT

• dv/dt controlled by R

•ISDcontrolled by pulse period

FDB024N06 N-Channel PowerTrench

MOSFET

( Driver )

( DUT )

Gate Pulse Width

--------------------------

D =

Gate Pulse Period

IFM, Body Diode Forward Current

Body Diode Reverse Current

Body Diode Recoverydv/dt

Body Diode

Forward Voltage Drop

di/dt

10V

FDB024N06 Rev. A3

www.fairchildsemi.com

Page 7

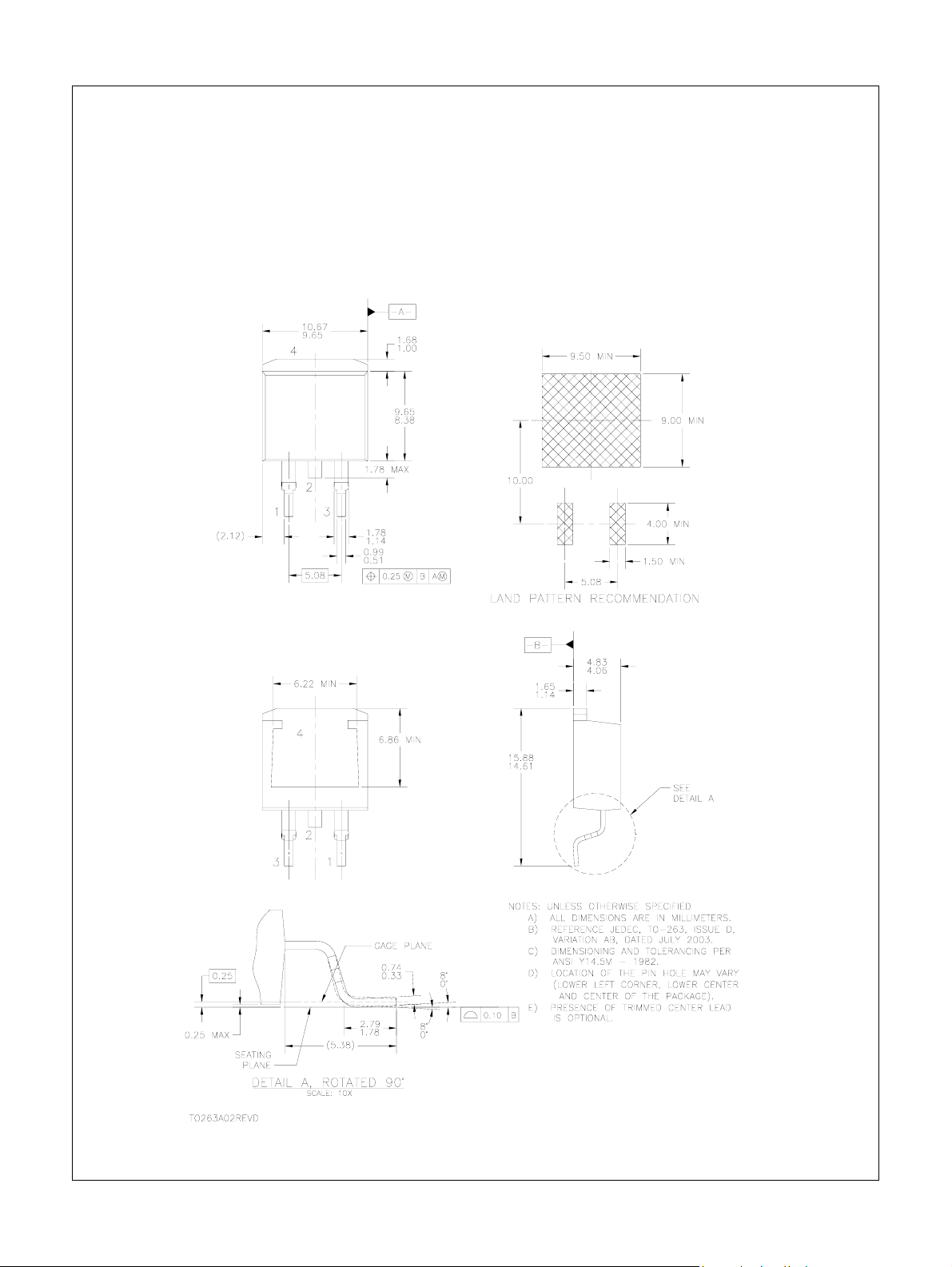

Mechanical Dimensions

FDB024N06 N-Channel PowerTrench

D2-PAK

MOSFET

FDB024N06 Rev. A3

Dimensions in Millimeters

www.fairchildsemi.com

Page 8
