Table of Contents

Wire Wound Chip Inductors - LB Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

0603 Case Size Standard Type (LB 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

0805 Case Size Standard Type (LB 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

0806 Case Size Standard Type (LB 2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

1007 Case Size Standard Type (LB 2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

1207 Case Size Standard Type (LB 3218 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

0603 Case Size Standard Type (LB MF 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

0805 Case Size High Current Type (LB C2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

0806 Case Size High Current Type (LB C2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

1007 Case Size High Current Type (LB C2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

0805 Case Size Low RDC Type (LB R2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

1007 Case Size Low RDC Type (LB R2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Wire Wound Chip Inductors - CB Series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

0805 Case Size Low RDC Type (CB 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

0806 Case Size Low RDC Type (CB 2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

1007 Case Size Low RDC Type (CB 2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

0805 Case Size High Current Type (CBC 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

0806 Case Size High Current Type (CBC 2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

1007 Case Size High Current Type (CBC 2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

1210 Case Size High Current Type (CBC 3225 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

0805 Case Size Low Profile Type (CBL 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

0603 Case Size Power, Bottom Surface Electrode Type (CBMF 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

Multilayer Chip Inductors for High Frequency - HK Series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11

0201 Case Size Multilayer Chip Inductors for High Frequency (HK 0603 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 12

0402 Case Size Multilayer Chip Inductors for High Frequency (HK 1005 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 13

0603 Case Size Multilayer Chip Inductors for High Frequency (HK 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 14

0805 Case Size Multilayer Chip Inductors for High Frequency (HK 2125 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 15

Multilayer Chip Inductors - LK/CK/CKP Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16

0402 Case Size Multilayer Chip Inductors (LK 1005 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17

0603 Case Size Multilayer Chip Inductors (LK 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18

0805 Case Size Multilayer Chip Inductors (LK 2125 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19

0603 Case Size Multilayer Chip Inductors (CK 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

0805 Case Size Multilayer Chip Inductors (CK 2125 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

1206 Case Size Multilayer Chip Inductors (CKP 3216 Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

Low Profile SMD Inductors (NR Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

NR3010 Type (1.0mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

NR4010 Type (1.0mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

NR4012 Type (1.2mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

NR4018 Type (1.8mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

NR6012 Type (1.2mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

NR8040 Type (4.2mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

High Current Ferrite Chip Beads - FB Series M Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23

0603 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

0805 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

1206 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

1806 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

High Impedence Type Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25

Multilayer Ferrite Chip Beads - BK Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26

0201 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

0402 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

0402 Multilayer Ferrite Chip Beads for Power Lines (BKP Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

0603 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 28

0603 Multilayer Ferrite Chip Beads for Power Lines (BKP Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 28

0805 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29

0805 Multilayer Ferrite Chip Beads for Power Lines (BKP Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

4

Features: Operating Temperature:

• Small size wound chip inductor with low DC resistance • -25ºC to +105ºC (including self-generated heat)

• Dimension without directional influence on mountability
and characteristics

• Excellent Q and SRF (LB H1608 Series)

Applications:

• Digital Still Cameras (DSC), Digital Video Cameras (DVC),
PDA’s and other portable digital equipment

• Portable telephones and wireless LAN (LB H1608 Series)

KEMET Designator

Inductance

Examples: 3N9 = 0.0039μH

10N = 0.01μH

R10 = 0.1μH
1R0 = 1.0μH

100 = 10μH

101 = 100μH

Inductance Tolerance

K = ±10%, M = ±20%

Type

LB- =Standard Type
LBC = High Current Type
LBR = Low Rdc Type
LBMF = Bottom Surface Electrode

(See Part Number Table)

Packaging Code

T = Tape & Reel

LB-

-

(-) Required to complete Part Number

2012 T 101 M K

E

T

W

L

Wire Wound Chip Inductors - LB Series

Part Numbering Table

Dimension Table in millimeters (inches)

Case Size

1608 (0603)
2012 (0805)
2016 (0806)
2518 (1007)
3218 (1207)

Dim.

Code

EIA

Case

Size

L

Length

(inches)

W

Width

(inches)

T

Thickness

Maximum

(inches)

E

(inches)

1608 0603

1.6 ±0.1

(0.063 ±0.004)

0.8 ±0.1

(0.031 ±0.004)

0.8 ±0.1

(0.031 ±0.004)

0.35 ±0.2

(0.014 ±0.008)

2012 0805

2.0 ±0.2

(0.079 ±0.008)

1.25 ±0.2

(0.049 ±0.008)

1.25 ±0.2

(0.049 ±0.008)

0.5 ±0.2

(0.02 ±0.008)

2016 0806

2.0 ±0.2

(0.079 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.5 ±0.2

(0.02 ±0.008)

2518 1007

2.5 ±0.2

(0.098 ±0.008)

1.8 ±0.2

(0.072 ±0.008)

1.8 ±0.2

(0.072 ±0.008)

0.5 ±0.2

(0.02 ±0.008)

3218 1207

3.2 ±0.2

(0.128 ±0.008)

1.8 ±0.2

(0.072 ±0.008)

1.8 ±0.2

(0.072 ±0.008)

0.6 ±0.2

(0.024 ±0.008)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

5

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LB-1608-T4R7MK 4.7 ±20% 45 0.55 70 7.96 4,000

LB-1608-T8R2MK 8.2 ±20% 32 0.70 50 2.52 4,000

LB-1608-T100MK 10 ±20% 32 0.70 50 2.52 4,000

0603 Case Size Standard Type (LB 1608 Series)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LB-2012-T1R0MK 1.0 ±20% 100 0.15 300 7.96 3,000

LB-2012-T2R2MK 2.2 ±20% 80 0.23 240 7.96 3,000

LB-2012-T4R7MK 4.7 ±20% 45 0.40 140 7.96 3,000

LB-2012-T100MK 10 ±20% 32 0.70 100 2.52 3,000

LB-2012T100MRK* 10 ±20% 32 0.50 100 2.52 3,000

LB-2012-T220MK 22 ±20% 15 1.70 75 2.52 3,000

LB-2012-T470MK 47 ±20% 11 3.70 50 2.52 3,000

LB-2012-T101MK 100 ±20% 8 7.00 30 0.796 3,000

0805 Case Size Standard Type (LB 2012 Series)

* Low Rdc Type

0806 Case Size Standard Type (LB 2016 Series)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LB-2016-T1R0MK 1.0 ±20% 100 0.09 455 7.96 2,000
LB-2016-T1R5MK 1.5 ±20% 80 0.11 350 7.96 2,000
LB-2016-T2R2MK 2.2 ±20% 70 0.13 315 7.96 2,000
LB-2016-T3R3MK 3.3 ±20% 55 0.20 280 7.96 2,000
LB-2016-T4R7MK 4.7 ±20% 45 0.25 210 7.96 2,000
LB-2016-T6R8MK 6.8 ±20% 38 0.35 175 7.96 2,000
LB-2016-T100MK 10 ±20% 32 0.50 155 2.52 2,000
LB-2016-T150MK 15 ±20% 28 0.70 130 2.52 2,000
LB-2016-T220MK 22 ±20% 16 1.00 105 2.52 2,000
LB-2016-T330MK 33 ±20% 14 1.70 85 2.52 2,000
LB-2016-T470MK 47 ±20% 11 2.40 60 2.52 2,000
LB-2016-T680MK 68 ±20% 10 3.00 50 2.52 2,000
LB-2016-T101MK 100 ±20% 8 4.50 40 0.796 2,000

1007 Case Size Standard Type (LB 2518 Series)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant Frequency

(MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LB-2518-T1R0MK 1.0 ±20% 100 0.06 500 7.96 2,000
LB-2518-T1R5MK 1.5 ±20% 80 0.07 400 7.96 2,000
LB-2518-T2R2MK 2.2 ±20% 68 0.09 340 7.96 2,000
LB-2518-T3R3MK 3.3 ±20% 54 0.11 270 7.96 2,000
LB-2518-T4R7MK 4.7 ±20% 46 0.13 240 7.96 2,000
LB-2518-T6R8MK 6.8 ±20% 38 0.15 195 7.96 2,000
LB-2518-T100MK 10 ±20% 30 0.25 165 2.52 2,000
LB-2518-T150MK 15 ±20% 23 0.32 145 2.52 2,000
LB-2518-T220MK 22 ±20% 19 0.50 115 2.52 2,000
LB-2518-T330MK 33 ±20% 15 0.70 95 2.52 2,000
LB-2518-T470MK 47 ±20% 12 0.95 85 2.52 2,000
LB-2518-T680MK 68 ±20% 9.5 1.50 70 2.52 2,000
LB-2518-T101MK 100 ±20% 9 2.10 55 0.796 2,000
LB-2518-T151MK 150 ±20% 7 3.20 45 0.796 2,000
LB-2518-T221MK 220 ±20% 5.5 4.50 35 0.796 2,000
LB-2518-T331MK 330 ±20% 4.5 7.00 30 0.796 2,000
LB-2518-T471MK 470 ±20% 3.5 10.00 25 0.796 2,000
LB-2518-T681MK 680 ±20% 3 17.00 20 0.796 2,000
LB-2518-T102MK 1000 ±20% 2.4 24.00 15 0.252 2,000

1207 Case Size Standard Type (LB 3218 Series)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant Frequency

(MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LB-3218-T1R0MK 1.0 ±20% 100 0.06 1075 7.96 2,000
LB-3218-T1R5MK 1.5 ±20% 80 0.07 860 7.96 2,000
LB-3218-T2R2MK 2.2 ±20% 68 0.09 775 7.96 2,000
LB-3218-T3R3MK 3.3 ±20% 54 0.11 560 7.96 2,000
LB-3218-T4R7MK 4.7 ±20% 41 0.13 550 7.96 2,000

LB-3218-T6R8MK 6.8 ±20% 40 0.17 380 7.96 2,000
LB-3218-T100(_)K 10 K=10%, M=±20% 30 0.25 340 2.52 2,000
LB-3218-T150(_)K 15 K=10%, M=±20% 25 0.32 300 2.52 2,000
LB-3218-T220(_)K 22 K=10%, M=±20% 19 0.49 255 2.52 2,000
LB-3218-T330(_)K 33 K=10%, M=±20% 15 0.75 215 2.52 2,000
LB-3218-T470(_)K 47 K=10%, M=±20% 12 0.92 205 2.52 2,000
LB-3218-T680(_)K 68 K=10%, M=±20% 11 1.49 145 2.52 2,000
LB-3218-T101(_)K 100 K=10%, M=±20% 8 2.40 140 0.796 2,000
LB-3218-T151(_)K 150 K=10%, M=±20% 7 3.20 105 0.796 2,000
LB-3218-T221(_)K 220 K=10%, M=±20% 5 5.40 80 0.796 2,000
LB-3218-T331(_)K 330 K=10%, M=±20% 4 7.00 65 0.796 2,000
LB-3218-T471(_)K 470 K=10%, M=±20% 3.5 14.00 54 0.796 2,000
LB-3218-T681(_)K 680 K=10%, M=±20% 3 17.00 45 0.796 2,000
LB-3218-T102(_)K 1000 K=10%, M=±20% 2.4 27.00 39 0.252 2,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

6

0806 Case Size High Current Type (LB C2016 Series)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LBC2016-T1R0MK 1.0 ±20% 100 0.10 690 7.96 2,000
LBC2016-T1R5MK 1.5 ±20% 80 0.15 600 7.96 2,000
LBC2016-T2R2MK 2.2 ±20% 70 0.20 520 7.96 2,000
LBC2016-T3R3MK 3.3 ±20% 55 0.27 410 7.96 2,000
LBC2016-T4R7MK 4.7 ±20% 45 0.37 355 7.96 2,000
LBC2016-T6R8MK 6.8 ±20% 38 0.59 290 7.96 2,000
LBC2016-T100MK 10 ±20% 32 0.82 245 2.52 2,000
LBC2016-T150MK 15 ±20% 28 1.20 200 2.52 2,000
LBC2016-T220MK 22 ±20% 16 1.80 165 2.52 2,000
LBC2016-T330MK 33 ±20% 14 2.80 135 2.52 2,000
LBC2016-T470MK 47 ±20% 11 4.30 110 2.52 2,000
LBC2016-T680MK 68 ±20% 10 7.00 95 2.52 2,000
LBC2016-T101MK 100 ±20% 8 8.00 75 0.796 2,000

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LBMF1608T1R0MK 1.0 ±20% 100 0.19 620 7.96 3,000
LBMF1608T2R2MK 2.2 ±20% 70 0.33 430 7.96 3,000
LBMF1608T4R7MK 4.7 ±20% 45 0.50 295 7.96 3,000
LBMF1608T100(_)K 10 K=10%, M=±20% 40 1.20 200 2.52 3,000
LBMF1608T220(_)K 22 K=10%, M=±20% 16 3.70 130 2.52 3,000
LBMF1608T470(_)K 47 K=10%, M=±20% 11 5.80 90 2.52 3,000

0603 Case Size Standard Type (LB MF 1608 Series)

(_) - Insert Inductance Tolerance Code (K or M)

(_) - Insert Inductance Tolerance Code (K or M)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LBC2012-T1R0MK 1.0 ±20% 100 0.19 620 7.96 3,000

LBC2012-T2R2MK 2.2 ±20% 70 0.33 430 7.96 3,000

LBC2012-T4R7MK 4.7 ±20% 45 0.50 295 7.96 3,000

LBC2012-T100MK 10 ±20% 40 1.20 200 2.52 3,000

LBC2012-T220MK 22 ±20% 16 3.70 130 2.52 3,000

LBC2012-T470MK 47 ±20% 11 5.80 90 2.52 3,000

0805 Case Size High Current Type (LB C2012 Series)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

7

1007 Case Size High Current Type (LB C2518 Series)

1007 Case Size Low RDC Type (LB R2518 Series)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant Frequency

(MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LBC2518-T1R0MK 1.0 ±20% 100 0.08 775 7.96 2,000
LBC2518-T1R5MK 1.5 ±20% 80 0.11 660 7.96 2,000
LBC2518-T2R2MK 2.2 ±20% 68 0.13 600 7.96 2,000
LBC2518-T3R3MK 3.3 ±20% 54 0.16 500 7.96 2,000
LBC2518-T4R7MK 4.7 ±20% 41 0.20 430 7.96 2,000
LBC2518-T6R8MK 6.8 ±20% 38 0.30 360 7.96 2,000
LBC2518-T100MK 10 ±20% 30 0.36 300 2.52 2,000
LBC2518-T150MK 15 ±20% 23 0.65 250 2.52 2,000
LBC2518-T220MK 22 ±20% 19 0.77 210 2.52 2,000
LBC2518-T330MK 33 ±20% 15 1.50 170 2.52 2,000
LBC2518-T470MK 47 ±20% 12 1.90 150 2.52 2,000
LBC2518-T680MK 68 ±20% 9.5 2.80 120 2.52 2,000
LBC2518-T101MK 100 ±20% 9.0 3.70 100 0.796 2,000

LBC25I8-T151MK 150 ±20% 7.0 6.10 85 0.796 2,000
LBC2518-T221MK 220 ±20% 5.5 8.40 70 0.796 2,000
LBC2518-T331MK 330 ±20% 4.5 12.30 60 0.796 2,000
LBC2518-T471MK 470 ±20% 3.5 22.00 45 0.796 2,000
LBC2518-T681MK 680 ±20% 3.0 28.00 35 0.796 2,000

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant Frequency

(MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LBR2518-T1R0MK 1.0 ±20% 100 0.045 400 7.96 2,000

LBR25I8-T2R2MK 2.2 ±20% 68 0.07 280 7.96 2,000

LBR2518-T4R7MK 4.7 ±20% 45 0.1 200 7.96 2,000

LBR2518-T100MK 10 ±20% 30 0.19 180 2.52 2,000
LBR2518-T220MK 22 ±20% 19 0.44 120 2.52 2,000
LBR2518-T470MK 47 ±20% 11 0.84 95 2.52 2,000
LBR2518-T101MK 100 ±20% 9 1.89 75 0.796 2,000

0805 Case Size Low RDC Type (LB R2012 Series)

Ordering Code Inductance (μH)

Inductance

Tolerance

Minimum Self

Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated

Current (mA)

Measuring

Frequency

(MHz)

Tape & Reel

Packaging

Quantity

LBR2012-T1R0MK 1.0 ±20% 100 0.07 200 7.96 3,000

LBR2012-T2R2MK 2.2 ±20% 80 0.13 175 7.96 3,000

LBR20I2-T4R7MK 4.7 ±20% 45 0.24 150 7.96 3,000

LBR2012-T100MK 10 ±20%. 32 0.36 125 2.52 3,000

LBR2012-T220MK 22 ±20% 16 1.00 100 2.52 3,000

LBR2012-T470MK 47 ±20% I 1 1.70 75 2.52 3,000

LBR2012-T101MK 100 ±20% 8 4.00 50 0.796 3,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

8

Features: Operating Temperature:

• Small size wound chip inductor with high current • -25ºC to +105ºC (including self-generated heat)

• Dimension without directional influence on mountability
and characteristics

Applications:

• Digital Still Cameras (DSC), Digital Video Cameras (DVC),
PDA’s and other portable digital equipment

• For DC-DC converter circuit

KEMET Designator

Inductance

Examples: 3N9 = 0.0039μH

10N = 0.01μH

R10 = 0.1μH
1R0 = 1.0μH

100 = 10μH

101 = 100μH

Inductance Tolerance

“-” = Standard, M = ±20%

Type

CB- = Standard Type
CBC = High Current Type
CBL = High Frequency Type
CBMF = Power, Bottom surface electrode

(See part number table)

Case Size

2012 (0805)
2016 (0806)
2518 (1007)
3225 (1210)

Packaging Code

T = Tape & Reel

CB-

Special Code

R = Low Rdc Type

2016 T 100 M

R

K

Dim.

Code

EIA

Case

Size

L

Length

(inches)

W

Width

(inches)

T

Thickness Maximum

(inches)

E

(inches)

1608 0603

1.6 ±0.2

(0.063 ±0.008)

0.8 ±0.2

(0.031 ±0.008)

0.8 ±0.2

(0.031 ±0.008)

0.4 ±0.15

(0.015 ±0.006)

2012 0805

2.0 ±0.2

(0.079 ±0.008)

1.25 ±0.2

(0.049 ±0.008)

1.25 ±0.2

(0.049 ±0.008)

0.5 ±0.2

(0.02 ±0.008)

2016 0806

2.0 ±0.2

(0.079 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.5 ±0.2

(0.02 ±0.008)

2518 1007

2.5 ±0.2

(0.098 ±0.008)

1.8 ±0.2

(0.071 ±0.008)

1.8 ±0.2

(0.071 ±0.008)

0.5 ±0.2

(0.02 ±0.008)

3225 1210

3.2 ±0.2

(0.126 ±0.008)

2.5 ±0.2

(0.098 ±0.008)

2.5 ±0.2

(0.098 ±0.008)

0.6 ±0.3

(0.024 ±0.012)

E

T

W

L

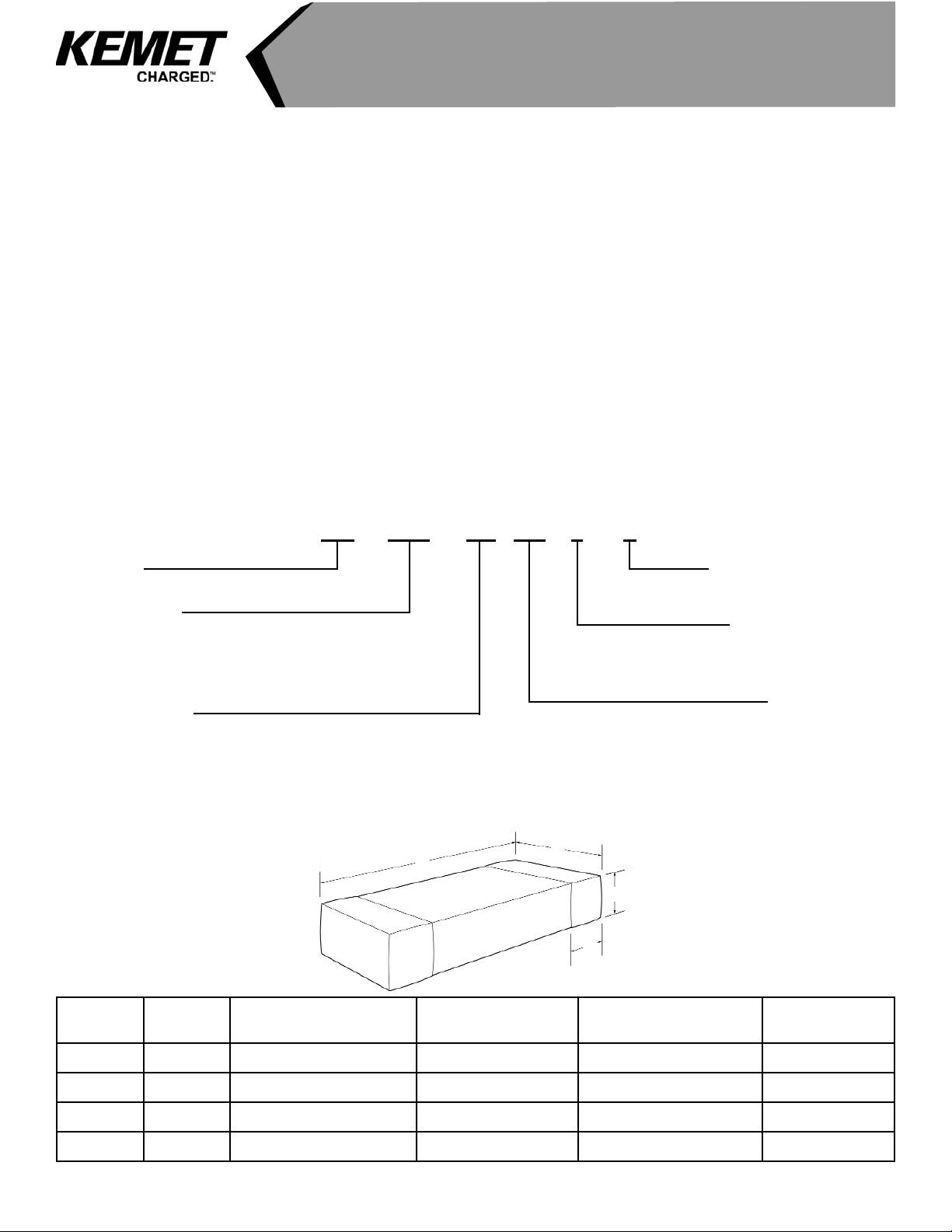

Wire Wound Chip Inductors - CB Series

Part Numbering Table

Dimension Table in millimeters (inches)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

9

0805 Case Size Low RDC Type (CB 2012 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging Quantity

12

CB-2012T2R2MRK 2.2 ±20% 80 0.23 410 770 7.96 3,000
CB-2012T4R7MRK 4.7 ±20% 45 0.40 300 580 7.96 3,000
CB-2012T100MRK 10 ±20% 32 0.50 200 520 2.52 3,000
CB-2012T220MRK 22 ±20% 16 1.70 135 280 2.52 3,000
CB-2012T470MRK 47 ±20% 11 3.70 90 190 2.52 3,000

0805 Case Size High Current Type (CBC 2012 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging Quantity

12

CBC2012T1R0M-K 1.0 ±20% 100 0.19 700 840 7.96 3,000
CBC2012T2R2M-K 2.2 ±20% 70 0.33 530 640 7.96 3,000
CBC2012T4R7M-K 4.7 ±20% 45 0.50 360 520 7.96 3,000

CBC2012T100M-K 10 ±20% 40 1.20 240 340 2.52 3,000
CBC2012T220M-K 22 ±20% 16 3.70 170 190 2.52 3,000
CBC2012T470M-K 47 ±20% 11 5.80 120 150 2.52 3,000

0806 Case Size High Current Type (CBC 2016 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging Quantity

12

CBC2016T1R0M-K 1.0 ±20% 100 0.1 1100 1100 7.96 3,000
CBC2016T1R5M-K 1.5 ±20% 80 0.15 1000 1000 7.96 3,000
CBC2016T2R2M-K 2.2 ±20% 70 0.20 750 720 7.96 3,000
CBC2016T3R3M-K 3.3 ±20% 55 0.27 600 610 7.96 3,000
CBC2016T4R7M-K 4.7 ±20% 45 0.37 550 530 7.96 3,000
CBC2016T6R8M-K 6.8 ±20% 38 0.59 450 450 7.96 3,000
CBC2016T100(_)-K 10 K=10%, M=20% 32 0.82 380 350 2.52 3,000
CBC2016T150(_)-K 15 K=10%, M=20% 28 1.2 300 300 2.52 3,000
CBC2016T220(_)-K 22 K=10%, M=20% 16 1.8 250 240 2.52 3,000
CBC2016T330(_)-K 33 K=10%, M=20% 14 2.8 220 220 2.52 3,000
CBC2016T470(_)-K 47 K=10%, M=20% 11 4.3 150 150 2.52 3,000
CBC2016T680(_)-K 68 K=10%, M=20% 10 7 130 130 2.52 3,000
CBC2016T101(_)-K 100 K=10%, M=20% 8 8 110 110 0.796 3,000

0806 Case Size Low RDC Type (CB 2016 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current (mA)

Measuring

Frequency

(MHz)

Tape & Reel

Packaging Quantity

12

CB-2016T2R2M-K 2.2 ±20% 70 0.13 510 1000 7.96 2,000
CB-2016T4R7M-K 4.7 ±20% 45 0.25 340 740 7.96 2,000
CB-2016T100M-K 10 ±20% 32 0.50 250 520 2.52 2,000
CB-2016T220M-K 22 ±20% 16 1.00 165 370 2.52 2,000
CB-2016T470M-K 47 ±20% 11 2.40 110 240 2.52 2,000

*For rated current of ordinary small power choke coils, please refer to the rated current (1) in the above table.

*For current (2) is the current for instantaneous flow such as plunging current of DC/DC converter.

In case of usage in the circuit where large current may be semicontinuously applied over 5 minutes with auto recovery circuit, etc, please contact our sales section before
practical application.

Rated current (1):Current value to guarantee -30% of nominal inductance

Rated current (2):Current value to guarantee component temperature within AT = 40°C with current flow. (It's not the current to guarantee the inductance value)

(_) - Insert Inductance Tolerance Code (K or M)

1007 Case Size Low RDC Type (CB 2518 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current

(mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

12

CB-2518T2R2M-K 2.2 ±20% 68 0.09 510 1300 7.96 2,000

CB-2518T4R7M-K 4.7 ±20% 46 0.13 340 1100 7.96 2,000

CB-2518T100M-K 10 ±20% 30 0.25 250 820 2.52 2,000

CB-2518T220M-K 22 ±20% 19 0.50 165 580 2.52 2,000

CB-2518T470M-K 47 ±20% 12 0.95 110 420 2.52 2,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

10

1007 Case Size High Current Type (CBC 2518 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current

(mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging Quantity

12

CBC2518T1R0M-K 1.0 ±20% 100 0.08 1000 1200 7.96 2,000

CBC2518T2R2M-K 2.2 ±20% 68 0.13 890 1100 7.96 2,000

CBC2518T4R7M-K 4.7 ±20% 41 0.20 680 920 7.96 2,000

CBC2518T100M-K 10 ±20% 30 0.36 480 680 2.52 2,000

CBC2518T220M-K 22 ±20% 19 0.77 320 460 2.52 2,000

CBC2518T470M-K 47 ±20% 12 1.90 240 290 2.52 2,000

CBC2518T101M-K 100 ±20% 9 3.7 160 170 0.796 2,000

CBC2518T221M-K 220 ±20% 5.5 8.4 115 110 0.796 2,000

CBC2518T471M-K 470 ±20% 3.5 22 80 70 0.796 2,000

CBC2518T681M-K 680 ±20% 3 28 65 60 0.796 2,000

1210 Case Size High Current Type (CBC 3225 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self

Resonant Frequency

(MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current

(mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging Quantity

12

CBC3225T1R0MRK 1.0 ±20% 250 0.055 2000 1440 0.1 1,000

CBC3225T1R5MRK 1.5 ±20% 220 0.06 2000 1310 0.1 1,000

CBC3225T2R2MRK 2.2 ±20% 190 0.08 2000 1130 0.1 1,000

CBC3225T3R3MRK 3.3 ±20% 160 0.095 1800 1040 0.1 1,000

CBC3225T4R7MRK 4.7 ±20% 70 0.1 1250 1010 0.1 1,000

CBC3225T6R8MRK 6.8 ±20% 50 0.12 930 940 0.1 1,000

CBC3225T100(_)RK 10 K=±10%, M=±20% 23 0.133 900 900 0.1 1,000

CBC3225T150(_)RK 15 K=±10%, M=±20% 20 0.195 730 850 0.1 1,000

CBC3225T220(_)RK 22 K=±10%, M=±20% 17 0.27 620 780 0.1 1,000

CBC3225T330(_)RK 33 K=±10%, M=±20% 13 0.41 500 570 0.1 1,000

CBC3225T470(_)RK 47 K=±10%, M=±20% 10 0.67 390 480 0.1 1,000

CBC3225T680(_)RK 68 K=±10%, M=±20% 8 1 320 410 0.1 1,000

CBC3225T101(_)RK 100 K=±10%, M=±20% 6 1.4 270 340 0.1 1,000

(_) - Insert Inductance Tolerance Code (K or M)

*For rated current of ordinary small power choke coils, please refer to the rated current (1) in the above table.

*For current (2) is the current for instantaneous flow such as plunging current of DC/DC converter.

In case of usage in the circuit where large current may be semicontinuously applied over 5 minutes with auto recovery circuit, etc, please contact our sales section before

practical application.
Rated current (1):Current value to guarantee -30% of nominal inductance (at 20ºC)
Rated current (2):Current value to guarantee component temperature within AT = 40°C with current flow. (It's not the current to guarantee the inductance value)

(_) - Insert Inductance Tolerance Code (K or M)

0603 Case Size Power, Bottom Surface Electrode Type (CBMF 1608 Series)

Ordering Code

Inductance

(μH)

Inductance Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current (mA)

Measuring
Frequency

(MHz)

Tape & Reel

Packaging

Quantity

12

CBMF1608T1R0MK 1.0 ±20% 100 0.09 290 770 7.96 2,000

CBMF1608T2R2MK 2.2 ±20% 80 0.17 190 560 7.96 2,000

CBMF1608T4R7MK 4.7 ±20% 45 0.24 145 470 7.96 2,000

CBMF1608T100(_)K 10.0 K = 10%, M = 20% 32 0.36 115 380 2.52 2,000

CBMF1608T220(_)K 22 K = 10%, M = 20% 16 1.00 70 230 2.52 2,000

CBMF1608T470(_)K 47 K = 10%, M = 20% 11 2.5 50 140 2.52 2,000

0805 Case Size Low Profile Type (CBL 2012 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum Self Resonant

Frequency (MHz)

DC Resistance

(ΩΩ) (±30%)

Maximum Rated Current (mA)

Measuring

Frequency

(MHz)

Tape & Reel

Packaging Quantity

12

CBL2012T4R7M-K 4.7 ±20% 45 0.66 275 490 0.10 4,000

CBL2012T100M-K 10 ±20% 32 1.00 205 370 0.10 4,000
CBL2012T470M-K 47 ±20% 11 4.20 100 140 0.10 4,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

11

Features: Operating Temperature:

• Multilayer inductor made of advanced ceramics with low • 0603: -55ºC to +125ºC
resistivity silver used as internal conductors, provides • 1005: -55ºC to +125ºC*
excellent Q and SRF characteristics -55ºC to +85ºC*

• Multilayer block structure ensures outstanding reliability, • 1608: -40ºC to +85ºC
high productivity and excellent product quality • 2125: -40ºC to +85ºC

Applications: * Depends on rated current.

• Designd to address surface mount inductor needs for
applications above 100MHz

• Mobile phones and pagers

• High frequency circuits

• EMI counter measures in high frequency circuits

KEMET Designator

Inductance

Examples:

3N9 = 3.9nH
10N = 10.0nH
R10 = 100nH
R12 = 120nH

Inductance Tolerance

C = ±0.2nH

H = ±3%

J = ±5%

S = ±0.3nH

Type

HK- = High Frequency
HKQ = High Frequency with High Q

Case Size

0603 (0201)
1005 (0402)
1608 (0603)
2125 (0805)

Packaging Code

T = Tape & Reel

HK-

1005 10N J T

-K

Dim.

Code

EIA

Case

Size

L

Length

(inches)

W

Width

(inches)

T

Thickness Maximum

(inches)

E

(inches)

0603 0201

0.6 ±0.03

(0.024 ±0.001)

0.3 ±0.03

(0.012 ±0.001)

0.3 ±0.03

(0.012 ±0.001)

0.15 ±0.05

(0.006 ±0.002)

1005 0402

1.0 ±0.05

(0.039 ±0.002)

0.5 ±0.05

(0.02 ±0.002)

0.5 ±0.05

(0.02 ±0.002)

0.25 ±0.10

(0.01 ±0.004)

1608 0603

1.6 ±0.15

(0.063 ±0.006)

0.8 ±0.15

(0.031 ±0.006)

0.8 ±0.15

(0.031 ±0.006)

0.3 ±0.2

(0.012 ±0.008)

2125 0805

2.0 +0.3/-0.1

(0.079 +0.012/-0.004)

1.25 ±0.2

(0.049 ±0.008)

0.85 ±0.2

1.0 +0.2/-0.3

(0.033 ±0.008)

(0.039 +0.008/-0.012)

0.5 ±0.3

(0.020 ±0.012)

E

T

W

L

Multilayer Chip Inductors for High Frequency - HK Series

Part Numbering Table

Dimension Table in millimeters (inches)

(-) Required to complete Part Number

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

12

0201 Case Size Multilayer Chip Inductors for High Frequency (HK 0603 Series)

Ordering code

Inductance

(nH)

Inductance

ToleranceQmin.

Measuring
Frequency

(MHz)

Typical Q

Self-resonant

Frequency (MHz)

DC Resistance

(ΩΩ)

Maximum

Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

Frequency (MHz)

100 300 500 800 1000 min. typ. max. typ.

HK-0603-IN0STK 1.0 ±0.3nH 4 100 6 12 17 22 27 10000 >13000 0.14 0.088 250 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-1N2STK 1.2 ±0.3nH 4 100 6 12 16 21 25 10000 >13000 0.14 0.089 250 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-1N5STK 1.5 ±0.3nH 4 100 6 12 15 20 23 10000 >13000 0.18 0.11 230 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-1N8STK 1.8 ±0.3nH 4 100 6 12 15 20 23 10000 >13000 0.19 0.12 200 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-2N2STK 2.2 ±0.3nH 4 100 6 12 15 20 22 8800 12500 0.22 0.14 200 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-2N7STK 2.7 ±0.3nH 5 100 7 12 15 20 22 7700 11000 0.25 0.16 200 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-3N3STK 3.3 ±0.3nH 5 100 7 12 15 20 22 6700 9600 0.30 0.19 180 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-3N9STK 3.9 ±0.3nH 5 100 7 12 15 20 22 6000 8600 0.30 0.20 170 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-4N7STK 4.7 ±0.3nH 5 100 7 12 15 19 21 5300 7600 0.40 0.25 150 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-5N6STK 5.6 ±0.3nH 5 100 7 12 15 19 21 4600 6600 0.40 0.25 150 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-6N8JTK 6.8 ±5% 5 100 7 11 14 18 20 3900 5600 0.48 0.30 150 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-8N2JTK 8.2 ±5% 5 100 7 11 14 18 19 3400 4900 0.55 0.34 150 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-10NJTK 10 ±5% 5 100 7 11 14 17 18 2900 4200 0.63 0.39 150 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-12NJTK 12 ±5% 5 100 7 11 14 17 18 2700 3800 0.70 0.45 100 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-15NJTK 15 ±5% 5 100 7 11 13 16 17 2300 3300 0.80 0.50 100 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-18NJTK 18 ±5% 5 100 7 11 13 16 17 2100 3000 0.90 0.57 100 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-22NJTK 22 ±5% 5 100 7 11 13 15 16 1800 2600 1.20 0.71 100 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-27NJTK 27 ±5% 4 100 6 10 12 14 15 1800 2600 1.80 1.11 50 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-33NJTK 33 ±5% 4 100 6 10 12 14 14 1700 2400 2.10 1.33 50 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-39NJTK 39 ±5% 4 100 6 10 12 13 12 1500 2100 2.40 1.51 50 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-47NJTK 47 ±5% 4 100 6 10 11 12 11 1300 1800 2.80 1.74 50 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-56NJTK 56 ±5% 4 100 6 10 11 11 10 1100 1600 3.00 1.85 50 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-68NJTK 68 ±5% 4 100 6 10 11 11 10 1100 1500 3.00 2.30 50 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-82NJTK 82 ±5% 4 100 6 10 11 10 8 1000 1400 3.50 2.60 50 0.30 ±0.03 (0.012 ±0.001) 15,000

HK-0603-R10JTK 100 ±5% 4 100 6 9 10 9 6 900 1200 4.00 3.00 40 0.30 ±0.03 (0.012 ±0.001) 15,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

13

0402 Case Size Multilayer Chip Inductors for High Frequency (HK 1005 Series)

Ordering code

Inductance

(nH)

Inductance

ToleranceQmin.

Measuring
Frequency

(MHz)

Typical Q

Self-resonant

Frequency

(MHz)

DC

Resistance

(ΩΩ)

Maximum Rated Current

(mA)

Thickness mm

(inches)

Tape & Reel

Packaging

Quantity

Frequency (MHz)

100 300 500 800 1000 min. typ. max. tvp. -55° to 125°C -55° to 85°C

HK-1005-1N0STK 1.0 ±0.3nH 8 100 11 25 34 43 52 10000 >13000 0.08 0.04 300 900 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-1N2STK 1.2 ±0.3nH 8 100 11 25 35 44 52 10000 >13000 0.09 0.04 300 900 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-1N5STK 1.5 ±0.3nH 8 100 11 24 33 44 48 6000 >13000 0.10 0.05 300 850 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-1N8STK 1.8 ±0.3nH 8 100 11 23 30 36 42 6000 11000 0.12 0.06 300 700 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-2N0STK 2 ±0.3nH 8 100 11 21 27 34 39 6000 10500 0.12 0.06 300 700 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-2N2STK 2.2 ±0.3nH 8 100 10 18 25 31 36 6000 10000 0.13 0.07 300 700 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-2N4STK 2.4 ±0.3nH 8 100 10 18 24 31 35 6000 9500 0.13 0.07 300 650 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-2N7STK 2.7 ±0.3nH 8 100 10 18 24 31 34 6000 9000 0.13 0.08 300 650 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-3N0STK 3 ±0.3nH 8 100 10 18 24 31 35 6000 8500 0.16 0.09 300 600 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-3N3STK 3.3 ±0.3nH 8 100 10 18 24 31 35 6000 8000 0.16 0.10 300 550 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-3N6STK 3.6 ±0.3nH 8 100 10 18 24 31 35 5000 7500 0.20 0.11 300 500 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-3N9STK 3.9 ±0.3nH 8 100 10 18 24 31 35 4000 7000 0.21 0.12 300 500 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-4N3STK 4.3 ±0.3nH 8 100 10 18 24 31 35 4000 6500 0.20 0.12 300 500 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-4N7STK 4.7 ±0.3nH 8 100 10 18 24 31 34 4000 6000 0.21 0.12 300 500 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-5N1STK 5.1 ±0.3nH 8 100 10 18 24 31 34 4000 5800 0.21 0.13 300 450 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-5N6STK 5.6 ±0.3nH 8 100 10 18 24 30 35 4000 5700 0.23 0.15 300 430 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-6N2STK 6.2 ±0.3nH 8 100 10 18 24 30 34 3900 5600 0.25 0.16 300 430 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-6N8JTK 6.8 ±5% 8 100 10 18 23 29 32 3900 5500 0.25 0.17 300 430 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-7N5JTK 7.5 ±5% 8 100 10 18 23 29 32 3700 5200 0.25 0.18 300 400 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-8N2JTK 8.2 ±5% 8 100 10 18 23 29 31 3600 4900 0.28 0.21 300 380 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-9N1JTK 9.1 ±5% 8 100 10 18 23 29 31 3400 4500 0.30 0.22 300 360 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-10NJTK 10 ±5% 8 100 10 18 23 29 31 3200 4300 0.31 0.23 300 340 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-12NJTK 12 ±5% 8 100 11 18 23 29 31 2700 3900 0.40 0.28 300 330 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-15NJTK 15 ±5% 8 100 11 18 23 28 30 2300 3500 0.46 0.31 300 320 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-18NJTK 18 ±5% 8 100 11 18 23 28 30 2100 3100 0.55 0.35 300 310 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-22NJTK 22 ±5% 8 100 11 17 22 26 27 1900 2800 0.60 0.42 300 300 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-27NJTK 27 ±5% 8 100 11 17 21 25 26 1600 2300 0.70 0.47 300 300 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-33NJTK 33 ±5% 8 100 11 16 20 23 22 1300 1900 0.80 0.50 200 250 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-39NJTK 39 ±5% 8 100 11 16 20 23 21 1200 1700 0.90 0.52 200 250 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-47NJTK 47 ±5% 8 100 11 16 19 21 18 1000 1500 1.00 0.58 200 230 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-56NJTK 56 ±5% 8 100 11 16 18 18 16 750 1300 1.00 0.61 200 220 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-68NJTK 68 ±5% 8 100 11 15 17 18 11 750 1200 1.20 0.70 180 200 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-82NJTK 82 ±5% 8 100 10 14 16 15 6 600 1100 1.30 0.81 150 200 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-R10JTK 100 ±5% 8 100 10 14 14 12 - 600 1000 1.50 0.94 150 200 0.50 ±0.05 (0.02 ±0.002) 10,000

HK-1005-R12JTK 120 ±5% 8 100 10 12 10 - - 600 800 1.60 1.10 150 200 0.50 ±0.05 (0.02 ±0.002) 10,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

14

0603 Case Size Multilayer Chip Inductors for High Frequency (HK 1608 Series)

Ordering Code

Inductance

(nH)

Inductance

ToleranceQmin.

Measuring

Frequency

(MHz)

Typical Q

Self-resonant

Frequency (MHz)

DC Resistance

(ΩΩ)

Maximum

Rated

Current

(mA)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

Frequency (MHz)

100 300 500 800 1000 min. typ max. typ.

HK-1608-1N0STK 1.0 ±0.3nH 8 100 14 30 40 70 90 10000 >13000 0.05 0.015 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-1N2STK 1.2 ±0.3nH 8 100 14 30 40 70 90 10000 >13000 0.05 0.015 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-1N5STK 1.5 ±0.3nH 8 100 14 26 34 47 50 6000 >13000 0.10 0.03 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-1N8STK 1.8 ±0.3nH 8 100 10 18 24 30 34 6000 >13000 0.10 0.06 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-2N2STK 2.2 ±0.3nH 8 100 12 22 29 37 40 6000 12000 0.10 0.06 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-2N7STK 2.7 ±0.3nH 10 100 13 24 32 41 45 6000 11000 0.10 0.06 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-3N3STK 3.3 ±0.3nH 10 100 14 25 33 42 47 6000 9000 0.12 0.06 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-3N9STK 3.9 ±0.3nH 10 100 13 25 33 42 46 6000 8000 0.14 0.07 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-4N7STK 4.7 ±0.3nH 10 100 13 25 33 42 47 4000 6500 0.16 0.08 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-5N6STK 5.6 ±0.3nH 10 100 14 25 33 42 46 4000 5800 0.18 0.09 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-6N8JTK 6.8 ±5% 10 100 14 25 33 43 47 4000 5600 0.22 0.11 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-8N2JTK 8.2 ±5% 10 100 14 26 34 44 48 3500 5200 0.24 0.13 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-10NJTK 10 ±5% 12 100 14 26 34 43 47 3400 4600 0.26 0.16 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-12NJTK 12 ±5% 12 100 14 27 35 45 49 2600 4000 0.28 0.17 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-15NJTK 15 ±5% 12 100 15 28 37 46 51 2300 3400 0.32 0.20 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-18NJTK 18 ±5% 12 100 15 27 36 44 48 2000 3000 0.35 0.21 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-16O8-22NJTK 22 ±5% 12 100 16 28 36 44 47 1600 2900 0.40 0.25 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-27NJTK 27 ±5% 12 100 16 29 37 45 46 1400 2200 0.45 0.28 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-33NJTK 33 ±5% 12 100 17 31 40 46 47 1200 1800 0.55 0.35 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-39NJTK 39 ±5% 12 100 18 31 39 44 44 1100 1600 0.60 0.38 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-47NJTK 47 ±5% 12 100 17 28 34 35 34 900 1600 0.70 0.45 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-56NJTK 56 ±5% 12 100 17 28 34 34 31 900 1400 0.75 0.50 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-68NJTK 68 ±5% 12 100 18 29 34 30 22 700 1200 0.85 0.55 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-82NJTK 82 ±5% 12 100 18 28 33 27 - 600 1100 0.95 0.60 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-RI0JTK 100 ±5% 12 100 18 27 28 16 - 600 1000 1.00 0.65 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-R12JTK 120 ±5% 8 50 16 24 23 - - 500 800 1.20 0.68 300 0.8 ±0.15 (0.031 ±0.006) 4,000
HK-1608-R15JTK 150 ±5% 8 50 13 19 16 - - 500 800 1.20 0.73 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-RI8JTK 180 ±5% 8 50 13 18 12 - - 400 700 1.30 0.85 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-R22JTK 220 ±5% 8 50 12 16 - - - 400 600 1.50 0.95 300 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-R27JTK 270 ±5% 8 50 14 15 - - - 400 550 1.90 1.34 150 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-R33JTK 330 ±5% 8 50 14 - - - - 350 480 2.10 1.53 150 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-R39JTK 390 ±5% 8 50 13 - - - - 350 410 2.30 1.72 150 0.8 ±0.15 (0.031 ±0.006) 4,000

HK-1608-R47JTK 470 ±5% 8 50 13 - - - - 300 360 2.60 2.04 150 0.8 ±0.15 (0.031 ±0.006) 4,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

15

0805 Case Size Multilayer Chip Inductors for High Frequency (HK 2125 Series)

Ordering Code

Inductance

(nH)

Inductance

ToleranceQmin.

Measuring
Frequency

(MHz)

Typical Q

Self-resonant

Frequency

(MHz)

DC Resistance

(ΩΩ)

Maximum

Rated

Current

(mA)

Thickness mm

(inches)

Tape & Reel

Packaging

Quantity

Frequency (MHz)

100 300 500 800 1000 min. typ. max. typ.

HK-2125-1N5STK 1.5 ±0.3nH 10 100 21 39 57 61 68 4000 >6000 0.10 0.02 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-1N8STK 1.8 ±0.3nH 10 100 18 35 49 55 59 4000 >6000 0.10 0.02 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-2N2STK 2.2 ±0.3nH 10 100 18 33 46 53 58 4000 >6000 0.10 0.03 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2I25-2N7STK 2.7 ±0.3nH 12 100 19 36 50 56 60 4000 >6000 0.10 0.03 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-3N3STK 3.3 ±0.3nH 12 100 16 29 40 47 51 4000 >6000 0.13 0.04 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-3N9STK 3.9 ±0.3nH 12 100 18 33 46 54 60 4000 >6000 0.15 0.05 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-4N7STK 4.7 ±0.3nH 12 100 18 34 46 55 60 3500 >6000 0.20 0.05 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-5N6STK 5.6 ±0.3nH 15 100 20 38 51 60 66 3200 5400 0.23 0.05 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-6N8JTK 6.8 ±5% 15 100 20 39 52 63 69 2800 4200 0.25 0.06 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-8N2JTK 8.2 ±5% 15 100 21 40 54 63 70 2400 3700 0.28 0.07 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-10NJTK 10 ±5% 15 100 20 38 51 60 67 2100 3100 0.30 0.09 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-I2NJTK 12 ±5% 15 100 21 39 52 60 67 1900 3000 0.35 0.10 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-15NJTK 15 ±5% 15 100 22 42 55 63 72 1600 2600 0.40 0.11 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-18NJTK 18 ±5% 15 100 24 44 57 63 72 1500 2300 0.45 0.13 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-22NJTK 22 ±5% 18 100 23 43 55 60 69 1400 2100 0.50 0.16 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-27NJTK 27 ±5% 18 100 23 42 53 58 68 1300 1800 0.55 0.17 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-33NJTK 33 ±5% 18 100 24 43 54 55 60 1200 1700 0.60 0.19 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-39NJTK 39 ±5% 18 100 23 41 50 47 47 1000 1400 0.65 0.25 300 0.85 ±0.2 (0.033 ±0.008) 4,000

HK-2125-47NJTK 47 ±5% 18 100 23 41 49 43 41 900 1200 0.70 0.26 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-56NJTK 56 ±5% 18 100 23 42 48 39 38 800 1100 0.75 0.28 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-68NJTK 68 ±5% 18 100 25 42 45 30 - 700 900 0.80 0.33 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-82NJTK 82 ±5% 18 100 24 41 41 600 800 0.90 0.37 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-R10JTK 100 ±5% 18 100 23 37 37 600 800 0.90 0.40 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2I25-R12JTK 120 ±5% 13 50 22 33 29 - 500 700 0.95 0.43 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-RI5JTK 150 ±5% 13 50 22 34 26 - 500 700 1.00 0.46 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-RI8JTK 180 ±5% 13 50 23 34 20 - 400 600 1.10 0.50 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-R22JTK 220 ±5% 12 50 20 23 350 550 1.20 0.75 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-R27JTK 270 ±5% 12 50 20 19 300 480 0.30 0.85 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2I25-R33JTK 330 ±5% 12 50 22 15 250 400 1.40 0.90 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2125-R39JTK 390 ±5% 10 50 17 12 250 400 1.30 0.85 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

HK-2I25-R47JTK 470 ±5% 10 50 17 200 350 0.50 0.95 300

1.0 +0.2/-0.3

(0.039 +0.008/-0.012)

3,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

16

Features: Operating Temperature:

• Internal printed coil structure creates a closed magnetic circuit • -40ºC to +85ºC
which acts as a magnetic shield eliminating crosstalk, thus
permitting higher mounting densities.

• Multilayer block structure yields higher reliability

• The smallest mH inductors in the world (LK1005 Series)

• Low profile below 1mm on 1206 case size (CKP Series)

• Low DC power dissipation due to Low Rdc with High Aspect
Ratio internal conductor that stands on the Green Sheet and
Printing technologies (CKP Series)

Applications:

• Any general circuit in portable equipment in which a compact size and high mounting densities are required (LK Series)

• Separation of analog and digital circuits (CK Series)

• Prevents interference between PLL and other digital circuits (CK Series)

• DC/DC convertor for mobile equipment, cellular phones, DSC and DVC (CK Series)

KEMET Designator

Inductance

47N = 0.047μH
R15 = 0.15μH
1R5 = 1.5μH
100 = 10μH
150 = 15μH

Inductance Tolerance

K = ±10%, M = ±20%

Type

LK- = Standard Type
CKP = High Current Type for Power Supply Line
CK- = Standard Type

Case Size

1005 (0402)
1608 (0603)
2125 (0805)
3216 (1206)

Packaging Code

T = Tape & Reel

LK-

1005 T1R5 K K

Dim.

Code

EIA

Case

Size

L

Length

(inches)

W

Width

(inches)

T

Thickness Maximum

(inches)

E

(inches)

1005 0402

1.0 ±0.05

(0.039 ±0.002)

0.50 ±0.05

(0.020 ±0.002)

0.50 ±0.05

(0.020 ±0.002)

0.25 ±0.10

(0.010 ±0.004)

1608 0603

1.6 ±0.15

(0.063 ±0.006)

0.8 ±0.15

(0.031 ±0.006)

0.8 ±0.15

(0.031 ±0.006)

0.3 ±0.2

(0.012 ±0.008)

2125 0805

2.0 +0.3/-0.1

(0.079 _0.012/-0.004)

1.25 ±0.2

(0.049 ±0.008)

0.85 ±0.2

1.25 ±0.2
(0.033 ±0.008)
(0.049 ±0.008)

0.5 ±0.2

(0.02 ±0.008)

3216 1206

3.2 ±0.2

(0.126 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.8 +0.10/-0.15

(0.031 +0.004/-0.008)

0.6 ±0.3

(0.024 ±0.012)

E

T

W

L

Multilayer Chip Inductors - LK/CK/CKP Series

Part Numbering Table

Dimension Table in millimeters (inches)

-

(-) Required to complete Part Number

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

17

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Q min.

Minimum Self

Resonant

Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum

Rated Current

(mA)

Measuring
Frequency

(MHz)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

LK-1005-R12(_)TK 0.12 K±10%. M±20% 10 180 0.70 25 25 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R15(_)TK 0.15 K±10%. M±20% 10 165 0.90 25 25 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R18(_)TK 0.18 K±10%. M±20% 10 150 1.10 25 25 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R22(_)TK 0.22 K±10%. M±20% 10 135 1.30 25 25 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R27(_)TK 0.27 K±10%. M±20% 10 120 1.50 25 25 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R33(_)TK 0.33 K±10%. M±20% 10 105 1.70 25 25 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R39(_)TK 0.39 K±10%. M±20% 20 85 0.60 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R47(_)TK 0.47 K±10%. M±20% 20 80 0.70 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R56(_)TK 0.56 K±10%. M±20% 20 75 0.80 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R68(_)TK 0.68 K±10%. M±20% 20 70 0.90 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-R82(_)TK 0.82 K±10%. M±20% 20 65 1.00 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-1R0(_)TK 1.0 K±10%. M±20% 20 60 1.10 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-1R2(_)TK 1.2 K±10%. M±20% 20 55 1.25 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-1R5(_)TK 1.5 K±10%. M±20% 20 50 1.40 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-IR8(_)TK 1.8 K±10%. M±20% 20 45 1.55 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

LK-1005-2R2(_)TK 2 2 K±10%. M±20% 20 40 1.70 10 10 0.5 ±0.05 (0.02 ±0.002) 10,000

0402 Case Size Multilayer Chip Inductors (LK 1005 Series)

(_) - Insert Inductance Tolerance Code (K or M)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

18

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Q min.

Minimum Self

Resonant

Frequency (MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum

Rated Current

(mA)

Measuring
Frequency

(MHz)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

LK-1608-47NMTK 0.047 ±20% 10 260 0.30 50 50 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-68NMTK 0.068 ±20% 10 250 0.30 50 50 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-82NMTK 0.082 ±20% 10 245 0.30 50 50 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R10(_)TK 0.10 K±10%, M±20% 15 240 0.50 50 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R12(_)TK 0.12 K±10%, M±20% 15 205 0.50 50 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R15(_)TK 0.15 K±10%, M±20% 15 180 0.60 50 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R18(_)TK 0.18 K±10%, M±20% 15 165 0.60 50 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R22(_)TK 0.22 K±10%, M±20% 15 150 0.80 50 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R27(_)TK 0.27 K±10%, M±20% 15 136 0.80 50 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R33(_)TK 0.33 K±10%, M±20% 15 125 0.85 35 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R39(_)TK 0.39 K±10%, M±20% 15 110 1.00 35 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R47(_)TK 0.47 K±10%, M±20% 15 105 1.35 35 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R56(_)TK 0.56 K±10%, M±20% 15 95 1.55 35 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R68(_)TK 0.68 K±10%, M±20% 15 80 1.70 35 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-R82(_)TK 0.82 K±10%, M±20% 15 75 2.10 35 25 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-1R0(_)TK 1.0 K±10%, M±20% 35 70 0.60 25 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-1R2(_)TK 1.2 K±10%, M±20% 35 60 0.80 25 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-1R5(_)TK 1.5 K±10%, M±20% 35 55 0.80 25 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-1R8(_)TK 1.8 K±10%, M±20% 35 50 0.95 25 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-2R2(_)TK 2.2 K±10%, M±20% 35 45 1.15 15 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-2R7(_)TK 2.7 K±10%, M±20% 35 40 1.35 15 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-3R3(_)TK 3.3 K±10%, M±20% 35 38 1.55 15 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-3R9(_)TK 3.9 K±10%, M±20% 35 36 1.70 15 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-4R7(_)TK 4.7 K±10%, M±20% 35 33 2.10 15 10 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-5R6(_)TK 5.6 K±10%, M±20% 35 22 1.55 5 4 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-6R8(_)TK 6.8 K±10%, M±20% 35 20 1.70 5 4 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-8R2(_)TK 8.2 K±10%, M±20% 35 18 2.10 5 4 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-100(_)TK 10 K±10%, M±20% 35 17 2.55 5 2 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-120(_)TK 12 K±10%, M±20% 35 15 2.75 5 2 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-150MTK 15 ±20% 20 14 1.70 1 1 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-180MTK 18 ±20% 20 13 1.85 1 1 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-220MTK 22 ±20% 20 1 1 2.10 1 1 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-270MTK 27 ±20% 20 10 2.75 1 1 0.8 ±0.15 (0.031 ±0.006) 4,000

LK-1608-330MTK 33 ±20% 20 9 2.95 1 1 0.8 ±0.15 (0.031 ±0.006) 4,000

0603 Case Size Multilayer Chip Inductors (LK 1608 Series)

(_) - Insert Inductance Tolerance Code (K or M)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

19

Ordering Code

Inductance

(μH)

Inductance

ToleranceQmin.

Minimum Self

Resonant

Frequency (MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum

Rated Current

(mA)

Measuring
Frequency

(MHz)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

LK-2125-47NMTK 0.047 ±20% 15 320 0.20 300 50 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-68NMTK 0.068 ±20% 15 280 0.20 300 50 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-82NMTK 0.082 ±20% 15 255 0.20 300 50 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R10(_)TK 0.10 K±10%, M±20% 20 235 0.30 250 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R12(_)TK 0.12 K±10%, M±20% 20 220 0.30 250 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R15(_)TK 0.15 K±10%, M±20% 20 200 0.40 250 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R18(_)TK 0.18 K±10%, M±20% 20 185 0.40 250 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R22(_)TK 0.22 K±10%, M±20% 20 170 0.50 250 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R27(_)TK 0.27 K±10%, M±20% 20 150 0.50 250 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R33(_)TK 0.33 K±10%, M±20% 20 145 0.55 250 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R39(_)TK 0.39 K±10%, M±20% 25 135 0.65 200 25 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-R47(_)TK 0.47 K±10%, M±20% 25 125 0.65 200 25 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-R56(_)TK 0.56 K±10%, M±20% 25 115 0.75 150 25 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-R68(_)TK 0.68 K±10%, M±20% 25 105 0.80 150 25 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-R82(_)TK 0.82 K±10%, M±20% 25 100 1.00 150 25 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-1R0(_)TK 1.0 K±10%, M±20% 45 75 0.40 50 10 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-1R2(_)TK 1.2 K±10%, M±20% 45 65 0.50 50 10 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-1R5(_)TK 1.5 K±10%, M±20% 45 60 0.50 50 10 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-1R8(_)TK 1.8 K±10%, M±20% 45 55 0.60 50 10 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-2R2(_)TK 2.2 K±10%, M±20% 45 50 0.65 30 10 0.85 ±0.2 (0.033 ±0.008) 4,000

LK-2125-2R7(_)TK 2.7 K±10%, M±20% 45 45 0.75 30 10 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-3R3(_)TK 3.3 K±10%, M±20% 45 41 0.80 30 10 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-3R9(_)TK 3.9 K±10%, M±20% 45 38 0.90 30 10 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-4R7(_)TK 4.7 K±10%, M±20% 45 35 1.00 30 10 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-5R6(_)TK 5.6 K±10%, M±20% 50 32 0.90 15 4 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-6R8(_)TK 6.8 K±10%, M±20% 50 29 1.00 15 4 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-8R2(_)TK 8.2 K±10%, M±20% 50 26 1.10 15 4 1.25 ±0.2 (0.049±0.008) 2,000

LK-2125-100(_)TK 10 K±10%, M±20% 50 24 1.15 15 2 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-120(_)TK 12 K±10%, M±20% 50 22 1.25 15 2 1.25 ±0.2 (0.049 ±0.008) 2,000

LK2-125-150MTK 15 ±20% 30 19 0.80 5 1 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-180MTK 18 ±20% 30 18 0.90 5 1 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-220MTK 22 ±20% 30 16 1.10 5 1 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-270MTK 27 ±20% 30 14 1.15 5 1 1.25 ±0.2 (0.049 ±0.008) 2,000

LK-2125-330MTK 33 ±20% 30 13 1.25 5 0.4 1.25 ±0.2 (0.049 ±0.008) 2,000

0805 Case Size Multilayer Chip Inductors (LK 2125 Series)

(_) Insert Tolerence Code (K±10% or M±20%) listed to the right

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

20

Ordering Code

Inductance

(μH)

Inductance

ToleranceQmin.

Minimum Self

Resonant

Frequency (MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum

Rated Current

(mA)

Measuring
Frequency

(MHz)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

CK-2125-R10MTK 0.10 ±20% 15 235 0.16 500 25 0.85 ±0.2 (0.033 ±0.008) 4,000

CK-2125-R15MTK 0.15 ±20% 15 200 0.20 500 25 0.85 ±0.2 (0.033 ±0.008) 4,000

CK-2125-R22MTK 0.22 ±20% 15 170 0.23 400 25 0.85 ±0.2 (0.033 ±0.008) 4,000

CK-2125-R33MTK 0.33 ±20% 15 145 0.28 400 25 0.85 ±0.2 (0.033 ±0.008) 4,000

CK-2125-R47MTK 0.47 ±20% 15 125 0.32 400 25 1.25 ±0.2 (0.049 ±0.008) 2,000

CK-2125-R68MTK 0.68 ±20% 15 105 0.45 300 25 1.25 ±0.2 (0.049 ±0.008) 2,000

CK-2125-1R0MTK 1.0 ±20% 20 75 0.26 220 10 0.85 ±0.2 (0.033 ±0.008) 4,000

CK-2125-1R5MTK 1.5 ±20% 20 60 0.28 170 10 0.85 ±0.2 (0.033 ±0.008) 4,000

CK-2125-2R2MTK 2.2 ±20% 20 50 0.35 150 10 0.85 ±0.2 (0.033 ±0.008) 4,000

CK-2125-3R3MTK 3.3 ±20% 20 41 0.43 130 10 1.25 ±0.2 (0.049 ±0.008) 2,000

CK-2125-4R7MTK 4.7 ±20% 20 35 0.48 80 10 1.25 ±0.2 (0.049 ±0.008) 2,000

CK-2125-6R8MTK 6.8 ±20% 20 29 0.52 70 4 1.25 ±0.2 (0.049 ±0.008) 2,000

CK-2125-100MTK 10.0 ±20% 20 24 0.65 60 2 1.25 ±0.2 (0.049 ±0.008) 2,000

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum

Inductance at

200mA (μH)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (mA)

Measuring
Frequency

(MHz)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

CKP3216-1R0MTK 1.0 ±20% 0.5 0.11 1100 1 0.80 ±0.15 (0.031 ±0.006) 4,000

CKP3216-1R5MTK 1.5 ±20% 0.8 0.13 1000 1 0.80 ±0.15 (0.031 ±0.006) 4,000

CKP3216-2R2MTK 2.2 ±20% 1.1 0.14 900 1 0.80 ±0.15 (0.031 ±0.006) 4,000

CKP3216-3R3MTK 3.3 ±20% 1.4 0.16 800 1 0.80 ±0.15 (0.031 ±0.006) 4,000

CKP3210-4R7MTK 4.7 ±20% 1.9 0.20 700 1 0.80 ±0.15 (0.031 ±0.006) 4,000

0805 Case Size Multilayer Chip Inductors (CK 2125 Series)

1206 Case Size Multilayer Chip Inductors (CKP 3216 Series)

Ordering Code

Inductance

(μH)

Inductance

Tolerance

Minimum

Inductance at

200mA (μH)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (mA)

Measuring

Frequency

(MHz)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

CK-1608-4R7MTK 4.7 ±20% 20 0.45 60 4 0.80 ±0.15 (0.031 ±0.006) 4,000

CK-1608-100MTK 10.0 ±20% 20 0.85 50 2 0.80 ±0.15 (0.031 ±0.006) 4,000

0603 Case Size Multilayer Chip Inductors (CK 1608 Series)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

21

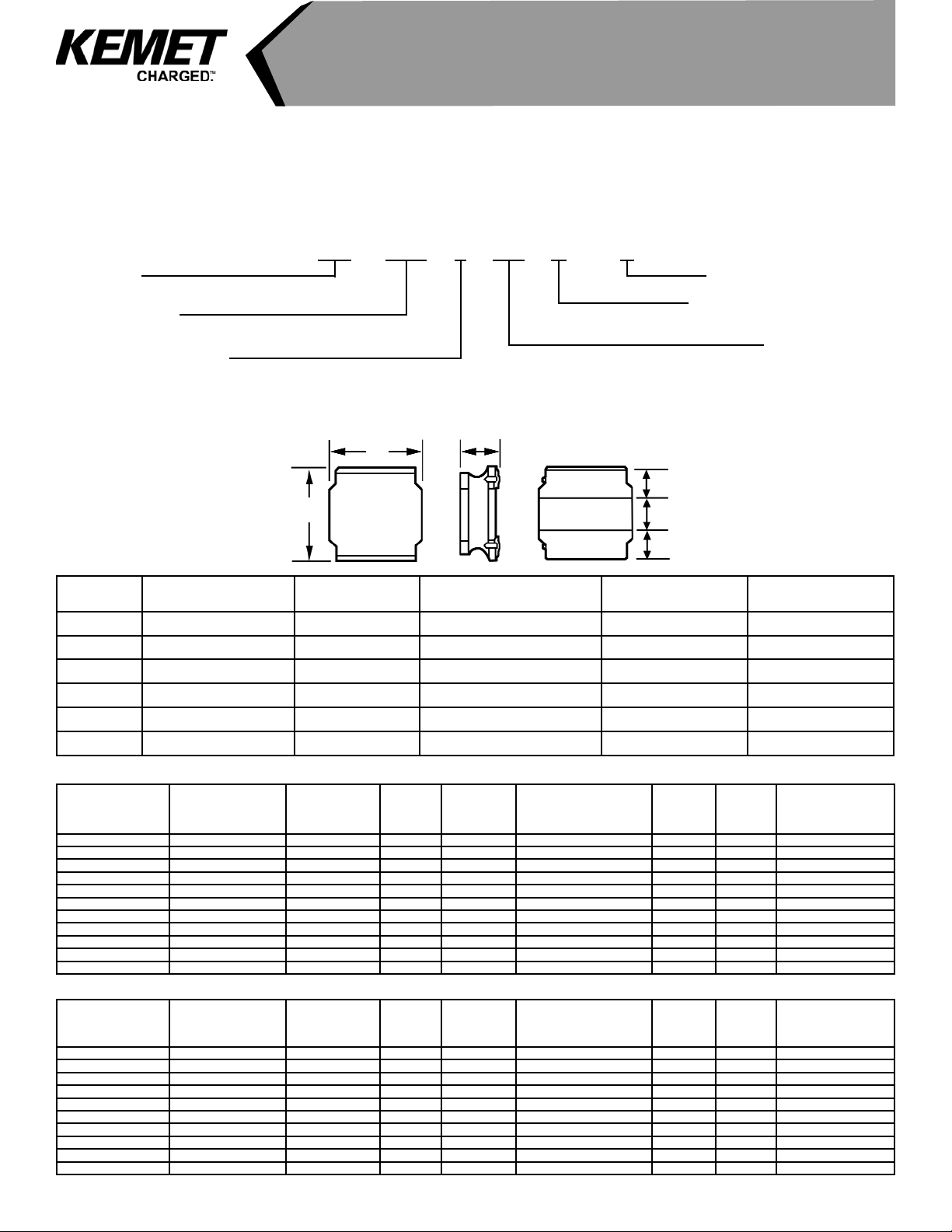

100

Features: Applications:

• Small and low profile inductor • For small DC/DC converter; cellular phones,

• Corresponds to high current HDD, HVC, DSC, and PDA LCD display

• Simple and original magnetic shield structure Operating Temperature:

• Structure strong against shock-proof • -25ºC to +120ºC (including self-generated heat)

KEMET Designator

Inductance

Examples: 2R2 = 2.2μH

100 = 10μH

101 = 100μH

Inductance Tolerance

M = ±20%, N = 30%

Type

NR- = Coating resin specification

Case Size

3010, 4010, 4012, 4018, 6012, 8040

Packaging Code

T = Tape & Reel

NR-

4012 T M K

Dim.

Code

L

Length

(inches)

W

Width

(inches)

T

Thickness Maximum

(inches)

E

(inches)

F

3010

3.0 ±0.1

(0.118 ±0.004)

3.0 ±0.1

(0.118 ±0.004)

1.0 max.

(0.039 max.)

0.9 ±0.2

(0.035 ±0.008)

1.9 ±0.2

(0.075 ±0.008)

4010

4.0 ±0.2

(0.157 ±0.008)

4.0 ±0.2

(0.157 ±0.008)

1.0 max.

(0.039 max.)

1.1 ±0.2

(0.043 ±0.008)

2.5 ±0.2

(0.098 ±0.008)

4012

4.0 ±0.2

(0.157 ±0.008)

4.0 ±0.2

(0.157 ±0.008)

1.2 max.

(0.047 max.)

1.1 ±0.2

(0.043 ±0.008)

2.5 ±0.2

(0.098 ±0.008)

4018

4.0 ±0.2

(0.157 ±0.008)

4.0 ±0.2

(0.157 ±0.008)

1.2 max.

(0.047 max.)

1.1 ±0.2

(0.043 ±0.008)

2.5 ±0.2

(0.098 ±0.008)

6012

6.0 ±0.2

(0.236 ±0.008)

6.0 ±0.2

(0.236 ±0.008)

1.2 max.

(0.047 max.)

1.0 ±0.2

(0.039 ±0.008)

4.8 ±0.2

(0.189 ±0.008)

8040

8.0 ±0.2

(0.315 ±0.008)

8.0 ±0.2

(0.315 ±0.008)

4.2 max

(0.165 max)

1.6 ±0.3

(0.063 ±0.012)

5.6 ±0.3

(0.220 ±0.012)

Low Profile SMD Inductors (NR Series)

Part Numbering Table

Dimension Table in millimeters (inches)

-

(-) Required to complete Part Number

L

W

H

E

E

F

Dimensions 3.0mm x 3.0mm (NR3010 Type, 1.0mm Max. Height)

Ordering code Inductance (μH)

Inductance

Tolerance

Measuring
Frequency

(KHz)

Minimum

Self-resonant

Frequency

(MHz)

Maximum DC Resistance

(ΩΩ) ±30%

Maximum

Rated

Current (mA)

Maximum

Heigh (mm)

Tape & Reel Packaging

Quantity

NR-3010T1R0N-K 1.0 ±30% 100 126 0.065 1300 1.0 2,000
NR-3010T1R5N-K 1.5 ±30% 100 98 0.08 1200 1.0 2,000
NR-3010T2R2M-K 2.2 ±20% 100 82 0.095 1100 1.0 2,000
NR-3010T3R3M-K 3.3 ±20% 100 63 0.14 870 1.0 2,000
NR-3010T4R7M-K 4.7 ±20% 100 56 0.19 750 1.0 2,000
NR-3010T6R8M-K 6.8 ±20% 100 46 0.30 610 1.0 2,000
NR-3010T100M-K 10 ±20% 100 35 0.45 500 1.0 2,000
NR-3010T150M-K 15 ±20% 100 30 0.74 400 1.0 2,000
NR-3010T220M-K 22 ±20% 100 25 1.03 350 1.0 2,000
NR-3010T330M-K 33 ±20% 100 20 1.55 260 1.0 2,000
NR-3010T470M-K 47 ±20% 100 17 2.05 220 1.0 2,000

Dimensions 4.0mm x 4.0mm (NR4010 Type, 1.0mm Max. Height)

Ordering code Inductance (μH)

Inductance

Tolerance

Measuring
Frequency

(KHz)

Minimum

Self-resonant

Frequency

(MHz)

Maximum DC Resistance

(ΩΩ) ±30%

Maximum

Rated

Current (mA)

Maximum

Height

(mm)

Tape & Reel

Packaging Quantity

NR-4010T1R0N-K 1.0 ±30% 100 116 0.10 1050 1.0 5,000
NR-4010T2R2M-K 2.2 ±30% 100 73 0.15 890 1.0 5,000
NR-4010T3R3M-K 3.3 ±20% 100 58 0.18 820 1.0 5,000
NR-4010T4R7M-K 4.7 ±20% 100 47 0.21 750 1.0 5,000
NR-4010T6R8M-K 6.8 ±20% 100 38 0.30 620 1.0 5,000
NR-4010T100M-K 10 ±20% 100 31 0.38 560 1.0 5,000
NR-4010T150M-K 15 ±20% 100 24 0.51 470 1.0 5,000
NR-4010T220M-K 22 ±20% 100 19 0.87 360 1.0 5,000
NR-4010T330M-K 33 ±20% 100 15 1.54 280 1.0 5,000
NR-4010T470M-K 47 ±20% 100 13 1.81 240 1.0 5,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

22

Dimensions 4.0mm x 4.0mm (NR4012 Type, 1.2mm Max. Height)

Dimensions 4.0mm x 4.0mm (NR4018 Type, 1.8mm Max. Height)

Dimensions 6.0mm x 6.0mm (NR6012 Type, 1.2mm Max. Height)

Dimensions 8.0mm x 8.0mm (NR8040 Type, 4.2mm Max. Height)

Ordering code Inductance (μH)

Inductance

Tolerance

Measuring
Frequency

(KHz)

Minimum

Self-resonant

Frequency

(MHz)

Maximum DC Resistance

(ΩΩ) ±30%

Maximum

Rated

Current (mA)

Maximum

Height

(mm)

Tape & Reel

Packaging Quantity

NR-4012T2R2M-K 2.2 ±20% 100 66 0.09 1200 1.2 4,500
NR-4012T3R3M-K 3.3 ±20% 100 50 0.13 980 1.2 4,500
NR-4012T4R7M-K 4.7 ±20% 100 45 0.14 960 1.2 4,500
NR-4012T6R8M-K 6.8 ±20% 100 35 0.18 840 1.2 4,500
NR-4012T100M-K 10 ±20% 100 28 0.24 740 1.2 4,500
NR-4012T150M-K 15 ±20% 100 23 0.40 560 1.2 4,500

NR-4012T-220M-K 22 ±20% 100 18 0.48 510 1.2 4,500

NR-4012T330M-K 33 ±20% 100 15 0.81 400 1.2 4,500
NR-4012T470M-K 47 ±20% 100 12 1.00 350 1.2 4,500

Ordering code Inductance (μH)

Inductance

Tolerance

Measuring
Frequency

(KHz)

Minimum

Self-resonant

Frequency

(MHz)

Maximum DC Resistance

(ΩΩ) ±30%

Maximum

Rated

Current (mA)

Maximum

Heigh (mm)

Tape & Reel

Packaging Quantity

NR-4018T1R0N-K 1.0 ±30% 100 80 0.03 1830 1.8 3,500
NR-4018T2R2M-K 2.2 ±20% 100 52 0.06 1440 1.8 3,500
NR-4018T3R3M-K 3.3 ±20% 100 44 0.07 1230 1.8 3,500
NR-4018T4R7M-K 4.7 ±20% 100 34 0.09 1200 1.8 3,500
NR-4018T6R8M-K 6.8 ±20% 100 29 0.11 1060 1.8 3,500
NR-4018T100M-K 10 ±20% 100 24 0.18 840 1.8 3,500
NR-4018T150M-K 15 ±20% 100 19 0.25 650 1.8 3,500
NR-4018T220M-K 22 ±20% 100 16 0.36 590 1.8 3,500
NR-4018T330M-K 33 ±20% 100 12 0.53 490 1.8 3,500
NR-4018T470M-K 47 ±20% 100 10 0.65 420 1.8 3,500
NR-4018T680M-K 68 ±20% 100 8.3 1.00 320 1.8 3,500
NR-4018T101M-K 100 ±20% 100 6.5 1.50 280 1.8 3,500
NR-4018T221M-K 200 ±20% 100 4 4.00 170 1.8 3,500

Ordering code Inductance (μH)

Inductance

Tolerance

Measuring
Frequency

(KHz)

Minimum

Self-resonant

Frequency

(MHz)

Maximum DC Resistance

(ΩΩ) ±30%

Maximum

Rated

Current (mA)

Maximum

Heigh (mm)

Tape & Reel

Packaging Quantity

NR-6012T3R0M-K 3.0 ±20% 100 45 0.092 1730 1.2 1,000
NR-6012T4R0M-K 4.0 ±20% 100 39 0.107 1570 1.2 1,000
NR-6012T5R3M-K 5.3 ±20% 100 34 0.125 1400 1.2 1,000
NR-6012T6R8M-K 6.8 ±20% 100 30 0.165 1180 1.2 1,000
NR-6012T100M-K 10 ±20% 100 22 0.24 1000 1.2 1,000
NR-6012T150M-K 15 ±20% 100 18 0.33 790 1.2 1,000
NR-6012T220M-K 22 ±20% 100 12 0.55 630 1.2 1,000
NR-6012T330M-K 33 ±20% 100 8 0.71 530 1.2 1,000
NR-6012T470M-K 47 ±20% 100 6 1.13 460 1.2 1,000
NR-6012T680M-K 68 ±20% 100 3 1.35 410 1.2 1,000
NR-6012T101M-K 100 ±20% 100 1 2.18 320 1.2 1,000

Ordering code Inductance (μH)

Inductance

Tolerance

Measuring
Frequency

(KHz)

Minimum

Self-resonant

Frequency

(MHz)

Maximum DC Resistance

(ΩΩ) ±30%

Maximum

Rated

Current (mA)

Maximum

Heigh (mm)

Tape & Reel

Packaging Quantity

NR-8040T1R9N-K 0.9 ±30% 100 85 0.006 7800 4.2 1,000
NR-8040T1R4N-K 1.4 ±30% 100 63 0.007 7000 4.2 1,000
NR-8040T2R0N-K 2.0 ±30% 100 50 0.009 6300 4.2 1,000
NR-8040T3R6N-K 3.6 ±30% 100 34 0.015 4900 4.2 1,000
NR-8040T4R7N-K 4.7 ±30% 100 30 0.018 4100 4.2 1,000
NR-8040T6R8N-K 6.8 ±30% 100 24 0.025 3700 4.2 1,000
NR-8040T100N-K 10 ±20% 100 22 0.034 3100 4.2 1,000
NR-8040T150N-K 15 ±20% 100 16 0.050 2400 4.2 1,000
NR-8040T220N-K 22 ±20% 100 13 0.066 2200 4.2 1,000
NR-8040T330N-K 33 ±20% 100 12 0.100 1700 4.2 1,000
NR-8040T470N-K 47 ±20% 100 8 0.150 1400 4.2 1,000
NR-8040T680N-K 68 ±20% 100 7 0.230 1100 4.2 1,000
NR-8040T101N-K 100 ±20% 100 6 0.290 1000 4.2 1,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

23

Features: Applications:

• Power supply units: • Combats power line radiated and conducted noise
Large withstand voltage (allowable current up to 6A) • Provides waveform correction of digital signals and high frequency noise
Resistant to high energy countermeasures in various types of digital equipment
High reliability • Automotive

• There are several variations of the standard (FBMJ) type • Computer peripherals
HS for broadband • Differential transmission line on USB and similar products
HM for upper MHz range applications • Mobile devices which require lower power consumption
HL for GHz range applications

• The FBMH type is optimal for circuit designs which require impedance and large currents Operating Temperature:
to combat radiated noise on power lines, etc. • -40ºC to +85ºC (includes self-generated heat)

KEMET Designator

Material

HL, HM, HS - Contact KEMET for materials characteristics

Impedance

Examples: 330 = 33

ΩΩ

111 = 11 0

ΩΩ

132 = 1300

ΩΩ

Type

FBMJ = Regular Type, FBMH = High current

Case Size

J 1608 (0603) H 1608 (0603)

2125 (0805) 2012 (0805)
3216 (1206) 2016 (0806)
4516 (1806) 3216 (1206)

3225 (1210)
4516 (1806)
4525 (1810)
4532 (1812)

FBMJ

3216 HL 330 K

Characteristic

Code

Dim.

Code

EIA

Case

Size

L

Length

(inches)

W

Width

(inches)

T

Thickness Maximum

(inches)

E

(inches)

J

1608 0603

1.6 ±0.2

(0.063 ±0.008)

0.8 ±0.2

(0.031 ±0.008)

0.8 ±0.2

(0.031 ±0.008)

0.3 ±0.2

(0.012 ±0.008)

2125 0805

2.0 ±0.2

(0.079 ±0.008)

1.25 ±0.2

(0.049 ±0.008)

0.85 ±0.2

(0.02 ±0.002)

0.5 ±0.3

(0.020 ±0.012)

3216 1206

3.2 ±0.3

(0.126 ±0.012)

1.6 ±0.2

(0.063 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.5 ±0.3

(0.020 ±0.012)

4516 1806

4.5 ±0.3

(0.177 ±0.012)

1.6 ±0.2

(0.063 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.5 ±0.3

(0.020 ±0.012)

H

1608 0603

1.6 ±0.1

(0.063 ±0.004)

0.8 ±0.1

(0.031 ±0.004)

0.8 ±0.1

(0.031 ±0.004)

0.3 ±0.15

(0.012 ±0.006)

2012 0805

2.0 ±0.2

(0.079 ±0.008)

1.25 ±0.2

(0.049 ±0.008)

0.85 ±0.2

(0.02 ±0.002)

0.5 ±0.3

(0.020 ±0.012)

2016 0806

2.0 ±0.2

(0.079 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.5 ±0.3

(0.020 ±0.012)

3216 1206

3.2 ±0.3

(0.126 ±0.012)

1.6 ±0.2

(0.063 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.5 ±0.3

(0.020 ±0.012)

3225 1210

3.2 ±0.3

(0.126 ±0.012)

2.5 ±0.3

(0.098 ±0.012)

2.5 ±0.3

(0.098 ±0.012)

0.5 ±0.3

(0.020 ±0.012)

4516 1806

4.5 ±0.3

(0.177 ±0.012)

1.6 ±0.2

(0.063 ±0.008)

1.6 ±0.2

(0.063 ±0.008)

0.5 ±0.3

(0.020 ±0.012)

4525 1810

4.5 ±0.4

(0.177 ±0.016)

2.5 ±0.3

(0.098 ±0.012)

2.5 ±0.3

(0.098 ±0.012)

0.9 ±0.6

(0.035 ±0.024)

4532 1812

4.5 ±0.4

(0.177 ±0.016)

3.2 ±0.3

(0.126 ±0.012)

3.2 ±0.3

(0.126 ±0.012)

0.9 ±0.6

(0.035 ±0.024)

E

T

W

L

High Current Ferrite Chip Beads - FB Series M Type

Part Numbering Table

Dimension Table in millimeters (inches)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

24

Ordering Code

Impedance

(ΩΩ)

Measuring Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (A)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

FBMJ1608HS280K 28 ±30% 100 0.007 4 O.8 ±0.2 (0.031 ±0.008) 4,000

FBMJ1608HM230K 23 ±30% 100 0.007 4 O.8 ±0.2 (0.031 ±0.008) 4,000

0603 Case Size High Current Ferrite Chip Beads (FB Series M Type)

0805 Case Size High Current Ferrite Chip Beads (FB Series M Type)

Ordering Code

Impedance

(ΩΩ)

Measuring Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (A)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

FBMJ2125HS420K 42 ±25% 100 0.008 4 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMJ2125HS250K 25 ±30% 100 0.004 6 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMJ2125HM330K 33 ±25% 100 0.008 4 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMJ2125HM2I0K 21 ±30% 100 0.004 6 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMJ2125HL8R0K 8 ±30% 100 0.01 2 0.85 ±0.2 (0.033 ±0.008) 4,000

1206 Case Size High Current Ferrite Chip Beads (FB Series M Type)

Ordering Code

Impedance

(ΩΩ)

Measuring Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (A)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

FBMJ3216HS800K 80 ±25% 100 0.01 4 1.1 ±0.2 (0.043 ±0.008) 2,000

FBMJ3216HS480K 48 ±30% 100 0.005 6 1.1 ±0.2 (0.043 ±0.008) 2,000

FBMJ3216HM600K 60 ±25% 100 0.01 4 1.1 ±0.2 (0.043 ±0.008) 2,000

FBMJ3216HM380K 38 ±30% 100 0.005 6 1.1 ±0.2 (0.043 ±0.008) 2,000

Ordering Code

Impedance

(ΩΩ)

Measuring Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (A)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

FBMJ4516HS111K 110 ±25% 100 0.014 4 1.1 ±0.2 (0.043 ±0.008) 2,000

FBMJ4516HS720K 72 ±30% 100 0.007 6 1.1 ±0.2 (0.043 ±0.008) 2,000

FBMJ4516HM900K 90 ±25% 100 0.014 4 1.1 ±0.2 (0.043 ±0.008) 2,000

FBMJ4516HM560K 56 ±30% 100 0.007 6 1.1 ±0.2 (0.043 ±0.008) 2,000

1806 Case Size High Current Ferrite Chip Beads (FB Series M Type)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

25

High Impedence Type Ferrite Chip Beads (FB Series M Type)

Ordering Code EIA Case Size

Impedance

(ΩΩ)

Measuring
Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (A)

Thickness mm (inches)

Tape & Reel

Packaging

Quantity

FBMH1608HM470K 0603 47 ±25% 100 0.02 3.5 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HM600K 0603 60 ±25% 100 0.025 3 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HM101K 0603 100 ±25% 100 0.035 2 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMHI608HM151K 0603 150 ±25% 100 0.05 2 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HM22IK 0603 220 ±25% 100 0.07 1.5 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMHI608HM331K 0603 330 ±25% 100 0.13 0.9 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HM471K 0603 470 ±25% 100 0.15 0.7 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMHI6O8HM6O1K 0603 600 ±25% 100 0.17 0.7 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HM102K 0603 1000 ±25% 100 0.35 0.3 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HL300K 0603 30 ±25% 100 0.028 2.5 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HL600K 0603 60 ±25% 100 0.045 1.8 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMHI608HL12IK 0603 120 ±25% 100 0.13 0.9 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HL221K 0603 220 ±25% 100 0.17 0.7 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HL331K 0603 330 ± 5% 100 0.21 0.6 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH1608HL471K 0603 470 ±25% 100 0.35 0.5 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMHI608HL601K 0603 600 ±25% 100 0.45 0.4 0.8 ±0.1 (0.031 ±0.004) 4,000

FBMH2012HM800K 0805 80 ±25% 100 0.025 2.7 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMH2012HM121K 0805 120 ±25% 100 0.032 2.5 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMH2012HM221K 0805 220 ±25% 100 0.06 2 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMH2012HM331K 0805 330 ±25% 100 0.08 1.8 0.85 ±0.2 (0.033 ±0.008) 4,000

FBMH2016HM251K 0806 250 ±30% 100 0.05 2 1.6 ±0.2 (0.063 ±0.008) 2,000

FBMH3216HM501K 1206 500 ±30% 100 0.07 2 1.6 ±0.2 (0.063 ±0.008) 2,000

FBMH4516HM851K 1806 850 ±30% 100 0.1 1.5 1.6 ±0.2 (0.063 ±0.008) 2,000

FBMH3225HM601K 1210 600 ±30% 100 0.042 3 2.5 ±0.3 (0.098 ±0.012) 1,000

FBMH3225HM102K 1210 1000 ±30% 100 0.1 2 2.5 ±0.3 (0.098 ±0.012) 1,000

FBMH3225HM202K 1210 2000 ±30% 100 0.13 1.2 2.5 ±0.3 (0.098 ±0.012) 1,000

FBMH4525HM102K 1810 1000 ±30% 100 0.06 3 2.5 ±0.3 (0.098 ±0.012) 1,000

FBMH4525HM162K 1810 1600 ±30% 100 0.13 2 2.5 ±0.3 (0.098 ±0.012) 1,000

FBMH4532HM681K 1812 680 ±25% 100 0.028 4 3.2 ±0.3 (0.126 ±0.012) 2,000

FBMH4532HM132K 1812 1300 ±25% 100 0.06 3 3.2 ±0.3 (0.126 ±0.012) 2,000

FBMH4532HM202K 1812 2000 ±25% 100 0.13 1.3 3.2 ±0.3 (0.126 ±0.012) 2,000

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

26

BK Features:

• Internal silver printed layer creates a closed circuit which acts as a magnetic
shield to minimize heat generation and crosstalk

• No need for grounding provides greater circuit design flexibility

• Several material types and a broad range of impedance values provide noise
countermeasures for various applications

HS: Suppresses the XL component. Helps stop the reduction of the wave-form

integrity (digital wave-form overshoot, etc)

HM: Increases the Z characteristics sharply above 20MHz and is applicable for

radiated noise in the 100MHz-300MHz range. Especially effective on video
signal lines.

LL: Designed as a noise countermeasure for 200MHz-500MHz range where the

rise of the Z component is in the high frequency area.

LM: Intended for noise suppression around 200MHz. Effectively increase

attenuation

HW: The best material in the BK Series to suppress the XL component and stop the

reduction of the wave-form integrity while maintaining attenuation in the high
frequency area.

TS: Reduced DC resistance version for noise countermeasures around LSI power

supplies

BKP Features:

• Low Rdc values reduce power dissipation and extend battery life

• No need for grounding provides greater circuit design flexibility

KEMET Designator

Material

HM, HS, HW, LL, LM, TS
Contact KEMET for materials characteristics

Impedance

Examples: 150 = 15

ΩΩ

101 = 100

ΩΩ

102 = 1000

ΩΩ

Type

BK- = Standard, BKP = For Power Supply Lines

Case Size

0603 (0201)
1005 (0402)
1608 (0603)
2125 (0805)

Packaging Code

T = Tape & Reel

BK-

1005 HM 121 T K

Dim.

Code

EIA

Case

Size

L

Length

(inches)

W

Width

(inches)

T

Thickness Maximum

(inches)

E

(inches)

0603 0201

1.6 ±0.2

(0.063 ±0.008)

0.8 ±0.2

(0.031 ±0.008)

0.8 ±0.2

(0.031 ±0.008)

0.3 ±0.2

(0.012 ±0.008)

1005 0402

1.00 ±0.05

(0.039 ±0.002)

0.50 ±0.05

(0.020 ±0.002)

0.50 ±0.05

(0.020 ±0.002)

0.25 ±0.10

(0.010 ±0.004)

1608 0603

1.6 ±0.15

(0.063 ±0.006)

0.8 ±0.15

(0.031 ±0.006)

0.8 ±0.15

(0.031 ±0.006)

0.3 ±0.2

(0.012 ±0.008)

2125 0805

2.0 +0.3/-.01

(0.079 +0.012/-0.004)

1.25 ±0.2

(0.049 ±0.008)

0.85 ±0.2

(0.033 ±0.008)

0.5 ±0.3

(0.020 ±0.012)

Multilayer Ferrite Chip Beads - BK Series

Part Numbering Table

Dimension Table in millimeters (inches)

BK Applications:

• High frequency noise countermeasure in personal computers, digital cameras and
other information system products. For use on digital product clock lines and
general signal lines.

• Radiated noise suppression in computer or printer interfaces harness connectors.

• Noise suppression in video and other AV products

• Prevents interference between circuits in cellular phones (PHS, PDC, etc)

• Due to the closed internal circuit which acts as a magnetic shield, the TS material
is extremely effective as a noise filter on LSI power supplies where downsizing
of components is needed.

BKP Applications:

• High frequency noise countermeasures on the DC power supply line in personal
computers and other information system products

• Noise suppression in USB and IEEE1294 interface

• Prevents interference between circuits in mobile systems (PDC, PHS, PDA)

Operating Temperature:

• BK: -55ºC to +125ºC (includes self-generated heat)

• BKP: -55ºC to +85ºC (includes sel-generated heat)

E

T

W

L

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

27

Ordering Code

Impedance

(ΩΩ) ±25%

Measuring Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

BK-0603HS220TK 22 100 0.10 500 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603HS330TK 33 100 0.20 350 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603HS800TK 80 100 0.40 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603HS121TK 120 100 0.50 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603HS241TK 240 100 0.80 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603HM600TK 60 100 0.40 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603HM121TK 120 100 0.50 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603HM241TK 240 100 0.80 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603LL100TK 10 100 0.40 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603LL220TK 22 100 0.50 200 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603LL330TK 33 100 0.80 150 0.30 ±0.03 (0.012 ±0.001) 15,000

BK-0603LL470TK 47 100 1.00 150 0.30 ±0.03 (0.012 ±0.001) 15,000

Ordering Code

Impedance

(ΩΩ) ±25%

Measuring Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

BK-1005HW680TK 68 100 0.17 500 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HW121TK 120 100 0.24 450 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HW241TK 240 100 0.31 400 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HW431TK 430 100 0.50 350 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HW601TK 600 100 0.60 300 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HS100TK 10 100 0.05 1000 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HS330TK 33 100 0.10 700 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HS680TK 68 100 0.13 600 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HS121TK 120 100 0.23 500 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HS241TK 240 100 0.33 400 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HS601TK 600 100 0.58 300 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HM121TK 120 100 0.25 300 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HM241TK 240 100 0.36 300 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HM471TK 470 100 0.56 250 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HM601TK 600 100 0.59 250 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005HM102TK 1000 100 0.80 150 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL100TK 10 100 0.15 500 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL220TK 22 100 0.20 400 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL330TK 33 100 0.30 400 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL470TK 47 100 0.35 350 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL680TK 68 100 0.31 400 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL121TK 120 100 0.45 350 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL181TK 180 100 0.53 300 0.50 ±0.05 (0.020 ±0.002) 10,000

BK-1005LL241TK 240 100 0.70 250 0.50 ±0.05 (0.020 ±0.002) 10,000

Ordering Code

Impedance

(ΩΩ) ±25%

Measuring Frequency

(MHz)

Maximum DC

Resistance

(ΩΩ)

Maximum Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

BKP1005HS121TK 120 100 0.14 1000 0.50 ±0.05 (0.020 ±0.002) 10,000

0201 Multilayer Ferrite Chip Beads Standard Type (BK Series)

0402 Multilayer Ferrite Chip Beads Standard Type (BK Series)

0402 Multilayer Ferrite Chip Beads For Power Lines (BKP Series)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

28

Ordering Code

Impedance

(ΩΩ) ±25%

Measuring Frequency

(MHz)

Maximum DC

Resistance (ΩΩ)

Maximum Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

BK-1608HW121TK 120 100 0.15 600 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HW241TK 240 100 0.25 450 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HW431TK 430 100 0.30 400 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HW601TK 600 100 0.40 300 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS220TK 22 100 0.05 1500 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS330TK 33 100 0.08 1200 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS470TK 47 100 0.10 900 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS600TK 60 100 0.10 800 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS800TK 80 100 0.10 600 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS121TK 120 100 0.18 500 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS241TK 240 100 0.25 400 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS601TK 600 100 0.45 350 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HS102TK 1000 100 0.60 300 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HM121TK 120 100 0.20 350 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HM24ITK 240 100 0.35 300 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HM471TK 470 100 0.45 250 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HM601TK 600 100 0.60 250 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608HM102TK 1000 100 0.70 200 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL300TK 30 100 0.20 500 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL470TK 47 100 0.30 400 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL560TK 56 100 0.30 400 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL680TK 68 100 0.35 300 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL121TK 120 100 0.50 300 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL181TK 180 100 0.65 250 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL24ITK 240 100 0.80 250 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL331TK 330 100 0.85 200 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL431TK 430 100 0.85 200 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL511TK 510 100 0.90 200 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LL681TK 680 100 1.00 150 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LM751TK 750 100 0.60 300 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LM152TK 1500 100 0.75 250 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LM182TK 1800 100 0.85 200 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608LM252TK 2500 100 1.10 200 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608TS431TK 430 100 0.25 ±30% 400 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608TS601TK 600 100 0.27 ±30% 350 0.80 ±0.15 (0.031 ±0.006) 4,000

BK-1608TS102TK 1000 100 0.35 ±30% 300 0.80 ±0.15 (0.031 ±0.006) 4,000

Ordering Code

Impedance

(ΩΩ) ±25%

Measuring Frequency

(MHz)

Maximum DC

Resistance (ΩΩ)

Maximum Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

BKP1608HS330TK 33 100 0.025 3000 0.80 ±0.15 (0.031 ±0.006) 4,000

BKP1608HS600TK 60 100 0.040 2500 0.80 ±0.15 (0.031 ±0.006) 4,000

BKP1608HS101TK 100 100 0.050 1700 0.80 ±0.15 (0.031 ±0.006) 4,000

BKP1608HS121TK 120 100 0.035 2700 0.80 ±0.15 (0.031 ±0.006) 4,000

BKP1608HS181TK 180 100 0.075 1500 0.80 ±0.15 (0.031 ±0.006) 4,000

BKP1608HS271TK 270 100 0.110 1200 0.80 ±0.15 (0.031 ±0.006) 4,000

BKP1608HS391TK 390 100 0.140 1000 0.80 ±0.15 (0.031 ±0.006) 4,000

0603 Multilayer Ferrite Chip Beads Standard Type (BK Series)

0603 Multilayer Ferrite Chip Beads For Power Lines (BKP Series)

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

29

Ordering Code

Impedance

(ΩΩ) ±25%

Measuring Frequency

(MHz)

Maximum DC

Resistance (ΩΩ)

Maximum Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

BK-2125HS150TK 15 100 0.05 1200 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS220TK 22 100 0.05 1200 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS330TK 33 100 0.05 1200 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS470TK 47 100 0.05 1000 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS750TK 75 100 0.10 1000 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS101TK 100 100 0.10 900 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS121TK 120 100 0.15 800 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS241TK 240 100 0.20 600 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS431TK 430 100 0.25 500 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS601TK 600 100 0.30 500 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HS102TK 1000 100 0.40 300 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HM121TK 120 100 0.15 800 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HM241TK 240 100 0.20 600 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HM471TK 470 100 0.25 500 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HM601TK 600 100 0.25 500 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125HM102TK 1000 100 0.35 400 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125LL560TK 56 100 0.20 600 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125LL121TK 120 100 0.30 400 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125LL241TK 240 100 0.35 300 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125LM751TK 750 100 0.30 400 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125LM152TK 1500 100 0.35 400 0.85 ±0.2 (0.033 ±0.008) 4,000

BK-2125LM182TK 1800 100 0.45 300 1.25 ±0.2 (0.049 ±0.008) 2,000

BK-2125LM252TK 2500 100 0.75 200 1.25 ±0.2 (0.049 ±0.008) 2,000

Ordering Code

Impedance

(ΩΩ)+25%

Measuring Frequency

(MHz)

Maximum DC

Resistance (ΩΩ)

Maximum Rated

Current (mA)

Thickness mm (inches)

Tape & Reel

Packaging Quantity

BKP2125HS330TK 33 100 0.020 4000 0.85 ±0.2 (0.033 ±0.008) 4,000

BKP2125HS600TK 60 100 0.025 3000 0.85 ±0.2 (0.033 ±0.008) 4,000

BKP2125HS101TK 100 100 0.040 2500 0.85 ±0.2 (0.033 ±0.008) 4,000

BKP2125HS221TK 220 100 0.050. 2000 0.85 ±0.2 (0.033 ±0.008) 4,000

0805 Multilayer Ferrite Chip Beads Standard Type (BK Series)

0805 Multilayer Ferrite Chip Beads For Power Lines (BKP Series)

DISCLAIMER

All electronic components or devices listed in this catalog are developed, designedand intended for use in general
electronic equipment. Before incorporating these components into any equipment in the fields of aerospace, military or
medical, where higher safety and reliability are required, please contact KEMET Corp for more details.

Through our Strategic Alliance, announced in September of 2005, Taiyo Yuden and
KEMET are working together to utilize best practices in the areas of manufacturing,
technology, marketing, and customer support to better serve the electronics industry.

© KEMET Electronics Corporation, P.O. Box 5928, Greenville, SC 29606 [phone]

32

World Sales Headquarters

KEMET Electronics Corporation

P.O. Box 5928
Greenville, SC 29606
Phone: [phone]

Europe

KEMET Electronics S.A.

1-3, Avenue de la Paix

P.O.B. 76

CH-1211 Geneva 20,

Switzerland

Phone: [phone]

Asia

KEMET Electronics Marketing PTE Ltd.

101 Thomson Road, #23-03

United Square

Singapore, 307591, Singapore

Phone: [phone]

KEMET Electronics Asia Ltd.

30 Canton Road, Room 1512

SilverCord Tower II

Tsimshatshui, Kowloon

Hong Kong

Phone: [phone]
