MULTILAYER CERAMIC CAPACITORS/AXIAL & RADIAL LEADED

KEMET

®

Multilayer ceramic capacitors are available in a
variety of physical sizes and configurations, including
leaded devices and surface mounted chips. Leaded
styles include molded and conformally coated parts
with axial and radial leads. However, the basic
capacitor element is similar for all styles. It is called a
chip and consists of formulated dielectric materials
which have been cast into thin layers, interspersed
with metal electrodes alternately exposed on opposite

TEMPERATURE CHARACTERISTICS

Ceramic dielectric materials can be formulated with
a wide range of characteristics. The EIA standard for
ceramic dielectric capacitors (RS-198) divides ceramic
dielectrics into the following classes:

Class I: Temperature compensating capacitors,
suitable for resonant circuit application or other appli­cations where high Q and stability of capacitance char­acteristics are required. Class I capacitors have
predictable temperature coefficients and are not
affected by voltage, frequency or time. They are made
from materials which are not ferro-electric, yielding
superior stability but low volumetric efficiency. Class I
capacitors are the most stable type available, but have
the lowest volumetric efficiency.

Class II: Stable capacitors, suitable for bypass
or coupling applications or frequency discriminating
circuits where Q and stability of capacitance char­acteristics are not of a major importance. Class II
capacitors have temperature characteristics of ± 15%
or less. They are made from materials which are
ferro-electric, yielding higher volumetric efficiency but
less stability. Class II capacitors are affected by
temperature, voltage, frequency and time.

edges of the laminated structure.

The entire structure is
fired at high temperature to produce a monolithic
block

which provides high capacitance values in a
small physical volume. After firing, conductive
terminations are applied to opposite ends of the chip to
make contact with the exposed electrodes.
Termination materials and methods vary depending on
the intended use.

Class III: General purpose capacitors, suitable
for by-pass coupling or other applications in which
dielectric losses, high insulation resistance and
stability of capacitance characteristics are of little or
no importance. Class III capacitors are similar to Class
II capacitors except for temperature characteristics,
which are greater than ± 15%. Class III capacitors
have the highest vol

umetric efficiency and poorest

stability of any type.

KEMET leaded ceramic capacitors are offered in
the three most popular temperature characteristics:

C0G: Class I, with a temperature coefficient of 0 ±

30 ppm per degree C over an operating

temperature range of - 55°C to + 125°C (Also

known as “NP0”).

X7R: Class II, with a maximum capacitance

change of ± 15% over an operating temperature

range of - 55°C to + 125°C.

Z5U: Class III, with a maximum capacitance

change of + 22% - 56% over an operating tem-

perature range of + 10°C to + 85°C.

Specified electrical limits for these three temperature
characteristics are shown in Table 1.

Dissipation Factor: Measured at following conditions:

C0G — 1 kHz and 1 vrms if capacitance > 1000 pF

X7R — 1 kHz and 1 vrms*
Z5U — 1 kHz and 0.5 vrms

Dielectric Strength: 2.5 times rated DC voltage. Pass Subsequent IR Test
Insulation Resistance (IR): At rated DC voltage, 1,000 MΩ-µF 1,000 MΩ-µF 1,000 MΩ-µF

Temperature Characteristics: Range, °C -55 to 125 -55 to 125 +10 to 85

* 1 MHz and 1 vrms if capacitance ≤ 100 pF on military product.

SPECIFIED ELECTRICAL LIMITS

TEMPERATURE CHARACTERISTICS

PARAMETER C0G X7R Z5U

1 MHz and 1 vrms if capacitance ≤ 1000 pF 0.15% 2.5% 4.0%

whichever of the two is smaller or 100 GΩ or 100 GΩ or 10 GΩ

Capacitance Change without 0 ± 30 ppm/°C ±15% +22%, -56%
DC voltage

Table I

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]4

CERAMIC CONFORMALLY COATED/AXIAL & RADIAL

PERFORMANCE CHARACTERISTICS

®

KEMET

GENERAL SPECIFICATIONS

Working Voltage: Axial Radial

C0G 50 & 100 volts 100 & 200 volts
X7R 50 & 100 volts 50, 100 & 200 volts
Z5U 50 & 100 volts 50 & 100 volts

Temperature Characteristics:

C0G 0 ± 30 PPM/°C from - 55°C to + 125°C
X7R ± 15% from - 55°C to + 125°C
Z5U + 22%; - 56% from + 10°C to + 85°C

Capacitance Tolerance:

C0G ± 5%, ± 10%, ± 20%
X7R ± 10%, ± 20%
Z5U ± 20%, - 20 + 80%, - 0 + 100%

Construction:

Epoxy encapsulated - meets flame test require-

ments of UL Standard 94V-0.

High-temperature solder - meets EIA RS-198D,

Method 302, Condition B (260°C for 10 sec.)

Lead Material:

Solder Coated Copper Clad Steel

Solderability:

EIA RS-198D, Method 302, Solder temperature ­230° ± 5°C. Dwell time in solder - 7 ± 1/2 seconds.

Terminal Strength:

EIA RS-198D, Method 303, Condition A (2.2 kg)

ELECTRICAL @ 25°C

Capacitance:

Within specified tolerance at 25°C and following
test conditions.

C0G - Greater than 1000 pF with 1.0 vrms at 1 kHz.

- 1000 pF and less with 1.0 vrms at 1 MHz.
X7R - with 1.0 vrms at 1 kHz.
Z5U - with 0.5 vrms at 1 kHz.

Dissipation Factor:

At 25°C - same test conditions as capacitance.

C0G - 0.15% maximum
X7R - 2.5% maximum
Z5U - 4.0% maximum

Insulation Resistance:

EIA RS-198D, Method 104, Condition A

C0G - 100 gigohms or 1000 megohm x µF,

whichever is less.

X7R -100 gigohms or 1000 megohm x µF,

whichever is less.

Z5U -10 gigohms or 1000 megohm x µF,

whichever is less.

Dielectric Withstanding Voltage:

EIA RS-198D, Method 103 (250% of rated voltage
for 5 seconds, with current limited to 50mA)

ENVIRONMENTAL

Vibration:

EIA RS-198D, Method 304, Condition D (10-2000
Hz; 20g)

Shock:

EIA RS-198D, Method 305, Condition I (100g)

Life Test:

EIA RS-198D, Method 201, Condition D. Test
Potential and Temperature.

C0G- 200% of rated voltage at + 125°C

X7R - 200% of rated voltage at + 125°C

(1)

Z5U - 200% of rated voltage at + 85°C
Post-Test Limits at + 25°C are:
Capacitance Change:

C0G - ± 3%, or 0.25 pF, whichever is greater.

X7R - ± 20% of initial value.

Z5U - ± 30% of initial value.

(2)

(2)

Dissipation Factor:

C0G - 0.25% maximum

X7R - 3.0% maximum

Z5U - 4.0% maximum
Insulation Resistance:

C0G- 10 gigohms or 100 megohm x µF,

whichever is less.

X7R - 10 gigohms or 100 megohm x µF,

whichever is less.

Z5U - 1 gigohm or 100 megohm x µF,

whichever is less.

Moisture Resistance:

EIA RS-198D, Method 204, Condition A (10 cycles
without applied voltage.

Post-Test Limits at + 25°C are:
Capacitance Change:

C0G - 3%, or 0.25 pF, whichever is greater.

X7R - ± 20% of initial value.

Z5U - ± 30% of initial value.

(2)

(2)

Dissipation Factor:

C0G - 0.25% maximum

X7R - 3.0% maximum

Z5U - 4.0% maximum
Insulation Resistance:

C0G- 10 gigohms or 100 megohm x µF,

whichever is less.

X7R - 10 gigohms or 100 megohm x µF,

whichever is less.

Z5U - 1 gigohm or 100 megohm x µF,

whichever is less.

Thermal Shock:

EIA RS-198D, Method 202, Condition B (C0G &
X7R: - 55°C to + 125°C; Z5U: - 55°C to + 85°C)

(1) +53 ppm -30 ppm/°C from + 25°C to - 55°C, ± 60

ppm below 10 pF.

(2) X7R & Z5U dielectrics exhibit aging characteristics;

therefore, it is highly recommended that capacitors
be deaged for 2 hours at 150°C and stabilized at
room temperature for 48 hours before capacitance
measurements are made.

Axial/Radial

Conformally Coated

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 5

CERAMIC CONFORMALLY COATED/AXIAL

KEMET

®

M

104

410

C

5

C

A

U

5

C

CERAMIC

CASE SIZE

(See Table of Dimensions above)

SPECIFICATION

C — Standard

CAPACITANCE

Expressed in Picofarad Code (pF)
First Two Digits — Significant Figures
Third Digit — Number of Zeros

FAILURE RA TE

INTERNAL CONSTRUCTION

CAPACITANCE TOLERANCE

J — ±5%
K— ±10%

M— ± 20%

Z — –20 +80%

A — Not Applicable

LEAD MA TERIAL

C — Standard

5 — Standard

DIELECTRIC

EIA Designation
G — C0G (NPO) — Ultra-Stable
R — X7R — Stable
U — Z5U — General Purpose

RATED VOLTAGE

1 — 100 Volts
5 — 50 Volts

*

*Part Number Example: C410C104M5U5CA (14 digits – no spaces)

LL L

D

LD

K5R
104K
AB
0037

Manufacturer

(KEMET)

Rated Voltage

5 - 50 volts

1 - 100 volts

Dielectric
G – C0G/NP0
R – X7R
U – Z5U

Capacitance

Tolerance

Capacitance

Code

Lot

Code

Date

Code

“AXIMAX”

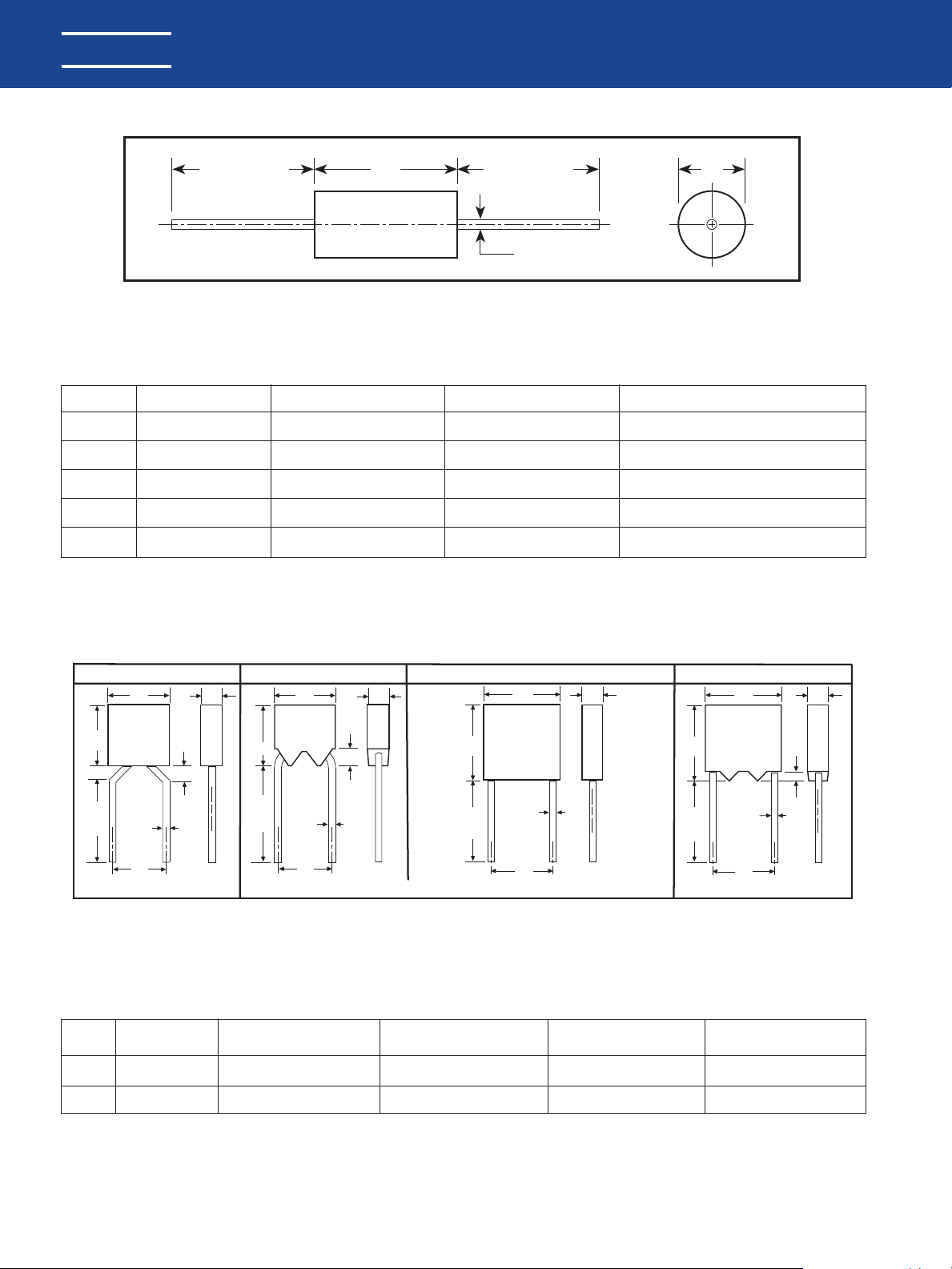

CAPACITANCE OUTLINE DRAWING

MAXIMUM DIMENSIONS—INCHES & (MILLIMETERS)

STYLE L D LL

C410 .170 (4.32) .100 (2.54) .020 (.51) 1.0 (25.4)
C412 .170 (4.32) .120 (3.05) .020 (.51) 1.0 (25.4)
C420 .260 (6.60) .100 (2.54) .020 (.51) 1.0 (25.4)
C430 .290 (7.37) .150 (3.81) .020 (.51) 1.0 (25.4)
C440 .400 (10.16) .150 (3.81) .020 (.51) 1.0 (25.4)

MAX MAX MIN

LD

+.001, -.003

(+.025, -.076)

ORDERING INFORMATION

MARKING INFORMATION

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]6

CERAMIC CONFORMALLY COATED/AXIAL

RATINGS & PART NUMBER REFERENCE

ULTRA-STABLE
TEMPERATURE

CHARACTERISTIC—C0G/NP0

CAPACITANCE

pF PART NUMBER

100 VOLT - C0G

10 C410C100(1
12 C410C120(1)1G5CA
15 C410C150(1)1G5CA
18 C410C180(1)1G5CA
22 C410C220(1)1G5CA
27 C410C270(1)1G5CA
33 C410C330(1)1G5CA
39 C410C390(1)1G5CA
47 C410C470(1)1G5CA
56 C410C560(1)1G5CA
68 C410C680(1)1G5CA

82 C410C820(1)1G5CA
100 C410C101(1)1G5CA
120 C410C121(1)1G5CA
150 C410C151(1)1G5CA
180 C410C181(1)1G5CA
220 C410C221(1)1G5CA
270 C410C271(1)1G5CA
330 C410C331(1)1G5CA
390 C410C391(1)1G5CA
470 C410C471(1)1G5CA
560 C410C561(1)1G5CA
680 C410C681(1)1G5CA
820 C410C821(1)1G5CA

1,000 C410C102(1)1G5CA
1,200 C420C122(1)1G5CA

1,500 C420C152(1)1G5CA
1,800 C420C182(1)1G5CA
2,200 C420C222(1)1G5CA

2,700 C430C272(1)1G5CA
3,300 C430C332(1)1G5CA
3,900 C430C392(1)1G5CA
4,700 C430C472(1)1G5CA
5,600 C430C562(1)1G5CA
6,800 C430C682(1)1G5CA
8,200 C430C822(1)1G5CA

10,000 C440C103(1)1G5CA
12,000 C440C123(1)1G5CA
15,000 C440C153(1)1G5CA

50 VOLT - C0G

560 C410C561(1
680 C410C681(1)5G5CA
820 C410C821(1)5G5CA

1,000 C410C102(1)5G5CA
1,200 C412C122(1)5G5CA

1,500 C412C152(1)5G5CA
1,800 C412C182(1)5G5CA
2,200 C412C222(1)5G5CA
2,700 C412C272(1)5G5CA

1,200 C420C122(1)5G5CA
1,500 C420C152(1)5G5CA
1,800 C420C182(1)5G5CA
2,200 C420C222(1)5G5CA

2,700 C430C272(1)5G5CA
3,300 C430C332(1)5G5CA
3,900 C430C392(1)5G5CA
4,700 C430C472(1)5G5CA
5,600 C430C562(1)5G5CA
6,800 C430C682(1)5G5CA
8,200 C430C822(1)5G5CA

10,000 C440C103(1)5G5CA
12,000 C440C123(1)5G5CA
15,000 C440C153(1)5G5CA

(1) Insert proper letter for capacitance tolerance desired:

J = ±5%
K = ±10%
M = ±20%

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 7

KEMET

)1G5CA

)5G5CA

For packaging information, see pages 32 and 34.

“AXIMAX”

SINGLE

TEMPERATURE

CHARACTERISTIC—X7R

CAPACITANCE

pF PART NUMBER

100 VOLT - X7R

470 C410C471(1
560 C410C561(1)1R5CA
680 C410C681(1)1R5CA

820 C410C821(1)1R5CA
1,000 C410C102(1)1R5CA
1,200 C410C122(1)1R5CA
1,500 C410C152(1)1R5CA
1,800 C410C182(1)1R5CA
2,200 C410C222(1)1R5CA
2,700 C410C272(1)1R5CA
3,300 C410C332(1)1R5CA
3,900 C410C392(1)1R5CA
4,700 C410C472(1)1R5CA
5,600 C410C562(1)1R5CA
6,800 C410C682(1)1R5CA
8,200 C410C822(1)1R5CA

10,000 C410C103(1)1R5CA
12,000 C410C123(1)1R5CA

15,000 C412C153(1)1R5CA
18,000 C412C183(1)1R5CA
22,000 C412C223(1)1R5CA
27,000 C412C273(1)1R5CA

15,000 C420C153(1)1R5CA
18,000 C420C183(1)1R5CA
22,000 C420C223(1)1R5CA
27,000 C420C273(1)1R5CA
33,000 C420C333(1)1R5CA

39,000 C430C393(1)1R5CA
47,000 C430C473(1)1R5CA
56,000 C430C563(1)1R5CA
68,000 C430C683(1)1R5CA
82,000 C430C823(1)1R5CA

100,000 C430C104(1)1R5CA
120,000 C440C124(1)1R5CA

150,000 C440C154(1)1R5CA

50 VOLT - X7R

8,200 C410C822(1

10,000 C410C103(1)5R5CA
12,000 C410C123(1)5R5CA
15,000 C410C153(1)5R5CA
18,000 C410C183(1)5R5CA
22,000 C410C223(1)5R5CA
27,000 C410C273(1)5R5CA
33,000 C410C333(1)5R5CA
39,000 C410C393(1)5R5CA
47,000 C410C473(1)5R5CA

56,000 C412C563(1)5R5CA
68,000 C412C683(1)5R5CA
82,000 C412C823(1)5R5CA

100,000 C412C104(1)5R5CA

56,000 C420C563(1)5R5CA
68,000 C420C683(1)5R5CA
82,000 C420C823(1)5R5CA

100,000 C420C104(1)5R5CA
120,000 C430C124(1)5R5CA

150,000 C430C154(1)5R5CA
180,000 C430C184(1)5R5CA
220,000 C430C224(1)5R5CA
270,000 C430C274(1)5R5CA

330,000 C440C334(1)5R5CA
390,000 C440C394(1)5R5CA
470,000 C440C474(1)5R5CA

(1) Insert proper letter for capacitance tolerance desired:

K = ±10%, M = ±20%

KEMET

)1R5CA

)5R5CA

KEMET

GENERAL PURPOSE

TEMPERATURE

CHARACTERISTIC—Z5U

CAPACITANCE

pF PART NUMBER

100 VOLT - Z5U

10,000 C410C103(1
12,000 C410C123(1)1U5CA
15,000 C410C153(1)1U5CA
18,000 C410C183(1)1U5CA
22,000 C410C223(1)1U5CA

27,000 C420C273(1)1U5CA
33,000 C420C333(1)1U5CA
39,000 C420C393(1)1U5CA
47,000 C420C473(1)1U5CA

56,000 C430C563(1)1U5CA
68,000 C430C683(1)1U5CA

82,000 C430C823(1)1U5CA
100,000 C430C104(1)1U5CA
120,000 C430C124(1)1U5CA
150,000 C430C154(1)1U5CA

180,000 C440C184(1)1U5CA
220,000 C440C224(1)1U5CA

50 VOLT - Z5U

27,000 C410C273(1

33,000 C410C333(1)5U5CA

39,000 C410C393(1)5U5CA

47,000 C410C473(1)5U5CA

56,000 C410C563(1)5U5CA

68,000 C410C683(1)5U5CA

82,000 C410C823(1)5U5CA
100,000 C410C104(1)5U5CA
120,000 C410C124(1)5U5CA
150,000 C410C154(1)5U5CA
180,000 C410C184(1)5U5CA
220,000 C410C224(1)5U5CA

270,000 C412C274(1)5U5CA
330,000 C412C334(1)5U5CA

270,000 C420C274(1)5U5CA
330,000 C420C334(1)5U5CA

390,000 C430C394(1)5U5CA
470,000 C430C474(1)5U5CA
560,000 C430C564(1)5U5CA
680,000 C430C684(1)5U5CA

820,000 C440C824(1)5U5CA

1,000,000 C440C105(1)5U5CA

(1) Insert proper letter for capacitance tolerance desired:

M = ±20%, Z = +80, -20%

KEMET

)1U5CA

)5U5CA

®

AXIMAX

CERAMIC CONFORMALLY COATED/RADIAL

KEMET

®

S

C315
C320
C330
C340
C350

H

*

C333

H

*.276 (7.00) MIN.

S

C323

H

*

S

H

*

C317
C322

S

D

.060

(1.52)

MAX.

L

T

*

M

102

320

C

5

C

A

R

1

C

CERAMIC

CASE SIZE

(See Table Above)

SPECIFICATION

C — Standard

CAPACITANCE, CODE

Expressed in Picofarads (pF)
First Two Digits — Significant Figures
Third Digit — Number of Zeros (Use 9 for 1.0
thru 9.9 pF. Example: 2.2pF — 229)

FAILURE RATE

INTERNAL
CONSTRUCTION

CAPACITANCE TOLERANCE

D — ± 0.5 pF
F — ±1%
G — ±2%
J — ±5%

A — Not Applicable

K — ± 10%
M — ±20%
Z — -20, +80%

LEAD MATERIAL

C — Standard

5 — Standard

DIELECTRIC

EIA Designation
G — C0G (NP0) — Ultra-Stable
R — X7R — Stable
U — Z5U — General Purpose

RATED VOLTAGE

2 — 200
1 — 100
5 — 50

*

*Part Number Example: C320C102M1R5CA (14 digits – no spaces)

“GOLDEN MAX”

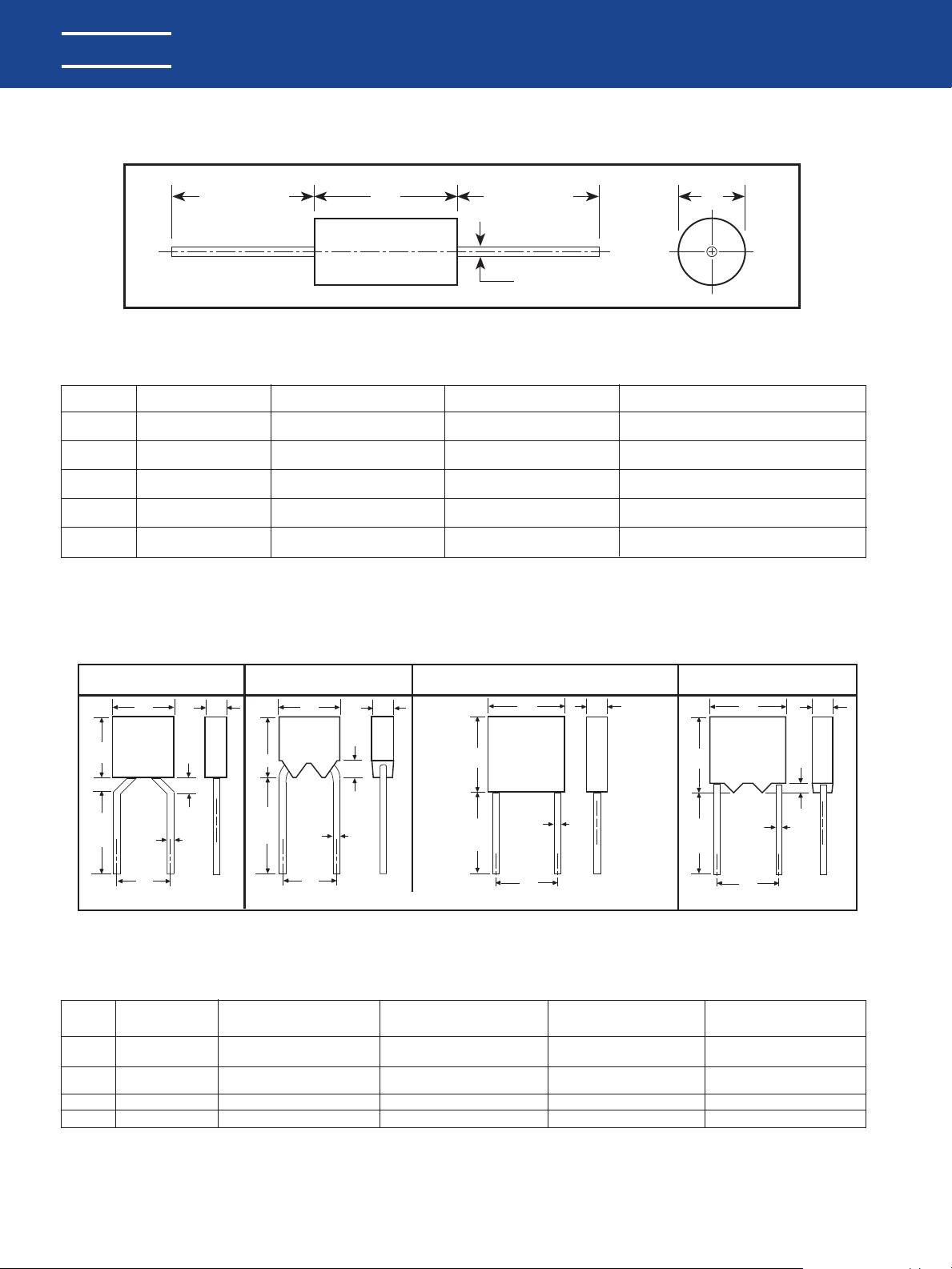

STANDARD LEAD CONFIGURATION — OUTLINE DRAWINGS

Drawings are not to scale. See table below for dimensions.
See page 9 for optional lead configurations.

DIMENSIONS — INCHES & MILLIMETERS

CASE L H T S(1) D

SIZE MAX. MAX. MAX. ±.030 +.004 - .001

C315 .150 (3.81) .210 (5.33) .100 (2.54) .100 (2.54) .020 (.51)
C317 .150 (3.81) .230 (5.84) .100 (2.54) .200 (5.08) .020 (.51)
C320 .200 (5.08) .260 (6.60) .125 (3.18) .100 (2.54) .020 (.51)
C322 .200 (5.08) .260 (6.60) .125 (3.18) .200 (5.08) .020 (.51)
C323 .200 (5.08) .320 (8.13) .125 (3.18) .200 (5.08) .020 (.51)
C330 .300 (7.62) .360 (9.14) .150 (3.81) .200 (5.08) .020 (.51)
C333 .300 (7.62) .390 (9.91) .150 (3.81) .200 (5.08) .020 (.51)
C340 .400 (10.16) .460 (11.68) .150 (3.81) .200 (5.08) .020 (.51)
C350 .500 (12.70) .560 (14.22) .200 (5.08) .400 (10.16) .025 (.64)

NOTE: 1 inch = 25.4 mm.
NOTE: (1) Measured at seating plane.

ORDERING INFORMATION

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]8

For packaging information, see pages 33 and 34.

CERAMIC CONFORMALLY COATED/RADIAL

Lead Spacing

.100" ± .030

Lead Spacing

.200" ± .030

Lead Spacing

.200" ± .030

Lead Spacing

.200" ± .030

Lead Spacing

.250" ± .030

Lead Spacing

.400" ± .030

.150

MAX.

.210

MAX.

.276

MIN.

.100

C 3 1 5

.150

MAX.

.230

MAX.

.230

±.030

.100

C 3 1 6

.200

.200

MAX.

.260

MAX.

.276
MIN.

.200

C 3 2 2 C 3 2 3

.320

MAX.

.276
MIN.

.200

.200

MAX.

.150

MAX.

.230

MAX.

.276
MIN.

.200

C 3 1 7

.150

MAX.

.235

MAX.

.276
MIN.

.200

C 3 1 8

.200

MAX.

.325

MAX.

.276
MIN.

C 3 2 8

.200

.200

MAX.

.350

MAX.

.230

±.030

.200

C 3 2 7

.270

.200

MAX.

.320

MAX.

.276
MIN.

.200

C 3 2 5

.300

MAX.

.360

MAX.

.276
MIN.

.250

C 3 3 1

.200

MAX.

.260

MAX.

.276

MIN.

.250

C 3 2 1

.500

MAX.

.560

MAX.

.276
MIN.

.400

C 3 5 0

.500

MAX.

.670

MAX.

.230

±.030

C 3 5 6

.400
.520

.400

MAX.

.590

MAX.

.230

±.030

.200

C 3 4 6

.320

.400

MAX.

.460

MAX.

.276
MIN.

.200

C 3 4 0

.200

MAX.

.260

MAX.

.276
MIN.

.100

C 3 2 0

.200

MAX.

.260

MAX.

.276
MIN.

.100

C 3 2 4 C 3 2 6

.230

± .030

.100

.200

.200

MAX.

.350

MAX.

.300

MAX.

.360

MAX.

.276

MIN.

.200

C 3 3 0

.300

MAX.

.390

MAX.

.276
MIN.

.200

C 3 3 3

.300

MAX.

.420

MAX.

.276

MIN.

.200

C 3 3 5

.300

MAX.

.450

MAX.

.230

±.030

.200

C 3 3 6

.300

The preferred lead wire configurations are shown on page 8. However, additional configurations are
available. All available options, including those on page 8, are shown below grouped by lead spacing.

OPTIONAL CONFIGURATIONS BY LEAD SPACING

“GOLDEN MAX”

KEMET

®

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 9

Golden Max

KEMET

®

CERAMIC CONFORMALLY COATED/RADIAL

Manufacturer

(KEMET)

Rated Voltage
5 - 50 volts
1 - 100 volts
2 - 200 volts

Capacitance
Tolerance

Manufacturer

(KEMET)

Capacitance
& Tolerance

Dielectric
C0G
X7R
Z5U

Rated
Voltage

Capacitance
Code

Date Code

Front

K1K

Back

102

C31X & C32X Size

KX7R

105K
100V
0012

C340 & C350 Size

Rated Voltage
5 - 50 volts
1 - 100 volts
2 - 200 volts

Manufacturer

(KEMET)

Capacitance
Tolerance

Capacitance
Code

Dielectric
G - C0G
R - X7R
U - Z5U

K5U

104M

C33X Size

“GOLDEN MAX”

CAPACITOR MARKINGS

RATINGS & PART NUMBER REFERENCE: ULTRA-STABLE TEMPERATURE CHARACTERISTICS — C0G

CAPACITANCE PART NUMBER

100 pF C31(1)C101(3)2G5CA
120 pF C31(1)C121(3)2G5CA
150 pF C31(1)C151(3)2G5CA
180 pF C31(1)C181(3)2G5CA
220 pF C31(1)C221(3)2G5CA
270 pF C31(1)C271(3)2G5CA
330 pF C31(1)C331(3)2G5CA
390 pF C31(1)C391(3)2G5CA
470 pF C31(1)C471(3)2G5CA

NOTES: (1) Case Sizes C315/C317 are identical electrically, but differ in lead spacing. See table of dimensions. Insert the appropriate symbol, “5” or “7” in the part number.

KEMET

200 VOLT — C31X SIZE

1.0 pF C31(1

)C109(3)2G5CA

1.5 pF C31(1)C159(3)2G5CA

2.2 pF C31(1)C229(3)2G5CA

2.7 pF C31(1)C279(3)2G5CA

3.3 pF C31(1)C339(3)2G5CA

3.9 pF C31(1)C399(3)2G5CA

4.7 pF C31(1)C479(3)2G5CA

5.6 pF C31(1)C569(3)2G5CA

6.8 pF C31(1)C689(3)2G5CA

8.2 pF C31(1)C829(3)2G5CA
10 pF C31(1)C100(3)2G5CA
12 pF C31(1)C120(3)2G5CA
15 pF C31(1)C150(3)2G5CA
18 pF C31(1)C180(3)2G5CA
22 pF C31(1)C220(3)2G5CA
27 pF C31(1)C270(3)2G5CA
33 pF C31(1)C330(3)2G5CA
39 pF C31(1)C390(3)2G5CA
47 pF C31(1)C470(3)2G5CA
56 pF C31(1)C560(3)2G5CA
68 pF C31(1)C680(3)2G5CA
82 pF C31(1)C820(3)2G5CA

200 VOLT — C32X SIZE

1.0 pF C32(2

)C109(3)2G5CA

1.5 pF C32(2)C159(3)2G5CA

2.2 pF C32(2)C229(3)2G5CA

2.7 pF C32(2)C279(3)2G5CA

3.3 pF C32(2)C339(3)2G5CA

3.9 pF C32(2)C399(3)2G5CA

4.7 pF C32(2)C479(3)2G5CA

5.6 pF C32(2)C569(3)2G5CA

6.8 pF C32(2)C689(3)2G5CA

8.2 pF C32(2)C829(3)2G5CA
10 pF C32(2)C100(3)2G5CA
12 pF C32(2)C120(3)2G5CA
15 pF C32(2)C150(3)2G5CA
18 pF C32(2)C180(3)2G5CA
22 pF C32(2)C220(3)2G5CA
27 pF C32(2)C270(3)2G5CA
33 pF C32(2)C330(3)2G5CA
39 pF C32(2)C390(3)2G5CA

CAPACITANCE PART NUMBER

200 VOLT — C32X SIZE (Cont’d)

47 pF C32(2
56 pF C32(2)C560(3)2G5CA
68 pF C32(2)C680(3)2G5CA

82 pF C32(2)C820(3)2G5CA
100 pF C32(2)C101(3)2G5CA
120 pF C32(2)C121(3)2G5CA
150 pF C32(2)C151(3)2G5CA
180 pF C32(2)C181(3)2G5CA
220 pF C32(2)C221(3)2G5CA
270 pF C32(2)C271(3)2G5CA
330 pF C32(2)C331(3)2G5CA
390 pF C32(2)C391(3)2G5CA
470 pF C32(2)C471(3)2G5CA
560 pF C32(2)C561(3)2G5CA
680 pF C32(2)C681(3)2G5CA
820 pF C32(2)C821(3)2G5CA

1,000 pF C32(2)C102(3)2G5CA
1,200 pF C32(2)C122(3)2G5CA
1,500 pF C32(2)C152(3)2G5CA
1,800 pF C32(2)C182(3)2G5CA
2,200 pF C32(2)C222(3)2G5CA
2,700 pF C32(2)C272(3)2G5CA
3,300 pF C32(2)C332(3)2G5CA

200 VOLT — C33X SIZE

2,700 pF C33(4
3,300 pF C33(4)C332(3)2G5CA
3,900 pF C33(4)C392(3)2G5CA
4,700 pF C33(4)C472(3)2G5CA
5,600 pF C33(4)C562(3)2G5CA
6,800 pF C33(4)C682(3)2G5CA
8,200 pF C33(4)C822(3)2G5CA

.01 µF C33(4)C103(3)2G5CA
.012 µF C33(4)C123(3)2G5CA
.015 µF C33(4)C153(3)2G5CA
.018 µF C33(4)C183(3)2G5CA

200 VOLT — C340 SIZE

.018 µF C340C183(3
.022 µF C340C223(3)2G5CA
.027 µF C340C273(3)2G5CA
.033 µF C340C333(3)2G5CA
.039 µF C340C393(3)2G5CA
.047 µF C340C473(3)2G5CA

200 VOLT — C350 SIZE

.039 µF C350C393(3)2G5CA
.047 µF C350C473(3)2G5CA
.056 µF C350C563(3)2G5CA
.068 µF C350C683(3)2G5CA

KEMET

)C470(3)2G5CA

)C272(3)2G5CA

)2G5CA

CAPACITANCE PART NUMBER

100 VOLT — C31X SIZE

120 pF C31(1
150 pF C31(1)C151(3)1G5CA
180 pF C31(1)C181(3)1G5CA
220 pF C31(1)C221(3)1G5CA
270 pF C31(1)C271(3)1G5CA
330 pF C31(1)C331(3)1G5CA
390 pF C31(1)C391(3)1G5CA
470 pF C31(1)C471(3)1G5CA
560 pF C31(1)C561(3)1G5CA
680 pF C31(1)C681(3)1G5CA
820 pF C31(1)C821(3)1G5CA

1,000 pF C31(1)C102(3)1G5CA

100 VOLT — C32X SIZE

680 pF C32(2

820 pF C32(2)C821(3)1G5CA
1,000 pF C32(2)C102(3)1G5CA
1,200 pF C32(2)C122(3)1G5CA
1,500 pF C32(2)C152(3)1G5CA
1,800 pF C32(2)C182(3)1G5CA
2,200 pF C32(2)C222(3)1G5CA
2,700 pF C32(2)C272(3)1G5CA
3,300 pF C32(2)C332(3)1G5CA
3,900 pF C32(2)C392(3)1G5CA
4,700 pF C32(2)C472(3)1G5CA
5,600 pF C32(2)C562(3)1G5CA

100 VOLT — C33X SIZE

3,300 pF C33(4
3,900 pF C33(4)C392(3)1G5CA
4,700 pF C33(4)C472(3)1G5CA
5,600 pF C33(4)C562(3)1G5CA
6,800 pF C33(4)C682(3)1G5CA
8,200 pF C33(4)C822(3)1G5CA

.01 µF C33(4)C103(3)1G5CA
.012 µF C33(4)C123(3)1G5CA
.015 µF C33(4)C153(3)1G5CA
.018 µF C33(4)C183(3)1G5CA
.022 µF C33(4)C223(3)1G5CA
.027 µF C33(4)C273(3)1G5CA

100 VOLT — C340 SIZE

.027 µF C340C273(3
.033 µF C340C333(3)1G5CA
.039 µF C340C393(3)1G5CA
.047 µF C340C473(3)1G5CA
.056 µF C340C563(3)1G5CA
.068 µF C340C683(3)1G5CA

100 VOLT — C350 SIZE

.039 µF C350C393(3
.047 µF C350C473(3)1G5CA
.056 µF C350C563(3)1G5CA
.068 µF C350C683(3)1G5CA
.082 µF C350C823(3)1G5CA
.1 µF C350C104(3)1G5CA
.12 µF C350C124(3)1G5CA

(2) Case Sizes C320/C322/C323 are identical electrically. See table of dimensions. Insert the appropriate symbol, “0” or “2” or “3” in the part number.
(3) Insert proper symbol for capacitance tolerance as follows:

1.0 pF – 8.2 pF: D – ± 0.5pF
10 pF – 22 pF: J – ±5%, K – ±10%
27 pF – 47 pF: G – ±2%, J – ±5%, K – ±10%
56 pF and up: F – ±1%, G – ±2%, J – ±5%

(4) Case Sizes C330 and C333 are identical electrically. Insert the appropriate symbol “0” or “3” in the part number.

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]10

KEMET

)C121(3)1G5CA

)C681(3)1G5CA

)C332(3)1G5CA

)1G5CA

)1G5CA

CERAMIC CONFORMALLY COATED/RADIAL

“GOLDEN MAX”

KEMET

RATINGS & PART NUMBER REFERENCE: STABLE TEMPERATURE CHARACTERISTICS — X7R

®

CAPACITANCE PART NUMBER

200 VOLT — C31X SIZE

100 pF C31(1
120 pF C31(1)C121(3)2R5CA
150 pF C31(1)C151(3)2R5CA
180 pF C31(1)C181(3)2R5CA
220 pF C31(1)C221(3)2R5CA
270 pF C31(1)C271(3)2R5CA
330 pF C31(1)C331(3)2R5CA
390 pF C31(1)C391(3)2R5CA
470 pF C31(1)C471(3)2R5CA
560 pF C31(1)C561(3)2R5CA
680 pF C31(1)C681(3)2R5CA

820 pF C31(1)C821(3)2R5CA
1,000 pF C31(1)C102(3)2R5CA
1,200 pF C31(1)C122(3)2R5CA
1,500 pF C31(1)C152(3)2R5CA
1,800 pF C31(1)C182(3)2R5CA
2,200 pF C31(1)C222(3)2R5CA

200 VOLT — C32X SIZE

1,000 pF C32(2
1,200 pF C32(2)C122(3)2R5CA
1,500 pF C32(2)C152(3)2R5CA
1,800 pF C32(2)C182(3)2R5CA
2,200 pF C32(2)C222(3)2R5CA
2,700 pF C32(2)C272(3)2R5CA
3,300 pF C32(2)C332(3)2R5CA
3,900 pF C32(2)C392(3)2R5CA
4,700 pF C32(2)C472(3)2R5CA
5,600 pF C32(2)C562(3)2R5CA
6,800 pF C32(2)C682(3)2R5CA
8,200 pF C32(2)C822(3)2R5CA

.01 µF C32(2)C103(3)2R5CA
.012 µF C32(2)C123(3)2R5CA
.015 µF C32(2)C153(3)2R5CA
.018 µF C32(2)C183(3)2R5CA
.022 µF C32(2)C223(3)2R5CA

200 VOLT — C33X SIZE

.015 µF C33(4
.018 µF C33(4)C183(3)2R5CA
.022 µF C33(4)C223(3)2R5CA
.027 µF C33(4)C273(3)2R5CA
.033 µF C33(4)C333(3)2R5CA
.039 µF C33(4)C393(3)2R5CA
.047 µF C33(4)C473(3)2R5CA
.056 µF C33(4)C563(3)2R5CA
.068 µF C33(4)C683(3)2R5CA
.082 µF C33(4)C823(3)2R5CA
.1 µF C33(4)C104(3)2R5CA

200 VOLT — C340 SIZE

.1 µF C340C104(3
.12 µF C340C124(3)2R5CA
.15 µF C340C154(3)2R5CA
.18 µF C340C184(3)2R5CA
.22 µF C340C224(3)2R5CA
.27 µF C340C274(3)2R5CA

200 VOLT — C350 SIZE

.22 µF C350C224(3
.27 µF C350C274(3)2R5CA
.33 µF C350C334(3)2R5CA
.39 µF C350C394(3)2R5CA
.47 µF C350C474(3)2R5CA

KEMET

)C101(3)2R5CA

)C102(3)2R5CA

)C153(3)2R5CA

)2R5CA

)2R5CA

CAPACITANCE PART NUMBER

100 VOLT — C31X SIZE

820 pF C31(1)C821(3)1R5CA
1,000 pF C31(1)C102(3)1R5CA
1,200 pF C31(1)C122(3)1R5CA
1,500 pF C31(1)C152(3)1R5CA
1,800 pF C31(1)C182(3)1R5CA
2,200 pF C31(1)C222(3)1R5CA
2,700 pF C31(1)C272(3)1R5CA
3,300 pF C31(1)C332(3)1R5CA
3,900 pF C31(1)C392(3)1R5CA
4,700 pF C31(1)C472(3)1R5CA
5,600 pF C31(1)C562(3)1R5CA
6,800 pF C31(1)C682(3)1R5CA
8,200 pF C31(1)C822(3)1R5CA

.01 µF C31(1)C103(3)1R5CA

100 VOLT — C32X SIZE

4,700 pF C32(2
5,600 pF C32(2)C562(3)1R5CA
6,800 pF C32(2)C682(3)1R5CA
8,200 pF C32(2)C822(3)1R5CA

.01 µF C32(2)C103(3)1R5CA
.012 µF C32(2)C123(3)1R5CA
.015 µF C32(2)C153(3)1R5CA
.018 µF C32(2)C183(3)1R5CA
.022 µF C32(2)C223(3)1R5CA
.027 µF C32(2)C273(3)1R5CA
.033 µF C32(2)C333(3)1R5CA
.039 µF C32(2)C393(3)1R5CA
.047 µF C32(2)C473(3)1R5CA
.056 µF C32(2)C563(3)1R5CA
.068 µF C32(2)C683(3)1R5CA
.082 µF C32(2)C823(3)1R5CA
.1 µF C32(2)C104(3)1R5CA

100 VOLT — C33X SIZE

.068 µF C33(4
.082 µF C33(4)C823(3)1R5CA
.1 µF C33(4)C104(3)1R5CA
.12 µF C33(4)C124(3)1R5CA
.15 µF C33(4)C154(3)1R5CA
.18 µF C33(4)C184(3)1R5CA
.22 µF C33(4)C224(3)1R5CA
.27 µF C33(4)C274(3)1R5CA
.33 µF C33(4)C334(3)1R5CA
.39 µF C33(4)C394(3)1R5CA
.47 µF C33(4)C474(3)1R5CA

100 VOLT — C340 SIZE

.47 µF C340C474(3
.56 µF C340C564(3)1R5CA
.68 µF C340C684(3)1R5CA
.82 µF C340C824(3)1R5CA

1.0 µF C340C105(3)1R5CA

100 VOLT — C350 SIZE

.68 µF C350C684(3
.82 µF C350C824(3)1R5CA

1.0 µF C350C105(3)1R5CA

1.2 µF C350C125(3)1R5CA

KEMET

)C472(3)1R5CA

)C683(3)1R5CA

)1R5CA

)1R5CA

CAPACITANCE PART NUMBER

50 VOLT — C31X SIZE

3,300 pF C31(1)C332(3)5R5CA
3,900 pF C31(1)C392(3)5R5CA
4,700 pF C31(1)C472(3)5R5CA
5,600 pF C31(1)C562(3)5R5CA
6,800 pF C31(1)C682(3)5R5CA
8,200 pF C31(1)C822(3)5R5CA

.01 µF C31(1)C103(3)5R5CA
.012 µF C31(1)C123(3)5R5CA
.015 µF C31(1)C153(3)5R5CA
.018 µF C31(1)C183(3)5R5CA
.022 µF C31(1)C223(3)5R5CA
.027 µF C31(1)C273(3)5R5CA
.033 µF C31(1)C333(3)5R5CA

50 VOLT — C32X SIZE

.012 µF C32(2
.015 µF C32(2)C153(3)5R5CA
.018 µF C32(2)C183(3)5R5CA
.022 µF C32(2)C223(3)5R5CA
.027 µF C32(2)C273(3)5R5CA
.033 µF C32(2)C333(3)5R5CA
.039 µF C32(2)C393(3)5R5CA
.047 µF C32(2)C473(3)5R5CA
.056 µF C32(2)C563(3)5R5CA
.068 µF C32(2)C683(3)5R5CA
.082 µF C32(2)C823(3)5R5CA
.1 µF C32(2)C104(3)5R5CA
.12 µF C32(2)C124(3)5R5CA
.15 µF C32(2)C154(3)5R5CA
.18 µF C32(2)C184(3)5R5CA
.22 µF C32(2)C224(3)5R5CA
.27 µF C32(2)C274(3)5R5CA

50 VOLT — C33X SIZE

.15 µF C33(4
.18 µF C33(4)C184(3)5R5CA
.22 µF C33(4)C224(3)5R5CA
.27 µF C33(4)C274(3)5R5CA
.33 µF C33(4)C334(3)5R5CA
.39 µF C33(4)C394(3)5R5CA
.47 µF C33(4)C474(3)5R5CA
.56 µF C33(4)C564(3)5R5CA
.68 µF C33(4)C684(3)5R5CA
.82 µF C33(4)C824(3)5R5CA

1.0 µF C33(4)C105(3)5R5CA

50 VOLT — C340 SIZE

1.2 µF C340C125(3

1.5 µF C340C155(3)5R5CA

1.8 µF C340C185(3)5R5CA

2.2 µF C340C225(3)5R5CA

50 VOLT — C350 SIZE

2.2 µF C350C225(3

2.7 µF C350C275(3)5R5CA

3.3 µF C350C335(3)5R5CA

3.9 µF C350C395(3)5R5CA

4.7 µF C350C475(3)5R5CA

KEMET

)C123(3)5R5CA

)C154(3)5R5CA

)5R5CA

)5R5CA

Golden Max

NOTES: (1) Case Sizes C315/C317 are identical electrically, but differ in lead spacing. See table of dimensions. Insert the appropriate symbol, “5” or “7” in the part number.

(2) Case Sizes C320/C322/C323 are identical electrically. See table of dimensions. Insert the appropriate symbol, “0” or “2” or “3” in the part number.
(3) Insert proper symbol for capacitance tolerance as follows: K – ±10%, M – ±20%
(4) Case Sizes C330 and C333 are identical electrically. Insert the appropriate symbol “0” or “3” in the part number.

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 11

KEMET

®

CERAMIC CONFORMALLY COATED/RADIAL

“GOLDEN MAX”

RATINGS & PART NUMBER REFERENCE

GENERAL PURPOSE TEMPERATURE CHARACTERISTIC — Z5U

CAPACITANCE PART NUMBER

100 VOLT — C31X SIZE

1,000 pF C31(1)C102(3)1U5CA
1,200 pF C31(1)C122(3)1U5CA
1,500 pF C31(1)C152(3)1U5CA
1,800 pF C31(1)C182(3)1U5CA
2,200 pF C31(1)C222(3)1U5CA
2,700 pF C31(1)C272(3)1U5CA
3,300 pF C31(1)C332(3)1U5CA
3,900 pF C31(1)C392(3)1U5CA
4,700 pF C31(1)C472(3)1U5CA
5,600 pF C31(1)C562(3)1U5CA
6,800 pF C31(1)C682(3)1U5CA
8,200 pF C31(1)C822(3)1U5CA

.01 µF C31(1)C103(3)1U5CA
.012 µF C31(1)C123(3)1U5CA
.015 µF C31(1)C153(3)1U5CA
.018 µF C31(1)C183(3)1U5CA

100 VOLT — C32X SIZE

.01 µF C32(2
.012 µF C32(2)C123(3)1U5CA
.015 µF C32(2)C153(3)1U5CA
.018 µF C32(2)C183(3)1U5CA
.022 µF C32(2)C223(3)1U5CA
.027 µF C32(2)C273(3)1U5CA
.033 µF C32(2)C333(3)1U5CA
.039 µF C32(2)C393(3)1U5CA
.047 µF C32(2)C473(3)1U5CA
.056 µF C32(2)C563(3)1U5CA
.068 µF C32(2)C683(3)1U5CA
.082 µF C32(2)C823(3)1U5CA

0.1 µF C32(2)C104(3)1U5CA
.12 µF C32(2)C124(3)1U5CA
.15 µF C32(2)C154(3)1U5CA

100 VOLT — C33X SIZE

0.1 µF C33(4
.12 µF C33(4)C124(3)1U5CA
.15 µF C33(4)C154(3)1U5CA
.18 µF C33(4)C184(3)1U5CA
.22 µF C33(4)C224(3)1U5CA
.27 µF C33(4)C274(3)1U5CA
.33 µF C33(4)C334(3)1U5CA
.39 µF C33(4)C394(3)1U5CA
.47 µF C33(4)C474(3)1U5CA

100 VOLT — C340 SIZE

.47 µF C340C474(3
.56 µF C340C564(3)1U5CA
.68 µF C340C684(3)1U5CA
.82 µF C340C824(3)1U5CA

1.0 µF C340C105(3)1U5CA

1.2 µF C340C125(3)1U5CA

1.5 µF C340C155(3)1U5CA

100 VOLT — C350 SIZE

1.0 µF C350C105(3

1.2 µF C350C125(3)1U5CA

1.5 µF C350C155(3)1U5CA

1.8 µF C350C185(3)1U5CA

2.2 µF C350C225(3)1U5CA

KEMET

)C103(3)1U5CA

)C104(3)1U5CA

)1U5CA

)1U5CA

CAPACITANCE PART NUMBER

50 VOLT — C31X SIZE

4,700 pF C31(1)C472(3)5U5CA
5,600 pF C31(1)C562(3)5U5CA
6,800 pF C31(1)C682(3)5U5CA
8,200 pF C31(1)C822(3)5U5CA

.01 µF C31(1)C103(3)5U5CA
.012 µF C31(1)C123(3)5U5CA
.015 µF C31(1)C153(3)5U5CA
.018 µF C31(1)C183(3)5U5CA
.022 µF C31(1)C223(3)5U5CA
.027 µF C31(1)C273(3)5U5CA
.033 µF C31(1)C333(3)5U5CA
.039 µF C31(1)C393(3)5U5CA
.047 µF C31(1)C473(3)5U5CA
.056 µF C31(1)C563(3)5U5CA
.068 µF C31(1)C683(3)5U5CA
.082 µF C31(1)C823(3)5U5CA

0.1 µF C31(1)C104(3)5U5CA

50 VOLT — C32X SIZE

.027 µF C32(2
.033 µF C32(2)C333(3)5U5CA
.039 µF C32(2)C393(3)5U5CA
.047 µF C32(2)C473(3)5U5CA
.056 µF C32(2)C563(3)5U5CA
.068 µF C32(2)C683(3)5U5CA
.082 µF C32(2)C823(3)5U5CA

0.1 µF C32(2)C104(3)5U5CA
.12 µF C32(2)C124(3)5U5CA
.15 µF C32(2)C154(3)5U5CA
.18 µF C32(2)C184(3)5U5CA
.22 µF C32(2)C224(3)5U5CA
.27 µF C32(2)C274(3)5U5CA
.33 µF C32(2)C334(3)5U5CA
.39 µF C32(2)C394(3)5U5CA
.47 µF C32(2)C474(3)5U5CA
.56 µF C32(2)C564(3)5U5CA

50 VOLT — C33X SIZE

.27 µF C33(4
.33 µF C33(4)C334(3)5U5CA
.39 µF C33(4)C394(3)5U5CA
.47 µF C33(4)C474(3)5U5CA
.56 µF C33(4)C564(3)5U5CA
.68 µF C33(4)C684(3)5U5CA
.82 µF C33(4)C824(3)5U5CA

1.0 µF C33(4)C105(3)5U5CA

1.2 µF C33(4)C125(3)5U5CA

1.5 µF C33(4)C155(3)5U5CA

1.8 µF C33(4)C185(3)5U5CA

2.2 µF C33(4)C225(3)5U5CA

50 VOLT — C340 SIZE

2.2 µF C340C225(3

2.7 µF C340C275(3)5U5CA

3.3 µF C340C335(3)5U5CA

3.9 µF C340C395(3)5U5CA

4.7 µF C340C475(3)5U5CA

50 VOLT — C350 SIZE

3.9 µF C350C395(3

4.7 µF C350C475(3)5U5CA

5.6 µF C350C565(3)5U5CA

6.8 µF C350C685(3)5U5CA

KEMET

)C273(3)5U5CA

)C274(3)5U5CA

)5U5CA

)5U5CA

NOTES: (1) Case Sizes C315/C317 are identical electrically, but differ in lead spacing. See table of dimensions. Insert the appropriate

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]12

symbol, “5” or “7” in the part number.

(2) Case Sizes C320/C322/C323 are identical electrically. See table of dimensions.

Insert the appropriate symbol, “0” or “2” or “3” in the part number.

(3) Insert proper symbol for capacitance tolerance as follows:

M – ±20%
Z – +80%, -20%

(4) Case Sizes C330 and C333 are identical electrically. Insert the appropriate symbol “0” or “3” in the part number.

CERAMIC MOLDED AXIAL & RADIAL

PERFORMANCE CHARACTERISTICS

®

KEMET

GENERAL

Working Voltage:

C0G – 50, 100 & 200 Volts
X7R – 50, 100 & 200 Volts

Temperature Characteristics:

C0G – 0 ±30 PPM/°C from -55°C to +125°C
X7R – ±15% from -55°C to +125°C

Capacitance Tolerance:

C0G – ±0.5 pF, ±1%, ±2%, ±5%, ±10%, ±20%

(±0.5 pF is tightest available tolerance)

X7R – ±10%, ±20%, -0 +100%, -20% +80%

Construction:

Monolithic block of ceramic dielectric with interdigitated
internal electrodes, encapsulated in a molded case, and
having axial or radial leads. Meets flame test requirements
of UL Standard 94V-0.

Terminal Strength:

EIA-RS-198D Method 303 Condition A (2.2 kg)

ELECTRICAL

Capacitance:

Within specified tolerance when measured with 1 volt rms
at 1 kHz (1000 pF or less at 1 MHz for C0G).

Dissipation Factor:

25°C at 1 kHz (1000 pF or less at 1 MHz for C0G).
C0G – .15% maximum
X7R – 2.5% maximum

Insulation Resistance:

After 2 minutes electrification at 25°C and rated voltage
C0G – 100K megohms or 1000 megohm - µF, whichever

is less.

X7R – 100K megohms or 1000 megohm - µF, whichever

is less.

Dielectric Withstanding Voltage:

250% of rated voltage for 5 seconds with current limited
to 50 mA at 25°C.

Life Test:

2000 hours at 200% of rated voltage at 125°C. Post-Test
limits at 25°C are:

Capacitance Change:

C0G – less than 3% or 0.25 pF, whichever is higher
X7R – ±20% of initial value

Dissipation Factor:

C0G – .25% maximum
X7R – 3.0% maximum

Insulation Resistance:

C0G – 10K megohms or 100 megohm - µF, whichever

is less

X7R – 10K megohms or 100 megohm - µF, whichever

is less

Dielectric Withstanding Voltage:

250% of rated voltage for 5 seconds with current
limited to 50 mA.

ENVIRONMENTAL

Moisture Resistance:

MIL-STD-202, Method 106, or EIA-RS-198D, Method 204,
Condition A, except 20 cycles.

Insulation Resistance:

C0G – 10K megohms or 100 megohm - µF, whichever

is less

X7R – 10K megohms or 100 megohm - µF, whichever

is less

Dielectric Withstanding Voltage:

250% of rated voltage for 5 seconds with current
limited to 50 mA.

Immersion Cycling:

MIL-STD-202, Method 104, Condition B. Post-Test limits
at 25°C are:

Insulation Resistance:

C0G – 10K megohms or 100 megohm - µF, whichever

is less

X7R – 10K megohms or 100 megohm - µF, whichever

is less

Solderability:

MIL-STD-202, Method 208, Sn62 solder, 245°C for 5 ±1/2
seconds.

Resistance to Soldering Heat:

MIL-STD-202, Method 210, Condition B (260°C, 10 secs).
Depth of immersion — to a minimum of .050" from the
capacitor body.

Lead Material:

Axial: Solder-coated copper clad steel
Radial: Solder-coated copper

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 13

Axial & Radial

Ceramic Molded

CERAMIC MOLDED/AXIAL & RADIAL - STANDARD

KEMET

®

Lead Dia.

.025

(+.004

-.002)

S

H

1.25
Min.

W

Center Line of leads
within .030" of Center
Line of case.

H

1.25
Min.

L

S

W

.045

Max.

L

C052 C062,

C512,
& C522

Lead Dia.

.025

(+.004

-.002)

DL

C

1.50 Min.
(38.10)

1.50 Min.
(38.10)

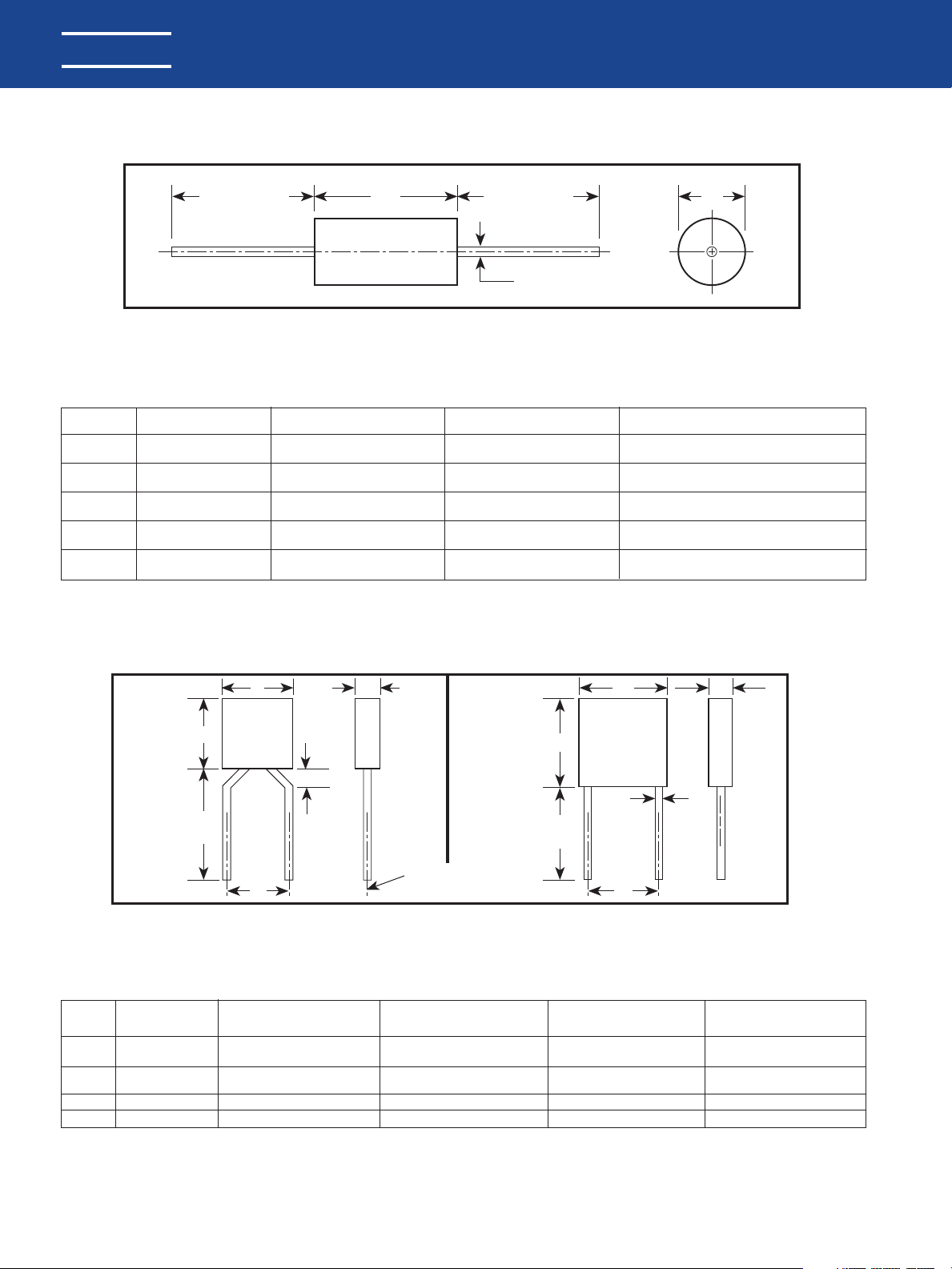

CAPACITOR OUTLINE DRAWINGS — (AXIAL LEADS)

DIMENSIONS—INCHES & (MILLIMETERS)

CASE MILITARY

SIZE EQUIVALENT STYLES

C114 .160 ± .010 (4.06 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C124 .250 ± .010 (6.35 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C192 .390 ± .010 (9.91 ± .25) .140 ± .010 (3.56 ± .25) .025, +.004, -.001 (.64, +.10, -.025)

C202 .500 ± .020 (12.70 ± .51) .250 ± .015 (6.35 ± .38) .025, +.004, -.001 (.64, +.10, -.025)

C222 .690 ± .030 (17.53 ± .76) .350 ± .020 (8.89 ± .51) .025, +.004, -.001 (.64, +.10, -.025)

CC75, CCR75
CK12, CKR11

CC76, CCR76
CK13, CKR12

CC77, CCR77
CK14, CKR14

CC78, CCR78
CK15, CKR15

CC79, CCR79
CK16, CKR16

L D C

CASE EQUIVALENT H L W LEAD

SIZE STYLES HEIGHT LENGTH WIDTH SPACING

C052 .190 ± .010 (4.83 ± .25) .190 ± .010 (4.83 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

C062 .290 ± .010 (7.37 ± .25) .290 ± .010 (7.37 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)
C512 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .140 ± .010 (3.56 ± .25) .400 ± .020 (10.16 ± .51)

C522 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .240 ± .010 (6.10 ± .25) .400 ± .020 (10.16 ± .51)

CAPACITOR OUTLINE DRAWINGS — (RADIAL LEADS)

DIMENSIONS—INCHES & (MILLIMETERS)

MILITARY S

CC05, CCR05
CK05, CKR05

CC06, CCR06
CK06, CKR06

CC07, CCR07
CC08, CCR08

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]14

For packaging information, see pages 32, 33 and 34.

K

102

052

C

5

C

A

R

2

C

CERAMIC
*CASE SIZE

(See Table Below)

SPECIFICATION

Standard

C — Standard

CAPACITANCE

In picofarad code: First two digits are significant
figures and third is number of zeroes following
(except 9 indicates division by 10). Examples:

0.1 mF = 100,000 pF = 104 and 9.1 pF = 919.
See tables for Standard Values.

FAILURE RA TE

INTERNAL CONSTRUCTION

CAPACITANCE TOLERANCE

Standard

M— ±20%
K — ±10%
J — ±5%

A — Not Applicable (Std.)

LEAD MA TERIAL

C — Standard

5 — Standard

WORKING
VOLTAGE

1 — 100
2 — 200
5 — 50

Others

H — ±3%
G — ±2%
F — ±1%
D — ±.5 pF

TEMPERA TURE CHARACTERISTIC

Cap. Change With Temp.

Measured

Without

KEMET EIA Temp. DC Bias

Designator Equivalent Range, °C Volta ge

G C0G -55 to ±30

(Ultra (NPO) +125 ppm/°C

Stable)

R X7R -55 to ±15%

(Stable) +125

Standard tolerances for each Series are
shown in the repetitive parts lists.

*CASE SIZES

RADIAL AXIAL

C052 C114
C062 C124
C512 C192
C522 C202

C222

**

**Part Number Example: C052C102K2R5CA (14 digits – no spaces)

CERAMIC MOLDED/AXIAL & RADIAL - STANDARD

ORDERING INFORMATION

®

KEMET

Ceramic Molded

Axial/Radial - Standard

STANDARD C114C, C124C, C192C, C202C & C222C

Capacitance, Capacitance Tolerance

Temperature Characteristic

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 15

Style

KEMET

C512X7R

105K 50V

AXIAL CAPACITOR MARKINGS

KC0G

101J
200V
0012

KEMET, Temperature Characteristic
Capacitance, Capacitance Tolerance
Voltage
Date Code

RADIAL CAPACITOR MARKINGS

C052C & C062C STANDARD MARKING

FRONT

C062

X7R

104K

C512 & C522 STANDARD MARKING

0032

BACK

100V

K

0011

KEMET
SIZE and Temperature Characteristic
Capacitance, Capacitance Tolerance, Voltage
Date Code

Voltage
KEMET
Date Code

CERAMIC MOLDED/AXIAL – STANDARD

KEMET

®

ULTRA-STABLE TEMPERATURE CHARACTERISTIC—C0G (NP0)

RATINGS & PART NUMBER REFERENCE

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C114 STANDARD C0G

1.0 C114C109(1

)2G5CA

1.5 C114C159(1)2G5CA

2.2 C114C229(1)2G5CA

2.7 C114C279(1)2G5CA

3.3 C114C339(1)2G5CA

3.9 C114C399(1)2G5CA

4.7 C114C479(1)2G5CA

5.6 C114C569(1)2G5CA

6.8 C114C689(1)2G5CA

8.2 C114C829(1)2G5CA

10.0 C114C100(2)2G5CA

12.0 C114C120(2)2G5CA

15.0 C114C150(2)2G5CA

18.0 C114C180(2)2G5CA

22.0 C114C220(2)2G5CA

27.0 C114C270(3)2G5CA

33.0 C114C330(3)2G5CA

39.0 C114C390(3)2G5CA

47.0 C114C470(3)2G5CA

56.0 C114C560(4)2G5CA

68.0 C114C680(4)2G5CA

82.0 C114C820(4)2G5CA

100.0 C114C101(4)2G5CA

120.0 C114C121(4)2G5CA

150.0 C114C151(4)2G5CA

180.0 C114C181(4)2G5CA

220.0 C114C221(4)2G5CA

270.0 C114C271(4)2G5CA

330.0 C114C331(4)2G5CA

100 VOLT — C114 STANDARD C0G

82.0 C114C820(4

)1G5CA

100.0 C114C101(4)1G5CA

120.0 C114C121(4)1G5CA

150.0 C114C151(4)1G5CA

180.0 C114C181(4)1G5CA

220.0 C114C221(4)1G5CA

270.0 C114C271(4)1G5CA

330.0 C114C331(4)1G5CA

390.0 C114C391(4)1G5CA

470.0 C114C471(4)1G5CA

560.0 C114C561(4)1G5CA

680.0 C114C681(4)1G5CA

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF
(2) 10.0 pF to 22 pF: J— ±5%, K— ±10%
(3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10%
(4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C124 STANDARD C0G

390.0 C124C391(4

)2G5CA

470.0 C124C471(4)2G5CA

560.0 C124C561(4)2G5CA

100 VOLT — C124 STANDARD C0G

820.0 C124C821(4

)1G5CA

1,000.0 C124C102(4)1G5CA

200 VOLT — C192 STANDARD C0G

680.0 C192C681(4

)2G5CA

820.0 C192C821(4)2G5CA
1,000.0 C192C102(4)2G5CA
1,200.0 C192C122(4)2G5CA
1,500.0 C192C152(4)2G5CA
1,800.0 C192C182(4)2G5CA
2,200.0 C192C222(4)2G5CA
2,700.0 C192C272(4)2G5CA
3,300.0 C192C332(4)2G5CA
3,900.0 C192C392(4)2G5CA
4,700.0 C192C472(4)2G5CA

100 VOLT — C192 STANDARD C0G

1,200.0 C192C122(4

)1G5CA
1,500.0 C192C152(4)1G5CA
1,800.0 C192C182(4)1G5CA
2,200.0 C192C222(4)1G5CA
2,700.0 C192C272(4)1G5CA
3,300.0 C192C332(4)1G5CA
3,900.0 C192C392(4)1G5CA
4,700.0 C192C472(4)1G5CA
5,600.0 C192C562(4)1G5CA
6,800.0 C192C682(4)1G5CA
8,200.0 C192C822(4)1G5CA

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF

(2) 10.0 pF to 22 pF: J— ±5%, K— ±10%
(3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10%
(4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C202 STANDARD C0G

5,600.0 C202C562(4

)2G5CA
6,800.0 C202C682(4)2G5CA
8,200.0 C202C822(4)2G5CA

10,000.0 C202C103(4)2G5CA
12,000.0 C202C123(4)2G5CA
15,000.0 C202C153(4)2G5CA
18,000.0 C202C183(4)2G5CA
22,000.0 C202C223(4)2G5CA

100 VOLT — C202 STANDARD C0G

10,000.0 C202C103(4

)1G5CA

12,000.0 C202C123(4)1G5CA
15,000.0 C202C153(4)1G5CA
18,000.0 C202C183(4)1G5CA
22,000.0 C202C223(4)1G5CA
27,000.0 C202C273(4)1G5CA
33,000.0 C202C333(4)1G5CA

200 VOLT — C222 STANDARD C0G

27,000.0 C222C273(4

)2G5CA

33,000.0 C222C333(4)2G5CA
39,000.0 C222C393(4)2G5CA
47,000.0 C222C473(4)2G5CA

100 VOLT — C222 STANDARD C0G

39,000.0 C222C393(4

)1G5CA

47,000.0 C222C473(4)1G5CA
56,000.0 C222C563(4)1G5CA
68,000.0 C222C683(4)1G5CA
82,000.0 C222C823(4)1G5CA

100,000.0 C222C104(4)1G5CA

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF
(2) 10.0 pF to 22 pF: J— ±5%, K— ±10%
(3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10%
(4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

16

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]

CERAMIC MOLDED/RADIAL – STANDARD

ULTRA-STABLE TEMPERATURE CHARACTERISTIC—C0G (NP0)

RATINGS & PART NUMBER REFERENCE

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C052 SIZE C0G

1.0 C052C109(1)2G5CA

1.5 C052C159(1)2G5CA

2.2 C052C229(1)2G5CA

2.7 C052C279(1)2G5CA

3.3 C052C339(1)2G5CA

3.9 C052C399(1)2G5CA

4.7 C052C479(1)2G5CA

5.6 C052C569(1)2G5CA

6.8 C052C689(1)2G5CA

8.2 C052C829(1)2G5CA

10.0 C052C100(2)2G5CA

12.0 C052C120(2)2G5CA

15.0 C052C150(2)2G5CA

18.0 C052C180(2)2G5CA

22.0 C052C220(2)2G5CA

27.0 C052C270(3)2G5CA

33.0 C052C330(3)2G5CA

39.0 C052C390(3)2G5CA

47.0 C052C470(3)2G5CA

56.0 C052C560(4)2G5CA

68.0 C052C680(4)2G5CA

82.0 C052C820(4)2G5CA

100.0 C052C101(4)2G5CA

120.0 C052C121(4)2G5CA

150.0 C052C151(4)2G5CA

180.0 C052C181(4)2G5CA

220.0 C052C221(4)2G5CA

270.0 C052C271(4)2G5CA

330.0 C052C331(4)2G5CA

390.0 C052C391(4)2G5CA

470.0 C052C471(4)2G5CA

560.0 C052C561(4)2G5CA

680.0 C052C681(4)2G5CA

820.0 C052C821(4)2G5CA
1,000.0 C052C102(4)2G5CA
1,200.0 C052C122(4)2G5CA
1,500.0 C052C152(4)2G5CA
1,800.0 C052C182(4)2G5CA
2,200.0 C052C222(4)2G5CA
2,700.0 C052C272(4)2G5CA

100 VOLT — C052 SIZE C0G

390.0 C052C391(4

470.0 C052C471(4)1G5CA

560.0 C052C561(4)1G5CA

680.0 C052C681(4)1G5CA

820.0 C052C821(4)1G5CA
1,000.0 C052C102(4)1G5CA
1,200.0 C052C122(4)1G5CA
1,500.0 C052C152(4)1G5CA
1,800.0 C052C182(4)1G5CA
2,200.0 C052C222(4)1G5CA
2,700.0 C052C272(4)1G5CA
3,300.0 C052C332(4)1G5CA
3,900.0 C052C392(4)1G5CA
4,700.0 C052C472(4)1G5CA

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF
(2) 10.0 pF to 22 pF: J— ±5%, K— ±10%
(3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10%
(4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

)1G5CA

CAPACITANCE KEMET

pF PART NUMBER

200 VOLT — C062 SIZE C0G

3,300.0 C062C332(4
3,900.0 C062C392(4)2G5CA
4,700.0 C062C472(4)2G5CA
5,600.0 C062C562(4)2G5CA
6,800.0 C062C682(4)2G5CA
8,200.0 C062C822(4)2G5CA

10,000.0 C062C103(4)2G5CA

100 VOLT — C062 SIZE C0G

5,600.0 C062C562(4
6,800.0 C062C682(4)1G5CA

8,200.0 C062C822(4)1G5CA
10,000.0 C062C103(4)1G5CA
12,000.0 C062C123(4)1G5CA
15,000.0 C062C153(4)1G5CA
18,000.0 C062C183(4)1G5CA
22,000.0 C062C223(4)1G5CA

200 VOLT — C512 SIZE C0G

12,000.0 C512C123(4
15,000.0 C512C153(4)2G5CA
18,000.0 C512C183(4)2G5CA
22,000.0 C512C223(4)2G5CA
27,000.0 C512C273(4)2G5CA
33,000.0 C512C333(4)2G5CA
39,000.0 C512C393(4)2G5CA
47,000.0 C512C473(4)2G5CA
56,000.0 C512C563(4)2G5CA
68,000.0 C512C683(4)2G5CA

100 VOLT — C512 SIZE C0G

27,000.0 C512C273(4
33,000.0 C512C333(4)1G5CA
39,000.0 C512C393(4)1G5CA
47,000.0 C512C473(4)1G5CA
56,000.0 C512C563(4)1G5CA
68,000.0 C512C683(4)1G5CA
82,000.0 C512C823(4)1G5CA

100,000.0 C512C104(4)1G5CA

200 VOLT — C522 SIZE C0G

82,000.0 C522C823(4

100,000.0 C522C104(4)2G5CA

100 VOLT — C522 SIZE C0G

120,000.0 C522C124(4
150,000.0 C522C154(4)1G5CA
180,000.0 C522C184(4)1G5CA

NOTE 1: Insert proper symbol for capacitance tolerance as

follows:

(1) 1.0 pF to 8.2 pF: D— ±.5 pF
(2) 10.0 pF to 22 pF: J— ±5%, K— ±10%
(3) 27.0 pF to 47 pF: G— ±2%, J— ±5%, K— ±10%
(4) 56.0 pF and up: F— ±1%,G— ±2%, J— ±5%, K— ±10%

)2G5CA

)1G5CA

)2G5CA

)1G5CA

)2G5CA

)1G5CA

®

KEMET

Ceramic Molded

Axial/Radial - Standard

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 17

KEMET

®

CERAMIC MOLDED/AXIAL – STANDARD

STABLE TEMPERATURE CHARACTERISTIC—X7R

RATINGS & PART NUMBER REFERENCE

CAPACI–

TANCE

1,000 10 C114C102K1R5CA
1,000 20 C114C102M1R5CA
1,200 10 C114C122K1R5CA
1,500 10 C114C152K1R5CA
1,500 20 C114C152M1R5CA
1,800 10 C114C182K1R5CA
2,200 10 C114C222K1R5CA
2,200 20 C114C222M1R5CA
2,700 10 C114C272K1R5CA
3,300 10 C114C332K1R5CA
3,300 20 C114C332M1R5CA
3,900 10 C114C392K1R5CA
4,700 10 C114C472K1R5CA
4,700 20 C114C472M1R5CA

5,600 10 C114C562K5R5CA
6,800 10 C114C682K5R5CA
6,800 20 C114C682M5R5CA

8,200 10 C114C822K5R5CA
10,000 10 C114C103K5R5CA
10,000 20 C114C103M5R5CA

TOL. KEMET

pF

100 10 C114C101K1R5CA
100 20 C114C101M1R5CA
120 10 C114C121K1R5CA
150 10 C114C151K1R5CA
150 20 C114C151M1R5CA
180 10 C114C181K1R5CA
220 10 C114C221K1R5CA
220 20 C114C221M1R5CA
270 10 C114C271K1R5CA
330 10 C114C331K1R5CA
330 20 C114C331M1R5CA
390 10 C114C391K1R5CA
470 10 C114C471K1R5CA
470 20 C114C471M1R5CA
560 10 C114C561K1R5CA
680 10 C114C681K1R5CA
680 20 C114C681M1R5CA
820 10 C114C821K1R5CA

% PART NUMBER

100 VOLT — C114 SIZE

10 10 C114C100K1R5CA
10 20 C114C100M1R5CA
12 10 C114C120K1R5CA
15 10 C114C150K1R5CA
15 20 C114C150M1R5CA
18 10 C114C180K1R5CA
22 20 C114C220K1R5CA
22 10 C114C220M1R5CA
27 10 C114C270K1R5CA
33 10 C114C330K1R5CA
33 20 C114C330M1R5CA
39 10 C114C390K1R5CA
47 10 C114C470K1R5CA
47 20 C114C470M1R5CA
56 10 C114C560K1R5CA
68 10 C114C680K1R5CA
68 20 C114C680M1R5CA
82 10 C114C820K1R5CA

50 VOLT — C114 SIZE

CAPACI–

TANCE

10,000 10 C124C103K1R5CA
10,000 20 C124C103M1R5CA

12,000 10 C124C123K5R5CA
15,000 10 C124C153K5R5CA
15,000 20 C124C153M5R5CA
18,000 10 C124C183K5R5CA
22,000 10 C124C223K5R5CA
22,000 20 C124C223M5R5CA
27,000 10 C124C273K5R5CA
33,000 10 C124C333K5R5CA
33,000 20 C124C333M5R5CA
39,000 10 C124C393K5R5CA
47,000 10 C124C473K5R5CA
47,000 20 C124C473M5R5CA

12,000 10 C192C123K1R5CA
15,000 10 C192C153K1R5CA
15,000 20 C192C153M1R5CA
18,000 10 C192C183K1R5CA
22,000 10 C192C223K1R5CA
22,000 20 C192C223M1R5CA
27,000 10 C192C273K1R5CA
33,000 10 C192C333K1R5CA
33,000 20 C192C333M1R5CA
39,000 10 C192C393K1R5CA
47,000 10 C192C473K1R5CA
47,000 20 C192C473M1R5CA
56,000 10 C192C563K1R5CA
68,000 10 C192C683K1R5CA
68,000 20 C192C683M1R5CA

82,000 10 C192C823K1R5CA
100,000 10 C192C104K1R5CA
100,000 20 C192C104M1R5CA

56,000 10 C192C563K5R5CA

68,000 10 C192C683K5R5CA

68,000 20 C192C683M5R5CA

82,000 10 C192C823K5R5CA
100,000 10 C192C104K5R5CA
100,000 20 C192C104M5R5CA
120,000 10 C192C124K5R5CA
150,000 10 C192C154K5R5CA
150,000 20 C192C154M5R5CA
180,000 10 C192C184K5R5CA
220,000 10 C192C224K5R5CA
220,000 20 C192C224M5R5CA
270,000 10 C192C274K5R5CA

TOL. KEMET

pF

5,600 10 C124C562K1R5CA
6,800 10 C124C682K1R5CA
6,800 20 C124C682M1R5CA
8,200 10 C124C822K1R5CA

% PART NUMBER

100 VOLT — C124 SIZE

50 VOLT — C124 SIZE

100 VOLT — C192 SIZE

50 VOLT — C192 SIZE

CAPACI–

TANCE

56,000 10 C202C563K1R5CA
68,000 10 C202C683K1R5CA
68,000 20 C202C683M1R5CA

82,000 10 C202C823K1R5CA
100,000 10 C202C104K1R5CA
100,000 20 C202C104M1R5CA
120,000 10 C202C124K1R5CA
150,000 10 C202C154K1R5CA
150,000 20 C202C154M1R5CA
180,000 10 C202C184K1R5CA
220,000 10 C202C224K1R5CA
220,000 20 C202C224M1R5CA
270,000 10 C202C274K1R5CA
330,000 10 C202C334K1R5CA
330,000 20 C202C334M1R5CA

470,000 10 C202C474K5R5CA
470,000 20 C202C474M5R5CA
680,000 10 C202C684K5R5CA
680,000 20 C202C684M5R5CA

1,000,000 10 C202C105K5R5CA
1,000,000 20 C202C105M5R5CA

470,000 10 C222C474K1R5CA
470,000 20 C222C474M1R5CA
680,000 10 C222C684K1R5CA
680,000 20 C222C684M1R5CA

1,000,000 10 C222C105K1R5CA
1,000,000 20 C222C105M1R5CA

2,200,000 10 C222C225K5R5CA
2,200,000 20 C222C225M5R5CA
3,300,000 10 C222C335K5R5CA
3,300,000 20 C222C335M5R5CA

TOL. KEMET

pF

% PART NUMBER

100 VOLT — C202 SIZE

50 VOLT — C202 SIZE

100 VOLT — C222 SIZE

50 VOLT — C222 SIZE

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]18

CERAMIC MOLDED/RADIAL – STANDARD

STABLE TEMPERATURE CHARACTERISTIC—X7R

RATINGS & PART NUMBER REFERENCE

®

KEMET

CAPACI–

TANCE

1,000 10 C052C102K2R5CA
1,000 20 C052C102M2R5CA

TOL. KEMET

pF

100 10 C052C101K2R5CA
100 20 C052C101M2R5CA
120 10 C052C121K2R5CA
150 10 C052C151K2R5CA
150 20 C052C151M2R5CA
180 10 C052C181K2R5CA
220 10 C052C221K2R5CA
220 20 C052C221M2R5CA
270 10 C052C271K2R5CA
330 10 C052C331K2R5CA
330 20 C052C331M2R5CA
390 10 C052C391K2R5CA
470 10 C052C471K2R5CA
470 20 C052C471M2R5CA
560 10 C052C561K2R5CA
680 10 C052C681K2R5CA
680 20 C052C681M2R5CA
820 10 C052C821K2R5CA

% PART NUMBER

200 VOLT — C052 SIZE

10 10 C052C100K2R5CA
10 20 C052C100M2R5CA
12 10 C052C120K2R5CA
15 10 C052C150K2R5CA
15 20 C052C150M2R5CA
18 10 C052C180K2R5CA
22 10 C052C220K2R5CA
22 20 C052C220M2R5CA
27 10 C052C270K2R5CA
33 10 C052C330K2R5CA
33 20 C052C330M2R5CA
39 10 C052C390K2R5CA
47 10 C052C470K2R5CA
47 20 C052C470M2R5CA
56 10 C052C560K2R5CA
68 10 C052C680K2R5CA
68 20 C052C680M2R5CA
82 10 C052C820K2R5CA

CAPACI–

TANCE

1,200 10 C052C122K1R5CA
1,500 10 C052C152K1R5CA
1,500 20 C052C152M1R5CA
1,800 10 C052C182K1R5CA
2,200 10 C052C222K1R5CA
2,200 20 C052C222M1R5CA
2,700 10 C052C272K1R5CA
3,300 10 C052C332K1R5CA
3,300 20 C052C332M1R5CA
3,900 10 C052C392K1R5CA
4,700 10 C052C472K1R5CA
4,700 20 C052C472M1R5CA
5,600 10 C052C562K1R5CA
6,800 10 C052C682K1R5CA
6,800 20 C052C682M1R5CA

8,200 10 C052C822K1R5CA
10,000 10 C052C103K1R5CA
10,000 20 C052C103M1R5CA

12,000 10 C052C123K5R5CA
15,000 10 C052C153K5R5CA
15,000 20 C052C153M5R5CA
18,000 10 C052C183K5R5CA
22,000 10 C052C223K5R5CA
22,000 20 C052C223M5R5CA
27,000 10 C052C273K5R5CA
33,000 10 C052C333K5R5CA
33,000 20 C052C333M5R5CA
39,000 10 C052C393K5R5CA
47,000 10 C052C473K5R5CA
47,000 20 C052C473M5R5CA
56,000 10 C052C563K5R5CA
68,000 10 C052C683K5R5CA
68,000 20 C052C683M5R5CA
82,000 10 C052C823K5R5CA

100,000 10 C052C104K5R5CA
100,000 20 C052C104M5R5CA

1,200 10 C062C122K2R5CA

1,500 10 C062C152K2R5CA

1,500 20 C062C152M2R5CA

1,800 10 C062C182K2R5CA

2,200 10 C062C222K2R5CA

2,200 20 C062C222M2R5CA

2,700 10 C062C272K2R5CA

3,300 10 C062C332K2R5CA

3,300 20 C062C332M2R5CA

3,900 10 C062C392K2R5CA

4,700 10 C062C472K2R5CA

4,700 20 C062C472M2R5CA

5,600 10 C062C562K2R5CA

6,800 10 C062C682K2R5CA

6,800 20 C062C682M2R5CA

8,200 10 C062C822K2R5CA
10,000 10 C062C103K2R5CA
10,000 20 C062C103M2R5CA

TOL. KEMET

pF

% PART NUMBER

100 VOLT — C052 SIZE

50 VOLT — C052 SIZE

200 VOLT — C062 SIZE

CAPACI–

TANCE

12,000 10 C062C123K1R5CA
15,000 10 C062C153K1R5CA
15,000 20 C062C153M1R5CA
18,000 10 C062C183K1R5CA
22,000 10 C062C223K1R5CA
22,000 20 C062C223M1R5CA
27,000 10 C062C273K1R5CA
33,000 10 C062C333K1R5CA
33,000 20 C062C333M1R5CA
39,000 10 C062C393K1R5CA
47,000 10 C062C473K1R5CA
47,000 20 C062C473M1R5CA
56,000 10 C062C563K1R5CA
68,000 10 C062C683K1R5CA
68,000 20 C062C683M1R5CA

82,000 10 C062C823K1R5CA
100,000 10 C062C104K1R5CA
100,000 20 C062C104M1R5CA

120,000 10 C062C124K5R5CA
150,000 10 C062C154K5R5CA
150,000 20 C062C154M5R5CA
180,000 10 C062C184K5R5CA
220,000 10 C062C224K5R5CA
220,000 20 C062C224M5R5CA
270,000 10 C062C274K5R5CA
330,000 10 C062C334K5R5CA
330,000 20 C062C334M5R5CA
390,000 10 C062C394K5R5CA
470,000 10 C062C474K5R5CA
470,000 20 C062C474M5R5CA
560,000 10 C062C564K5R5CA
680,000 10 C062C684K5R5CA
680,000 20 C062C684M5R5CA
820,000 10 C062C824K5R5CA

1,000,000 10 C062C105K5R5CA
1,000,000 20 C062C105M5R5CA

1,000,000 10 C512C105K5X5CA
1,000,000 20 C512C105M5X5CA

1,500,000 10 C512C155K5X5CA
1,500,000 20 C512C155M5X5CA

2,000,000 10 C512C205K5X5CA
2,000,000 20 C512C205M5X5CA

2,200,000 10 C512C225K5X5CA
2,200,000 20 C512C225M5X5CA

1,000,000 10 C522C105K1X5CA
1,000,000 20 C522C105M1X5CA

2,700,000 10 C522C275K5X5CA
2,700,000 20 C522C275M5X5CA

3,300,000 10 C522C335K5X5CA
3,300,000 20 C522C335M5X5CA

TOL. KEMET

pF

% PART NUMBER

100 VOLT — C062 SIZE

50 VOLT — C062 SIZE

50 VOLT — C512 SIZE

100 VOLT — C522 SIZE

50 VOLT — C522 SIZE

Ceramic Molded

Axial/Radial - Standard

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 19

CERAMIC MOLDED/AXIAL & RADIAL — MIL-PRF-20

KEMET

®

Lead Dia.

.025

(+.004

-.002)

W

.026

MIN.

H

L

S

W

.045

MAX.

H

1.25

MIN.

L

S

W

H

1.25
MIN.

L

S

W

Center Line of leads within .030" of Center Line of case.

H

1.25
MIN.

S

.026
MIN.

L

C052 (CC05, CCR05) C056 (CCR05)

C062 (CC06, CCR06), C512 (CC07, CCR07),

C522 (CC08, CCR08)

C066 (CCR06)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

1.25
MIN.

DL

C

1.50 Min.
(38.10)

1.50 Min.
(38.10)

CAPACITOR OUTLINE DRAWINGS (AXIAL LEADS)

DIMENSIONS — INCHES & (MILLIMETERS)

CASE MILITARY

SIZE EQUIVALENT STYLES

C114 CC75, CCR75 .160 ± .010 (4.06 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C124 CC76, CCR76 .250 ± .010 (6.35 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C192 CC77, CCR77 .390 ± .010 (9.91 ± .25) .140 ± .010 (3.56 ± .25) .025, +.002, -.002 (.64, +.05, -.05)

L D C

C202 CC78, CCR78 .500 ± .020 (12.70 ± .51) .250 ± .015 (6.35 ± .38) .025, +.002, -.002 (.64, +.05, -.05)

C222 CC79, CCR79 .690 ± .030 (17.53 ± .76) .350 ± .020 (8.89 ± .51) .025, +.002, -.002 (.64, +.05, -.05)

CAPACITOR OUTLINE DRAWINGS (RADIAL LEADS)

* Leads are .625 minimum when tape and reel packaged

CASE EQUIVALENT H L W LEAD

SIZE STYLES HEIGHT LENGTH WIDTH SPACING

C052/
C056

C062/
C066

C512 CC07, CCR07 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .140 ± .010 (3.56 ± .25)* .400 ± .020 (10.16 ± .51)
C522 CC08, CCR08 .480 ± .020 (12.19 ± .51) .480 ± .020 (12.19 ± .51) .240 ± .010 (6.10 ± .25) .400 ± .020 (10.16 ± .51)

* 0.200 (5.08) maximum for 100,000 pF only.

DIMENSIONS — INCHES & (MILLIMETERS)

MILITARY S

CC05, CCR05 .190 ± .010 (4.83 ± .25) .190 ± .010 (4.83 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

CC06, CCR06 .290 ± .010 (7.37 ± .25) .290 ± .010 (7.37 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]20

For packaging information, see pages 32, 33 and 34.

CERAMIC MOLDED/AXIAL & RADIAL — MIL-PRF-20

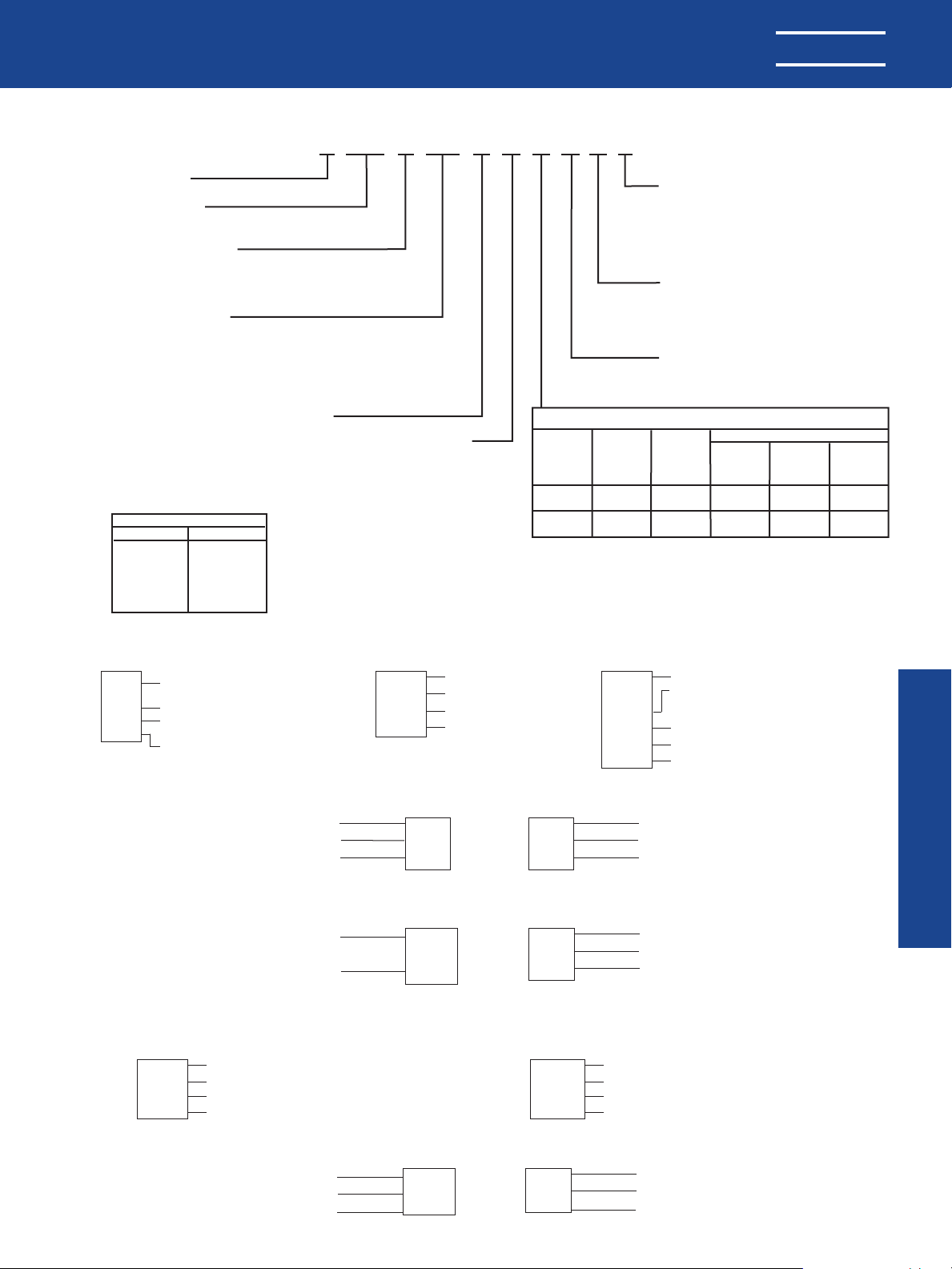

ORDERING INFORMATION

**

C

052

G

102

J

G

1

C

5

R

®

KEMET

CERAMIC
*CASE SIZE

(See Table Below)

SPECIFICATION

Military

G — MIL-PRF-20

CAPACITANCE

In picofarad code: First two digits are significant
figures and third is number of zeroes following
(except 9 indicates division by 10). Examples:

0.1 mF = 100,000 pF = 104 and 9.1 pF = 919.
See tables for Standard Values.

CAPACITANCE TOLERANCE

Standard

K — ±10%
J — ±5%

G — ±2% C — ±0.25 pF
F — ±1% D — ±0.5 pF
B — ±0.1 pF

Standard tolerances for each Series are
shown in the repetitive parts lists.

*CASE SIZES

RADIAL AXIAL

C052 C114
C056 C124
C062 C192
C066 C202
C512 C222
C522

Others

**Part Number Example: C052G102J1G5CR (14 digits – no spaces)

WORKING
VOLTAGE

1 — 100
2 — 200
5 — 50

FAILURE RA TE

A — Not Applicable (Std.)
M — 1.0%
P — 0.1%
R — 0.01%
S — 0.001%

LEAD MA TERIAL

C — Standard

INTERNAL CONSTRUCTION

5 — Standard

TEMPERA TURE CHARACTERISTIC

Capacitance Change With Temp.

KEMET Military EIA Temp. DC Bias (Rated

Designator Equivalent Equivalent Range, °C Voltage Voltage)

G *CG C0G -55 to ±30 ±30

(Ultra (See below) (NPO) +125 ppm/°C* ppm/°C*

Stable)

*CH— ±60 ppm/°C 8.2 pF-18.0 pF.
*CJ — ±120 ppm/°C 4.3 pF-7.5 pF.
*CK— ±250 ppm/°C 2.2 pF-3.9 pF

*CX— not measurable 0.1 pF-2.0 pF.

Measured Measured

Without With Bias

MIL-PRF-20

JCK

2R2

CM0

11AK

CCR77C

G102JM

J31433

0004A

CCR78CG
103FR
JAN K

31433
100V
0004A

CCR79CG
103KM
JAN K

31433
200V
0004A

CAPACITOR MARKINGS

CC(R) 75, 76

“J” Brand (CCR only), Temperature Characteristic
Capacitance
Capacitance Tolerance, Failure Rate (CCR only),

Year Code
Lot Code, Trademark (K)

CC(R) 77

Military Designation (Type, Temperature Characteristic,
Capacitance, Tolerance, Failure Rate)

“J” Brand (CCR only), FSCM (Federal Source Code)
Date/Lot Code

CC(R) 78

Military Designation (Type, Temperature Characteristic,
Capacitance, Tolerance, Failure Rate)

“JAN” Brand (CCR only), Trademark (K)
FSCM (Federal Source Code)
Voltage
Date/Lot Code

CC(R) 79

Military Designation (Type, Temperature Characteristic,
Capacitance, Tolerance, Failure Rate)

“JAN” Brand (CCR only), Trademark
FSCM (Federal Source Code)
Voltage
Date/Lot Code

FRONT

CCR0
5CH1
00FR

REAR

0004

AJ3

1433

FRONT

CCR06
CG102
JS

REAR

0004A
J100V
31433

CCR07CG
472KM
JAN KEMET

31433
200V 0004A

CCR08CG
472KM
JAN KEMET

31433
200V 0009A

CC(R) 05

Military Designation (Type, Temperature Characteristic,
Capacitance, Tolerance, Failure Rate)

** For the standoff style, a “V” is added after the

failure rate, or last character.

Date Code
Lot Code, “J” Brand (CCR only),

FSCM (Federal Source Code)

CC(R) 06

Military Designation (Type, Temperature Characteristic,
Capacitance, Tolerance, Failure Rate)

** For the standoff style, a “V” is added after the

failure rate, or last character.

Date/LotCode
“J” Brand (CCR only), Voltage

FSCM (Federal Source Code)

CC(R) 07

Military Designation (Type, Temperature Characteristic,
Capacitance, Tolerance, Failure Rate)

“JAN” Brand, Trademark
FSCM (Federal Source Code)
Voltage, Date/Lot Code

CC(R) 08

Military Designation (Type, Temperature Characteristic,
Capacitance, Tolerance, Failure Rate)

“JAN” Brand, Trademark
FSCM (Federal Source Code)
Voltage, Date/Lot Code

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 21

CERAMIC MOLDED/AXIAL — MIL-PRF-20

KEMET

®

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

RATINGS & PART NUMBER REFERENCE

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C114 (CC(R)75 PER MIL-PRF-20/27)

1.0 C114G109(2)2G5C(1) CC75CX1R0(2) CCR75CX1R0(2)(1)

1.1 C114G119(2)2G5C(1) CC75CX1R1(2) CCR75CX1R1(2)(1)

1.2 C114G129(2)2G5C(1) CC75CX1R2(2) CCR75CX1R2(2)(1)

1.3 C114G139(2)2G5C(1) CC75CX1R3(2) CCR75CX1R3(2)(1)

1.5 C114G159(2)2G5C(1) CC75CX1R5(2) CCR75CX1R5(2)(1)

1.6 C114G169(2)2G5C(1) CC75CX1R6(2) CCR75CX1R6(2)(1)

1.8 C114G189(2)2G5C(1) CC75CX1R8(2) CCR75CX1R8(2)(1)

2.0 C114G209(2)2G5C(1) CC75CX2R0(2) CCR75CX2R0(2)(1)

2.2 C114G229(2)2G5C(1) CC75CK2R2(2) CCR75CK2R2(2)(1)

2.4 C114G249(2)2G5C(1) CC75CK2R4(2) CCR75CK2R4(2)(1)

2.7 C114G279(3)2G5C(1) CC75CK2R7(3) CCR75CK2R7(3)(1)

3.0 C114G309(3)2G5C(1) CC75CK3R0(3) CCR75CK3R0(3)(1)

3.3 C114G339(3)2G5C(1) CC75CK3R3(3) CCR75CK3R3(3)(1)

3.6 C114G369(3)2G5C(1) CC75CK3R6(3) CCR75CK3R6(3)(1)

3.9 C114G399(3)2G5C(1) CC75CK3R9(3) CCR75CK3R9(3)(1)

4.3 C114G439(3)2G5C(1) CC75CJ4R3(3) CCR75CJ4R3(3)(1)

4.7 C114G479(3)2G5C(1) CC75CJ4R7(3) CCR75CJ4R7(3)(1)

5.1 C114G519(3)2G5C(1) CC75CJ5R1(3) CCR75CJ5R1(3)(1)

5.6 C114G569(3)2G5C(1) CC75CJ5R6(3) CCR75CJ5R6(3)(1)

6.2 C114G629(3)2G5C(1) CC75CJ6R2(3) CCR75CJ6R2(3)(1)

6.8 C114G689(3)2G5C(1) CC75CJ6R8(3) CCR75CJ6R8(3)(1)

7.5 C114G759(3)2G5C(1) CC75CJ7R5(3) CCR75CJ7R5(3)(1)

8.2 C114G829(3)2G5C(1) CC75CH8R2(3) CCR75CH8R2(3)(1)

9.1 C114G919(3)2G5C(1) CC75CH9R1(3) CCR75CH9R1(3)(1)

10.0 C114G100(4)2G5C(1) CC75CH100(4) CCR75CH100(4)(1)

11.0 C114G110(4)2G5C(1) CC75CH110(4) CCR75CH110(4)(1)

12.0 C114G120(4)2G5C(1) CC75CH120(4) CCR75CH120(4)(1)

13.0 C114G130(4)2G5C(1) CC75CH130(4) CCR75CH130(4)(1)

15.0 C114G150(4)2G5C(1) CC75CH150(4) CCR75CH150(4)(1)

16.0 C114G160(4)2G5C(1) CC75CH160(4) CCR75CH160(4)(1)

18.0 C114G180(4)2G5C(1) CC75CH180(4) CCR75CH180(4)(1)

20.0 C114G200(4)2G5C(1) CC75CG200(4) CCR75CG200(4)(1)

22.0 C114G220(4)2G5C(1) CC75CG220(4) CCR75CG220(4)(1)

24.0 C114G240(4)2G5C(1) CC75CG240(4) CCR75CG240(4)(1)

27.0 C114G270(4)2G5C(1) CC75CG270(4) CCR75CG270(4)(1)

30.0 C114G300(4)2G5C(1) CC75CG300(4) CCR75CG300(4)(1)

33.0 C114G330(4)2G5C(1) CC75CG330(4) CCR75CG330(4)(1)

36.0 C114G360(4)2G5C(1) CC75CG360(4) CCR75CG360(4)(1)

39.0 C114G390(4)2G5C(1) CC75CG390(4) CCR75CG390(4)(1)

43.0 C114G430(4)2G5C(1) CC75CG430(4) CCR75CG430(4)(1)

47.0 C114G470(4)2G5C(1) CC75CG470(4) CCR75CG470(4)(1)

51.0 C114G510(4)2G5C(1) CC75CG510(4) CCR75CG510(4)(1)

56.0 C114G560(4)2G5C(1) CC75CG560(4) CCR75CG560(4)(1)

62.0 C114G620(4)2G5C(1) CC75CG620(4) CCR75CG620(4)(1)

68.0 C114G680(4)2G5C(1) CC75CG680(4) CCR75CG680(4)(1)

75.0 C114G750(4)2G5C(1) CC75CG750(4) CCR75CG750(4)(1)

To complete Part Number, insert the following letters:
(1) Available Failure Rates: A (CC styles only); M, P, R & S (CCR styles only).
(2) Available Capacitance Tolerances: B, C.
(3) Available Capacitance Tolerances: B, C, D.
(4) Available Capacitance Tolerances: F, G, J.

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

100 VOLT — C114 (CC(R)75 PER MIL-PRF-20/27)

82.0 C114G820(4)1G5C(1) CC75CG820(4) CCR75CG820(4)(1)

91.0 C114G910(4)1G5C(1) CC75CG910(4) CCR75CG910(4)(1)

100.0 C114G101(4)1G5C(1) CC75CG101(4) CCR75CG101(4)(1)

110.0 C114G111(4)1G5C(1) CC75CG111(4) CCR75CG111(4)(1)

120.0 C114G121(4)1G5C(1) CC75CG121(4) CCR75CG121(4)(1)

130.0 C114G131(4)1G5C(1) CC75CG131(4) CCR75CG131(4)(1)

150.0 C114G151(4)1G5C(1) CC75CG151(4) CCR75CG151(4)(1)

160.0 C114G161(4)1G5C(1) CC75CG161(4) CCR75CG161(4)(1)

180.0 C114G181(4)1G5C(1) CC75CG181(4) CCR75CG181(4)(1)

200.0 C114G201(4)1G5C(1) CC75CG201(4) CCR75CG201(4)(1)

220.0 C114G221(4)1G5C(1) CC75CG221(4) CCR75CG221(4)(1)

240.0 C114G241(4)1G5C(1) CC75CG241(4) CCR75CG241(4)(1)

50 VOLT — C114 (CC(R)75 PER MIL-PRF-20/27)

270.0 C114G271(4)5G5C(1) CC75CG271(4) CCR75CG271(4)(1)

300.0 C114G301(4)5G5C(1) CC75CG301(4) CCR75CG301(4)(1)

330.0 C114G331(4)5G5C(1) CC75CG331(4) CCR75CG331(4)(1)

360.0 C114G361(4)5G5C(1) CC75CG361(4) CCR75CG361(4)(1)

390.0 C114G391(4)5G5C(1) CC75CG391(4) CCR75CG391(4)(1)

430.0 C114G431(4)5G5C(1) CC75CG431(4) CCR75CG431(4)(1)

470.0 C114G471(4)5G5C(1) CC75CG471(4) CCR75CG471(4)(1)

510.0 C114G511(4)5G5C(1) CC75CG511(4) CCR75CG511(4)(1)

560.0 C114G561(4)5G5C(1) CC75CG561(4) CCR75CG561(4)(1)

620.0 C114G621(4)5G5C(1) CC75CG621(4) CCR75CG621(4)(1)

680.0 C114G681(4)5G5C(1) CC75CG681(4) CCR75CG681(4)(1)

200 VOLT — C124 (CC(R)76 PER MIL-PRF-20/28)

82.0 C124G820(4)2G5C(1) CC76CG820(4) CCR76CG820(4)(1)

91.0 C124G910(4)2G5C(1) CC76CG910(4) CCR76CG910(4)(1)

100.0 C124G101(4)2G5C(1) CC76CG101(4) CCR76CG101(4)(1)

110.0 C124G111(4)2G5C(1) CC76CG111(4) CCR76CG111(4)(1)

120.0 C124G121(4)2G5C(1) CC76CG121(4) CCR76CG121(4)(1)

130.0 C124G131(4)2G5C(1) CC76CG131(4) CCR76CG131(4)(1)

100 VOLT — C124 (CC(R)76 PER MIL-PRF-20/28)

270.0 C124G271(4)1G5C(1) CC76CG271(4) CCR76CG271(4)(1)

300.0 C124G301(4)1G5C(1) CC76CG301(4) CCR76CG301(4)(1)

330.0 C124G331(4)1G5C(1) CC76CG331(4) CCR76CG331(4)(1)

360.0 C124G361(4)1G5C(1) CC76CG361(4) CCR76CG361(4)(1)

390.0 C124G391(4)1G5C(1) CC76CG391(4) CCR76CG391(4)(1)

430.0 C124G431(4)1G5C(1) CC76CG431(4) CCR76CG431(4)(1)

470.0 C124G471(4)1G5C(1) CC76CG471(4) CCR76CG471(4)(1)

510.0 C124G511(4)1G5C(1) CC76CG511(4) CCR76CG511(4)(1)

560.0 C124G561(4)1G5C(1) CC76CG561(4) CCR76CG561(4)(1)

620.0 C124G621(4)1G5C(1) CC76CG621(4) CCR76CG621(4)(1)

680.0 C124G681(4)1G5C(1) CC76CG681(4) CCR76CG681(4)(1)

50 VOLT — C124 (CC(R)76 PER MIL-PRF-20/28)

750.0 C124G751(4)5G5C(1) CC76CG751(4) CCR76CG751(4)(1)

820.0 C124G821(4)5G5C(1) CC76CG821(4) CCR76CG821(4)(1)

910.0 C124G911(4)5G5C(1) CC76CG911(4) CCR76CG911(4)(1)

1,000.0

C124G102(4)5G5C(1) CC76CG102(4) CCR76CG102(4)(1)

200 VOLT — C192 (CC(R)77 PER MIL-PRF-20/29)

150.0 C192G151(4)2G5C(1) CC77CG151(4) CCR77CG151(4)(1)

160.0 C192G161(4)2G5C(1) CC77CG161(4) CCR77CG161(4)(1)

180.0 C192G181(4)2G5C(1) CC77CG181(4) CCR77CG181(4)(1)

200.0 C192G201(4)2G5C(1) CC77CG201(4) CCR77CG201(4)(1)

220.0 C192G221(4)2G5C(1) CC77CG221(4) CCR77CG221(4)(1)

240.0 C192G241(4)2G5C(1) CC77CG241(4) CCR77CG241(4)(1)

270.0 C192G271(4)2G5C(1) CC77CG271(4) CCR77CG271(4)(1)

300.0 C192G301(4)2G5C(1) CC77CG301(4) CCR77CG301(4)(1)

330.0 C192G331(4)2G5C(1) CC77CG331(4) CCR77CG331(4)(1)

360.0 C192G361(4)2G5C(1) CC77CG361(4) CCR77CG361(4)(1)

390.0 C192G391(4)2G5C(1) CC77CG391(4) CCR77CG391(4)(1)

430.0 C192G431(4)2G5C(1) CC77CG431(4) CCR77CG431(4)(1)

470.0 C192G471(4)2G5C(1) CC77CG471(4) CCR77CG471(4)(1)

510.0 C192G511(4)2G5C(1) CC77CG511(4) CCR77CG511(4)(1)

560.0 C192G561(4)2G5C(1) CC77CG561(4) CCR77CG561(4)(1)

620.0 C192G621(4)2G5C(1) CC77CG621(4) CCR77CG621(4)(1)

680.0 C192G681(4)2G5C(1) CC77CG681(4) CCR77CG681(4)(1)

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]22

CERAMIC MOLDED/AXIAL — MIL-PRF-20

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

RATINGS & PART NUMBER REFERENCE

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

100 VOLT — C192 (CC(R)77 PER MIL-PRF-20/29)

750.0 C192G751(4)1G5C(1) CC77CG751(4) CCR77CG751(4)(1)

820.0 C192G821(4)1G5C(1) CC77CG821(4) CCR77CG821(4)(1)

910.0 C192G911(4)1G5C(1) CC77CG911(4) CCR77CG911(4)(1)
1,000.0 C192G102(4)1G5C(1) CC77CG102(4) CCR77CG102(4)(1)
1,100.0 C192G112(4)1G5C(1) CC77CG112(4) CCR77CG112(4)(1)
1,200.0 C192G122(4)1G5C(1) CC77CG122(4) CCR77CG122(4)(1)
1,300.0 C192G132(4)1G5C(1) CC77CG132(4) CCR77CG132(4)(1)
1,500.0 C192G152(4)1G5C(1) CC77CG152(4) CCR77CG152(4)(1)
1,600.0 C192G162(4)1G5C(1) CC77CG162(4) CCR77CG162(4)(1)
1,800.0 C192G182(4)1G5C(1) CC77CG182(4) CCR77CG182(4)(1)
2,000.0 C192G202(4)1G5C(1) CC77CG202(4) CCR77CG202(4)(1)
2,200.0 C192G222(4)1G5C(1) CC77CG222(4) CCR77CG222(4)(1)

50 VOLT — C192 (CC(R)77 PER MIL-PRF-20/29)

2,400.0 C192G242(4)5G5C(1) CC77CG242(4) CCR77CG242(4)(1)
2,700.0 C192G272(4)5G5C(1) CC77CG272(4) CCR77CG272(4)(1)
3,000.0 C192G302(4)5G5C(1) CC77CG302(4) CCR77CG302(4)(1)
3,300.0 C192G332(4)5G5C(1) CC77CG332(4) CCR77CG332(4)(1)
3,600.0 C192G362(4)5G5C(1) CC77CG362(4) CCR77CG362(4)(1)
3,900.0 C192G392(4)5G5C(1) CC77CG392(4) CCR77CG392(4)(1)
4,300.0 C192G432(4)5G5C(1) CC77CG432(4) CCR77CG432(4)(1)
4,700.0 C192G472(4)5G5C(1) CC77CG472(4) CCR77CG472(4)(1)
5,100.0 C192G512(5)5G5C(1) CC77CG512(5) CCR77CG512(5)(1)
5,600.0 C192G562(5)5G5C(1) CC77CG562(5) CCR77CG562(5)(1)

200 VOLT — C202 (CC(R)78 PER MIL-PRF-20/30)

820.0 C202G821(5)2G5C(1) CC78CG821(5) CCR78CG821(5)(1)
1,000.0 C202G102(5)2G5C(1) CC78CG102(5) CCR78CG102(5)(1)
1,200.0 C202G122(5)2G5C(1) CC78CG122(5) CCR78CG122(5)(1)
1,500.0 C202G152(5)2G5C(1) CC78CG152(5) CCR78CG152(5)(1)
1,800.0 C202G182(5)2G5C(1) CC78CG182(5) CCR78CG182(5)(1)
2,200.0 C202G222(5)2G5C(1) CC78CG222(5) CCR78CG222(5)(1)
2,700.0 C202G272(5)2G5C(1) CC78CG272(5) CCR78CG272(5)(1)
3,300.0 C202G332(5)2G5C(1) CC78CG332(5) CCR78CG332(5)(1)

To complete Part Number, insert the following letters:
(1) Available Failure Rates: A (CC styles only); M, P, R & S (CCR styles only).
(2) Available Capacitance Tolerances: B, C.
(3) Available Capacitance Tolerances: B, C, D.
(4) Available Capacitance Tolerances: F, G, J.
(5) Available Capacitance Tolerances: F, G, J, K.

KEMET

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

100 VOLT — C202 (CC(R)78 PER MIL-PRF-20/30)

3,900.0 C202G392(5)1G5C(1) CC78CG392(5) CCR78CG392(5)(1)
4,700.0 C202G472(5)1G5C(1) CC78CG472(5) CCR78CG472(5)(1)
5,600.0 C202G562(5)1G5C(1) CC78CG562(5) CCR78CG562(5)(1)
6,800.0 C202G682(5)1G5C(1) CC78CG682(5) CCR78CG682(5)(1)

8,200.0 C202G822(5)1G5C(1) CC78CG822(5) CCR78CG822(5)(1)
10,000.0 C202G103(5)1G5C(1) CC78CG103(5) CCR78CG103(5)(1)
12,000.0 C202G123(5)1G5C(1) CC78CG123(5) CCR78CG123(5)(1)

50 VOLT — C202 (CC(R)78 PER MIL-PRF-20/30)

15,000.0 C202G153(5)5G5C(1) CC78CG153(5) CCR78CG153(5)(1)
18,000.0 C202G183(5)5G5C(1) CC78CG183(5) CCR78CG183(5)(1)
22,000.0 C202G223(5)5G5C(1) CC78CG223(5) CCR78CG223(5)(1)
27,000.0 C202G273(5)5G5C(1) CC78CG273(5) CCR78CG273(5)(1)

200 VOLT — C222 (CC(R)79 PER MIL-PRF-20/31)

3,900.0 C222G392(5)2G5C(1) CC79CG392(5) CCR79CG392(5)(1)

4,700.0 C222G472(5)2G5C(1) CC79CG472(5) CCR79CG472(5)(1)

5,600.0 C222G562(5)2G5C(1) CC79CG562(5) CCR79CG562(5)(1)

6,800.0 C222G682(5)2G5C(1) CC79CG682(5) CCR79CG682(5)(1)

8,200.0 C222G822(5)2G5C(1) CC79CG822(5) CCR79CG822(5)(1)
10,000.0 C222G103(5)2G5C(1) CC79CG103(5) CCR79CG103(5)(1)

100 VOLT — C222 (CC(R)79 PER MIL-PRF-20/31)

15,000.0 C222G153(5)1G5C(1) CC79CG153(5) CCR79CG153(5)(1)
18,000.0 C222G183(5)1G5C(1) CC79CG183(5) CCR79CG183(5)(1)
22,000.0 C222G223(5)1G5C(1) CC79CG223(5) CCR79CG223(5)(1)
27,000.0 C222G273(5)1G5C(1) CC79CG273(5) CCR79CG273(5)(1)
33,000.0 C222G333(5)1G5C(1) CC79CG333(5) CCR79CG333(5)(1)
39,000.0 C222G393(5)1G5C(1) CC79CG393(5) CCR79CG393(5)(1)

50 VOLT — C222 (CC(R)79 PER MIL-PRF-20/31)

47,000.0 C222G473(5)5G5C(1) CC79CG473(5) CCR79CG473(5)(1)
56,000.0 C222G563(5)5G5C(1) CC79CG563(5) CCR79CG563(5)(1)
68,000.0 C222G683(5)5G5C(1) CC79CG683(5) CCR79CG683(5)(1)
82,000.0 C222G823(5)5G5C(1) CC79CG823(5) CCR79CG823(5)(1)

®

MIL-PRF-20

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 23

CERAMIC MOLDED/RADIAL — MIL-PRF-20

KEMET

®

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

RATINGS & PART NUMBER REFERENCE

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

1.0 C05(6)G109(2)2G5C(1) CC05CX1R0(2) CCR05CX1R0(2)(1)(7)

1.1 C05(6)G119(2)2G5C(1) CC05CX1R1(2) CCR05CX1R1(2)(1)(7)

1.2 C05(6)G129(2)2G5C(1) CC05CX1R2(2) CCR05CX1R2(2)(1)(7)

1.3 C05(6)G139(2)2G5C(1) CC05CX1R3(2) CCR05CX1R3(2)(1)(7)

1.5 C05(6)G159(2)2G5C(1) CC05CX1R5(2) CCR05CX1R5(2)(1)(7)

1.6 C05(6)G169(2)2G5C(1) CC05CX1R6(2) CCR05CX1R6(2)(1)(7)

1.8 C05(6)G189(2)2G5C(1) CC05CX1R8(2) CCR05CX1R8(2)(1)(7)

2.0 C05(6)G209(2)2G5C(1) CC05CX2R0(2) CCR05CX2R0(2)(1)(7)

2.2 C05(6)G229(2)2G5C(1) CC05CK2R2(2) CCR05CK2R2(2)(1)(7)

2.4 C05(6)G249(2)2G5C(1) CC05CK2R4(2) CCR05CK2R4(2)(1)(7)

2.7 C05(6)G279(3)2G5C(1) CC05CK2R7(3) CCR05CK2R7(3)(1)(7)

3.0 C05(6)G309(3)2G5C(1) CC05CK3R0(3) CCR05CK3R0(3)(1)(7

3.3 C05(6

3.6 C05(6)G369(3)2G5C(1) CC05CK3R6(3) CCR05CK3R6(3)(1)(7)

3.9 C05(6)G399(3)2G5C(1) CC05CK3R9(3) CCR05CK3R9(3)(1)(7)

4.3 C05(6)G439(3)2G5C(1) CC05CJ4R3(3) CCR05CJ4R3(3)(1)(7)

4.7 C05(6)G479(3)2G5C(1) CC05CJ4R7(3) CCR05CJ4R7(3)(1)(7)

5.1 C05(6)G519(3)2G5C(1) CC05CJ5R1(3) CCR05CJ5R1(3)(1)(7)

5.6 C05(6)G569(3)2G5C(1) CC05CJ5R6(3) CCR05CJ5R6(3)(1)(7)

6.2 C05(6)G629(3)2G5C(1) CC05CJ6R2(3) CCR05CJ6R2(3)(1)(7)

6.8 C05(6)G689(3)2G5C(1) CC05CJ6R8(3) CCR05CJ6R8(3)(1)(7)

7.5 C05(6)G759(3)2G5C(1) CC05CJ7R5(3) CCR05CJ7R5(3)(1)(7)

8.2 C05(6)G829(3)2G5C(1) CC05CH8R2(3) CCR05CH8R2(3)(1)(7)

9.1 C05(6)G919(3)2G5C(1) CC05CH9R1(3) CCR05CH9R1(3)(1)(7)

10.0 C05(6)G100(4)2G5C(1) CC05CH100(4) CCR05CH100(4)(1)(7)

11.0 C05(6)G110(4)2G5C(1) CC05CH110(4) CCR05CH110(4)(1)(7)

12.0 C05(6)G120(4)2G5C(1) CC05CH120(4) CCR05CH120(4)(1)(7)

13.0 C05(6)G130(4)2G5C(1) CC05CH130(4) CCR05CH130(4)(1)(7)

15.0 C05(6)G150(4)2G5C(1) CC05CH150(4) CCR05CH150(4)(1)(7)

16.0 C05(6)G160(4)2G5C(1) CC05CH160(4) CCR05CH160(4)(1)(7)

18.0 C05(6)G180(4)2G5C(1) CC05CH180(4) CCR05CH180(4)(1)(7)

20.0 C05(6)G200(4)2G5C(1) CC05CG200(4) CCR05CG200(4)(1)(7)

22.0 C05(6)G220(4)2G5C(1) CC05CG220(4) CCR05CG220(4)(1)(7)

24.0 C05(6)G240(4)2G5C(1) CC05CG240(4) CCR05CG240(4)(1)(7)

27.0 C05(6)G270(4)2G5C(1) CC05CG270(4) CCR05CG270(4)(1)(7)

30.0 C05(6)G300(4)2G5C(1) CC05CG300(4) CCR05CG300(4)(1)(7)

33.0 C05(6)G330(4)2G5C(1) CC05CG330(4) CCR05CG330(4)(1)(7)

36.0 C05(6)G360(4)2G5C(1) CC05CG360(4) CCR05CG360(4)(1)(7)

39.0 C05(6)G390(4)2G5C(1) CC05CG390(4) CCR05CG390(4)(1)(7)

43.0 C05(6)G430(4)2G5C(1) CC05CG430(4) CCR05CG430(4)(1)(7)

47.0 C05(6)G470(4)2G5C(1) CC05CG470(4) CCR05CG470(4)(1)(7)

51.0 C05(6)G510(4)2G5C(1) CC05CG510(4) CCR05CG510(4)(1)(7)

To complete Part Number, insert the following letters:
(1) Available Failure Rates: A (CC styles only); M, P, R & S (CCR styles only).
(2) Available Capacitance Tolerances: B, C.
(3) Available Capacitance Tolerances: B, C, D.
(4) Available Capacitance Tolerances: F, G, J.
(5) Available Capacitance Tolerances: F, G, J, K.
(6) Insert “2” for standard design, Style C052G Stand-offs are available

Insert “6” for stand-off design, Style C056G only as CCR’s, not available as CC.

(7) Add “V” for stand-off design, Style C056G

And leave blank for the flat bottom design (C052G)

)G339(3)2G5C(1) CC05CK3R3(3) CCR05CK3R3(3)(1)(7)

}

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

56.0 C05(6)G560(4)2G5C(1) CC05CG560(4) CCR05CG560(4)(1)(7)

62.0 C05(6)G620(4)2G5C(1) CC05CG620(4) CCR05CG620(4)(1)(7)

68.0 C05(6)G680(4)2G5C(1) CC05CG680(4) CCR05CG680(4)(1)(7)

75.0 C05(6)G750(4)2G5C(1) CC05CG750(4) CCR05CG750(4)(1)(7)

82.0 C05(6)G820(4)2G5C(1) CC05CG820(4) CCR75CG820(4)(1)(7)

91.0 C05(6)G910(4)2G5C(1) CC05CG910(4) CCR05CG910(4)(1)(7)

100.0 C05(6)G101(4)2G5C(1) CC05CG101(4) CCR05CG101(4)(1)(7)

110.0 C05(6)G111(4)2G5C(1) CC05CG111(4) CCR05CG111(4)(1)(7)

120.0 C05(6)G121(4)2G5C(1) CC05CG121(4) CCR05CG121(4)(1)(7)

130.0 C05(6)G131(4)2G5C(1) CC05CG131(4) CCR05CG131(4)(1)(7)

150.0 C05(6)G151(4)2G5C(1) CC05CG151(4) CCR05CG151(4)(1)(7)

)

160.0 C05(6)G161(4)2G5C(1) CC05CG161(4) CCR05CG161(4)(1)(7)

180.0 C05(6)G181(4)2G5C(1) CC05CG181(4) CCR05CG181(4)(1)(7)

200.0 C05(6)G201(4)2G5C(1) CC05CG201(4) CCR05CG201(4)(1)(7)

220.0 C05(6)G221(4)2G5C(1) CC05CG221(4) CCR05CG221(4)(1)(7)

240.0 C05(6)G241(4)2G5C(1) CC05CG241(4) CCR05CG241(4)(1

270.0 C05(6

300.0 C05(6

330.0 C05(6

100 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

360.0 C05(6)G361(4)1G5C(1) CC05CG361(4) CCR05CG361(4)(1)(7)

390.0 C05(6)G391(4)1G5C(1) CC05CG391(4) CCR05CG391(4)(1)(7)

430.0 C05(6)G431(4)1G5C(1) CC05CG431(4) CCR05CG431(4)(1)(7)

470.0 C05(6)G471(4)1G5C(1) CC05CG471(4) CCR05CG471(4)(1)(7)

510.0 C05(6)G511(4)1G5C(1) CC05CG511(4) CCR05CG511(4)(1)(7)

560.0 C05(6)G561(4)1G5C(1) CC05CG561(4) CCR05CG561(4)(1)(7)

620.0 C05(6)G621(4)1G5C(1) CC05CG621(4) CCR05CG621(4)(1)(7)

680.0 C05(6)G681(4)1G5C(1) CC05CG681(4) CCR05CG681(4)(1)(7)

750.0 C05(6)G751(4)1G5C(1) CC05CG751(4) CCR05CG751(4)(1)(7)

820.0 C05(6)G821(4)1G5C(1) CC05CG821(4) CCR05CG821(4)(1)(7)

910.0 C05(6)G911(4)1G5C(1) CC05CG911(4) CCR05CG911(4)(1)(7)
1,000.0 C05(6)G102(4)1G5C(1) CC05CG102(4) CCR05CG102(4)(1)(7)
1,100.0 C05(6)G112(4)1G5C(1) CC05CG112(4) CCR05CG112(4)(1)(7)
1,200.0 C05(6)G122(4)1G5C(1) CC05CG122(4) CCR05CG122(4)(1)(7)
1,300.0 C05(6)G132(4)1G5C(1) CC05CG132(4) CCR05CG132(4)(1)(7)
1,500.0 C05(6)G152(4)1G5C(1) CC05CG152(4) CCR05CG152(4)(1)(7)
1,600.0 C05(6)G162(4)1G5C(1) CC05CG162(4) CCR05CG162(4)(1)(7)
1,800.0 C05(6)G182(4)1G5C(1) CC05CG182(4) CCR05CG182(4)(1)(7)

50 VOLT — C052/C056 SIZE (CC(R)05 PER MIL-PRF-20/35)

2,000.0 C05(6)G202(4)5G5C(1) CC05CG202(4) CCR05CG202(4)(1)(7)
2,200.0 C05(6)G222(4)5G5C(1
2,400.0 C05(6
2,700.0 C05(6
3,000.0 C05(6
3,300.0 C05(6

)G271(4)2G5C(1) CC05CG271(4) CCR05CG271(4)(1
)G301(4)2G5C(1) CC05CG301(4) CCR05CG301(4)(1
)G331(4)2G5C(1) CC05CG331(4) CCR05CG331(4)(1

)G242(4)5G5C(1
)G272(4)5G5C(1
)G302(4)5G5C(1
)G332(4)5G5C(1

) CC05CG222(4) CCR05CG222(4)(1)(7)
) CC05CG242(4) CCR05CG242(4)(1)(7)
) CC05CG272(4) CCR05CG272(4)(1)(7)
) CC05CG302(4) CCR05CG302(4)(1)(7)
) CC05CG332(4) CCR05CG332(4)(1)(7)

)(7)
)(7)
)(7)
)(7)

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]24

CERAMIC MOLDED/RADIAL — MIL-PRF-20

ULTRA-STABLE TEMPERATURE CHARACTERISTIC — CG (EIA-C0G)

RATINGS & PART NUMBER REFERENCE

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

200 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

360.0 C06(6)G361(4)2G5C(1) CC06CG361(4) CCR06CG361(4)(1)(7)

390.0 C06(6)G391(4)2G5C(1) CC06CG391(4) CCR06CG391(4)(1)(7)

430.0 C06(6)G431(4)2G5C(1) CC06CG431(4) CCR06CG431(4)(1)(7)

470.0 C06(6)G471(4)2G5C(1) CC06CG471(4) CCR06CG471(4)(1)(7)

510.0 C06(6)G511(4)2G5C(1) CC06CG511(4) CCR06CG511(4)(1)(7)

560.0 C06(6)G561(4)2G5C(1) CC06CG561(4) CCR06CG561(4)(1)(7)

620.0 C06(6)G621(4)2G5C(1) CC06CG621(4) CCR06CG621(4)(1)(7)

680.0 C06(6)G681(4)2G5C(1) CC06CG681(4) CCR06CG681(4)(1)(7)

750.0 C06(6)G751(4)2G5C(1) CC06CG751(4) CCR06CG751(4)(1)(7)

820.0 C06(6)G821(4)2G5C(1) CC06CG821(4) CCR06CG821(4)(1)(7)

910.0 C06(6)G911(4)2G5C(1) CC06CG911(4) CCR06CG911(4)(1)(7)
1,000.0 C06(6)G102(4)2G5C(1) CC06CG102(4) CCR06CG102(4)(1)(7)
1,100.0 C06(6)G112(4)2G5C(1) CC06CG112(4) CCR06CG112(4)(1)(7)

1,200.0 C06(6)G122(4)2G5C(1) CC06CG122(4) CCR06CG122(4)(1)(7)

1,300.0 C06(6)G132(4)2G5C(1) CC06CG132(4) CCR06CG132(4)(1)(7)
1,500.0 C06(6)G152(4)2G5C(1) CC06CG152(4) CCR06CG152(4)(1)(7)

1,600.0 C06(6)G162(4)2G5C(1) CC06CG162(4) CCR06CG162(4)(1)(7)

1,800.0 C06(6)G182(4)2G5C(1) CC06CG182(4) CCR06CG182(4)(1)(7)

100 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

2,000.0 C06(6)G202(4)1G5C(1) CC06CG202(4) CCR06CG202(4)(1)(7)
2,200.0 C06(6)G222(4)1G5C(1) CC06CG222(4) CCR06CG222(4)(1)(7)
2,400.0 C06(6)G242(4)1G5C(1) CC06CG242(4) CCR06CG242(4)(1)(7)
2,700.0 C06(6)G272(4)1G5C(1) CC06CG272(4) CCR06CG272(4)(1)(7)
3,000.0 C06(6)G302(4)1G5C(1) CC06CG302(4) CCR06CG302(4)(1)(7)
3,300.0 C06(6)G332(4)1G5C(1) CC06CG332(4) CCR06CG332(4)(1)(7)
3,600.0 C06(6)G362(4)1G5C(1) CC06CG362(4) CCR06CG362(4)(1)(7)

3,900.0 C06(6)G392(4)1G5C(1) CC06CG392(4) CCR06CG392(4)(1)(7)
4,300.0 C06(6)G432(4)1G5C(1) CC06CG432(4) CCR06CG432(4)(1)(7)

4,700.0 C06(6)G472(4)1G5C(1) CC06CG472(4) CCR06CG472(4)(1)(7)

50 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

5,100.0 C06(6)G512(5)5G5C(1) CC06CG512(5) CCR06CG512(5)(1)(7)
5,600.0 C06(6)G562(5)5G5C(1) CC06CG562(5) CCR06CG562(5)(1)(7)
6,200.0 C06(6)G622(5)5G5C(1) CC06CG622(5) CCR06CG622(5)(1)(7)
6,800.0 C06(6)G682(5)5G5C(1) CC06CG682(5) CCR06CG682(5)(1)(7)
7,500.0 C06(6)G752(5)5G5C(1) CC06CG752(5) CCR06CG752(5)(1)(7)

To complete Part Number, insert the following letters:
(1) Available Failure Rates: A (CC styles only); M, P, R & S (CCR styles only).
(2) Available Capacitance Tolerances: B, C.
(3) Available Capacitance Tolerances: B, C, D.
(4) Available Capacitance Tolerances: F, G, J.
(5) Available Capacitance Tolerances: F, G, J, K.
(6) Insert “2” for standard design, Style C062G Stand-offs are available

Insert “6” for stand-off design, Style C066G only as CCR’s, not available as CC.

(7) Add “V” for stand-off design, Style C066G

And leave blank for the flat bottom design (C062G)

(8) Available Capacitance Tolerances: G, J, K

}

KEMET

CAP. KEMET MILITARY STYLE MILITARY STYLE

pF PART NUMBER CC CCR

50 VOLT — C062/C066 SIZE (CC(R)06 PER MIL-PRF-20/36)

8,200.0

C06(6)G822(5)5G5C(1)

9,100.0
10,000.0
12,000.0
15,000.0
18,000.0

10,000.0 C512G103(5)1G5C(1) CC07CG103(5) CCR07CG103(5)(1)
12,000.0 C512G123(5)1G5C(1) CC07CG123(5) CCR07CG123(5)(1)

15,000.0 C512G153(5)5G5C(1) CC07CG153(5) CCR07CG153(5)(1)
18,000.0 C512G183(5)5G5C(1) CC07CG183(5) CCR07CG183(5)(1)
22,000.0 C512G223(5)5G5C(1) CC07CG223(5) CCR07CG223(5)(1)
27,000.0 C512G273(5)5G5C(1) CC07CG273(5) CCR07CG273(5)(1)
33,000.0 C512G333(5)5G5C(1) CC07CG333(5) CCR07CG333(5)(1)
39,000.0 C512G393(5)5G5C(1) CC07CG393(5) CCR07CG393(5)(1)
47,000.0 C512G473(5)5G5C(1) CC07CG473(5) CCR07CG473(5)(1)
56,000.0 C512G563(5)5G5C(1) CC07CG563(5) CCR07CG563(5)(1)
68,000.0 C512G683(5)5G5C(1) CC07CG683(5) CCR07CG683(5)(1)
83,000.0 C512G823(5)5G5C(1) CC07CG823(5) CCR07CG823(5)(1)

100,000.0

15,000.0 C522G153(8)1G5C(1) CC08CG153(8) CCR08CG153(8)(1)
18,000.0 C522G183(8)1G5C(1) CC08CG183(8) CCR08CG183(8)(1)

56,000.0 C522G563(8)5G5C(1) CC08CG563(8) CCR08CG563(8)(1)
68,000.0 C522G683(8)5G5C(1) CC08CG683(8

C06(6)G912(5)5G5C(1)
C06(6)G103(5)5G5C(1)
C06(6)G123(5)5G5C(1)
C06(6)G153(5)5G5C(1)
C06(6)G183(5)5G5C(1)

200 VOLT — C512 SIZE (CC(R)07 PER MIL-PRF-20/37)

2,200.0 C512G222(5)2G5C(1) CC07CG222(5) CCR07CG222(5)(1)

2,700.0 C512G272(5)2G5C(1) CC07CG272(5) CCR07CG272(5)(1)

3,300.0 C512G332(5)2G5C(1) CC07CG332(5) CCR07CG332(5)(1)

3,900.0 C512G392(5)2G5C(1) CC07CG392(5) CCR07CG392(5)(1)

4,700.0 C512G472(5)2G5C(1) CC07CG472(5) CCR07CG472(5)(1)

100 VOLT — C512 SIZE (CC(R)07 PER MIL-PRF-20/37)

5,600.0 C512G562(5)1G5C(1) CC07CG562(5) CCR07CG562(5)(1)

6,800.0 C512G682(5)1G5C(1) CC07CG682(5) CCR07CG682(5)(1)

8,200.0 C512G822(5)1G5C(1) CC07CG822(5) CCR07CG822(5)(1)

50 VOLT — C512 SIZE (CC(R)07 PER MIL-PRF-20/37)

C512G104(5)5G5C(1) CC07CG104(5) CCR07CG104(5)(1)

200 VOLT — C522 SIZE (CC(R)08 PER MIL-PRF-20/38)

3,900.0 C522G392(8)2G5C(1) CC08CG392(8) CCR08CG392(8)(1)

4,700.0 C522G472(8)2G5C(1) CC08CG472(8) CCR08CG472(8)(1)

100 VOLT — C522 SIZE (CC(R)08 PER MIL-PRF-20/38)

50 VOLT — C522 SIZE (CC(R)08 PER MIL-PRF-20/38)

CC06CG822(5) CCR06CG822(5)(1)(7)
CC06CG912(5) CCR06CG912(5)(1)(7)
CC06CG103(5) CCR06CG103(5)(1)(7)
CC06CG123(5) CCR06CG123(5)(1)(7)
CC06CG153(5) CCR06CG153(5)(1)(7)
CC06CG183(5) CCR06CG183(5)(1)(7)

) CCR08CG683(8)(1)

®

MIL-PRF-20

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 25

CERAMIC MOLDED/MIL-C-11015 (CK) & MIL-PRF-39014 (CKR)

KEMET

®

C062 (CK06, CKR06)

Lead Dia.

.025

(+.004

-.002)

W

.026

MIN.

H

L

S

W

.045

MAX.

H

1.25

MIN.

L

S

W

H

1.25

MIN.

L

S

W

Center Line of leads within .030" of Center Line of case.

H

1.25

MIN.

S

.026

MIN.

L

C052 (CK05, CKR05) C056 (CKR05)

C066 (CKR06)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

Lead Dia.

.025

(+.004

-.002)

1.25
MIN.

*

*

*

*

DL

C

1.50 Min.
(38.10)

1.50 Min.
(38.10)

CAPACITOR OUTLINE DRAWINGS (AXIAL LEADS)

DIMENSIONS — INCHES & (MILLIMETERS)

CASE MILITARY

SIZE EQUIVALENT STYLES

C114 CK12, CKR11 .160 ± .010 (4.06 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C124 CK13, CKR12 .250 ± .010 (6.35 ± .25) .090 ± .010 (2.29 ± .25) .020, +.000, -.003 (.51, +.00, -.08)

C192 CK14, CKR14 .390 ± .010 (9.91 ± .25) .140 ± .010 (3.56 ± .25) .025, +.002, -.002 (.64, +.05, -.05)

L D C

C202 CK15, CKR15 .500 ± .020 (12.70 ± .51) .250 ± .015 (6.35 ± .38) .025, +.002, -.002 (.64, +.05, -.05)

C222 CK16, CKR16 .690 ± .030 (17.53 ± .76) .350 ± .020 (8.89 ± .51) .025, +.002, -.002 (.64, +.05, -.05)

CAPACITOR OUTLINE DRAWINGS (RADIAL LEADS)

* Leads are .625 minimum when tape and reel packaged.

CASE EQUIVALENT H L W LEAD

SIZE STYLES HEIGHT LENGTH WIDTH SPACING

C052/
C056

C062/
C066

DIMENSIONS — INCHES & (MILLIMETERS)

MILITARY S

CK05, CKR05 .190 ± .010 (4.83 ± .25) .190 ± .010 (4.83 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

CK06, CKR06 .290 ± .010 (7.37 ± .25) .290 ± .010 (7.37 ± .25) .090 ± .010 (2.29 ± .25) .200 ± .015 (5.08 ± .38)

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]26

CERAMIC MOLDED/MIL-C-11015 & MIL-PRF-39014

K

102

052

C

5

K

A

X

2

C

CERAMIC
*CASE SIZE

(See Table Below)

SPECIFICATION

Military

T — MIL-PRF-39014
K — MIL-C-11015

CAPACITANCE

In picofarad code: First two digits are significant
figures and third is number of zeroes following
(except 9 indicates division by 10). Examples:

0.1 mF = 100,000 pF = 104 and 9.1 pF = 919.
See tables for Standard Values.

FAILURE RA TE

INTERNAL CONSTRUCTION

CAPACITANCE TOLERANCE

Standard

M— ±20%
K — ±10%

A — Not Applicable (Std.)
M— 1.0%
P — 0.1%
R — 0.01%
S — 0.001%

LEAD MA TERIAL

C — Standard

5 — Standard

WORKING
VOLTAGE

1 — 100
2 — 200
5 — 50

Standard tolerances for each Series are
shown in the repetitive parts lists.

*CASE SIZES

RADIAL AXIAL

C052 C114
C056 C124
C062 C192
C066 C202

C222

TEMPERA TURE CHARACTERISTIC

Capacitance Change With Temp.

Measured Measured

Without With Bias

KEMET Military EIA Temp. DC Bias (Rated

Designator Equivalent Equivalent Range, °C Voltage V oltage)

X BX X7R

-55 to ±15% +15%

(Stable) +125 -25%

R BR X7R -55 to ±15% +15%

(Stable) +125 -40%

**

**Part Number Example: C052K102K2X5CA (14 digits – no spaces)

ORDERING INFORMATION

®

KEMET

C114T (CKR11) THROUGH C222T (CKR16) PER MIL-PRF-39014

C114T (CKR11)

JK
103

KP0
37A

J for JAN
K for KEMET

Capacitance
Capacitance Tolerance, FR Level
& Date Code (Yr.)

Date and Lot Code

Four Digit Part No.

*Add “V” as the last
digit for stand-off leads.

Specification

Sheet No.

C114K (CK12) C124K (CK13)

KCK
12BX
102K
0037

Capacitance, pF Code, Capacitance Tolerance

Complete MIL Part No.

Manufacturer’s Name

C114K (CK12) THROUGH C222K (CK16) PER MIL-C-11015

KEMET, CK
Style (12 or 13), Temp. Char. (BX or BR)
Capacitance, pF Code, Capacitance Tolerance
Date Code

C052K (CK05) PER MIL-C-11015/18 & C062K (CK06) PER MIL-C-11015/19

Temperature Characteristic

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 27

Style

MARKING INFORMATION

C124T (CKR12)

CKR12
2657J
0037A
31433

C052/56T (CKR05) PER MIL-PRF-39014/01

Style
Dash No., J for JAN

Date & Lot Code
Source Code

(Federal Supply Code
for Manufacturers,
FSCM)

FRONT

M390
14/01
1579*

BACK

JK

0037

C062/66T (CKR06) PER MIL-PRF-39014/02

FRONT
M39014

2-1338
*KEMET

*Add “V” as the last digit
for stand-off leads.

FRONT

CK05
BX
102K

BACK

0037A
J200V

103K

C192K (CK14) C202K (CK15) C222K (CK16)

K100V

CK14BX

123K

0037

BACK

200V

0001

C192T (CKR14) C202T (CKR15) C222T (CKR16)

M39014
5-2125
KEMET
0037A
J50V
105K

A

JAN-KEMET
Date Code
Lot Code

Date & Lot Code
JAN & Voltage
Capacitance, pF Code, Capacitance Tolerance

KEMET, Voltage
Style (14, 15 or 16), Temp. Char. (BX or BR)
Capacitance, pF Code, Capacitance Tolerance
Date Code

K

Voltage
KEMET
Date Code

Complete Part Number
Manufacturer’s Name

Date & Lot Code
JAN & Voltage
Capacitance, pF Code, Capacitance

Tolerance

MIL-C-11015

MIL-PRF-39014

KEMET

®

CAP. TOL. KEMET

pF % PART NUMBER

1,000 10 C114(1)102K1X5C(2) CK12BX102K CKR11BX102K(2) 2637 2837 2037 2237
1,000 20 C114(1)102M1X5C(2) CK12BX102M CKR11BX102M(2) 2638 2838 2038 2238
1,200 10 C114(1)122K1X5C(2) CK12BX122K CKR11BX122K(2) 2639 2839 2039 2239
1,500 10 C114(1)152K1X5C(2) CK12BX152K CKR11BX152K(2) 2640 2840 2040 2240
1,500 20 C114(1)152M1X5C(2) CK12BX152M CKR11BX152M(2) 2641 2841 2041 2241
1,800 10 C114(1)182K1X5C(2) CK12BX182K CKR11BX182K(2) 2642 2842 2042 2242
2,200 10 C114(1)222K1X5C(2) CK12BX222K CKR11BX222K(2) 2643 2843 2043 2243
2,200 20 C114(1)222M1X5C(2) CK12BX222M CKR11BX222M(2) 2644 2844 2044 2244
2,700 10 C114(1)272K1X5C(2) CK12BX272K CKR11BX272K(2) 2645 2845 2045 2245
3,300 10 C114(1)332K1X5C(2) CK12BX332K CKR11BX332K(2) 2646 2846 2046 2246
3,300 20 C114(1)332M1X5C(2) CK12BX332M CKR11BX332M2) 2647 2847 2047 2247
3,900 10 C114(1)392K1X5C(2) CK12BX392K CKR11BX392K(2) 2648 2848 2048 2248
4,700 10 C114(1)472K1X5C(2) CK12BX472K CKR11BX472K(2) 2649 2849 2049 2249
4,700 20 C114(1)472M1X5C(2) CK12BX472M CKR11BX472M2) 2650 2850 2050 2250

5,600 10 C114(1)562K5X5C(2) CK12BX562K CKR11BX562K(2) 2651 2851 2051 2251
6,800 10 C114(1)682K5X5C(2) CK12BX682K CKR11BX682K(2) 2652 2852 2052 2252
6,800 20 C114(1)682M5X5C(2) CK12BX682M CKR11BX682M(2) 2653 2853 2053 2253

8,200 10 C114(1)822K5X5C(2) CK12BX822K CKR11BX822K(2) 2654 2854 2054 2254
10,000 10 C114(1)103K5X5C(2) CK12BX103K CKR11BX103K(2) 2655 2855 2055 2255
10,000 20 C114(1)103M5X5C(2) CK12BX103M CKR11BX103M(2) 2656 2856 2056 2256

5,600 10 C124(1)562K1X5C(2) CK13BX562K CKR12BX562K(2) 2657 2857 2057 2257

6,800 10 C124(1)682K1X5C(2) CK13BX682K CKR12BX682K(2

6,800 20 C124(1

8,200 10 C124(1)822K1X5C(2) CK13BX822K CKR12BX822K(2) 2660 2860 2060 2260
10,000 10 C124(1)103K1X5C(2) CK13BX103K CKR12BX103K(2) 2661 2861 2061 2261
10,000 20 C124(1)103M1X5C(2) CK13BX103M CKR12BX103M(2) 2662 2862 2062 2262

12,000 10 C124(1)123K5X5C(2) CK13BX123K CKR12BX123K(2) 2663 2863 2063 2263
15,000 10 C124(1)153K5X5C(2) CK13BX153K CKR12BX153K(2) 2664 2864 2064 2264
15,000 20 C124(1)153M5X5C(2) CK13BX153M CKR12BX153M(2) 2665 2865 2065 2265
18,000 10 C124(1)183K5X5C(2) CK13BX183K CKR12BX183K(2) 2666 2866 2066 2266
22,000 10 C124(1)223K5X5C(2) CK13BX223K CKR12BX223K(2) 2667 2867 2067 2267
22,000 20 C124(1)223M5X5C(2) CK13BX223M CKR12BX223M(2) 2668 2868 2068 2268
27,000 10 C124K273K5R5CA CK13BR273K
33,000 10 C124K333K5R5CA CK13BR333K
33,000 20 C124K333M5R5CA CK13BR333M
39,000 10 C124K393K5R5CA CK13BR393K
47,000 10 C124K473K5R5CA CK13BR473K
47,000 20 C124K473M5R5CA CK13BR473M

(1) Insert proper letter for specification: K — MIL-C-11015; T — MIL-PRF-39014 (2) Failure Rate Designator: A — Not applicable (MIL-C-11015); M — 1%/1000 Hours,
P — .1%/1000 Hours, R — .01% /1000 Hours, S — .001%/ 1000 Hours (MIL-PRF-39014)

CERAMIC MOLDED/AXIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

RATINGS & PART NUMBER REFERENCE

MIL-C-11015/20 MIL-PRF-39014/05

100 VOLT — C114 SIZE (MILITARY—CK12 or CKR11)

10 10 C114(1)100K1X5C(2) CK12BX100K CKR11BX100K(2) 2601 2801 2001 2201
10 20 C114(1)100M1X5C(2) CK12BX100M CKR11BX100M(2) 2602 2802 2002 2202
12 10 C114(1)120K1X5C(2) CK12BX120K CKR11BX120K(2) 2603 2803 2003 2203
15 10 C114(1)150K1X5C(2) CK12BX150K CKR11BX150K(2) 2604 2804 2004 2204
15 20 C114(1)150M1X5C(2) CK12BX150M CKR11BX150M(2) 2605 2805 2005 2205
18 10 C114(1)180K1X5C(2) CK12BX180K CKR11BX180K(2) 2606 2806 2006 2206
22 10 C114(1)220K1X5C(2) CK12BX220K CKR11BX220K(2) 2607 2807 2007 2207
22 20 C114(1)220M1X5C(2) CK12BX220M CKR11BX220M(2) 2608 2808 2008 2208
27 10 C114(1)270K1X5C(2) CK12BX270K CKR11BX270K(2) 2609 2809 2009 2209
33 10 C114(1)330K1X5C(2) CK12BX330K CKR11BX330K(2) 2610 2810 2010 2210
33 20 C114(1)330M1X5C(2) CK12BX330M CKR11BX330M(2) 2611 2811 2011 2211
39 10 C114(1)390K1X5C(2) CK12BX390K CKR11BX390K(2) 2612 2812 2012 2212
47 10 C114(1)470K1X5C(2) CK12BX470K CKR11BX470K(2) 2613 2813 2013 2213
47 20 C114(1)470M1X5C(2) CK12BX470M CKR11BX470M(2) 2614 2814 2014 2214
56 10 C114(1)560K1X5C(2) CK12BX560K CKR11BX560K(2) 2615 2815 2015 2215
68 10 C114(1)680K1X5C(2) CK12BX680K CKR11BX680K(2) 2616 2816 2016 2216
68 20 C114(1)680M1X5C(2) CK12BX680M CKR11BX680M(2) 2617 2817 2017 2217

82 10 C114(1)820K1X5C(2) CK12BX820K CKR11BX820K(2) 2618 2818 2018 2218
100 10 C114(1)101K1X5C(2) CK12BX101K CKR11BX101K(2) 2619 2819 2019 2219
100 20 C114(1)101M1X5C(2) CK12BX101M CKR11BX101M(2) 2620 2820 2020 2220
120 10 C114(1)121K1X5C(2) CK12BX121K CKR11BX121K(2) 2621 2821 2021 2221
150 10 C114(1)151K1X5C(2) CK12BX151K CKR11BX151K(2) 2622 2822 2022 2222
150 20 C114(1)151M1X5C(2) CK12BX151M CKR11BX151M(2) 2623 2823 2023 2223
180 10 C114(1)181K1X5C(2) CK12BX181K CKR11BX181K(2) 2624 2824 2024 2224
220 10 C114(1)221K1X5C(2) CK12BX221K CKR11BX221K(2) 2625 2825 2025 2225
220 20 C114(1)221M1X5C(2) CK12BX221M CKR11BX221M(2) 2626 2826 2026 2226
270 10 C114(1)271K1X5C(2) CK12BX271K CKR11BX271K(2) 2627 2827 2027 2227
330 10 C114(1)331K1X5C(2) CK12BX331K CKR11BX331K(2) 2628 2828 2028 2228
330 20 C114(1)331M1X5C(2) CK12BX331M CKR11BX331M(2) 2629 2829 2029 2229
390 10 C114(1)391K1X5C(2) CK12BX391K CKR11BX391K(2) 2630 2830 2030 2230
470 10 C114(1)471K1X5C(2) CK12BX471K CKR11BX471K(2) 2631 2831 2031 2231
470 20 C114(1)471M1X5C(2) CK12BX471M CKR11BX471M(2) 2632 2832 2032 2232
560 10 C114(1)561K1X5C(2) CK12BX561K CKR11BX561K(2) 2633 2833 2033 2233
680 10 C114(1)681K1X5C(2) CK12BX681K CKR11BX681K(2) 2634 2834 2034 2234
680 20 C114(1)681M1X5C(2) CK12BX681M CKR11BX681M(2) 2635 2835 2035 2235
820 10 C114(1)821K1X5C(2) CK12BX821K CKR11BX821K(2) 2636 2836 2036 2236

50 VOLT — C114 SIZE (MILITARY—CK12 or CKR11)

100 VOLT — C124 SIZE (MILITARY—CK13 or CKR12)

)682M1X5C(2) CK13BX682M CKR12BX682M(2) 2659 2859 2059 2259

50 VOLT — C124 SIZE (MILITARY—CK13 or CKR12)

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]28

MIL-PRF-39014/05 For Failure Rate Levels (2)

M P R S

) 2658 2858 2058 2258

CERAMIC MOLDED/AXIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

RATINGS & PART NUMBER REFERENCE

CAP. TOL. KEMET

pF % PART NUMBER

27,000 10 C124T273K5X5C(2) CKR12BX273K(2) 2669 2869 2069 2269
33,000 10 C124T333K5X5C(2
33,000 20 C124T333M5X5C(2
39,000 10 C124T393K5X5C(2
47,000 10 C124T473K5X5C(2
47,000 20 C124T473M5X5C(2

12,000 10 C192(1)123K1X5C(2) CK14BX123K CKR14BX123K(2) 2675 2875 2075 2275
15,000 10 C192(1
15,000 20 C192(1
18,000 10 C192(1
22,000 10 C192(1
22,000 20 C192(1
27,000 10 C192(1
33,000 10 C192(1
33,000 20 C192(1
39,000 10 C192(1)
47,000 10 C192(1
47,000 20 C192(1
56,000 10 C192(1
68,000 10 C192(1
68,000 20 C192(1

82,000 10 C192(1
100,000 10 C192(1
100,000 20 C192(1

56,000 10 C192T563K5X5C(2) CKR14BX563K(2) 2687 2887 2087 2287

68,000 10 C192T683K5X5C(2

68,000 20 C192T683M5X5C(2

82,000 10 C192T823K5X5C(2
100,000 10 C192T104K5X5C(2
100,000 20 C192T104M5X5C(2
120,000 10 C192(1
150,000 10 C192(1
150,000 20 C192(1
180,000 10 C192(1
220,000 10 C192(1
220,000 20 C192(1
270,000 10 C192(1

56,000 10 C202T563K1X5C(2) CKR15BX563K(2) 2706 2906 2106 2306

68,000 10 C202T683K1X5C(2

68,000 20 C202T683M1X5C(2

82,000 10 C202T823K1X5C(2
100,000 10 C202(1
100,000 20 C202(1
120,000 10 C202(1
150,000 10 C202(1
150,000 20 C202(1
180,000 10 C202(1
220,000 10 C202(1
220,000 20 C202(1
270,000 10 C202(1
330,000 10 C202(1
330,000 20 C202(1

470,000 10 C202(1)474K5R5C(2) CK15BR474K CKR15BR474K(2) 2721 2921 2121 2321
470,000 20 C202(1
680,000 10 C202T684K5R5C(2
680,000 20 C202T684M5R5C(2

1,000,000 10 C202(1
1,000,000 20 C202(1

470,000 10 C222(1)474K1R5C(2) CK16BR474K CKR16BR474K(2) 2727 2927 2127 2327
470,000 20 C222(1
680,000 10 C222T684K1R5C(2
680,000 20 C222T684M1R5C(2

1,000,000 10 C222(1
1,000,000 20 C222(1

2,200,000 10 C222(1)225K5R5C(2) CK16BR225K CKR16BR225K(2) 2733 2933 2133 2333
2,200,000 20 C222(1
3,300,000 10 C222(1
3,300,000 20 C222(1

(1) Insert proper letter for specification: K — MIL-C-11015; T — MIL-PRF-39014 (2) Failure Rate Designator: A — Not applicable (MIL-C-11015); M — 1%/1000 Hours,
P — .1%/1000 Hours, R — .01% /1000 Hours, S — .001%/ 1000 Hours (MIL-PRF-39014)

50 VOLT — C124 SIZE (MILITARY—CK13 or CKR12) (Cont’d)

) CKR12BX333K(2) 2670 2870 2070 2270

) CKR12BX333M(2) 2671 2871 2071 2271
) CKR12BX393K(2) 2672 2872 2072 2272
) CKR12BX473K(2) 2673 2873 2073 2273

) CKR12BX473M(2) 2674 2874 2074 2274

100 VOLT — C192 SIZE (MILITARY—CK14 or CKR14)

)153K1X5C(2) CK14BX153K CKR14BX153K(2) 2676 2876 2076 2276
)153M1X5C(2) CK14BX153M CKR14BX153M(2) 2677 2877 2077 2277
)183K1X5C(2) CK14BX183K CKR14BX183K(2) 2678 2878 2078 2278
)223K1X5C(2) CK14BX223K CKR14BX223K(2) 2679 2879 2079 2279
)223M1X5C(2) CK14BX223M CKR14BX223M(2) 2680 2880 2080 2280
)273K1X5C(2) CK14BX273K CKR14BX273K(2) 2681 2881 2081 2281
)333K1X5C(2) CK14BX333K CKR14BX333K(2) 2682 2882 2082 2282
)333M1X5C(2) CK14BX333M CKR14BX333M(2) 2683 2883 2083 2283

393K1X5C(2) CK14BX393K CKR14BX393K(2) 2684 2884 2084 2284
)473K1X5C(2) CK14BX473K CKR14BX473K(2) 2685 2885 2085 2285
)473M1X5C(2) CK14BX473M CKR14BX473M(2) 2686 2886 2086 2286
)563K1R5C(2) CK14BR563K CKR14BR563K(2) 2693 2893 2093 2293
)683K1R5C(2) CK14BR683K CKR14BR683K(2) 2694 2894 2094 2294
)683M1R5C(2) CK14BR683M CKR14BR683M(2) 2695 2895 2095 2295
)823K1R5C(2) CK14BR823K CKR14BR823K(2) 2696 2896 2096 2296
)104K1R5C(2) CK14BR104K CKR14BR104K(2) 2697 2897 2097 2297
)104M1R5C(2) CK14BR104M CKR14BR104M(2) 2698 2898 2098 2298

50 VOLT — C192 SIZE (MILITARY—CK14 or CKR14)

) CKR14BX683K(2) 2688 2888 2088 2288

) CKR14BX683M(2) 2689 2889 2089 2289
) CKR14BX823K(2) 2690 2890 2090 2290
) CKR14BX104K(2) 2691 2891 2091 2291

) CKR14BX104M(2) 2692 2892 2092 2292

)124K5R5C(2) CK14BR124K CKR14BR124K(2) 2699 2899 2099 2299
)154K5R5C(2) CK14BR154K CKR14BR154K(2) 2700 2900 2100 2300
)154M5R5C(2) CK14BR154M CKR14BR154M(2) 2701 2901 2101 2301
)184K5R5C(2) CK14BR184K CKR14BR184K(2) 2702 2902 2102 2302
)224K5R5C(2) CK14BR224K CKR14BR224K(2) 2703 2903 2103 2303
)224M5R5C(2) CK14BR224M CKR14BR224M(2) 2704 2904 2104 2304
)274K5R5C(2) CK14BR274K CKR14BR274K(2) 2705 2905 2105 2305

100 VOLT — C202 SIZE (MILITARY—CK15 or CKR15)

) CKR15BX683K(2) 2707 2907 2107 2307

) CKR15BX683M(2) 2708 2908 2108 2308
) CKR15BX823K(2) 2709 2909 2109 2309

)104K1X5C(2) CK15BX104K CKR15BX104K(2) 2710 2910 2110 2310
)104M1X5C(2) CK15BX104M CKR15BX104M(2) 2711 2911 2111 2311
)124K1R5C(2) CK15BR124K CKR15BR124K(2) 2712 2912 2112 2312
)154K1R5C(2) CK15BR154K CKR15BR154K(2) 2713 2913 2113 2313
)154M1R5C(2) CK15BR154M CKR15BR154M(2) 2714 2914 2114 2314
)184K1R5C(2) CK15BR184K CKR15BR184K(2
)224K1R5C(2) CK15BR224K CKR15BR224K(2) 2716 2916 2116 2316
)224M1R5C(2) CK15BR224M CKR15BR224M(2) 2717 2917 2117 2317
)274K1R5C(2) CK15BR274K CKR15BR274K(2) 2718 2918 2118 2318
)334K1R5C(2) CK15BR334K CKR15BR334K(2) 2719 2919 2119 2319
)334M1R5C(2) CK15BR334M CKR15BR334M(2) 2720 2920 2120 2320

50 VOLT — C202 SIZE (MILITARY—CK15 or CKR15)

)474M5R5C(2) CK15BR474M CKR15BR474M(2

) CKR15BR684K(2) 2723 2923 2123 2323

) CKR15BR684M(2) 2724 2924 2124 2324
)105K5R5C(2) CK15BR105K CKR15BR105K(2) 2725 2925 2125 2325
)105M5R5C(2) CK15BR105M CKR15BR105M(2) 2726 2926 2126 2326

100 VOLT — C222 SIZE (MILITARY—CK16 or CKR16)

)474M1R5C(2) CK16BR474M CKR16BR474M(2) 2728 2928 2128 2328

) CKR16BR684K(2) 2729 2929 2129 2329

) CKR16BR684M(2) 2730 2930 2130 2330
)105K1R5C(2) CK16BR105K CKR16BR105K(2) 2731 2931 2131 2331
)105M1R5C(2) CK16BR105M CKR16BR105M(2) 2732 2932 2132 2332

50 VOLT — C222 SIZE (MILITARY—CK16 or CKR16)

)225M5R5C(2) CK16BR225M CKR16BR225M(2) 2734 2934 2134 2334
)335K5R5C(2) CK16BR335M CKR16BR335K(2) 2735 2935 2135 2335
)335M5R5C(2) CK16BR335M CKR16BR335M(2) 2736 2936 2136 2336

MIL-C-11015/20 MIL-PRF-39014/05

MIL-PRF-39014/05 For Failure Rate Levels (2)

M P R S

) 2715 2915 2115 2315

) 2722 2922 2122 2322

KEMET

®

MIL-C-11015

MIL-PRF-39014

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 29

KEMET

®

CAP. TOL. KEMET

pF % PART NUMBER

100 10 C05(4
100 20 C05(4)(1)101M2X5C(2) CK05BX101M CKR05BX101M(2)(3) 1220(3) 1260(3) 1300(3) 1340(3)
120 10 C05(4)(1)121K2X5C(2) CK05BX121K CKR05BX121K(2)(3) 1221(3) 1261(3) 1301(3) 1341(3)
150 10 C05(4)(1)151K2X5C(2) CK05BX151K CKR05BX151K(2)(3) 1222(3) 1262(3) 1302(3) 1342(3)
150 20 C05(4)(1)151M2X5C(2) CK05BX151M CKR05BX151M(2)(3) 1223(3) 1263(3) 1303(3) 1343(3)
180 10 C05(4)(1)181K2X5C(2) CK05BX181K CKR05BX181K(2)(3) 1224(3) 1264(3) 1304(3) 1344(3)
220 10 C05(4)(1)221K2X5C(2) CK05BX221K CKR05BX221K(2)(3) 1225(3
220 20 C05(4
270 10 C05(4)(1)271K2X5C(2) CK05BX271K CKR05BX271K(2)(3) 1227(3) 1267(3) 1307(3) 1347(3)
330 10 C05(4)(1)331K2X5C(2) CK05BX331K CKR05BX331K(2)(3) 1228(3) 1268(3) 1308(3) 1348(3)
330 20 C05(4)(1)331M2X5C(2) CK05BX331M CKR05BX331M(2)(3) 1229(3) 1269(3) 1309(3) 1349(3)
390 10 C05(4)(1)391K2X5C(2) CK05BX391K CKR05BX391K(2)(3) 1230(3) 1270(3) 1310(3) 1350(3)
470 10 C05(4)(1)471K2X5C(2) CK05BX471K CKR05BX471K(2)(3) 1231(3) 1271(3) 1311(3) 1351(3)
470 20 C05(4)(1)471M2X5C(2) CK05BX471M CKR05BX471M(2)(3) 1232(3) 1272(3) 1312(3) 1352(3)
560 10 C05(4)(1)561K2X5C(2) CK05BX561K CKR05BX561K(2)(3) 1233(3) 1273(3) 1313(3) 1353(3)
680 10 C05(4)(1)681K2X5C(2) CK05BX681K CKR05BX681K(2)(3) 1234(3) 1274(3) 1314(3) 1354(3)
680 20 C05(4)(1)681M2X5C(2) CK05BX681M CKR05BX681M(2)(3) 1235(3) 1275(3) 1315(3) 1355(3)

820 10 C05(4)(1)821K2X5C(2) CK05BX821K CKR05BX821K(2)(3) 1236(3) 1276(3) 1316(3) 1356(3)
1,000 10 C05(4)(1)102K2X5C(2) CK05BX102K CKR05BX102K(2)(3) 1237(3) 1277(3) 1317(3) 1357(3)
1,000 20 C05(4)(1)102M2X5C(2) CK05BX102M CKR05BX102M(2)(3) 1238(3) 1278(3) 1318(3) 1358(3)

1,200 10 C05(4)(1)122K1X5C(2) CK05BX122K CKR05BX122K(2)(3) 1239(3) 1279(3) 1319(3) 1359(3)
1,500 10 C05(4)(1)152K1X5C(2) CK05BX152K CKR05BX152K(2)(3) 1240(3) 1280(3) 1320(3) 1360(3)
1,500 20 C05(4)(1)152M1X5C(2) CK05BX152M CKR05BX152M(2)(3) 1441(3) 1481(3) 1521(3) 1561(3)
1,800 10 C05(4)(1)182K1X5C(2) CK05BX182K CKR05BX182K(2)(3) 1442(3) 1482(3) 1522(3) 1562(3)
2,200 10 C05(4)(1)222K1X5C(2) CK05BX222K CKR05BX222K(2)(3) 1443(3) 1483(3) 1523(3) 1563(3)
2,200 20 C05(4)(1)222M1X5C(2) CK05BX222M CKR05BX222M(2)(3) 1444(3) 1484(3) 1524(3) 1564(3)
2,700 10 C05(4)(1)272K1X5C(2) CK05BX272K CKR05BX272K(2)(3) 1445(3) 1485(3) 1525(3) 1565(3)
3,300 10 C05(4)(1)332K1X5C(2) CK05BX332K CKR05BX332K(2)(3) 1446(3) 1486(3) 1526(3) 1566(3)
3,300 20 C05(4)(1)332M1X5C(2) CK05BX332M CKR05BX332M(2)(3) 1447(3) 1487(3) 1527(3) 1567(3)
3,900 10 C05(4)(1)392K1X5C(2) CK05BX392K CKR05BX392K(2)(3) 1448(3) 1488(3) 1528(3) 1568(3)
4,700 10 C05(4)(1)472K1X5C(2
4,700 20 C05(4
5,600 10 C05(4)(1)562K1X5C(2) CK05BX562K CKR05BX562K(2)(3) 1451(3) 1491(3) 1531(3) 1571(3)
6,800 10 C05(4)(1)682K1X5C(2) CK05BX682K CKR05BX682K(2)(3) 1452(3) 1492(3) 1532(3) 1572(3)
6,800 20 C05(4)(1)682M1X5C(2) CK05BX682M CKR05BX682M(2)(3) 1453(3) 1493(3) 1533(3) 1573(3)
8,200 10 C05(4)(1)822K1X5C(2) CK05BX822K CKR05BX822K(2)(3) 1454(3) 1494(3) 1534(3) 1574(3)

10,000 10 C05(4)(1)103K1X5C(2) CK05BX103K CKR05BX103K(2)(3) 1455(3) 1495(3) 1535(3) 1575(3)
10,000 20 C05(4)(1)103M1X5C(2

12,000 10 C05(4)(1)123K5X5C(2) CK05BX123K CKR05BX123K(2)(3) 1457(3) 1497(3) 1537(3) 1577(3)
15,000 10 C05(4)(1)153K5X5C(2) CK05BX153K CKR05BX153K(2)(3) 1458(3) 1498(3) 1538(3) 1578(3)
15,000 20 C05(4)(1)153M5X5C(2) CK05BX153M CKR05BX153M(2)(3) 1459(3) 1499(3) 1539(3) 1579(3)
18,000 10 C05(4)(1)183K5X5C(2) CK05BX183K CKR05BX183K(2)(3) 1460(3) 1500(3) 1540(3) 1580(3)
22,000 10 C05(4)(1)223K5X5C(2) CK05BX223K CKR05BX223K(2)(3) 1461(3) 1501(3) 1541(3) 1581(3)
22,000 20 C05(4)(1)223M5X5C(2) CK05BX223M CKR05BX223M(2)(3) 1462(3) 1502(3) 1542(3) 1582(3)
27,000 10 C05(4)(1)273K5X5C(2) CK05BX273K CKR05BX273K(2)(3) 1463(3) 1503(3) 1543(3) 1583(3)
33,000 10 C05(4)(1)333K5X5C(2) CK05BX333K CKR05BX333K(2)(3) 1464(3) 1504(3) 1544(3) 1584(3)
33,000 20 C05(4)(1)333M5X5C(2) CK05BX333M CKR05BX333M(2)(3) 1465(3) 1505(3) 1545(3) 1585(3)
39,000 10 C05(4)(1)393K5X5C(2) CK05BX393K CKR05BX393K(2)(3) 1466(3) 1506(3) 1546(3) 1586(3)
47,000 10 C05(4)(1)473K5X5C(2) CK05BX473K CKR05BX473K(2)(3) 1467(3) 1507(3) 1547(3) 1587(3)
47,000 20 C05(4)(1)473M5X5C(2) CK05BX473M CKR05BX473M(2)(3) 1468(3) 1508(3) 1548(3) 1588(3)
56,000 10 C05(4)(1)563K5X5C(2) CK05BX563K CKR05BX563K(2)(3) 1469(3) 1509(3) 1549(3) 1589(3)
68,000 10 C05(4)(1)683K5X5C(2) CK05BX683K CKR05BX683K(2)(3) 1470(3) 1510(3) 1550(3) 1590(3)
68,000 20 C05(4)(1)683M5X5C(2) CK05BX683M CKR05BX683M(2)(3) 1471(3) 1511(3) 1551(3) 1591(3)

82,000 10 C05(4)(1)823K5X5C(2) CK05BX823K CKR05BX823K(2)(3) 1472(3) 1512(3) 1552(3) 1592(3)
100,000 10 C05(4)(1)104K5X5C(2) CK05BX104K CKR05BX104K(2)(3) 1473(3) 1513(3) 1553(3) 1593(3)
100,000 20 C05(4)(1)104M5X5C(2) CK05BX104M CKR05BX104M(2)(3) 1474(3) 1514(3) 1554(3) 1594(3)

(1) Insert proper letter for specification: K — MIL-C-11015; T — MIL-PRF-39014 (2) Failure Rate Designator: A — Not applicable (MIL-C-11015); M — 1%/1000 Hours,
P — .1%/1000 Hours, R — .01% /1000 Hours, S — .001%/ 1000 Hours (MIL-PRF-39014)
(3) Insert “V” for standard design (C056). Leave blank for the flat bottom design (C052).
(4) Insert “2” for standard design (Style C052) Note: Stand-offs are available only

Insert “6” for stand-off design (Style C056) with the CKR, not the CK.

30

CERAMIC MOLDED/RADIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

RATINGS & PART NUMBER REFERENCE

MIL-C-11015/18 MIL-PRF-39014/01

10 10 C05(4)(1)100K2X5C(2) CK05BX100K CKR05BX100K(2)(3) 1201(3) 1241(3) 1281(3) 1321(3)
10 20 C05(4)(1)100M2X5C(2) CK05BX100M CKR05BX100M(2)(3) 1202(3) 1242(3) 1282(3) 1322(3)
12 10 C05(4)(1)120K2X5C(2) CK05BX120K CKR05BX120K(2)(3) 1203(3) 1243(3) 1283(3) 1323(3)
15 10 C05(4)(1)150K2X5C(2) CK05BX150K CKR05BX150K(2)(3) 1204(3) 1244(3) 1284(3) 1324(3)
15 20 C05(4)(1)150M2X5C(2) CK05BX150M CKR05BX150M(2)(3) 1205(3) 1245(3) 1285(3) 1325(3)
18 10 C05(4)(1)180K2X5C(2) CK05BX180K CKR05BX180K(2)(3) 1206(3) 1246(3) 1286(3) 1326(3)
22 10 C05(4)(1)220K2X5C(2) CK05BX220K CKR05BX220K(2)(3) 1207(3) 1247(3) 1287(3) 1327(3)
22 20 C05(4)(1)220M2X5C(2) CK05BX220M CKR05BX220M(2)(3) 1208(3) 1248(3) 1288(3) 1328(3)
27 10 C05(4)(1)270K2X5C(2) CK05BX270K CKR05BX270K(2)(3) 1209(3) 1249(3) 1289(3) 1329(3)
33 10 C05(4)(1)330K2X5C(2) CK05BX330K CKR05BX330K(2)(3) 1210(3) 1250(3) 1290(3) 1330(3)
33 20 C05(4)(1)330M2X5C(2) CK05BX330M CKR05BX330M(2)(3) 1211(3) 1251(3) 1291(3) 1331(3)
39 10 C05(4)(1)390K2X5C(2) CK05BX390K CKR05BX390K(2)(3) 1212(3) 1252(3) 1292(3) 1332(3)
47 10 C05(4)(1)470K2X5C(2) CK05BX470K CKR05BX470K(2)(3) 1213(3) 1253(3) 1293(3) 1333(3)
47 20 C05(4)(1)470M2X5C(2) CK05BX470M CKR05BX470M(2)(3) 1214(3) 1254(3) 1294(3) 1334(3)
56 10 C05(4)(1)560K2X5C(2) CK05BX560K CKR05BX560K(2)(3) 1215(3) 1255(3) 1295(3) 1335(3)
68 10 C05(4)(1)680K2X5C(2) CK05BX680K CKR05BX680K(2)(3) 1216(3) 1256(3) 1296(3) 1336(3)
68 20 C05(4)(1)680M2X5C(2) CK05BX680M CKR05BX680M(2)(3) 1217(3) 1257(3) 1297(3) 1337(3)
82 10 C05(4)(1)820K2X5C(2) CK05BX820K CKR05BX820K(2)(3) 1218(3

)(1)101K2X5C(2) CK05BX101K CKR05BX101K(2)(3) 1219(3) 1259(3) 1299(3) 1339(3)

)(1)221M2X5C(2) CK05BX221M CKR05BX221M(2)(3) 1226(3) 1266(3) 1306(3) 1346(3)

)(1)472M1X5C(2) CK05BX472M CKR05BX472M(2)(3) 1450(3) 1490(3) 1530(3) 1570(3)

200 VOLT — C052/C056 SIZE (MILITARY—CK05 or CKR05)

100 VOLT — C052/C056 SIZE (MILITARY—CK05 or CKR05)

) CK05BX472K CKR05BX472K(2)(3) 1449(3) 1489(3) 1529(3) 1569(3)

) CK05BX103M CKR05BX103M(2)(3) 1456(3) 1496(3) 1536(3) 1576(3)

50 VOLT — C052/C056 SIZE (MILITARY—CK05 or CKR05)

}

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]

MIL-PRF-39014/01 For Failure Rate Levels (2)

M P R S

) 1258(3) 1298(3) 1338(3)

) 1265(3) 1305(3) 1345(3)

CERAMIC MOLDED/RADIAL — MIL-C-11015 & MIL-PRF-39014

STABLE TEMPERATURE CHARACTERISTICS—BX & BR (EIA-X7R)

RATINGS & PART NUMBER REFERENCE

CAP. TOL. KEMET

pF % PART NUMBER

1,200 10 C06(4)(1)122K2X5C(2) CK06BX122K CKR06BX122K(2)(3) 1201(3) 1241(3) 1281(3) 1321(3)
1,500 10 C06(4)(1)152K2X5C(2) CK06BX152K CKR06BX152K(2)(3) 1202(3) 1242(3) 1282(3) 1322(3)
1,500 20 C06(4)(1)152M2X5C(2) CK06BX152M CKR06BX152M(2)(3) 1203(3) 1243(3) 1283(3) 1323(3)
1,800 10 C06(4)(1)182K2X5C(2) CK06BX182K CKR06BX182K(2)(3) 1204(3) 1244(3) 1284(3) 1324(3)
2,200 10 C06(4)(1)222K2X5C(2) CK06BX222K CKR06BX222K(2)(3) 1206(3) 1246(3) 1286(3) 1326(3)
2,200 20 C06(4)(1)222M2X5C(2) CK06BX222M CKR06BX222M(2)(3) 1207(3) 1247(3) 1287(3) 1327(3)
2,700 10 C06(4)(1)272K2X5C(2) CK06BX272K CKR06BX272K(2)(3) 1208(3) 1248(3) 1288(3) 1328(3)
3,300 10 C06(4)(1)332K2X5C(2) CK06BX332K CKR06BX332K(2)(3) 1209(3) 1249(3) 1289(3) 1329(3)
3,300 20 C06(4)(1)332M2X5C(2) CK06BX332M CKR06BX332M(2)(3) 1210(3) 1250(3) 1290(3) 1330(3)
3,900 10 C06(4)(1)392K2X5C(2) CK06BX392K CKR06BX392K(2)(3) 1211(3) 1251(3) 1291(3) 1331(3)
4,700 10 C06(4)(1)472K2X5C(2) CK06BX472K CKR06BX472K(2)(3) 1212(3) 1252(3) 1292(3) 1332(3)
4,700 20 C06(4)(1)472M2X5C(2) CK06BX472M CKR06BX472M(2)(3) 1213(3) 1253(3) 1293(3) 1333(3)
5,600 10 C06(4)(1)562K2X5C(2) CK06BX562K CKR06BX562K(2)(3) 1214(3) 1254(3) 1294(3) 1334(3)
6,800 10 C06(4)(1)682K2X5C(2) CK06BX682K CKR06BX682K(2)(3) 1215(3) 1255(3) 1295(3) 1335(3)
6,800 20 C06(4)(1)682M2X5C(2) CK06BX682M CKR06BX682M(2)(3) 1216(3) 1256(3) 1296(3) 1336(3)

8,200 10 C06(4)(1)822K2X5C(2) CK06BX822K CKR06BX822K(2)(3) 1217(3) 1257(3) 1297(3) 1337(3)
10,000 10 C06(4)(1)103K2X5C(2) CK06BX103K CKR06BX103K(2)(3) 1218(3) 1258(3) 1298(3) 1338(3)
10,000 20 C06(4)(1)103M2X5C(2) CK06BX103M CKR06BX103M(2)(3) 1219(3) 1259(3) 1299(3) 1339(3)

12,000 10 C06(4)(1)123K1X5C(2) CK06BX123K CKR06BX123K(2)(3) 1231(3
15,000 10 C06(4
15,000 20 C062K153M1X5CA CK06BX153M
18,000 10 C06(4)(1)183K1X5C(2) CK06BX183K CKR06BX183K(2)(3) 1221(3) 1261(3) 1301(3) 1341(3)
22,000 10 C06(4)(1)223K1X5C(2) CK06BX223K CKR06BX223K(2)(3) 1222(3
22,000 20 C062K223M1X5CA CK06BX223M
27,000 10 C06(4
33,000 10 C06(4)(1)333K1X5C(2) CK06BX333K CKR06BX333K(2)(3) 1223(3) 1263(3) 1303(3) 1343(3)
33,000 20 C062K333M1X5CA CK06BX333M
39,000 10 C06(4)(1)393K1X5C(2) CK06BX393K CKR06BX393K(2)(3) 1224(3) 1264(3) 1304(3) 1344(3)
47,000 10 C06(4)(1)473K1X5C(2) CK06BX473K CKR06BX473K(2)(3) 1225(3) 1265(3) 1305(3) 1345(3)
47,000 20 C062K473M1X5CA CK06BX473M
56,000 10 C06(4)(1)563K1X5C(2) CK06BX563K CKR06BX563K(2)(3) 1226(3) 1266(3) 1306(3) 1346(3)
68,000 10 C06(4)(1)683K1X5C(2) CK06BX683K CKR06BX683K(2)(3) 1227(3) 1267(3) 1307(3) 1347(3)
68,000 20 C062K683M1X5CA CK06BX683M
82,000 10 C06(4)(1)823K1X5C(2) CK06BX823K CKR06BX823K(2)(3) 1229(3) 1269(3) 1309(3) 1349(3)

100,000 10 C06(4)(1)104K1X5C(2) CK06BX104K CKR06BX104K(2)(3) 1230(3) 1270(3) 1310(3) 1350(3)
100,000 20 C062K104M1X5CA CK06BX104M

120,000 10 C06(4)(1)124K5X5C(2) CK06BX124K CKR06BX124K(2)(3) 1233(3) 1273(3) 1313(3) 1353(3)
150,000 10 C06(4)(1)154K5X5C(2) CK06BX154K CKR06BX154K(2)(3) 1234(3) 1274(3) 1314(3) 1354(3)
150,000 20 C062K154M5X5CA CK06BX154M
180,000 10 C06(4)(1)184K5X5C(2) CK06BX184K CKR06BX184K(2)(3) 1235(3) 1275(3) 1315(3) 1355(3)
220,000 10 C06(4)(1)224K5X5C(2) CK06BX224K CKR06BX224K(2)(3) 1236(3) 1276(3) 1316(3) 1356(3)
220,000 20 C062K224M5X5CA CK06BX224M
270,000 10 C06(4)(1)274K5X5C(2) CK06BX274K CKR06BX274K(2)(3) 1237(3) 1277(3) 1317(3) 1357(3)
330,000 10 C06(4)(1)334K5X5C(2) CK06BX334K CKR06BX334K(2)(3) 1238(3) 1278(3) 1318(3) 1358(3)
330,000 20 C062K334M5X5CA CK06BX334M
390,000 10 C06(4)(1)394K5X5C(2) CK06BX394K CKR06BX394K(2)(3) 1239(3) 1279(3) 1319(3) 1359(3)
470,000 10 C06(4)(1)474K5X5C(2) CK06BX474K CKR06BX474K(2)(3) 1240(3) 1280(3) 1320(3) 1360(3)
470,000 20 C062K474M5X5CA CK06BX474M
560,000 10 C06(4)(1)564K5X5C(2) CK06BX564K CKR06BX564K(2)(3) 1404(3) 1408(3) 1412(3) 1416(3)
680,000 10 C06(4)(1)684K5X5C(2
680,000 20 C062K684M5X5CA CK06BX684M

820,000 10 C06(4
1,000,000 10 C06(4)(1)105K5X5C(2) CK06BX105K CKR06BX105K(2)(3) 1407(3) 1411(3) 1415(3) 1419(3)
1,000,000 20 C062K105M5X5CA CK06BX105M

(1) Insert proper letter for specification: K — MIL-C-11015; T — MIL-PRF-39014.
(2) Failure Rate Designator: A — Not applicable (MIL-C-11015); M — 1%/1000 Hours, P — .1%/1000 Hours, R — .01%/1000 Hours, S — .001%/1000 Hours (MIL-PRF-39014)
(3) Add “V” for stand-off design (C066). Leave blank for the flat bottom design (C062).
(4) Insert “2” for standard design (Style C062). Insert “6” for stand-off design (Style C066). Note: Stand-offs are available only with the CKR, not the CK.

)(1)153K1X5C(2) CK06BX153K CKR06BX153K(2)(3) 1220(3) 1260(3) 1300(3) 1340(3)

)(1)273K1X5C(2) CK06BX273K CKR06BX273K(2)(3) 1232(3) 1272(3) 1312(3) 1352(3)

)(1)824K5X5C(2) CK06BX824K CKR06BX824K(2)(3) 1406(3) 1410(3) 1414(3) 1418(3)

200 VOLT — C062/C066 SIZE (MILITARY—CK06 or CKR06)

100 VOLT — C062/C066 SIZE (MILITARY—CK06 or CKR06)

50 VOLT — C062/C066 SIZE (MILITARY—CK06 or CKR06)

) CK06BX684K CKR06BX684K(2)(3) 1405(3) 1409(3) 1413(3) 1417(3)

MIL-C-11015/19 MIL-PRF-39014/02

MIL-PRF-39014/02 For Failure Rate Levels (2)

M P R S

) 1271(3) 1311(3) 1351(3)

) 1262(3) 1302(3) 1342(3)

KEMET

®

MIL-C-11015

MIL-PRF-39014

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 31

CERAMIC LEADED

KEMET

®

KEMET

®

KEMET

®

Adhesive Tape

Adhesive Tape

Kraft Paper

Interleaving

Figure 1

Figure 2

31/4"

(82.6)

.655" ±0.010"

(16.6 ±0.25)

10.5" - 14"
(26.67 -

35.56cm)

.059" to .315"
Greater Than

Component

Length

*

Hub

1

/8"

(3.18)

Figure 3

See Table 1

(B)

.250" Nom.

(6.35)

*

.047" Max

(1.20)

See Table 1 (A)

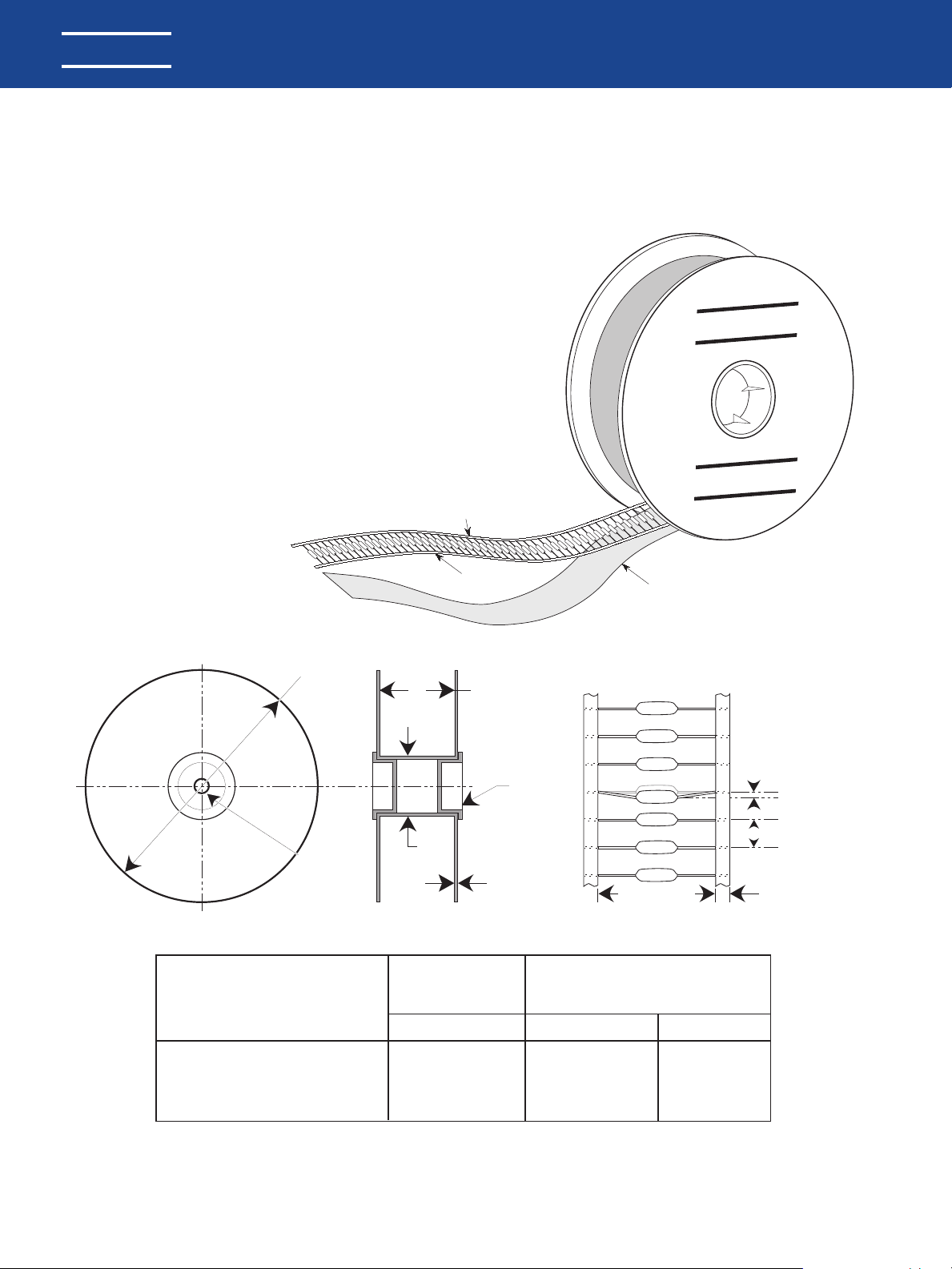

Ceramic Axial

Lead Tape and Reel Packaging

KEMET offers standard reeling of Molded and Conformally
Coated Axial Leaded Ceramic Capacitors for automatic insertion
or lead forming machines per EIA specification RS-296.

Paper (50 lb.) test minimum is inserted between the layers of
capacitors wound on reels for component pitch ≤ 0.400".
Capacitor lead length may extend only a maximum of .0625"
(1.59mm) beyond the tapes' edges. Capacitors are centered in a
row between the two tapes and will deviate only ± 0.031
(0.79mm) from the row center. A minimum of 36" (91.5 cm) leader
tape is provided at each end of the reel capacitors. Universal
splicing clips are used to connect the tape. Standard reel
quantities are shown on page 34.

Dimensions in Inches & (Millimeters)

* Not Available for Conformally Coated Parts.

Component

Body Diameter

Component

Pitch "A"

Inside Tape Spacing "B"

± 1.5mm (0.059")

0.020" or (±0.5mm) I III*

0" (0mm) to 0.197" (5mm)

0.197" (5.01mm) to 0.394: (10mm)

0.197" or (5mm)

0.394" or (10mm)

2.062" (52.4mm)

2.874" (73mm)

Table 1

PACKAGING INFORMATION

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]32

CERAMIC LEADED

PACKAGING INFORMATION

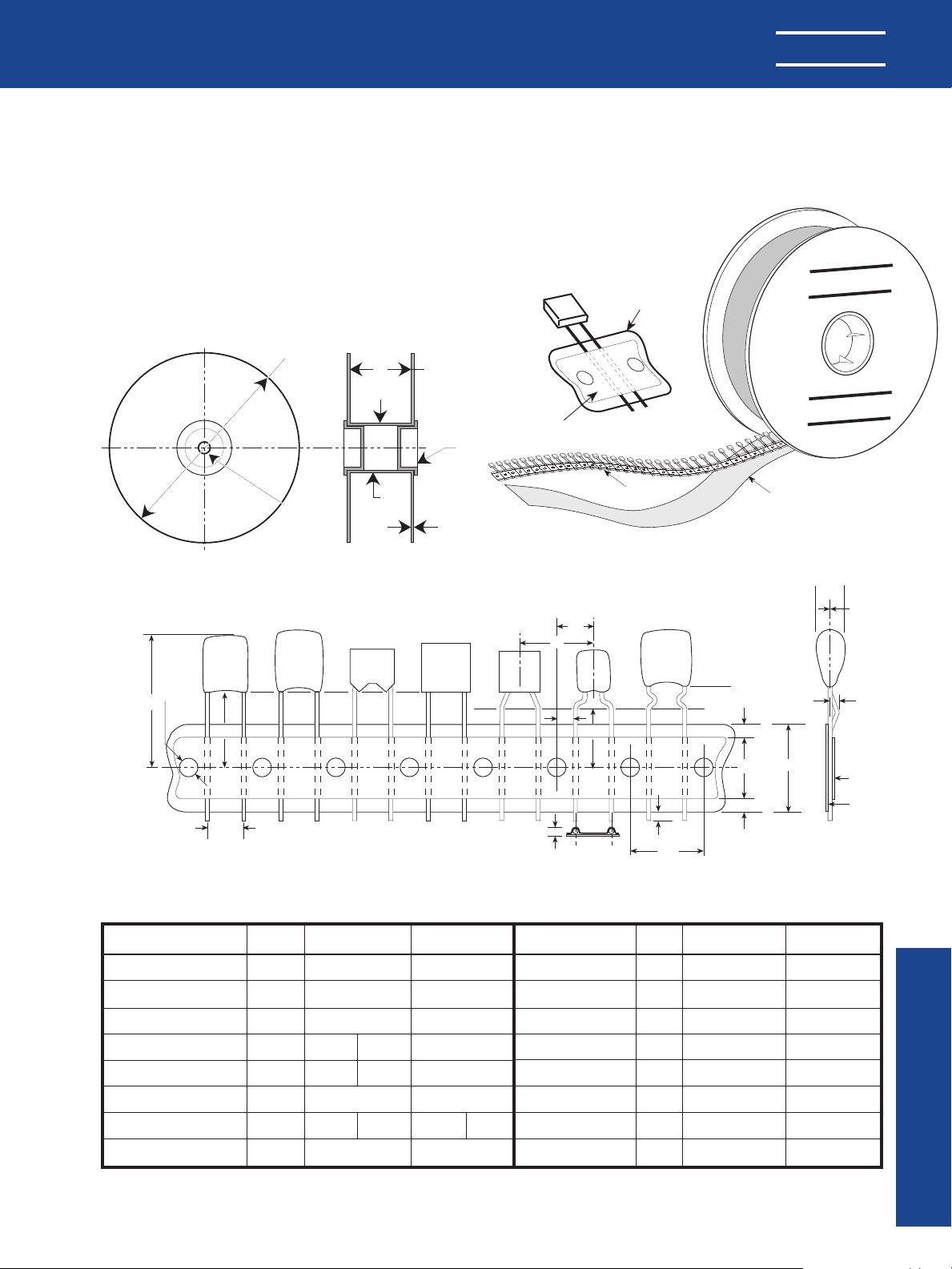

Ceramic Radial

Lead Tape and Reel Packaging

KEMET offers standard reeling of Molded and Conformally
Coated Radial Leaded Ceramic Capacitors for automatic
insertion per EIA specification RS-468. Parts are taped to a
tagboard carrier strip, and wound on a reel as shown in
Figure 1. Kraft paper interleaving is inserted between the
layers of capacitors on the reel. Ammopack is also available,
with the same lead tape configuration and package quantities.

Figure 1

Carrier Strip

®

KEMET

®

KEMET

12"

(30.48 cm)

.655" ±0.010"

(16.6 ±0.25)

*

(82.6)

31/4"

.059" to .315"
Greater Than

Over All

Height

of Taped

Components

Hub

1

/8"

(3.18)

Figure 3: Standard Reel

C315*
C320*

H

1

D

0

C330**
C340**

C056**
C066**

H

F

CK06**

CKR06**

C062**

Figure 2: Lead Tape Configuration (See Table Below)

Ceramic Radial Tape and Reel Dimensions in Millimeters & (Inches)

Dimension Symbol

Sprocket Hole Diameter
Sprocket Hole Pitch
Component Pitch
Lead Spacing (1)
Sprocket Hole Center

to Lead Center (1)
Sprocket Hole Center
to Component Center
Height to Seating Plane
(straight leads) (2)
Component Height
Above Tape Center

(1) Measured at the egress from the carrier tape, on the component side.
(2) Determined by a 4 digit suffix placed at the end of the part number, as follows:
7301 =
7303 =

Recommended for parts with formed leads.
Recommended for parts with straight leads.

Do
P0

P

F
P1
P2

H

H1

Nominal
mm (inch)

4.0 (.157)

12.7 (.500)

12.7 (.500)

5.08 2.54
(.20) (.10)

3.81 5.08

(.150) (.200)

6.35 (.250)

C7301 C7303

16.0 (.630) 18.0 (.709)

32.2 (1.27)

Tolerance
mm (inch) Dimension Symbol

± 0.2 (.008)
± 0.3 (.012)
± 0.3 (.012)

+0.6 -0.2

(+.024 -.008)

± 0.7 (.028)
± 1.3 (.051)

C7301 C7303

±0.5 (.020) Minimum

Maximum

Example: C322C104K5R5CA7301
Example: C320C104K5R5CA7303

Adhesive Tape

CK05**

CKR05**

C052**

P

P1

T

Height to Seating
Plane (formed leads) (2)

Component Alignment
Lead Protrusion
Composite Tape

Thickness
Overall Tape and
Lead Thickness
Carrier Tape Width

Hold-Down Tape
Width
Hold-Down Tape
Location

C317**
C322**
C323**

P

2

H

Carrier Tape

0

C333**

L

1

P

0

H

C7301 C7303

0

16.0 (.630) 18.0 (.709)

∆h
L1
t
T
W
W0
W2

KEMET

Kraft Paper

Interleaving

∆H

W

2

W

W

0

W

2

* Lead spacings are 2.54mm
(.10") center-to-center.
** Lead spacings are 5.08mm
(.20") center-to-center.

Nominal
mm (inch)

4.0 (.157)

1.0 (.039)

0.7 (.051)

1.5 (.059)

18.0 (.709)

5.0 (.197)

3.0 (.118)

Tolerance
mm (inch)

C7301 C7303

±0.5 (.020) Minimum

±0.2 (.008)

Maximum

±0.2 (.008)

Maximum
+1.0 - 0.5

(+.039 -.020)

Minimum

Maximum

1MM Max.
(.039")

Tape
Carrier

®

Tape and Reel Packaging

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 33

CERAMIC LEADED

KEMET

®

PACKAGING INFORMATION

CERAMIC PACKAGING

Standard (1) Standard

KEMET Military Military Bulk Reel Reel

Number Style Specification Quantity Quantity Size

C114C-K-G CK12, CC75 MIL-C-11015/ 200/Box 5000 12"
C124C-K-G CK13, CC76 MIL-PRF-20 200/Box 5000 12"
C192C-K-G CK14, CC77 100/Box 3000 12"
C202C-K CK15 25/Box 500 12"
C222C-K CK16 10/Tray 300 12"
C052C-K-G CK05, CC05 100/Bag 2000 12"
C062C-K-G CK06, CC06 100/Bag 1500 12"

C114G CCR75 MIL-PRF-20 200/Box 5000 12"
C124G CCR76 200/Box 5000 12"
C192G CCR77 100/Box 3000 12"
C202G CC78-CCR78 25/Box 500 12"
C222G CC79-CCR79 10/Tray 300 12"
C052/56G CCR05 100/Bag 1700 12"
C062/66G CCR06 100/Bag 1500 12"
C512G CC07-CCR07 Footnote (2) N/A N/A
C522G CC08-CCR08 Footnote (2) N/A N/A

C114T CKR11 MIL-PRF-39014 200/Box 5000 12"
C124T CKR12 200/Box 5000 12"
C192T CKR14 100/Box 3000 12"
C202T CKR15 25/Box 500 12"
C222T CKR16 10/Tray 300 12"
C052/56T CKR05 100/Bag 1700 12"
C062/66T CKR06 100/Bag 1500 12"

C31X 500/Bag 2500 12"
C32X 500/Bag 2500 12"
C33X 250/Bag 1500 12"
C340 100/Bag 1000 12"
C350 50/Bag N/A N/A

C410 300/Box 5000 12"
C412 200/Box 5000 12"
C420 300/Box 5000 12"
C430 200/Box 2500 12"
C440 200/Box 2500 12"

C512 N/A N/A Footnote (2) N/A N/A
C522 N/A N/A Footnote (2) N/A N/A

NOTE: (1) Standard packaging refers to number of pieces per bag, box, tray or vial.

(2) Quantity varies. For further details, please consult the factory.

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]34

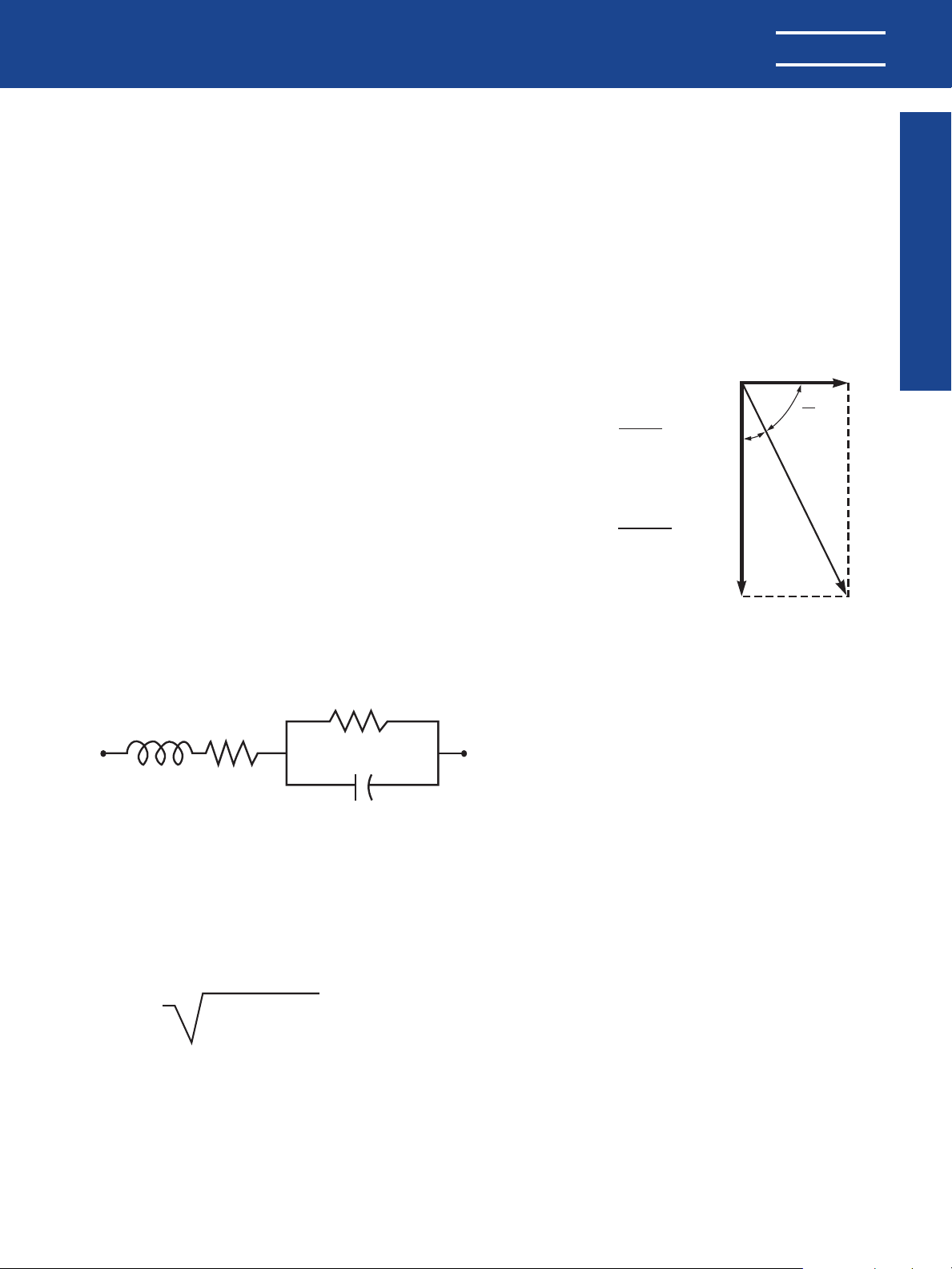

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

Figure 1

C = Capacitance

L = Inductance

RS = Equivalent Series Resistance (ESR)
R

P

= Insulation Resistance (IR)

R

P

R

S

C

L

Z =

RS + (XC - XL)

2 2

Where Z = Total Impedance

RS = Equivalent Series Resistance
XC = Capacitive Reactance = 1/(2 ππfC)
XL = Inductive Reactance = 2 π π fL

DF =

ESR

X

c

X

c

2 π fC

1

(ohm)

=

Figure 2

δ

Ζ

O

X

c

ESR

KEMET

®

The fundamental electrical properties of multilayer

ceramic capacitors are as follows:

Polarity: Multilayer ceramic capacitors are not polar,

and may be used with DC voltage applied in either direction.

Rated Voltage: This term refers to the maximum con­tinuous DC working voltage permissible across the entire
operating temperature range. Multilayer ceramic capacitors
are not extremely sensitive to voltage, and brief applications
of voltage above rated will not result in immediate failure.
However, reliability will be reduced by exposure to sustained
voltages above rated.

Capacitance:

farad. For practical capacitors, it is usually expressed in
microfarads (10-6farad), nanofarads (10-9farad), or picofarads

-12

(10

farad). Standard measurement conditions are as

follows:

Class I (up to 1,000 pF): 1MHz and 1.2 VRMS

Class I (over 1,000 pF): 1kHz and 1.2 VRMS

Class II: 1 kHz and 1.0 ± 0.2 VRMS.
Class III: 1 kHz and 0.5 ± 0.1 VRMS.

Like all other practical capacitors, multilayer ceramic
capacitors also have resistance and inductance. A simplified
schematic for the equivalent circuit is shown in Figure 1.
Other significant electrical characteristics resulting from
these additional properties are as follows:

Impedance: Since the parallel resistance (Rp) is nor-

mally very high, the total impedance of the capacitor is:

ELECTRICAL CHARACTERISTICS

The standard unit of capacitance is the

maximum.

maximum.

The variation of a capacitor’s impedance with frequency

determines its effectiveness in many applications.

Dissipation Factor: Dissipation Factor (DF) is a mea­sure of the losses in a capacitor under AC application. It is the
ratio of the equivalent series resistance to the capacitive reac­tance

, and is usually expressed in percent. It is usually mea­sured simultaneously with capacitance, and under the same
conditions. The vector diagram in Figure 2 illustrates the rela­tionship between DF, ESR, and impedance. The reciprocal of
the dissipation factor is called the “Q”, or quality factor. For
convenience, the “Q” factor is often used for very low values
of dissipation factor. DF is sometimes called the “loss tangent”
or “tangent d”, as derived from this diagram.

Insulation Resistance: Insulation Resistance (IR) is the
DC resistance measured across the terminals of a capacitor,
represented by the parallel resistance (Rp) shown in Figure 1.
For a given dielectric type, electrode area increases with
capacitance, resulting in a decrease in the insulation resis­tance. Consequently, insulation resistance is usually specified
as the “RC” (IR x C) product, in terms of ohm-farads or
megohm-microfarads. The insulation resistance for a specific
capacitance value is determined by dividing this product by
the capacitance. However, as the nominal capacitance values
become small, the insulation resistance calculated from the
RC product reaches values which are impractical.
Consequently, IR specifications usually include both a mini­mum RC product and a maximum limit on the IR calculated
from that value. For example, a typical IR specification might
read “1,000 megohm-microfarads or 100 gigohms, whichever
is less.”

Insulation Resistance is the measure of a capacitor to
resist the flow of DC leakage current. It is sometimes referred
to as “leakage resistance.” The DC leakage current may be
calculated by dividing the applied voltage by the insulation
resistance (Ohm’s Law).

Dielectric Withstanding Voltage: Dielectric withstand­ing voltage (DWV) is the peak voltage which a capacitor is
designed to withstand for short periods of time without dam­age. All KEMET multilayer ceramic capacitors will withstand a
test voltage of 2.5 x the rated voltage for 60 seconds.

KEMET specification limits for these characteristics at
standard measurement conditions are shown in Table 1 on
page 4. Variations in these properties caused by changing
conditions of temperature, voltage, frequency, and time are
covered in the following sections.

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 35

Application Notes

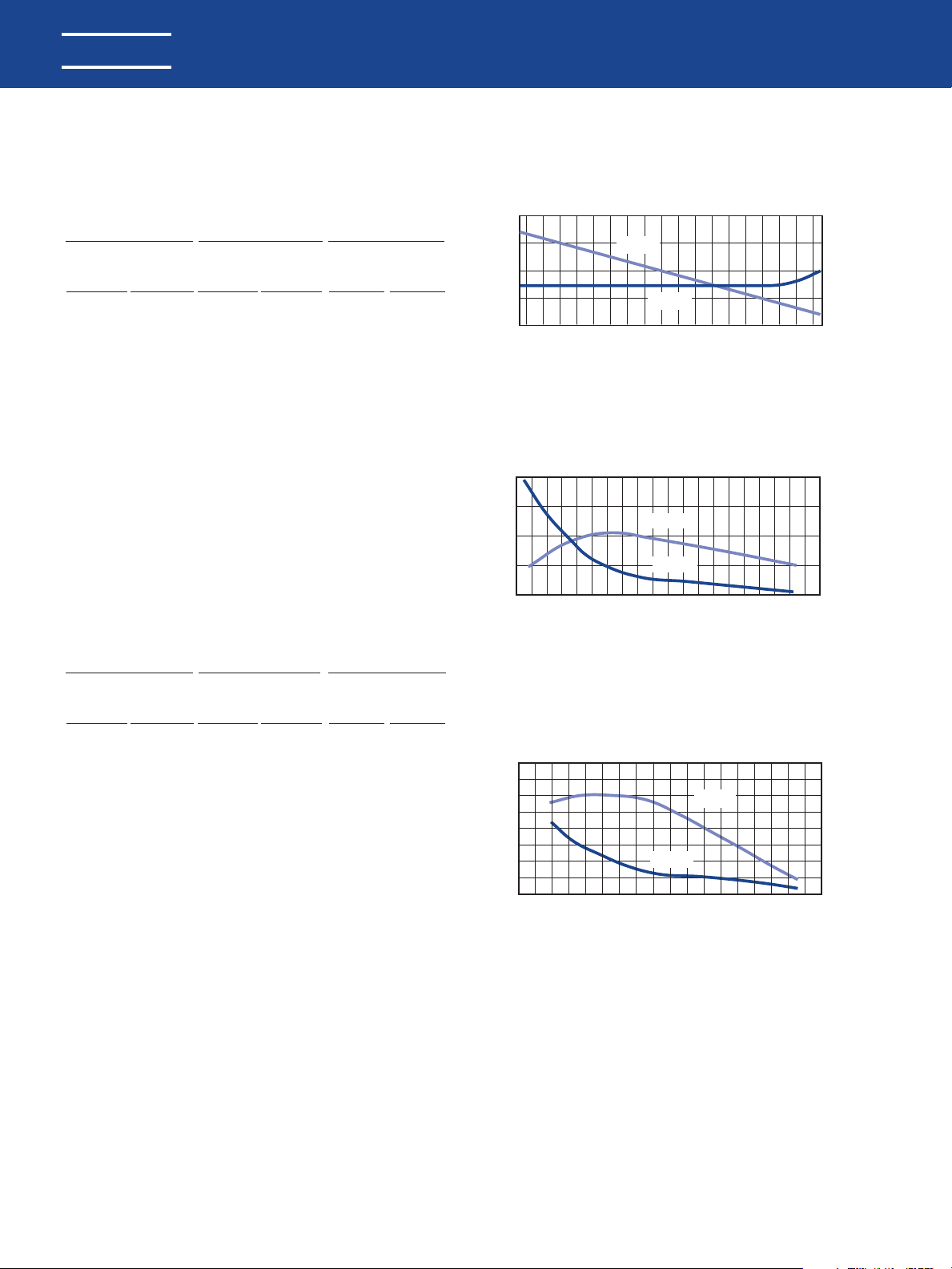

EFFECT OF TEMPERATURE

-20-40 0 14040 60 100 120-60 20 80

%DF

0.0

2.0

4.0

6.0

8.0

Temperature °C

Capacitance & DF vs Temperature - X7R

Figure 4.

Temperature °C

Capacitance & DF vs Temperature - Z5U

Figure 5.

%DF

0

-10 -20 -30 -40 -50 -60 -70 -80

0

2.0

4.0

6.0

8.0

0.10

0.20

0.0

%DF

-55 -20 20 80

Temperature °C

Capacitance & DF vs Temperature - C0G

Figure 3.

-40 0 12540 60 100 120

-0.1

0

+0.2

-0.2

+0.1

-0.1

0

+0.2

-0.2

+0.1

-20

-10

0

+20

+10

-60

-40

-20

+20

0

%∆C

%∆C

%DF

%∆C

%∆C

%DF

%∆C

%∆C

%DF

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

KEMET

®

EIA TEMPERATURE CHARACTERISTIC CODES

FOR CLASS I DIELECTRICS

Significant Figure Multiplier Applied Tolerance of

of Temperature to Temperature Temperature

Coefficient Coefficient Coefficient *

PPM per Letter Multi- Number PPM per Letter

Degree C Symbol plier Symbol Degree C Symbol

0.0 C -1 0 ±30 G

0.3 B -10 1 ±60 H

0.9 A -100 2 ±120 J

1.0 M -1000 3 ±250 K

1.5 P -100000 4 ±500 L

2.2 R +1 5 ±1000 M

3.3 S +10 6 ±2500 N

4.7 T +100 7

7.5 U +1000 8
+10000 9

* These symetrical tolerances apply to a two-point measurement of
temperature coefficient: one at 25°C and one at 85°C. Some deviation
is permitted at lower temperatures. For example, the PPM tolerance
for C0G at -55 is +30 / -72 PPM.

EIA TEMPERATURE CHARACTERISTIC CODES

FOR CLASS II & III DIELECTRICS

TABLE 1

TABLE 2

Low Temperature High Temperature Maximum Capacitance

Rating Rating Shift

Degree Letter Degree Number Letter
Celcius Symbol Celcius Symbol Percent Symbol

+10C Z +45C 2 ±1.0% A

-30C Y +65C 4 ±1.5% B

-55C X +85C 5 ±2.2% C
+105C 6 ±3.3% D
+125C 7 ±4.7% E
+150C 8 ±7.5% F
+200C 9 ±10.0% P

±15.0% R

±22.0% S
±22/-33% T
±22/-56% U
±22/-82% V

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]36

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

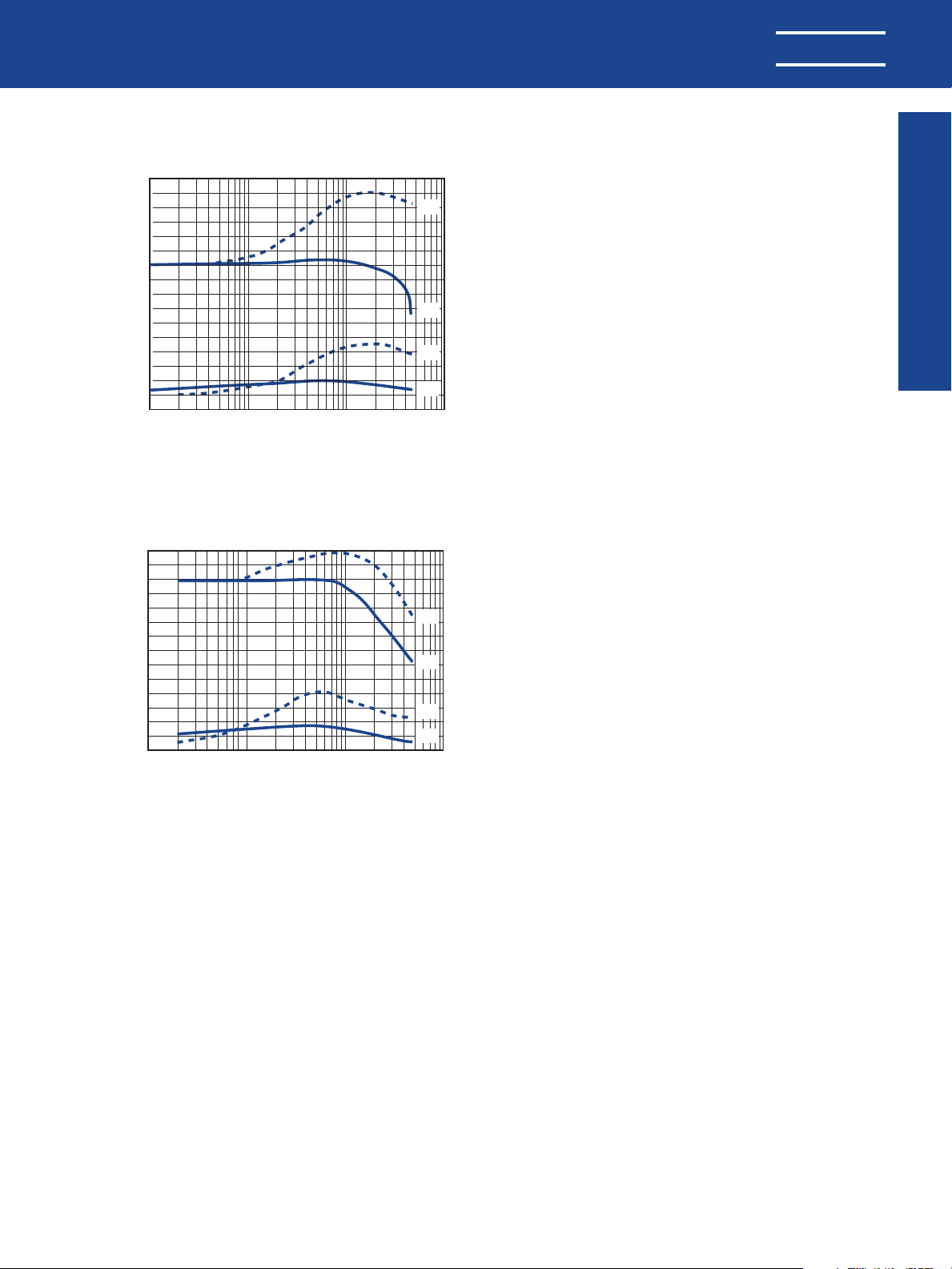

EFFECT OF APPLIED VOLTAGE

0.1

1

10

100

AC or DC Volts Applied

Typical Effects of 1000 Hz AC and DC Voltage Level on

Capacitance and Dissipation Factor - Z5U

Note: C0G Dielectric capacitance and dissipation factor are

stable with voltage.

Figure 7.

1

2

3

4

+20

0

-20

-40

-60

1

2

3

4

+10

+5

0

-5

-10

0.1

1

10

100

AC or DC Volts Applied

Typical Effects of 1000 Hz AC and DC Voltage Level on

Capacitance and Dissipation Factor - X7R

Note: C0G Dielectric capacitance and dissipation factor are

stable with voltage.

Figure 6.

DC

AC

AC
DC

% D.F. % Capacitance Change

% D.F. % Capacitance Change

DC

AC

AC

DC

Effect of Temperature: Both capacitance and dissipa­tion factor are affected by variations in temperature. The max­imum capacitance change with temperature is defined by the
temperature characteristic. However, this only defines a “box”
bounded by the upper and lower operating temperatures and
the minimum and maximum capacitance values. Within this
“box”, the variation with temperature depends upon the spe­cific dielectric formulation. Typical curves for KEMET capaci­tors are shown in Figures 3, 4, and 5. These figures also
include the typical change in dissipation factor for KEMET
capacitors.

Insulation resistance decreases with temperature.
Typically, the insulation resistance at maximum rated temper­ature is 10% of the 25°C value.

Effect of Voltage: Class I ceramic capacitors are not
affected by variations in applied AC or DC voltages. For Class
II and III ceramic capacitors, variations in voltage affect only

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 37

®

KEMET

the capacitance and dissipation factor. The application of DC
voltage higher than 5 vdc reduces both the capacitance and
dissipation factor. The application of AC voltages up to 10-20
Vac tends to increase both capacitance and dissipation factor.
At higher AC voltages, both capacitance and dissipation factor
begin to decrease.

Typical curves showing the effect of applied AC and DC
voltage are shown in Figure 6 for KEMET X7R capacitors and
Figure 7 for KEMET Z5U capacitors.

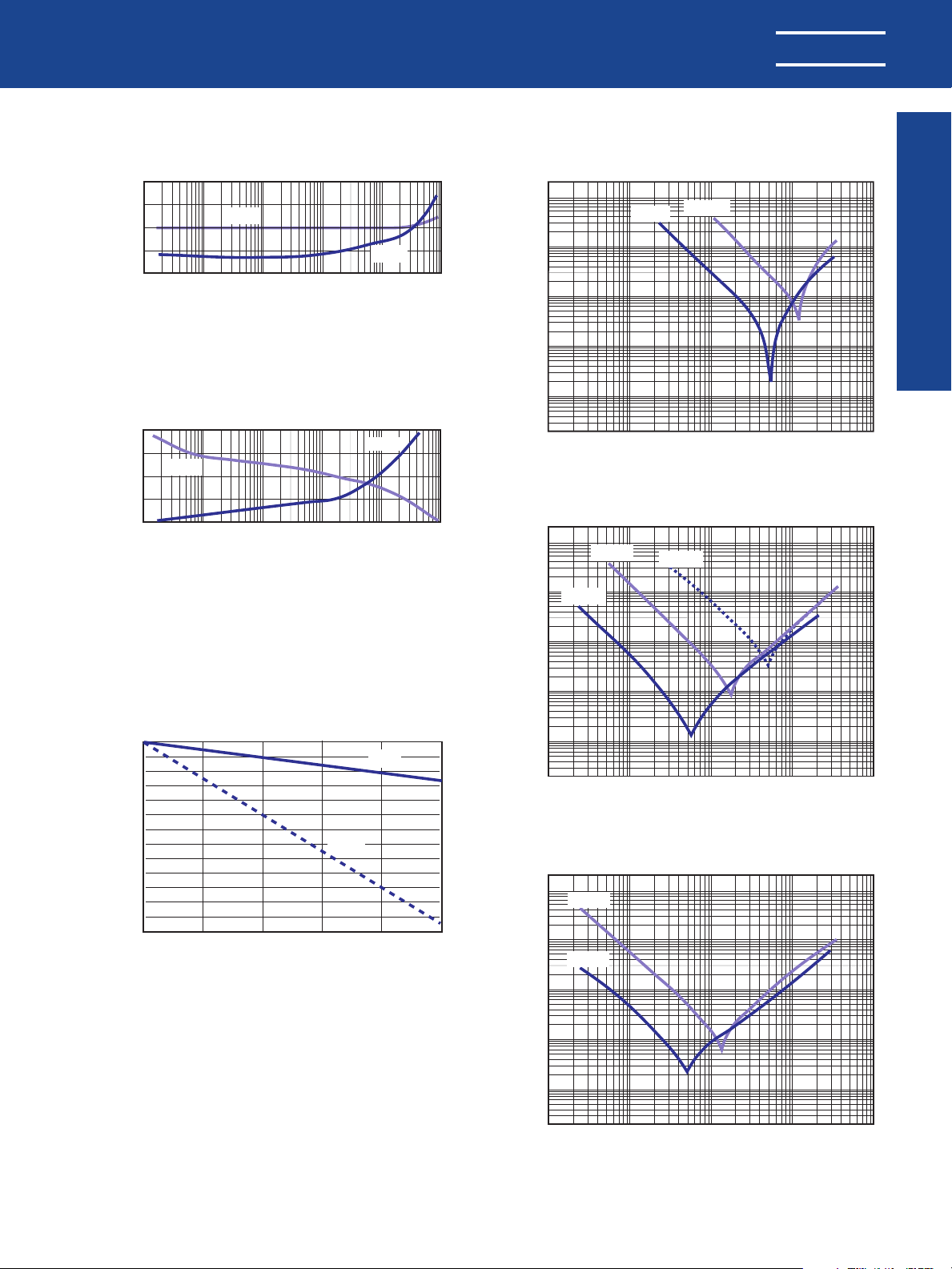

Effect of Frequency: Frequency affects both capaci­tance and dissipation factor. Typical curves for KEMET multi­layer ceramic capacitors are shown in Figures 8 and 9.

T

he variation of impedance with frequency is an impor­tant consideration in the application of multilayer ceramic
capacitors. Total impedance of the capacitor is the vector of the
capacitive reactance, the inductive reactance, and the ESR, as
illustrated in Figure 2. As frequency increases, the capacitive
reactance decreases. However, the series inductance (L)
shown in Figure 1 produces inductive reactance, which
increases with frequency. At some frequency, the impedance
ceases to be capacitive and becomes inductive. This point, at
the bottom of the V-shaped impedance versus frequency
curves, is the self-resonant frequency. At the self-resonant fre­quency, the reactance is zero, and the impedance consists of
the ESR only.

Typical impedance versus frequency curves for KEMET

multilayer ceramic capacitors are shown in Figures 10, 11, and

12. These curves apply to KEMET capacitors in chip form, with­out leads. Lead configuration and lead length have a significant
impact on the series inductance. The lead inductance is
approximately 10nH/inch, which is large compared to the
inductance of the chip. The effect of this additional inductance
is a decrease in the self-resonant frequency, and an increase
in impedance in the inductive region above the self-resonant
frequency.

Effect of Time: The capacitance of Class II and III
dielectrics change with time as well as with temperature, volt­age and frequency. This change with time is known as “aging.”
It is caused by gradual realignment of the crystalline structure
of the ceramic dielectric material as it is cooled below its Curie
temperature, which produces a loss of capacitance with time.
The aging process is predictable and follows a logarithmic
decay. Typical aging rates for C0G, X7R, and Z5U dielectrics
are as follows:

C0G None
X7R 1.0% per decade of time
Z5U 5.0% per decade of time

Typical aging curves for X7R and Z5U dielectrics are
shown in Figure 13.

The aging process is reversible. If the capacitor is heat­ed to a temperature above its Curie point for some period of
time, de-aging will occur and the capacitor will regain the
capacitance lost during the aging process. The amount of de­aging depends on both the elevated temperature and the
length of time at that temperature. Exposure to 150°C for one­half hour or 125°C for two hours is usually sufficient to return
the capacitor to its initial value.

Because the capacitance changes rapidly immediately
after de-aging, capacitance measurements are usually delayed
for at least 10 hours after the de-aging process, which is often
referred to as the “last heat.” In addition, manufacturers utilize

Application Notes

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

KEMET

®

E=Z

Where E = RMS Ripple Voltage (volts)

P = Power Dissipation (watts)
Z = Impedence
R = ESR

P
R

the aging rates to set factory test limits which will bring the
capacitance within the specified tolerance at some future time,
to allow for customer receipt and use. Typically, the test limits
are adjusted so that the capacitance will be within the specified
tolerance after either 1,000 hours or 100 days, depending on
the manufacturer and the product type.

POWER DISSIPATION

Power dissipation has been empirically determined for
two representative KEMET series: C052 and C062. Power dis­sipation capability for various mounting configurations is shown
in Table 3. This table was extracted from Engineering Bulletin
F-2013, which provides a more detailed treatment of this sub­ject.

Note that no significant difference was detected between
the two sizes in spite of a 2 to 1 surface area ratio. Due to the
materials used in the construction of multilayer ceramic capac­itors, the power dissipation capability does not depend greatly
on the surface area of the capacitor body, but rather on how
well heat is conducted out of the capacitor lead wires.
Consequently, this power dissipation capability is applicable to
other leaded multilayer styles and sizes.

TABLE 3

POWER DISSIPATION CAPABILITY

(Rise in Celsius degrees per Watt)

Mounting Configuration Dissipation

1.00" leadwires attached to binding post 90 Celsius degrees
of GR-1615 bridge (excellent heat sink) rise per Watt ±10%

0.25" leadwires attached to binding post 55 Celsius degrees
of GR-1615 bridge rise per Watt ±10%

Capacitor mounted flush to 0.062" glass- 77 Celsius degrees
epoxy circuit board with small copper traces rise per Watt ±10%

Capacitor mounted flush to 0.062" glass- 53 Celsius degrees
epoxy circuit board with four square inches rise per Watt ±10%
of copper land area as a heat sink

Power

of C052 & C062

As shown in Table 3, the power dissipation capability of
the capacitor is very sensitive to the details of its use environ­ment. The temperature rise due to power dissipation should not
exceed 20°C. Using that constraint, the maximum permissible
power dissipation may be calculated from the data provided in
Table 3.

It is often convenient to translate power dissipation capa­bility into a permissible AC voltage rating. Assuming a sinu­soidal wave form, the RMS “ripple voltage” may be calculated
from the following formula:

The data necessary to make this calculation is included in
Engineering Bulletin F-2013. However, the following criteria
must be observed:

1. The temperature rise due to power dissipation
should be limited to 20°C.

2. The peak AC voltage plus the DC voltage must not
exceed the maximum working voltage of the
capacitor.

Provided that these criteria are met, multilayer ceramic
capacitors may be operated with AC voltage applied without
need for DC bias.

RELIABILITY

A well constructed multilayer ceramic capacitor is
extremely reliable and, for all practical purposes, has an infi­nite life span when used within the maximum voltage and
temperature ratings. Capacitor failure may be induced by sus­tained operation at voltages that exceed the rated DC voltage,
voltage spikes or transients that exceed the dielectric with­standing voltage, sustained operation at temperatures above
the maximum rated temperature, or the excessive tempera­ture rise due to power dissipation.

Failure rate is usually expressed in terms of percent per
1,000 hours or in FITS (failure per billion hours). Some
KEMET series are qualified under U.S. military established
reliability specifications MIL-PRF-20, MIL-PRF-123, MIL­PRF-39014, and MIL-PRF-55681. Failure rates as low as

0.001% per 1,000 hours are available for all capacitance /
voltage ratings covered by these specifications. These spec­ifications and

accompanying Qualified Products List should

be consulted for details.

For series not covered by these military specifications,
an internal testing program is maintained by KEMET Quality
Assurance. Samples from each week’s production are sub­jected to a 2,000 hour accelerated life test at 2 x rated voltage
and maximum rated temperature. Based on the results of
these tests, the average failure rate for all non-military series
covered by this test program is currently 0.06% per 1,000
hours at maximum rated conditions. The failure rate would be
much lower at typical use conditions. For example, using MIL­HDBK-217D this failure rate translates to 0.9 FITS at 50%
rated voltage and 50°C.

Current failure rate details for specific KEMET multilay­er ceramic capacitor series are available on request.

MISAPPLICATION

Ceramic capacitors, like any other capacitors, may fail
if they are misapplied. Typical misapplications include expo­sure to excessive voltage, current or temperature. If the
dielectric layer of the capacitor is damaged by misapplication
the electrical energy of the circuit can be released as heat,
which may damage the circuit board and other components
as well.

If potential for misapplication exists, it is recommended
that precautions be taken to protect personnel and equipment
during initial application of voltage. Commonly used precau­tions include shielding of personnel and sensing for excessive
power drain during board testing.

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone]38

APPLICATION NOTES FOR MULTILAYER CERAMIC CAPACITORS

®

KEMET

EFFECT OF FREQUENCY

+0.2
+0.1

0

%∆C

-0.1

-0.2
100 1K 10K 100K 1M 10M

Figure 8.

Capacitance & DF vs Frequency - C0G

+5

0

%∆C

-5

%∆C

-10

-15
100 1K 10K 100K 1M 10M

Figure 9.

Capacitance & DF vs Frequency - X7R & Z5U

%∆C

Frequency - Hertz

%DF

Frequency - Hertz

%DF

0.20

0.10

0.0

10.0

7.5

5.0

2.5

0.0

100

%DF

10

1

0.1

Impedance (Ohms)

0.01

0.001

0.1

Figure 10.

%DF

100

10

1

IMPEDANCE VS FREQUENCY

.01µF

1 10 100 1,000

Impedance vs Frequency for C0G Dielectric

0.1µF

1.0 µF

.001µF

Frequency - MHz

.01µF

Application Notes

EFFECT OF TIME

100%

98%
96%
94%
92%
90%
88%
86%
84%

Capacitance

82%
80%
78%
76%
74%

1 10 100 1000 10K 100K

Typical Aging Rates for X7R & Z5UFigure 13.

X7R

Z5U

0.1

Impedance (Ohms)

0.01

0.001

0.1

Figure 11.

Impedance vs Frequency for X7R Dielectric

100

0.1µF

10

1.0 µF

1

0.1

Impedance (Ohms)

0.01

0.001

0.1

Figure 12.

Impedance vs Frequency for Z5U Dielectric

1 10 100 1,000

Frequency - MHz

1 10 100 1,000

Frequency - MHz

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, [phone] 39

KEMET

Electronics Corporation

®

World Sales Headquarters

P.O. Box 5928 • Greenville, SC 29606 • www.kemet.com

Phone: [phone] • Fax: [phone]

KEMET Electronics Corporation
26 Corporate Plaza, Suite 170
Newport Beach, CA 92660
Phone: [phone]
Fax: [phone]

KEMET Electronics Corporation
2359 Mission College Blvd., Suite 390
Santa Clara, CA 95054
Phone: [phone]
Fax: [phone]

KEMET Electronics Corporation
Schaumburg Corporate Center
Suite 350, 1515 Woodfield Road
Schaumburg, IL 60173
Phone: [phone]
Fax: [phone]

KEMET Electronics Corporation
301 Edgewater Place, Suite 208
Wakefield, MA 01880
Phone: [phone]
Fax: [phone]

KEMET Electronics Corporation
Piedmont Center East, Suite 410
B-137, 37 Villa Road
Greenville, SC 29615
Phone: [phone]
Fax: [phone]

KEMET Electronics Corporation
8445 Freeport Parkway, Suite 320
Irving, TX 75063
Phone: [phone]
Fax: [phone]

KEMET Electronics Canada Ltd.
105-7145 West Credit Ave., Bldg. #2
Mississauga, L5N 6J7, ON
Canada
Phone: [phone]
Fax: [phone]

KEMET Electronics Canada Ltd.
65 boul. Brunswick, Suite 214
Dollard-des-Ormeaux, QC
Canada
Phone: [phone]
Fax: [phone]

USA/Canada Locations

KEMET Electronics S.A.R.L.
2, Rue Nicolas Ledoux
Silic 254
94568 Rungix Cedex
France
Phone: [phone]
Fax: [phone]

KEMET Electronics GmbH
Postfach 1380
D85531 Haar/Munich
Germany
Phone: [phone]
Fax: [phone]

KEMET Electronics S.A.
1-3, Avenue de la Paix
P.O.B. 76
CH-1211 Geneva 20,
Switzerland
Phone: [phone]
Fax: [phone]

KEMET Electronics Ltd.
Waterfront House, 55/61 South St.
Bishop’s Stortford
Hertfordshire, CM23 3AL
United Kingdom
Phone: [phone]
Fax: [phone]

Aviv Electronics Ltd.
Hayetzira St. No. 4
P.O. Box 2433
Ra’anana, 43100
Israel
Phone: [phone]
Fax: [phone]

Multitech Electronics Corporation PTY
P.O. Box 23351
Claremont 7735, South Africa
Phone: [phone]
Fax: [phone]

Arrow Altech Distribution PTY LTD
53 - 57 Yaldwyn Road
Hughes Ext.
Jet Park 1459
South Africa
Phone: [phone]
Fax: [phone]

Europe/Africa Locations

KEMET Electronics (Shanghai) Co., Ltd.
2/F, No. 7 Bldg., 330 Xlya Rd.
Waigaoqiao Free Trade Zone
Pudong, Shanghai 200137, China
Phone: [phone]
Fax: [phone]

KEMET Electronics Asia Ltd.
(Beijing Representative Office)
Suite 1512, 15/F, Lucky Tower B
3 Dong San Huan Bei Rd., Chao Yang District
Beijing, 100027, China
Phone: [phone]
Fax: [phone]

KEMET Electronics Asia Ltd.
4A Chuan Hing Industrial Bldg.
14 Wang Tai Road
Kowloon Bay, Hong Kong
Phone: [phone]
Fax: [phone]

KEMET Electronics Marketing PTE Ltd.
8-2-04, Sunny Point Kompleks, Jalan
Batu Uban, 11700 Penang
Penang, Malaysia
Phone: [phone]
Fax: [phone]

KEMET Electronics Marketing PTE Ltd.
101 Thomson Road, #23-03
United Square
Singapore, 307591, Singapore
Phone: [phone]
Fax: [phone]

KEMET Electronics Corporation
Taiwan Branch, 3-4F, No. 148, Section 4
Chung-Hsaio E. Rd.
Taipei, Taiwan ROC
Phone: [phone]
Fax: [phone]

Bestrade Limited
28/3 Charoren Vian Road Sllcom
Bangrak, Bangkok 10500, Thailand
Phone: [phone]
Fax: [phone]

Crusader Electronics Pty. Ltd.
Unit 3, 92 Bryant Street
Padstow, NSW 2211, Australia
Phone: [phone]
Fax: [phone]

Electronic Enterprises Private Ltd.
Post Bag No. 6367
Unit 216 Regal Industrial Estate
Acharya Donde Marg., Sewri
Bombay 400 015, India
Phone: [phone]
Fax: [phone]

Unicom International Corporation
702 Shinhwa Bldg., Mapo-Gu
Seoul, 121050, Korea
Phone: [phone]
Fax: [phone]

Asia Locations

NOTICE: Place 011 in front of the above Phone and Fax numbers for Europe and Asia, when dialing from a United States exchange.

Note: KEMET reserves the right to modify minor details of internal and external construction at any time in the interest of product improvement.

KEMET does not assume any responsibility for infringement that might result from the use of KEMET Capacitors in potential circuit designs.

“KEMET” is a registered trademark of KEMET Electronics Corporation. 03/00

WWW.ALLDATASHEET.COM

Copyright © Each Manufacturing Company.

All Datasheets cannot be modified without permission.

This datasheet has been download from :

www.AllDataSheet.com

100% Free DataSheet Search Site.

Free Download.

No Register.

Fast Search System.

www.AllDataSheet.com
