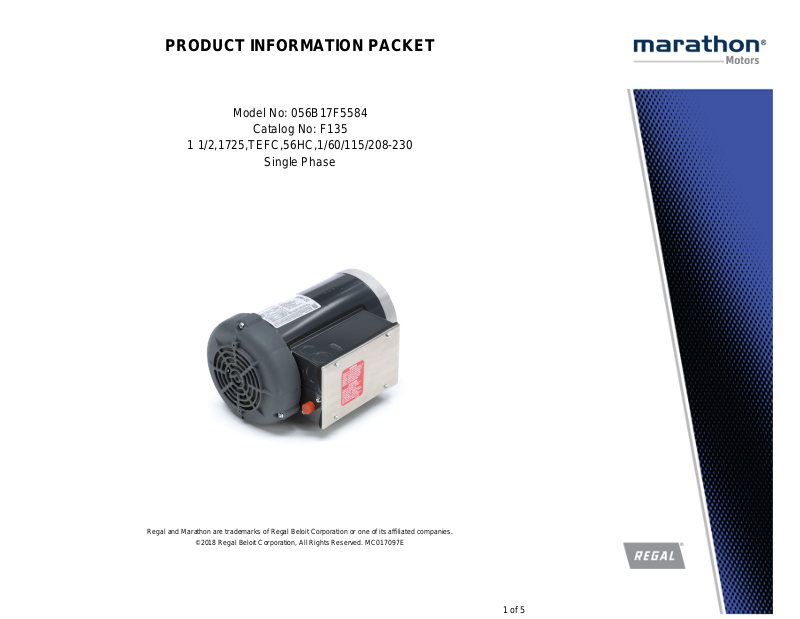

PRODUCT INFORMATION PACKET
Model No: 056B17F5584
Catalog No: F135
1 1/2,1725,TEFC,56HC,1/60/115/208-230
Single Phase
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 056B17F5584, Catalog No:F135 1 1/2,1725,TEFC,56HC,1/60/115/208-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 80 % Duty Continous
Insulation Class
KVA Code J Frame 56HC
Enclosure Totally Enclosed Fan Cooled Overload Protector Manual
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized ( Not Protector)
CSA
IP Code
1.50 Hp
15.2/8.2-7.6 A
1.15
B
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
1.1 kW
1725 rpm
1
N
6203
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Selective Counterclockwise
Capacitor Start Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 0.625 in Shaft Extension 2.06 in
Assembly/Box Mounting

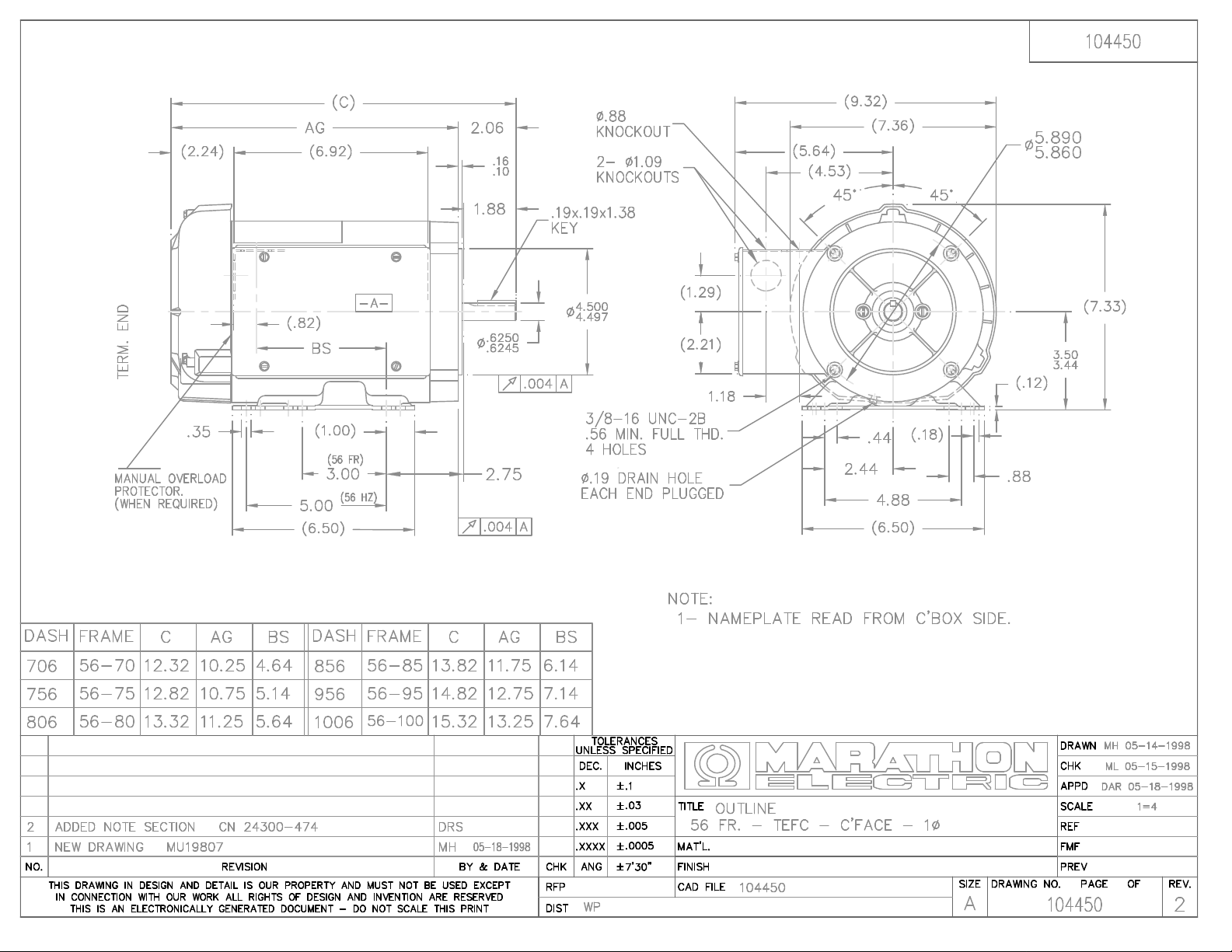

Outline Drawing
Rigid base
13.82 in
F1 Only
A-104450-856
Motor Orientation
Frame Length

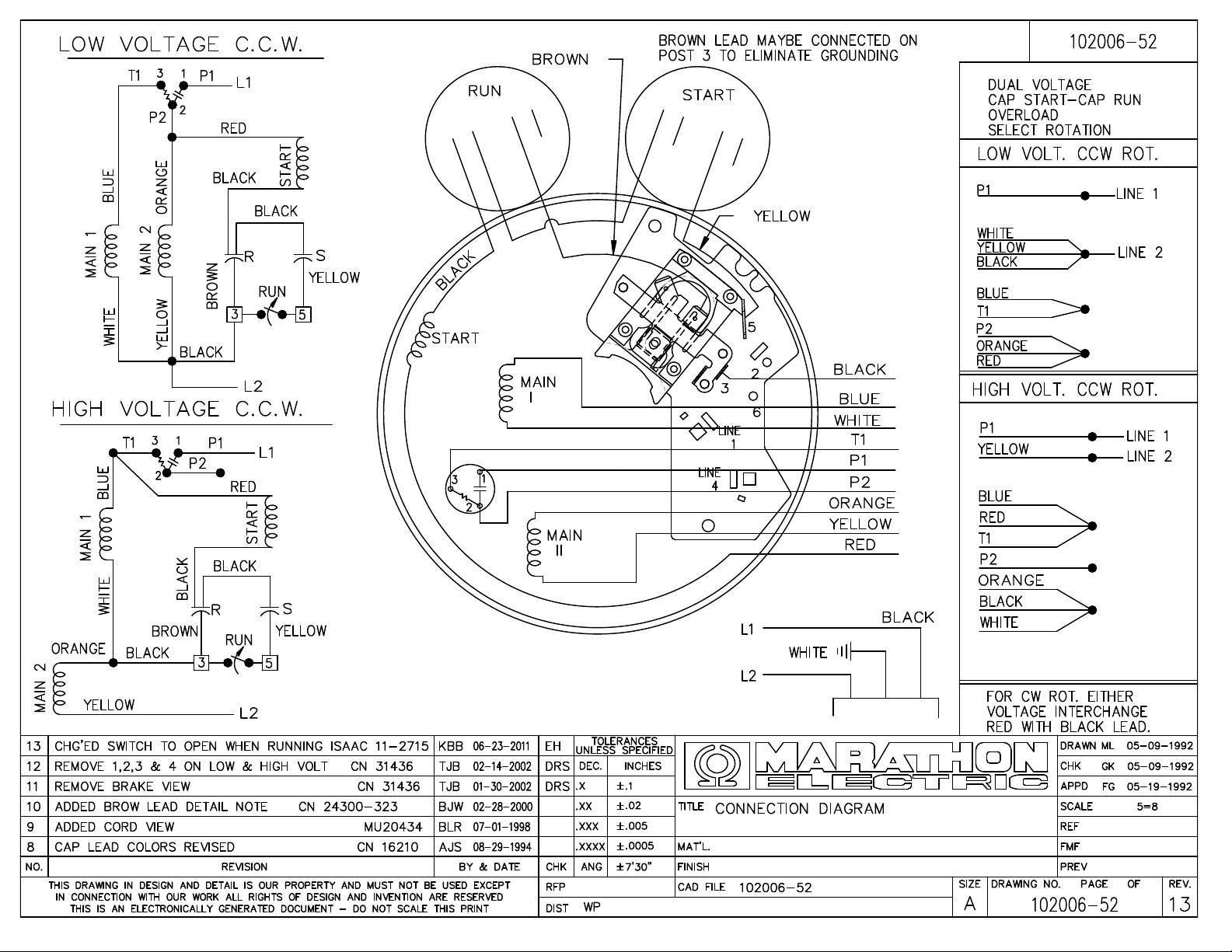

Connection Diagram
Horizontal
8.56 in
102006-52
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 5
Page 3
9/27/2008 8:44:05 AM
3 of 5
Page 4
6/23/2011 3:28:16 PM
4 of 5
Page 5
CERTIFICATION DATA SHEET
Model#: 56B17F5584 E WINDING#: ZB406 NONE 3
CONN. DIAGRAM: 102006-52 ASSEMBLY: F1 ONLY
OUTLINE: A-104450-856
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1 1/2&1 1.12&.75 1800 1725&1425 56HC TEFC J N
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60/50 115/208-
230#110/220
15.2/8.2-
7.6&15.6/7.8
ACROSS THE
LINE
CONTINUOUSB3 1.15/1.0 40 3300
FULL LOAD EFF:
80&71
3/4 LOAD EFF: 80.5 1/2 LOAD EFF: 76.1 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 80&58 3/4 LOAD PF: 71.2 1/2 LOAD PF: 61 0 CAP START IND RUN 8.1 / 4.1
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
4.51 LB-FT 107.6 / 53.8 14.8 LB-FT 328 12.4 LB-FT 275 70
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
0 dBA 10 dBA 0 LB-FT^2 0 LB-FT^2 0 SEC. 0 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE BRAKE RIGID HORIZONTAL FALSE NONE FALSE NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE MANUAL NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: PROVISIONS ONLY NONE
STEARNS P/N NONE
56,000 NONE
10 FT-LB NONE V NONE Hz
DATE: 06/27/2017 06:09:31 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
