Page 1

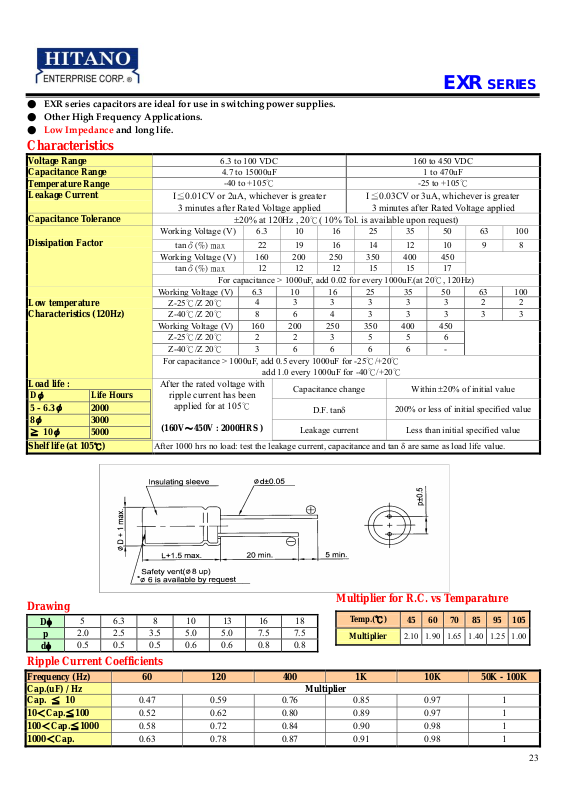

EXR SERIES
● EXRseriescapacitorsareidealforuseinswitchingpowersupplies.
● OtherHighFrequencyApplications.
● LowImpedanceandlonglife.
Characteristics
Voltage Range
Capacitance Range
Temperature Range
Leakage Current
Capacitance Tolerance
Dissipation Factor
Low temperature
Characteristics (120Hz)
Load life :
Dψ
5 – 6.3ψ
8ψ
≧ 10ψ
Life Hours
2000
3000
5000
Shelf life (at 105℃)
I≦0.01CV or 2uA, whichever is greater
3 minutes after Rated Voltage applied
Working Voltage (V) 6.3 10 16 25 35 50 63 100
tanδ(%) max
Working Voltage (V) 160 200 250 350 400 450
tanδ(%) max
Working Voltage (V) 6.3 10 16 25 35 50 63 100
Z-25℃/Z 20℃
Z-40℃/Z 20℃
Working Voltage (V) 160 200 250 350 400 450
Z-25℃/Z 20℃
Z-40℃/Z 20℃
For capacitance > 1000uF, add 0.5 every 1000uF for -25℃/+20℃
add 1.0 every 1000uF for -40
After the rated voltage with
ripple current has been
applied for at 105
(160V～450V : 2000HRS )
After 1000 hrs no load: test the leakage current, capacitance and tan δ are same as load life value.
6.3 to 100 VDC 160 to 450 VDC
4.7 to 15000uF 1 to 470uF
-40 to +105℃ -25 to +105℃
±20% at 120Hz , 20
22 19 16 14 12 10 9 8
12 12 12 15 15 17
For capacitance > 1000uF, add 0.02 for every 1000uF.(at 20℃, 120Hz)
4 3 3 3 3 3 2 2
8 6 4 3 3 3 3 3
2 2 3 5 5 6
3 6 6 6 6 -
℃
℃( 10% Tol. is available upon request)
Capacitance change
D.F. tanδ
Leakage current Less than initial specified value
I≦0.03CV or 3uA, whichever is greater
3 minutes after Rated Voltage applied
℃/+20℃
Within ±20% of initial value
200% or less of initial specified value
Multiplier for R.C. vs Temparature
Drawing
Dφ
p
dφ
5 6.3 8 10 13 16 18
2.0 2.5 3.5 5.0 5.0 7.5 7.5
0.5 0.5 0.5 0.6 0.6 0.8 0.8
Temp.(℃)
Multiplier
45 60 70 85 95 105
2.10 1.90 1.65 1.40 1.25 1.00
Ripple Current Coefficients
Frequency (Hz) 60 120 400 1K 10K 50K - 100K
Cap.(uF) / Hz Multiplier
Cap. ≦ 10
10＜Cap.≦100
100＜Cap.≦1000
1000＜Cap.
23
0.47 0.59 0.76 0.85 0.97 1
0.52 0.62 0.80 0.89 0.97 1
0.58 0.72 0.84 0.90 0.98 1
0.63 0.78 0.87 0.91 0.98 1
Page 2
EXR SERIES
Dimensions, Maximum Permissible Ripple Current & Impedance
WV
(SV)
Spec.
uF
10
DφxL(mm)
5x11 4.70 74 5x11 2.56 85
6.3 (8)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
10 (13) 16 (20) 25 (32)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA (rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
5x11 2.60 100 5x11 1.95 115
5x11 2.00 114 5x11 1.42 155
5x11 1.10 155 5x11 1.10 155
5x11 0.69 195 6.3x11 0.65 230
5x11 0.80 180 6.3x11 0.50 265 6.3x11 0.35 370
6.3x11 0.61 240 8x12 0.41 370 8x12 0.31 390
6.3x11 0.65 285 6.3X11 0.35 295 8x12 0.25 450 8x12 0.15 555
8x12 0.42 390 8x12 0.27 460 8x12 0.15 590 8x14 0.12 700
8x12 0.25 450 8x12 0.15 555 10x12.5 0.12 750 10x16 0.076 1010
8x14 0.21 520 8x14 0.10 805 10x16 0.080 850 10x21 0.065 1220
8x12
10x12.5
8x16
10x16
0.17
0.10
0.14
0.08
555
750
830
940
10x12.5
10x21
10x16
10x21
0.080
0.076
0.070
0.062
805
1040
1000
1260
10x21 0.068 1200 13x21 0.045 1650
13x21 0.045 1575 13x26 0.038 1960
10x21 0.068 1050 10x21 0.052 1220 13x21 0.039 1900 16x26 0.036 2100
3300
4700
6800
10000
15000
24
10x21
13x21
0.052
0.060
1220
1650
13x21 0.039 1660 16x26 0.030 1950 16x31.5 0.026 2680
13x21 0.039 1660 13x26 0.030 1950 16x31.5 0.022 2410 18x36 0.018 2960
16x26 0.030 2450 16x26 0.022 2150 16x36 0.018 2400 18X41 0.015 3550
16x31.5 0.022 2650 16x31.5 0.018 2400 18x36 0.015 2800
18x36 0.020 2950
Page 3
WV
(SV)
Spec.
uF
4.7
EXR SERIES
35 (44) 50 (63) 63 (79) 100 (125)
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
5x11 2.00 90 5x11 2.00 65 5x11 2.40 80
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Current
mA(rms)
100KHz
Ripple
105℃
10
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
4700
WV
(SV)
Spec.
uF
1
5x11 2.2 107 5x11 1.82 120 5x11 1.75 110 6.3x11 1.77 130
5x11 1.5 150 6.3x11 1.25 150 6.3x11 0.80 240 8x12 0.85 220
5x11 1.21 180 6.3x11 0.80 250 6.3x11 0.61 270 10x16 0.48 293
6.3x11 0.80 250 6.3x11 0.65 290 8x12 0.56 300 10x16 0.37 382
6.3x11 0.64 280 8x12 0.33 375 10x12.5 0.21 480 10x21 0.28 501
8x12 0.25 450 10x12.5 0.17 480 10x16 0.14 530 13x21 0.18 714
8x12 0.191 510 10x12.5 0.132 560 10x16 0.11 600 13x21 0.174 780
10x16 0.114 750 10x16 0.096 630 10x21 0.08 710 16x26 0.10 1282
10x16 0.079 1050 10x21 0.078 960 13x21 0.055 1250 16x31.5 0.09 1563
10x21 0.065 1200 13x21 0.055 1400 13x26 0.053 1620 18x32 0.076 1907
13x21 0.056 1570 13x26 0.044 1830 16x26 0.043 2252 18x36 0.062 2387
13x26 0.042 1900 16x26 0.036 2100 16x31.5 0.049 2988 18x41 0.060 3100
16x26 0.026 2490 16x31.5 0.034 2370 18x36 0.031 3100
16x31.5 0.022 2550 18x36 0.032 3070 18x41 0.024 3600
16x36 0.016 2650 18x41 0.025 3100
18X41 0.010 3000
160 (200) 200 (250) 250 (300) 350 (400)
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
6.3x11 7.85 45 6.3x11 7.76 45 6.3x11 6.54 50 8x12 6.35 58
2.2
3.3
4.7
10
22
33
47
68
100
220
330
6.3x11 5.21 55 6.3x11 5.18 55 8x12 4.12 72 10x12.5 4.02 86
8x12 4.31 70 8x12 4.25 71 8x12 3.85 75 10x12.5 3.52 100
8x12 4.16 72 10x12.5 4.12 85 10x12.5 2.95 100 10x21 2.77 130
10x16 2.69 120 10x16 2.02 132 10x16 1.40 160 13x21 1.35 200
10x21 1.30 205 10x21 1.20 205 10x21 1.30 185 13x21 1.22 220
13x21 1.10 260 13x21 0.62 330 13x21 0.90 260 13x26 0.86 290
13x21 0.91 320 13x26 0.51 400 13x26 0.45 405 16x31.5 0.62 430
13x26 0.56 410 16x26 0.35 540 16x26 0.38 490 16x31.5 0.56 475
16x26 0.47 500 16x31.5 0.17 820 16x31.5 0.25 675 18x36 0.55 513
16x36 0.19 820 18x41 0.14 1080 18x41 0.20 910
18x41 0.16 1000
25
Page 4
EXR SERIES
WV
(SV)
Spec.
uF
1
2.2
3.3
4.7
10
22
33
47
68
100
400 (450) 450 (500)
DφxL(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
DφXl(mm)
Impedance
(Ω)max
20℃
100KHZ
Ripple
Current
mA(rms)
105℃
100KHz
8x12 16.5 36 8x12 17.35 41
10x12.5 8.58 56 10x16 10.25 60
10x12.5 5.01 86 10x16 5.65 89
10x21 4.82 96 13x21 5.01 105
13x21 3.32 135 13x26 3.78 140
13x26 2.65 167 13x26 2.80 160
16x26 1.21 277 16x26 2.20 205
16x31.5 0.92 350 16x36 1.02 352
18x32 0.75 416 18x36 0.78 430
18x41 0.52 560
26
