Page 1
φD
P
φd
5
2.0
0.5
6.3
2.5
0.5
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
(L < 20) 1.5
(L
>
=
20) 2.0
(mm)
(φ6.3up)
15
MIN
4
MIN
Sleeve (P.E.T.)
Pressure
relief vent
φd
φD
+
0.5
MAX
L
+ MAX
P
±0.5

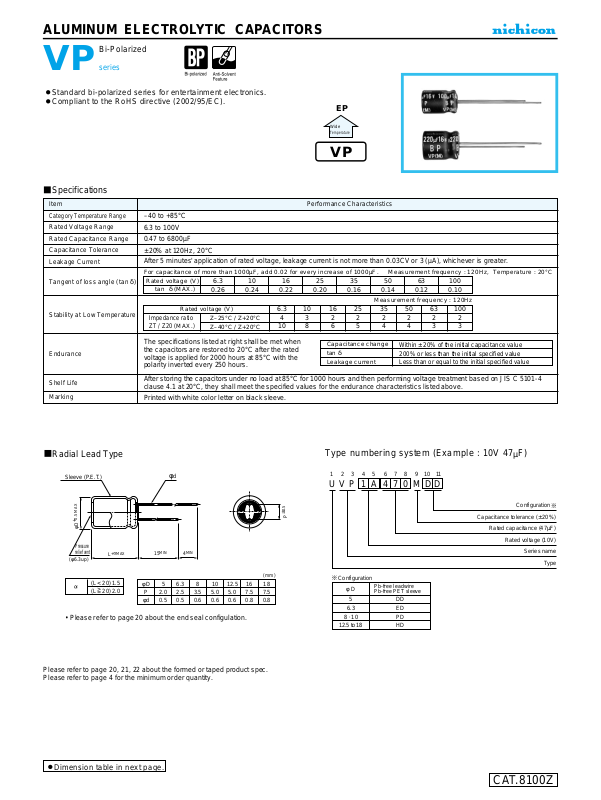

ALUMINUM ELECTROLYTIC CAPACITORS
VPseries
Bi-Polarized
Standard bi-polarized series for entertainment electronics.
Compliant to the RoHS directive (2002/95/EC).
Radial Lead Type
Type numbering system (Example : 10V 47µF)
U1V2P314A5467708M9D10D
11
Configuration
Capacitance tolerance (±20%)
Rated capacitance (47µF)
Rated voltage (10V)
Series name
Type
φ D
5
Pb-free leadwire
Pb-free PET sleeve
DD
6.3 ED
8 · 10 PD
12.5 to 18 HD
Configuration
Specifications
Category
Temperature Range
Rated
Voltage Range
Rated
Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan δ)
Stability at Low Temperature
Endurance
Shelf Life
Marking
Performance CharacteristicsItem
–40 to +85°C
6.3 to 100V
0.47 to 6800µF
±20% at 120Hz, 20°C
After 5 minutes' application of rated voltage, leakage current is not more than 0.03CV or 3 (µA), whichever is greater.
Printed with white color letter on black sleeve.
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz, Temperature : 20°C
Measurement frequency : 120Hz
The specifications listed at right shall be met when
the capacitors are restored to 20°Cafter the rated
voltage is applied for 2000 hours at 85°Cwith the
polarity inverted every 250 hours.
After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the
endurance
characteristics listed above.
Rated voltage (V)
tan δ (MAX.)
6.3
0.26
10
0.24
16
0.22
25
0.20
35
0.16
50
0.14
63
0.12
100
0.10
Z–25°C / Z+20°C
Z–40°C / Z+20°C
Rated voltage (V)
Impedance ratio
ZT / Z20 (
MAX.
)
10
3
8
16
2
6
25
2
5
35
2
4
50
2
4
63
2
3
100
2
3
VP
6.3
4
10
Capacitance change
Leakage current
tan δ
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Wide
Temp er at ure
EP
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
• Please refer to page 20 about the end seal configulation.
CAT.8100Z
Page 2
VPseries
5 × 11
5 × 11
6.3 × 11
6.3 × 11
6.3 × 11
8 × 11.5
10 × 16
12.5 × 20
12.5 × 20
16 × 25
18 × 35.5
57
64
76
125
215
345
410
720
1280
1690
2160
5 × 11
5 × 11
5 × 11
5 × 11
5 × 11
6.3 × 11
8 × 11.5
8 × 11.5
10 × 12.5
10 × 20
12.5 × 25
16 × 25
16 × 31.5
14
21
34
39
47
71
135
220
240
425
720
Rated
ripple
28
34
57
95
135
180
320
575
655
965
11
17
25
27
34
52
89
105
150
265
480
650
835
34
43
73
100
120
230
410
505
655
1140
42
57
70
95
160
275
375
485
855
1510
1980
5 × 11
5 × 11
5 × 11
6.3 × 11
8 × 11.5
10 × 16
10 × 16
12.5 × 20
16 × 25
16 × 31.5
18 × 35.5
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
3300
4700
6800
Dimensions
R47
010
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
332
472
682
5 × 11
5 × 11
6.3 × 11
8 × 11.5
8 × 11.5
10 × 12.5
10 × 20
12.5 × 25
16 × 25
16 × 31.5
18 × 35.5
64
76
125
215
265
370
650
1160
1570
2020
2600
0J
Rated ripple current (mArms) at 85°C 120Hz
6.3
1A
10
1C
16
1E
25
1V
35
1H
50
1J 2A
63 100
5 × 11
5 × 11
5 × 11
6.3 × 11
8 × 11.5
10 × 12.5
10 × 16
10 × 20
12.5 × 25
16 × 31.5
18 × 35.5
5 × 11
5 × 11
6.3 × 11
8 × 11.5
8 × 11.5
10 × 16
12.5 × 20
12.5 × 20
12.5 × 25
16 × 31.5
5 × 11
6.3 × 11
6.3 × 11
8 × 11.5
10 × 12.5
10 × 16
12.5 × 20
16 × 25
16 × 31.5
18 × 35.5
5 × 11
6.3 × 11
6.3 × 11
6.3 × 11
8 × 11.5
10 × 16
12.5 × 20
12.5 × 20
16 × 25
18 × 35.5
42
65
80
95
160
305
450
540
950
1620
Case size
φD×L (mm)
V
Code
Cap.(µF)
ALUMINUM ELECTROLYTIC CAPACITORS
Frequency coefficient of rated ripple current
Cap.(µF)
0.47 to 47
0100 to 4700
1000 to 6800
50 Hz 120 Hz 300 Hz 1 kHz 10 kHz or more
0.75 1.00 1.35 1.57 2.00
0.80 1.00 1.23 1.34 1.50
0.85 1.00 1.10 1.13 1.15
Frequency
CAT.8100Z
