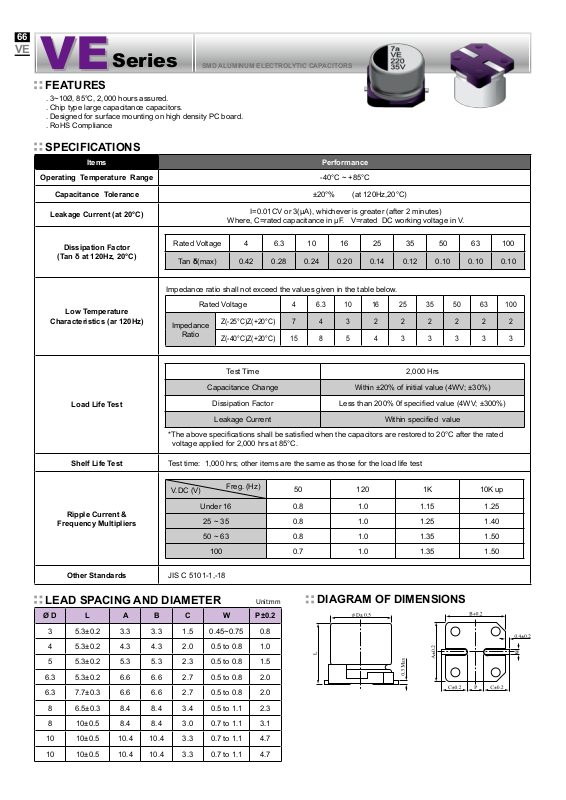

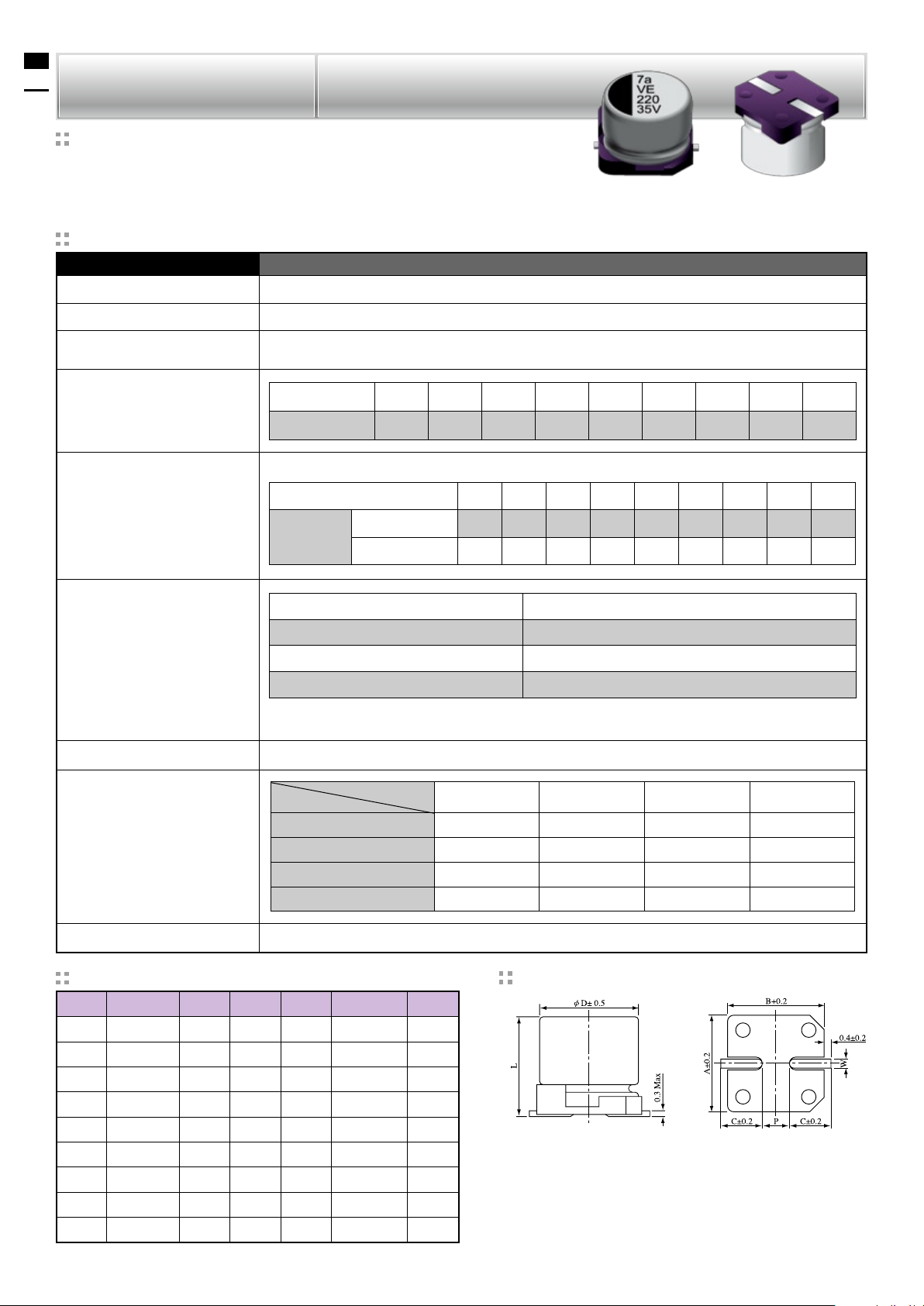

Series
SMD ALUMINUM ELECTROLYTIC CAPACITORS
FEATURES
. 3~10Ø, 85°C, 2,000 hours assured.
. Chip type large capacitance capacitors.
. Designed for surface mounting on high density PC board.
. RoHS Compliance
SPECIFICATIONS
Items Performance
Operating Temperature Range -40°C ~ +85°C
Capacitance Tolerance ±20°% (at 120Hz,20°C)
Leakage Current (at 20°C)
Dissipation Factor
(Tan δ at 120Hz, 20°C)
Low Temperature
Characteristics (ar 120Hz)
Load Life Test
Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test
Ripple Current &
Frequency Multipliers
Rated Voltage 4 6.3 10 16 25 35 50 63 100
Tan δ(max) 0.42 0.28 0.24 0.20 0.14 0.12 0.10 0.10 0.10
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
Impedance
Ratio
Capacitance Change
Dissipation Factor Less than 200% 0f specied value (4WV; ±300%)
Leakage Current Within specied value
*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 85°C.
V.DC (V)
Freg. (Hz)
Under 16 0.8 1.0 1.15 1.25
25 ~ 35 0.8 1.0 1.25 1.40
50 ~ 63 0.8 1.0 1.35 1.50
100 0.7 1.0 1.35 1.50
I=0.01CV or 3(μA), whichever is greater (after 2 minutes)
Where, C=rated capacitance in μF. V=rated DC working voltage in V.
4 6.3 10 16 25 35 50 63 100
Z(-25°C)Z(+20°C) 7 4 3 2 2 2 2 2 2
Z(-40°C)Z(+20°C) 15 8 5 4 3 3 3 3 3
Test Time 2,000 Hrs
Within
50 120 1K 10K up
±20% of initial value (4WV; ±30%)
Other Standards JIS C 5101-1,-18
LEAD SPACING AND DIAMETER Unit:mm
Ø D L A B C W P±0.2
3 5.3±0.2 3.3 3.3 1.5 0.45~0.75 0.8
4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0
5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5
6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0
6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0
8 6.5±0.3 8.4 8.4 3.4 0.5 to 1.1 2.3
8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1
10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7
10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7
DIAGRAM OF DIMENSIONS
Page 2
SMD ALUMINUM ELECTROLYTIC CAPACITORS
Dimension: Ø D x L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
4V(0G) 6.3V(0J) 10V(1A) 16V(1C) 25V(1E)
µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA
4.7 47 4x5.3 19
10 100 4x5.3 23 4(3)x5.3 26(14) 5x5.3 32
22 220 3x5.3 14 4x5.3 23 5x5.3 39
33 330 4x5.3 31 4x5.3 31
47 470 4x5.3 34
68 680 5x5.3 54 6.3x5.3 89
100 101
220 221 6.3x5.3 110
330 331 * 8x6.5 155(139) 8x10 252 8x10 252 10x10 458
470 471 8x10 252 10x10 458 10x10 458
1000 102 10x10 458 10x10 458
1500 152 10x10.3 458
V.DC
Content
4x5.3 33
5x5.3 48 6.3x5.3 67
4x5.3 37
5x5.3 50 6.3x5.3 75 * 8x6.5 155(98)
5x5.3 58 5x5.3 63 5x5.3 65 6.3x5.3 110 6.3x7.7 124
6.3x5.3 89 6.3x5.3 98
6.3x5.3 110 6.3x7.7 124
* 8x6.5 155(123) * 8x6.5 155(130)
6.3x5.3 67
5x5.3 63
6.3x5.3 98 * 8x6.5 155(109)
6.3x5.3 110
* 8x6.5 155(108)
Ripple Current: mA/rms at 120 Hz,85°C
4x5.3 30
5x5.3 44
6.3x5.3 63
5x5.3 52 6.3x5.3 75
6.3x5.3 98
* 8x6.5 155(108) * 8x6.5 155(124)
* 8x10 252(124) 8x10 252
6.3x5.3 55
5x5.3 54
6.3x5.3 103
67
VE
35V(1V) 50V(1H) 63V(1J) 100V(1V)
µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA
0.1 0R1 4x5.3 3
0.22 R22 4x5.3 5
0.33 R33 4x5.3 6
0.47 R47 4x5.3 7
1 010 4x5.3 10
2.2 2R2 4x5.3 15
3.3 3R3 3x5.3 8 4x5.3 19
4.7 4R7 4x5.3 20
10 100
22 220
33 330
47 470 * 8x6.5 155(98)
68 680
100 101 * 8x10 252
220 221 10x10 458 10x10 458
V.DC
Content
4x5.3 20
5x5.3 26
4x5.3 27 5x5.3 34
8x6.5 75 8x10 94
5x5.3 34 6.3x5.3 44
5x5.3 47 6.3x5.3 59
8x10 139 10x10 189
6.3x5.3 59 * 8x6.5 155(65)
6.3x5.3 67 6.3x7.7 82
8x10 139 10x10 189
* 8x6.5 155(85) * 8x6.5 155(82)
6.3x7.7 98
10x10 226
* 8x10 252(98)
6.3x7.7 109
8x10 252 10x10 226
* 8x6.5 155(109)
8x10 252
10x10 226
10x10 458
* 6.3x7.7 is available and ( ) is its ripple current.
