Page 1
72
GA
GA
GA
Series

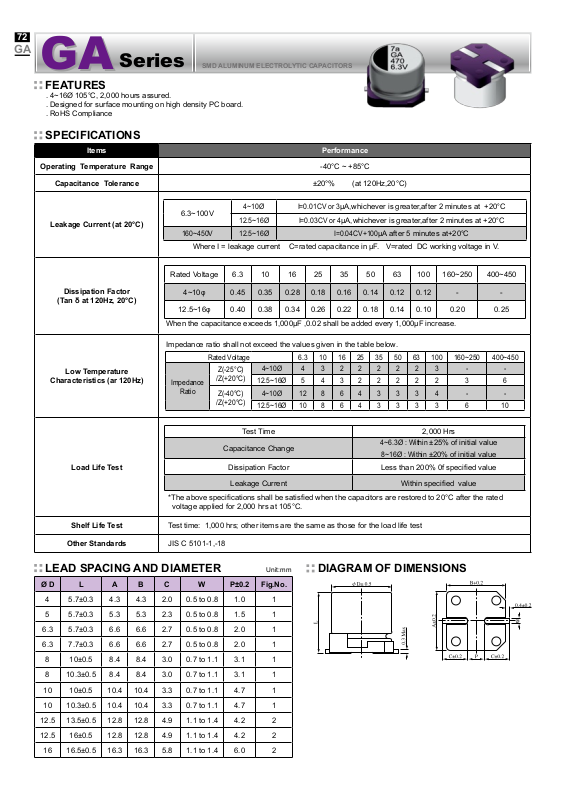

SMD ALUMINUM ELECTROLYTIC CAPACITORS
FEATURES
. 4~16Ø 105°C, 2,000 hours assured.
. Designed for surface mounting on high density PC board.
. RoHS Compliance
SPECIFICATIONS
Items Performance
Operating Temperature Range -40°C ~ +85°C
Capacitance Tolerance ±20°% (at 120Hz,20°C)
Leakage Current (at 20°C)
Dissipation Factor
(Tan δ at 120Hz, 20°C)
Low Temperature
Characteristics (ar 120Hz)
Load Life Test
6.3~100V
160~450V 12.5~16Ø I=0.04CV+100
Where I = leakage current C=rated capacitance in μF. V=rated DC working voltage in V.
Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450
4~10
φ
12.5~16
φ
When the capacitance exceeds 1,000μF ,0.02 shall be added every 1,000μF increase.
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450
Impedance
Ratio
*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 105°C.
4~10Ø I=0.01CV or 3
12.5~16Ø I=0.03CV or 4
0.45 0.35 0.28 0.18 0.16 0.14 0.12 0.12 - -
0.40 0.38 0.34 0.26 0.22 0.18 0.14 0.10 0.20 0.25
Z(-25°C)
/Z(+20°C)
Z(-40°C)
/Z(+20°C)
Capacitance Change
Dissipation Factor Less than 200% 0f specied value
Leakage Current Within specied value
4~10Ø 4 3 2 2 2 2 2 3 - -
12.5~16Ø 5 4 3 2 2 2 2 2 3 6
4~10Ø 12 8 6 4 3 3 3 4 - -
12.5~16Ø 10 8 6 4 3 3 3 3 6 10
Test Time 2,000 Hrs
μA,whichever is greater,after 2 minutes at +20°C
μA,whichever is greater,after 2 minutes at +20°C
μA after 5 minutes at+20°C
4~6.3Ø : Within
8~16Ø : Within
±25% of initial value
±20% of initial value
Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test
Other Standards JIS C 5101-1,-18
LEAD SPACING AND DIAMETER Unit:mm
Ø D L A B C W P±0.2 Fig.No.
4 5.7±0.3 4.3 4.3 2.0 0.5 to 0.8 1.0 1
5 5.7±0.3 5.3 5.3 2.3 0.5 to 0.8 1.5 1
6.3 5.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0 1
6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0 1
8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1
8 10.3±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1
10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1
10 10.3±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1
12.5 13.5±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2
12.5 16±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2
16 16.5±0.5 16.3 16.3 5.8 1.1 to 1.4 6.0 2
DIAGRAM OF DIMENSIONS
Page 2
SMD ALUMINUM ELECTROLYTIC CAPACITORS
Dimension: Ø D x L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V.DC
6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H) 63V(1J)
Content
µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA
Ripple Current: mA/rms at 120 Hz,85°C
73
GA
0.1 0R1
0.22 R22
0.33 R33
0.47 R47
1 010
2.2 2R2
3.3 3R3
4.7 4R7
10 100
22 220
33 330
47 470
100 101
4x5.7 2
4x5.7 3
4x5.7 4
4x5.7 5 4x5.7 5
4x5.7 10 4x5.7 8
4x5.7 16 4x5.7 12
4x5.7 18 5x5.7 17
4x5.7 13 4x5.7 16 5x5.7 20 6.3x5.7 22
4x5.7 17 5x5.7 23 5x5.7 27 6.3x5.7 32 6.3x5.7 32
5x5.7 30 6.3x5.7 38 6.3x5.7 44 6.3x5.7 47 6.3x7.7 58
5x5.7 30 6.3x5.7 45 6.3x5.7 50 6.3x5.7 54 6.3x7.7 65 8x10 140
5x5.7 30 6.3x5.7 48 6.3x5.7 48 6.35.7 60 6.3x7.7 80 6.3x7.7 80
8x10 230
6.3x5.7 69 6.3x5.7 69 6.3x5.7 69 6.3x7.7 100 8x10 320
10x10 375
8x10 170
10x10 310
10x10.3 310
220 221
330 331
470 471
1000 102
2200 222
3300 332
4700 472
6800 682
100V(2A) 160V(2C) 200V(2D) 250V(2E) 400V(2G) 450V(2W)
Content
µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA
3.3 3R3
4.7 4R7
10 100
22 220
6.3x7.7 120 6.3x7.7 120 6.3x7.7 120 8x10 320 10x10 375 10x10.3 375 12.5x13.5 470
8x10 290 8x10 290 8x10 290 10x10 375 10x10.3 410 12.5x13.5 500 16x16.5 700
8x10 320
10x10 410 10x10.3 410 12.5x13.5 550 12.5x16 550 16x16.5 750
12.5x13.5 680 12.5x16 750 16x16.5 950 16x16.5 820
12.5x16 850 16x16.5 1000 16x16.5 950
16x16.5 1,000 16x16.5 1000
16x16.5 1,000
8x10 320
8x10 320 10x10 410 12.5x13.5 520 12.5x16 550 16x16.5 700
10x10 410
V.DC
12.5x13.5 65 12.5x13.5 40
12.5x13.5 68 12.5x13.5 50 12.5x13.5 50
12.5x13.5 80 12.5x13.5 72 12.5x13.5 65 12.5x16 55
8x10 100 12.5x13.5 90 12.5x13.5 90 16x16.5 85 16x16.5 85
33 330
47 470
100 101
220 221
10x10 150 12.5x13.5 95 12.5x16 110 16x16.5 180
12.5x13.5 250 12.5x16 11 0 16x16.5 220 16x16.5 180
12.5x13.5 380 16x16.5 190
16x16.5 450
