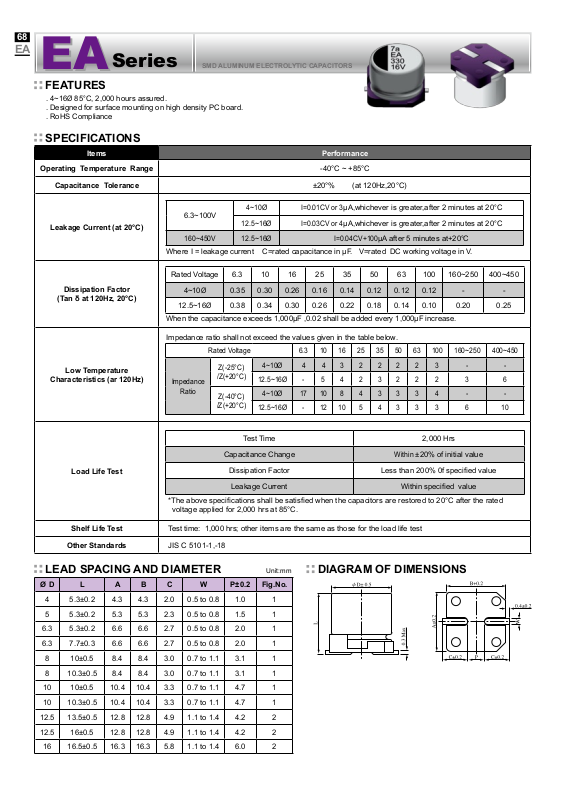

Page 1
68
EA
EA
EA
Series
SMD ALUMINUM ELECTROLYTIC CAPACITORS
FEATURES
. 4~16Ø 85°C, 2,000 hours assured.
. Designed for surface mounting on high density PC board.
. RoHS Compliance
SPECIFICATIONS
Items Performance
Operating Temperature Range -40°C ~ +85°C
Capacitance Tolerance ±20°% (at 120Hz,20°C)
Leakage Current (at 20°C)
Dissipation Factor
(Tan δ at 120Hz, 20°C)
Low Temperature
Characteristics (ar 120Hz)
Load Life Test
6.3~100V
160~450V 12.5~16Ø I=0.04CV+100
Where I = leakage current C=rated capacitance in μF. V=rated DC working voltage in V.
Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450
4~10
Ø
12.5~16
Ø
When the capacitance exceeds 1,000μF ,0.02 shall be added every 1,000μF increase.
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450
Impedance
Ratio
*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 85°C.
/Z(+20°C)
/Z(+20°C)
4~10Ø I=0.01CV or 3
12.5~16Ø I=0.03CV or 4
0.35 0.30 0.26 0.16 0.14 0.12 0.12 0.12 - -
0.38 0.34 0.30 0.26 0.22 0.18 0.14 0.10 0.20 0.25
Z(-25°C)
Z(-40°C)
Capacitance Change
Dissipation Factor Less than 200% 0f specied value
Leakage Current Within specied value
4~10Ø 4 4 3 2 2 2 2 3 - -
12.5~16Ø - 5 4 2 3 2 2 2 3 6
4~10Ø 17 10 8 4 3 3 3 4 - -
12.5~16Ø - 12 10 5 4 3 3 3 6 10
Test Time 2,000 Hrs
μA,whichever is greater,after 2 minutes at 20°C
μA,whichever is greater,after 2 minutes at 20°C
μA after 5 minutes at+20°C
Within
±20% of initial value
Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test
Other Standards JIS C 5101-1,-18
LEAD SPACING AND DIAMETER Unit:mm
Ø D L A B C W P±0.2 Fig.No.
4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0 1
5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5 1
6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0 1
6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0 1
8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1
8 10.3±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1
10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1
10 10.3±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1
12.5 13.5±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2
12.5 16±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2
16 16.5±0.5 16.3 16.3 5.8 1.1 to 1.4 6.0 2
DIAGRAM OF DIMENSIONS
Page 2
SMD ALUMINUM ELECTROLYTIC CAPACITORS
Dimension: Ø D x L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H) 63V(1J)
µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA
V.DC
Content
Ripple Current: mA/rms at 120 Hz,85°C
69
EA
0.1 0R1
0.22 R22
0.33 R33
0.47 R47
1 010
2.2 2R2
3.3 3R3
4.7 4R7
10 100
22 220
33 330
47 470
68 680
100 101
220 221
4x5.3 3 4x5.3 1.3
4x5.3 5 4x5.3 3
4x5.3 6 4x5.3 4
4x5.3 7 4x5.3 5
4x5.3 10 4x5.3 8
4x5.3 15 4x5.3 12
4x5.3 15 5x5.3 17
4x5.3 19 4x5.3 18 4x5.3 18 5x5.3 20
4x5.3 26 4x5.3 26 4x5.3 24 4x5.3 24 5x5.3 30 6.3x.3 32
4x5.3 30 4x5.3 26 4x5.3 26 5x5.3 41 5x5.3 41 6.3x5.3 47 6.3x7.7 60
4x5.3 30 5x5.3 30 5x5.3 37 5x5.3 47 6.3x5.3 54 6.3x7.7 70 6.3x7.7 60
4x5.3 33 6.3x5.3 44 5x5.3 44 6.3x5.3 60 6.3x5.3 64 6.3x7.7 85 8x10 130
5x5.3 40 6.3x5.3 60 6.3x5.3 60 6.3x7.7 100 6.3x7.7 100 8x10 11 0 10x10 170
5x5.3 40 6.3x5.3 60 6.3x5.3 60 6.3x7.7 100
6.3x5.3 88 6.3x7.7 130 6.3x7.7 130 8x10 260
6.3x7.7 120
8x10 130 12.5x13.5 380
8x10 280
8x10.3 280
10x10 170 12.5x13.5 580
10x10 360
330 331
470 470
1000 102
2200 222
1300 332
4700 472
6800 682
100V(2A) 160V(2C) 200V(2D) 250V(2E) 400V(2G) 450V(2W)
µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA
Content
4.7 4R7
10 100
22 220
33 330
47 470
6.3x7.7 135 8x10 270 8x10 270 8x10.3 280 10x10.3 360 12.5x13.5 600 12.5x16 720
8x10 280 8x10 280 8x10 280 10x10 400 12.5x13.5 600 12.5x16 740 16x16.5 950
8x10.3 430 10x10 430 12.5x13.5 710 12.5x13.5 820 16x16.5 1100
12.5x13.5 890 12.5x13.5 960 16x16.5 1150 16x16.5 1450
12.5x16 1000 16x16.5 1300 16x16.5 1150
16x16.5 1400 16x16.5 1300
16x16.5 1700
V.DC
12.5x13.5 120 12.5x13.5 120
8x10 90 12.5x13.5 150 12.5x13.5 120 12.5x16 130
8x10 90 12.5x13.5 240 12.5x13.5 150 16x16.5 140 16x16.5 140
10x10 120 12.5x13.5 240 12.5x16 310 12.5x16 240 16x16.5 140
10x10 120 12.5x16 370 16x16.5 340 16x16.5 340
68 680
100 101
220 221
12.5x13.5 380 16x16.5 500 16x16.5 340
12.5x13.5 380
16x16.5 500
